Presentation Transcript

  1. Construction Update

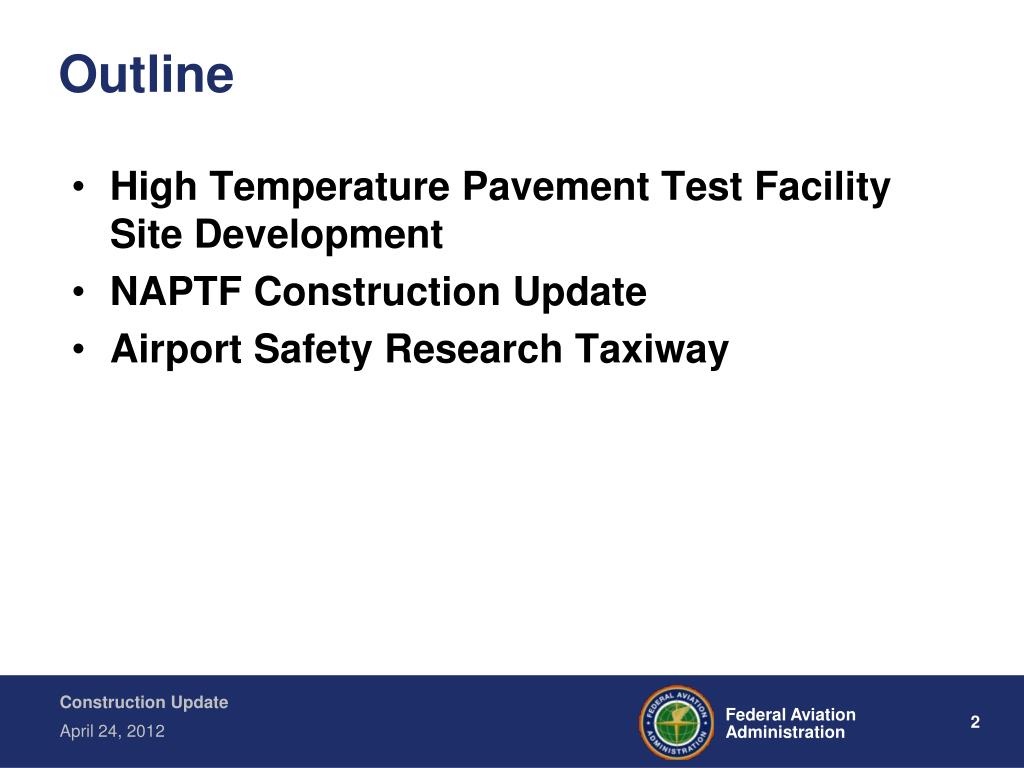

  2. Outline • High Temperature Pavement Test Facility Site Development • NAPTF Construction Update • Airport Safety Research Taxiway

  3. Length 125 Feet Heavy Vehicle Simulator - Airfield 11 ft

  4. Proposed Site Layout

  5. Proposed Test Strip Layout

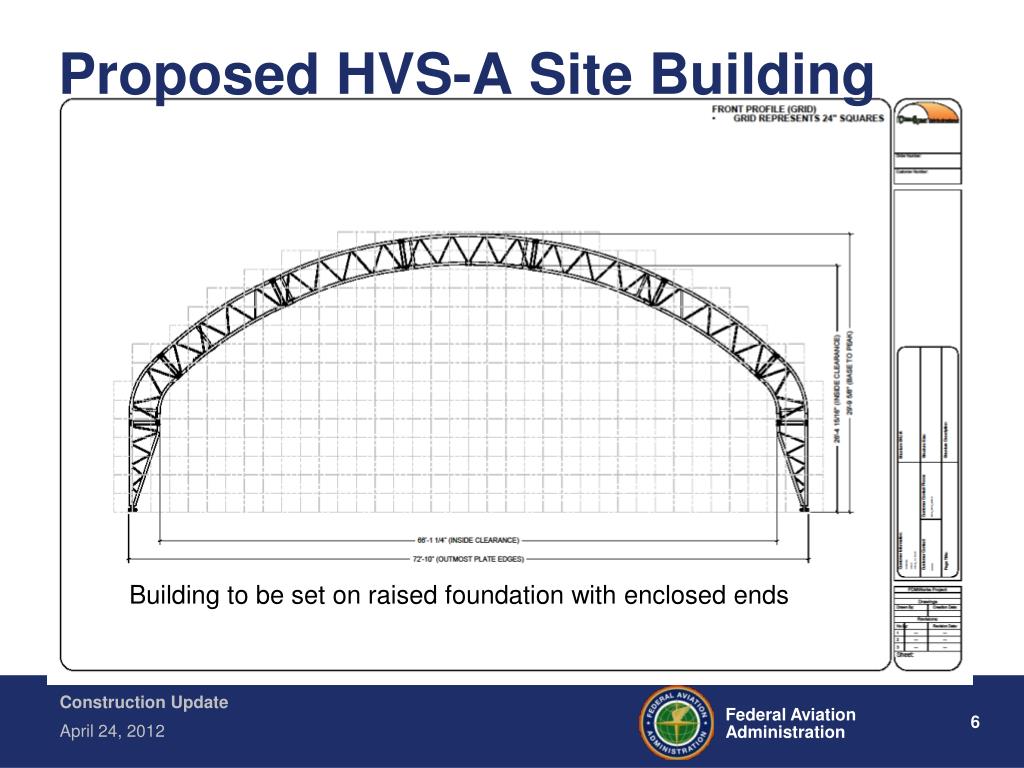

  6. Proposed HVS-A Site Building Building to be set on raised foundation with enclosed ends

  7. 72ft Wide Cover for Test Strips(Subgrade Process Facility)

  8. Revised Safety / ARFF Building

  9. Construction Authorization - Original

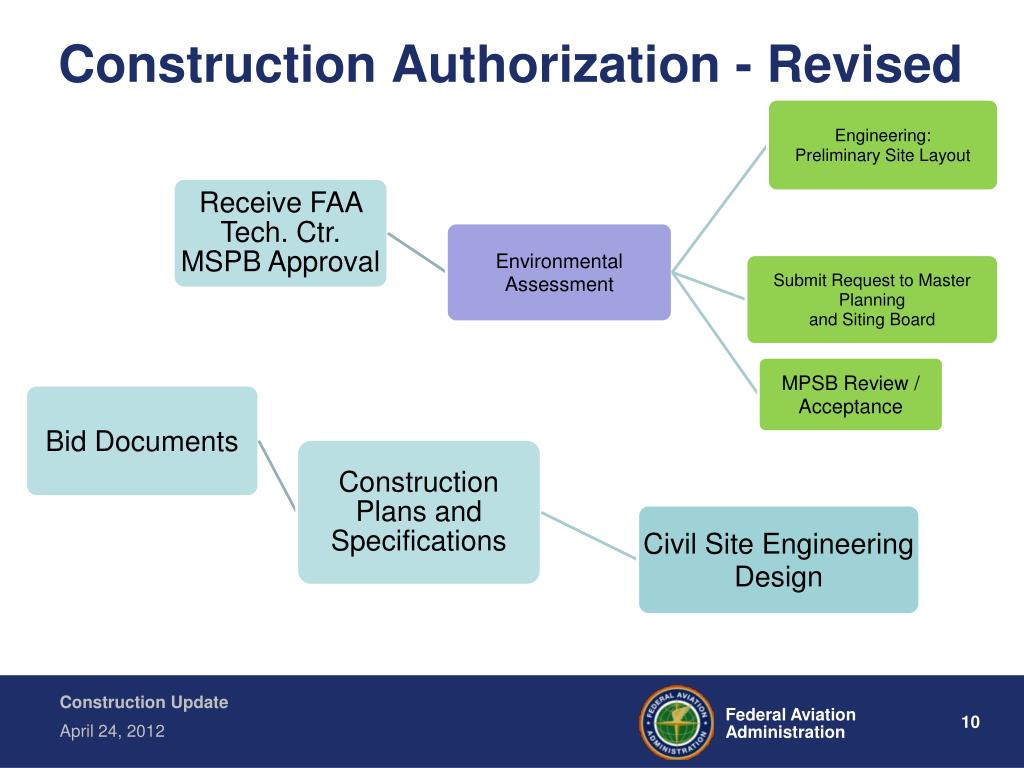

  10. Construction Authorization - Revised

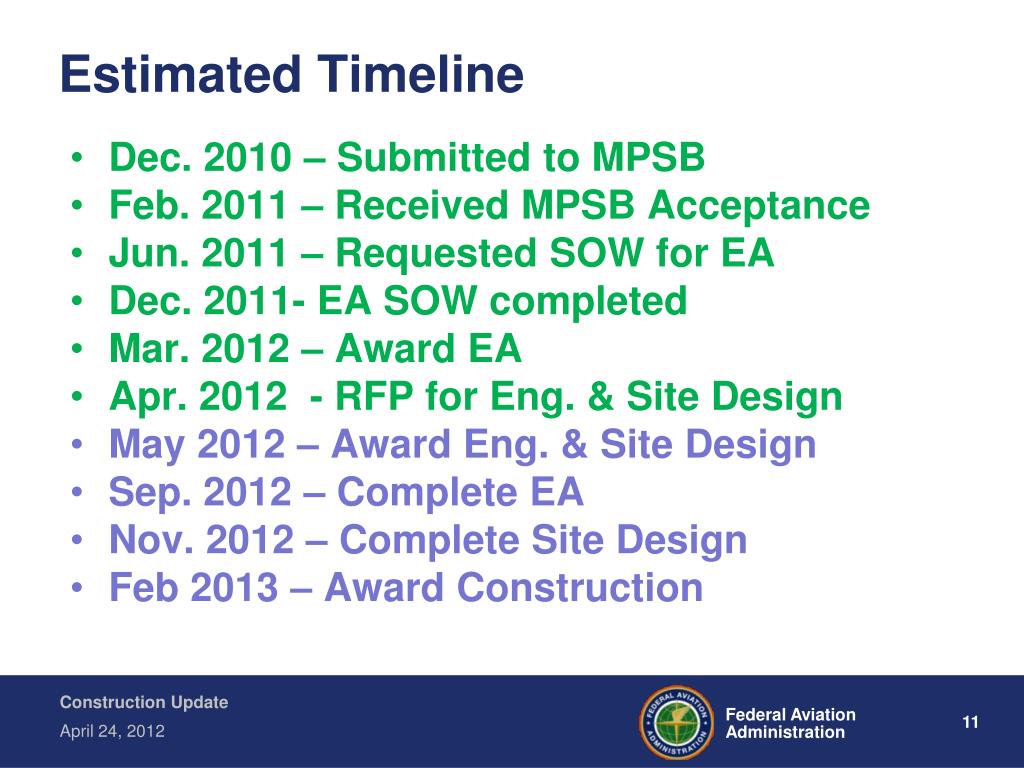

  11. Estimated Timeline • Dec. 2010 – Submitted to MPSB • Feb. 2011 – Received MPSB Acceptance • Jun. 2011 – Requested SOW for EA • Dec. 2011- EA SOW completed • Mar. 2012 – Award EA • Apr. 2012 - RFP for Eng. & Site Design • May 2012 – Award Eng. & Site Design • Sep. 2012 – Complete EA • Nov. 2012 – Complete Site Design • Feb 2013 – Award Construction

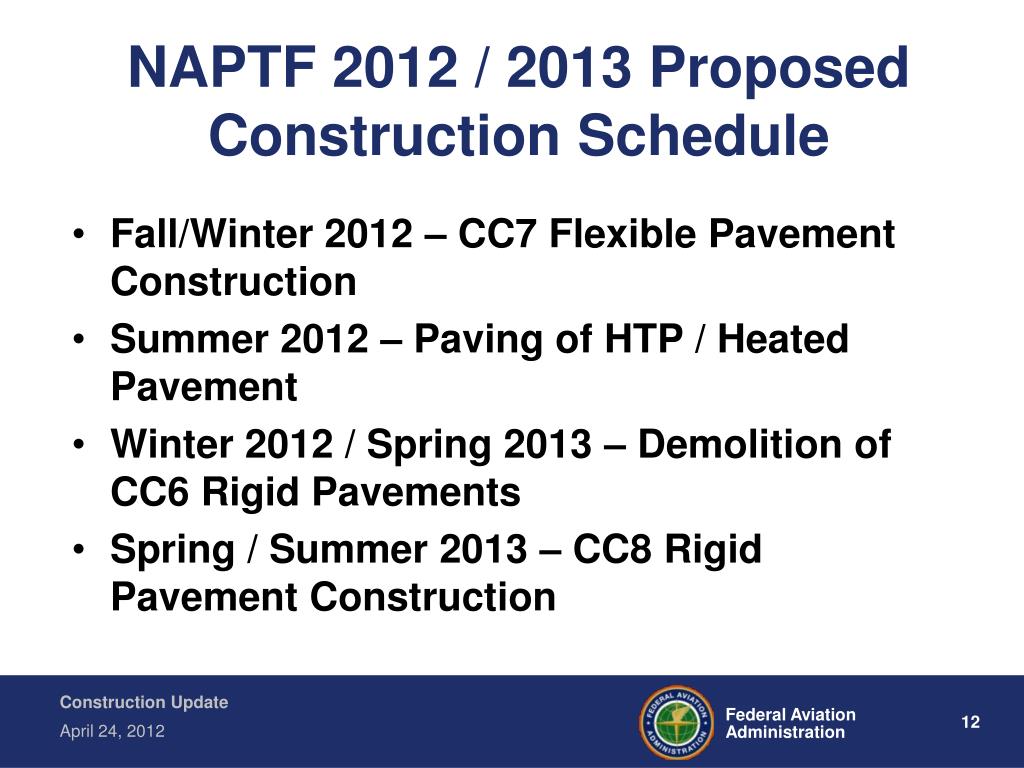

  12. NAPTF 2012 / 2013 Proposed Construction Schedule • Fall/Winter 2012 – CC7 Flexible Pavement Construction • Summer 2012 – Paving of HTP / Heated Pavement • Winter 2012 / Spring 2013 – Demolition of CC6 Rigid Pavements • Spring / Summer 2013 – CC8 Rigid Pavement Construction

  13. Airport Technology Research Taxiway Memorandum of Agreement signed between the FAA and Delaware River & Bay Authority • Grants the FAA the “right to construct, operate, and maintain research infrastructure” at the Cape May County Airport from November 15, 2010 through September 30, 2030.

  14. Cape May County Airport

  15. Airport Technology Research TW

  16. Project Summary • The objectives of the project are to: • Rehabilitate former Taxiway C to develop a state of the art research test bed. • Design, install, test, monitor, and report on new technologies in signs, lighting, and markings. • Allow for other airport safety and pavement research needs to be conducted. • Be utilized as a taxiway by the airport when the FAA is not actively conducting research on the test bed.

  17. Project Summary • Primary use of the test bed will be for evaluating various airfield lighting systems. • Centerline Lights • Runway Guard Lights – In-Pavement and Elevated • Touch Down Zone Lighting • Runway Status Lights • Will be reconfigurable – multiple duct banks, hand holes, pull boxes and conduit • Support lighting requirements for airport’s use of taxiway when FAA not testing. • In-pavement taxiway lights may be tied into the airport’s existing infrastructure w/ cut off capability.

  18. Design Development • Electrical Vault • 300kva 277/480 3-phase, pad mounted transformer • Install building to accommodate regulators, support equipment, staging area, and storage. • Power to be provided Atlantic City Electric • Brought in from overhead lines along Fulling Mill Rd • Direct burial along airport fence line to transformer.

  19. Existing Pavement Condition Taxiway C

  20. Design Development • Taxiway C Pavement Rehabiliation • from Runway 10/28 to Taxiway B ~ 2800 feet long • 50’ wide full strength • Mill top 3 inches of existing surface • Re-grade using millings and compact existing base and millings • Prime coat • 3” surface - various pavement mixes • 50’ shoulders • 3 inch mill, grade and compact in place • Prime coat • Overlay with new 3 inch HMA

  21. Pavement Research • Five Test Pavement Sections, each +/- 550 feet long • Provides an excellent opportunity to study the effect of environmental factors on the durability of new environment friendly (greener) materials used for surface layers in flexible pavements. • Periodic Heavy Weight Deflectometer (HWD) tests and other non-destructive tests (PSPA) will be performed to monitor changes in the material properties (such as stiffness, etc.) of pavement layers. • Laboratory tests on material samples collected during construction. • The test pavement will be used to improve and develop new instrumentation and data acquisition techniques.

  22. Test Pavement Layout P-401Marshall WMA PG 64-22 P-401 Marshall PG 64-22 P-401 Marshall PG 76-22 P-401SuperPave PG 64-22 P-405 SMA PG 76-22

  23. Work Completed - Schedule • 30% Design submitted October 2011 • 60% Design submitted January 2012 • 90% Design submitted April 2012 • Final Bid Package due end of May 2012 • Bidding and Award • Summer / Fall 2012 • Construction • Fall 2012 – Spring 2013

  24. QUESTIONS? Murphy Flynn Murphy.Flynn@faa.gov
