  1. Jigs and procedure for ladder assemblyBelleIInote#8 6th Feb 2012 Yoshiyuki Onuki University of Tokyo

  2. Updates • Design of ladder assembly jigs for layer 6 • Forward DSSD(trapezoidal) assembly • Backward DSSD(rectangle) assembly • Booting new lab for the assembly in IPMU. • Equipment • Handling jigs

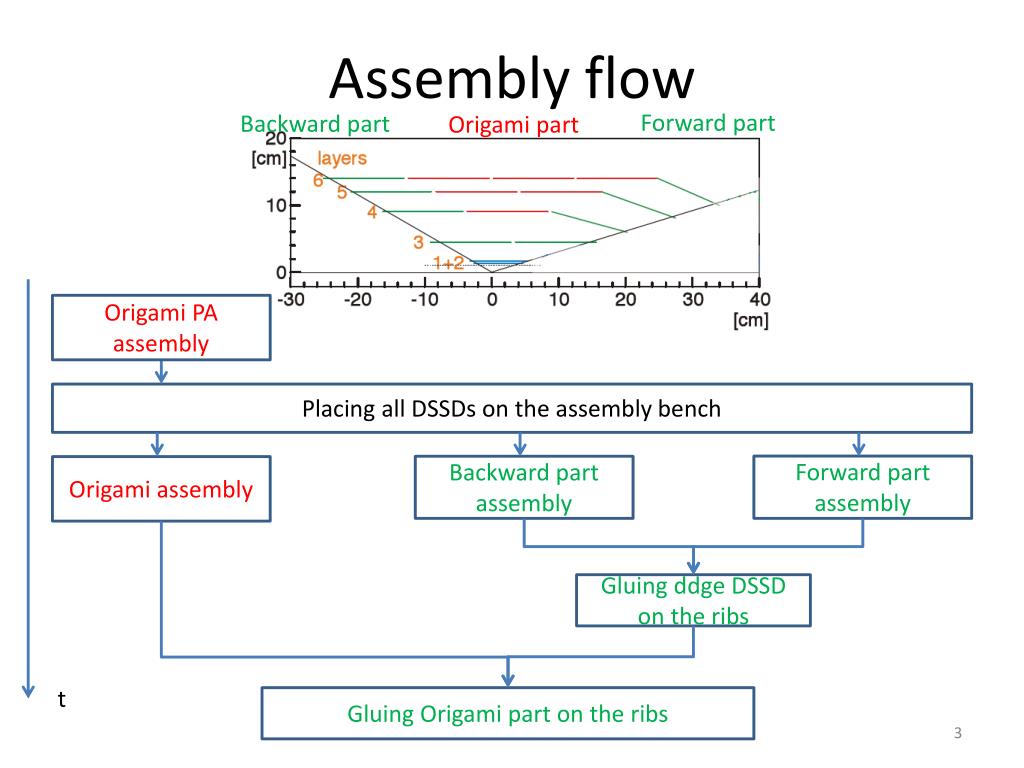

  3. Assembly flow Forward part Backward part Origami part Origami PAassembly Placing all DSSDs on the assembly bench Forward part assembly Backward part assembly Origami assembly Gluing ddgeDSSD on the ribs t Gluing Origami parton the ribs

  4. Placing all DSSDs on the assembly bench Forward part Backward part Origami part Origami PA assembly =>Please refer B2note and past B2GM slides Placing all DSSDs on the assembly bench Forward part assembly Backward part assembly Origami assembly Gluing ddgeDSSD on the ribs t Gluing Origami parton the ribs

  5. Assembly-bench and Rib-jig Linear bush Linear bush pin Assembly-bench Rib-jig 5

  6. Combining Assemby-bench and Rib-jig

  7. Placing aligned backward DSSD

  8. Placing aligned backward DSSD(rec.)

  9. Placing aligned Origami DSSD(left)

  10. Placing aligned Origami DSSD(left)

  11. Placing aligned Origami DSSD(mid)

  12. Placing aligned Origami DSSD(mid)

  13. Placing aligned Origami DSSD(right)

  14. Placing aligned Origami DSSD(right)

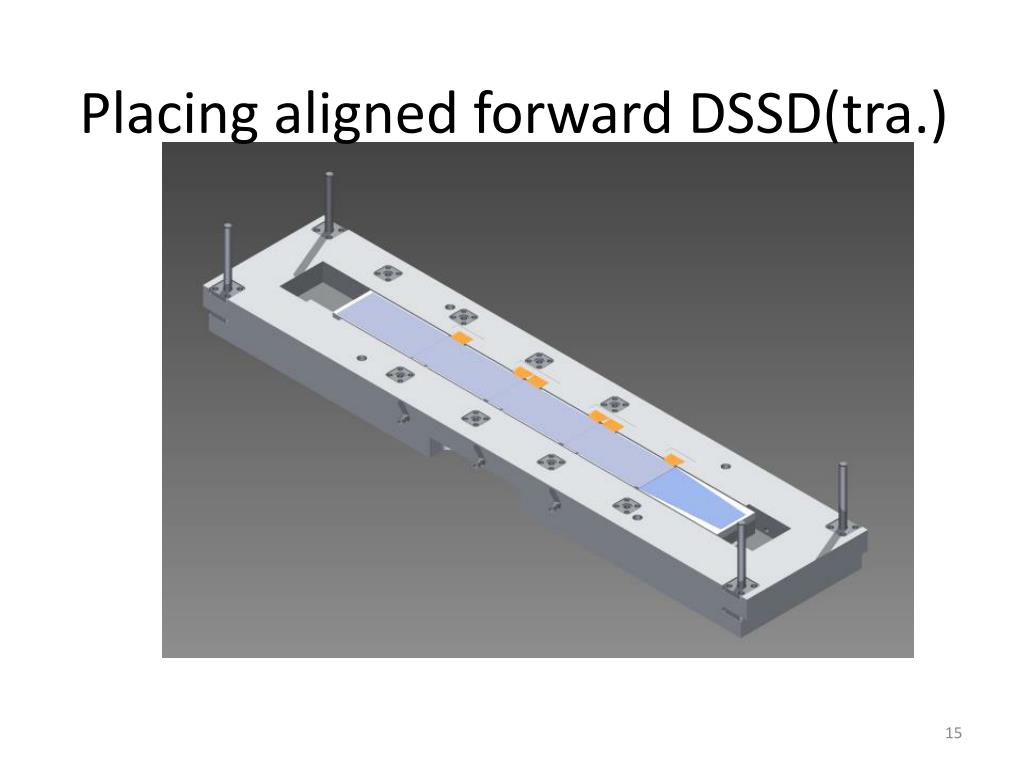

  15. Placing aligned forward DSSD(tra.)

  16. Placing aligned forward DSSD(tra.)

  17. Picking up forward DSSD(tra.)

  18. Picking up forward DSSD(tra.)

  19. Picking up backward DSSD(rec.)

  20. Picking up backward DSSD(rec.)

  21. Picking up backward DSSD(rec.)

  22. Forward part assembly Forward part Backward part Origami part Origami PAassembly Placing all DSSDs on the assembly bench Forward part assembly Backward part assembly Origami assembly Gluing ddgeDSSD on the ribs t Gluing Origami parton the ribs

  23. Picked up backward DSSD(rec.)

  24. Placing hybrid board

  25. Gluing PE1 and wire bonding

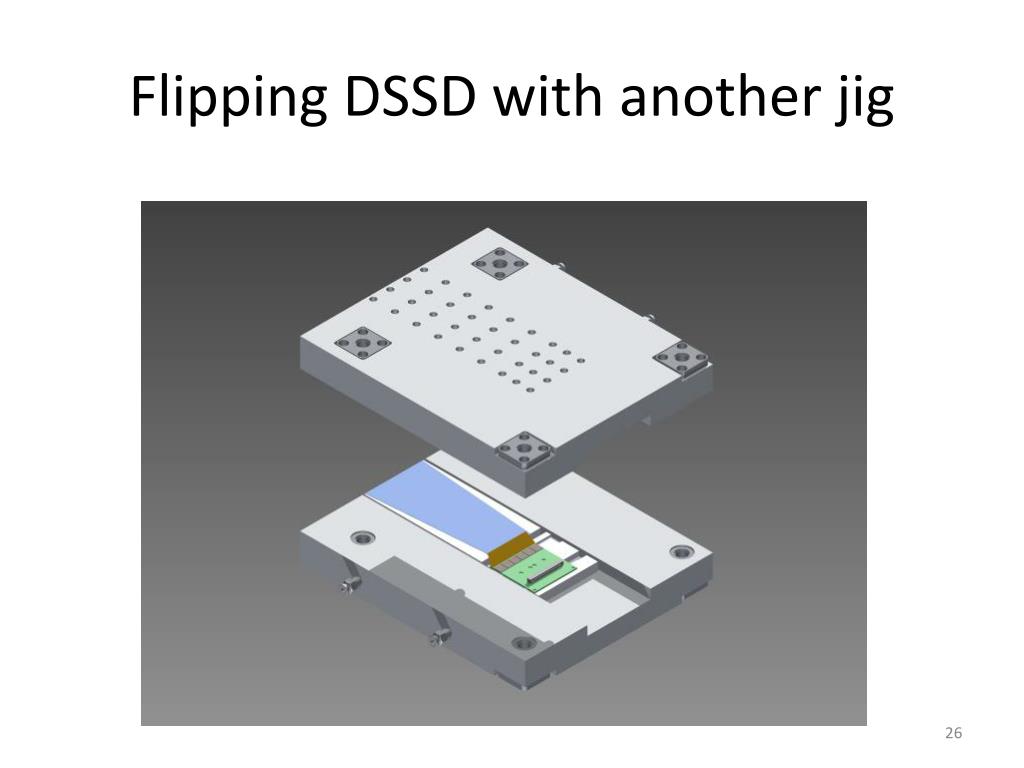

  26. Flipping DSSD with another jig

  27. Flipping DSSD with another jig

  28. Remove 1stjig

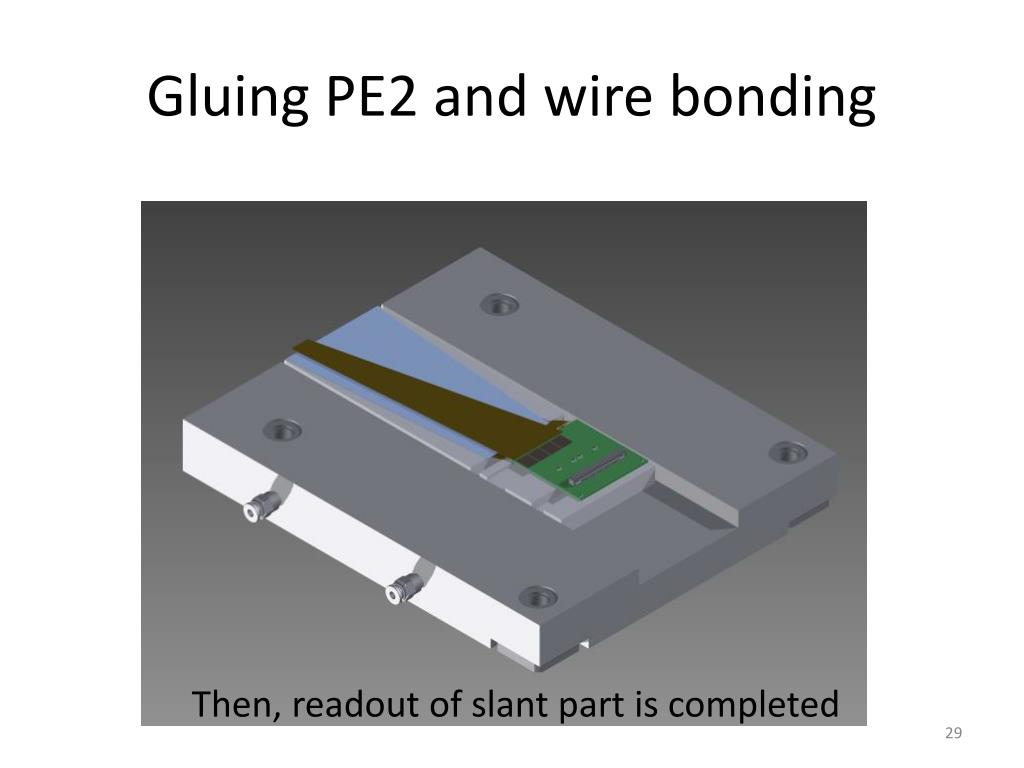

  29. Gluing PE2 and wire bonding Then, readout of slant part is completed

  30. Gluing edge DSSD on the ribs Forward part Backward part Origami part Origami PAassembly Placing all DSSDs on the assembly bench Forward part assembly Backward part assembly Origami assembly Gluing edge DSSD on the ribs t Gluing Origami parton the ribs

  31. Jig for gluing slant DSSD. goniometer Rotation axis Rotation axis Slant DSSD is chucked here • Edge of slant DSSD will sit on here. • The edge doesn’t move after the rotation. • Precise alignment of slant DSSD can be done in the horizontal plane • on the assembly-bench • This jig can be applied for not only L6 but also L4,L5 ladder assembly.

  32. Picking up forward(slant) part

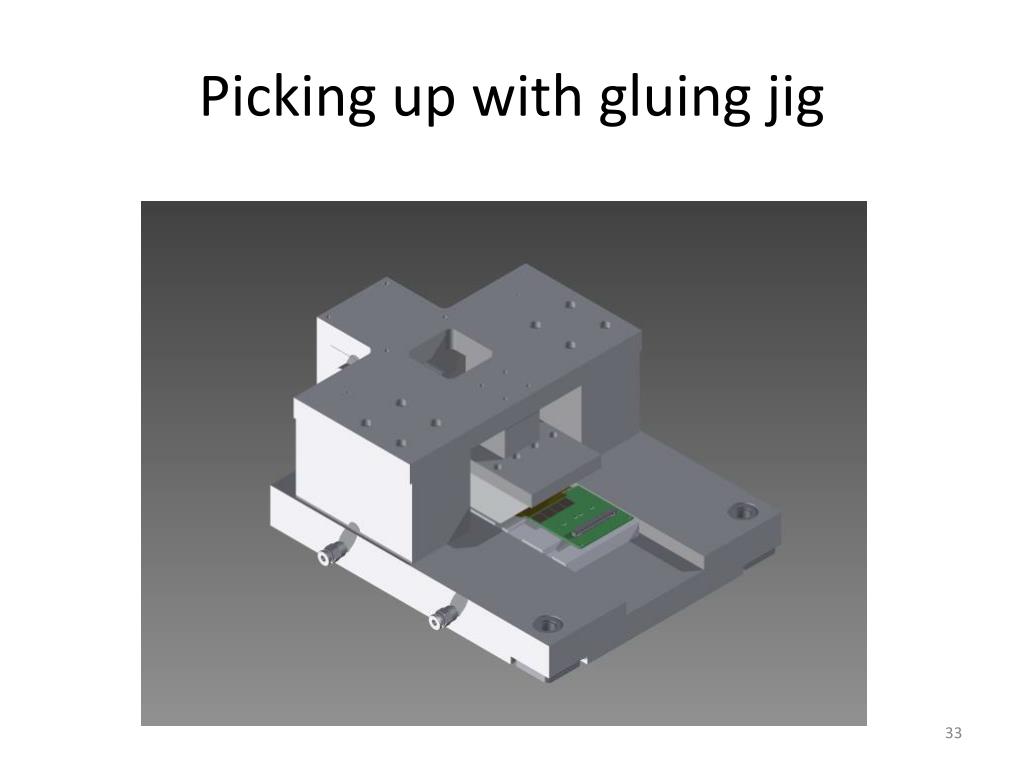

  33. Picking up with gluing jig

  34. Picking up with gluing jig

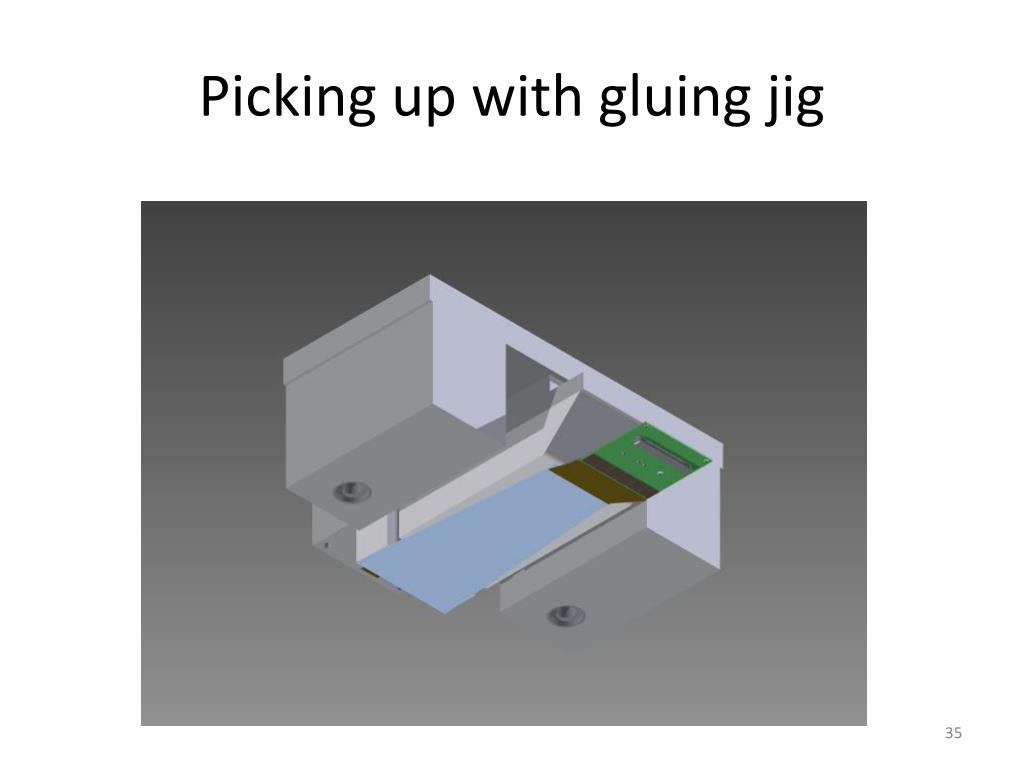

  35. Picking up with gluing jig

  36. Replacing sensor supports with rib support on the rib-jig

  37. Replacing sensor supports with rib support on the rib-jig

  38. Replacing sensor supports with rib support on the rib-jig

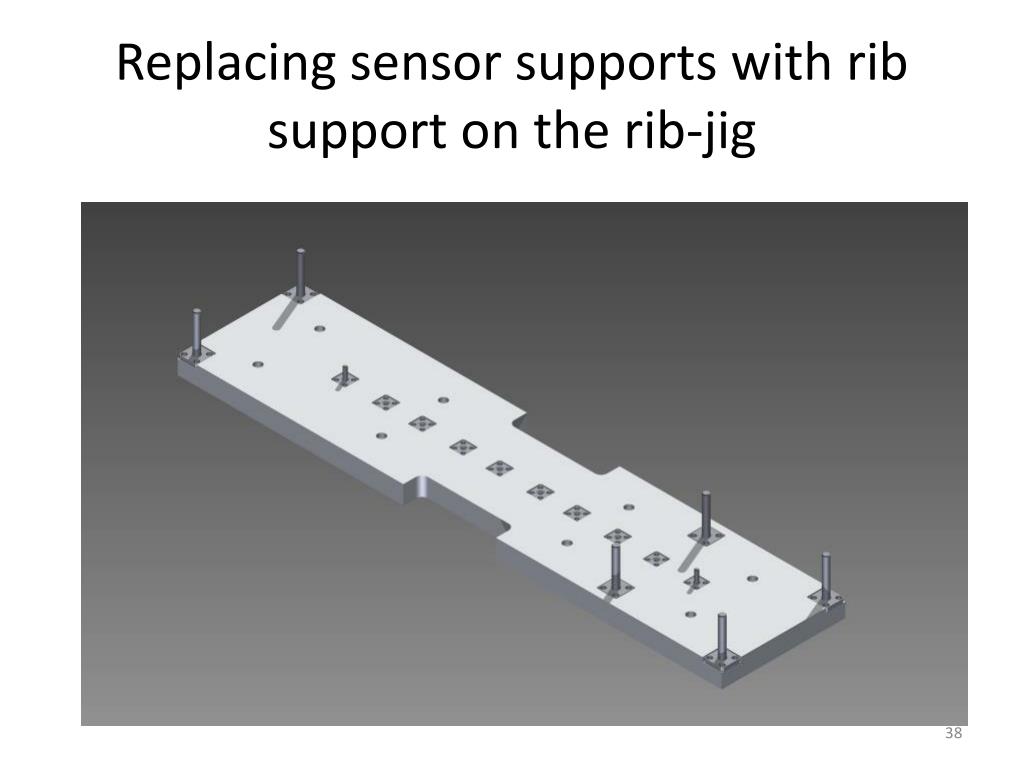

  39. Replacing sensor supports with rib support on the rib-jig

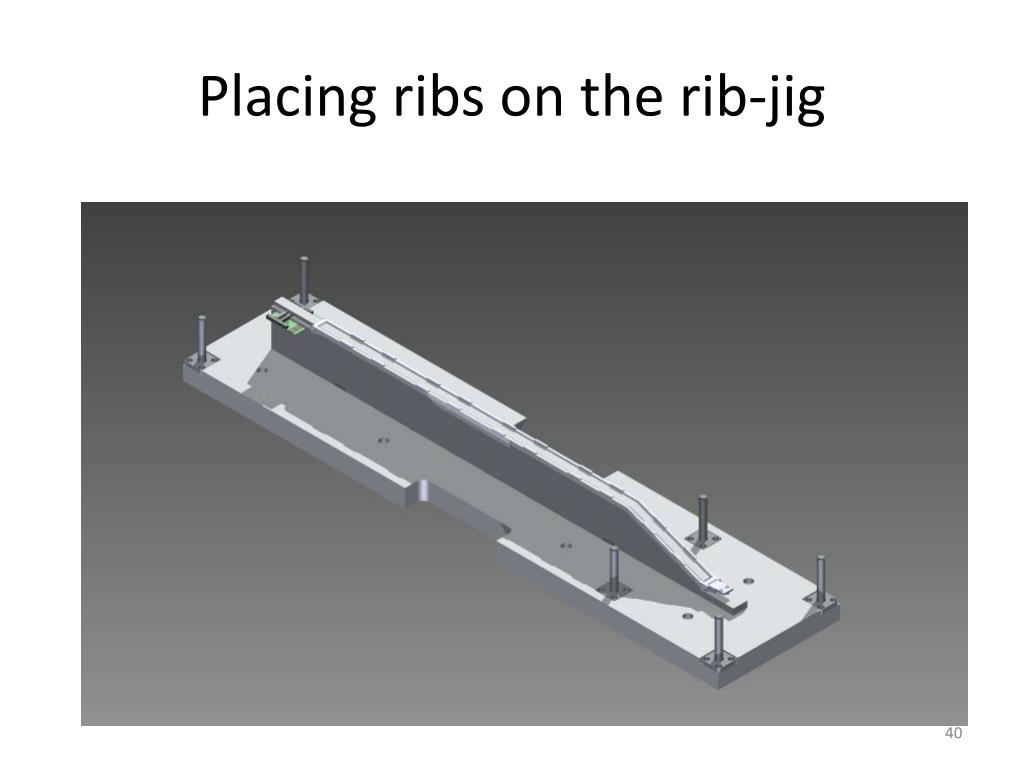

  40. Placing ribs on the rib-jig

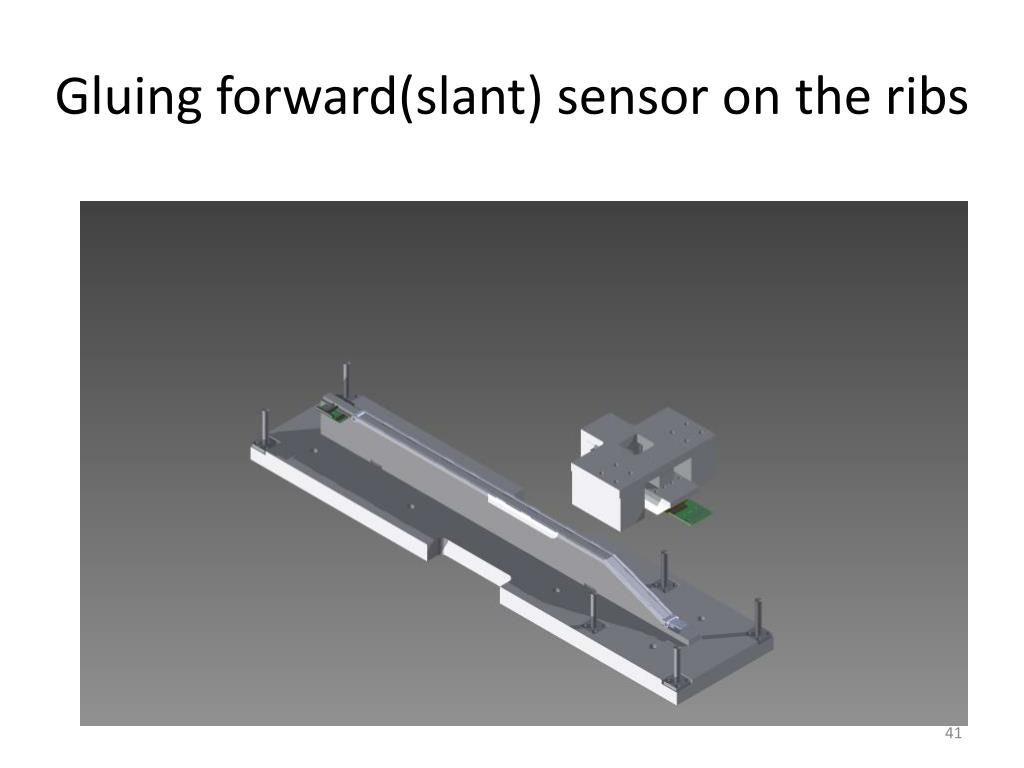

  41. Gluing forward(slant) sensor on the ribs

  42. Rotating goniometers to fit the slant angle and gluing With the same way, wecan applied for the backward DSSD much more easier(since w/o gonio rotation)

  43. Gluing edge DSSD on the ribsis finished

  44. Origami assembly Forward part Backward part Origami part Origami PAassembly Placing all DSSDs on the assembly bench Forward part assembly Backward part assembly Origami assembly Gluing edge DSSD on the ribs t Gluing Origami parton the ribs

  45. Airex jig Holes for stopper position Stopper for rohacell can be used for alignment

  46. Gluing Rohacell

  47. Origami PCB jig(Long)

  48. Origami PCB jig(Short)

  49. Gluing (Long)Origami PCB

  50. Gluing (Short)Origami PCB
