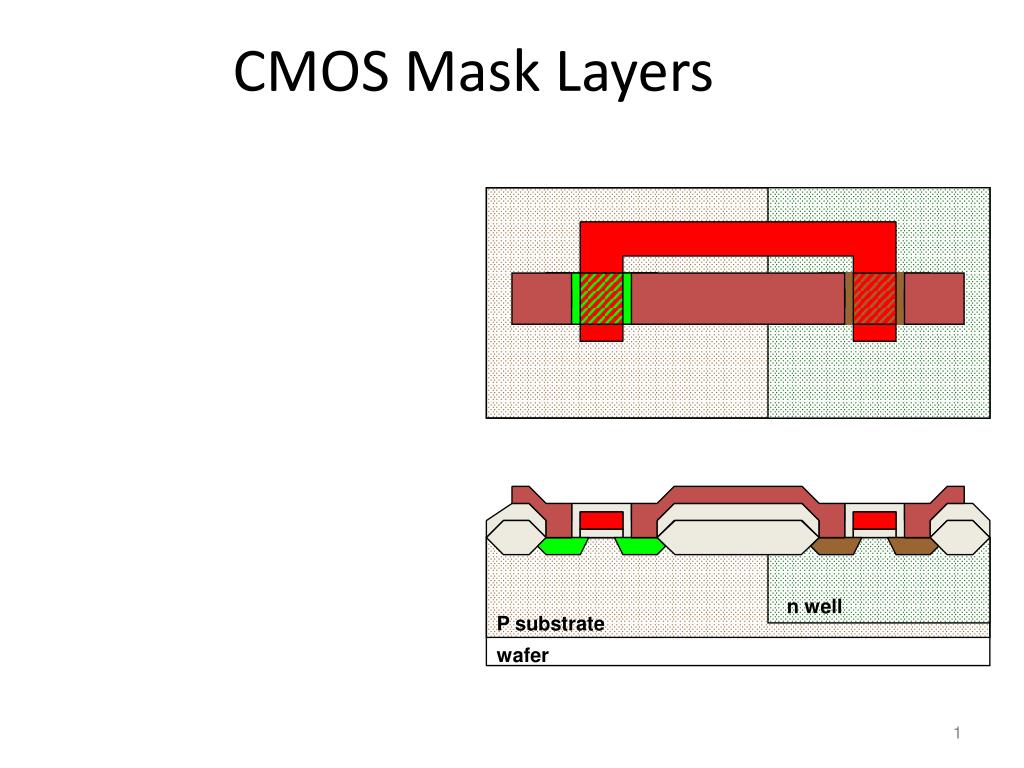

  1. n well P substrate wafer CMOS Mask Layers

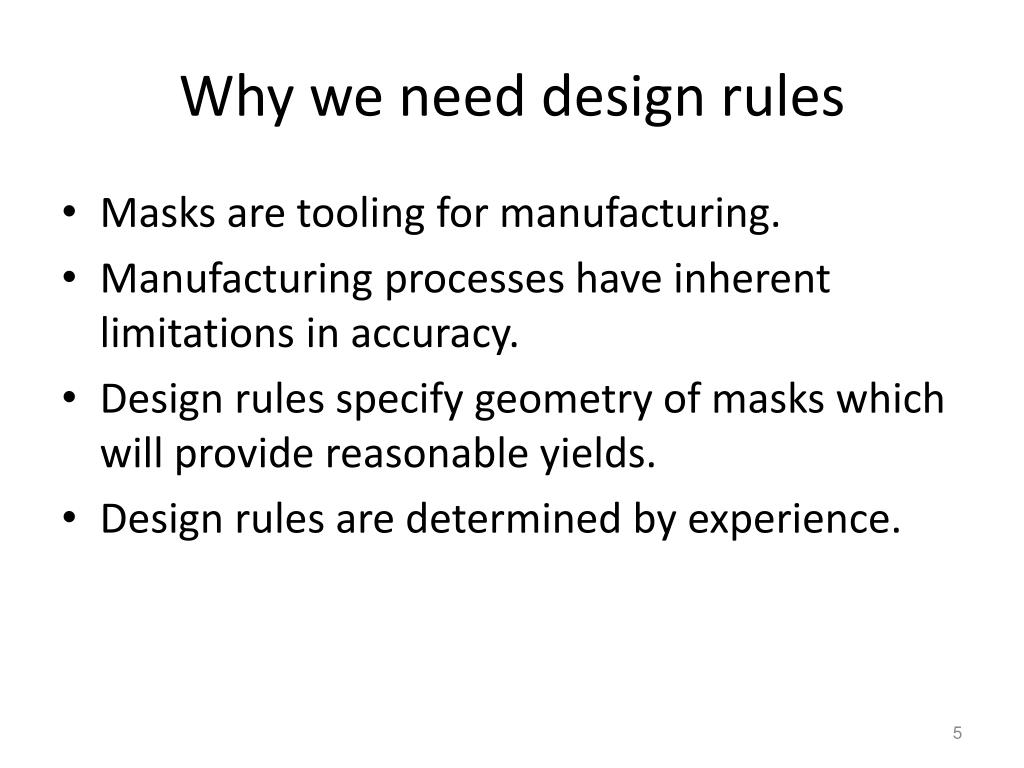

  2. Why we need design rules • Masks are tooling for manufacturing. • Manufacturing processes have inherent limitations in accuracy. • Design rules specify geometry of masks which will provide reasonable yields. • Design rules are determined by experience.

  3. Manufacturing problems • Photoresist shrinkage, tearing. • Variations in material deposition. • Variations in temperature. • Variations in oxide thickness. • Impurities. • Variations between lots. • Variations across a wafer.

  4. Mask misalignment • Dust • Process parameters (e.g., lateral diffusion) • Rough surfaces

  5. mask misaligned 0.3 both materials Contact: 0.44 x 0.44 0.14

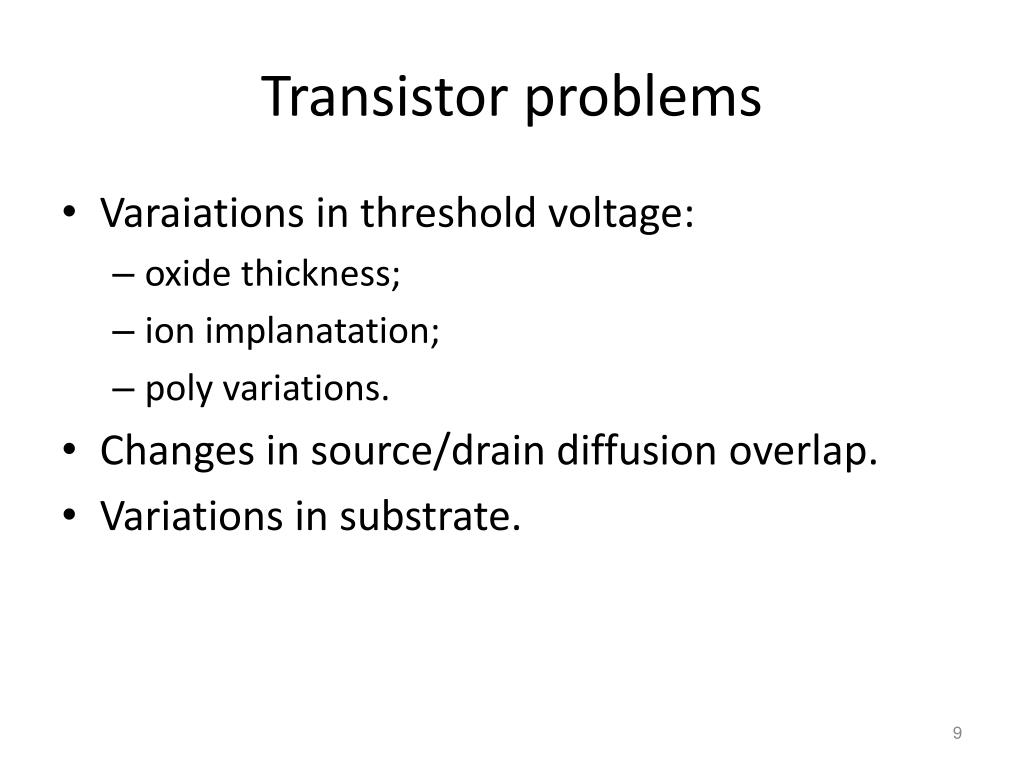

  6. Transistor problems • Varaiations in threshold voltage: • oxide thickness; • ion implanatation; • poly variations. • Changes in source/drain diffusion overlap. • Variations in substrate.

  7. Wiring problems • Diffusion: changes in doping -> variations in resistance, capacitance. • Poly, metal: variations in height, width -> variations in resistance, capacitance. • Shorts and opens:

  8. Oxide problems • Variations in height. • Lack of planarity -> step coverage. metal 2 metal 2 metal 1

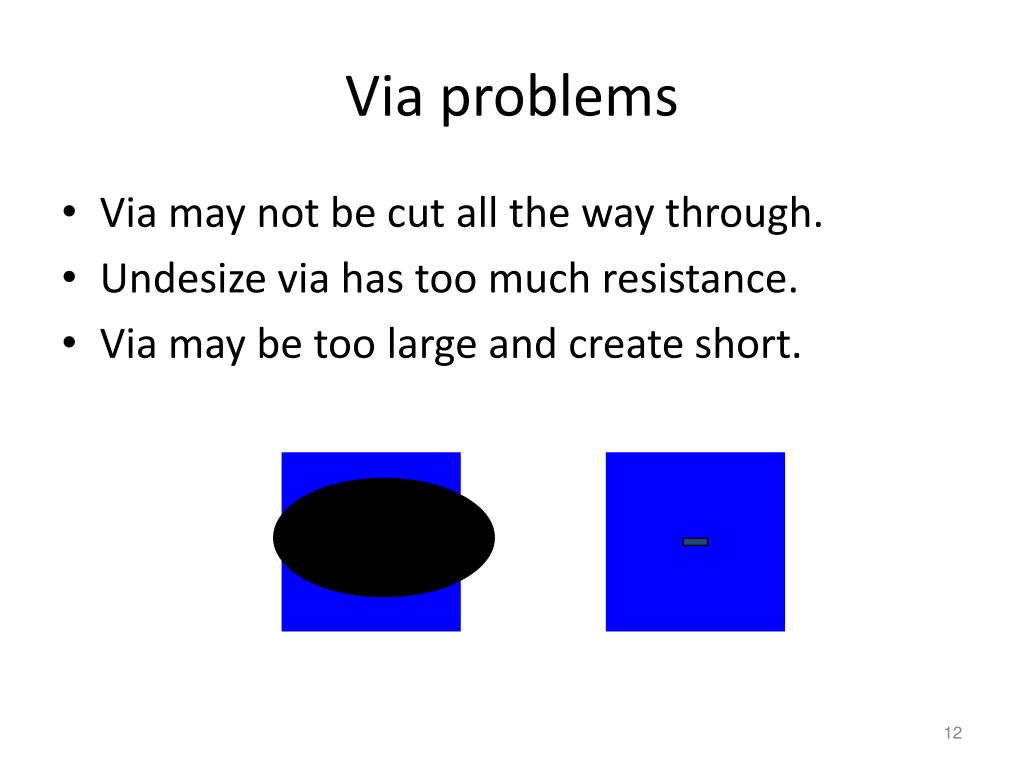

  9. Via problems • Via may not be cut all the way through. • Undesize via has too much resistance. • Via may be too large and create short.

  10. Rule for various layers – of IC fabrication • (0.3µ) 1.Well 2.Active 3.Poly 4.Select 5.Poly Contact 6.Active Contact 7.Metal-1 8.Via 9.Metal-2 10.Via2 11.Metal-3

  11. Rules for Well – 0.3 µ Minimum width 3.5µ Minimum spacing between 5.4 µwells at different potential Minimum spacing between 1.8µwells at same potential
