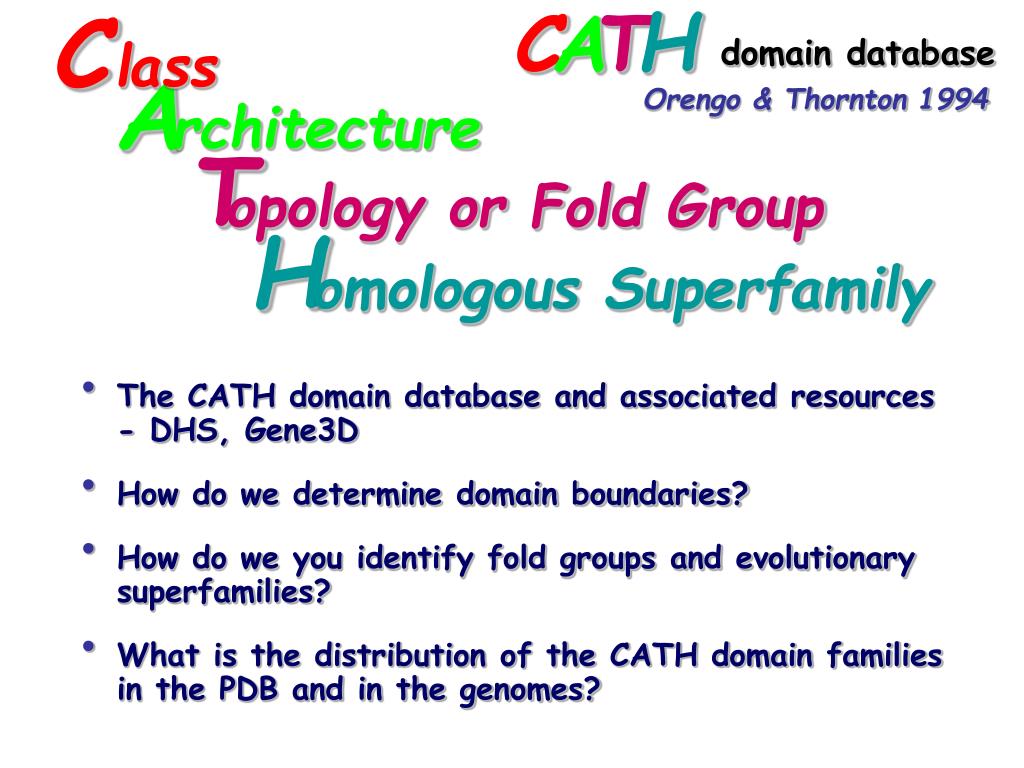

1. C H C A T The CATH domain database and associated resources - DHS, Gene3D How do we determine domain boundaries? How do we you identify fold groups and evolutionary superfamilies? What is the distribution of the CATH domain families in the PDB and in the genomes? lass domain database A Orengo & Thornton 1994 rchitecture T opology or Fold Group H omologous Superfamily

2. Multidomain proteins ~20,000 chains from Protein Databank (PDB) ~50,000 domains in CATH structure database ~40% of the entries in CATH are multidomain

3. Domains are important evolutionary units analysis by Teichmann and others suggests that ~60-80% of genes in genomes may be multidomain

4. Carboxypeptidase A (2ctc) Carboxypeptidase G2 (1cg2A) ~30% of multidomains in CATH are discontinuous

5. DETECTIVE Swindells 1995 each domain should have a recognisable hydrophobic core DOMAKSiddiqui & Barton, 1995 residues comprising a domain make more internal contacts than external ones PUUHolm & Sander, 1994 parser for protein folding units: maximal interaction within domains and minimal interaction between domains Algorithms for Recognising Domain Boundaries Consensus is sought between the three methods – on average this occurs about 20% of the time

6. 74% Close homologues 29% 21% Twilight zone 4% Midnight zone 11% Homologues/analogues

7. Sequence Based methods close homologues – BLAST (Altschul et al.) - SSEARCH (Smith & Waterman) remote homologues – SAM-T99 (Karplus et al) Structure Based Methods close & remote homologues - CATHEDRAL (Harrison, Thornton Orengo) - SSAP (Taylor & Orengo) - CORA (Orengo) Algorithms for Recognising Homologues

8. 74% Close homologues SSEARCH 29% 21% Twilight zone HMMs, SSAP 4% Midnight zone CATHEDRAL, SSAP 11% Homologues/analogues CATHEDRAL, SSAP

9. Hidden Markov Models (HMMs) SAM-T99 Karplus Group SAMOSA Orengo Group Non redundant GenBank database query sequence hits these methods can currently identify ~70% of remote homologues (3 times more powerful than BLAST)

10. Percentage of PDB structures classified in CATH by different methods over the last 2 years remote homologues (8.6) analogues (1.9) SSAP Novel folds 2.0 1.9 remote homologues (<30%) HMMs 8.6 7.6 20.7 59.2 Close homologues (>30%) SSEARCH Near-identical SSEARCH

11. 7.7 11.8 8.0 22.0 28.4 22.0 Percentage of structural genomics PDB structures classified in CATH by different methods over the last 2 years near-identical SSEARCH novel folds analogues SSAP close homologues (>30%) SSEARCH remote homologues SSAP remote homologues (<30%) HMMs

12. CATHEDRAL Pairwise alignment - secondary structure comparison SSAP Pairwise alignment - residue comparison CORA Multiple alignment – residue comparison Structure Based Algorithms for Recognising Homologues

13. 74% Close homologues ssearch 29% 21% Twilight zone HMMs 4% Midnight zone CATHEDRAL, SSAP 11% Homologues/analogues CATHEDRAL, SSAP

14. structure is much more highly conserved than sequence cholera toxin pertussis toxin Structure similarity (SSAP) score 97 81 Heat labile enterotoxin 79% 12% Sequence identity

15. Pairwise Sequence Identities and Structure Similarity (SSAP) Scores in CATH Domain Families structure similarity (SSAP) score same function different function sequence identity (%)

16. Residue insertions in the loops connecting secondary structures • Shifts in the orientations of secondary structures

17. Structural variation in the P-loop Hydrolase Superfamily

18. Structural variation in the Galectin Binding Superfamily

19. ignore the variable loop regions and only compare the secondary structures derive vectors through secondary structure elements compare closest approach distances and vector orientations using graph theory Fast Structure Comparison Method (CATHEDRAL) Andrew Harrison et al., JMB, 2002

20. d a b a . b = | a || b | cos + dihedral angle +chirality

21. CATHEDRALCATHs Existing Domain Recognition ALgorithm Compares graphs of proteins d, , , chirality H edge H d, , , chirality d, , , chirality H node

22. Comparing proteins with similar folds identifies an overlap graph with the largest common structural motif A III A,a I C III II B I C,d IV a B,c II III b b I overlap graph has a structural motif of 3 secondary structures d V II c

23. Graphs are compared using the Bron Kerbosch algorithm to find the largest common graph In this example the common graph contains 5 nodes. 1000 times faster than residue based methods (e.g. SSAP)

24. Performance

25. statistical significance can be assessed by scanning a protein ‘graph’ against ‘graphs’ of all known structures Score ~ common graph size (size protein1 . size protein2)1/2

26. statistical significance can be assessed by scanning a protein ‘graph’ against ‘graphs’ of all known structures Score ~ common graph size (size protein1 . size protein2)1/2

27. scores for unrelated structures exhibit an extreme value distribution F = A e - b . scorelog F = log A - b .score allows you to calculate the probability (P-value, E-value) of obtaining any score by chance

28. Using CATHEDRAL to Identify Domain Boundaries Graph based secondary structure comparison is very fast - 1000 times faster than residue based methods New multi-domain structures can be rapidly scanned against the library of CATH domains. E-values can be used to identify significant matches. 85-90% of domains in new multi-domain structures have relatives in CATH

29. CATHEDRAL Multi-domain structure Secondary structure match by graph SSAP residue alignment residues in new multi-domain residues in CATH domain family 1 Fold A residues in CATH domain family 2 Fold B

30. SSAP Protein A Protein B Taylor & Orengo, J. Mol. Biol. 1989 residue based structure comparison method using dynamic programming Scores range from 0-100 Residues in protein A Residues in protein B

31. CATHEDRAL One third of known multi-domain structures are discontinuous

32. Divergence - similarity arises due to divergent evolution from a common ancestor - structure much more highly conserved than sequence Convergence - similarity due to there being a limited number of ways of packing helices and strands in 3D space Reasons for Structural Similarity

35. C lass Domain structure database A Orengo & Thornton 1994 rchitecture T opology or Fold Group H omologous Superfamily ~50,000 domains in PDB ~1500 domain superfamilies in CATH

36. H C A T 3 Class ~36 Architecture Topology or Fold ~810 ~50,000 domains domain database

37. H A T C Topology or Fold Group ~810 40,000 domain entries ~50,000 domain entries Homologous Superfamily (Domain Family) ~1500 Sequence Family (35%, 60%, 95%)

38. DHS Dictionary of Homologous Superfamilies http://www.biochem.ucl.ac.uk/bsm/dhs Description of structural and functional characteristics for each superfamily

39. DHS Dictionary of Homologous Superfamilies http://www.biochem.ucl.ac.uk/bsm/dhs Description of structural and functional characteristics for each superfamily

40. Variation in Secondary Structures Across Superfamily DHS:Dictionary of Homologous Superfamilies http://www.biochem.ucl.ac.uk/bsm/dhs

41. Functional annotations from GO, EC, COGs, KEGG DHS:Dictionary of Homologous Superfamilies http://www.biochem.ucl.ac.uk/bsm/dhs

42. Multiple structure alignments with conserved residues highlighted DHS:Dictionary of Homologous superfamilies http://www.biochem.ucl.ac.uk/bsm/cath_new/Gene3D

43. Population of CATH Families and Structural Groups ~50,000 structural domains cluster proteins with similar sequences S ~4000 sequence families (35%) cluster proteins with similar structures and functions ~1,500 homologous superfamilies H cluster proteins with similar structures T ~810 fold groups A ~36 architectures C 3 major protein classes

44. Arc repressor-like Rossmann Fold OB Fold Alpha/Beta Plaits Jelly Roll CATH Arc repressor-like nearly one third of the superfamilies belong to <10 fold groups Up-down Rossmann SH3-like OB fold Immunoglobulin Jelly Roll Alpha-beta plait TIM barrel

45. CATH numbering scheme 2.40.50.100 Class 2. Mainly beta 40. Barrel Architecture 50. OB Fold Topology 100 Heat labile enterotoxin superfamily Homology

46. CATH http://www.biochem.ucl.ac.uk/bsm/cath CATH domain structure database
