  1. Qualified Partner ProgramOutlets Felice Guarna, Training Program Manager Wetzikon, Dec. 2005

  2. R&Mfreenet OUTLETS – Large product range to meet different needs

  3. Native adapters Mounting plates R&Mfreenet faceplates – complete product range Local adapters Standard products Special applications

  4. FLEXIBILITY Labels with protection Angled entrance of the cord Interchangeable adapters SMART HOLES R&Mfreenet faceplates characteristics

  5. Modularity at R&M

  6. Selection table for R&M jacks Copper Copper Cu - ISDN FO 1 Port 2 Port FO Cat. 3 Cat. 5e Cat. 6

  7. Faceplates installable features No tools Installable Removable Smart holes based

  8. Faceplate additional featuresthe newglobal range • Ready for IP54 protection due to special groove which has been designed on the box or frame • The WM outlet is mountable with R&M DIN Rail mounting plate R311599

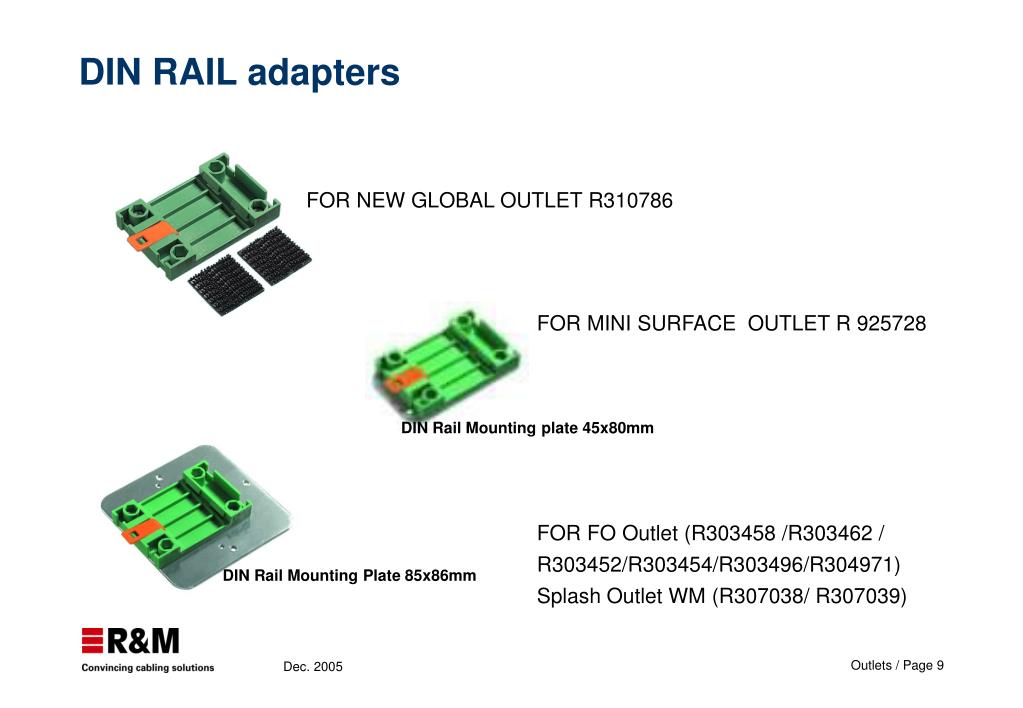

  9. FOR MINI SURFACE OUTLET R 925728 FOR FO Outlet (R303458 /R303462 / R303452/R303454/R303496/R304971) Splash Outlet WM (R307038/ R307039) DIN Rail Mounting plate 45x80mm DIN Rail Mounting Plate 85x86mm DIN RAIL adapters FOR NEW GLOBAL OUTLET R310786

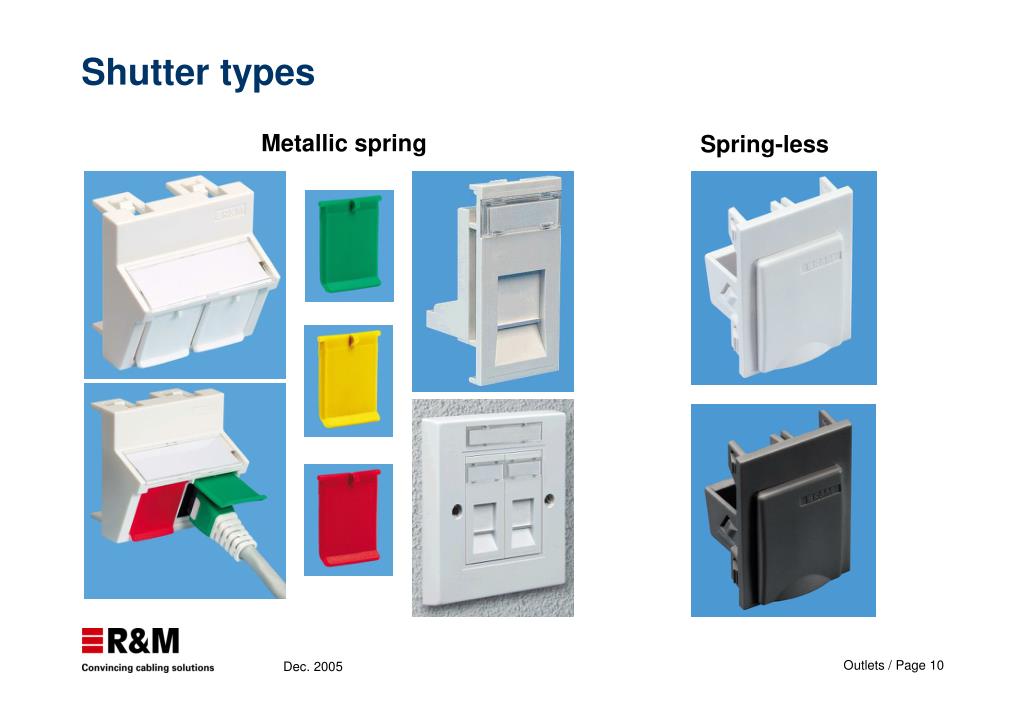

  10. Shutter types Metallic spring Spring-less

  11. FO connection options • FO outlets • Easy installation by adapter • Wall and flush mounted versions • Duct mounted • FO adapter can also be used in floor-boxes • Conversion from copper to fiber outlets is possible at all times • Up to two channels (four fibers) • Fiber management hardware advisable

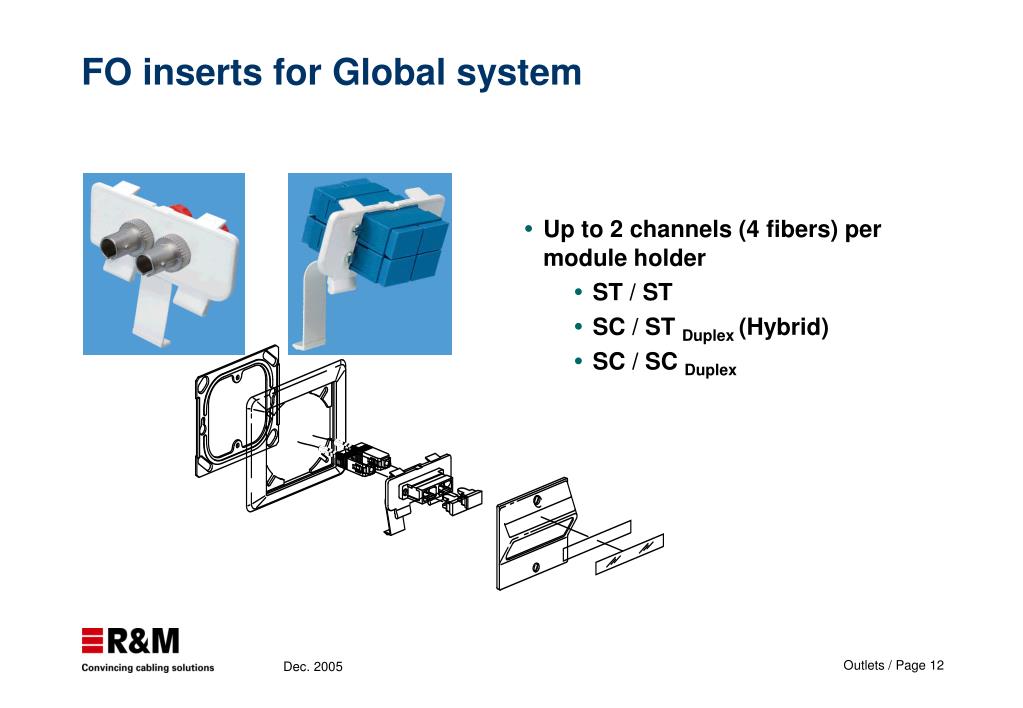

  12. FO inserts for Global system • Up to 2 channels (4 fibers) per module holder • ST / ST • SC / ST Duplex (Hybrid) • SC / SC Duplex

  13. R&M outlets system Global assortment FM Outlet88x88mm BS Faceplate DM Outlet78x78mm 503 Outlet WM Outlet78x78mm US StyleFaceplate DM Outletø 62.5mm International assortment

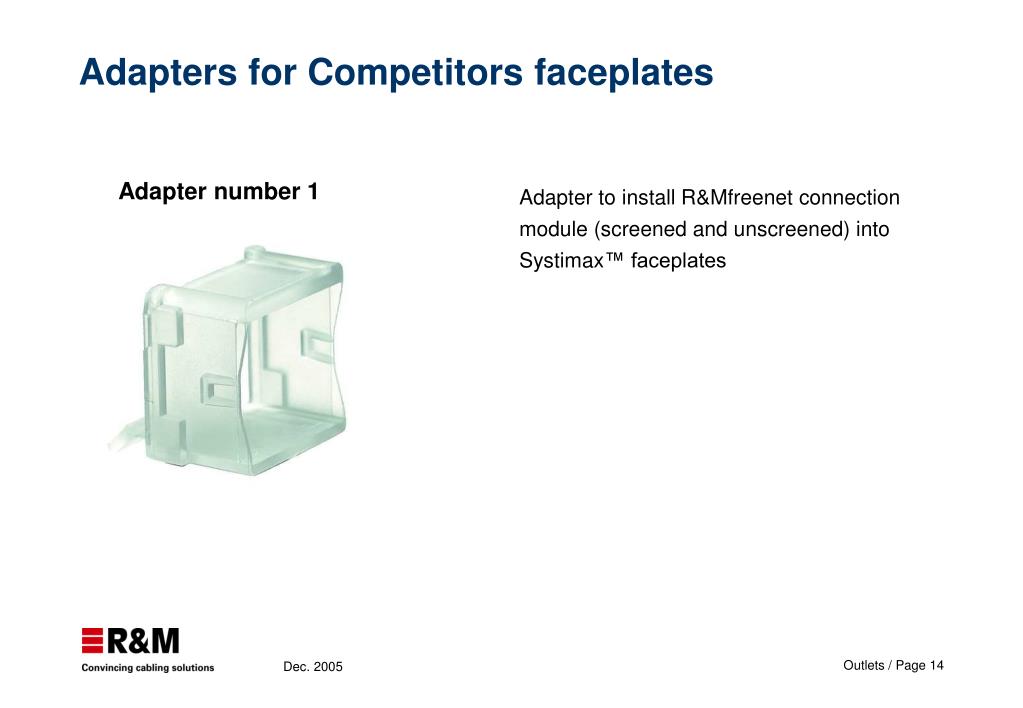

  14. Adapters for Competitors faceplates Adapter number 1 • Adapter to install R&Mfreenet connection module (screened and unscreened) into Systimax™ faceplates

  15. Third-Party Suppliers • Tehalit Vimar LK • Bush-Jaeger GmbH bTicino • Peha Gewiss ABB s.r.o • Jung • Berker Cimabox • Gira MM Dataelectric • Merten • Legrand Schweiz Schneider

  16. SAMPLES OF EXISTING FACEPLATES

  17. FM outlets (flush mounted) 88x88 mm • Features • For flush or duct installations. • Suitable for use with the "Data Safe Lock" keying system. • Labeling window with exchangeable labeling strips. • Angled housing (30°) for optimum protection (only 1 or 2 ports). • 4 port version (flush)

  18. WM outlets (wall mounted) 78x78 mm • Features • Angled housing (30°) for optimum protection of line cords. • Suitable for use with "Data Safe Lock" keying system. • Labeling window with exchangeable labeling strips. • 1 Port and 2x1 Port versions available. • 2 versions with different mounting depths available. - 67.5 mm- 52.5 mm

  19. DM outlets 80x86 mm • Features • For flush or duct installations. • Suitable for use with the "Data Safe Lock" keying system. • Labeling window with exchangeable labeling strips. • Angled housing (30°) for optimum protection (only 1 or 2 ports). • 4 port version (flush)

  20. DM outlets 62.5 mm Features • For installation in wall channels. • Suitable for use with "Data Safe Lock" keying system. • Labeling window with exchangeable labeling strips. • Angled housing (30°) for optimum protection of line cords • 2x1 Port (angled) • 4x1 Port versions (flush).

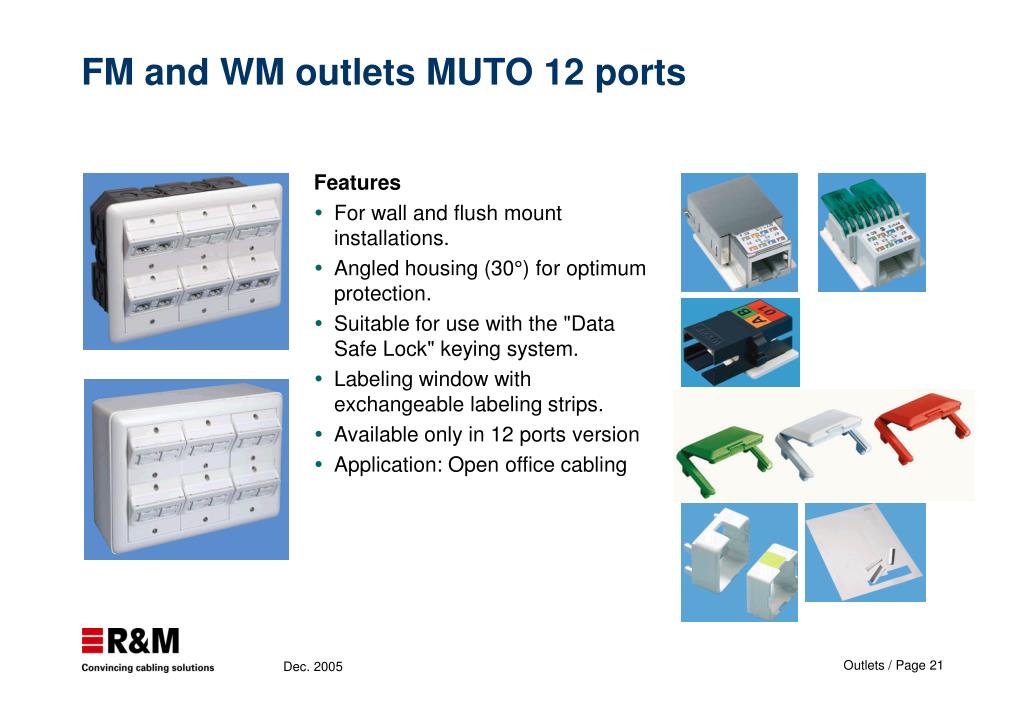

  21. FM and WM outlets MUTO 12 ports Features • For wall and flush mount installations. • Angled housing (30°) for optimum protection. • Suitable for use with the "Data Safe Lock" keying system. • Labeling window with exchangeable labeling strips. • Available only in 12 ports version • Application: Open office cabling

  22. 503 outlets Features • For installations on flush mounting on walls, metal or plastic ducts and mounting boxes. • Angled housing (30°) for optimum protection of line cords. • Suitable for the use with "Data Safe Lock" keying system. • Labeling windows with exchangeable labeling strips. • Available are 2 ports and 4x1 ports versions.

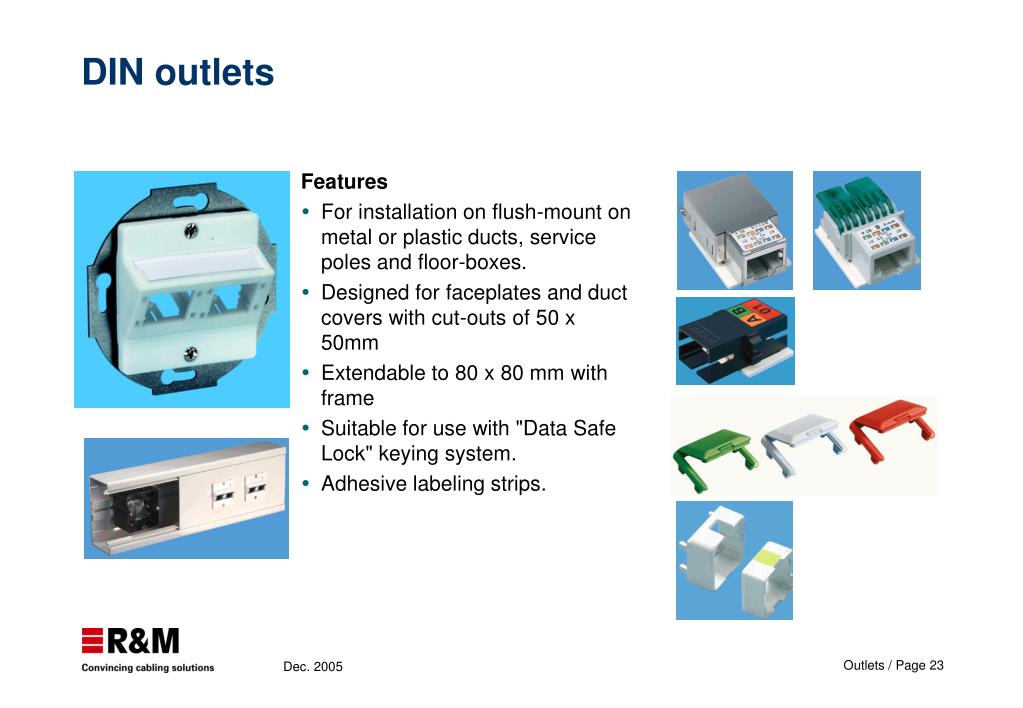

  23. DIN outlets Features • For installation on flush-mount on metal or plastic ducts, service poles and floor-boxes. • Designed for faceplates and duct covers with cut-outs of 50 x 50mm • Extendable to 80 x 80 mm with frame • Suitable for use with "Data Safe Lock" keying system. • Adhesive labeling strips.

  24. Mounting units DK Features • Accommodates two 1xRJ45 connection modules. • Suitable for use with "Data Safe Lock" keying system. • Adhesive labeling strips. • Designed to fit Third Party Supplier LK

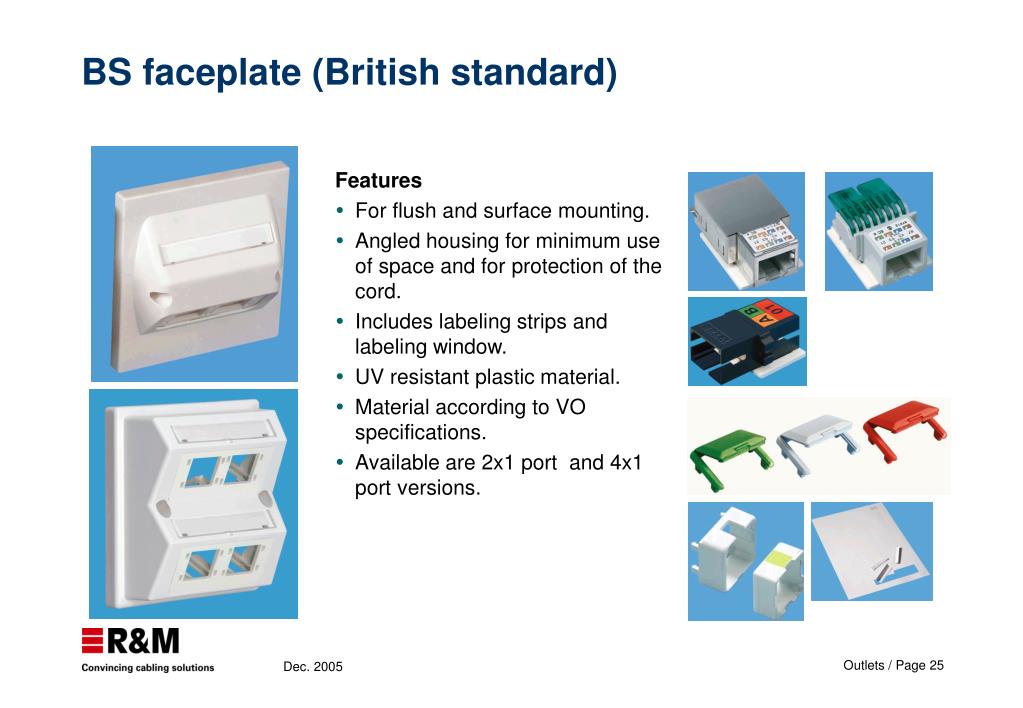

  25. BS faceplate (British standard) Features • For flush and surface mounting. • Angled housing for minimum use of space and for protection of the cord. • Includes labeling strips and labeling window. • UV resistant plastic material. • Material according to VO specifications. • Available are 2x1 port and 4x1 port versions.

  26. Flap jack Module holder • Flap jack holder • Fitting 6C British cutout • Extremely slim for floor box and flush mount applications • 0Halogen material • Shuttered application without metallic parts • Fit only Rj45 specific part (see catalogue) Wall plate

  27. Mini surface box Features • Accommodates one or two 1xRJ45 connection modules for surface mounting. • Two-part design: - self-locking housing- fixing plate • Cable entry from the rear with knock-out sections and cable entry from below for cable ducts. • Dust protected, exchangeable labeling strips. • Version for Rj11 (included) also available

  28. Mounting plate 45x45 mm Features • For mounting in cover frames and duct covers with 45x45 mm cut-outs. • Snap-In, screw-less installation. • RJ45 angled housing (40°) for optimum protection of patch and line cords. • Suitable for use with the "Data Safe Lock" keying system. • Available are 1 Port and 2 Port versions.

  29. Mounting plate 45x45 mm Features • For mounting in cover frames and duct covers with 45x45 mm cut-outs. • Snap-in, screw-less installation. • RJ45 angled housing (40°) for optimum protection of patch and line cords. • Polyamide construction. • Integrated shuttereddust covers. • Available are 1 Port and 2 Port versions.

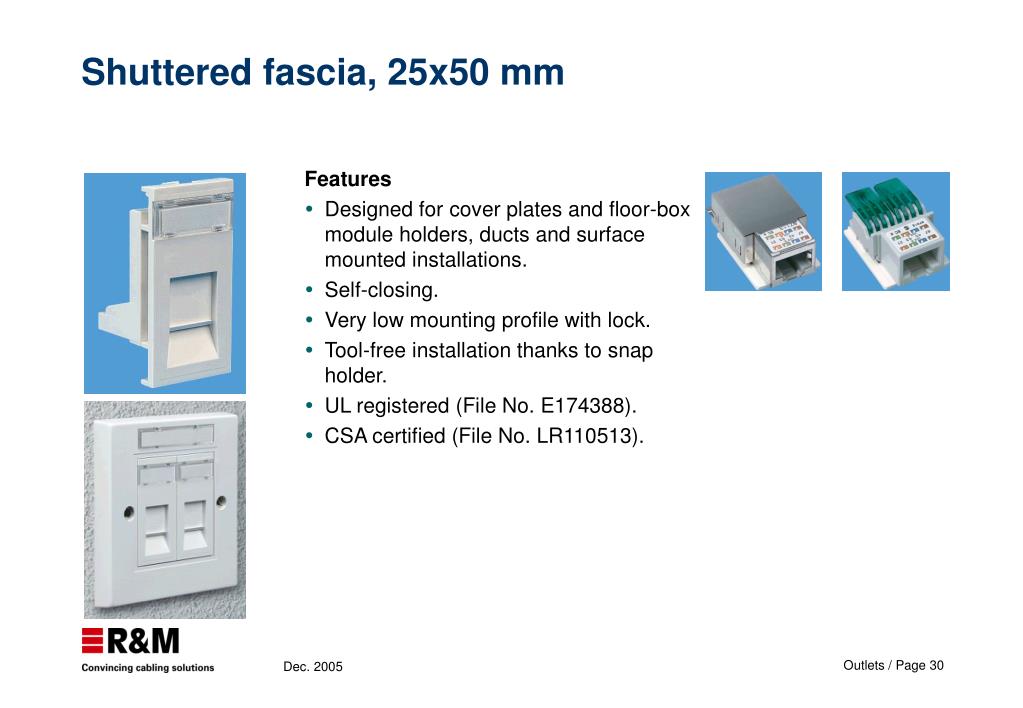

  30. Shuttered fascia, 25x50 mm Features • Designed for cover plates and floor-box module holders, ducts and surface mounted installations. • Self-closing. • Very low mounting profile with lock. • Tool-free installation thanks to snap holder. • UL registered (File No. E174388). • CSA certified (File No. LR110513).

  31. Fascia wallplate accessories

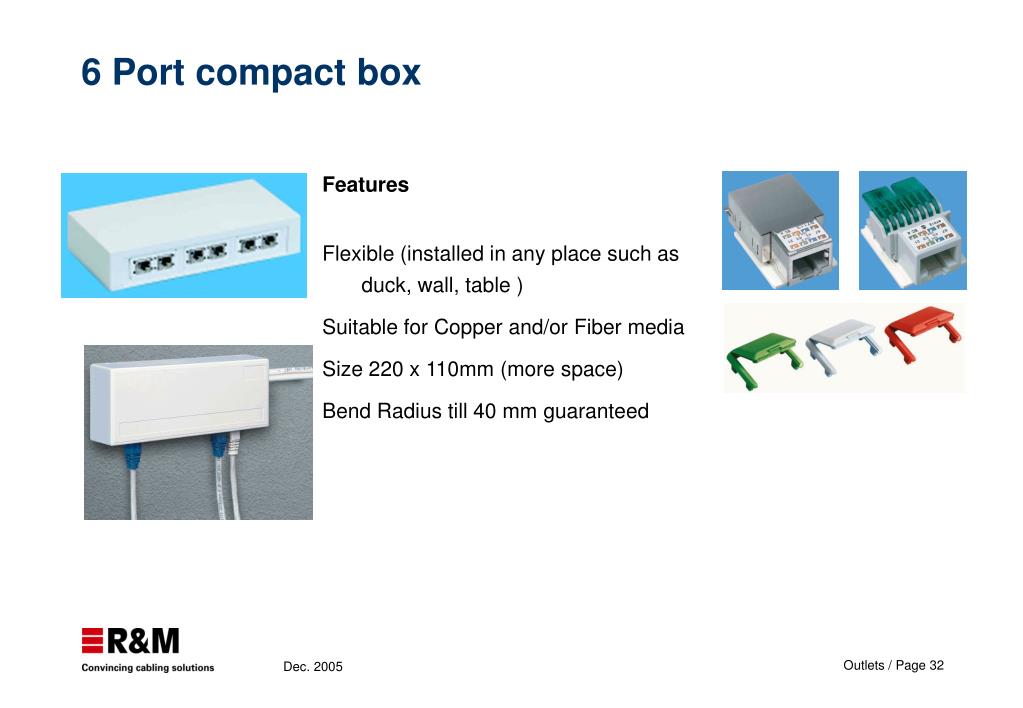

  32. 6 Port compact box • Features • Flexible (installed in any place such as duck, wall, table ) • Suitable for Copper and/or Fiber media • Size 220 x 110mm (more space) • Bend Radius till 40 mm guaranteed

  33. US style faceplate Features • Designed for flush mounting on walls, ducts, and floor-boxes. • Angled housing (30°) for optimum protection of line cords. • Suitable for type 503 floor-boxes. • Labeling window with exchangeable labeling strips. • Available are 2 and 6 port versions.

  34. Mounting box for US style faceplate • Features • Matches with US style faceplates for 1, 2, and 6xRJ45 and type 503 outlets. • High-impact VO-rated thermoplastic construction. • UL registered (File No. R174388). • CSA certified (File No. LR110513). • Available in white and ivory.

  35. Outlets Third Party Suppliers samples Wetzikon, Dec. 2005

  36. Italy Vimar srl. • Contact address: • Vimar srl. • Via IV Novembre, 32 • I-36063 Marostica VI • Phone: 0039 0424 488 100 • Telefax: 0039 0424 488 188 • Internet: http://www.vimar.it

  37. Spain Cimabox • Contact address: • Cimabox • Potosi, 32 - 34 • E-08030 Barcelona • Phone: 0034 93345 33 50 • Telefax: 0034 93345 36 08 • Internet: http://www.cimabox.com • E-mail: cima@sakma.com

  38. Germany Busch - Jaeger Elektro GmbH • Contact address: • Busch-Jaeger Elektro GmbH • P.O. BOX • D-58505 Lüdenscheid / Germany • Phone: 0049- (0) 2351 / 956-0 • Fax: 0049- (0) 2351 / 95 66 94 • Internet: www.busch-jaeger.de

  39. Germany Hager Tehalit Vertriebs GmbH • Contact address: • Hager Tehalit Vertriebs GmbH • Zum Gunterstal • D-66440 Blieskastel / Germany • Phone: 0049 / 06842 945-0 • Telefax: 0049 / 06842 945-5666 • Internet: http://www.tehalit.com • E-mail: info@hager.de

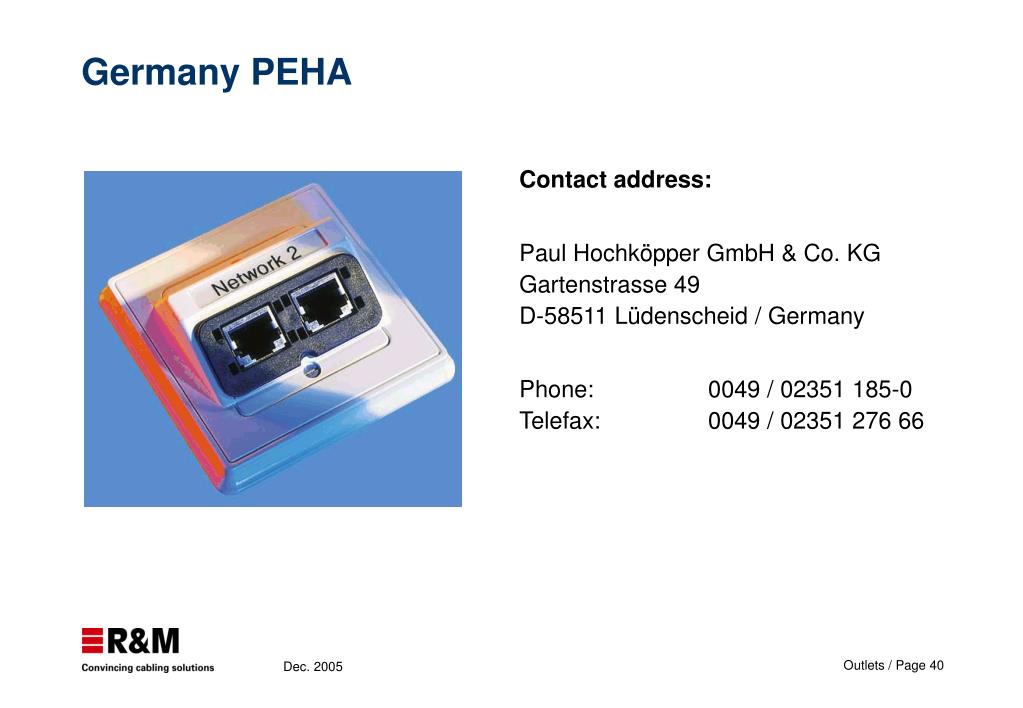

  40. Germany PEHA • Contact address: • Paul Hochköpper GmbH & Co. KG • Gartenstrasse 49 • D-58511 Lüdenscheid / Germany • Phone: 0049 / 02351 185-0 • Telefax: 0049 / 02351 276 66

  41. Germany GIRA • Contact address: • Gira • Giersiepen GmbH & Co. KG • Correspondence to: • Postfach 12 20 • D-42461 Radevormwald / Germany • Location: • Industrial Area Mermbach • Dahlienstrasse • D-42477 Radevormwald / Germany • Phone: 0049 (0) 21 95 602-0 • Telefax: 0049 (0) 21 95 602-339 • E-mail: info@gira.de • Internet: http://www.gira.de

  42. Germany Berker • Contact address: • Gebr. Berker GmbH & Co. • Klagebach 38 • D-58579 Schalksmühle / Germany • Phone: 0049 02355 90 50 • Telefax: 0049 02355 905 - 111 • E-mail: info@berker.de • Internet: http://www.berker.de

  43. Germany Albrecht Jung GmbH & Co. • Contact address: • Albrecht Jung GmbH & Co. • Volmestrasse 1 • D-58579 Schalksmühle / Germany • Phone: 0049 / 02355 806-168 • Telefax: 0049 / 02355 806-189 • (Sales Support) • E-mail: jung-info@t-online.de • Internet: http://www.jung.de

  44. ABB s.r.o., Elektro-Praga • Contact Address • ABB s.r.o., Elektro-Praga • Resslova 3 • 466 02 Jablonec nad Nisou • Czech Republic • tel.: +420 483 364 111 • fax: +420 483 312 059 • e-mail: epj.jablonec@cz.abb.com • web: http://www.abb-epj.cz

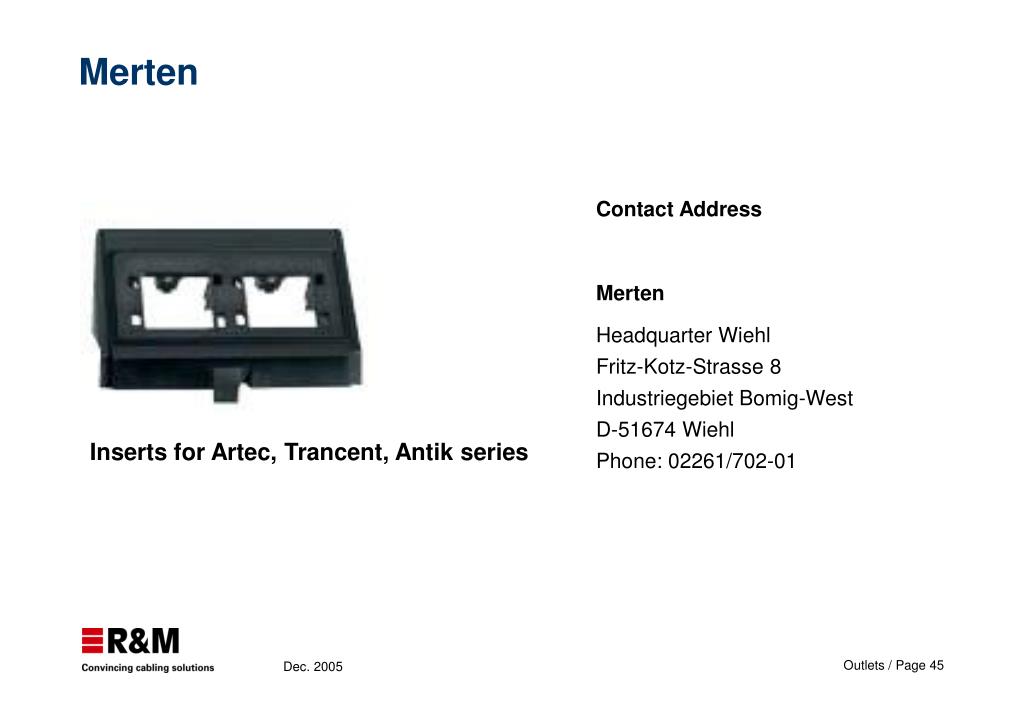

  45. Merten • Contact Address • Merten • Headquarter WiehlFritz-Kotz-Strasse 8Industriegebiet Bomig-WestD-51674 WiehlPhone: 02261/702-01 Inserts for Artec, Trancent, Antik series
