  1. LongRangePCR and breakpoint sequence analysis for an HNF1B duplication Annet Damhuis, Vikki Moye and Sian Ellard Department of Molecular Genetics

  2. RenalCysts And Diabetes syndrome (RCAD) • Clinical features • Diabetes • Renal developmental abnormalities • Female genital tract malformations

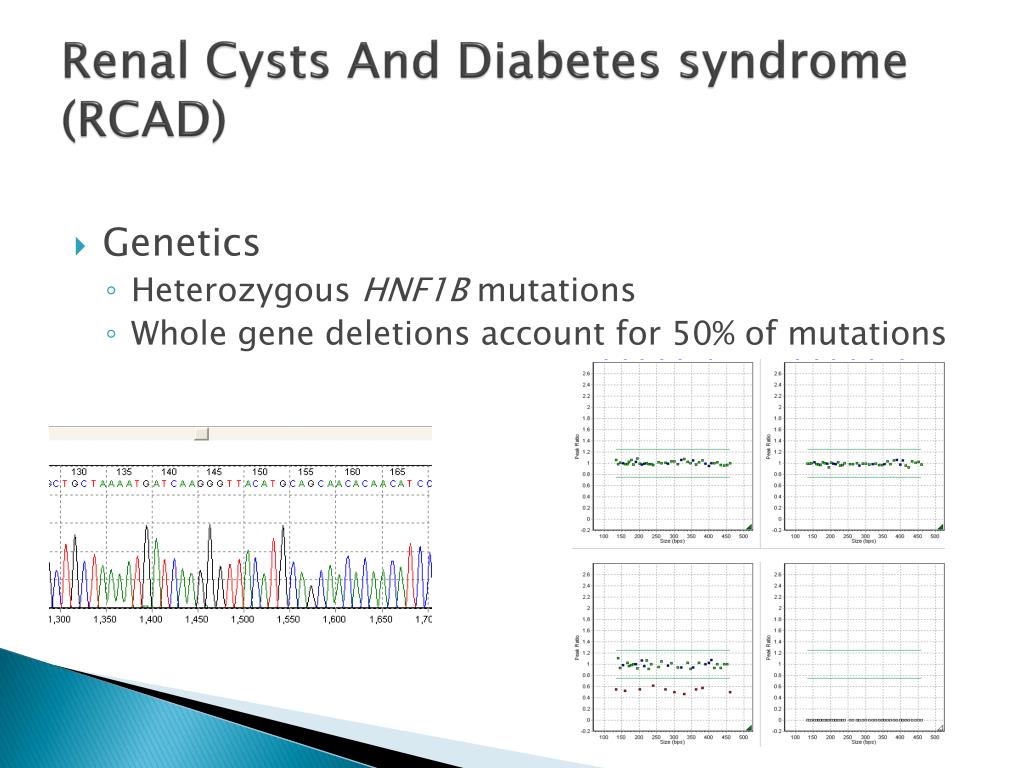

  3. RenalCysts And Diabetes syndrome (RCAD) • Genetics • Heterozygous HNF1B mutations • Whole gene deletions account for 50% of mutations

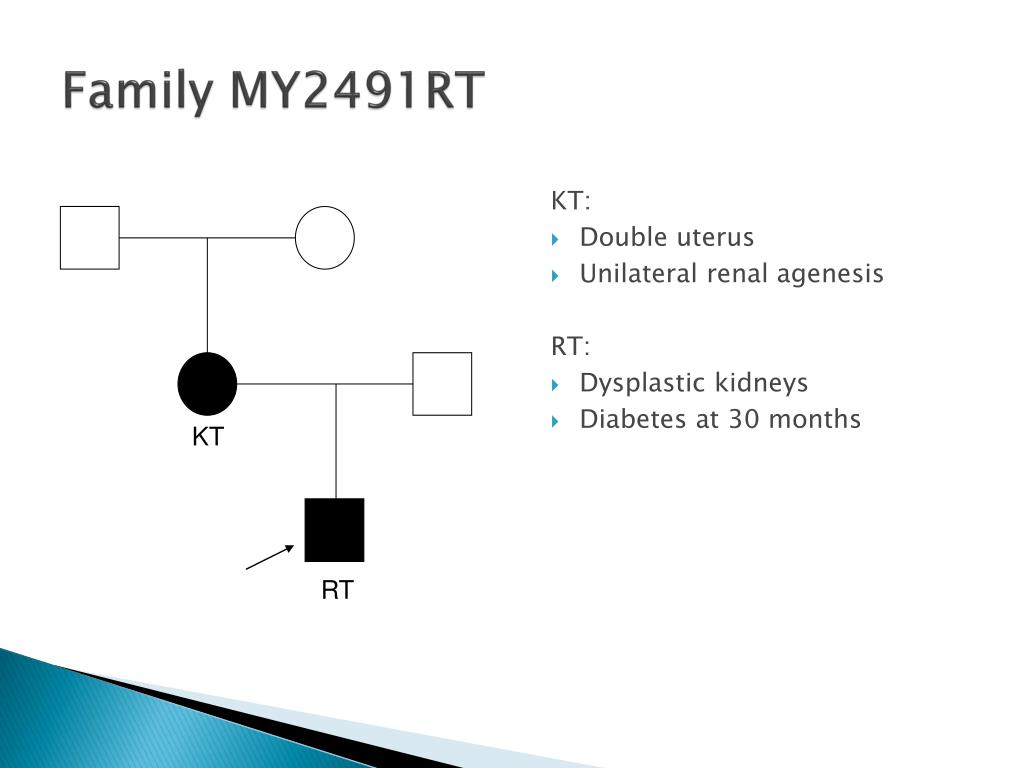

  4. Family MY2491RT KT: • Double uterus • Unilateral renal agenesis RT: • Dysplastic kidneys • Diabetes at 30 months KT RT

  5. HNF1B MLPA results RT

  6. HNF1B duplications • 3 affected family members over 3 generations • quantitative multiplex PCR amplification of short fluorescent fragments • Duplication of HNF1B exon 5

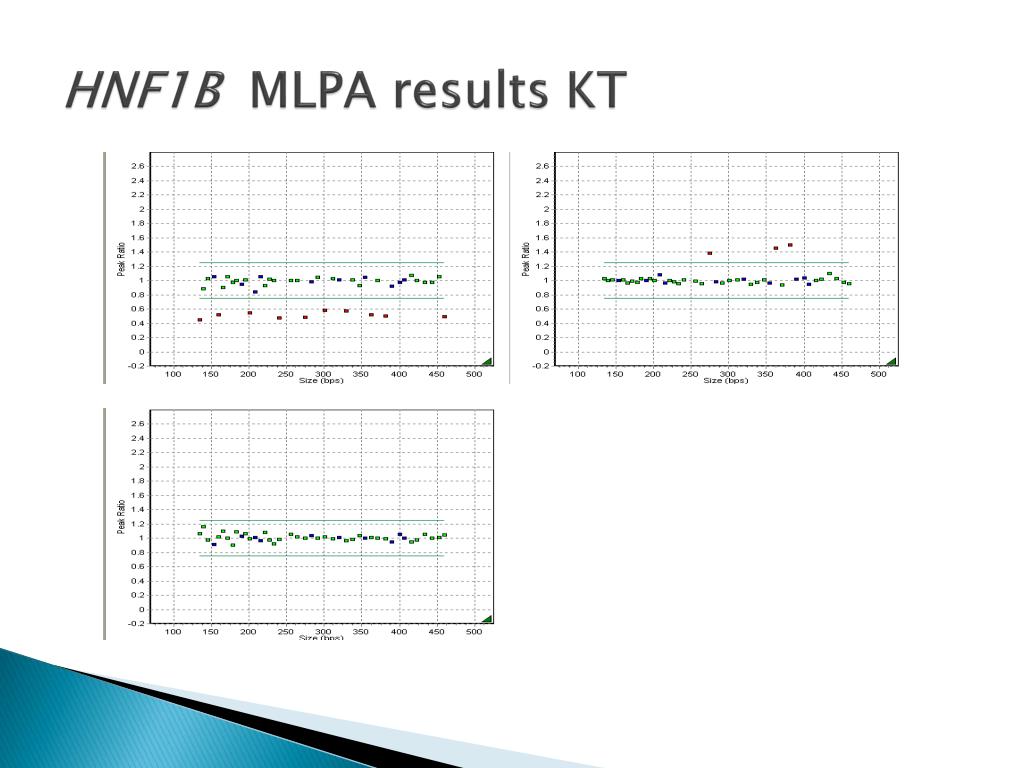

  7. HNF1B MLPA results KT

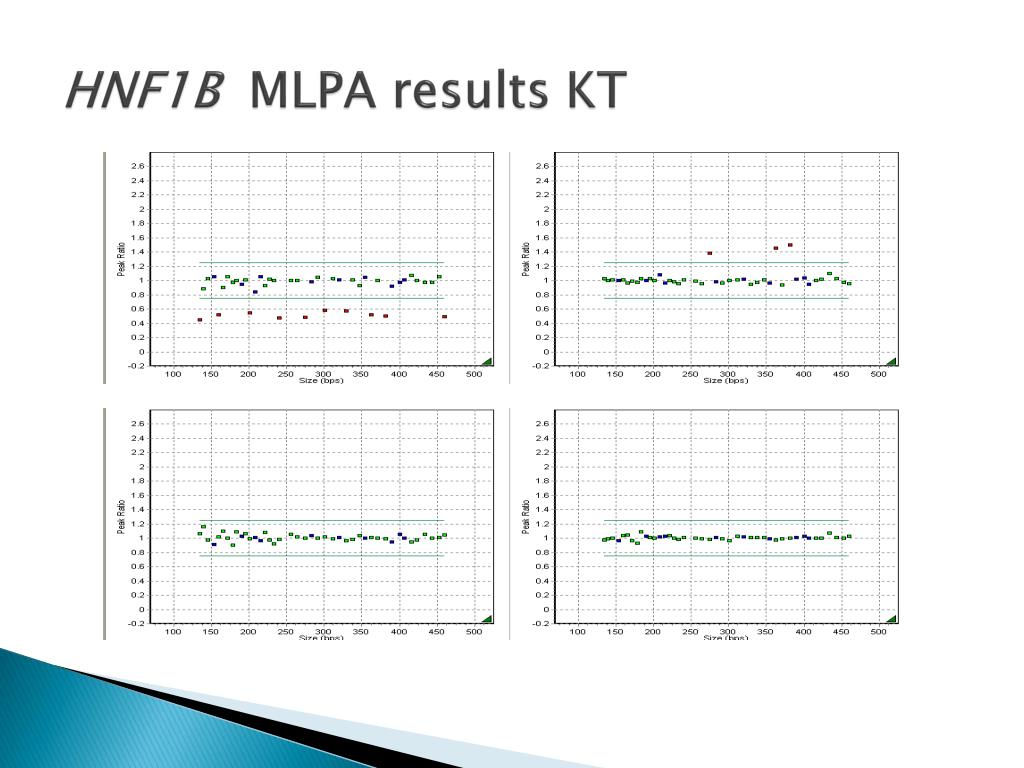

  8. HNF1B MLPA results KT

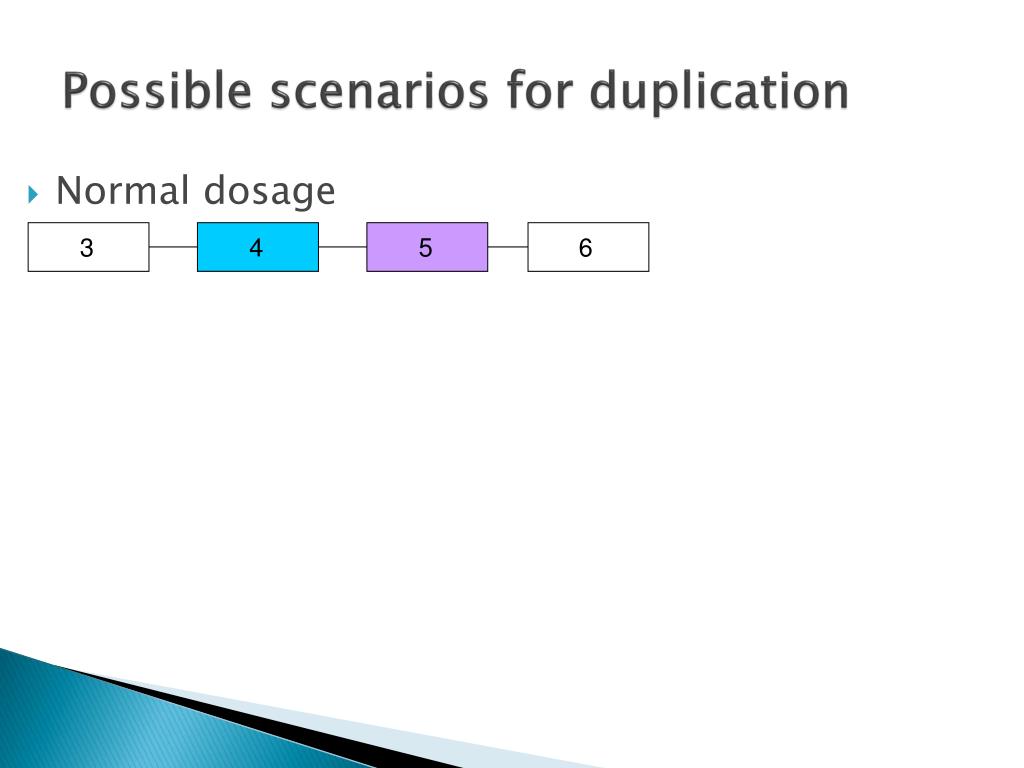

  9. 3 4 5 6 Possible scenarios for duplication • Normal dosage

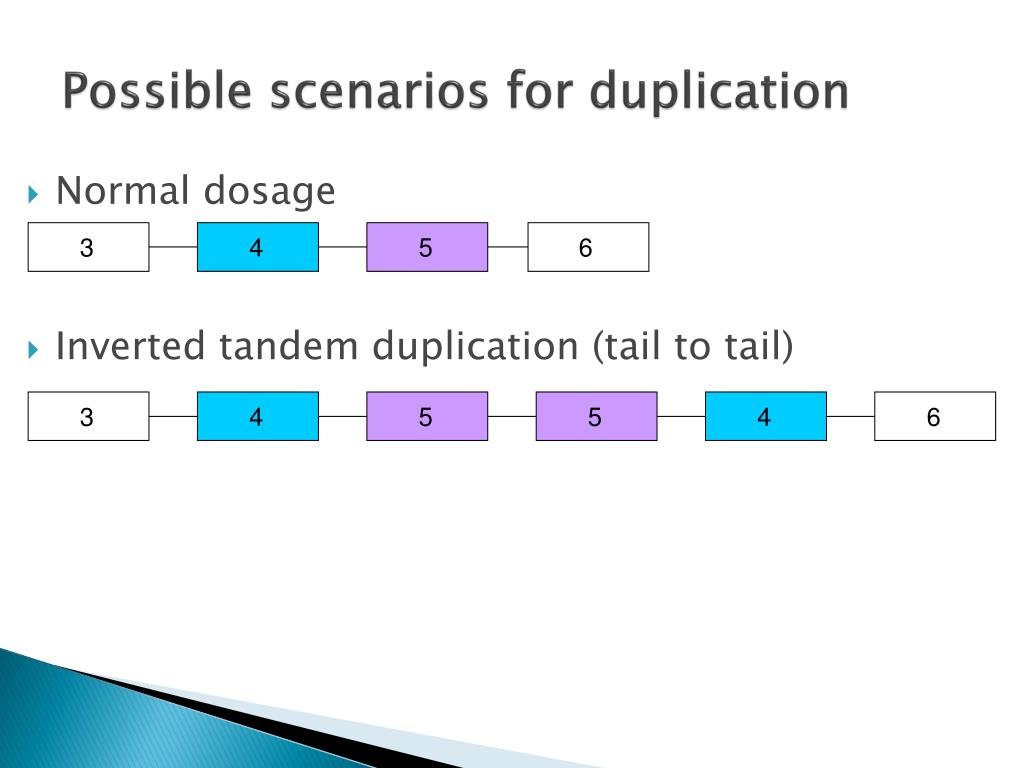

  10. 3 4 5 6 3 4 5 5 4 6 Possible scenarios for duplication • Normal dosage • Inverted tandem duplication (tail to tail)

  11. 3 4 5 6 3 4 5 5 4 6 Possible scenarios for duplication • Normal dosage • Inverted tandem duplication (tail to tail) • Direct tandem duplication (tail to head) 3 4 5 4 5 6

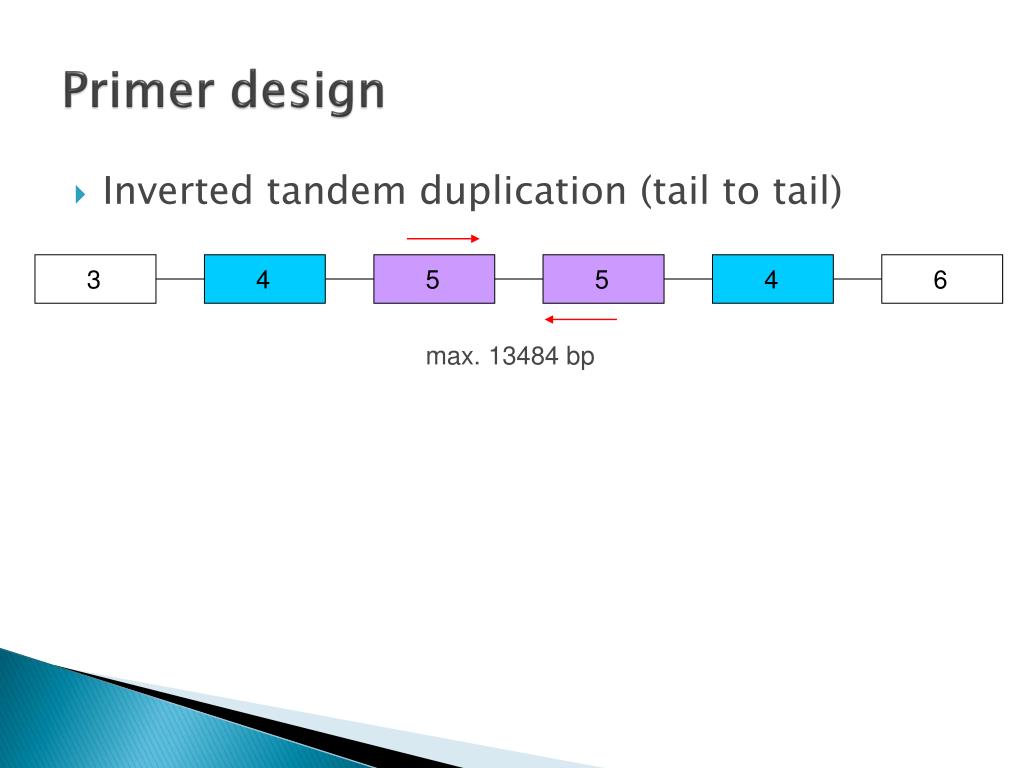

  12. 3 4 5 5 4 6 Primer design • Inverted tandem duplication (tail to tail) max. 13484 bp

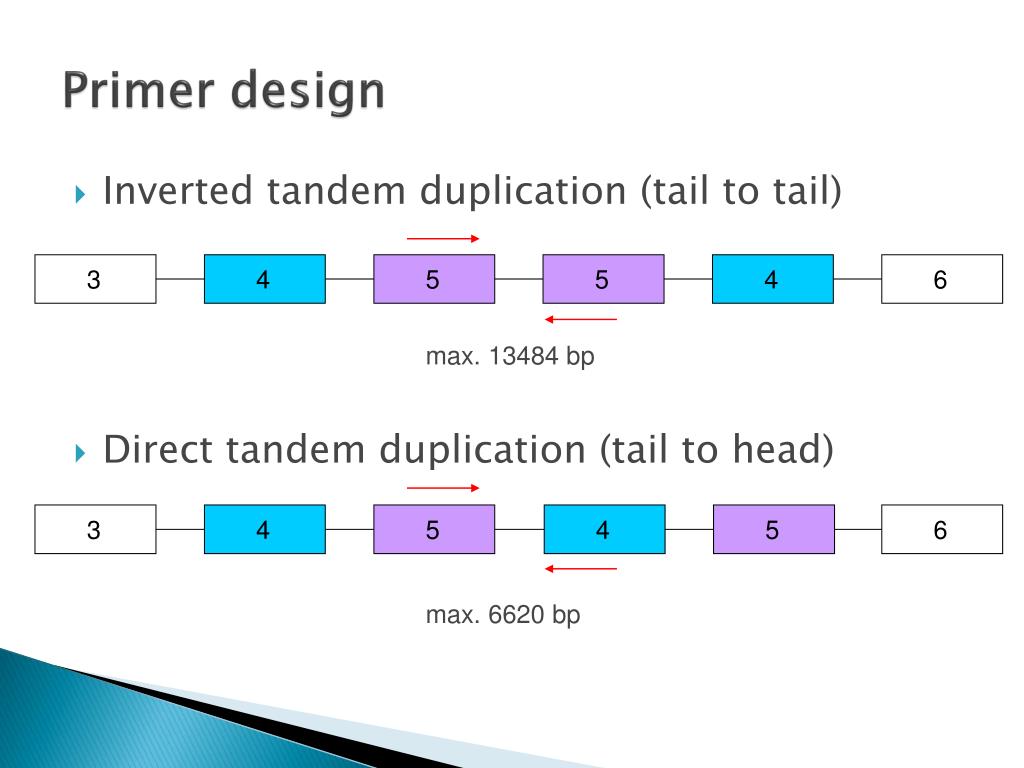

  13. 3 4 5 5 4 6 max. 6620 bp 3 4 5 4 5 6 Primer design • Inverted tandem duplication (tail to tail) • Direct tandem duplication (tail to head) max. 13484 bp

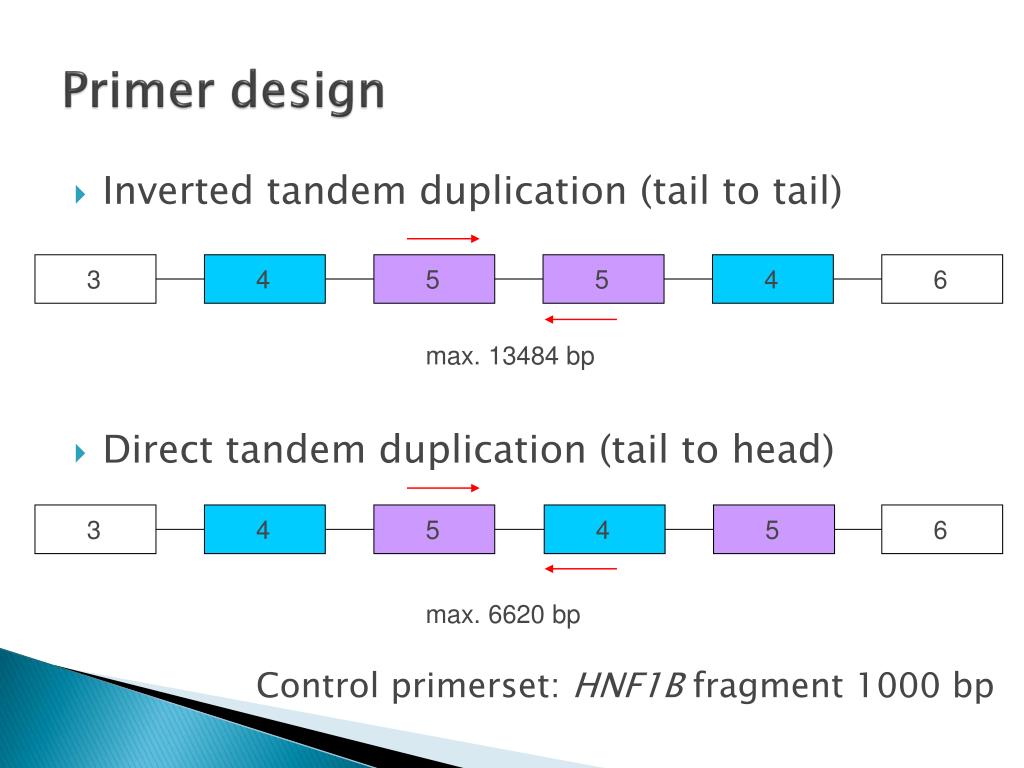

  14. 3 4 5 5 4 6 max. 6620 bp 3 4 5 4 5 6 Primer design • Inverted tandem duplication (tail to tail) • Direct tandem duplication (tail to head) max. 13484 bp Control primerset: HNF1B fragment 1000 bp

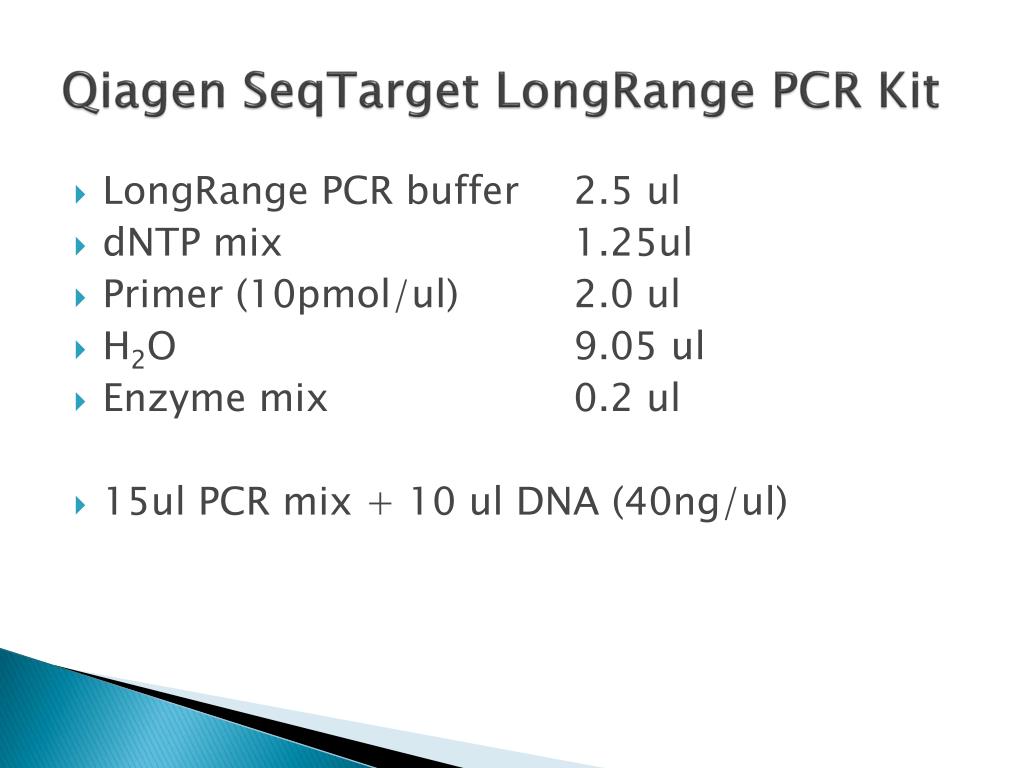

  15. QiagenSeqTargetLongRange PCR Kit • LongRange PCR buffer 2.5 ul • dNTP mix 1.25ul • Primer (10pmol/ul) 2.0 ul • H2O 9.05 ul • Enzyme mix 0.2 ul • 15ul PCR mix + 10 ul DNA (40ng/ul)

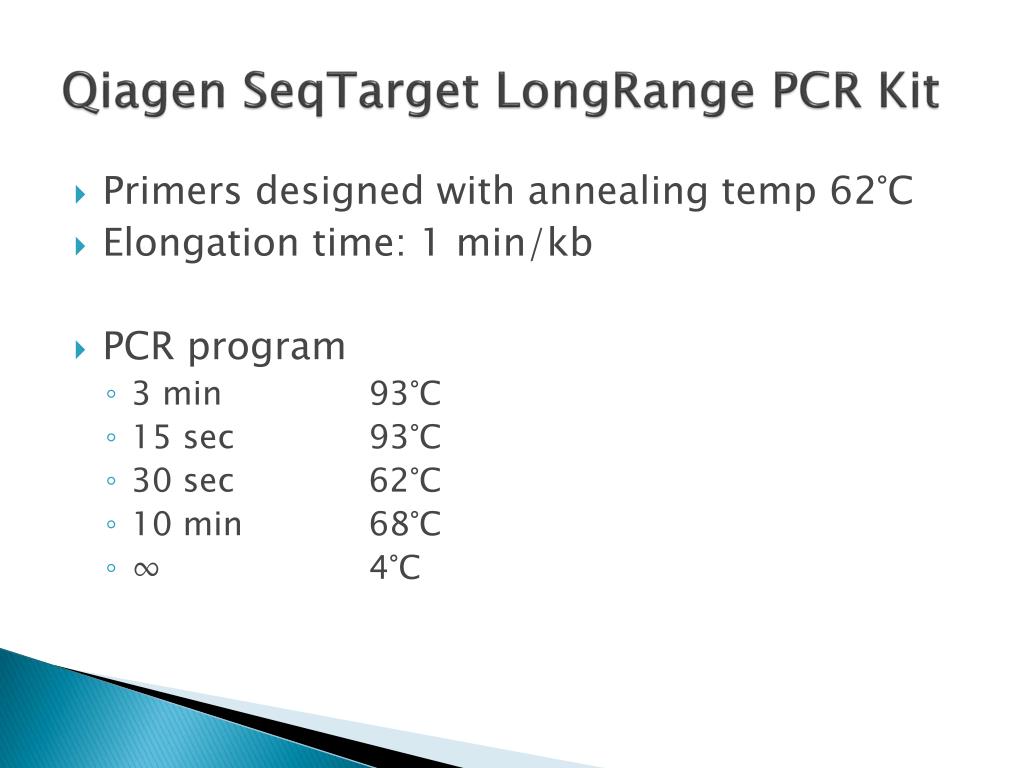

  16. QiagenSeqTargetLongRange PCR Kit • Primers designed with annealing temp 62°C • Elongation time: 1 min/kb • PCR program • 3 min 93°C • 15 sec 93°C • 30 sec 62°C • 10 min 68°C • ∞ 4°C

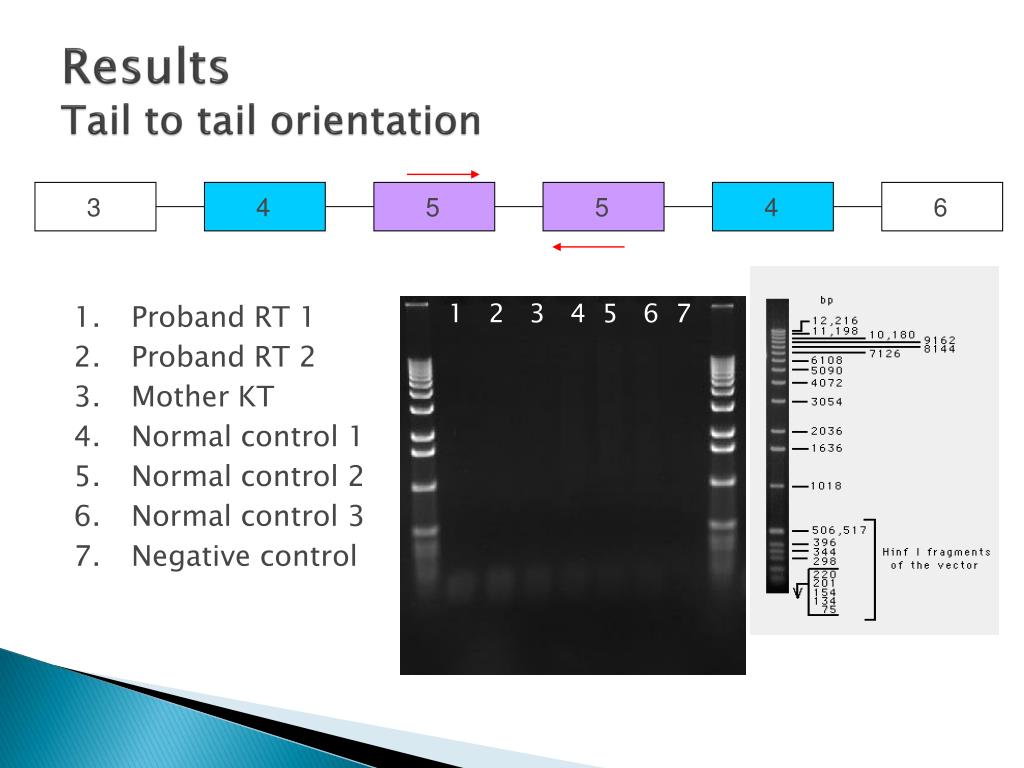

  17. 1 2 3 4 5 6 7 3 4 5 5 4 6 ResultsTail to tail orientation • Proband RT 1 • Proband RT 2 • Mother KT • Normalcontrol 1 • Normalcontrol 2 • Normalcontrol 3 • Negativecontrol

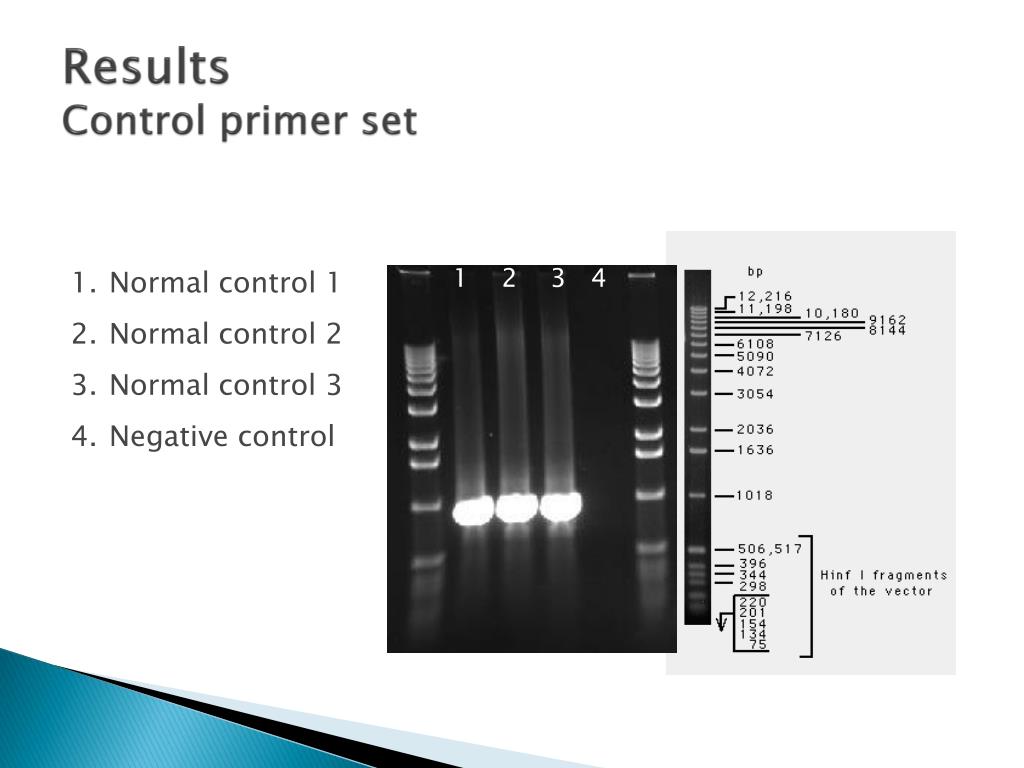

  18. 1 2 3 4 • Normal control 1 • Normal control 2 • Normal control 3 • Negative control ResultsControl primer set

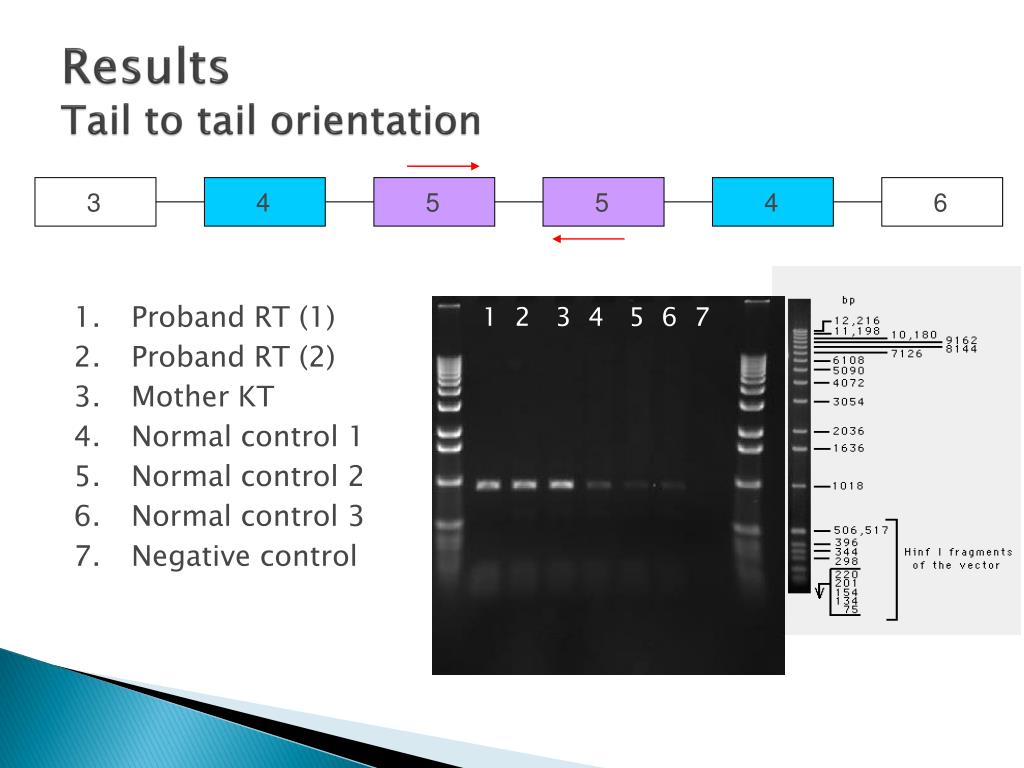

  19. 1 2 3 4 5 6 7 3 4 5 5 4 6 ResultsTail to tail orientation • Proband RT (1) • Proband RT (2) • Mother KT • Normalcontrol 1 • Normalcontrol 2 • Normalcontrol 3 • Negativecontrol

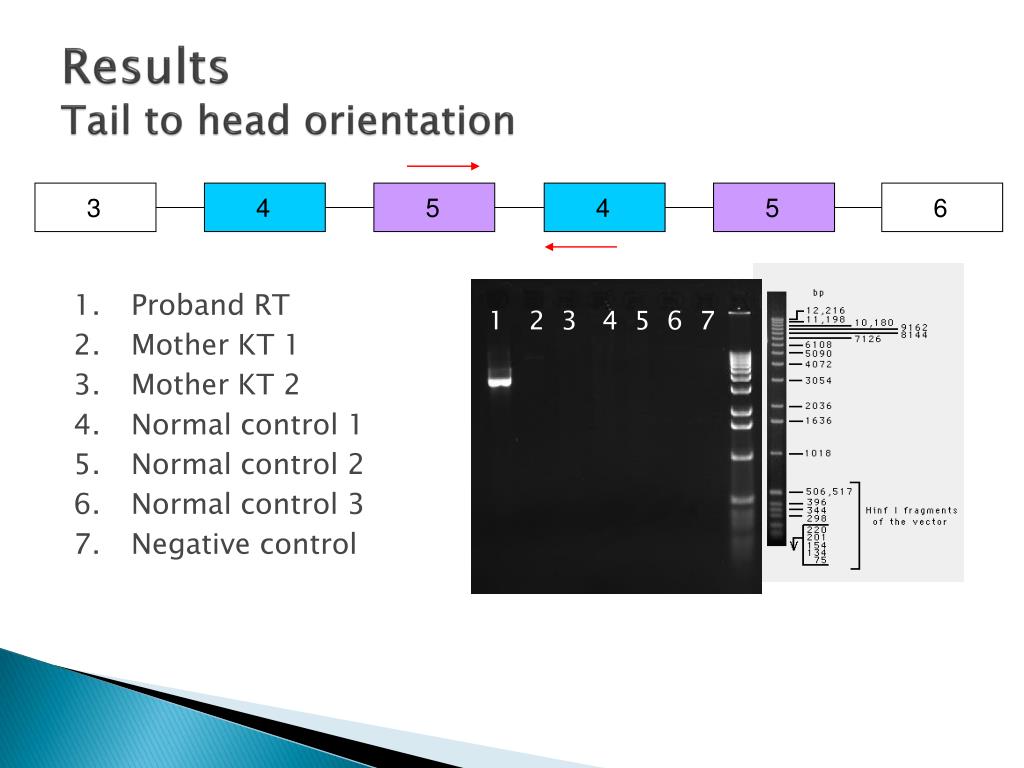

  20. 3 4 5 4 5 6 ResultsTail to head orientation • Proband RT • Mother KT 1 • Mother KT 2 • Normal control 1 • Normal control 2 • Normal control 3 • Negative control 1 2 3 4 5 6 7

  21. 3 4 5 4 5 6 ResultsTail to head orientation • Proband RT • Mother KT 1 • Mother KT 2 • Normal control 1 • Normal control 2 • Normal control 3 • Negative control • Fragment size approximately 3500 bp 1 2 3 4 5 6 7

  22. 3 4 5 4 5 6 ResultsTail to head orientation • Proband RT 1 • Proband RT 2 • Mother KT 1 • Normal control 1 • Normal control 2 • Normal control 3 • Negative control • empty 1 2 3 4 5 6 7 8

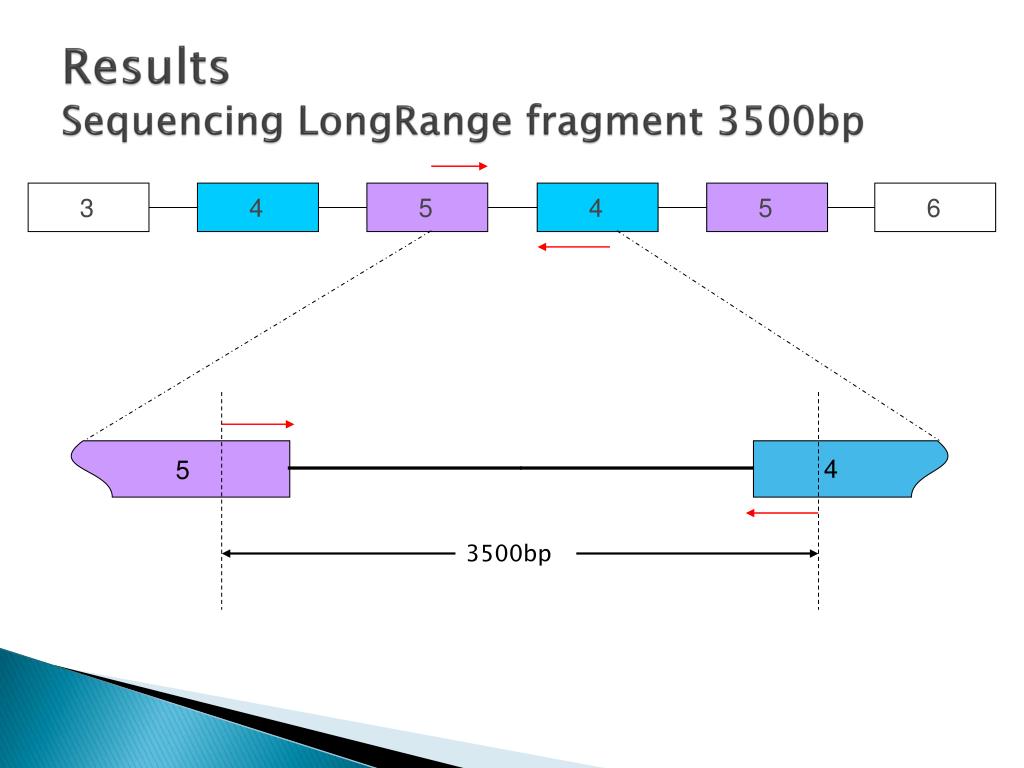

  23. 5 4 3 4 5 4 5 6 ResultsSequencing LongRange fragment 3500bp 3500bp

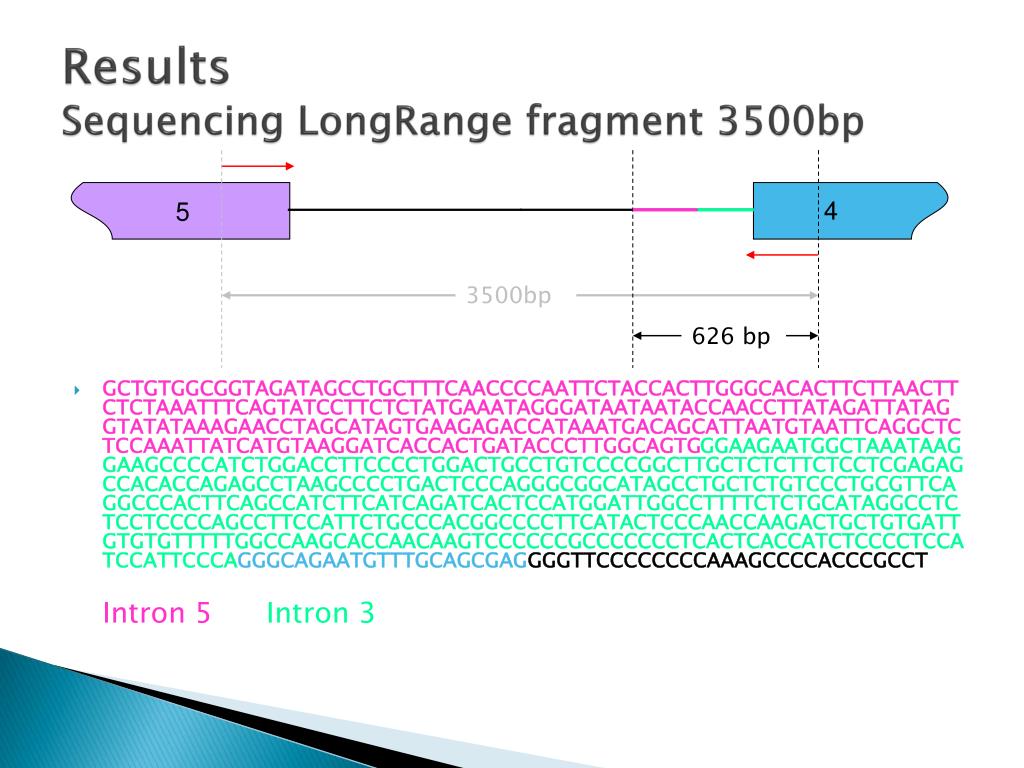

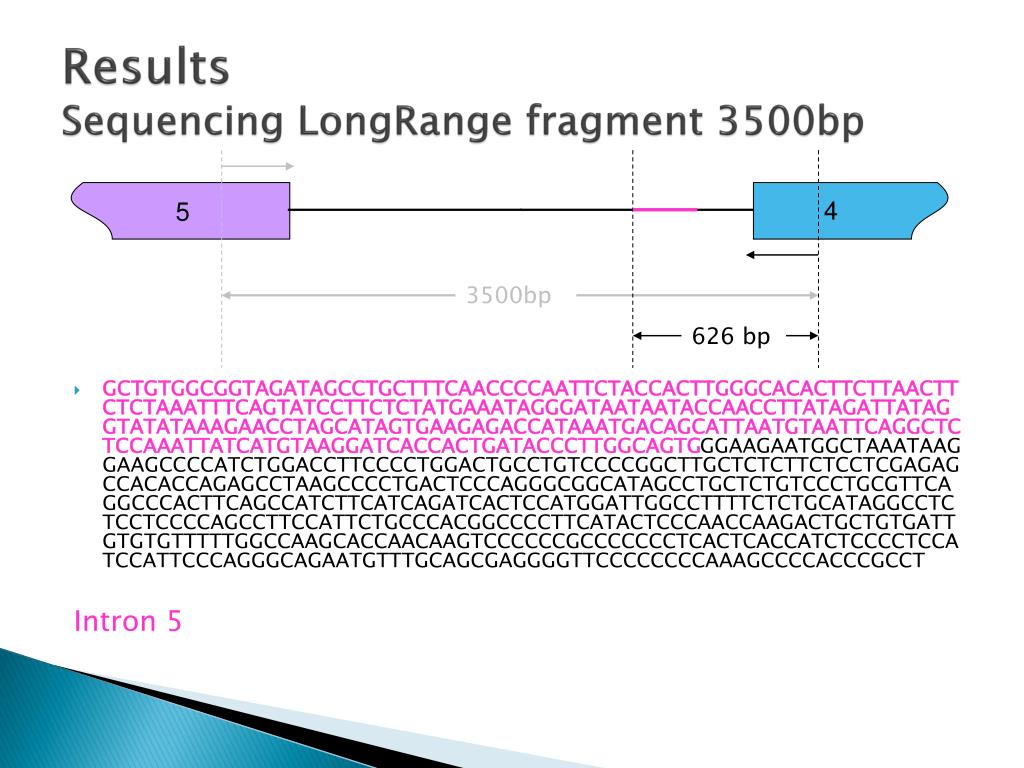

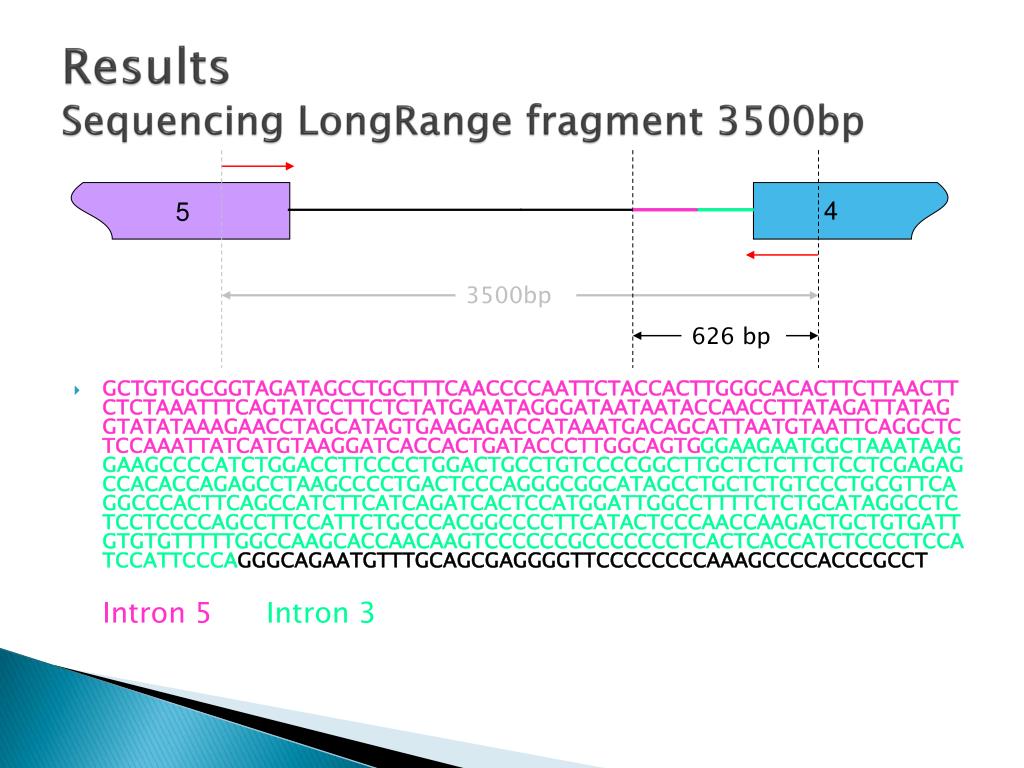

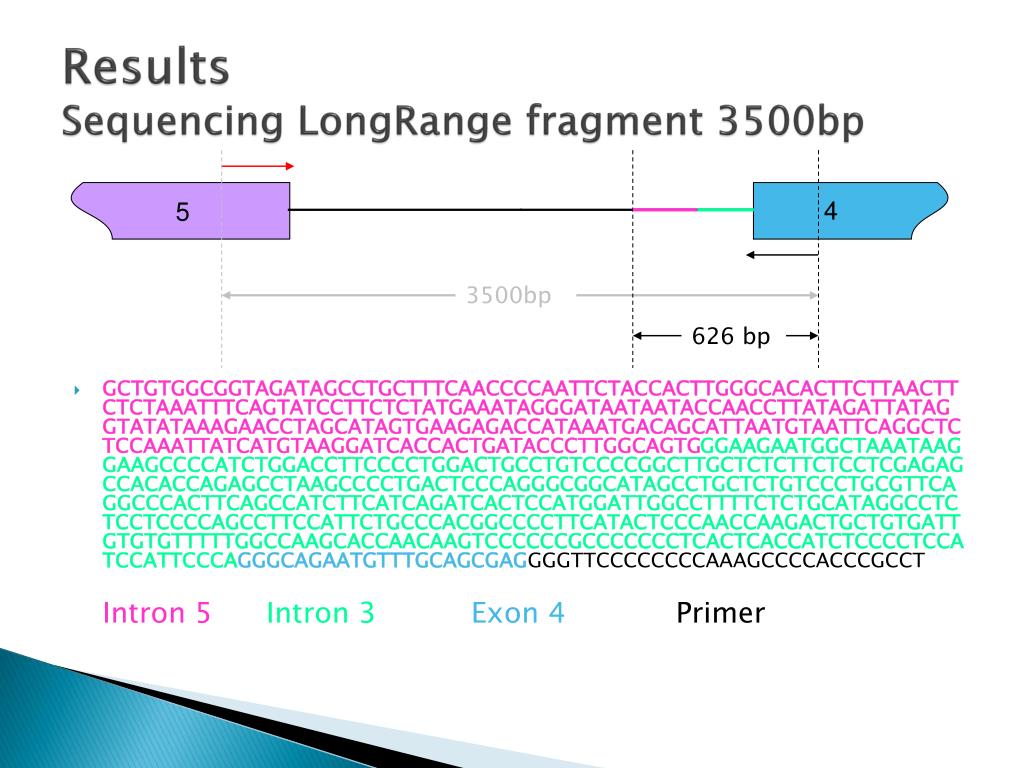

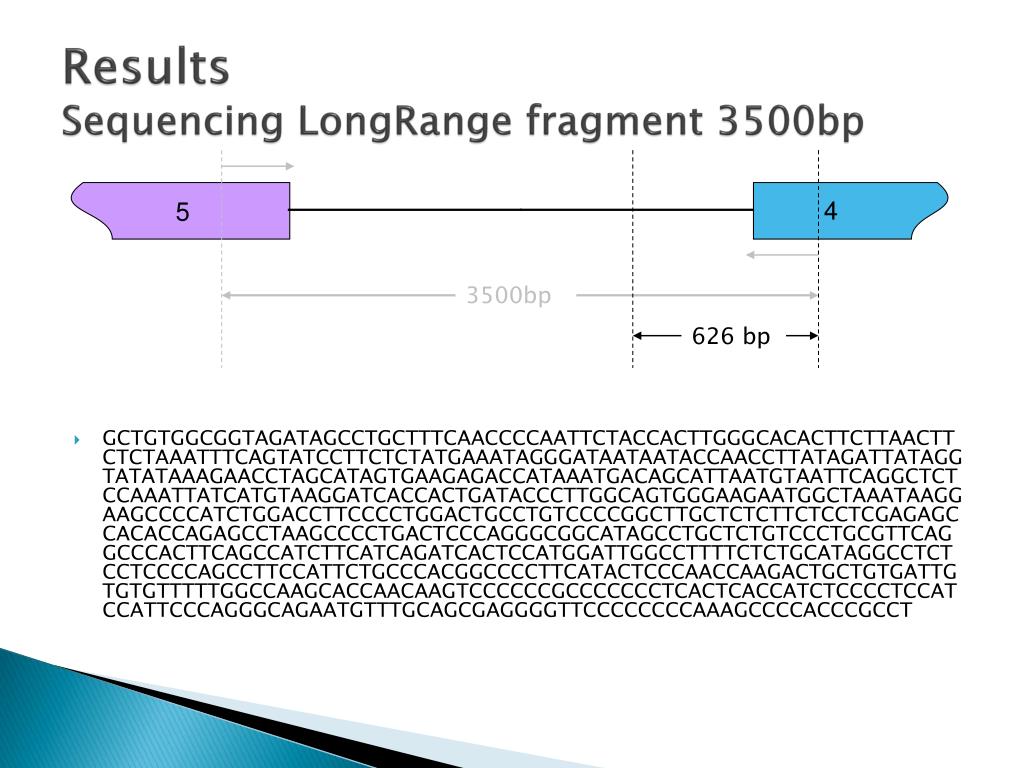

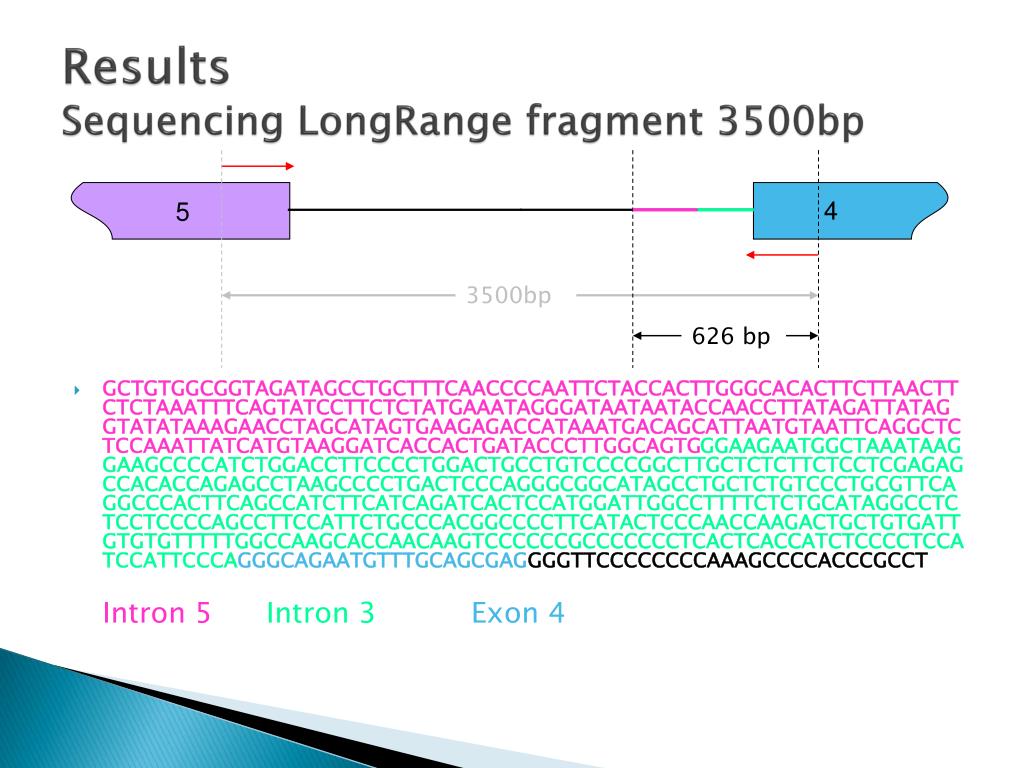

  24. ResultsSequencing LongRange fragment 3500bp 5 4 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT

  25. ResultsSequencing LongRange fragment 3500bp 5 4 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT

  26. ResultsSequencing LongRange fragment 3500bp 5 4 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT Intron 5

  27. ResultsSequencing LongRange fragment 3500bp 5 4 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT Intron 5

  28. ResultsSequencing LongRange fragment 3500bp 5 4 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT Intron 5 Intron 3

  29. ResultsSequencing LongRange fragment 3500bp 5 4 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT Intron 5 Intron 3

  30. ResultsSequencing LongRange fragment 3500bp 5 4 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT Intron 5 Intron 3 Exon 4

  31. ResultsSequencing LongRange fragment 3500bp 5 4 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT Intron 5 Intron 3 Exon 4 Primer

  32. ResultsSequencing LongRange fragment 3500bp 5 4 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT Intron 5 Intron 3 Exon 4 Primer

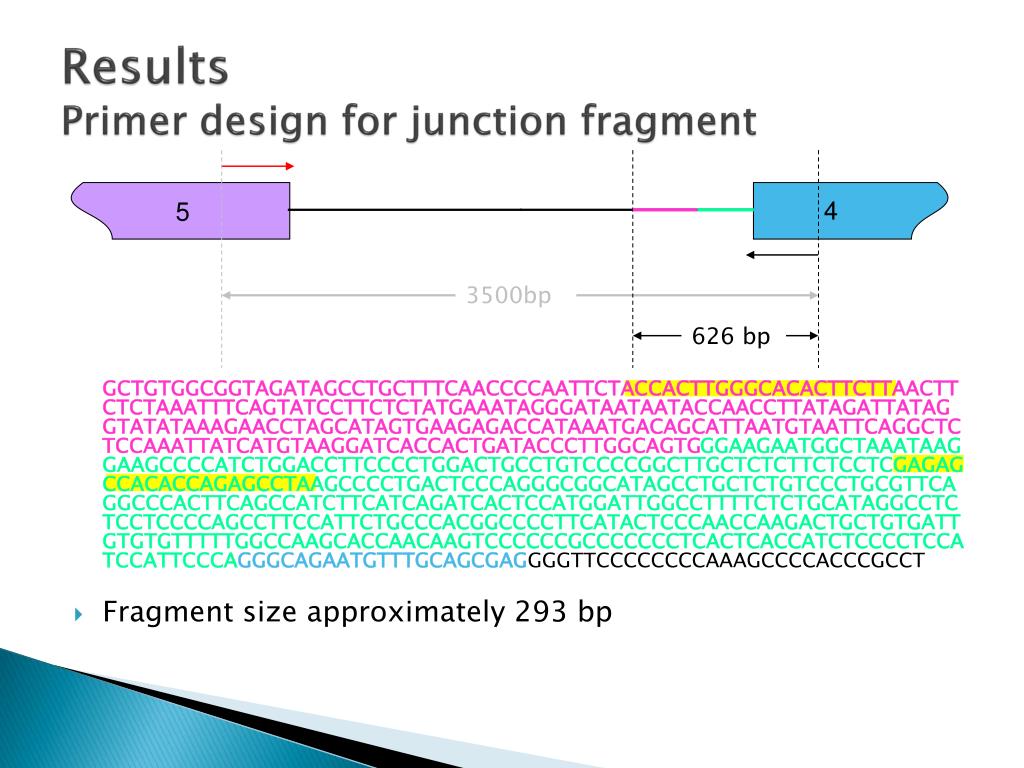

  33. 5 4 ResultsPrimer design for junction fragment 3500bp 626 bp GCTGTGGCGGTAGATAGCCTGCTTTCAACCCCAATTCTACCACTTGGGCACACTTCTTAACTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAAGCCCCTGACTCCCAGGGCGGCATAGCCTGCTCTGTCCCTGCGTTCAGGCCCACTTCAGCCATCTTCATCAGATCACTCCATGGATTGGCCTTTTCTCTGCATAGGCCTCTCCTCCCCAGCCTTCCATTCTGCCCACGGCCCCTTCATACTCCCAACCAAGACTGCTGTGATTGTGTGTTTTTGGCCAAGCACCAACAAGTCCCCCCGCCCCCCCTCACTCACCATCTCCCCTCCATCCATTCCCAGGGCAGAATGTTTGCAGCGAGGGGTTCCCCCCCCAAAGCCCCACCCGCCT • Fragment size approximately 293 bp

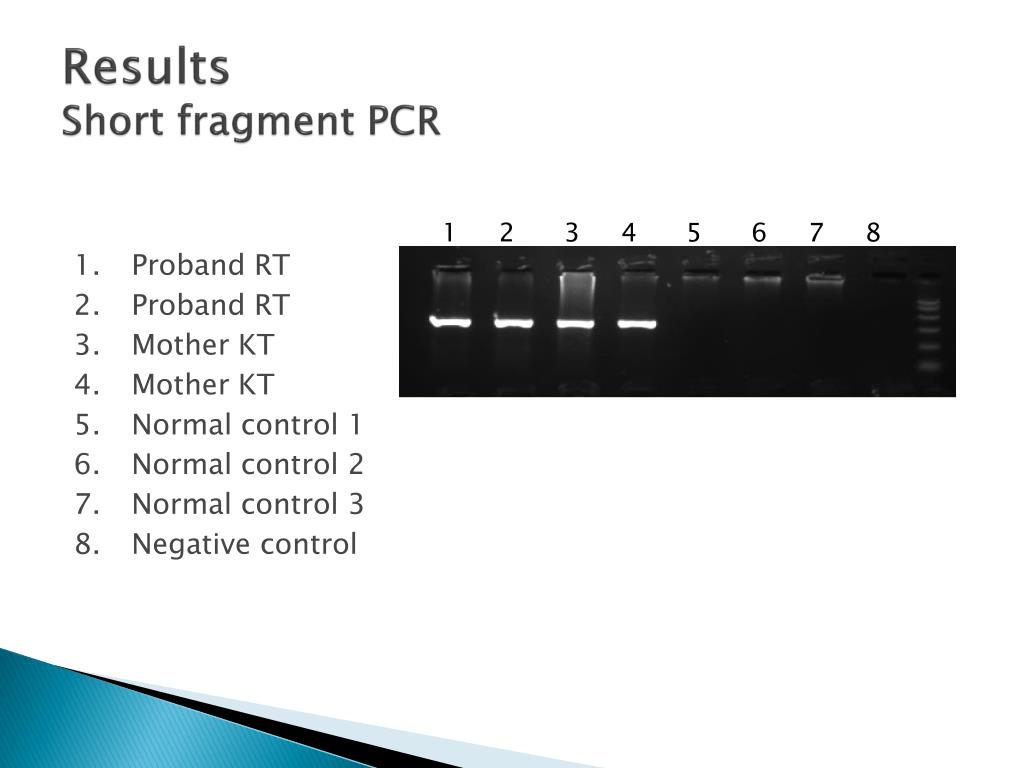

  34. ResultsShort fragment PCR 1 2 3 4 5 6 7 8 Proband RT Proband RT Mother KT Mother KT Normal control 1 Normal control 2 Normal control 3 Negative control

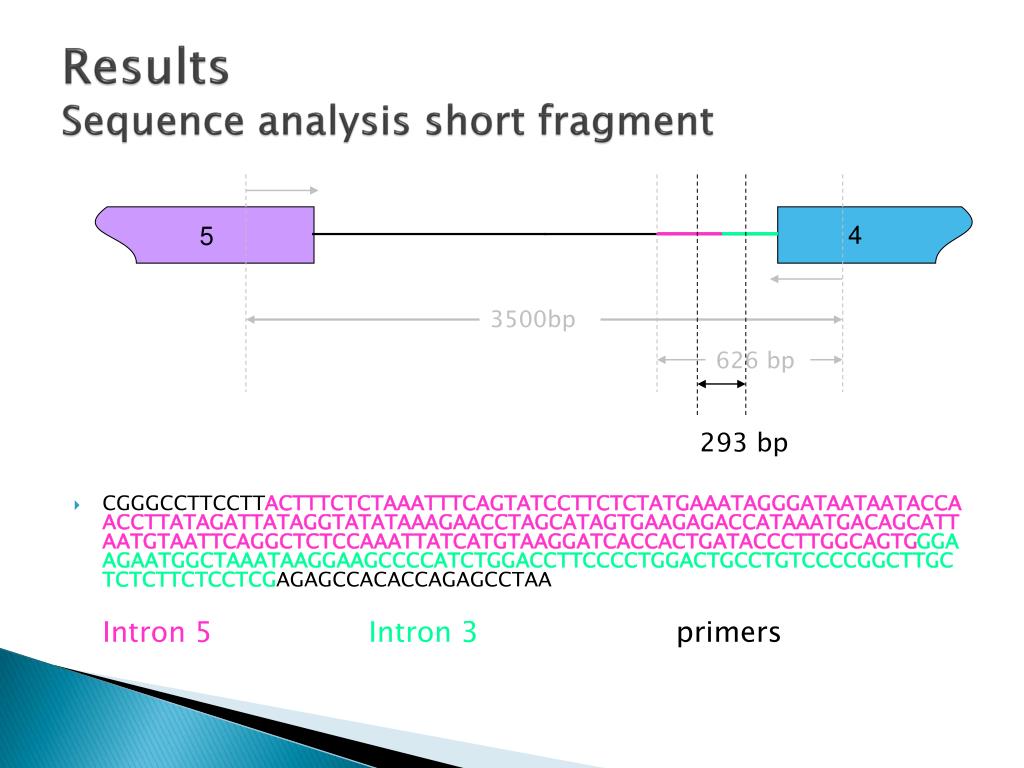

  35. ResultsSequenceanalysis short fragment 5 4 3500bp 626 bp 293 bp CGGGCCTTCCTTACTTTCTCTAAATTTCAGTATCCTTCTCTATGAAATAGGGATAATAATACCAACCTTATAGATTATAGGTATATAAAGAACCTAGCATAGTGAAGAGACCATAAATGACAGCATTAATGTAATTCAGGCTCTCCAAATTATCATGTAAGGATCACCACTGATACCCTTGGCAGTGGGAAGAATGGCTAAATAAGGAAGCCCCATCTGGACCTTCCCCTGGACTGCCTGTCCCCGGCTTGCTCTCTTCTCCTCGAGAGCCACACCAGAGCCTAA Intron 5Intron 3 primers

  36. Family MY2491RT Low level mosaic duplication RT Heterozygous duplication KT: • Double uterus • Unilateral renal agenesis RT: • Dysplastic kidneys • Diabetes at 30 months

  37. Conclusions • Direct tandem duplication (tail to head) • Junction fragment assay (293bp) identified duplication in mother KT • LongRange PCR is a useful tool to determine junctions in duplications found by MLPA • Easy to use • Not always necessary to redesign primers

  38. Acknowledgements • Michael Day • Kevin Colclough • All staff at the Molecular Genetics Laboratory in Exeter
