Fluids - Hydrostatics

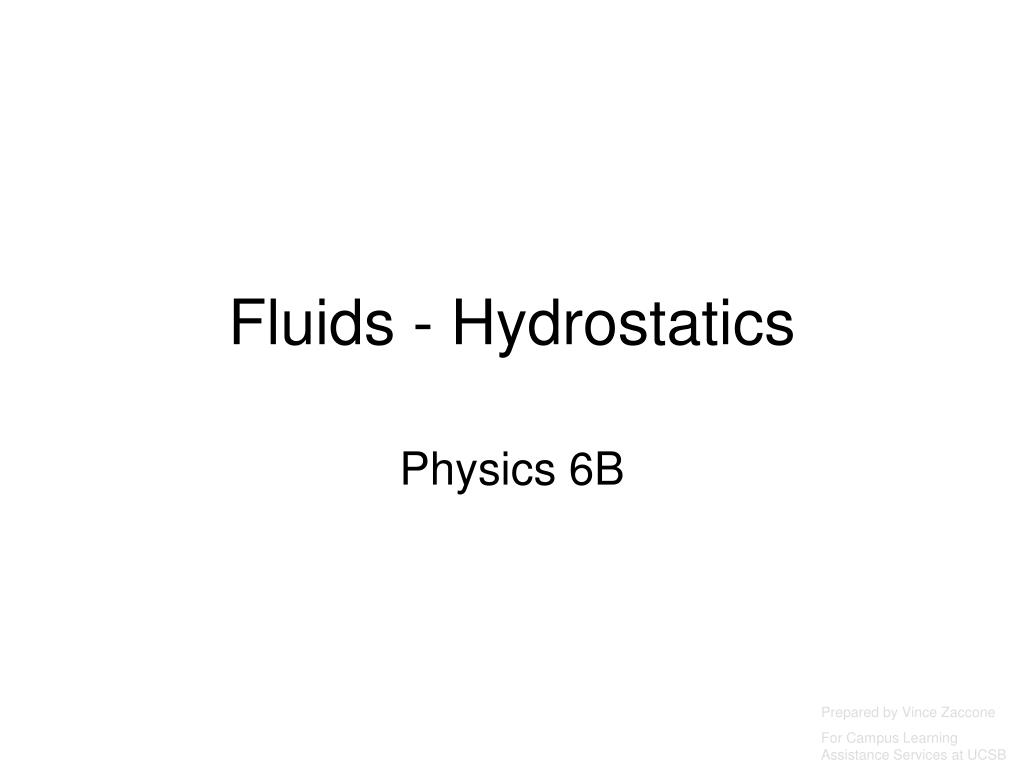

Fluids - Hydrostatics. Physics 6B. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB. Two Basic Concepts: Density and Pressure. Density measures how “tightly packed” an object is. The definition is given by a formula:. Prepared by Vince Zaccone

cid
Télécharger la présentation

Fluids - Hydrostatics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Fluids - Hydrostatics Physics 6B Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  2. Two Basic Concepts: Density and Pressure Density measures how “tightly packed” an object is. The definition is given by a formula: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  3. Two Basic Concepts: Density and Pressure Density measures how “tightly packed” an object is. The definition is given by a formula: Important note: you can rearrange this formula to get m=ρV. You will need to do this a lot. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  4. Two Basic Concepts: Density and Pressure Density measures how “tightly packed” an object is. The definition is given by a formula: Standard units for density are (you might be used to seeing in chemistry class) Important note: you can rearrange this formula to get m=ρV. You will need to do this a lot. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  5. Two Basic Concepts: Density and Pressure Density measures how “tightly packed” an object is. The definition is given by a formula: Standard units for density are (you might be used to seeing in chemistry class) One value you need to know is the density of water: Important note: you can rearrange this formula to get m=ρV. You will need to do this a lot. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  6. Two Basic Concepts: Density and Pressure Density measures how “tightly packed” an object is. The definition is given by a formula: Standard units for density are (you might be used to seeing in chemistry class) One value you need to know is the density of water: Pressure is used for fluids mainly because fluids don’t retain their shape, so it is not as useful to measure the force on a fluid. Definition of pressure: Important note: you can rearrange this formula to get m=ρV. You will need to do this a lot. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  7. Two Basic Concepts: Density and Pressure Density measures how “tightly packed” an object is. The definition is given by a formula: Standard units for density are (you might be used to seeing in chemistry class) One value you need to know is the density of water: Pressure is used for fluids mainly because fluids don’t retain their shape, so it is not as useful to measure the force on a fluid. Definition of pressure: This takes into account the area as well as the force. An example will help clarify this definition: Important note: you can rearrange this formula to get m=ρV. You will need to do this a lot. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  8. A thumbtack has a point with a diameter of 1mm. The other end has diameter 1cm. A force of 10 Newtons is required to push it into the wall. Find the pressure on the wall, and the pressure on the person’s thumb. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  9. A thumbtack has a point with a diameter of 1mm. The other end has diameter 1cm. A force of 10 Newtons is required to push it into the wall. Find the pressure on the wall, and the pressure on the person’s thumb. Here are the calculations: Notice that the pressure on the wall is 100x larger because the area is 100x smaller. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  10. Pressure varies with depth in a fluid. The deeper you are under the surface, the larger the pressure will be. Here is a formula we can use: h is the depth under the surface of the fluid, and the gauge pressure is measured relative to the pressure at the surface (usually atmospheric pressure). Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  11. Pressure varies with depth in a fluid. The deeper you are under the surface, the larger the pressure will be. Here is a formula we can use: h is the depth under the surface of the fluid, and the gauge pressure is measured relative to the pressure at the surface (usually atmospheric pressure). Air Fluid 20cm Try this example: A cubical box 20.0 cm on a side is completely immersed in a fluid. At the top of the box the pressure is 105 kPa: at the bottom the pressure is 106.8 kPa. What is the density of the fluid? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  12. Pressure varies with depth in a fluid. The deeper you are under the surface, the larger the pressure will be. Here is a formula we can use: h is the depth under the surface of the fluid, and the gauge pressure is measured relative to the pressure at the surface (usually atmospheric pressure). Air Fluid htop hbottom 20cm Try this example: A cubical box 20.0 cm on a side is completely immersed in a fluid. At the top of the box the pressure is 105 kPa: at the bottom the pressure is 106.8 kPa. What is the density of the fluid? Calculate the pressures using our formula, then subtract and divide to get our answer: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  13. Pressure varies with depth in a fluid. The deeper you are under the surface, the larger the pressure will be. Here is a formula we can use: h is the depth under the surface of the fluid, and the gauge pressure is measured relative to the pressure at the surface (usually atmospheric pressure). Air Fluid htop hbottom 20cm Try this example: A cubical box 20.0 cm on a side is completely immersed in a fluid. At the top of the box the pressure is 105 kPa: at the bottom the pressure is 106.8 kPa. What is the density of the fluid? Calculate the pressures using our formula, then subtract and divide to get our answer: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  14. Here is the submerged box again. The pressure is exerted on the box in all directions by perpendicular forces, as shown. The idea that pressure in a fluid is applied in all directions is called Pascal’s Law Air Fluid F┴ F┴ F┴ F┴ Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  15. Here is the submerged box again. The pressure is exerted on the box in all directions by perpendicular forces, as shown. The idea that pressure in a fluid is applied in all directions is called Pascal’s Law Air Fluid F┴ F┴ F┴ F┴ Pascal’s Law helps explain the idea of Buoyancy (why objects float or sink) Here’s the basic idea: since the pressure is larger at the bottom of the box, the upward force there is larger than the downward force on the top, creating a net force upward on the box. We call this the Buoyant Force. Note that the horizontal forces on the sides cancel out. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  16. Here is a formula for Buoyant Force: Air Fluid F┴ F┴ F┴ F┴ Very Important Note: the density in this formula is the density of the FLUID, not the submerged object. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  17. Here is a formula for Buoyant Force: Air Fluid F┴ F┴ F┴ F┴ Very Important Note: the density in this formula is the density of the FLUID, not the submerged object. Using the definition of density ( ), we can also see that the buoyant force is the WEIGHT of the displaced FLUID. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  18. Here is a formula for Buoyant Force: Air Fluid F┴ F┴ F┴ F┴ Very Important Note: the density in this formula is the density of the FLUID, not the submerged object. Using the definition of density ( ), we can also see that the buoyant force is the WEIGHT of the displaced FLUID. In the case of an object floating at the surface of a fluid, the buoyant force is also equal to the weight of the object. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  19. Here is a formula for Buoyant Force: Air Fluid F┴ F┴ F┴ F┴ Very Important Note: the density in this formula is the density of the FLUID, not the submerged object. Using the definition of density ( ), we can also see that the buoyant force is the WEIGHT of the displaced FLUID. In the case of an object floating at the surface of a fluid, the buoyant force is also equal to the weight of the object. One more rule of thumb: if an object is more dense than the fluid, it sinks; if the object is less dense, it floats. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  20. Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  21. Air Water Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  22. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  23. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  24. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  25. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: We know the weight, and we can find the buoyant force a couple of different ways: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  26. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: We know the weight, and we can find the buoyant force a couple of different ways: Option 1: Use the standard formula Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  27. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: We know the weight, and we can find the buoyant force a couple of different ways: Option 1: Use the standard formula The volume displaced is just the volume of the brick (it is fully submerged) and we can find that from the definition of density: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  28. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: We know the weight, and we can find the buoyant force a couple of different ways: Option 1: Use the standard formula The volume displaced is just the volume of the brick (it is fully submerged) and we can find that from the definition of density: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  29. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: We know the weight, and we can find the buoyant force a couple of different ways: Option 2: The buoyant force is the weight of the displaced fluid. Since the brick is fully submerged, and we know the densities, the weight of the fluid is just the weight of the brick times the ratio of the densities: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  30. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: We know the weight, and we can find the buoyant force a couple of different ways: Option 2: The buoyant force is the weight of the displaced fluid. Since the brick is fully submerged, and we know the densities, the weight of the fluid is just the weight of the brick times the ratio of the densities: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  31. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: Now that we have the buoyant force, we can calculate the tension Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  32. Air Water FB FT mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? Here is a picture of the submerged brick. Draw a free-body diagram of the forces on the brick. Now we can write down Newton’s 2nd law: Now that we have the buoyant force, we can calculate the tension: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  33. Air Water FB mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? To answer the 2nd question, just notice that when the string is cut, the tension force goes away. This gives us a new (simpler) free-body diagram. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  34. Air Water FB mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? To answer the 2nd question, just notice that when the string is cut, the tension force goes away. This gives us a new (simpler) free-body diagram. Write down Netwon’s 2nd law again: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  35. Air Water FB mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? To answer the 2nd question, just notice that when the string is cut, the tension force goes away. This gives us a new (simpler) free-body diagram. Write down Netwon’s 2nd law again: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  36. Air Water FB mg Example: A brick with mass 5kg and density 2800 kg/m3 is tied to a string and lowered into a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the brick accelerate toward the bottom of the pool? To answer the 2nd question, just notice that when the string is cut, the tension force goes away. This gives us a new (simpler) free-body diagram. Write down Netwon’s 2nd law again: Note: the acceleration is negative because the brick is sinking Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  37. Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  38. Air Water FB mg FT Bottom of pool Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? Same basic setup as the previous problem, but the block is floating. We can draw the picture and the free-body diagram again: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  39. Air Water FB mg FT Bottom of pool Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? Same basic setup as the previous problem, but the block is floating. We can draw the picture and the free-body diagram again: Newton’s 2nd law: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  40. Air Water FB mg FT Bottom of pool Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? Same basic setup as the previous problem, but the block is floating. We can draw the picture and the free-body diagram again: Newton’s 2nd law: This time the buoyant force is greater than the weight of the block because the density of water is larger than the block’s density. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  41. Air Water FB mg FT Bottom of pool Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? Same basic setup as the previous problem, but the block is floating. We can draw the picture and the free-body diagram again: Newton’s 2nd law: This time the buoyant force is greater than the weight of the block because the density of water is larger than the block’s density. Using option 2 from the previous problem: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  42. Air Water FB mg FT Bottom of pool Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? Same basic setup as the previous problem, but the block is floating. We can draw the picture and the free-body diagram again: Newton’s 2nd law: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  43. Air Water a FB mg Bottom of pool Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? To find the acceleration when the string is cut, again notice that the tension force goes away, then use Newton’s 2nd law: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  44. Air Water a FB FB mg mg Bottom of pool Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? To find the acceleration when the string is cut, again notice that the tension force goes away, then use Newton’s 2nd law: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  45. Air Water a FB FB mg mg Bottom of pool Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? To find the acceleration when the string is cut, again notice that the tension force goes away, then use Newton’s 2nd law: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  46. a FB FB mg mg Bottom of pool Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? Air To find the acceleration when the string is cut, again notice that the tension force goes away, then use Newton’s 2nd law: Water Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  47. FB Air Water mg Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? For the last part, consider the forces on the block when it is floating at the surface. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  48. FB Air Water mg Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? For the last part, consider the forces on the block when it is floating at the surface. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  49. FB Air Water mg Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? For the last part, consider the forces on the block when it is floating at the surface. The buoyant force only has to be strong enough to balance out the weight of the block, so the block floats above the surface. If you split the block into 2 parts – the part above the surface and the part below, it is only the part below that is displacing water. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  50. FB Air Water mg Now try an example with a floating object: A block of wood with mass 2kg and density 700kg/m3 is tied to a string and fastened to the bottom of a pool of fresh water. Find the tension in the string. If the string is cut, how fast will the block accelerate toward the top of the pool? Once it gets to the surface, how much of the block is above the water? For the last part, consider the forces on the block when it is floating at the surface. The buoyant force only has to be strong enough to balance out the weight of the block, so the block floats above the surface. If you split the block into 2 parts – the part above the surface and the part below, it is only the part below that is displacing water. We can find the buoyant force from our standard formula: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB
