GLOBAL DISTRIBUTION OF TROPOSPHERIC OZONE

TES thermal IR satellite observations for 2006, seasonal means at 500 hPa. Maximum values at northern mid-latitudes in spring-summer due to anthropogenic pollution; High values in tropical regions affected by seasonal biomass burning; Minimum values over tropical oceans due to chemical loss .

claus
Télécharger la présentation

GLOBAL DISTRIBUTION OF TROPOSPHERIC OZONE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. TES thermal IR satellite observations for 2006, seasonal means at 500 hPa • Maximum values at northern mid-latitudes in spring-summer due to anthropogenic pollution; • High values in tropical regions affected by seasonal biomass burning; • Minimum values over tropical oceans due to chemical loss GLOBAL DISTRIBUTION OF TROPOSPHERIC OZONE Zhang et al. [2010]

  2. OBSERVED RISE IN TROPOSPHERIC OZONEOVER 20th CENTURY Models underestimate the observed trend Preindustrial ozone models } Observations at mountain sites in Europe [Marenco et al., 1994]

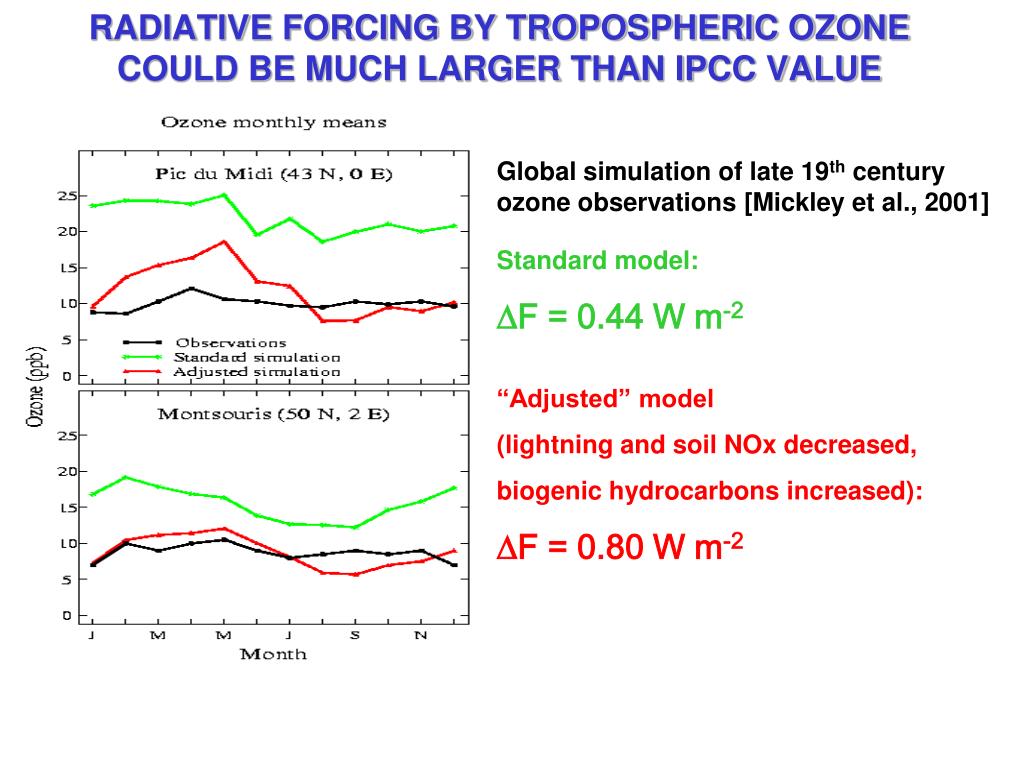

  3. RADIATIVE FORCING BY TROPOSPHERIC OZONE COULD BE MUCH LARGER THAN IPCC VALUE Global simulation of late 19th century ozone observations [Mickley et al., 2001] Standard model: DF = 0.44 W m-2 “Adjusted” model (lightning and soil NOx decreased, biogenic hydrocarbons increased): DF = 0.80 W m-2

  4. GLOBAL OZONE AND OH TRENDS Ozone, ppb Mean mass-weighted tropospheric values computed from GEOS-Chem model for present-day (PD), pre-industrial (PI), and last glacial maximum (LGM) OH, 105 molecules cm-3 PD PI LGM two different climate reconstructions Lee Murray, Harvard

  5. MODEL INTERCOMPARISON OF OH TRENDS LGM to pre-industrial Pre-industrial to present

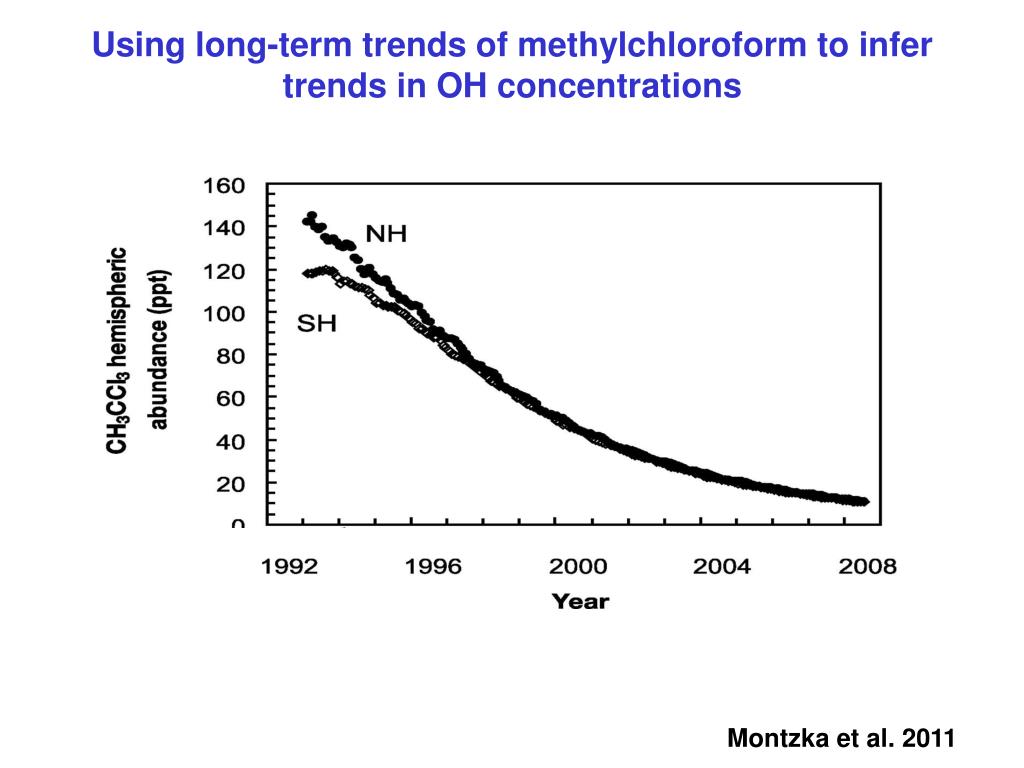

  6. Using long-term trends of methylchloroform to infer trends in OH concentrations Montzka et al. 2011

  7. TRENDS IN GLOBALTROPOSPHERIC OHinferred from methylchloroform observations Montzka et al., 2011 IPCC, 2007

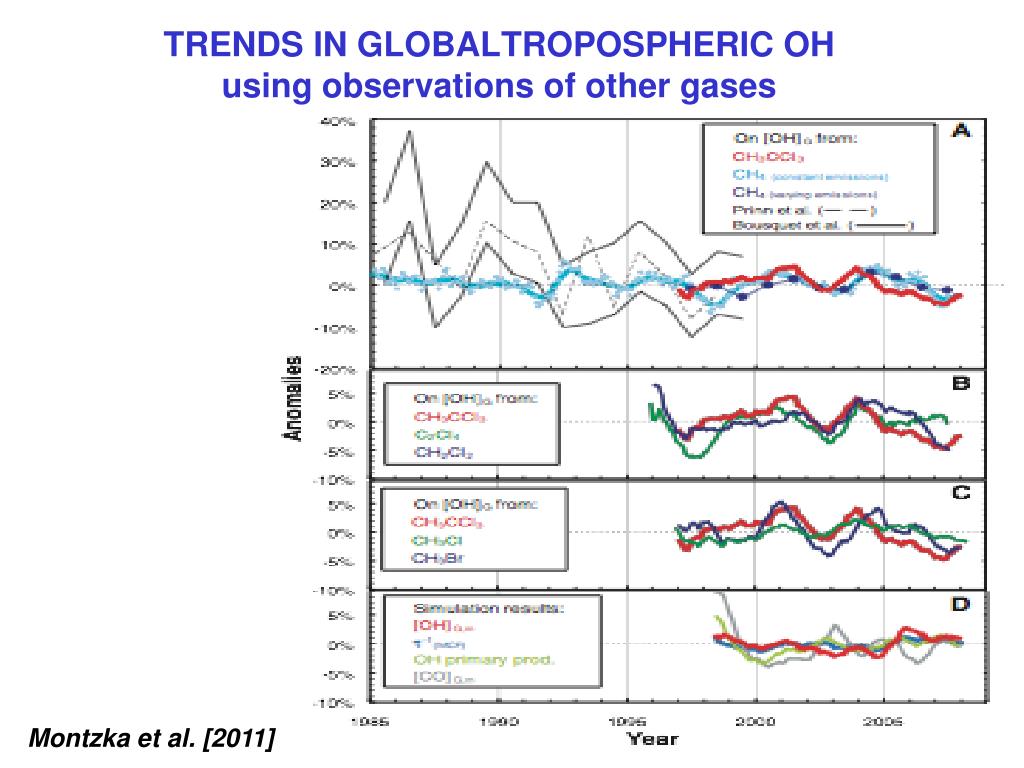

  8. TRENDS IN GLOBALTROPOSPHERIC OHusing observations of other gases Montzka et al. [2011]
