Efficient XML Data Management: Extracting Data with XPath

colette-cantrell avatar
colette-cantrell
22 diapositives · 331 Views · Nov 07, 2014

Learn how to extract data from XML documents using XPath, a declarative language for efficient data retrieval. Understand path expressions, conditions, and built-ins for navigating and querying XML data.

Efficient XML Data Management: Extracting Data with XPath - slide 1
01 / 22Efficient XML Data Management: Extracting Data with XPath
1 / 17

Télécharger la présentation

Efficient XML Data Management: Extracting Data with XPath
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. XML Data Management 5. Extracting Data from XML: XPath Werner Nutt based on slides by Sara Cohen, Jerusalem

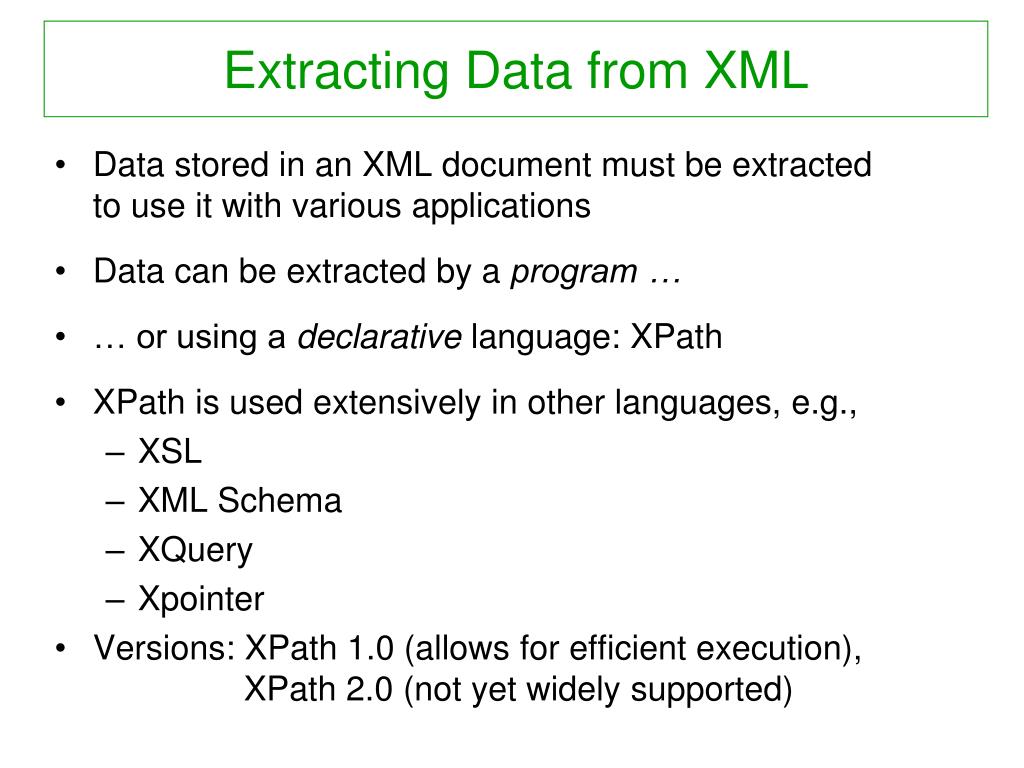

  2. Extracting Data from XML • Data stored in an XML document must be extracted to use it with various applications • Data can be extracted by a program … • … or using a declarative language: XPath • XPath is used extensively in other languages, e.g., • XSL • XML Schema • XQuery • Xpointer • Versions: XPath 1.0 (allows for efficient execution), XPath 2.0 (not yet widely supported)

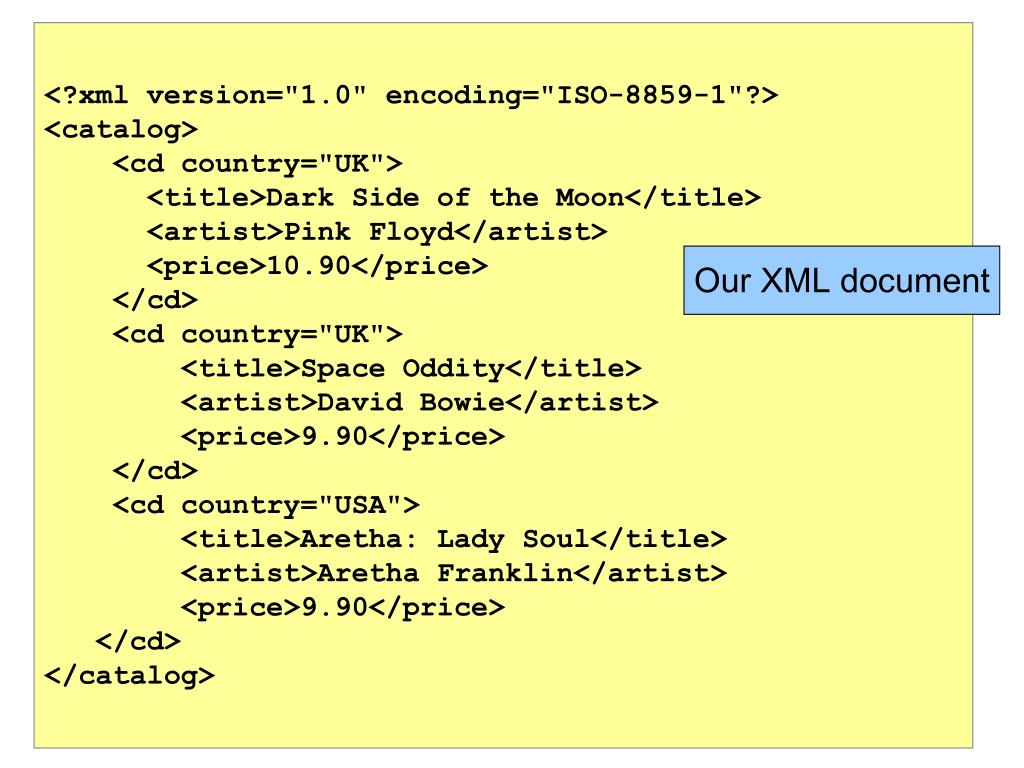

  3. <?xml version="1.0" encoding="ISO-8859-1"?> <catalog> <cd country="UK"> <title>Dark Side of the Moon</title> <artist>Pink Floyd</artist> <price>10.90</price> </cd> <cd country="UK"> <title>Space Oddity</title> <artist>David Bowie</artist> <price>9.90</price> </cd> <cd country="USA"> <title>Aretha: Lady Soul</title> <artist>Aretha Franklin</artist> <price>9.90</price> </cd> </catalog> Our XML document

  4. The XML document as a DOM tree catalog.xml catalog cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90

  5. XPath: Ideas A language of path expressions: • a document D is a tree • an expression E specifies possible paths in D • Ereturns nodes in D that can be reached from the root walking along an E-path Path expressions specify • navigation in docs • tests on nodes

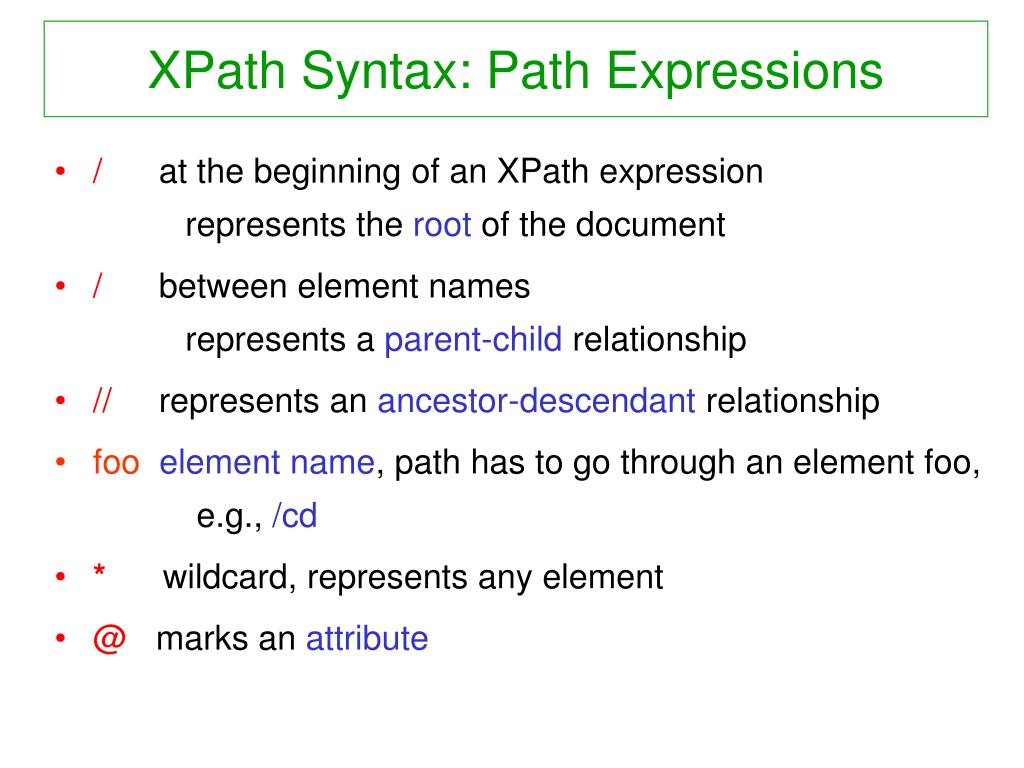

  6. XPath Syntax: Path Expressions • / at the beginning of an XPath expression represents the root of the document • / between element names represents a parent-child relationship • // represents an ancestor-descendant relationship • foo element name, path has to go through an element foo, e.g., /cd • * wildcard, represents any element • @ marks an attribute

  7. XPath Syntax: Conditions and Built-Ins • [condition] specifies a condition, e.g., /cd[price < 10] • [N] position of a child, e.g., /cd[2] • contains(s1,s2) string comparison, e.g., /cd[contains(title, ″Moon″)] • name() name of an element, e.g., /*[name()="cd"] is equivalent to /cd

  8. catalog.xml catalog /catalog cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 Getting the top element of the document

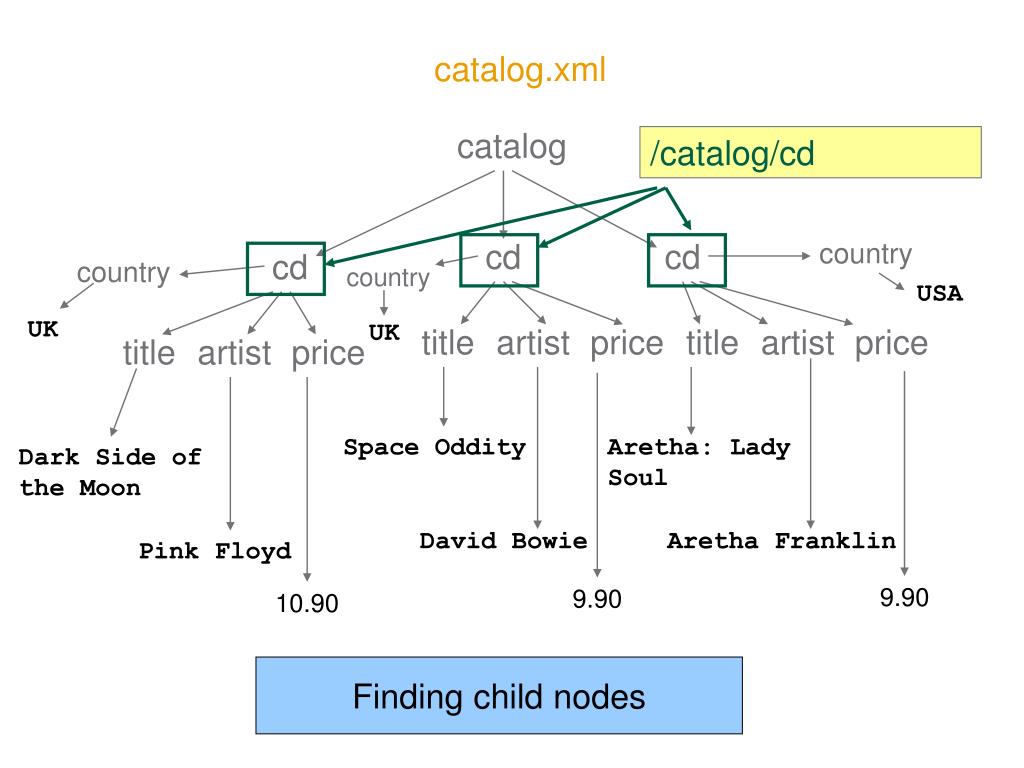

  9. catalog.xml catalog /catalog/cd cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 Finding child nodes

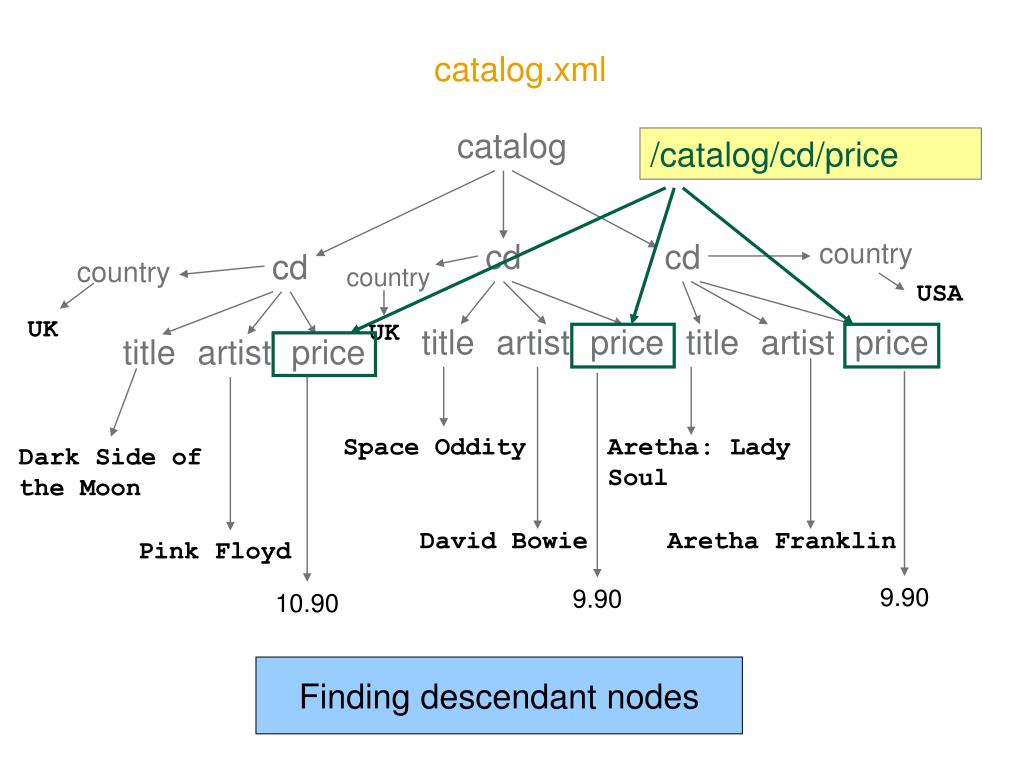

  10. catalog.xml catalog /catalog/cd/price cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 Finding descendant nodes

  11. catalog.xml catalog /catalog/cd[price<10] cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 Condition on elements

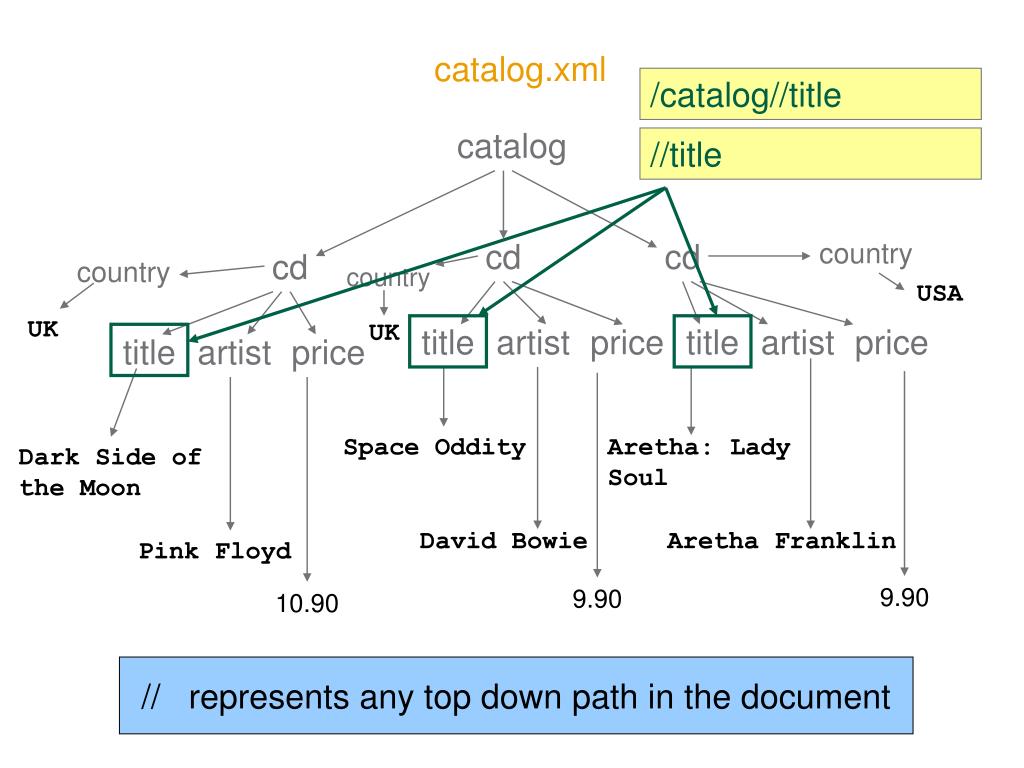

  12. catalog.xml /catalog//title catalog //title cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 // represents any top down path in the document

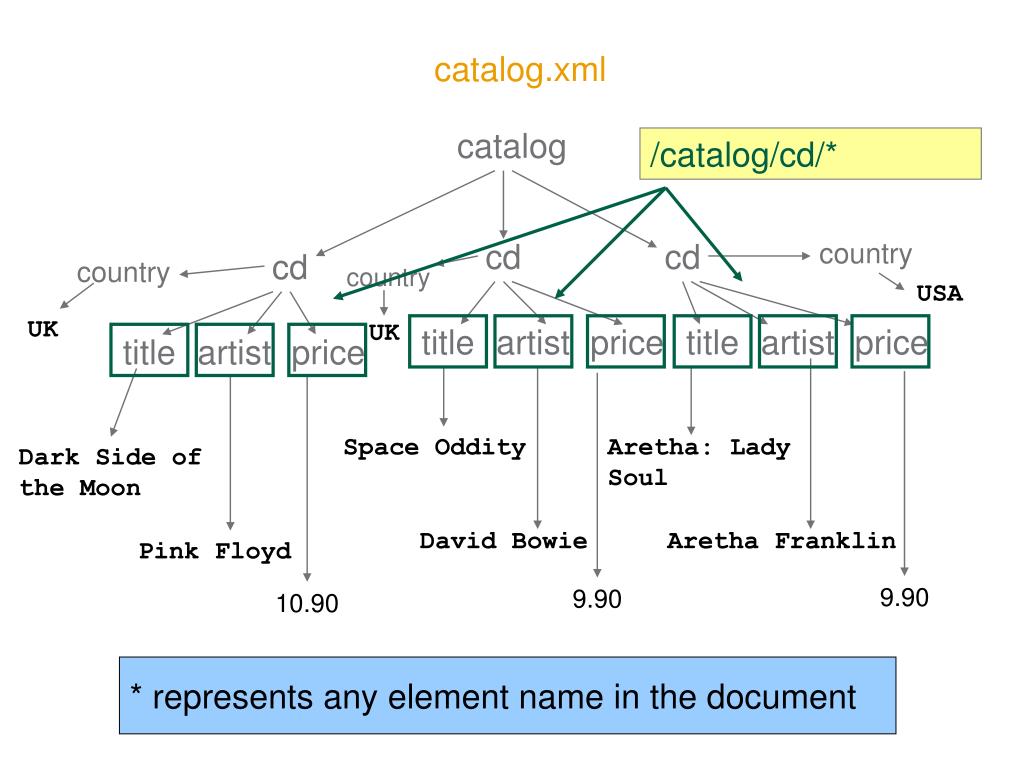

  13. catalog.xml catalog /catalog/cd/* cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 * represents any element name in the document

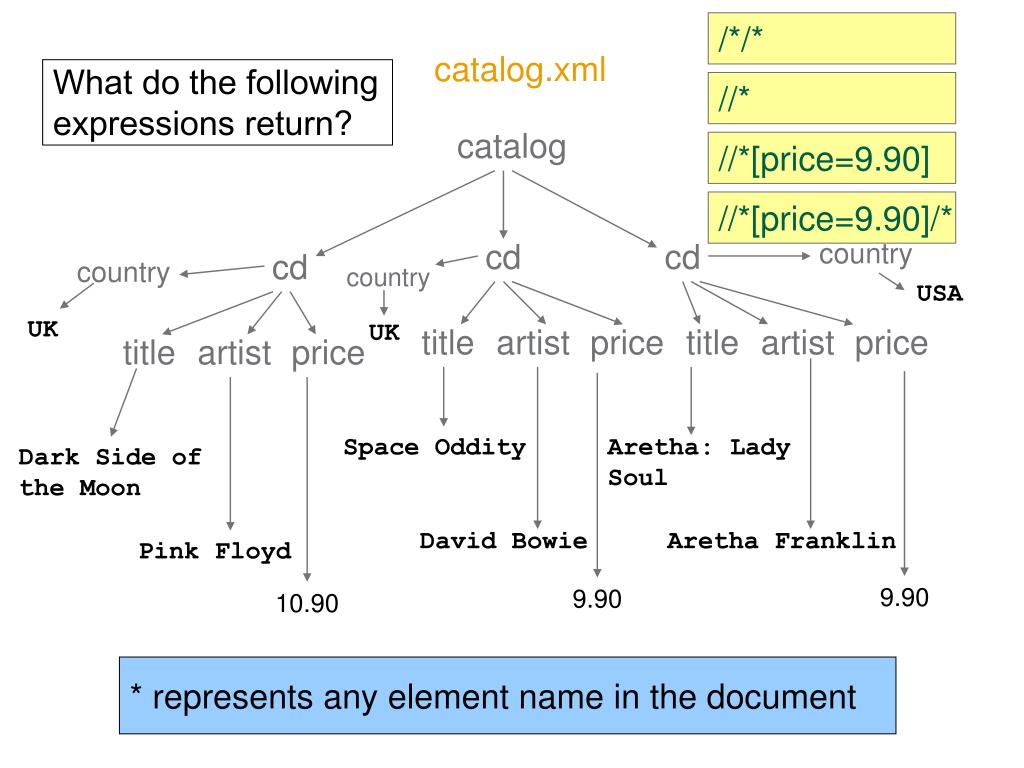

  14. /*/* catalog.xml What do the following expressions return? //* catalog //*[price=9.90] //*[price=9.90]/* cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 * represents any element name in the document

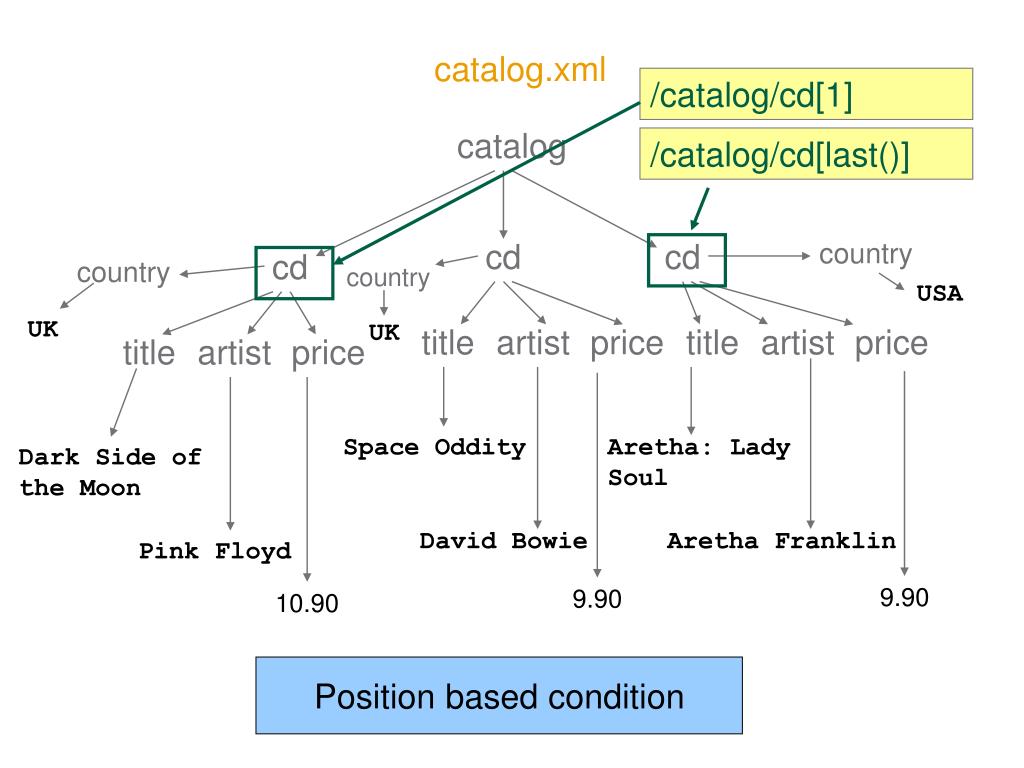

  15. catalog.xml /catalog/cd[1] catalog /catalog/cd[last()] cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 Position based condition

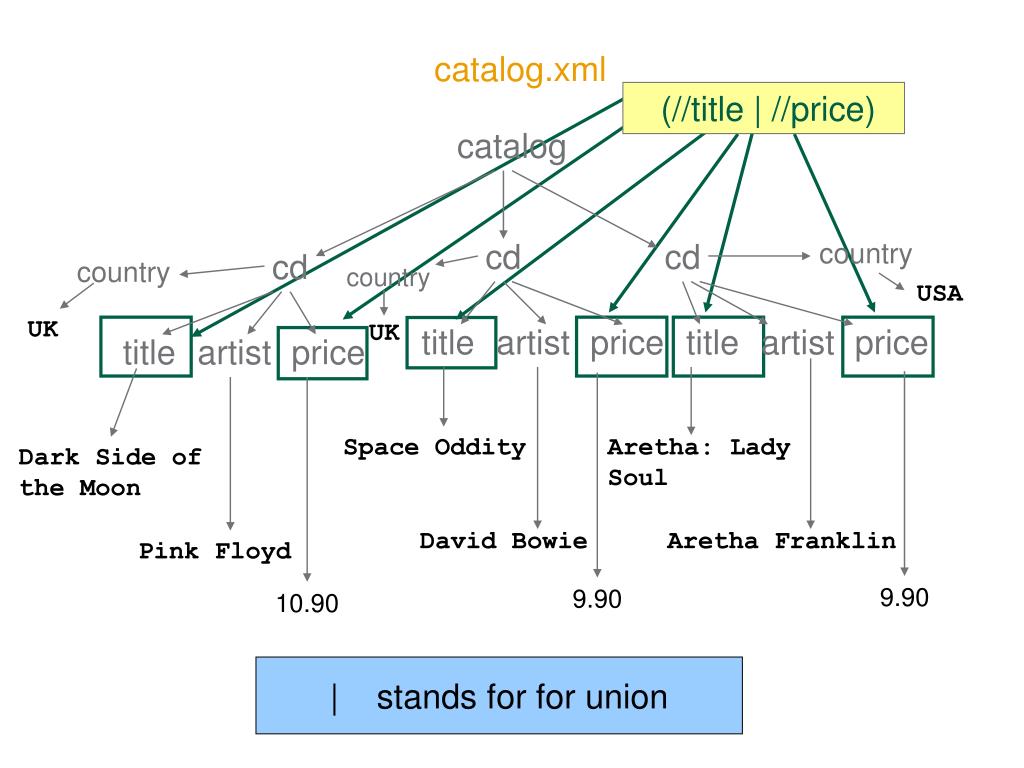

  16. catalog.xml (//title | //price) catalog cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 | stands for for union

  17. catalog.xml /catalog/cd[@country=″UK″] catalog cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 @ marks attributes

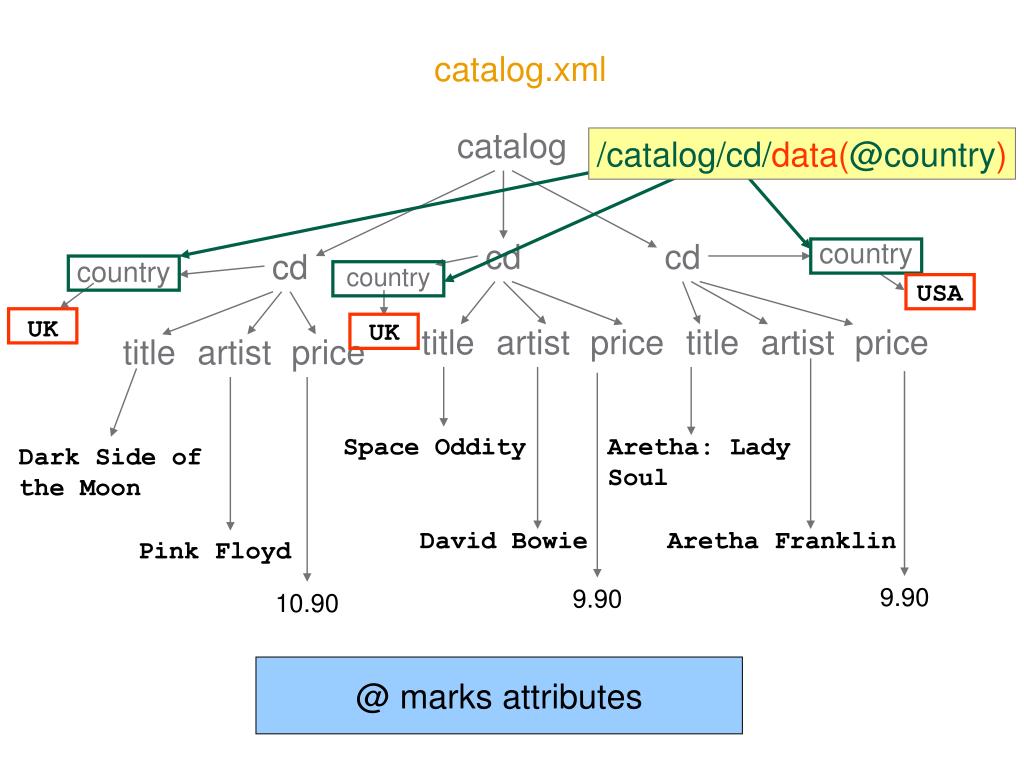

  18. catalog.xml catalog /catalog/cd/data(@country) cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90 @ marks attributes

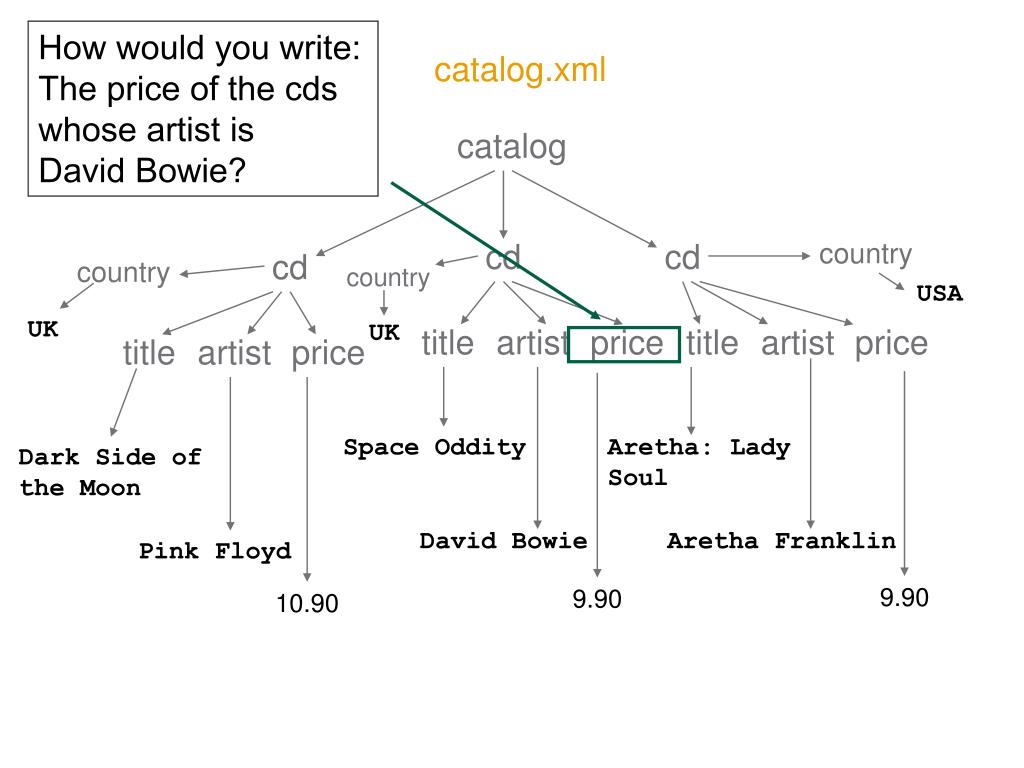

  19. How would you write: The price of the cds whose artist is David Bowie? catalog.xml catalog cd cd country cd country country USA UK UK title artist price title artist price title artist price Space Oddity Aretha: Lady Soul Dark Side of the Moon David Bowie Aretha Franklin Pink Floyd 9.90 9.90 10.90

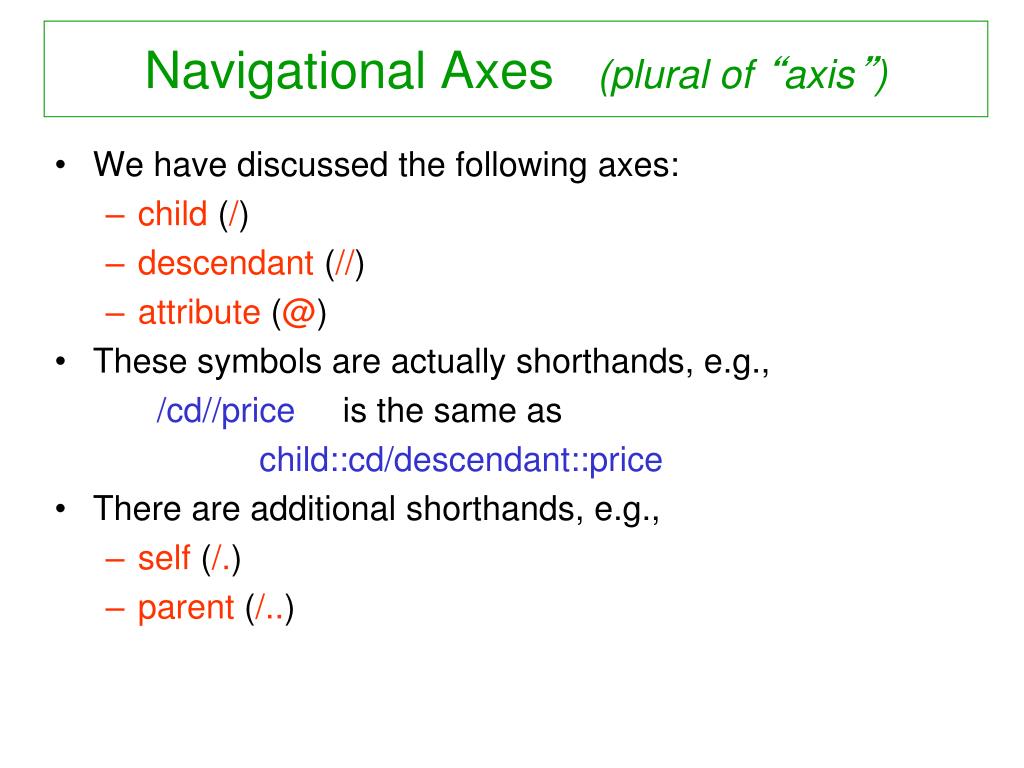

  20. Navigational Axes (plural of “axis”) • We have discussed the following axes: • child (/) • descendant (//) • attribute (@) • These symbols are actually shorthands, e.g., /cd//price is the same as child::cd/descendant::price • There are additional shorthands, e.g., • self (/.) • parent (/..)

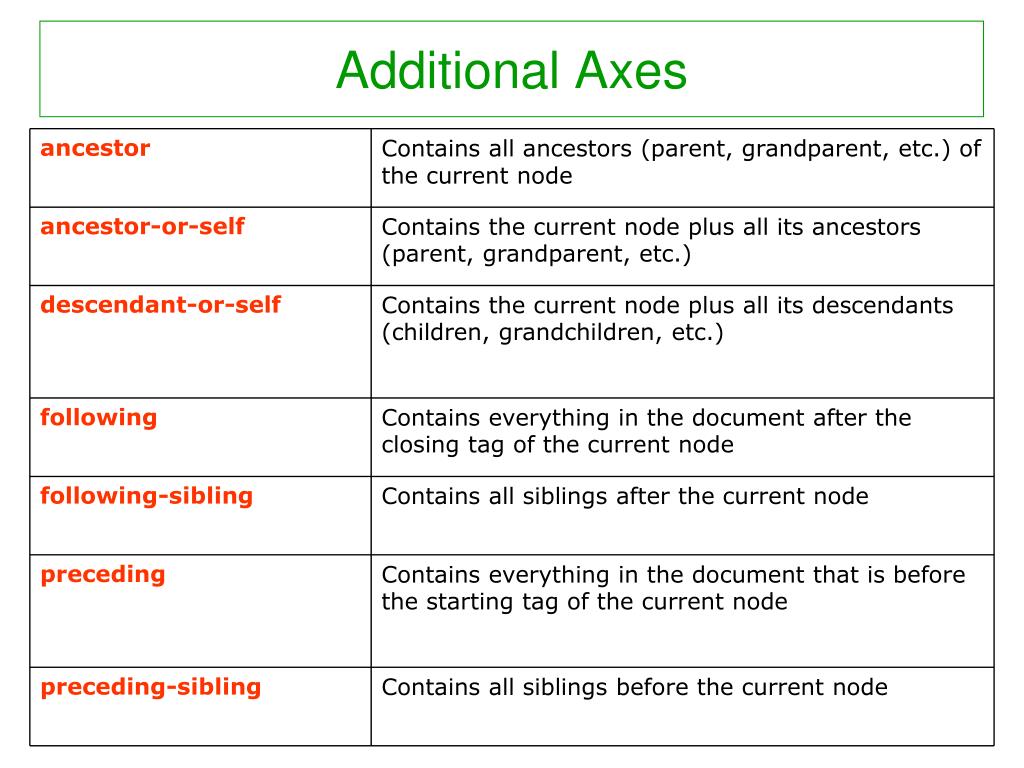

  21. ancestor Contains all ancestors (parent, grandparent, etc.) of the current node ancestor-or-self Contains the current node plus all its ancestors (parent, grandparent, etc.) descendant-or-self Contains the current node plus all its descendants (children, grandchildren, etc.) following Contains everything in the document after the closing tag of the current node following-sibling Contains all siblings after the current node preceding Contains everything in the document that is before the starting tag of the current node preceding-sibling Contains all siblings before the current node Additional Axes

  22. Info and Tools You will find more info in the next lecture and: • XPath 1.0 specification at W3C (there is also XPath 2.0, which is not yet widely supported) • XPath tutorial at W3Schools • Mulberry XPath Quick Reference Tools for our course • XPath plugin for Eclipse • Saxon XSLT and XQuery Processor • Kernow front end for Saxon (I’ll let you know the code for unlocking it) • XMLQuire XML and XPath Editor and Visualizer
