Skeletal System. Bone Classification. Bones are classified according to shape Long bones Short bones Flat bones Irregular bones Sesamoid bones (round). Long Bones. Long bones – longer than they are wide. They consist of a long shaft with two bulky ends.
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation
Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement.Téléchargez la présentation en cliquant sur ce lien.Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

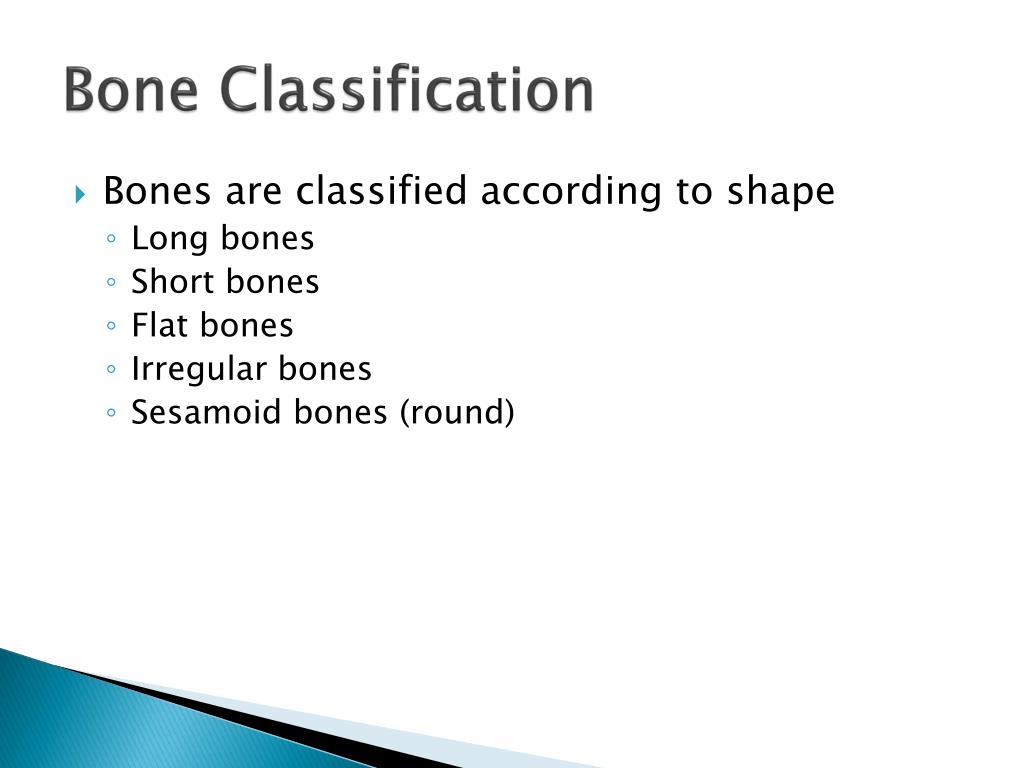

Bone Classification • Bones are classified according to shape • Long bones • Short bones • Flat bones • Irregular bones • Sesamoid bones (round)

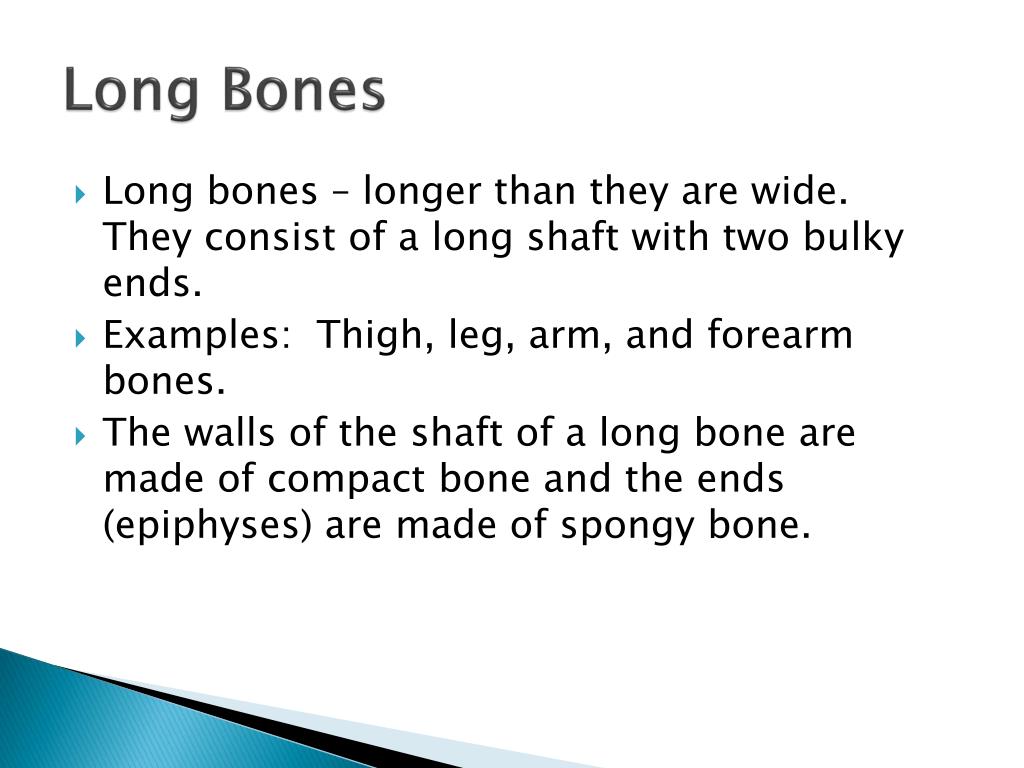

Long Bones • Long bones – longer than they are wide. They consist of a long shaft with two bulky ends. • Examples: Thigh, leg, arm, and forearm bones. • The walls of the shaft of a long bone are made of compact bone and the ends (epiphyses) are made of spongy bone.

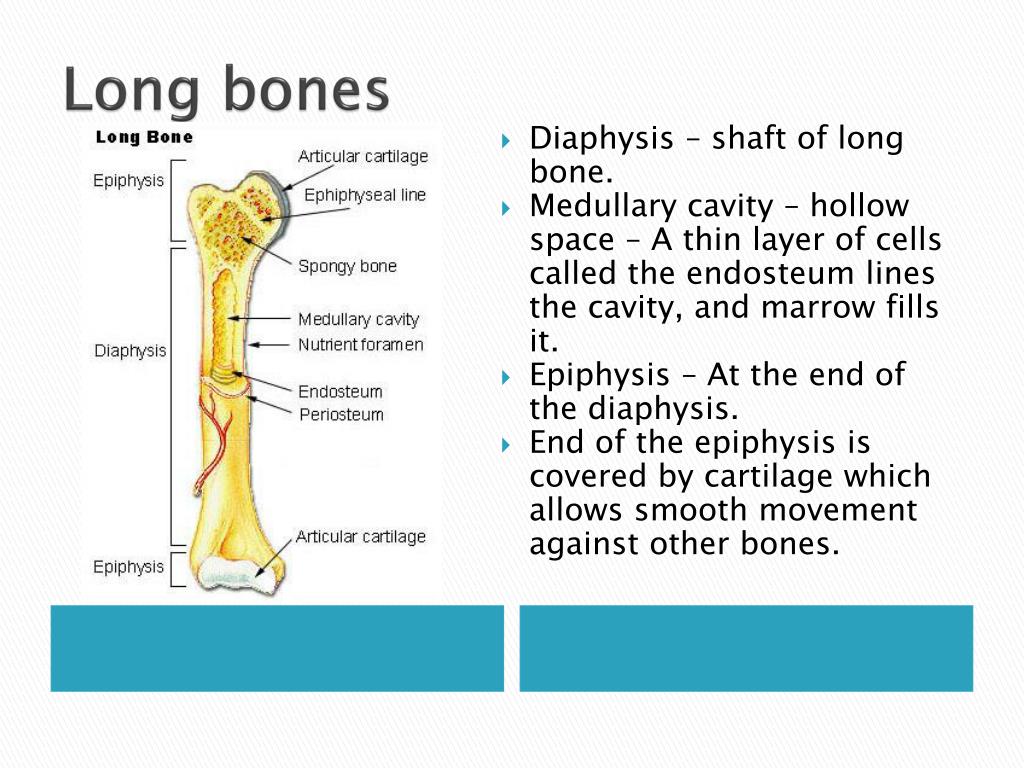

Long bones • Diaphysis – shaft of long bone. • Medullary cavity – hollow space – A thin layer of cells called the endosteum lines the cavity, and marrow fills it. • Epiphysis – At the end of the diaphysis. • End of the epiphysis is covered by cartilage which allows smooth movement against other bones.

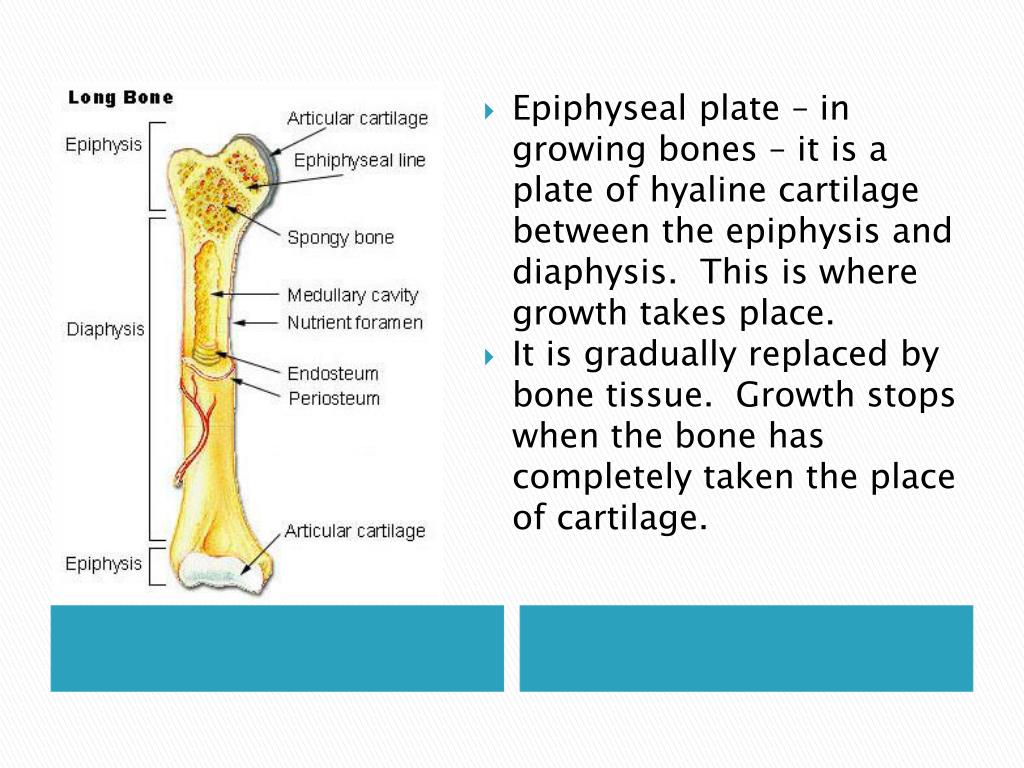

Epiphyseal plate – in growing bones – it is a plate of hyaline cartilage between the epiphysis and diaphysis. This is where growth takes place. • It is gradually replaced by bone tissue. Growth stops when the bone has completely taken the place of cartilage.
Periosteum – a tough, fibrous connective tissue that covers long bones. • Periosteum has many nerves, blood vessels and osteoblasts(cells that create new bone) • Nutrient foramina are small openings through which blood vessels enter into the bone.
Short bones • Roughly cube-shaped • Primarily made of spongy bone, covered by a thin layer of compact bone. • Bones of the wrist and ankle

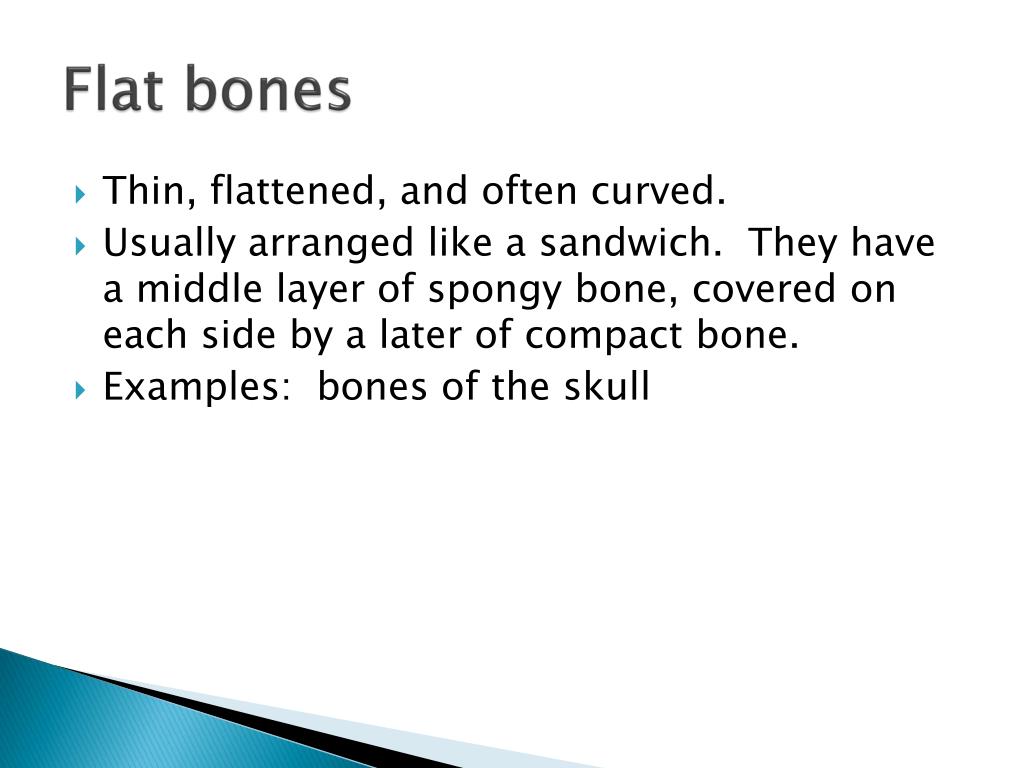

Flat bones • Thin, flattened, and often curved. • Usually arranged like a sandwich. They have a middle layer of spongy bone, covered on each side by a later of compact bone. • Examples: bones of the skull

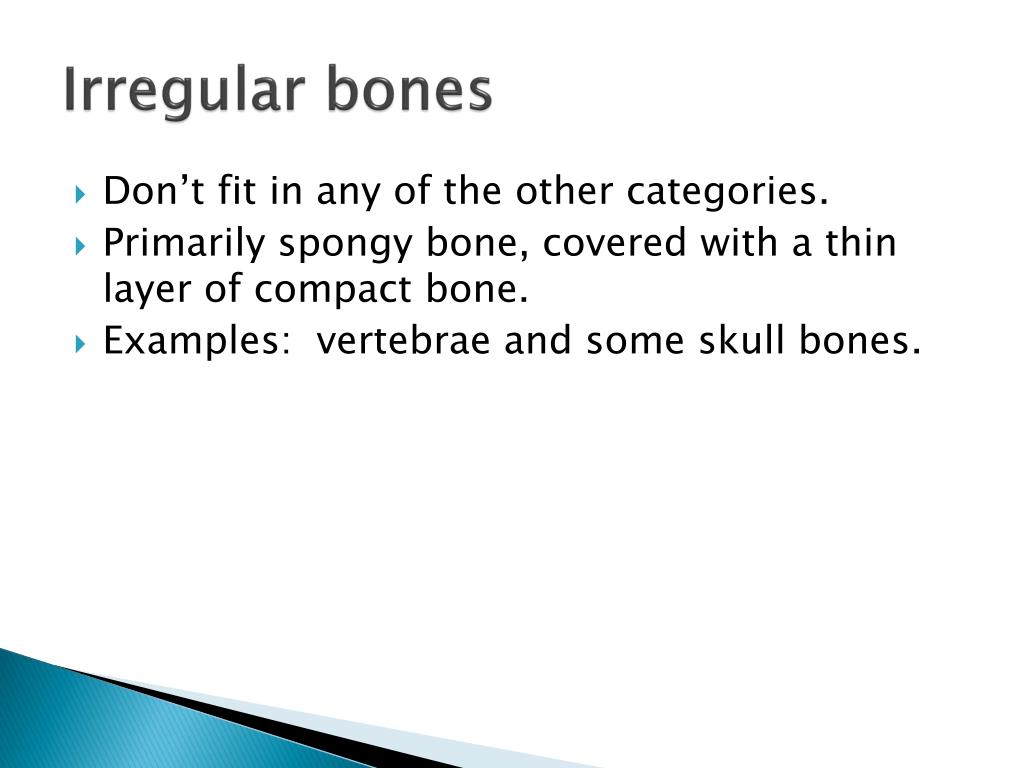

Irregular bones • Don’t fit in any of the other categories. • Primarily spongy bone, covered with a thin layer of compact bone. • Examples: vertebrae and some skull bones.
Sesamoid Bones • Small and nodular bones. • Usually embedded within a tendon adjacent to a joint • Example: patella and sesamoid bones of foot

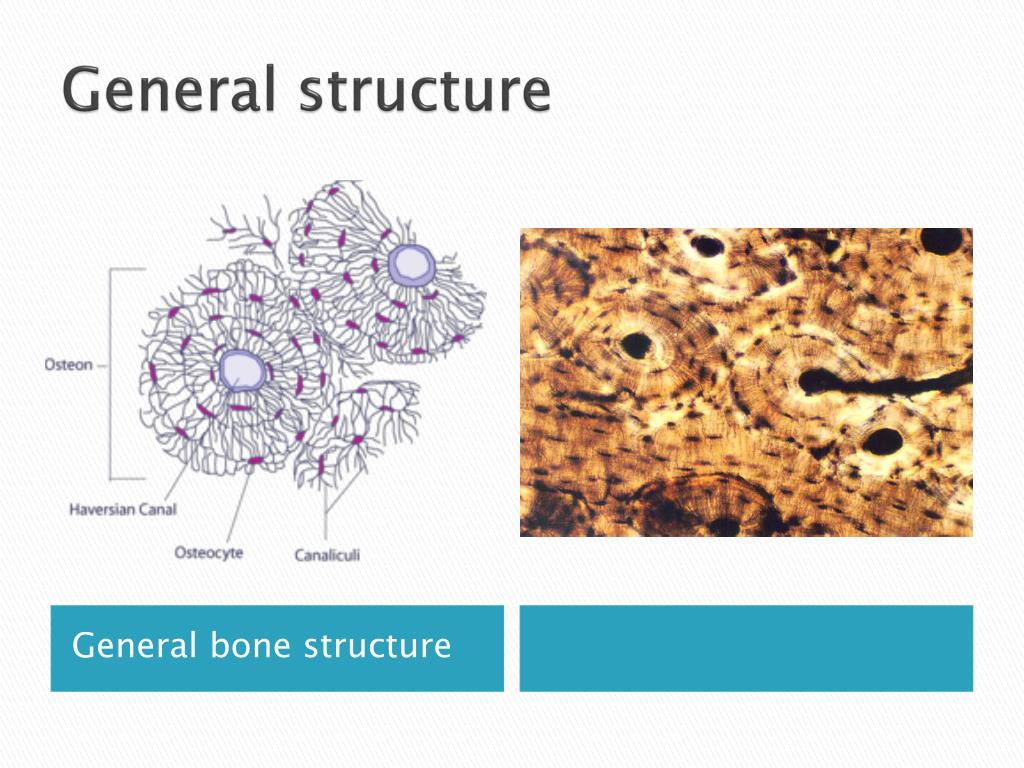

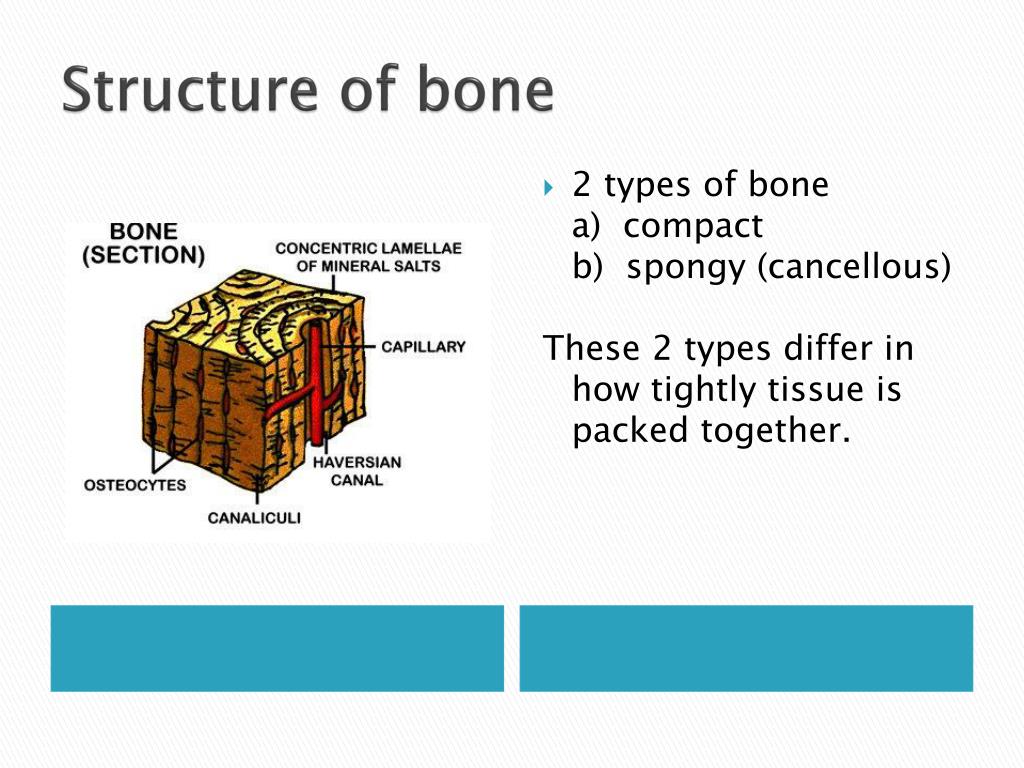

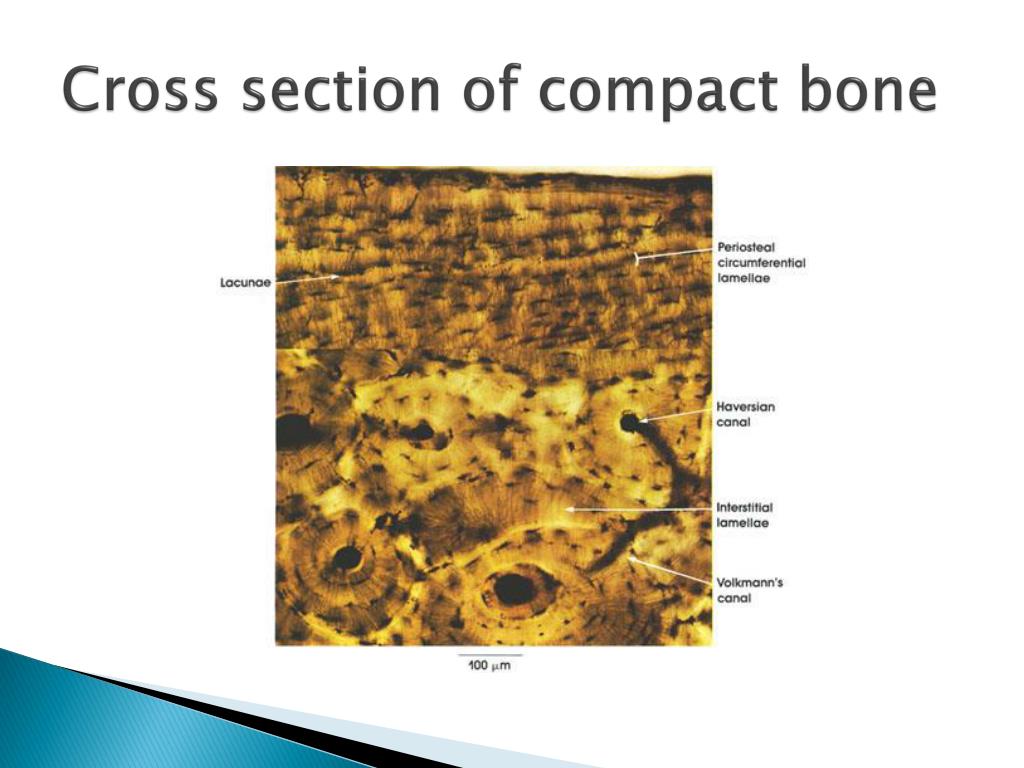

Compact bone • Bone cells are called osteocytes • The Haversian system – consists of a central canal surrounded by lamellae (rings) of matrix. Between the rings the osteocytes are located in spaces called lacunae. • Small channels called canaliculi radiate from the lacunae to the Haversian canal and connect the osteocytes. • This cylindrical shaped unit is called an osteon.
Spongy Bone • Composed of osteocytes and extracellular matrix. Bone cells here do not surround a central canal. • Cells lie within the trabeculae(bony spaces) and get nutrients through diffusion

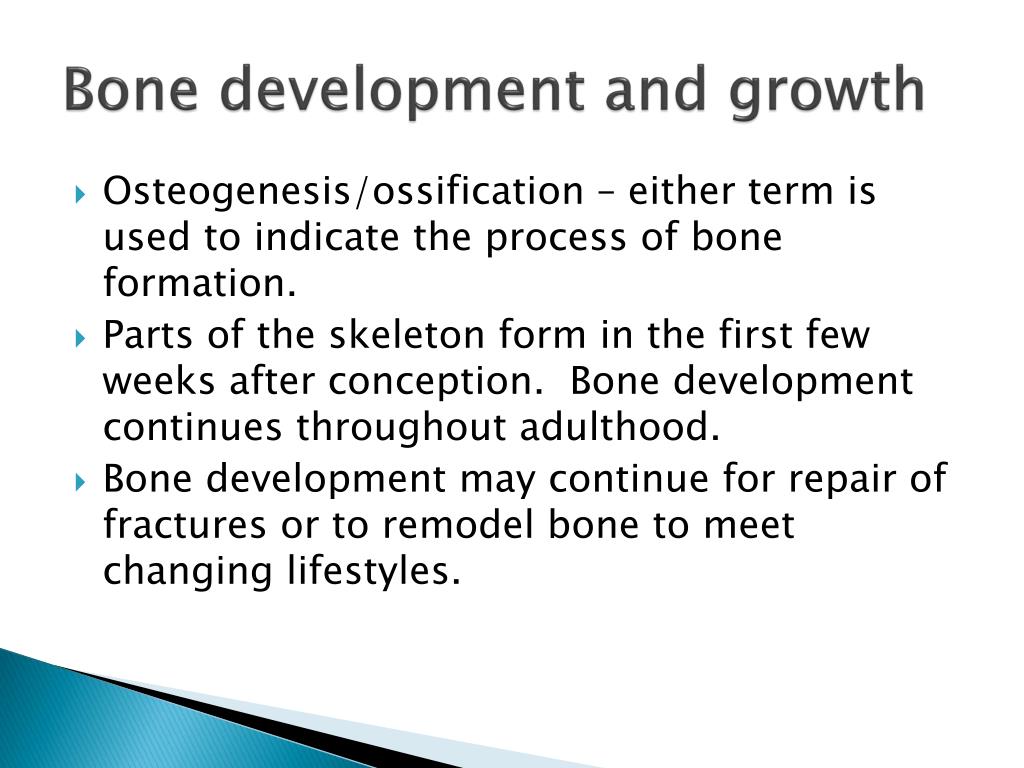

Bone development and growth • Osteogenesis/ossification – either term is used to indicate the process of bone formation. • Parts of the skeleton form in the first few weeks after conception. Bone development continues throughout adulthood. • Bone development may continue for repair of fractures or to remodel bone to meet changing lifestyles.
Cells involved in bone development • Osteoblasts – bone forming cells • Osteocytes – mature bone cells • Osteoclasts – break down and reabsorb bone.
Intramembranous Ossification • The replacement of sheet-like connective tissue membranes with bony tissue. • Bones formed in this way are called intramembranous bones. • Examples: Flat bones of the skull, and some irregular bones.
Endochondral ossification • Endochondral ossification – replacement of hyaline cartilage with bony tissues. • Most bones of the skeleton formed this way. • Bones called endochondral bones.
Growth • Long bones continue to grow (lengthen) while the cartilaginous cells of the epiphyseal plates are active. • Once the ossification centers meet and the epiphyseal plates ossify – no further growth occurs. • An injury to an epiphyseal plate may cause uneven growth. For this reason injuries to the epiphysis are treated very carefully.
Homeostasis of bone • Throughout life, osteoclasts resorb bone matrix, and osteoblasts replace it. • Hormones that regulate bone calcium control these opposing processes. • So in an adult, total bone mass stays about the same throughout life. • Vitamin D, calcium, and physical exercise are necessary for bone development, growth, and repair.

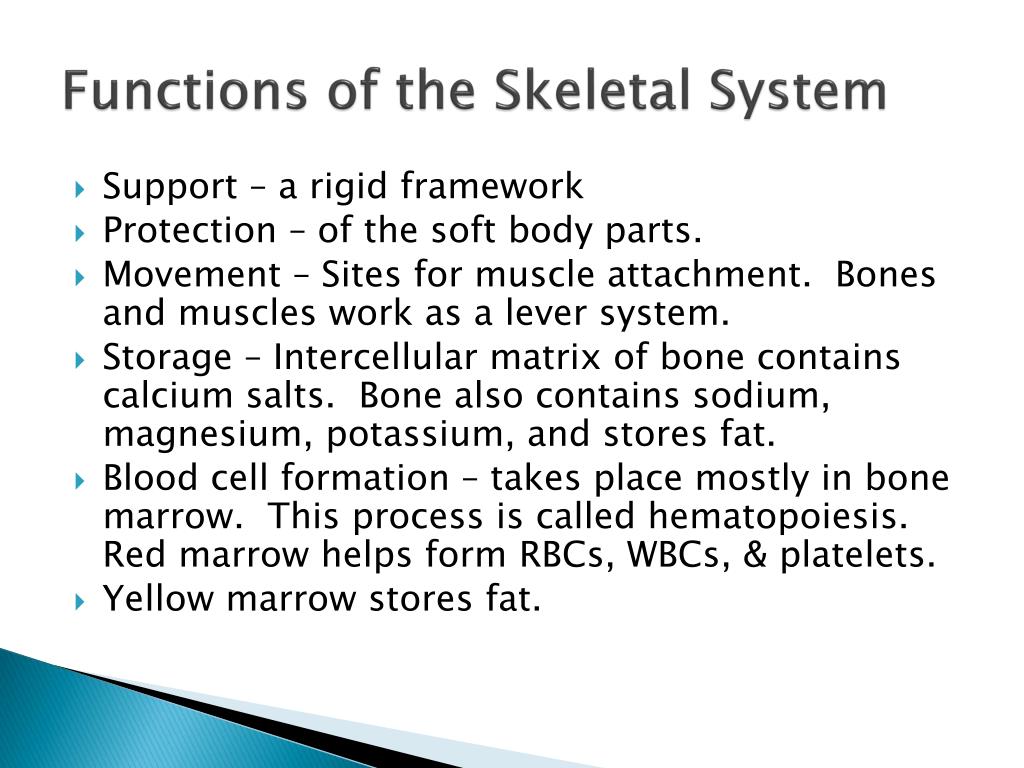

Functions of the Skeletal System • Support – a rigid framework • Protection – of the soft body parts. • Movement – Sites for muscle attachment. Bones and muscles work as a lever system. • Storage – Intercellular matrix of bone contains calcium salts. Bone also contains sodium, magnesium, potassium, and stores fat. • Blood cell formation – takes place mostly in bone marrow. This process is called hematopoiesis. Red marrow helps form RBCs, WBCs, & platelets. • Yellow marrow stores fat.
Skeleton • 206 named bones • Other bones: • Wormian bones – small bones in the joints between certain cranial bones. • Sesamoid bones – small bones that grow in certain tendons.

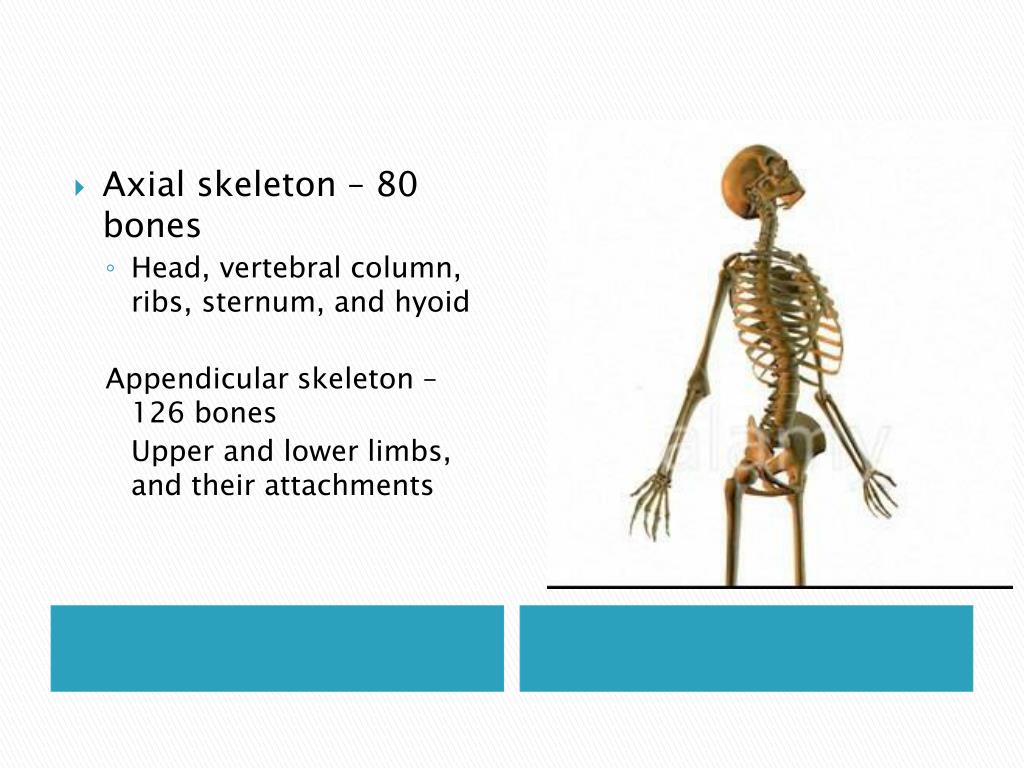

Axial skeleton – 80 bones • Head, vertebral column, ribs, sternum, and hyoid Appendicular skeleton – 126 bones Upper and lower limbs, and their attachments

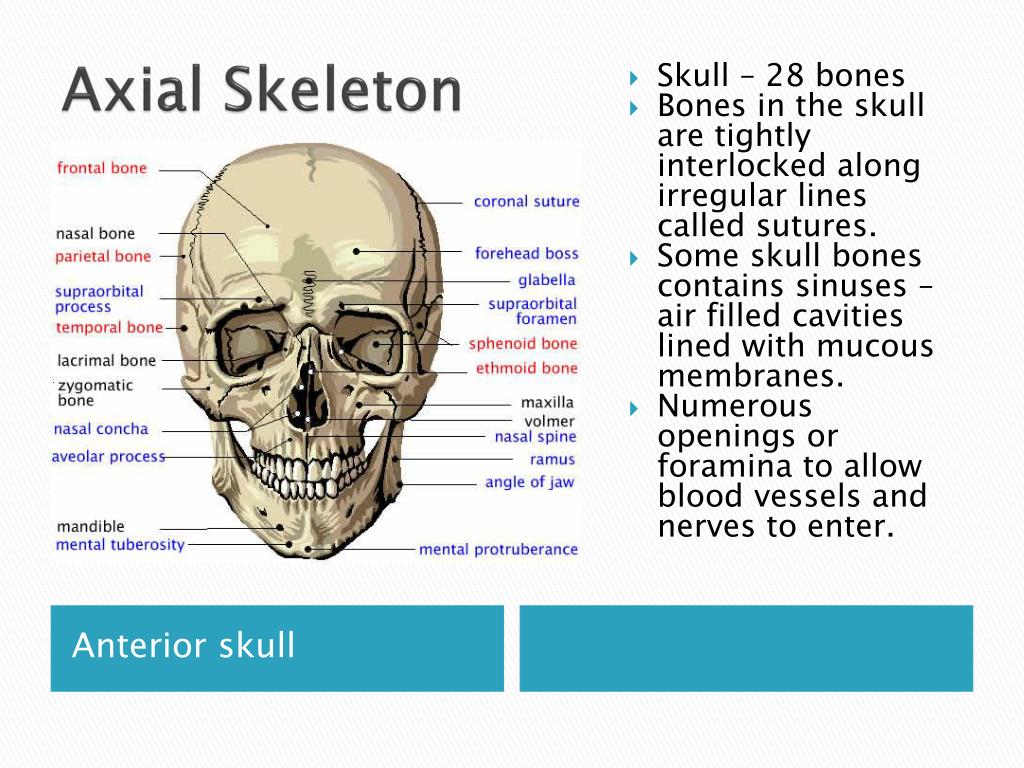

Axial Skeleton • Skull – 28 bones • Bones in the skull are tightly interlocked along irregular lines called sutures. • Some skull bones contains sinuses – air filled cavities lined with mucous membranes. • Numerous openings or foramina to allow blood vessels and nerves to enter. Anterior skull

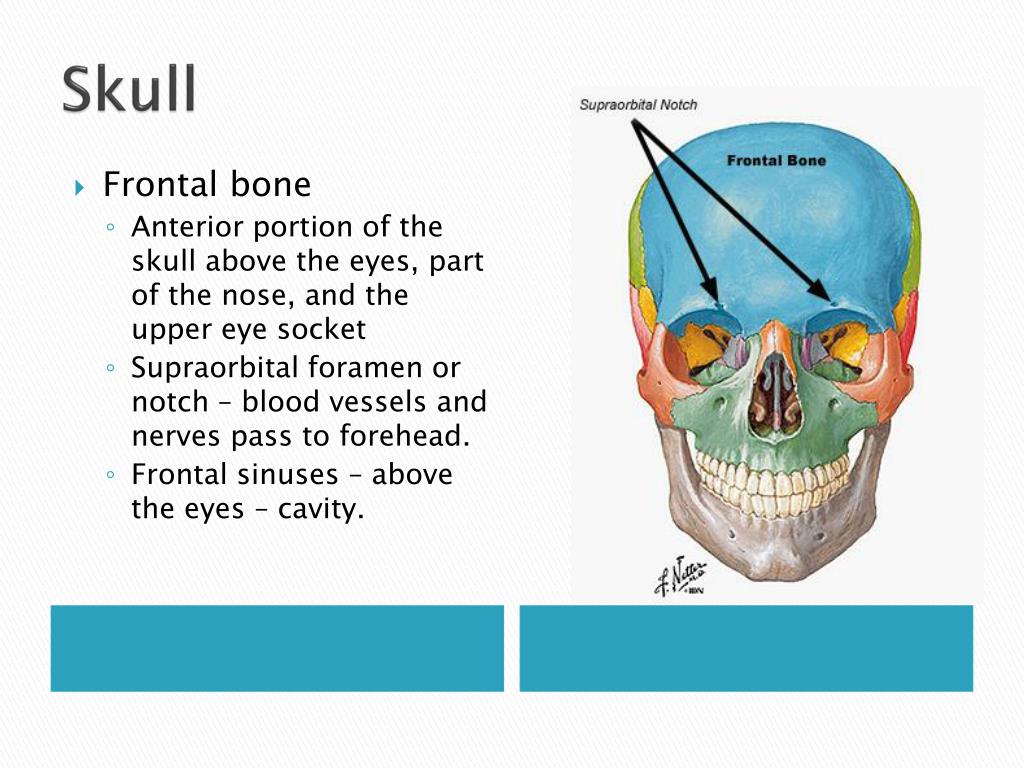

Skull • Frontal bone • Anterior portion of the skull above the eyes, part of the nose, and the upper eye socket • Supraorbital foramen or notch – blood vessels and nerves pass to forehead. • Frontal sinuses – above the eyes – cavity.

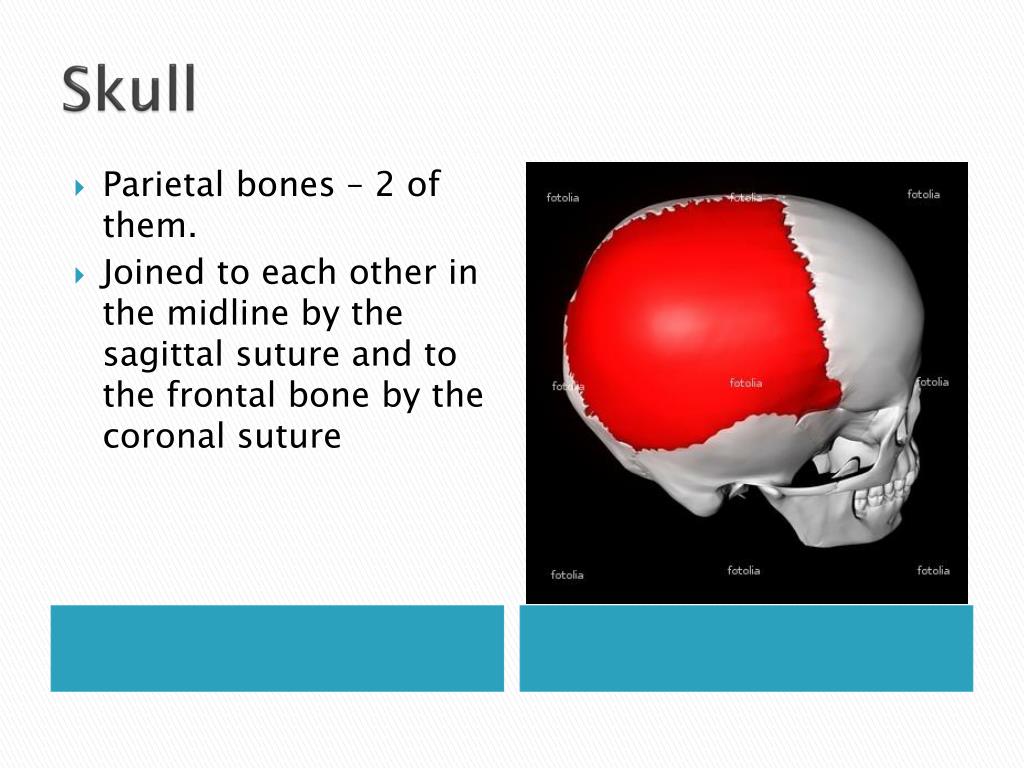

Skull • Parietal bones – 2 of them. • Joined to each other in the midline by the sagittal suture and to the frontal bone by the coronal suture

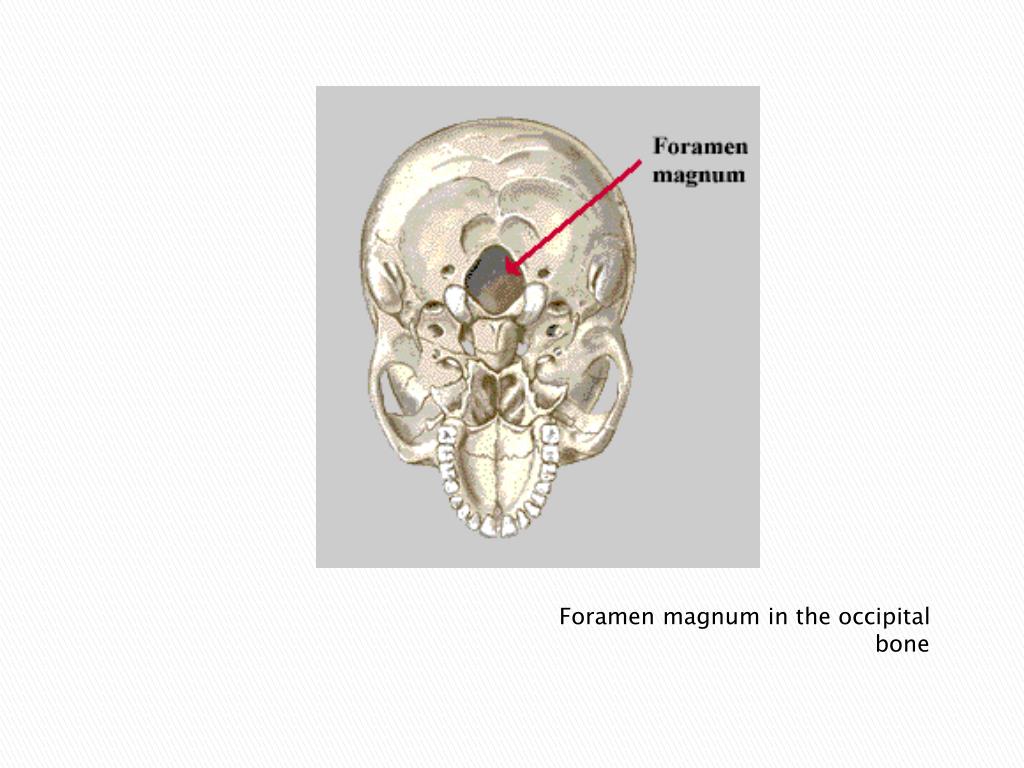

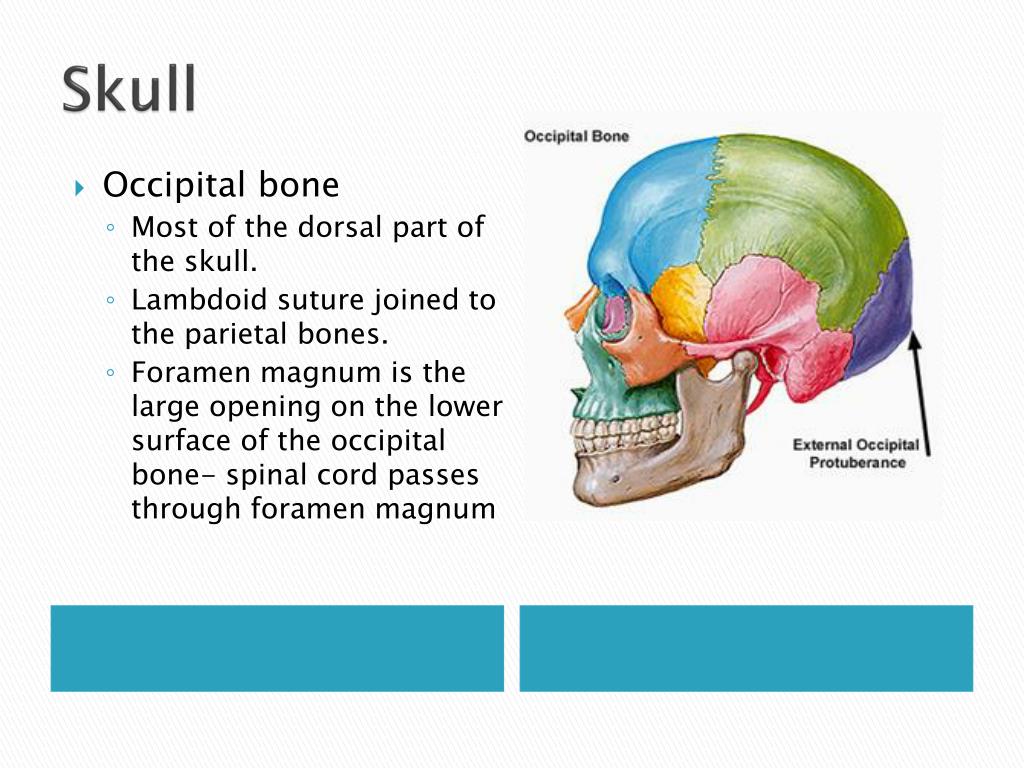

Skull • Occipital bone • Most of the dorsal part of the skull. • Lambdoid suture joined to the parietal bones. • Foramen magnum is the large opening on the lower surface of the occipital bone- spinal cord passes through foramen magnum
Skull • Temporal bones – the sides and base of the cranium • External auditory meatus – opening to the middle ear. • Mastoid process – a knob that contains air cells • Styloid process • Zygomatic process

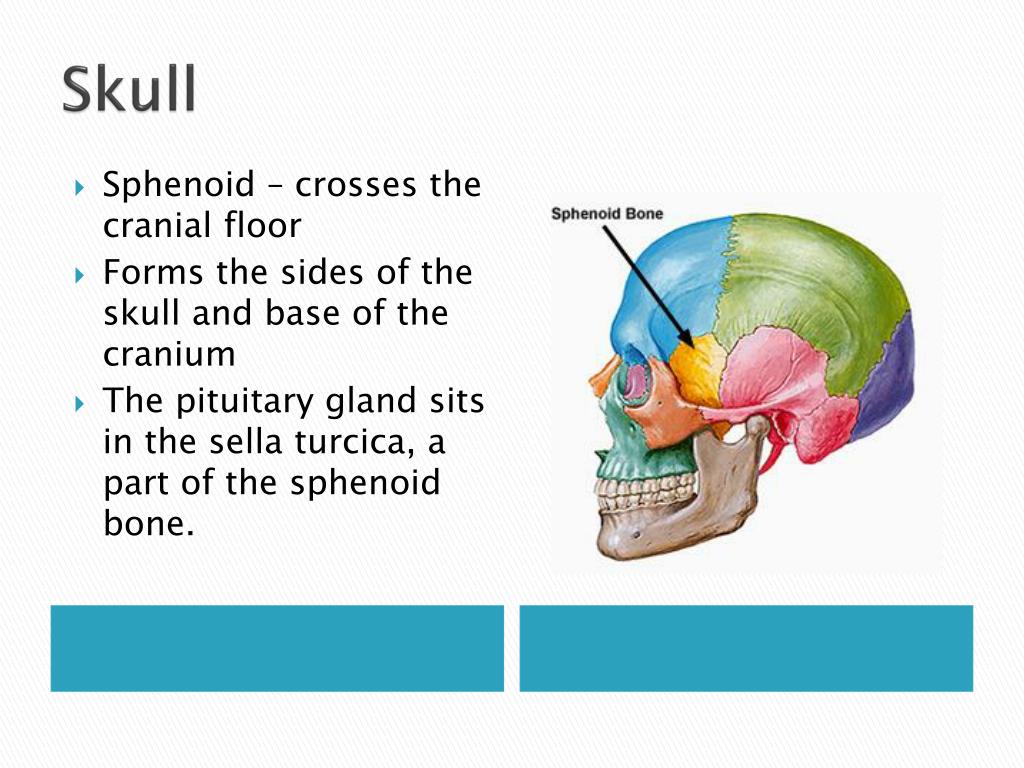

Skull • Sphenoid – crosses the cranial floor • Forms the sides of the skull and base of the cranium • The pituitary gland sits in the sellaturcica, a part of the sphenoid bone.

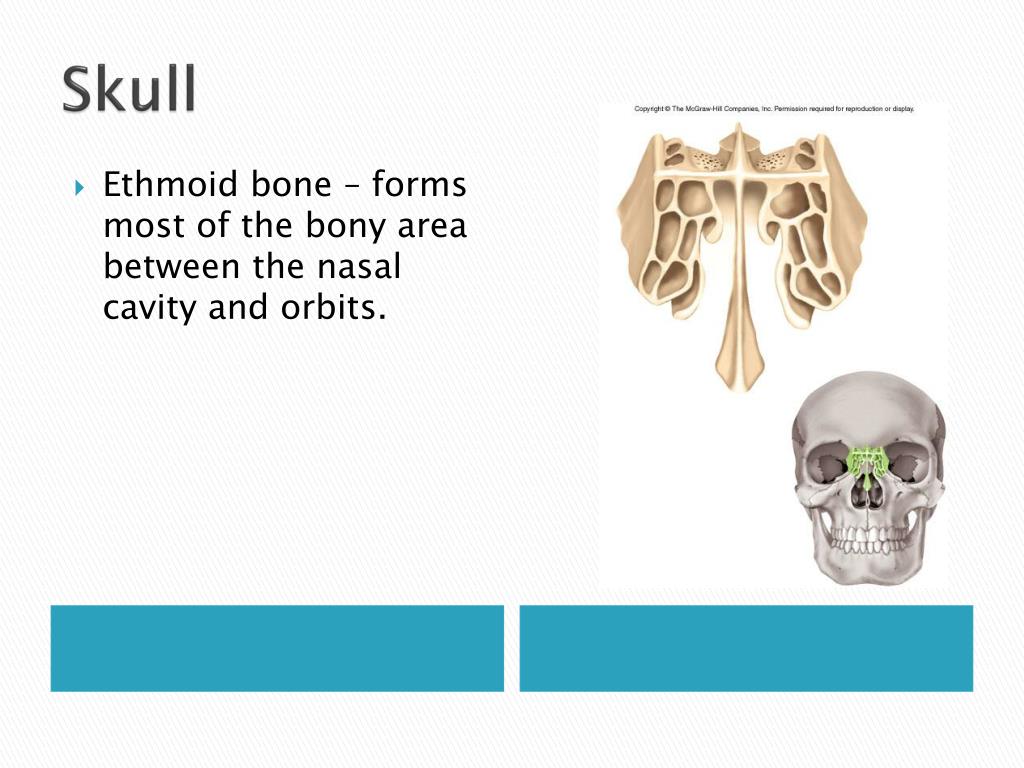

Skull • Ethmoid bone – forms most of the bony area between the nasal cavity and orbits.
Newborn skull • Skull of newborns not completely joined together. • There are areas called fontanels or soft spots.
