  1. Design of plasma facing components of the ITER antenna • Sheath modeling scheme (Colas et al.) • SEM theory (Faudot et al.) • Basic results from modeling (Colas report) • Using SEM or not • Extrapolation from machines (TS, JET) • How to refine predictions? • Grounding and sheath effects • Shimming and evolution of blanket design CCIC-03 PFC for ITER antenna (R. Koch)

  2. References • Colas L., et al., Note de travail CEA PHY/NTT-2008.008 (2008).”Estimation of expected power / particle fluxes on ITER PFCs caused by local acceleration of particles in RF fields. Contract EFDA 07/1700-1572” • Faudot E., Heuraux S., Colas L., Physics of Plasmas, 13(2007)042512. “Parametric study of two-dimensional potential structures induced by radio-frequency sheaths coupled with transverse currents in front of the Ion Cyclotron Resonance Heating antenna” • Personal contacts with Colas • Info from Maggiora about grounding effects on sheaths CCIC-03 PFC for ITER antenna (R. Koch)

  3. Colas et al sheath modeling scheme • Compute E// at antenna mouth (TOPICA) • Assume SW skin depth (at k//=0) to compute E// (or ) in plasma Gives RF • Run SEM: RF    rectified sheath potential • Use  to compute density modification by sheaths (convective cells) • Compute power dissipation due to ion acceleration in sheaths CCIC-03 PFC for ITER antenna (R. Koch)

  4. What is the SEM (Sheath Effect Modelling) code? • Adjacent flux tubes exchange RF current due to the polarization drift • E builds up because sheaths put adjacent field lines to different potential • SEM solves the equation resulting from •   is “diffused” poloidally and radially over a region of width CCIC-03 PFC for ITER antenna (R. Koch)

  5. SEM: What are the results? (I) • Sheath effects are negligible for all short scenarios (SW field penetration > )  < 0.1 MW/m2  no longer discussed • For long scenarios SW skin depth very short. SEM substantially spreads it  CCIC-03 PFC for ITER antenna (R. Koch)

  6. SEM: What are the results? (II) •  very deep penetration for large L// (field lines crossing divertor)  discarded •  deep penetration for L// = 2.8m  brings // field where there is substantial ne ! CCIC-03 PFC for ITER antenna (R. Koch)

  7. Colas et al sheath modeling scheme • Use  to compute density modification by sheaths (convective cells) • Density depletion where E// large • High density fingers around depleted region • SEM increased penetration brings larger density in fingers •  Amplified peak power fluxes •  Amplified total sheath power dissipation CCIC-03 PFC for ITER antenna (R. Koch)

  8. Discussion • Can SEM accurately compute the parallel electric field penetration? My answer: no • Over simplified model: , E incomplete, sheath model? • Meaning of RF ? • What would happen without SEM? CCIC-03 PFC for ITER antenna (R. Koch)

  9. Extrapolations from TS results (Colas report) My quick and dirty estimate: 1 ITER antenna = 6 TS antennas TS 1MW  ITER 6 MW Sheath losses  V QITER = (20/6)1/2QTS = 1.8  0.4 = 0.7 MW/m2 Agrees with Colas estimates, Table II.4 QITER,max = 1.6 MW/m2 But:  CCIC-03 PFC for ITER antenna (R. Koch)

  10. Extrapolations from JET results (Colas report) Much more difficult to compare with ITER antenna Table II.7 worst case Q// ITER,max = 6.7 MW/m2 Not in disagreement with TS extrapolation modeling without SEM CCIC-03 PFC for ITER antenna (R. Koch)

  11. How can we go further? • TS extrapolations seem most reliable because of similarity with ITER antenna but scarce database and Q • Pursue theory/experiment comparisons on TS (ILP removed!) • Get experimental data on ILA • Further theory developments and experiment/modelling comparisons welcome (but timing?) • Determine which density profile is realistic • Investigate coupling vs sheath dissipation trade-off • Optimize antenna for sheath reduction CCIC-03 PFC for ITER antenna (R. Koch)

  12. CCIC-03 PFC for ITER antenna (R. Koch)

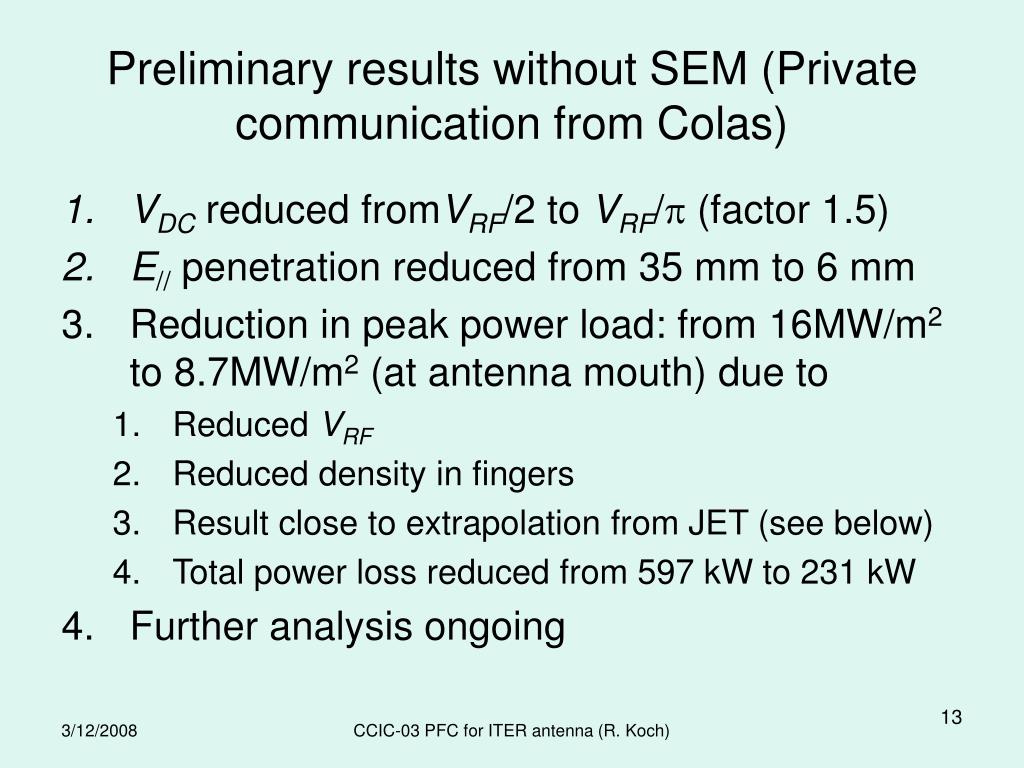

  13. Preliminary results without SEM (Private communication from Colas) • VDCreduced fromVRF/2 to VRF/ (factor 1.5) • E// penetration reduced from 35 mm to 6 mm • Reduction in peak power load: from 16MW/m2 to 8.7MW/m2 (at antenna mouth) due to • Reduced VRF • Reduced density in fingers • Result close to extrapolation from JET (see below) • Total power loss reduced from 597 kW to 231 kW • Further analysis ongoing CCIC-03 PFC for ITER antenna (R. Koch)
