Classification of Building Construction Types Modified from a presentation by Floyd Luinstra, P.E. Visiting Instructor Oklahoma State University

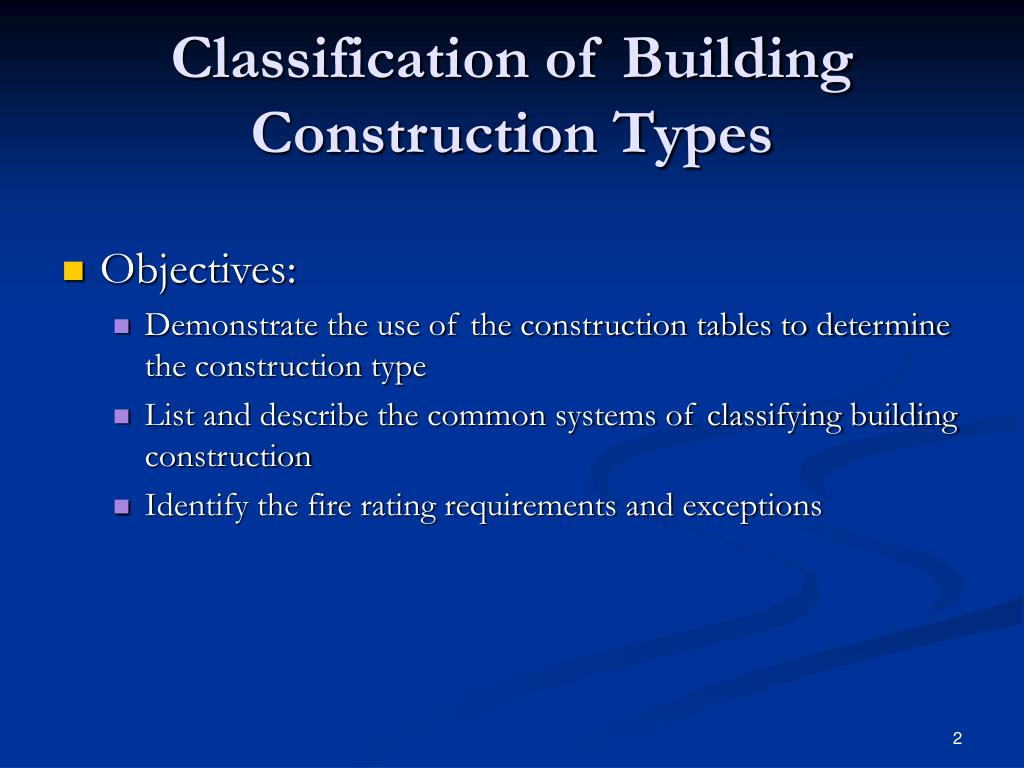

Classification of Building Construction Types • Objectives: • Demonstrate the use of the construction tables to determine the construction type • List and describe the common systems of classifying building construction • Identify the fire rating requirements and exceptions
Recommended Reading • NFPA Fire Protection Handbook, 18th Edition, Section 7, Chapter 2 • NFPA 220, Standard on Types of Building Construction
I. Classification of construction types • Pertinent standards • Classification systems a combination of Roman and Arabic numerals and letters • Roman numerals represent the basic type of structural materials. • Definitions of basic types • Type I • Type II • Type III • Type IV • Type V
I. Classification of construction types (Cont.) • The Roman numerals are followed by a three digit Arabic numeral code • The first digit indicates fire resistivity of exterior bearing walls. • Second digit indicates the fire resistivity of columns and girders if supporting more than one floor (structural frame) • Third digit indicates fire resistivity of floors
NFPA 220 Classification of Construction Types 3 Hour Exterior Bearing Wall 2 Hour Floor Construction Type I (332) UBC Type I (FR) 3 Hour Structural Frame
NFPA 220 Type I (443) or Type I (332) Construction Details of Concrete Density, Amount and Size of Steel Will Need to be Known, In Order To Further Clarify

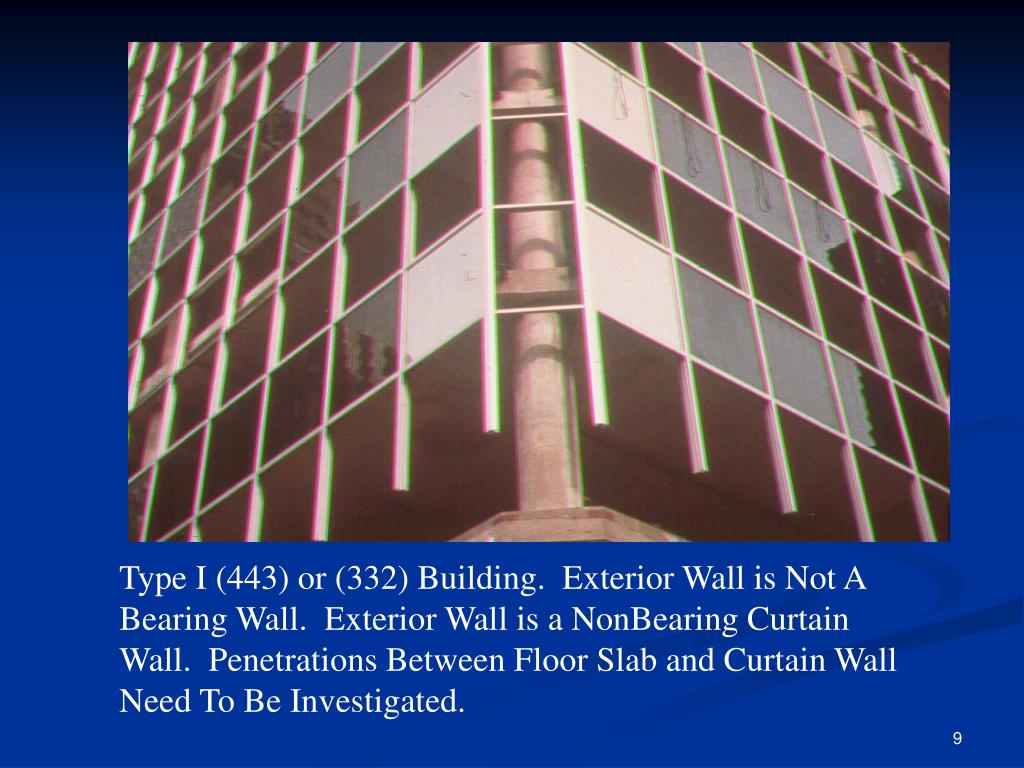

Type I (443) or (332) Building. Exterior Wall is Not A Bearing Wall. Exterior Wall is a NonBearing Curtain Wall. Penetrations Between Floor Slab and Curtain Wall Need To Be Investigated.
NFPA 220 Type I Construction (443) or (332)
NFPA 220 Type II (000) Construction Unprotected Structural Steel
NFPA 220 Type II (222) or (111) Construction Thickness Of Insulative Material On Structural Steel, and the Extent of Insulation on Steel Columns, Beams and Floor Slab Reinforcement Will Need To Be Evaluated
One Square Inch Of Missing Insulation For Each 100 Square Feet Of Structural Steel

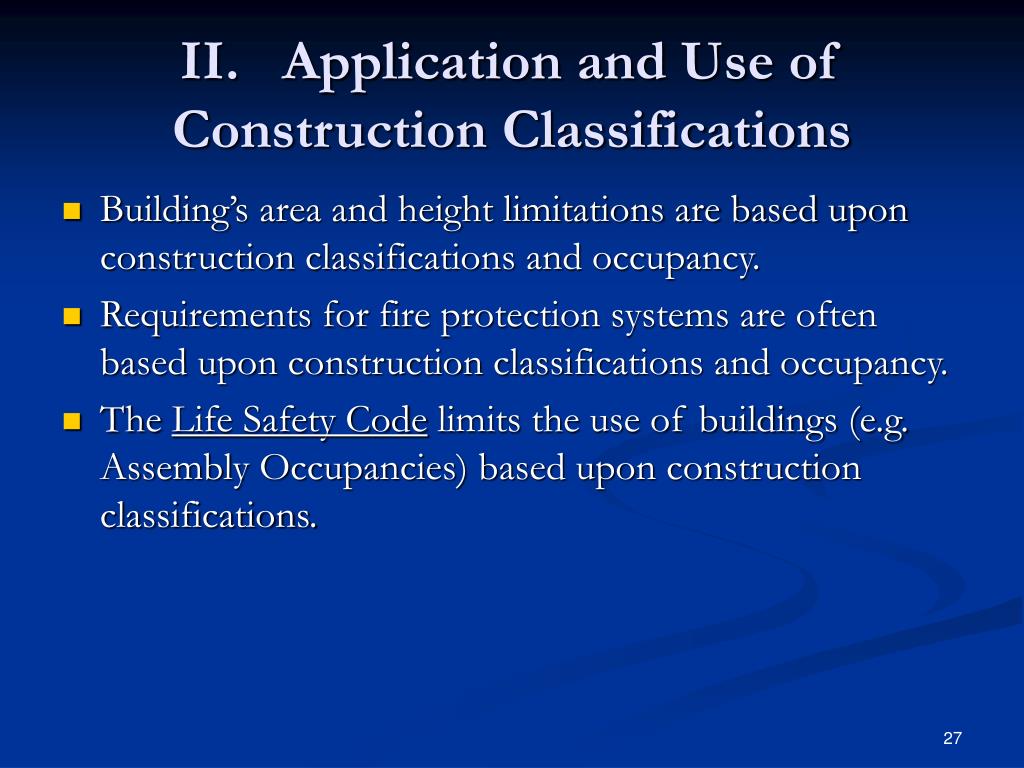

II. Application and Use of Construction Classifications • Building’s area and height limitations are based upon construction classifications and occupancy. • Requirements for fire protection systems are often based upon construction classifications and occupancy. • The Life Safety Code limits the use of buildings (e.g. Assembly Occupancies) based upon construction classifications.
