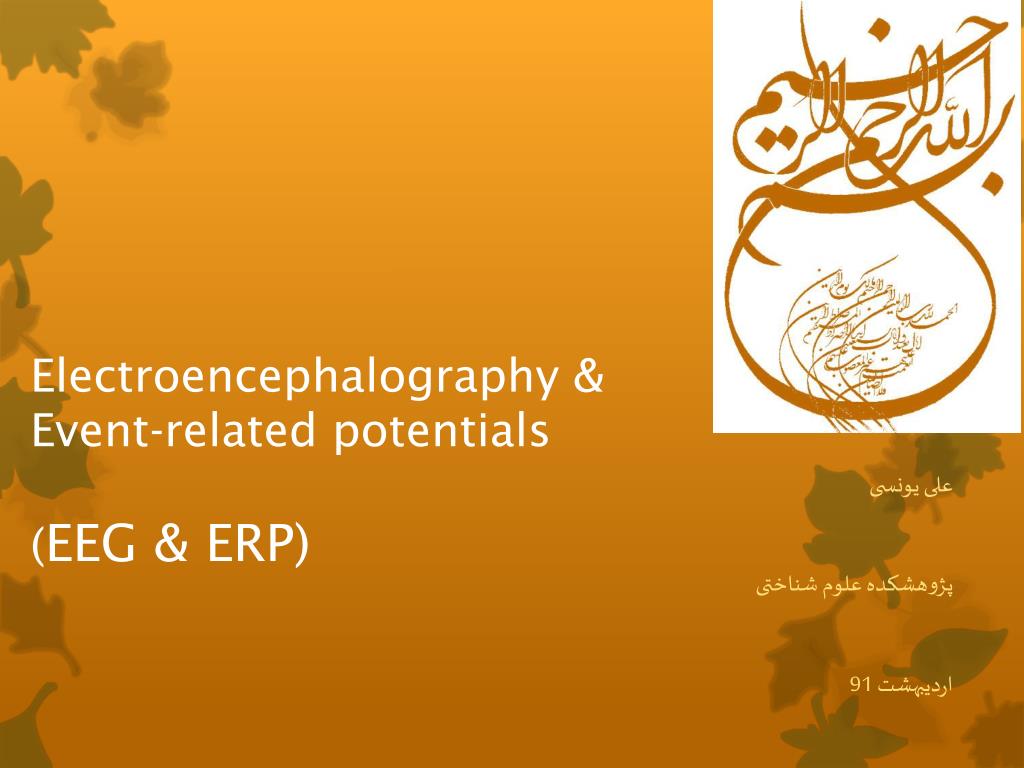

Electroencephalography & Event-related potentials ( EEG & ERP)

1. Electroencephalography & Event-related potentials (EEG & ERP) علی یونسی پژوهشکده علوم شناختی اردیبهشت 91

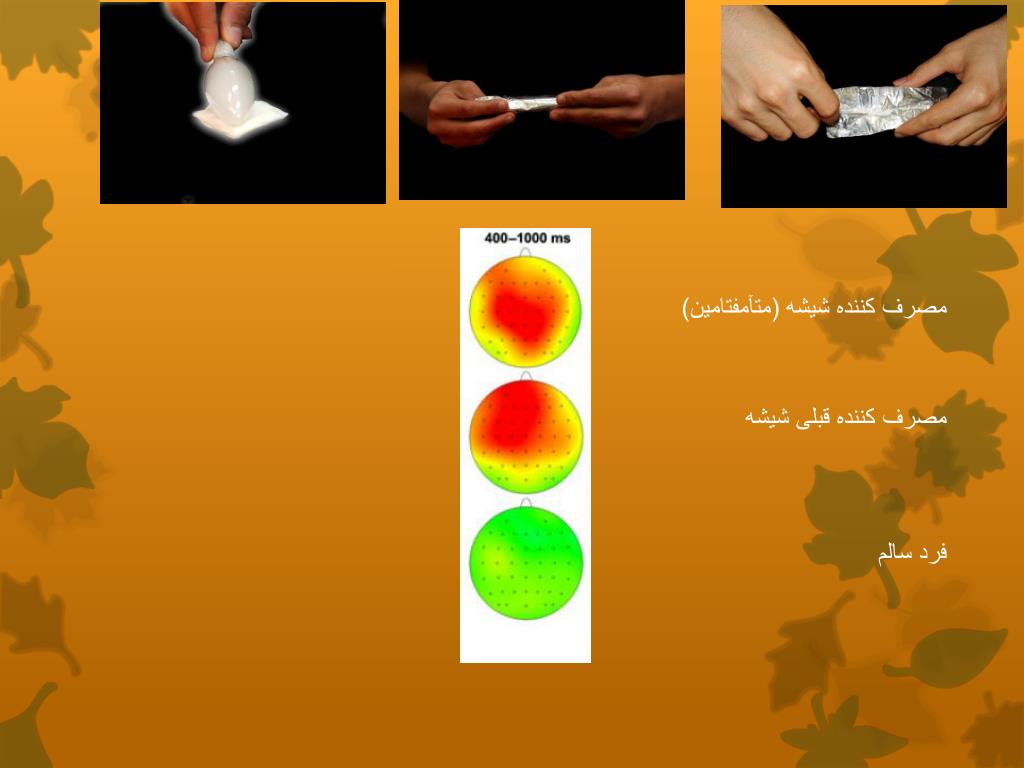

2. مصرف کننده شیشه (متآمفتامین) مصرف کننده قبلی شیشه فرد سالم

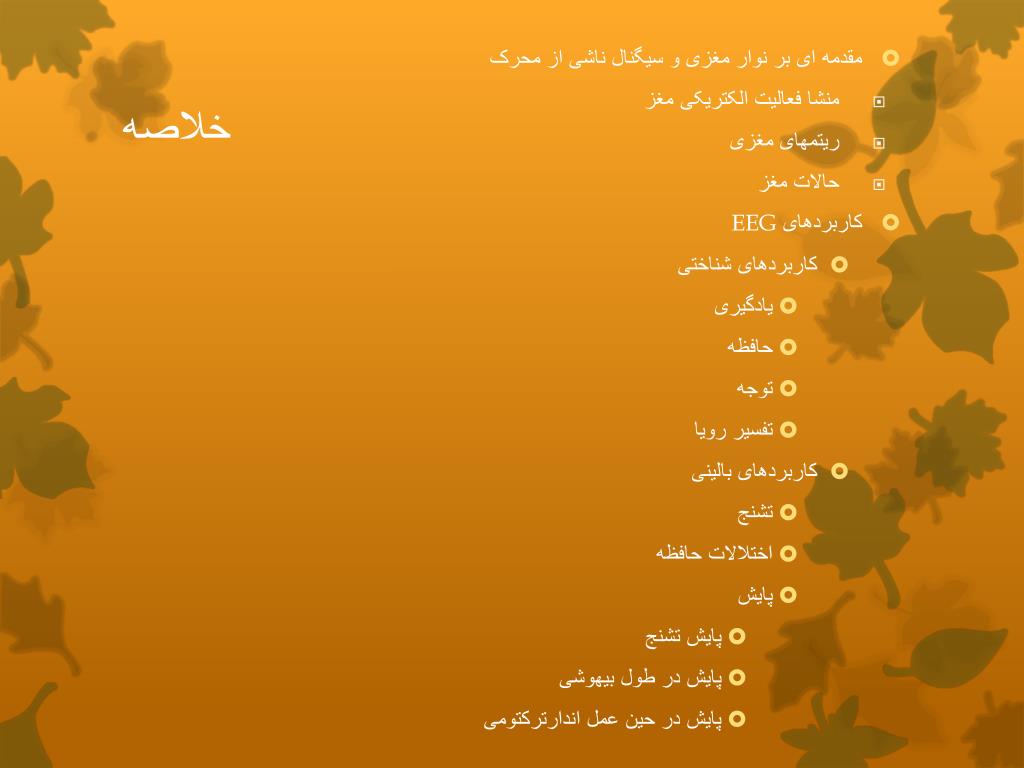

3. خلاصه • مقدمه ای بر نوار مغزی و سیگنال ناشی از محرک • منشا فعالیت الکتریکی مغز • ریتمهای مغزی • حالات مغز • کاربردهای EEG • کاربردهای شناختی • یادگیری • حافظه • توجه • تفسیر رویا • کاربردهای بالینی • تشنج • اختلالات حافظه • پایش • پایش تشنج • پایش در طول بیهوشی • پایش در حین عمل اندارترکتومی

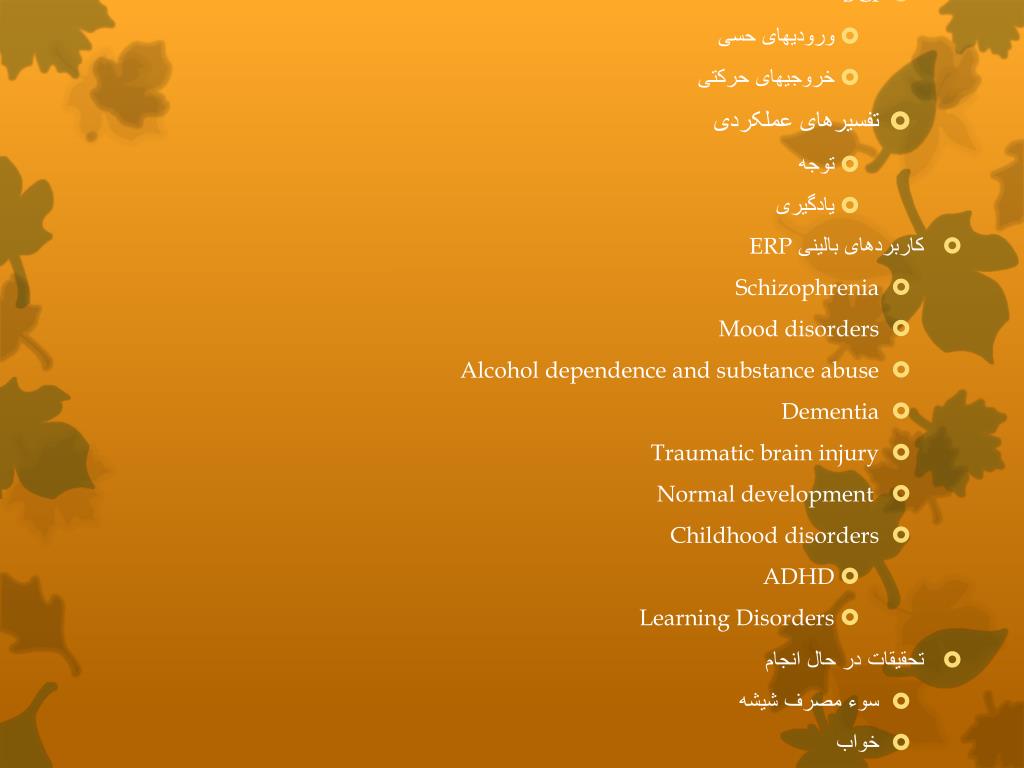

4. کاربردهای شناختی ERP • BCI • ورودیهای حسی • خروجیهای حرکتی • تفسیرهای عملکردی • توجه • یادگیری • کاربردهای بالینی ERP • Schizophrenia • Mood disorders • Alcohol dependence and substance abuse • Dementia • Traumatic brain injury • Normal development • Childhood disorders • ADHD • Learning Disorders • تحقیقات در حال انجام • سوء مصرف شیشه • خواب

5. Research and Application • Psychological Research • Neurological Research • Medical Research • Educational Research and Application • Therapeutic Application • Occupational Application

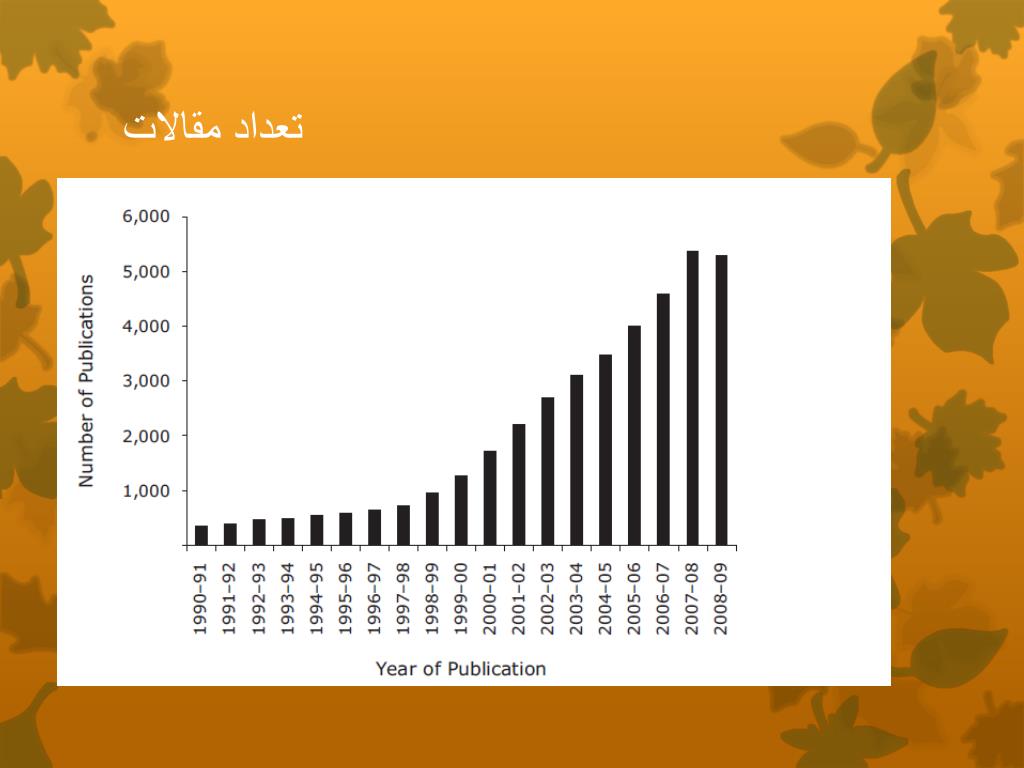

6. تعداد مقالات

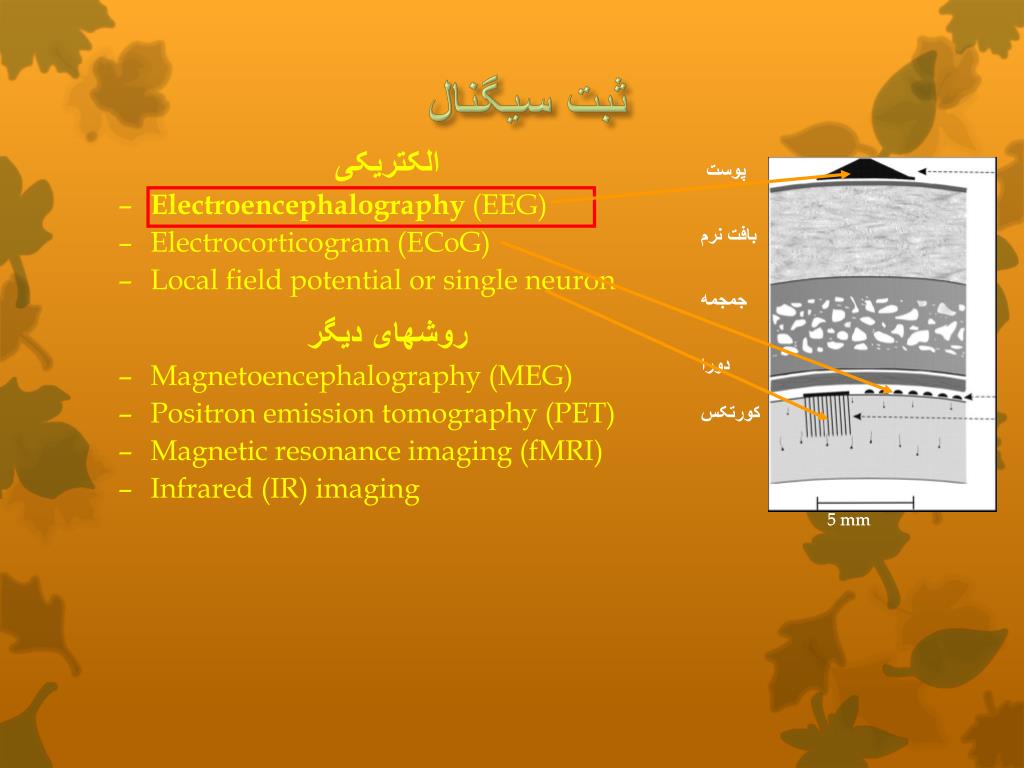

7. پوست بافت نرم جمجمه دورا کورتکس 5 mm 5 mm ثبت سیگنال • الکتریکی • Electroencephalography (EEG) • Electrocorticogram (ECoG) • Local field potential or single neuron • روشهای دیگر • Magnetoencephalography (MEG) • Positron emission tomography (PET) • Magnetic resonance imaging (fMRI) • Infrared (IR) imaging

8. How do EEGs work? Neural communication produces electrical activity. Electrical activity in a single neuron. When a neuron is active, its voltage may change by 100 mV or more.

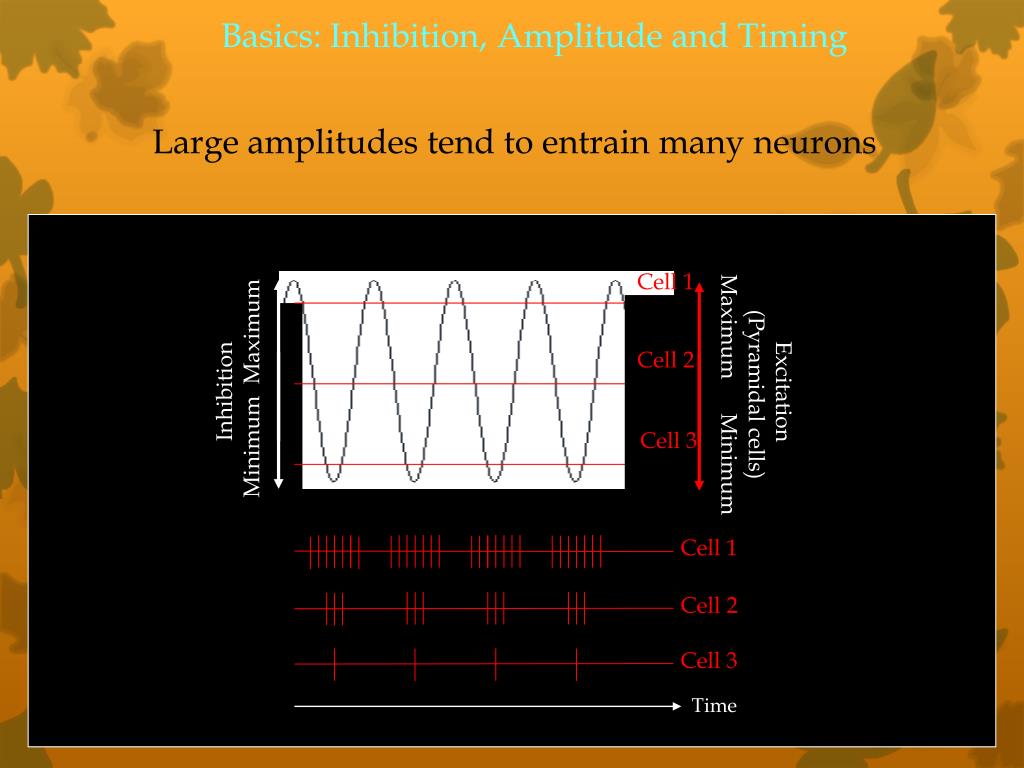

9. Basics: Inhibition, Amplitude and Timing Large amplitudes tend to entrain many neurons Cell 1 Cell 2 Excitation (Pyramidal cells) Maximum Minimum Inhibition Minimum Maximum Cell 3 Cell 1 Cell 2 Cell 3 Time

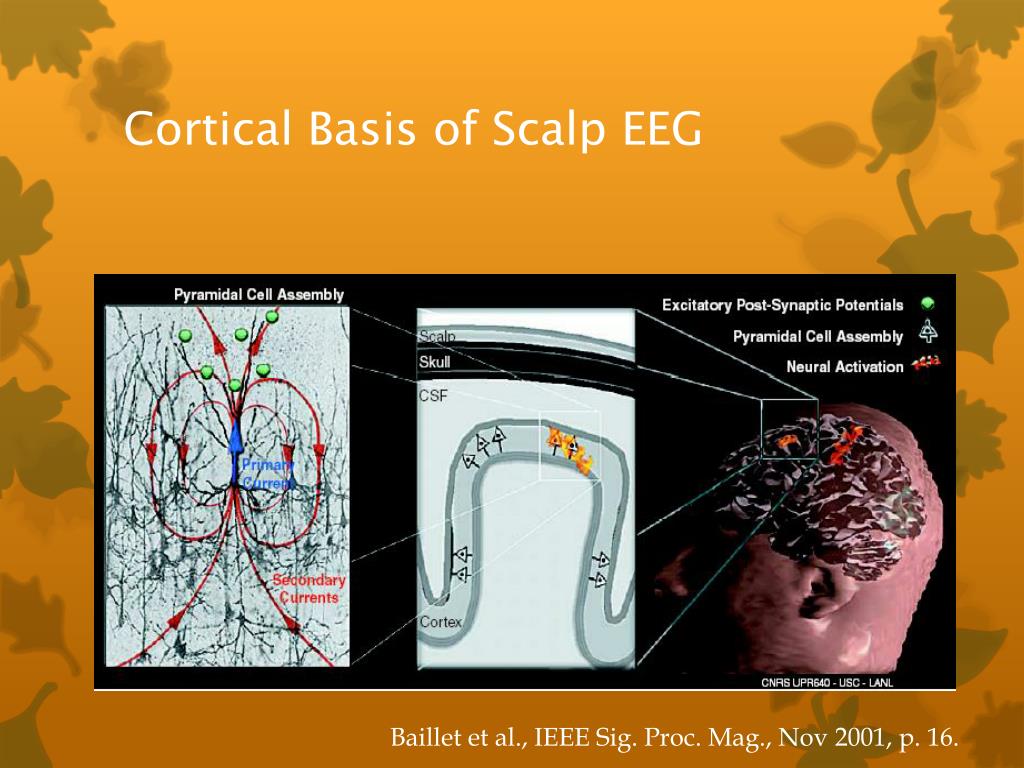

10. Cortical Basis of Scalp EEG Baillet et al., IEEE Sig. Proc. Mag., Nov 2001, p. 16.

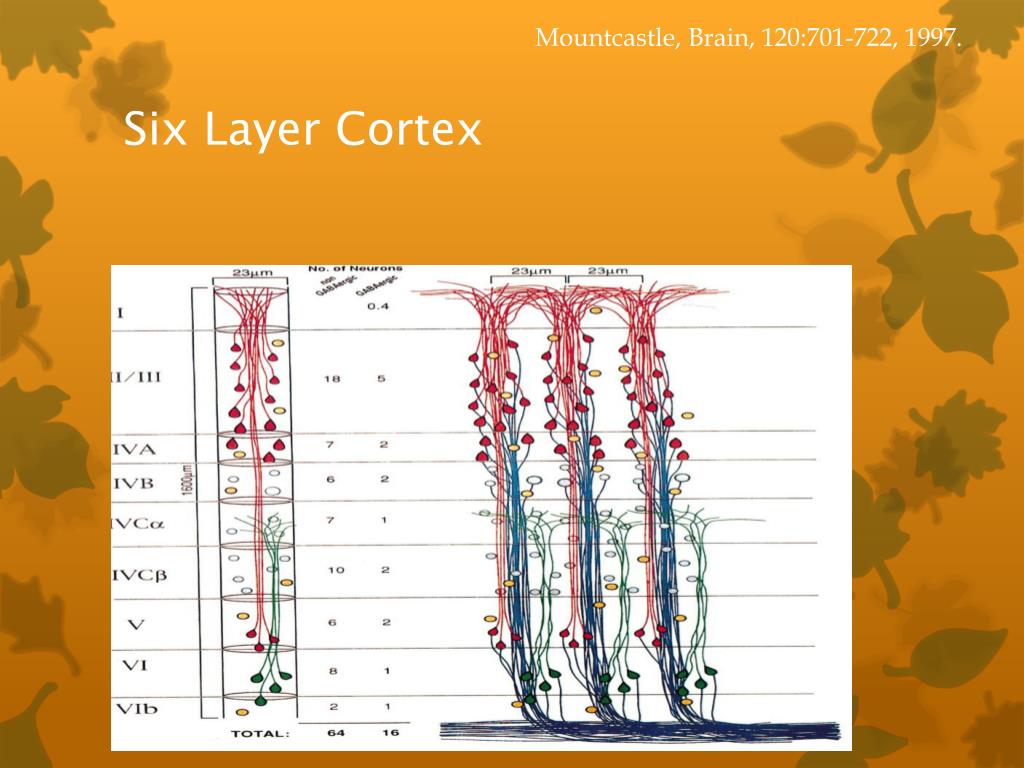

11. Mountcastle, Brain, 120:701-722, 1997. Six Layer Cortex

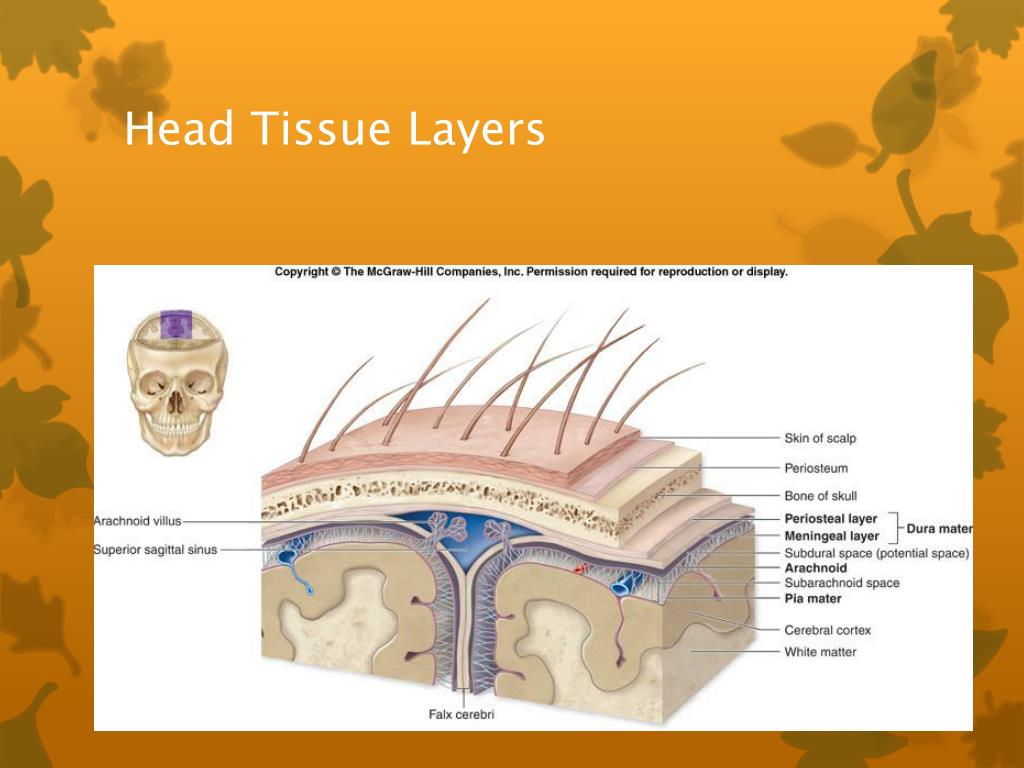

12. Head Tissue Layers

13. EEG Electrodes Electrodes Cap Sliver Electrodes

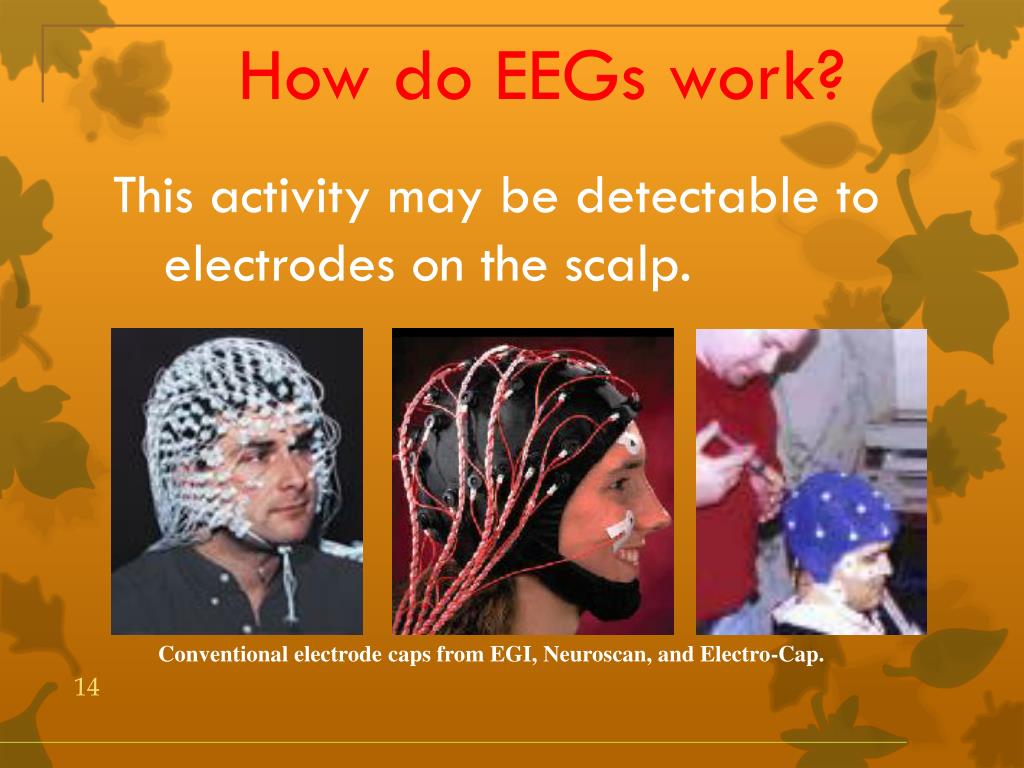

14. How do EEGs work? This activity may be detectable to electrodes on the scalp. Conventional electrode caps from EGI, Neuroscan, and Electro-Cap.

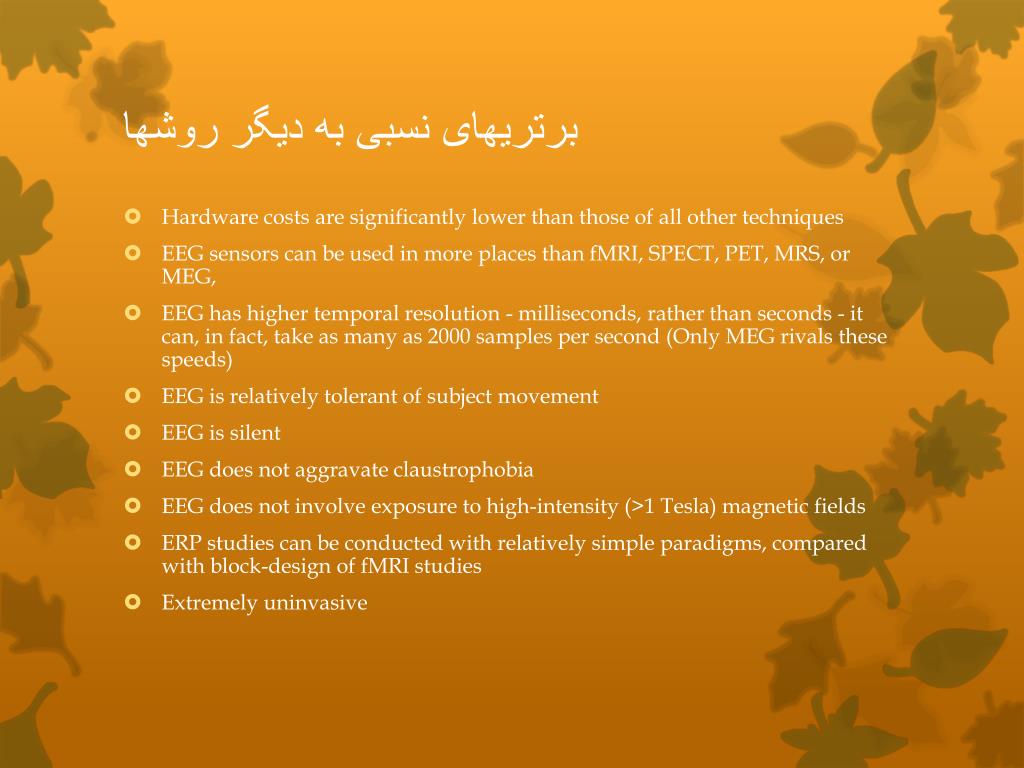

15. برتریهای نسبی به دیگر روشها • Hardware costs are significantly lower than those of all other techniques • EEG sensors can be used in more places than fMRI, SPECT, PET, MRS, or MEG, • EEG has higher temporal resolution - milliseconds, rather than seconds - it can, in fact, take as many as 2000 samples per second (Only MEG rivals these speeds) • EEG is relatively tolerant of subject movement • EEG is silent • EEG does not aggravate claustrophobia • EEG does not involve exposure to high-intensity (>1 Tesla) magnetic fields • ERP studies can be conducted with relatively simple paradigms, compared with block-design of fMRI studies • Extremely uninvasive

16. نقصان نسبت به دیگر روشها • Significantly lower spatial resolution. fMRI, for example, can directly display areas of the brain that are active, while EEG requires intense interpretation just to hypothesize what areas are activated by a particular response. • EEG determines neural activity that occurs below the upper layers of the brain (the cortex) very poorly. Unlike PET and MRS, cannot identify specific locations in the brain at which various neurotransmitters, drugs, etc. can be found. • Often takes a long time to connect a subject to EEG, as it requires precise placement of dozens of electrodes around the head and the use of various gels, saline solutions, and/or pastes to keep them in place. • Signal-to-noise ratio is very poor, so sophisticated data analysis and relatively large numbers of subjects are needed to extract useful information from EEG

17. چند نکته حیاتی • a given electrode on the scalp does not record solely the neuronal activity directly underlying it. Rather, every electrode picks up signals from different sources that can eventually be quite distal • Fluctuation of the voltage at the reference electrode will lead to changes of the potential at the active electrode even if the voltage at that point was actually stable. There is no point that is electrically silent and could be considered as true zero potential.

18. EEG Recording From Normal Adult Male

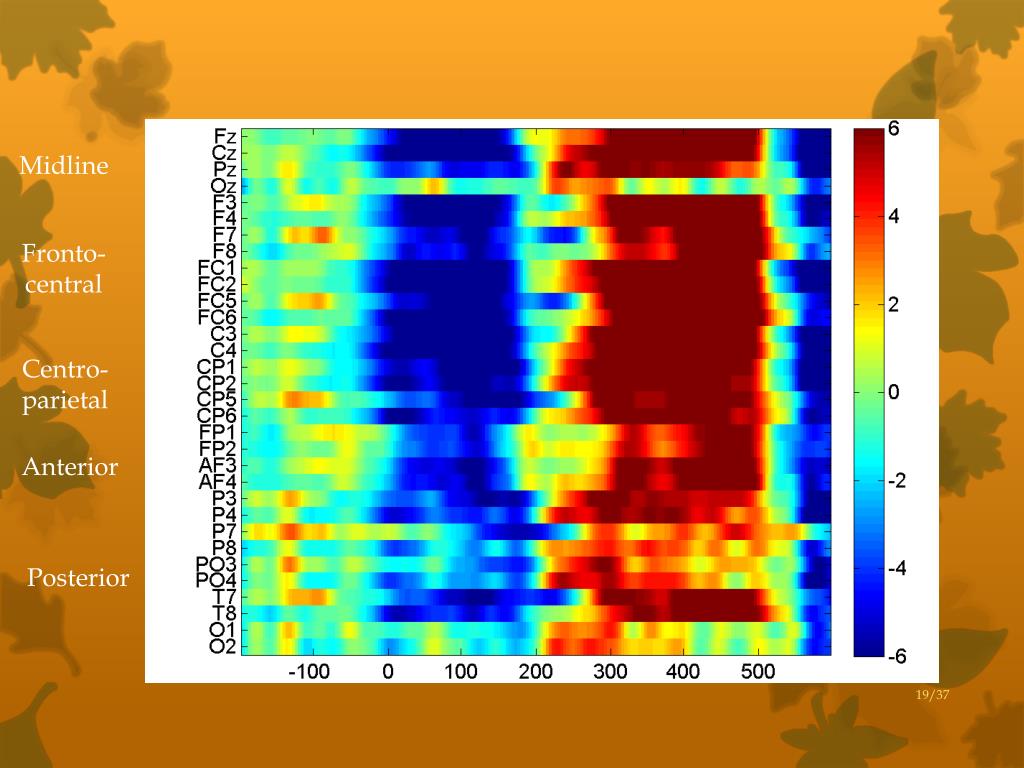

19. Midline Fronto-central Centro-parietal Anterior Posterior

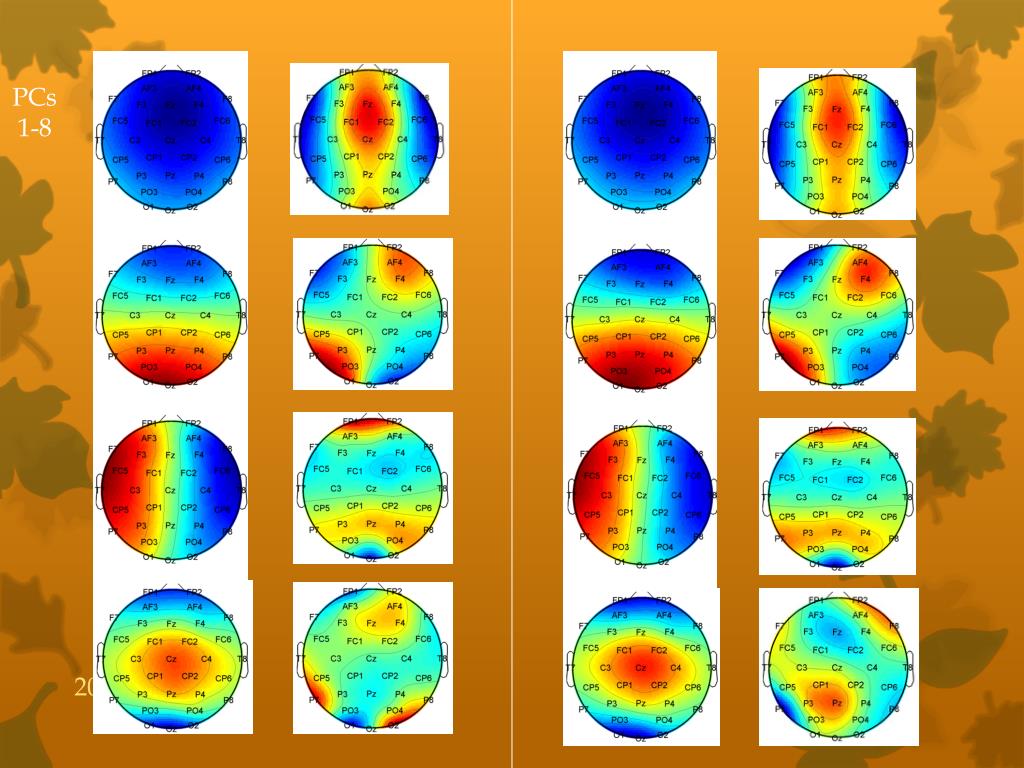

20. PCs 1-8

21. 10 /20 % system of EEG electrode placement

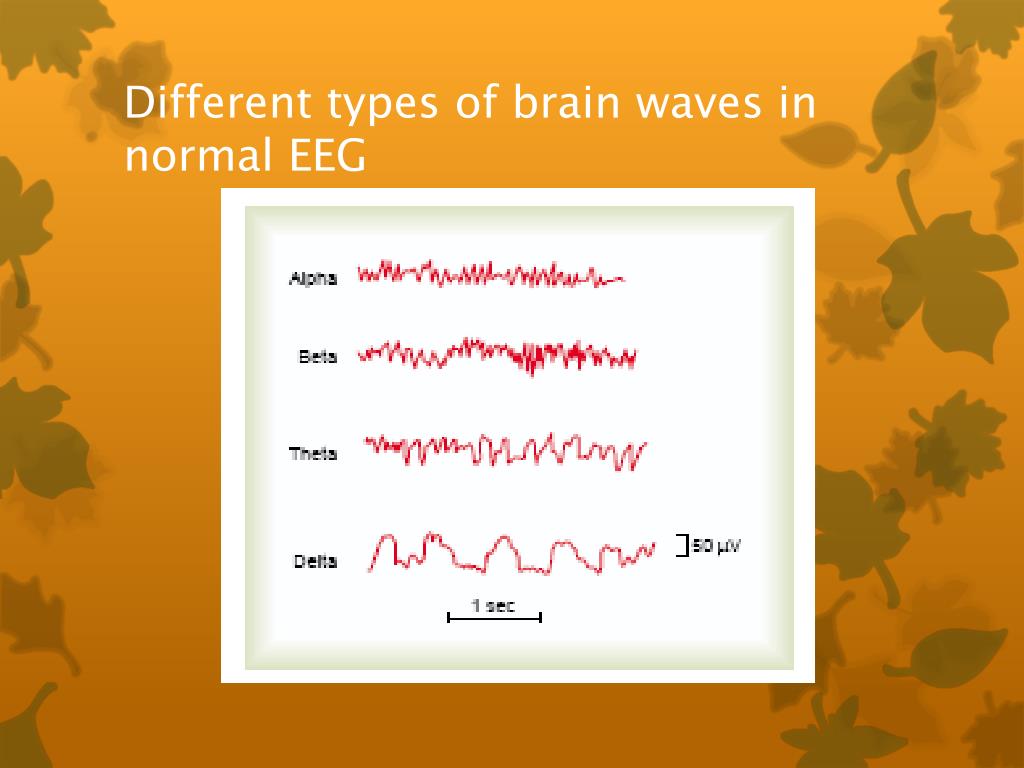

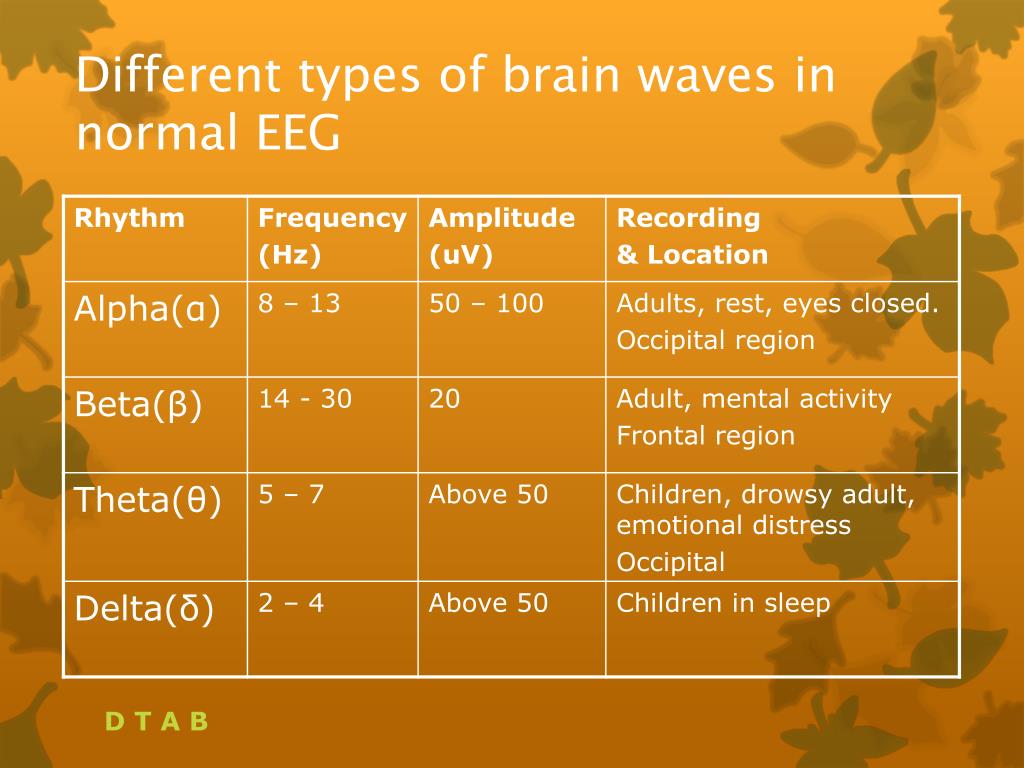

23. Different types of brain waves in normal EEG

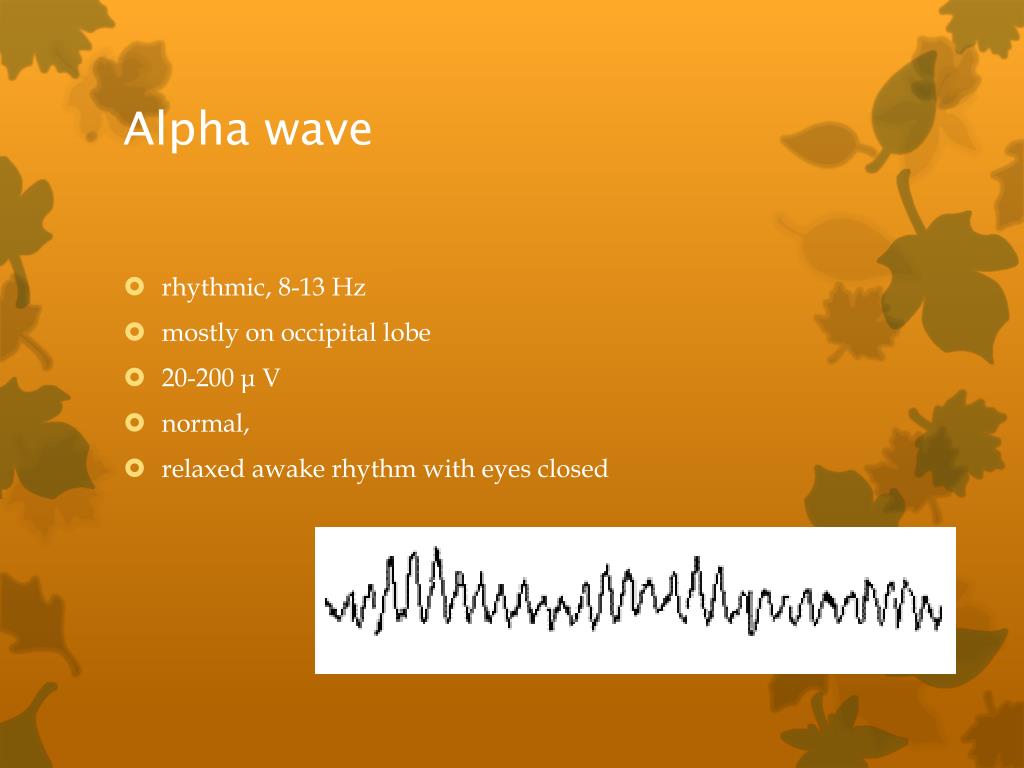

24. Alpha wave • rhythmic, 8-13 Hz • mostly on occipital lobe • 20-200 μ V • normal, • relaxed awake rhythm with eyes closed

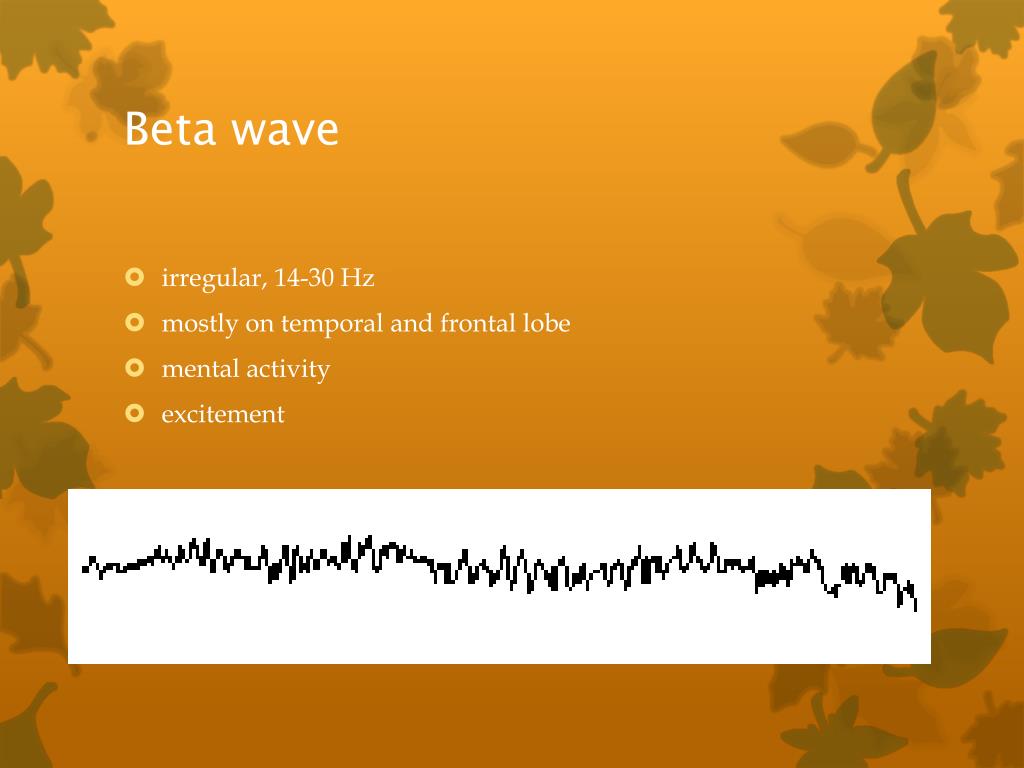

25. Beta wave • irregular, 14-30 Hz • mostly on temporal and frontal lobe • mental activity • excitement

26. Theta wave • rhythmic, 4-7 Hz • Drowsy, sleep

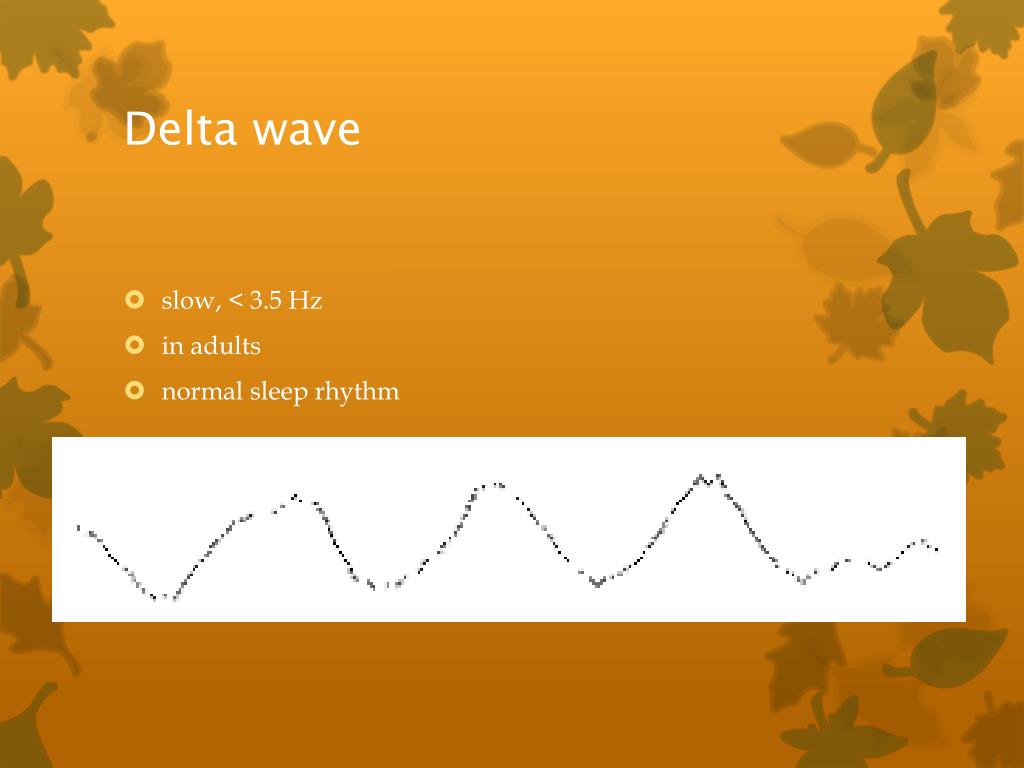

27. Delta wave • slow, < 3.5 Hz • in adults • normal sleep rhythm

29. Different types of brain waves in normal EEG D T A B

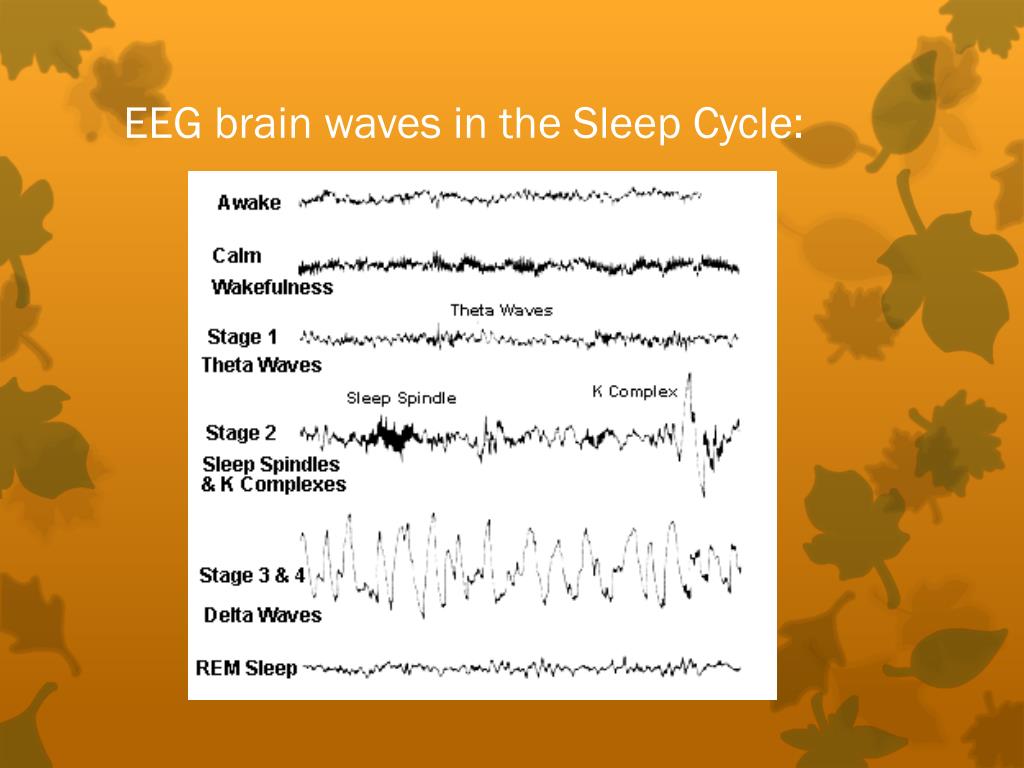

30. EEG brain waves in the Sleep Cycle:

31. استراحت؟

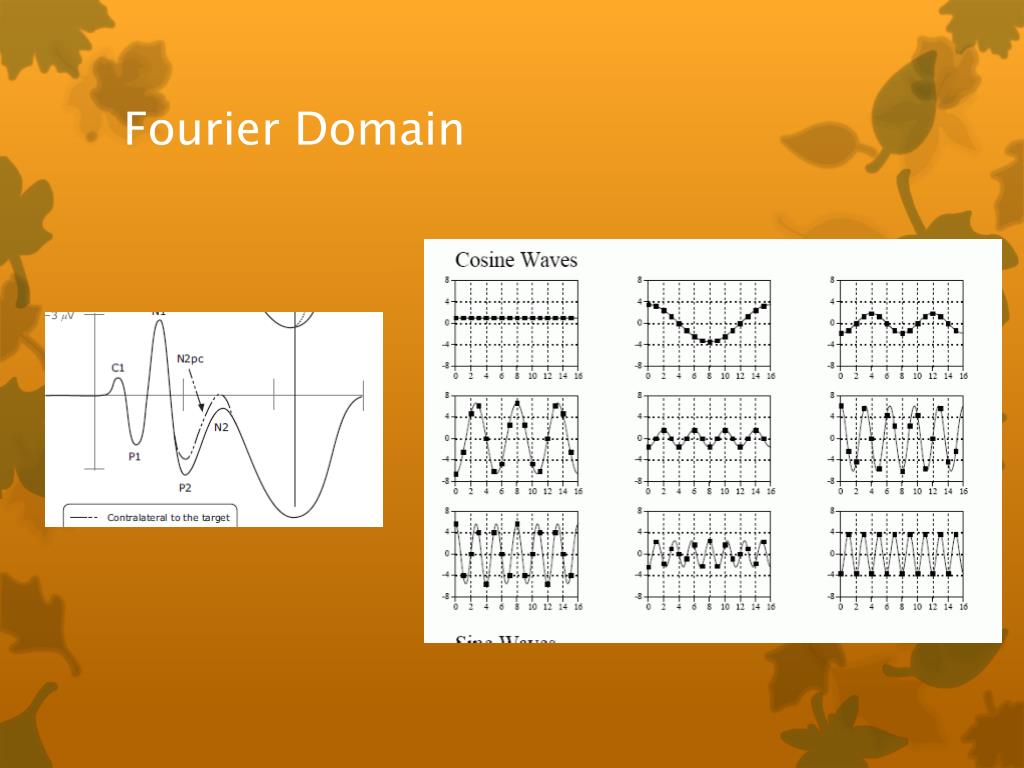

32. Fourier Domain

33. EEG recording in man • Eyes opened condition. • Examples of different waves.

34. The cocktail party problem - find Z x1 z1 x2 z2 A xN XT=AZT zN ZT XT

35. Blind Source Separation Blind Source Separation deals with the « separation » of a mixture of sources, witha littleprior information about the mixingprocess and the sources signals x = As Ŝ = Wx Environment x1 Ŝ 1 S1 S2 SN Source Separation Algorithm W x2 Ŝ2 . . . . . . . . . . . . xN ŜN Sources Sensors Observations

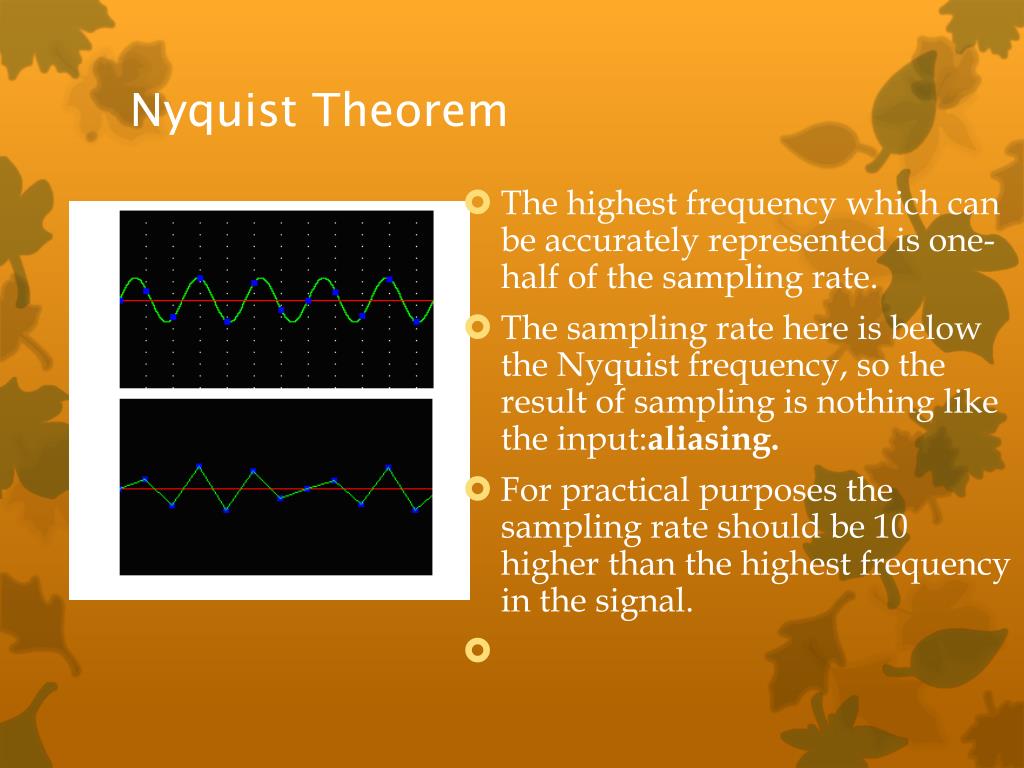

36. Nyquist Theorem • The highest frequency which can be accurately represented is one-half of the sampling rate. • The sampling rate here is below the Nyquist frequency, so the result of sampling is nothing like the input:aliasing. • For practical purposes the sampling rate should be 10 higher than the highest frequency in the signal.

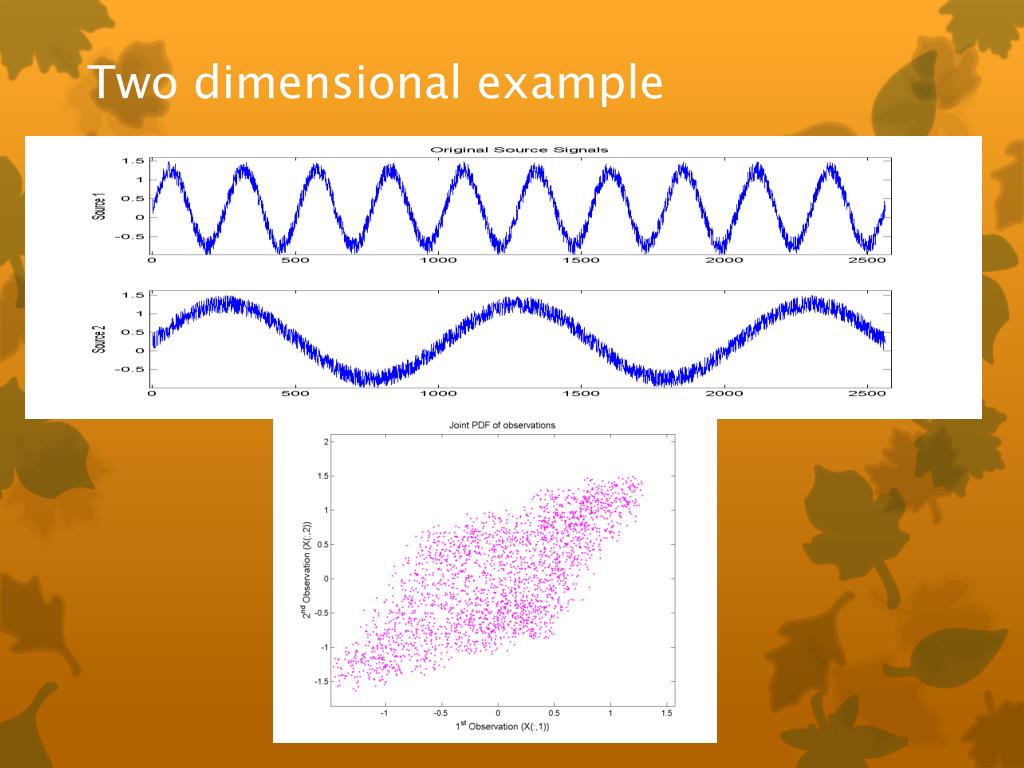

37. Two dimensional example

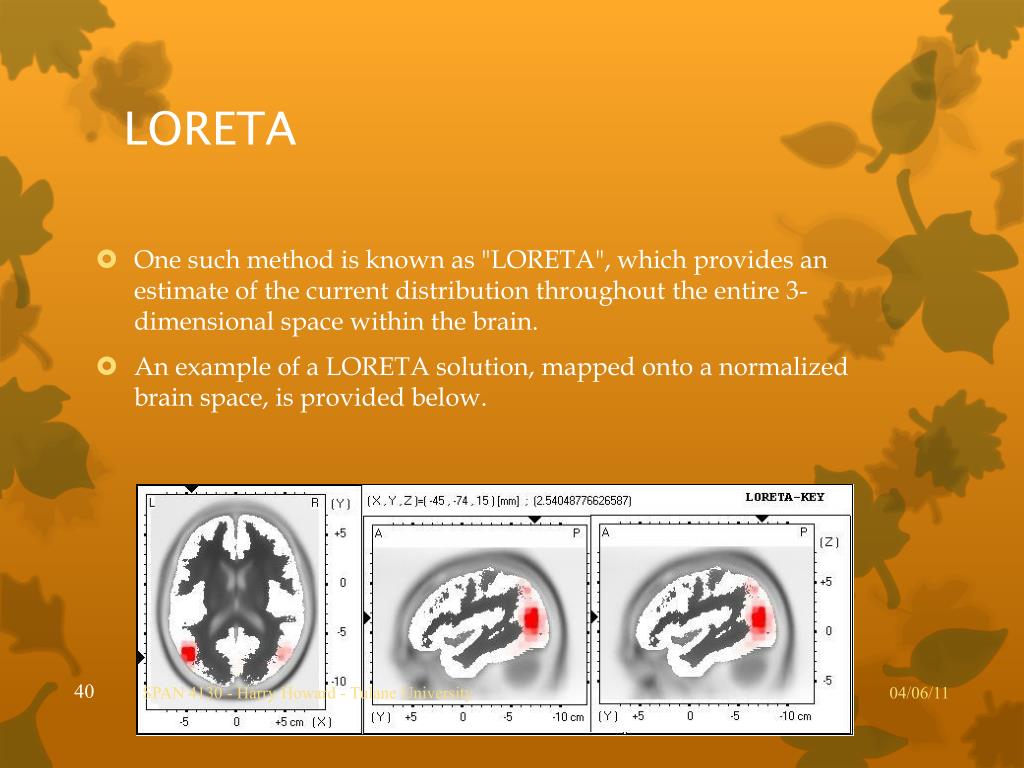

40. LORETA One such method is known as "LORETA", which provides an estimate of the current distribution throughout the entire 3-dimensional space within the brain. An example of a LORETA solution, mapped onto a normalized brain space, is provided below. SPAN 4130 - Harry Howard - Tulane University

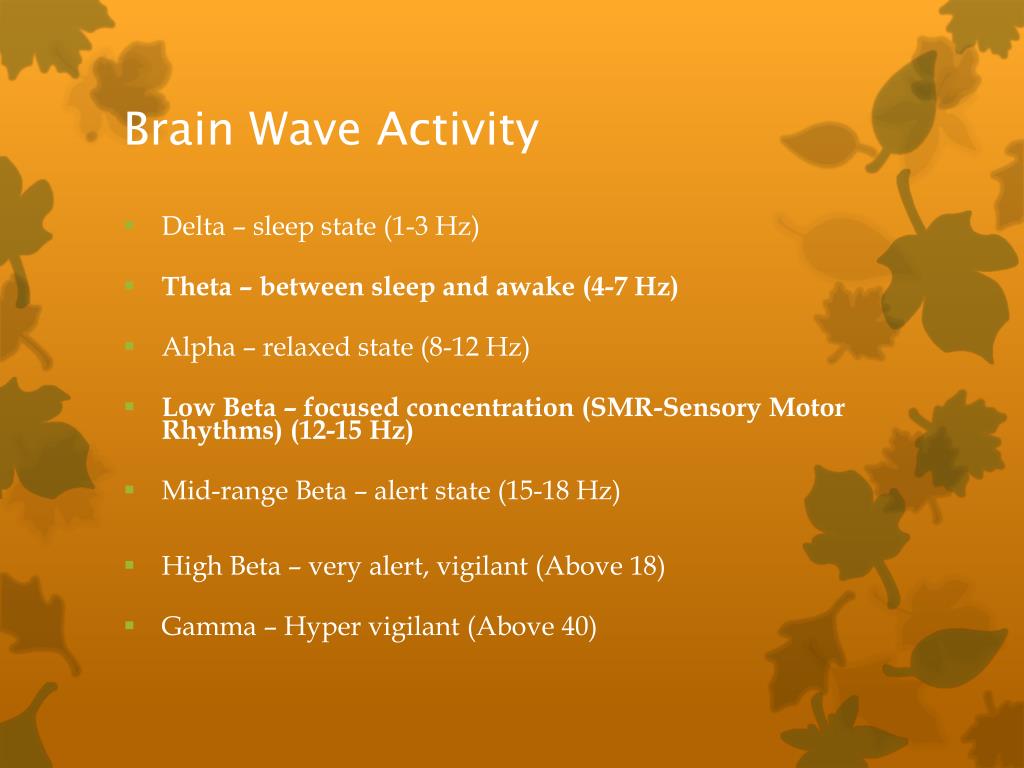

41. Brain Wave Activity • Delta – sleep state (1-3 Hz) • Theta – between sleep and awake (4-7 Hz) • Alpha – relaxed state (8-12 Hz) • Low Beta – focused concentration (SMR-Sensory Motor Rhythms) (12-15 Hz) • Mid-range Beta – alert state (15-18 Hz) • High Beta – very alert, vigilant (Above 18) • Gamma – Hyper vigilant (Above 40)

42. Default Mode Netowrk

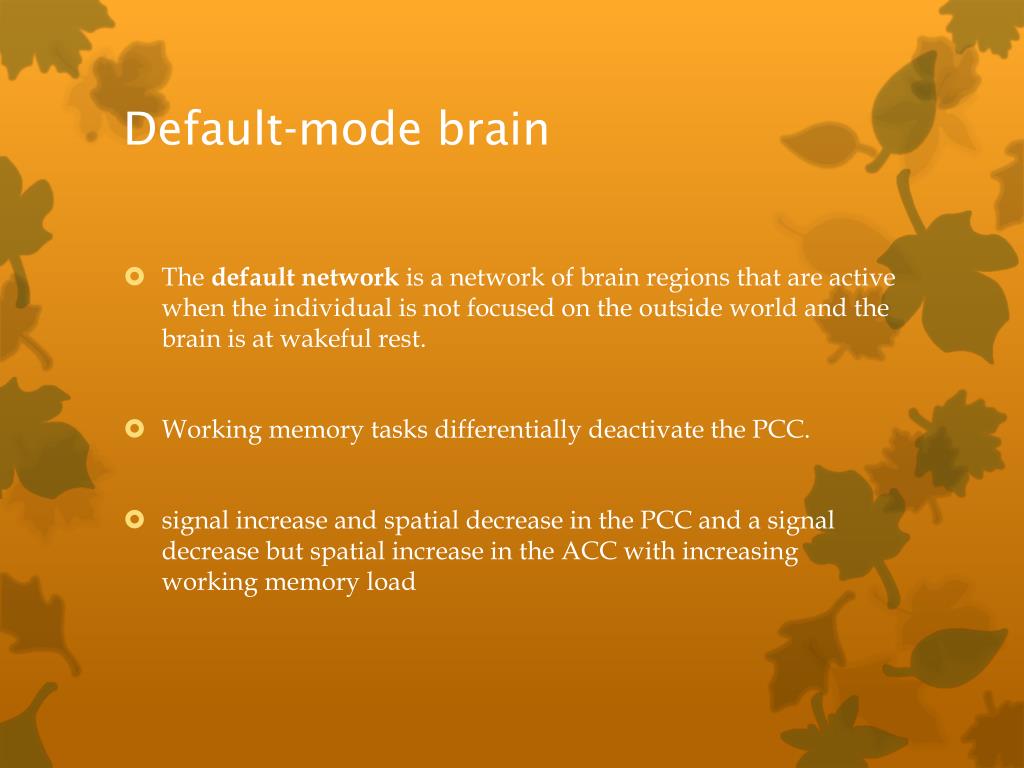

43. Default-mode brain • The default network is a network of brain regions that are active when the individual is not focused on the outside world and the brain is at wakeful rest. • Working memory tasks differentially deactivate the PCC. • signal increase and spatial decrease in the PCC and a signal decrease but spatial increase in the ACC with increasing working memory load

44. Oscillations and the control of information processing (1) Oscillations: Timing and spatial organization of information processes. Oscillations provide mechanisms that allow the emergence of spatially and temporally organized firing patterns in neural networks. (2) Slow frequency oscillations: Conscious control of information processing.Slow frequency oscillations in the theta and alpha range (of about 4 – 13.5 Hz) are associated with the top-down control of two large processing systems, a working memory system and a a complex knowledge system, allowing semantic orientation in a constantly changing environment. Theta and alpha oscillations exhibit a variety of different synchronization processes (e.g., amplitude increase, phase coupling, event-related phase reorganization) that reflect different types of control processes and different aspects of the timing of cognitive processes.

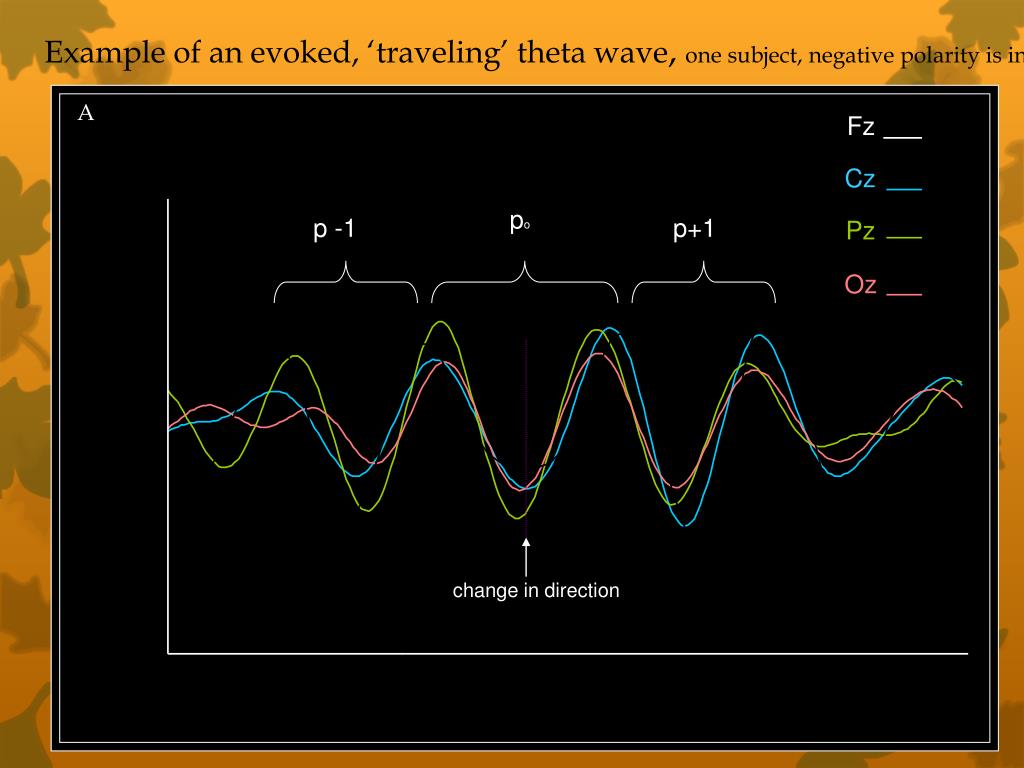

45. Example of an evoked, ‘traveling’ theta wave, one subject, negative polarity is in blue A Fz Theta-waves single subject “B“ Cz -1.5 po p -1 p+1 Pz -1.0 Oz -0.5 µV 0.0 0.5 1.0 change in direction 1.5 500 600 700 800 900 1000 1100 1200 1300 ms poststim

46. برانگیختگی ناشی از محرک • کاربردها • ترجمه سیگنال به یک حرکت • استفاده از مغز به عنوان یک پردازشگر سریع • بررسی عملکرد حسی و شناختی فرد
