  1. Winter Weather Forecasting Primer Lamont Bain OWL Director of Operations

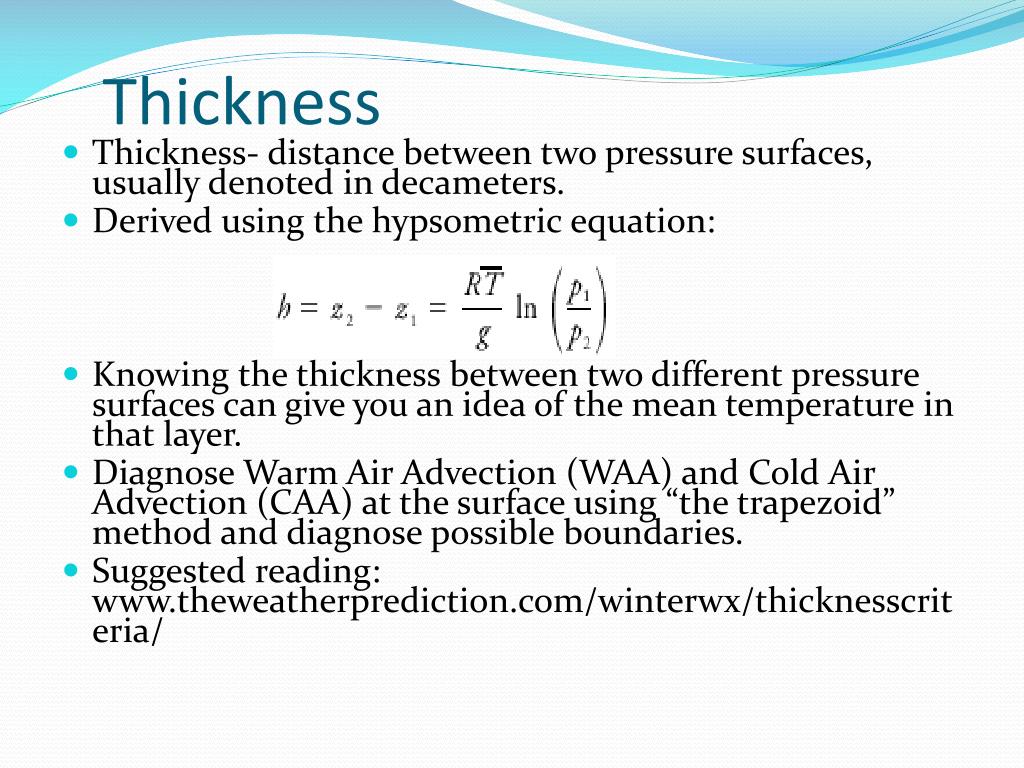

  2. Thickness • Thickness- distance between two pressure surfaces, usually denoted in decameters. • Derived using the hypsometric equation: • Knowing the thickness between two different pressure surfaces can give you an idea of the mean temperature in that layer. • Diagnose Warm Air Advection (WAA) and Cold Air Advection (CAA) at the surface using “the trapezoid” method and diagnose possible boundaries. • Suggested reading: www.theweatherprediction.com/winterwx/thicknesscriteria/

  3. “Critical Thicknesses”

  4. Diagnose WAA/CAA weather.ou.edu/~metr4424

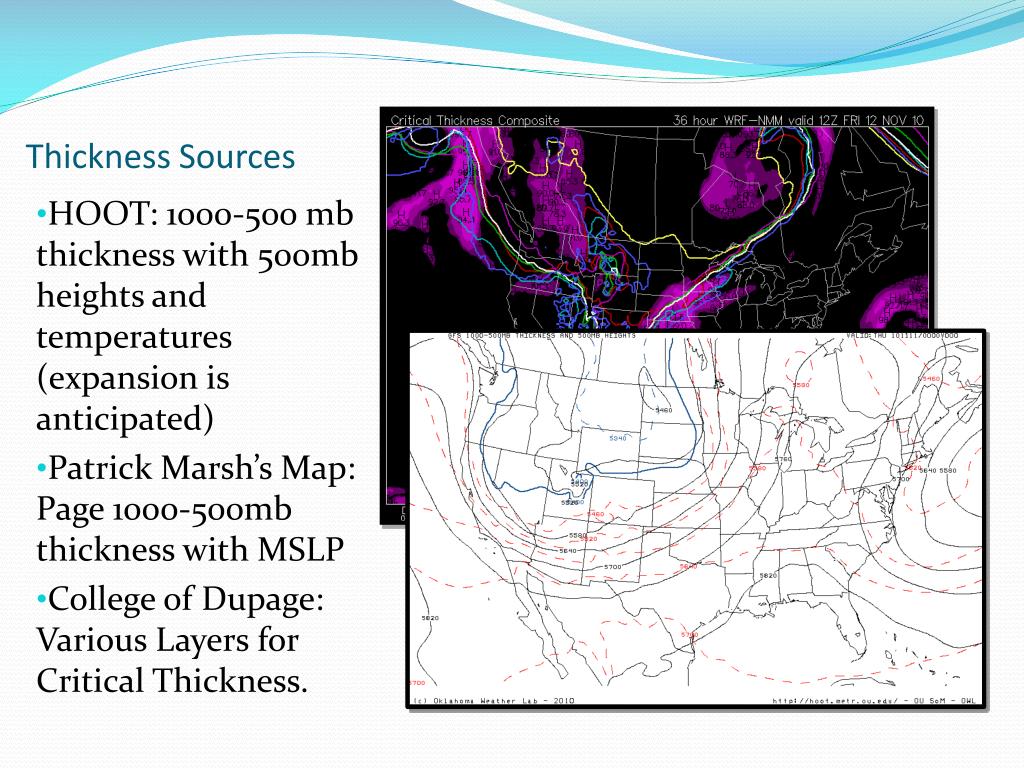

  5. Thickness Sources HOOT: 1000-500 mb thickness with 500mb heights and temperatures (expansion is anticipated) Patrick Marsh’s Map: Page 1000-500mb thickness with MSLP College of Dupage: Various Layers for Critical Thickness.

  6. Forecast Soundings: A top-down approach • Not just for thunderstorms! • Guide for thermal structure and thus “p-type.” • Ice Nucleation and Snow Growth • Freezing Rain? Sleet? Snow? Just a cold rain?

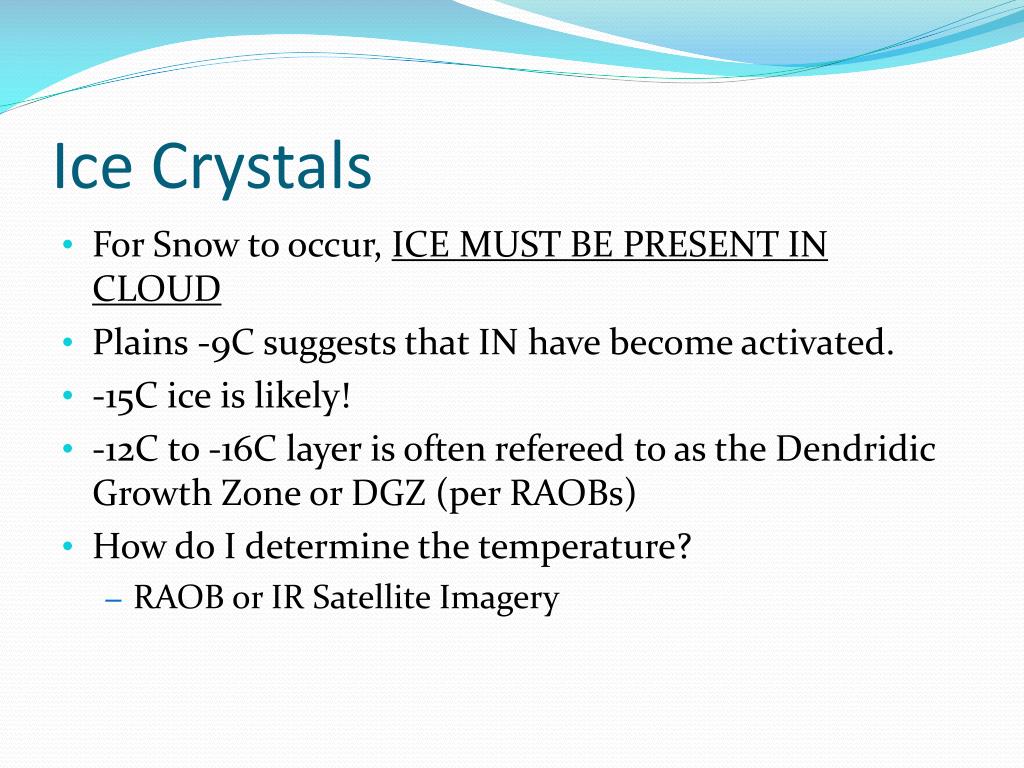

  7. Ice Crystals • For Snow to occur, ICE MUST BE PRESENT IN CLOUD • Plains -9C suggests that IN have become activated. • -15C ice is likely! • -12C to -16C layer is often refereed to as the Dendridic Growth Zone or DGZ (per RAOBs) • How do I determine the temperature? • RAOB or IR Satellite Imagery

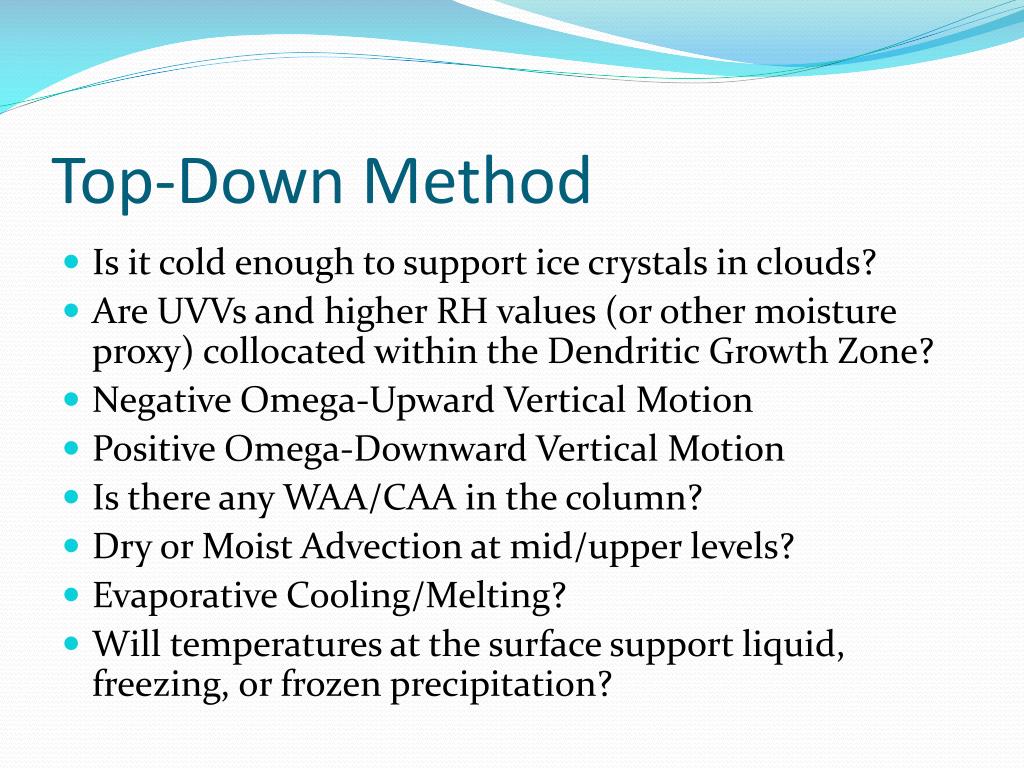

  8. Top-Down Method • Is it cold enough to support ice crystals in clouds? • Are UVVs and higher RH values (or other moisture proxy) collocated within the Dendritic Growth Zone? • Negative Omega-Upward Vertical Motion • Positive Omega-Downward Vertical Motion • Is there any WAA/CAA in the column? • Dry or Moist Advection at mid/upper levels? • Evaporative Cooling/Melting? • Will temperatures at the surface support liquid, freezing, or frozen precipitation?

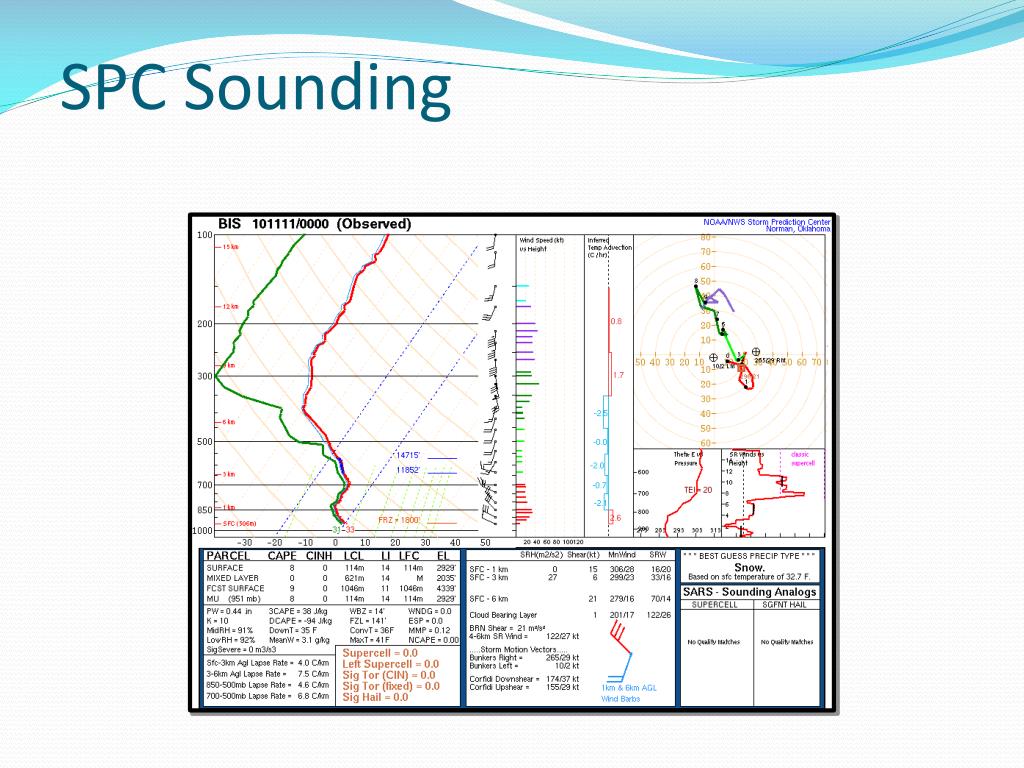

  9. SPC Sounding

  10. BUFKIT Forecast Sounding

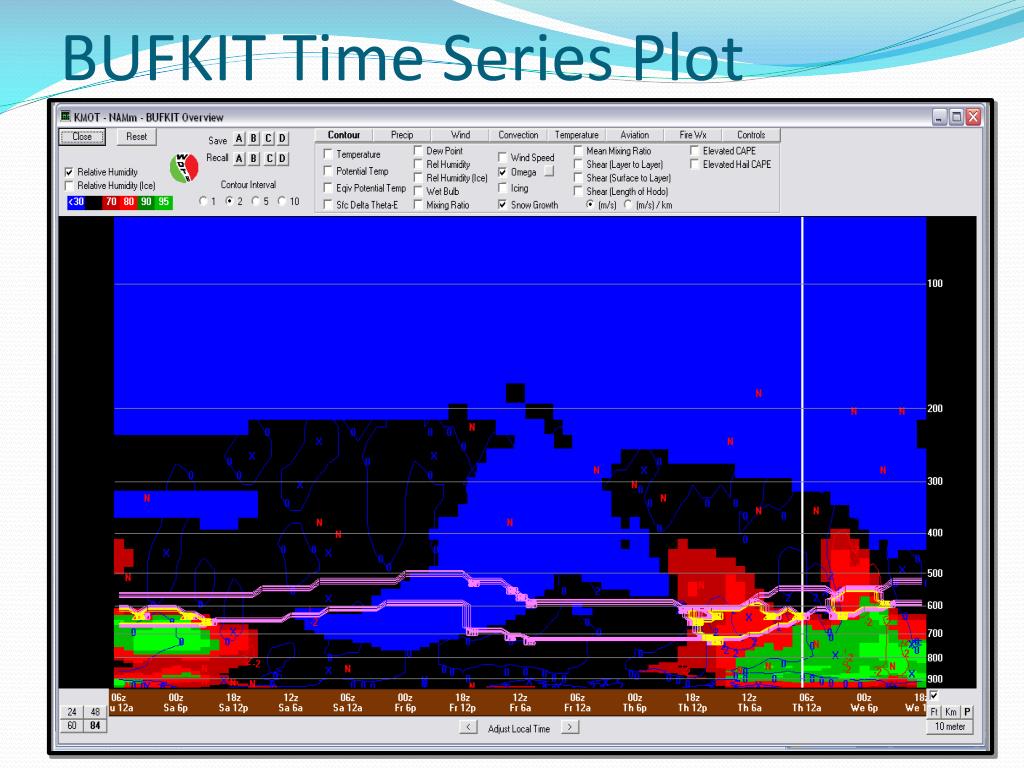

  11. BUFKIT Time Series Plot

  12. January 28-29th 2010 Ice Storm • Saturated mid/low levels of the troposphere • Sub Freezing Temperatures at the SFC • Warm Air Aloft • Convection!?

  13. 12Z & 15Z OUN RAOBs

  14. 18Z & 21Z OUN RAOBs

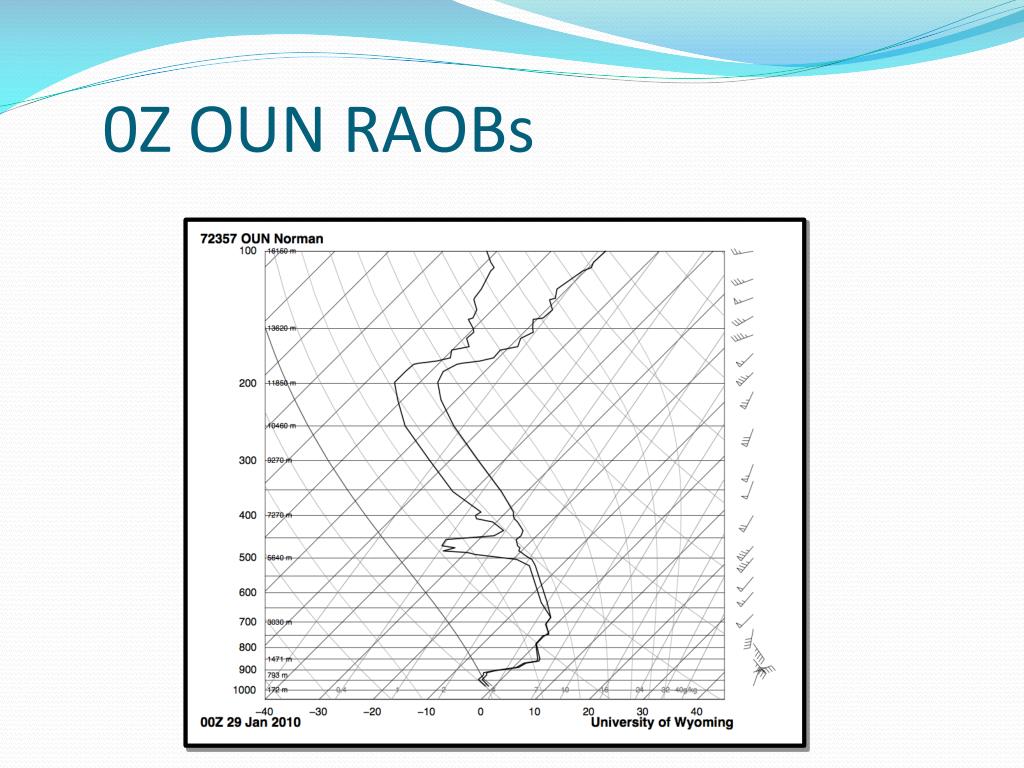

  15. 0Z OUN RAOBs

  16. Questions? Concerns? Comments?
