  1. CLM R10+ A new class of projection June 2007

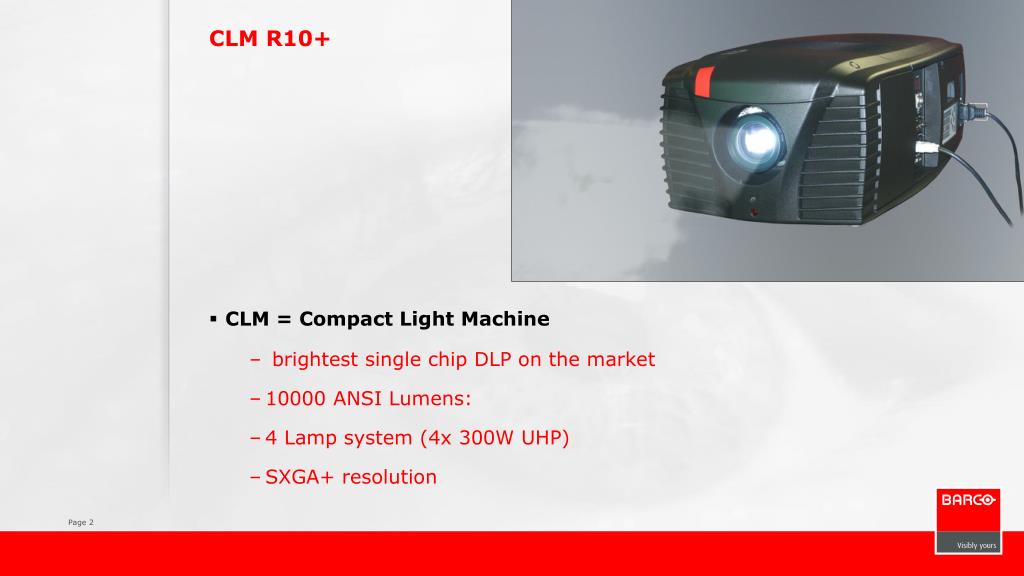

  2. CLM R10+ • CLM = Compact Light Machine • brightest single chip DLP on the market • 10000 ANSI Lumens: • 4 Lamp system (4x 300W UHP) • SXGA+ resolution

  3. Compact Light Machine • High performance DLP image quality • Image processing technology from our award winning FLM R20+. • Barco engineered and manufactured – this is not a bought in OEM unit. • Built to the same high standard as its successful bigger brothers, the SLM, FLM and XLM.

  4. CLM R10+ benefits • Compact • High Brightness • Low noise!! • 3 operation modes • Lower maintenance cost compared to LCD and 3DLP • Better performance over time compared to LCD • Cheaper then 3-chip DLP but with excellent performance • More flexibility: 4, 2 or 1-lamp mode: without uniformity sacrifice

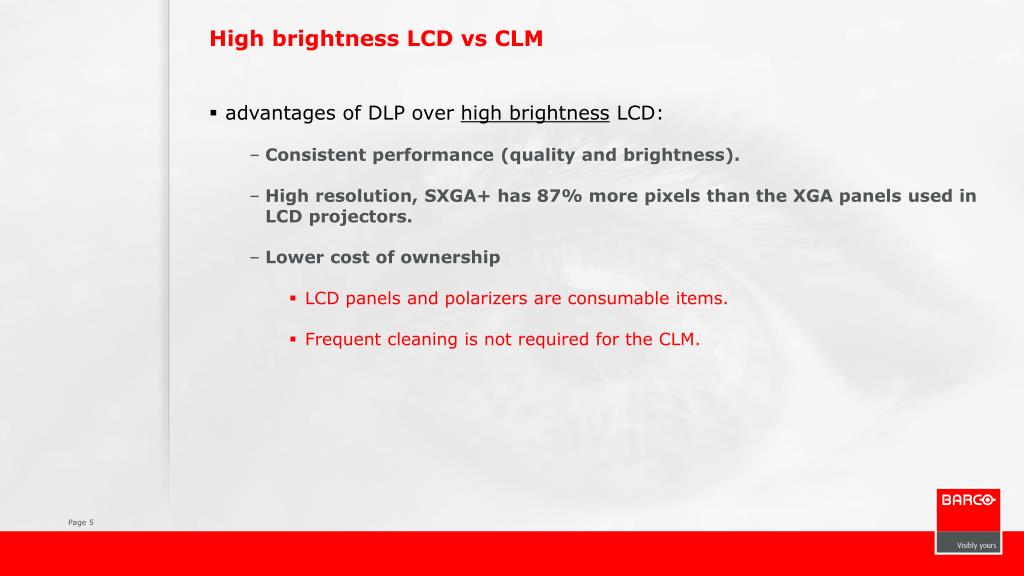

  5. High brightness LCD vs CLM • advantages of DLP over high brightness LCD: • Consistent performance (quality and brightness). • High resolution, SXGA+ has 87% more pixels than the XGA panels used in LCD projectors. • Lower cost of ownership • LCD panels and polarizers are consumable items. • Frequent cleaning is not required for the CLM.

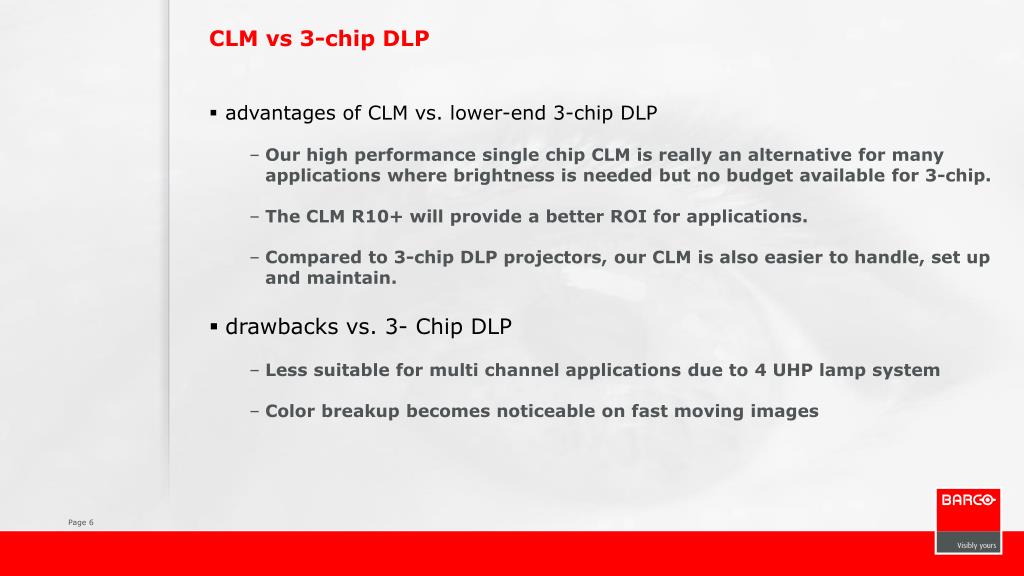

  6. CLM vs 3-chip DLP • advantages of CLM vs. lower-end 3-chip DLP • Our high performance single chip CLM is really an alternative for many applications where brightness is needed but no budget available for 3-chip. • The CLM R10+ will provide a better ROI for applications. • Compared to 3-chip DLP projectors, our CLM is also easier to handle, set up and maintain. • drawbacks vs. 3- Chip DLP • Less suitable for multi channel applications due to 4 UHP lamp system • Color breakup becomes noticeable on fast moving images

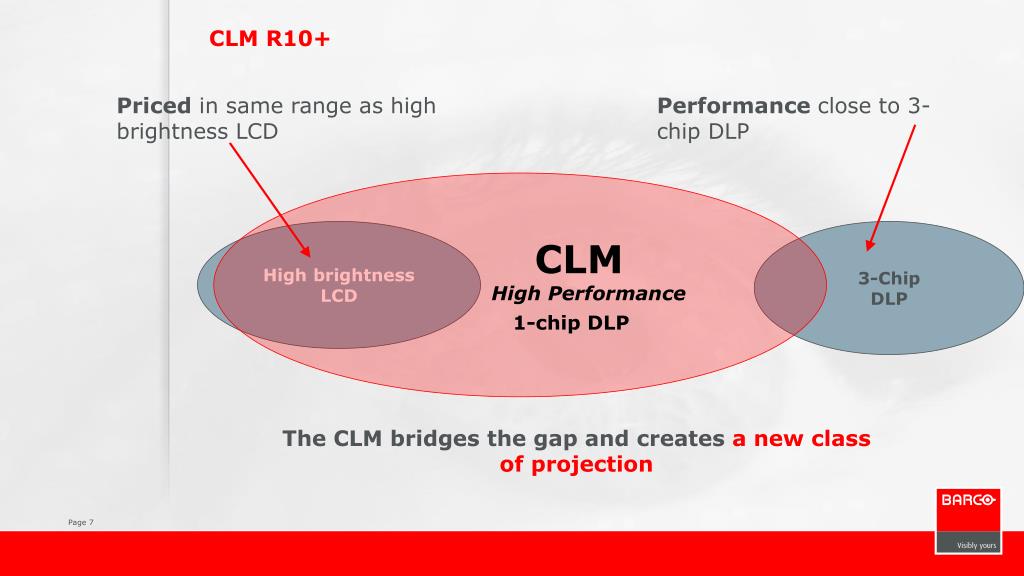

  7. CLM R10+ Priced in same range as high brightness LCD Performance close to 3-chip DLP CLM High Performance 1-chip DLP High brightness LCD 3-Chip DLP The CLM bridges the gap and creates a new class of projection

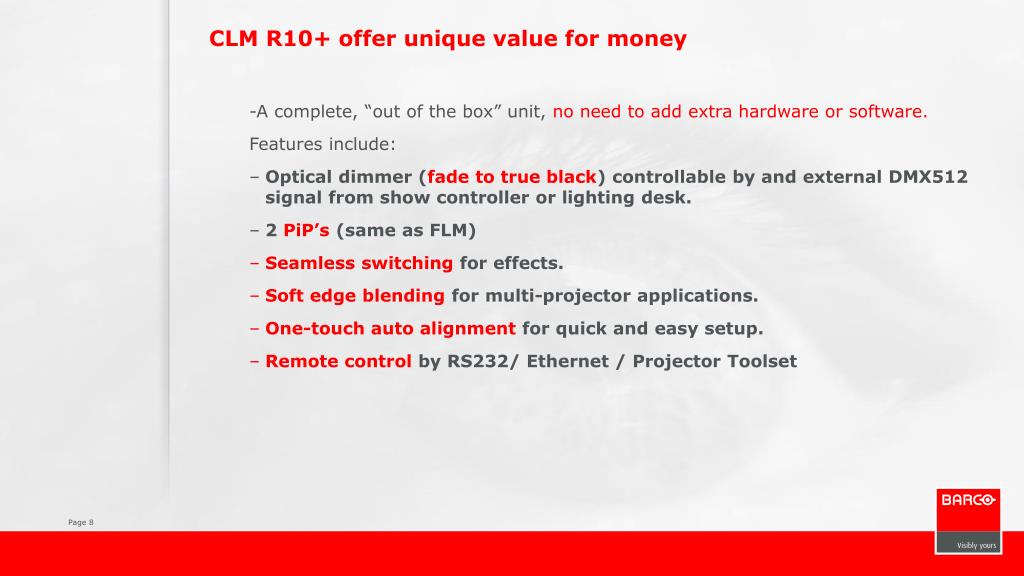

  8. CLM R10+ offer unique value for money -A complete, “out of the box” unit, no need to add extra hardware or software. Features include: • Optical dimmer (fade to true black) controllable by and external DMX512 signal from show controller or lighting desk. • 2 PiP’s (same as FLM) • Seamless switching for effects. • Soft edge blending for multi-projector applications. • One-touch auto alignment for quick and easy setup. • Remote control by RS232/ Ethernet / Projector Toolset

  9. CLM R10+ offer unique value for money More Features • Inputs: (same inputs as FLM series) • 5 cable BNC (configurable) • DVI • Optional inputs avaliable (HDSDI) • Picture-in-Picture: 2 sources simultaneously • Communications: Serial and Ethernet • Projector toolset available for free • Sealed optics • Runs in 4, 2 or 1-lamp mode (Lamps warranted to 750hrs) • Horizontal and vertical lens shift • Lens range: CLD 1.2 - 1.6 1.6 – 2.4 2.4 – 4.3 0.85
