Phase 1 FPIX Cooling

Concept for routing and assembly sequence for the cooling lines beyond the Half-Disks and through mount blocks for POH/Portcards and the DC-DC converter assemblies. Phase 1 FPIX Cooling. Return Tubes. Supply Tubes (between HDs and POH / Portcards). DC-DC Converter Bus boards.

darin
Télécharger la présentation

Phase 1 FPIX Cooling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

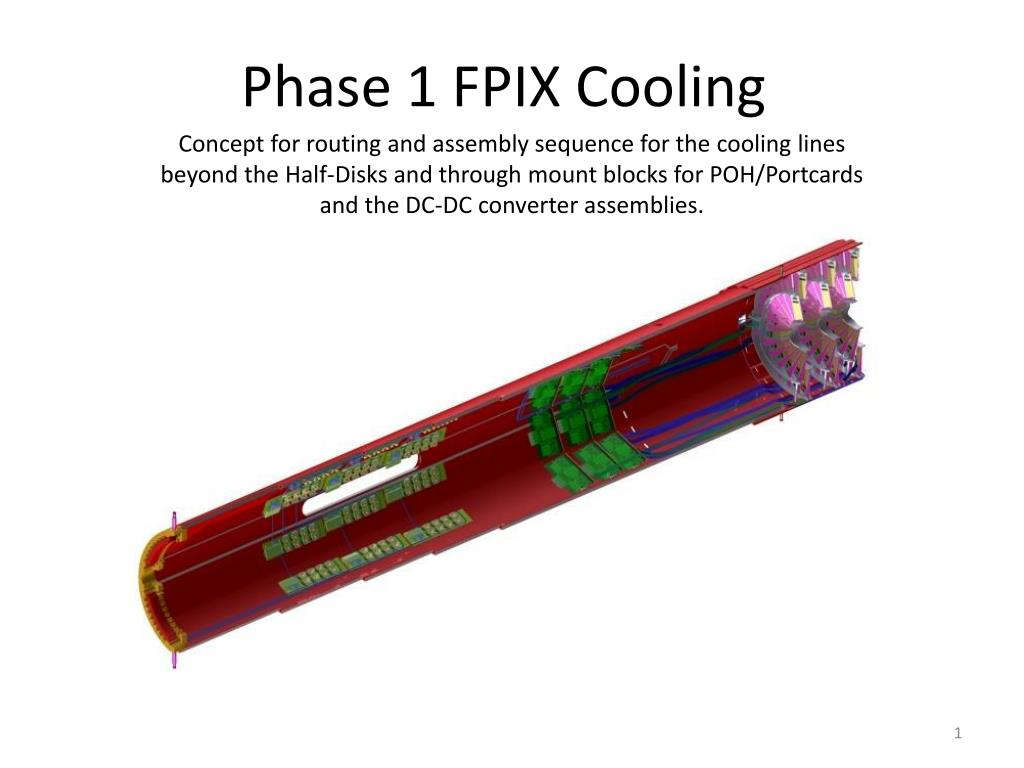

  1. Concept for routing and assembly sequence for the cooling lines beyond the Half-Disks and through mount blocks for POH/Portcards and the DC-DC converter assemblies. Phase 1 FPIX Cooling

  2. Return Tubes

  3. Supply Tubes (between HDs and POH / Portcards)

  4. DC-DC Converter Bus boards

  5. Supply Tubes for DC-DC Converters

  6. DC-DC Converter Mount Blocks

  7. DC-DC Converters

  8. POH / Portcard mount blocks (lower halves)

  9. Supply Tubes for POH / Portcards

  10. POH / Portcard mount blocks (upper halves)

  11. POH on mount blocks

  12. POH and Portcards
