  1. Earth Science Unit 1.3Rocks & Minerals

  2. ELEMENTS • EIGHT ELEMENTS MAKE UP MOST OF ALL MINERALS ON THE EARTH • Elements combine to form Minerals • LISTED IN ORDER OF ABUNDANCE • OXYGEN (O) • SILICON (Si) • ALUMINIUM (Al) • IRON (Fe) • CALCIUM (Ca) • POTASSIUM (K) • SODIUM (Na) • MAGNESIUM (Mg)

  3. PERIODIC TABLE OF ELEMENTS

  4. MINERALS • BUILDING BLOCKS FOR ROCKS • DEFINITION: • naturally occurring, inorganic solids, consisting of specific chemical elements, and a definite atomic array • CRYSTALLINE STRUCTURE – ‘CRYSTAL’

  5. MINERALS • MINERALS: TWO CATEGORIES • SILICATES – CONTAIN SILICON & OXYGEN MOLECULES (SiO) • NON-SILICATES (NO SiO)

  6. NON-SILICATE MINERALS • Make up 5% of Earth’s crust • Native metals: gold, silver, copper • Carbonates: calcite (used in cement) • Oxides: hematite (iron ores) • Sulfides: galena (lead ores) • Sulfates: gypsum (used in plaster)

  7. SILICATE MINERALS • Make up 90-95% of the Earth’s Crust • Dominant component of most rocks, include: • QUARTZ (SiO2) • FELDSPARS • MICAS

  8. ROCKS • AGGREGATIONS OF 2 OR MORE MINERALS • Same or different minerals combine together • THREE CATEGORIES • IGNEOUS • SEDIMENTARY • METAMORPHIC

  9. IGNEOUS ROCKS • FORMED FROM COOLED, SOLIDIFIED MOLTEN MATERIAL, AT OR BELOW THE SURFACE • PLUTONIC – INTRUSIVE: COOLED BELOW SURFACE AT GREAT DEPTHS • VOLCANIC – EXTRUSIVE: COOLED AT OR NEAR THE SURFACE THROUGH VOLCANIC ERUPTIONS

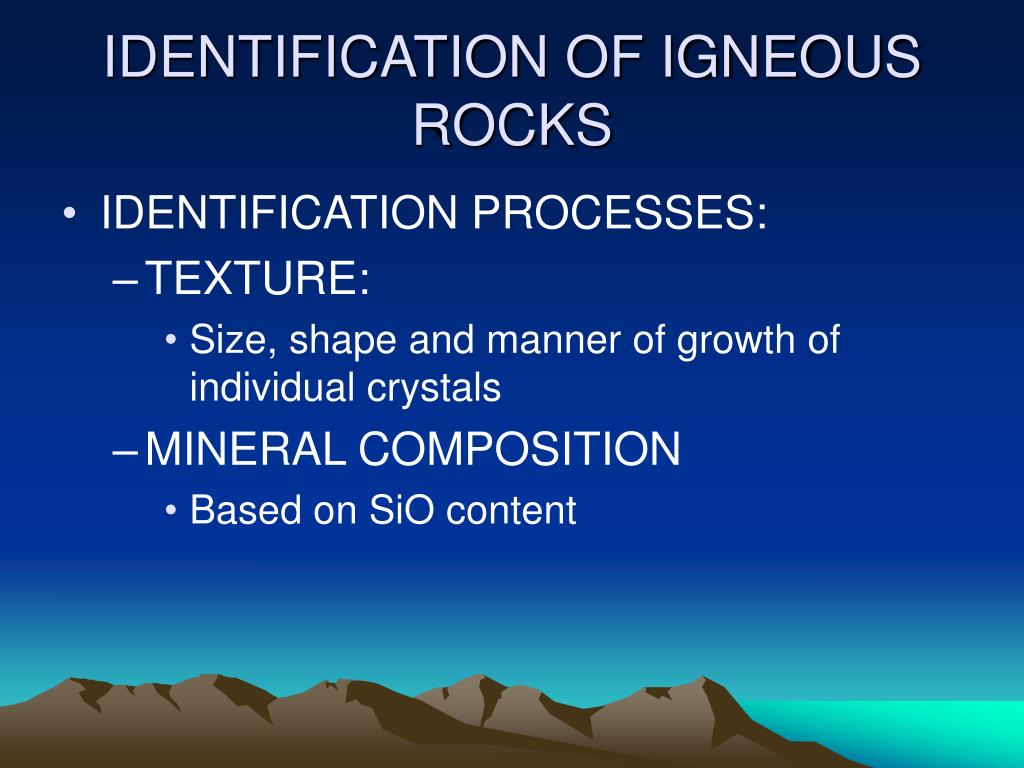

  10. IDENTIFICATION OF IGNEOUS ROCKS • IDENTIFICATION PROCESSES: • TEXTURE: • Size, shape and manner of growth of individual crystals • MINERAL COMPOSITION • Based on SiO content

  11. COMMON IGNEOUS ROCKS • GRANITE: PLUTONIC-INTRUSIVE; PHANERITIC TEXTURE; FELSIC MINERAL COMPOSITION • RHYOLITE:VOLCANIC-EXTRUSIVE; APHANETIC TEXTURE; FELSIC MINERAL COMPOSITION • DIORITE: PLUTONIC-INTRUSIVE; PHANERITIC TEXTURE; INTERMEDIATE MINERAL COMPOSITION • ANDESITE: VOLCANIC-EXTRUSIVE; APHANETIC TEXTURE; INTERMEDIATE MINERAL COMPOSITION • GABBRO: PLUTONIC-INTRUSIVE; PHANERITIC TEXTURE; MAFIC MINERAL COMPSITION • BASALT: VOLCANIC-EXTRUSIVE; APHANETIC TEXTURE; MAFIC MINERAL COMPOSITION

  12. OTHER IGNEOUS ROCKS • VOLCANIC GLASS: • OBSIDIAN: VOLCANIC-EXTRUSIVE; NO CRYSTALS FORM; SILICA-RICH, COOLED INSTANEOUSLY • PUMICE: VOLCANIC-EXTRUSIVE; NO CRYSTALS FORM; SILICA-RICH; SOLIDIFIED FROM ‘GASSY’ LAVA • PYROCLASTIC ROCKS • TUFF: VOLCANIC-EXTRUSIVE; SOLIDIFIED ‘WELDED’ ASH

  13. SEDIMENTARY ROCKS • Weathering processes break rock into pieces, sediment, ready for transportation deposition burial lithification into new rocks.

  14. CLASSIFYING SEDIMENTARY ROCKS THREE SOURCES • Detrital (or clastic) sediment is composed of transported solid fragments (or detritus) of pre-existing igneous, sedimentary or metamorphic rocks • Chemical sediment forms from previously dissolved minerals that either precipitated from solution in water , or were extracted from water by living organisms • Organic sedimentary rock consisting mainly of plant remains

  15. SEDIMENTARY ENVIRONMENTS • Lakes • Lagoons • Rivers • Ocean bottoms • Estuaries • Salt Flats • Playas • Glacial environments

  16. SEDIMENTARY PROCESSES • LITHIFICATION: • As sediment is buried several kilometers beneath the surface, heated from below, pressure from overlying layers and chemically-active water converts the loose sediment into solid sedimentary rock • Compaction - volume of a sediment is reduced by application of pressure • Cementation - sediment grains are bound to each other by materials originally dissolved during chemical weathering of preexisting rocks • typical chemicals include silica and calcium carbonate.

  17. METAMORPHIC ROCKS • METAMORPHISM : process by which conditions within the Earth alter the mineral content and structure of any rock, igneous, sedimentary or metamorphic, without melting it. • Metamorphism occurs when heat and pressure exceed certain levels, destabilizing the minerals in rocks...but not enough to cause melting

  18. Time for a break…

  19. GEOLOGIC TIME AND DATING • Four basic principles • Principle of Original Horizontality • Beds of sediment deposited in water formed as horizontal or nearly horizontal layers. • Principle of Superposition • Within a sequence of undisturbed sedimentary or volcanic rocks, the layers get younger going from bottom to top. • Lateral Continuity • An original sedimentary layer extends laterally until it tapers or thins at its edges • Cross-cutting Relationships • A disrupted pattern is older than the cause of the disruption.

  20. DATING - RELATIVE • Physical Continuity • Physically tracing the course of a rock unit to correlate rocks between two different places • Similarity of Rock Types • Correlation of two regions by assumption that similar rock types in two regions formed at same time, under same circumstances • Correlation by Fossils • Plants and animals that lived at the time rock formed were buried by sediment • fossil remains preserved in the layers of sedimentary rock -fossils nearer the bottom (in older rock) are more unlike -those near the top • Observations formalized into Principle of Faunal Succession – fossil species succeed one another in a definite and recognizable order. • Index Fossil – a fossil from a short-lived, geographically widespread species known to exist during a specific period of geologic time.

  21. ABSOLUTE DATING - DENDROCHRONOLGY • Using annual growth rings of trees • Dates for trees now extending back more than 9,000 years. • Bristlecone Pine, White Mountains, CA (pinus longaeva) provides a continuous time scale for last 9,000 years (to 7000 B.C) • Provides calibration of radiocarbon dates over most of the last 10,000 years (Holocene epoch)

  22. DENDROCHRONOLOGY

  23. ABSOLUTE DATINGVARVE CHRONOLOGY • Varves are parallel strata deposited in deep ocean floors or lake floors • A pair of sedimentary layers are deposited during seasonal cycle of a single year • Laminae (similar to annual growth rings in trees) record climatic conditions in a lake or large water body from year to year • Cores extracted from sea floor or lake floor are used to date back several million years to 200 million years

  24. VARVE CHRONOLOGY

  25. DATING - ABSOLUTE • Radiometric dating – based on radioactive decay of ‘isotopes’ • Decay rate can be quantified because it occurs at a constant rate for each known isotope – “half-life” from parent isotope to stable ‘daughter’ isotope • Measuring ratio of parent to daughter isotopes determines absolute ages of some rocks.

  26. ABSOLUTE DATING ISOTOPES • URANIUM–LEAD (U238–Pb206) • Half-life: 4.5 billion years • Dating range: 10 million – 4.6 billion years • URANIUM–LEAD (U235-Pb207) • Half-life: 713 million years • Dating Range: 10 million – 4.6 billion years • POTASSIUM-ARGON (K40-Ar40) • Half-life: 1.3 billion years • Dating Range: 100,000 – 4.6 billion years • CARBON-14 (C14-N14) • Half-life: 5730 years • Dating Range: 100 – 100,000 years
