  1. Benchmarking State Buildings Karen Herter, Heschong-Mahone Group (HMG) Mike Langley, Dept. of General Services (DGS) April 8, 2008

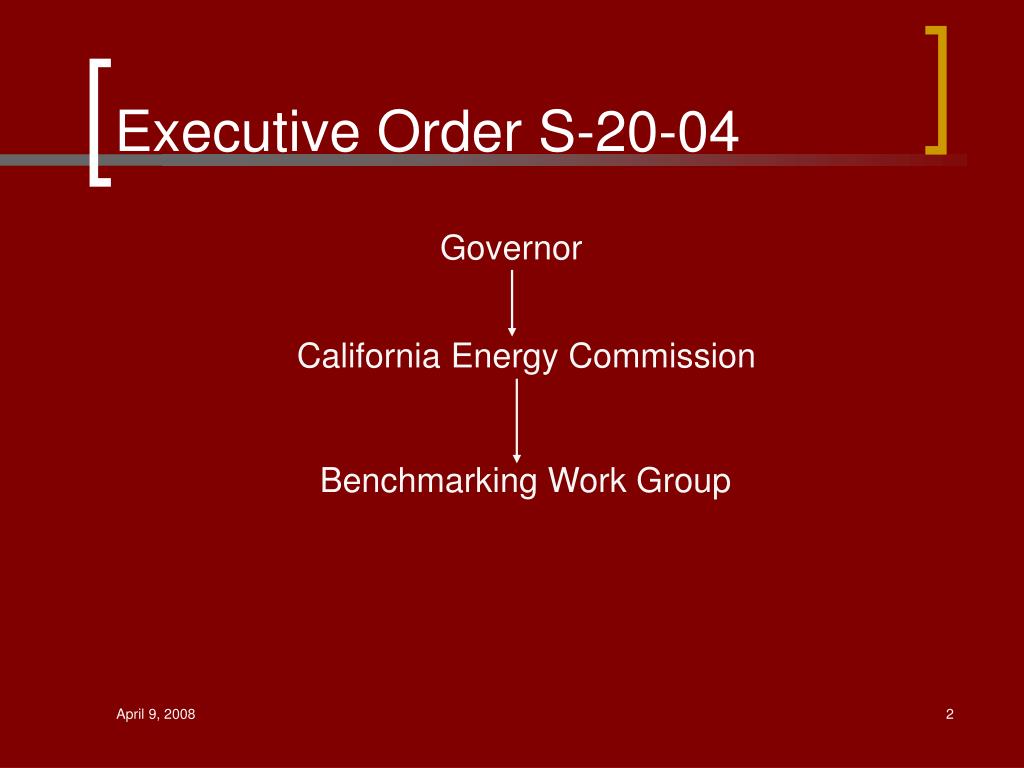

  2. Executive Order S-20-04 Governor California Energy Commission Benchmarking Work Group

  3. S-20-04 Directives • Benchmark all occupied State buildings • Reduce energy use 20% by 2015 • From the 2003 baseline • Encourage all commercial buildings to do likewise

  4. California Energy Commission • Chose U.S. EPA’s Portfolio Manager at http://www.energystar.gov/benchmark • Formed the Benchmarking Work Group • US EPA • California State agencies • California energy utilities • Private sector

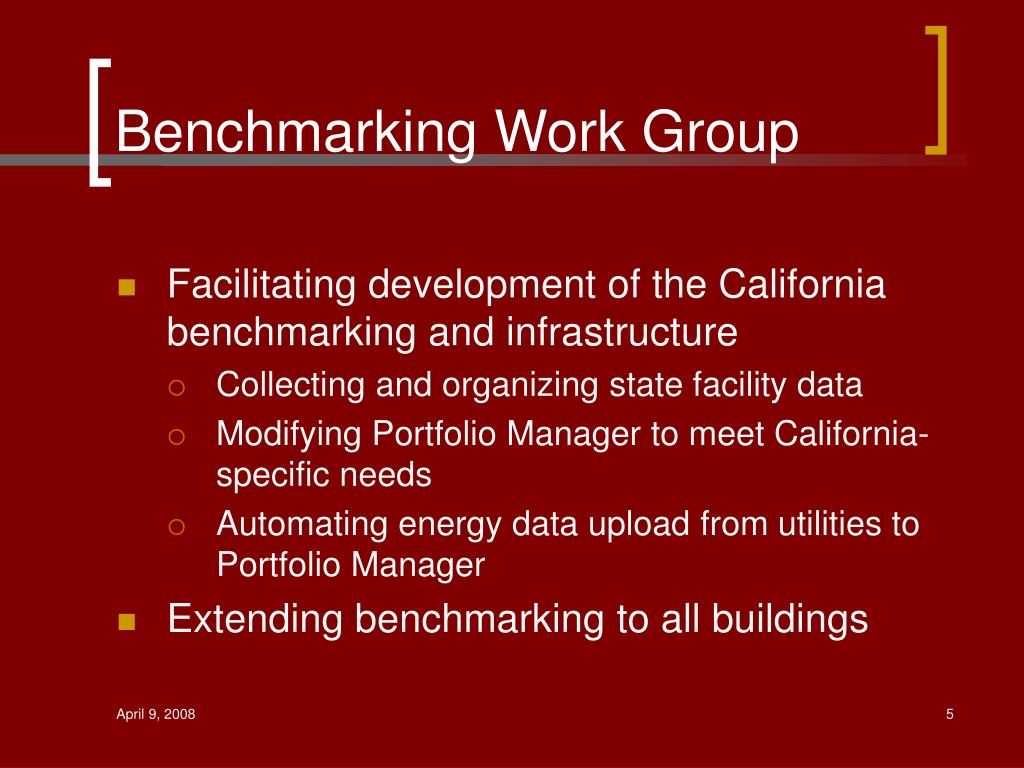

  5. Benchmarking Work Group • Facilitating development of the California benchmarking and infrastructure • Collecting and organizing state facility data • Modifying Portfolio Manager to meet California-specific needs • Automating energy data upload from utilities to Portfolio Manager • Extending benchmarking to all buildings

  6. Benchmarking Goals • Develop infrastructure for automated benchmarking • Benchmark all state buildings • Make benchmarking universally available • Use benchmarking to track progress toward energy use reduction goals

  7. PART 1 Benchmarking Overview

  8. Benchmarking Defined • Benchmarking is the documentation of building energy use over time (e.g. monthly) • “…a beginning step in managing a building’s energy cost, one that should motivate the building’s owner or manager to take actions to improve the building’s energy profile.” (CEC 2005) Benchmarking System for California Commercial Buildings - Plan, Timetable, and Recommendations, CEC Report CMF-400-2005-051-CMF, September, 2005

  9. How is benchmarking useful? • Users can: • View facility information • Track energy use over time • Share facility information with others • Apply for an Energy Star Building award • The State can: • Aggregate energy use by Agency or State • Track performance goals (e.g. 20% reduction)

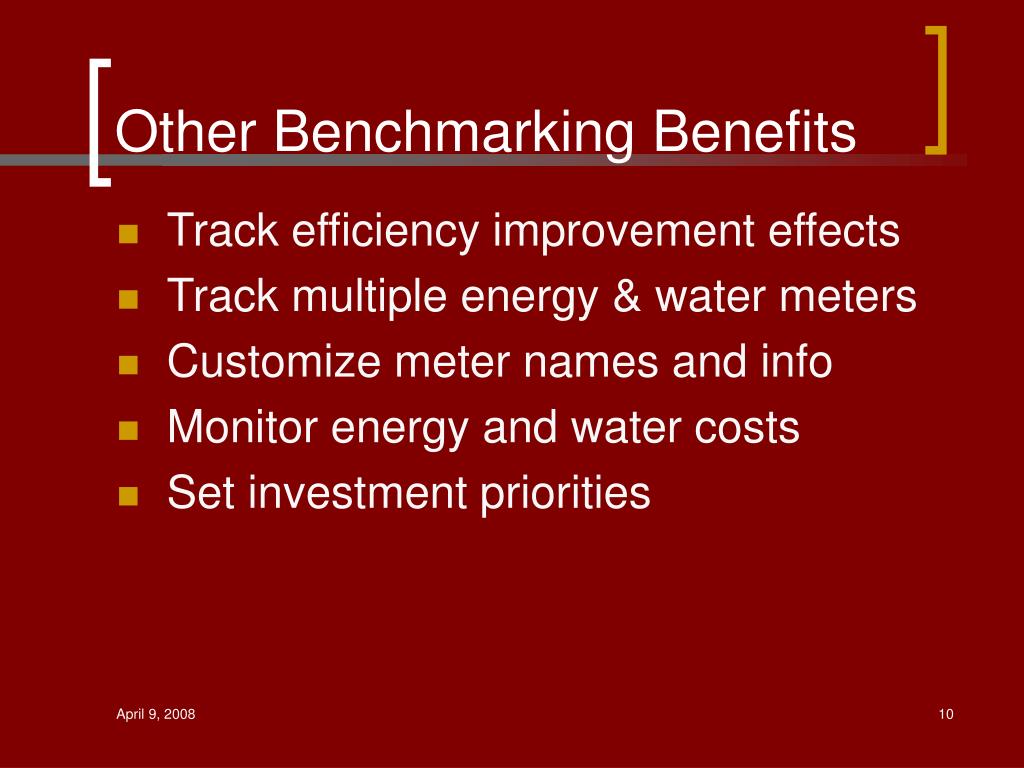

  10. Other Benchmarking Benefits • Track efficiency improvement effects • Track multiple energy & water meters • Customize meter names and info • Monitor energy and water costs • Set investment priorities

  11. PART 2 California Benchmarking Process

  12. State provides facility data • Facility identification • name, location, year built, square footage • Optional facility info • # of people, # of computers, op hours • Billing Meter identification • Usually multiple meters & utilities

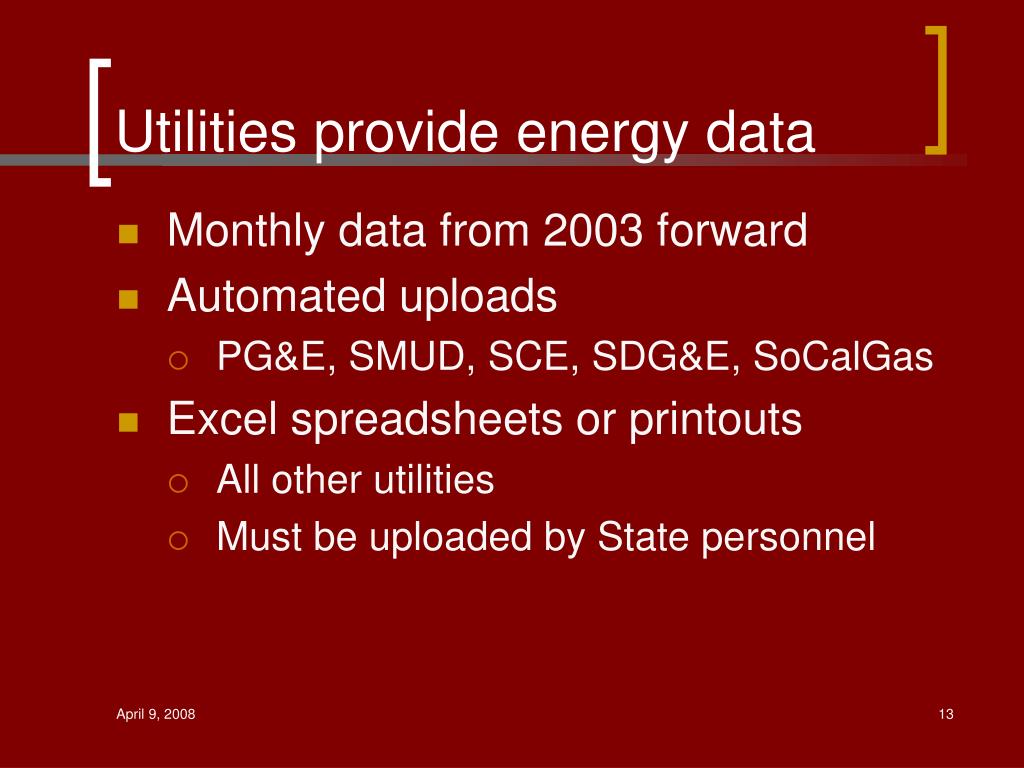

  13. Utilities provide energy data • Monthly data from 2003 forward • Automated uploads • PG&E, SMUD, SCE, SDG&E, SoCalGas • Excel spreadsheets or printouts • All other utilities • Must be uploaded by State personnel

  14. State Benchmarking Status • State Facility Data: Done • Utility Energy Data: ~70% Done • Data Quality Control: ~40% Done

  15. State Facility Data

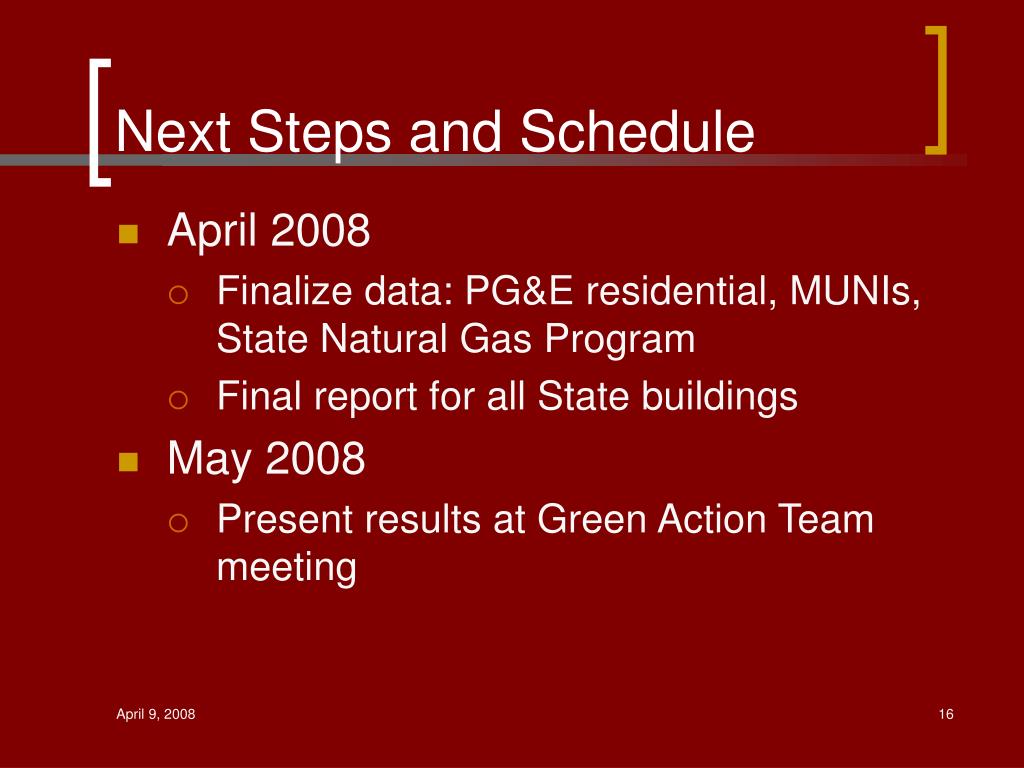

  16. Next Steps and Schedule • April 2008 • Finalize data: PG&E residential, MUNIs, State Natural Gas Program • Final report for all State buildings • May 2008 • Present results at Green Action Team meeting

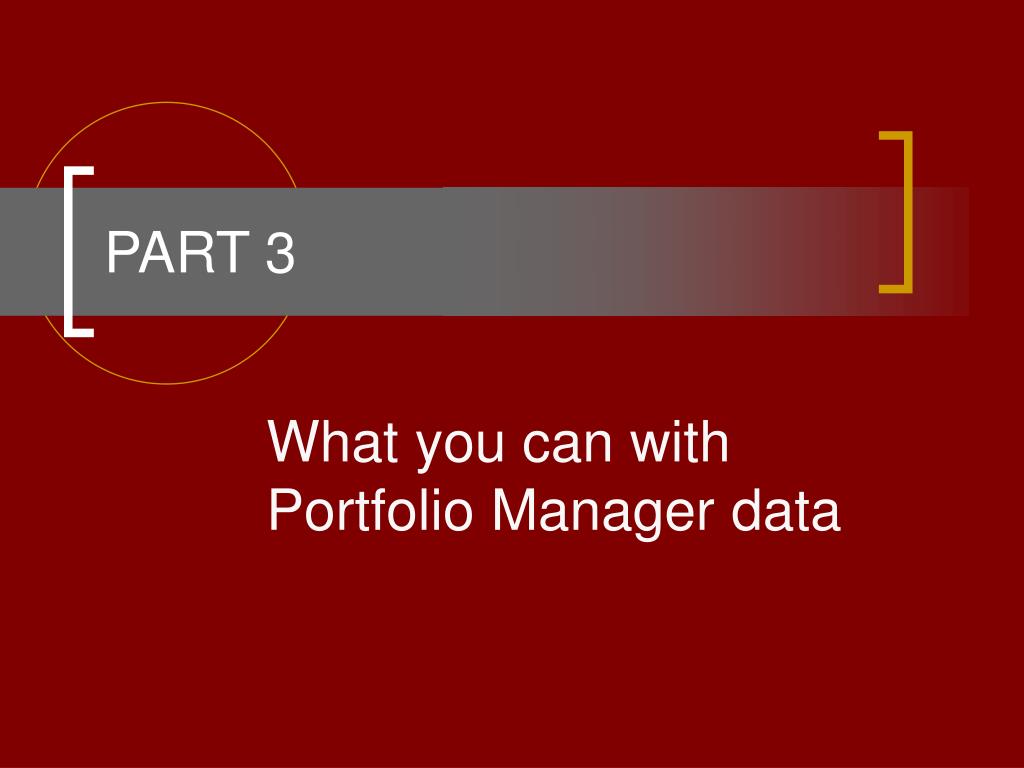

  17. PART 3 What you can with Portfolio Manager data

  18. View Portfolio Summaries

  19. Track the 20% Savings Goal

  20. View Energy Meter Data

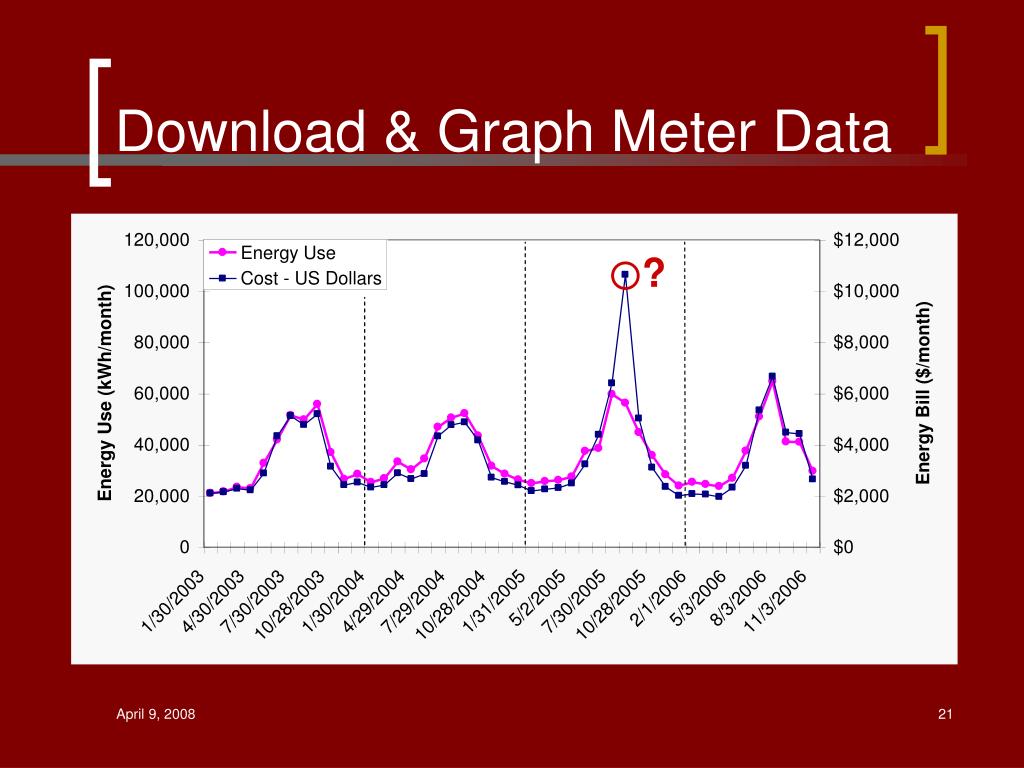

  21. Download & Graph Meter Data ?

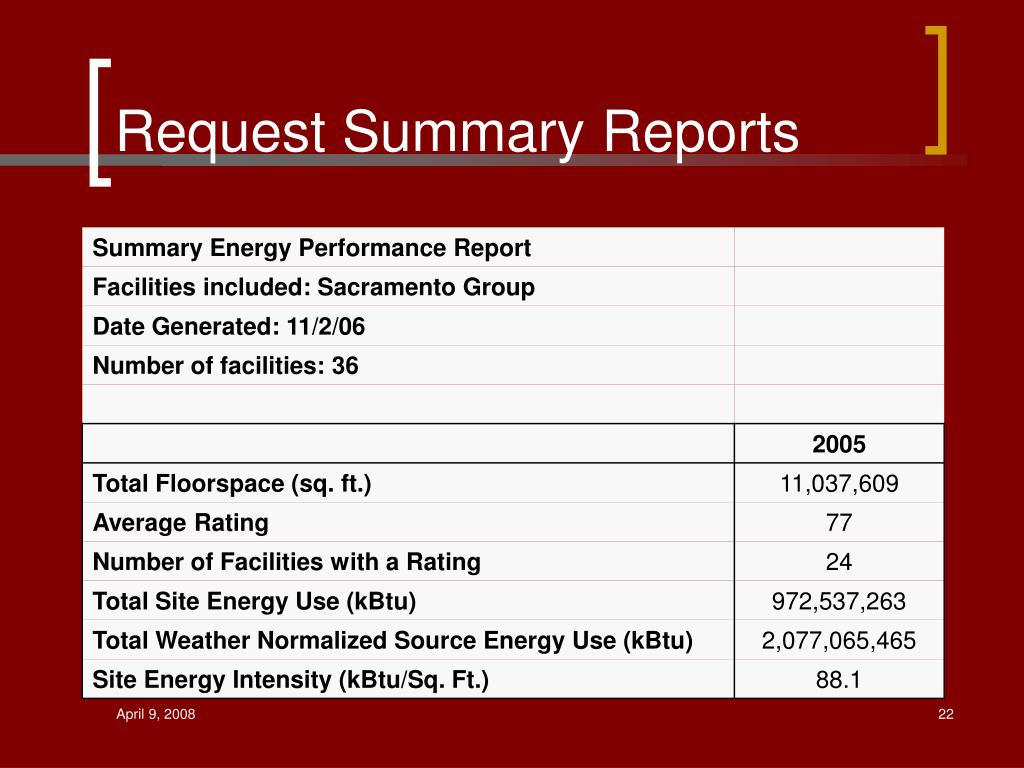

  22. Request Summary Reports

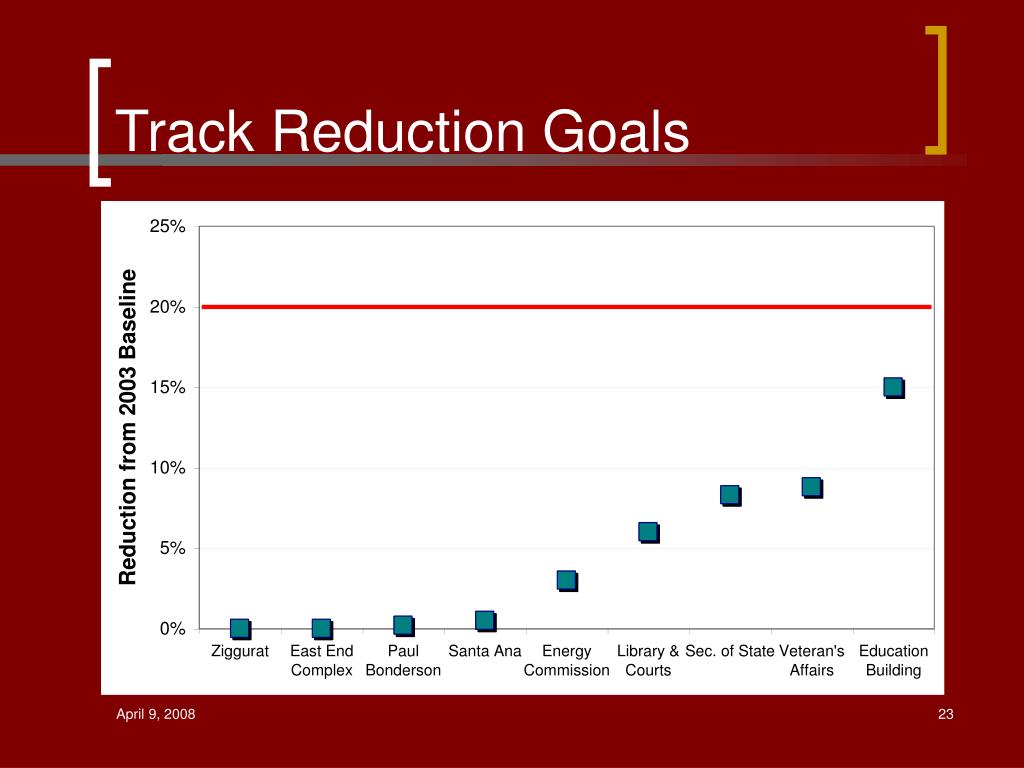

  23. Track Reduction Goals

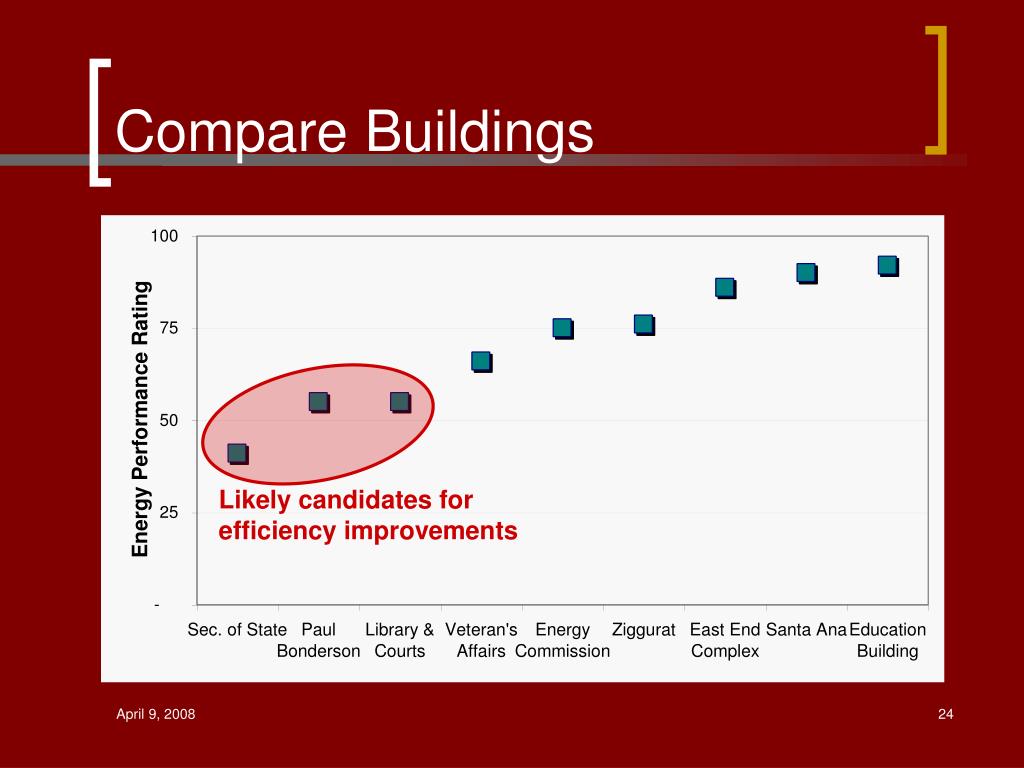

  24. Compare Buildings Likely candidates for efficiency improvements

  25. Identify Award Candidates

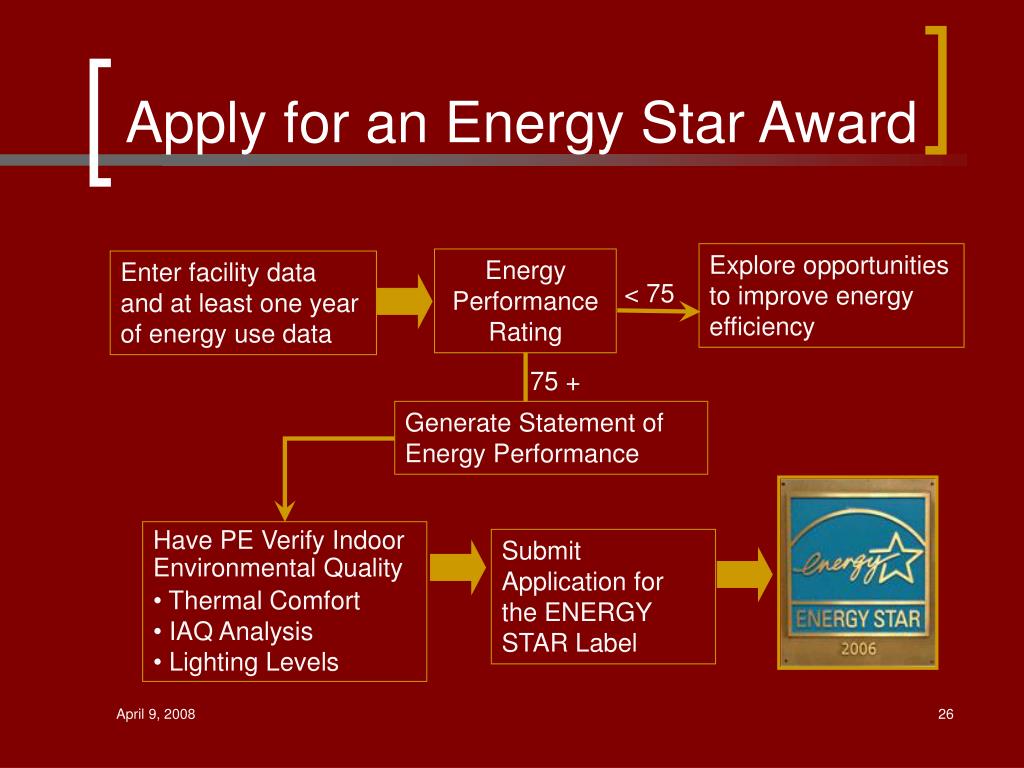

  26. Apply for an Energy Star Award Explore opportunities to improve energy efficiency Energy Performance Rating Enter facility data and at least one year of energy use data < 75 75 + Generate Statement of Energy Performance • Have PE Verify Indoor Environmental Quality • Thermal Comfort • IAQ Analysis • Lighting Levels Submit Application for the ENERGY STAR Label

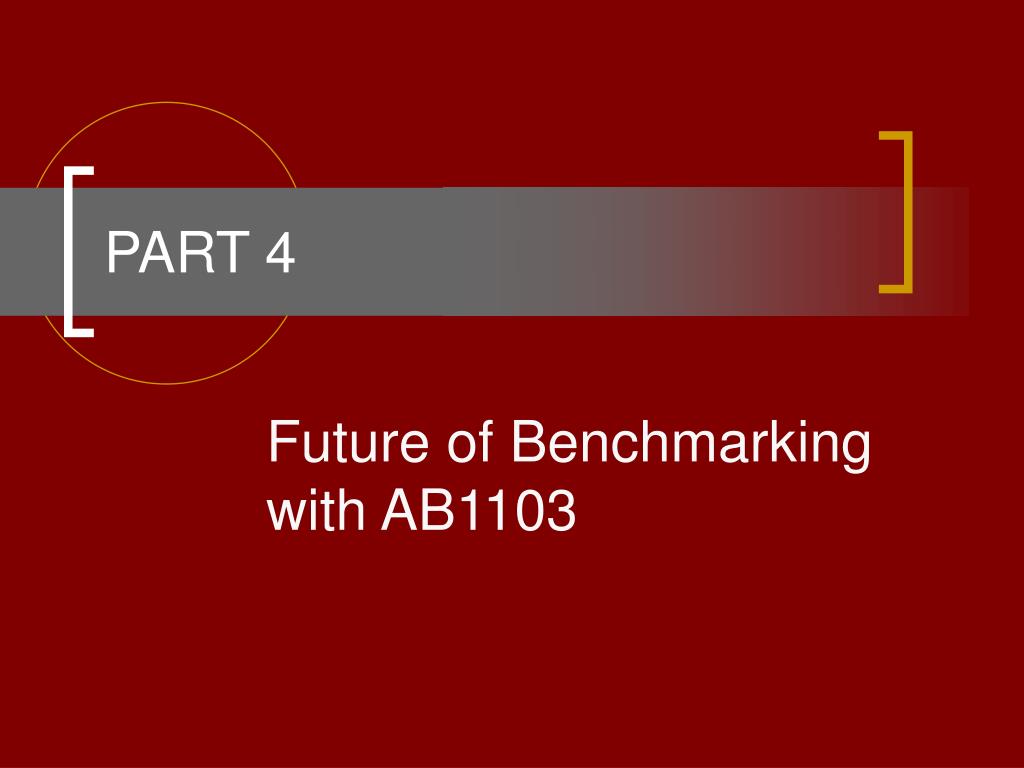

  27. PART 4 Future of Benchmarking with AB1103

  28. By January 1, 2009 • Electric and gas utilities must… • “maintain records of the energy consumption data of all nonresidential buildings … for at least the most recent 12 months.” • “Upon written or secured electronic authorization … upload all of the energy consumption data for a building to the Energy Star Portfolio Manager...”

  29. By January 1, 2010 • Nonresidential building owners & operators must… • “disclose Energy Star Portfolio Manager benchmarking data and ratings, for the most recent 12-month period, to a prospective buyer, lessee, or lender… After the benchmarking data and ratings are disclosed, the property owner, operator, or his or her agent would not be required to provide additional information regarding the benchmarking data and ratings.”

  30. Contact Information Mike Langley Green Team Mike.Langley@dgs.ca.gov (916) 375-5991 State of California Dept. of General Services 707 3rd St., 8th Floor West Sacramento, CA 95605 Karen Herter, Ph.D. Senior Program Analyst Karen.Herter@h-m-g.com (916) 962-7001 HESCHONG MAHONE GROUP, INC11626 Fair Oaks Blvd. #302 Fair Oaks CA, 95628 http://www.h-m-g.com
