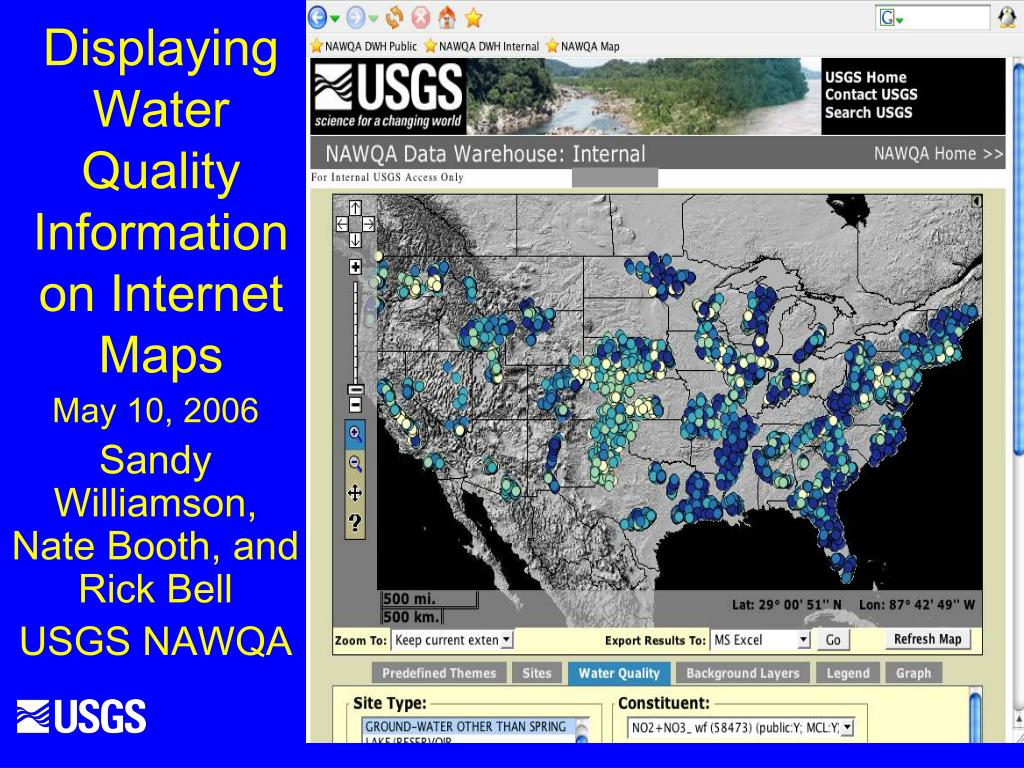

  1. Displaying Water Quality Information on Internet Maps May 10, 2006 Sandy Williamson, Nate Booth, and Rick Bell USGS NAWQA

  2. Talk Outline • How you could use our website/data • NAWQA Data Summary • How to retrieve Data • Mapping options before or after data retrievals

  3. How you could use our website/data • Consistent National/Regional Data for Research • Comparison of your results to National/Regional Background • GIS / Exploratory data analysis / Mapping • Examples and Ideas for your website

  4. Google: water quality data Usage: About 2400 sessions per month #4

  5. NAWQA Data Summary • 7,600 surface water sites and 8,100 wells • 48,000 nutrient samples; 30,000 pesticide samples and 8,800 VOC samples • 2,600 sediment and tissue contaminant samples • About 2,000 samples each of Fish, Invert and Algae community counts. • Daily stream flow and Ground water levels • Totaling 14+ million data values

  6. NAWQA Public DW water.usgs.gov/nawqa/data #6

  7. Wildcard Site Name Search Result #7

  8. Constituent Finder #8

  9. “Constituent Finder” search #9

  10. Nitr% Following slides show “data values” #10

  11. “RETRIEVE DATA” Optionsto make exportable tables #11

  12. Search options Bottom of window Top of window #12

  13. Surface Water / Bed Sediment,Results Columns omitted for powerpoint display – Can Export Delimited or Excel #13

  14. Biological Community queries #14

  15. Bio Community queries,Values #15

  16. “MAP SITES & RESULTS” Option to find what’s in the DWH #16

  17. Mapping Sites - San Joaquin Study Unit All Sites • On Shaded Relief

  18. Pick SJ Study Unit Surface- Water sites • On Topo Maps

  19. Atrazine in US (ag sites) • Atrazine in Surface Water • Over Land Use Map #19

  20. Nitrate in Ground WaterOver Land Use

  21. Denver MTBE wide zoom #21

  22. Denver MTBE close zoom WELL #22

  23. Caffeine in DC Area w- hi-res Stream Gage #23

  24. Geography - Options - Water Quality #24

  25. 100+ Background Layers http://nationalmap.gov/ #25

  26. Overview – “Legend” information #26

  27. Boxplot of Mapped Data

  28. Click on a site to see site summary

  29. Export All Date in Current map view to: • Excel • Tab Delimited • Google Earth

  30. NAWQA Google Earth Viewer USGS NAWQA Sites

  31. DW Team Please Stand • Nate Booth,WI - Technical Leader • Jessica Thompson, WI Aggregation / Discoverer • John Hollis, WI Java/Mapping • Eric Everman, MN Java/Mapping • Rick Bell, AR – Training, Testing and Support • Pete Ruhl, Reston and Mitch Harris, Il– BioTDB • Ken Skach, OR –Data checking/ contact with SU’s water.usgs.gov/nawqa/data #32

  32. Displaying Water Quality Information on Internet Maps NWQMC San Jose May 10, 2006 Sandy Williamson Nate Booth, and Rick Bell USGS NAWQA Sandy’s Office

  33. Summary Report Occurrence Plots #34

  34. Nitrate in Puget Sound #35

  35. Washington Ag Sites #36

More Related
