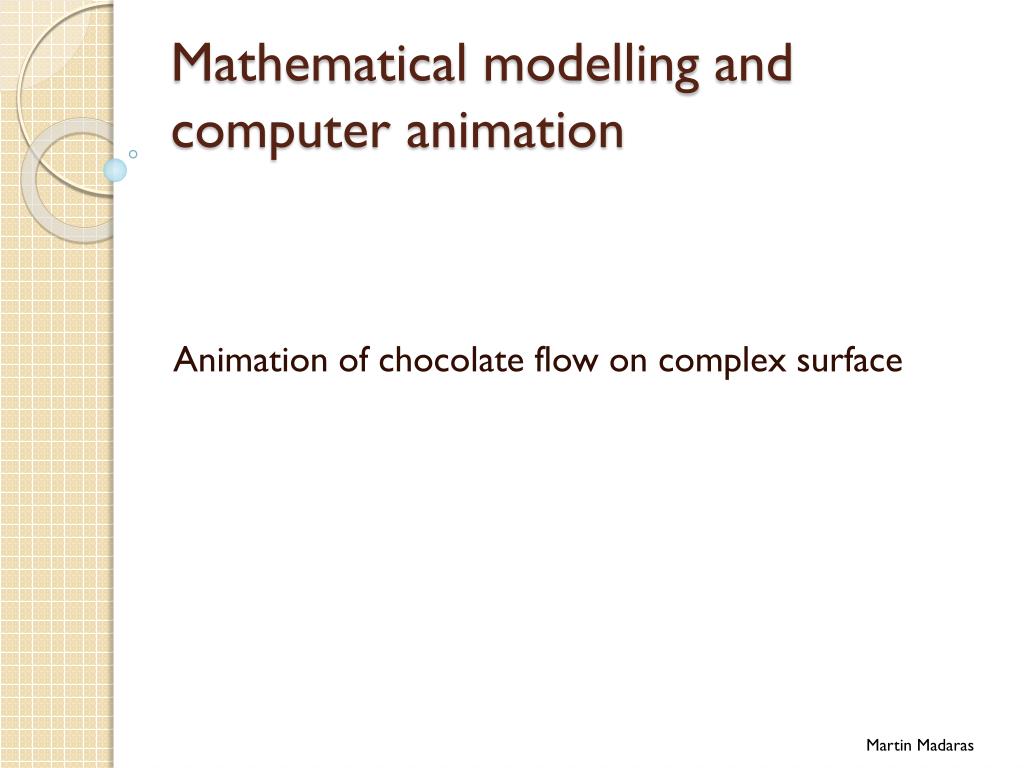

  1. Mathematical modelling and computer animation Animation of chocolate flow on complex surface Martin Madaras

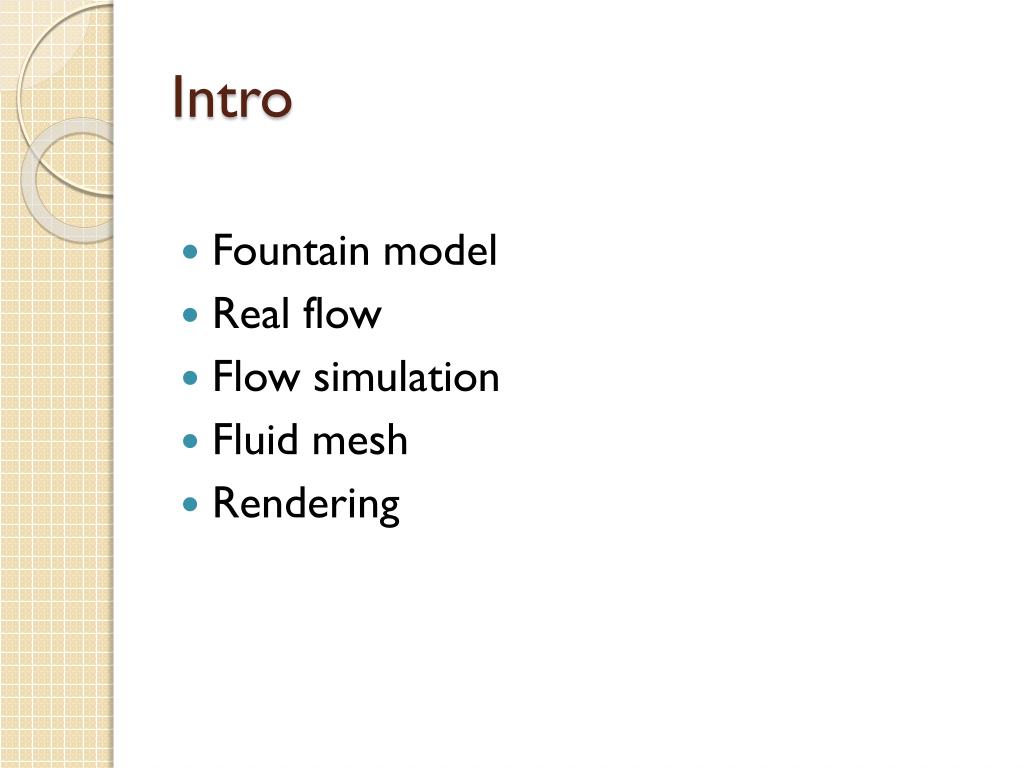

  2. Intro • Fountain model • Real flow • Flow simulation • Fluid mesh • Rendering

  3. Fountain model • 3D Studio Max • Low-res for simulation, High-res for rendering

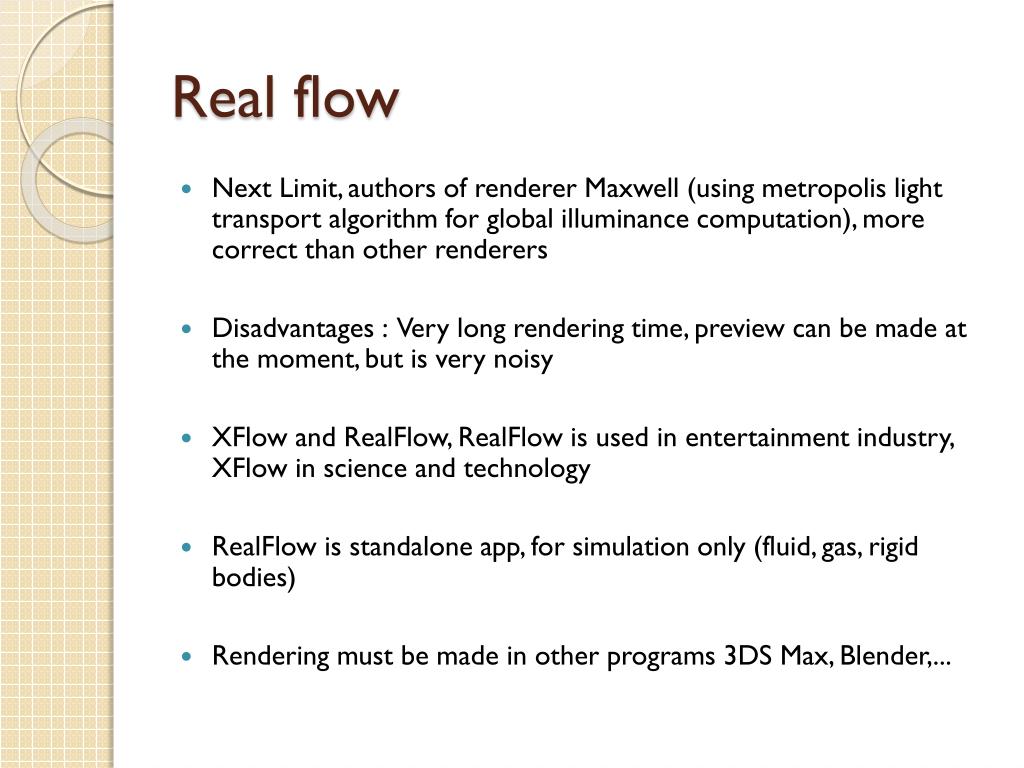

  4. Real flow • Next Limit, authors ofrendererMaxwell (using metropolislight transport algorithm forglobalilluminance computation), more correct than other renderers • Disadvantages : Very long rendering time, preview can be made at the moment, but is very noisy • XFlow andRealFlow, RealFlowis used inentertainmentindustry,XFlowin science and technology • RealFlowis standalone app, for simulation only (fluid, gas, rigid bodies) • Rendering must be made in other programs 3DSMax, Blender,...

  5. Fluid mesh

  6. Flow simulation 1 • World in program RealFlowis simulutedwithDeamons, which affect behavior ofmaterial (gravitation, noisefield, vortex…) • There are alsoKillDeamons, which can deleteparticleswhen they satisfy some conditions (particlesare out of camera frustrum, velocity is too high, particle has no neighbours in some range) • Geometry can be imported, all faces should be triangles (for better computation) • Chocolate hashigh viscosity andsurfacetension, these parameters affect time of computation (number of particles had to be lowered) • CPU : 4core q6600, time necessary for simulation of 1100 frames was 11 hours

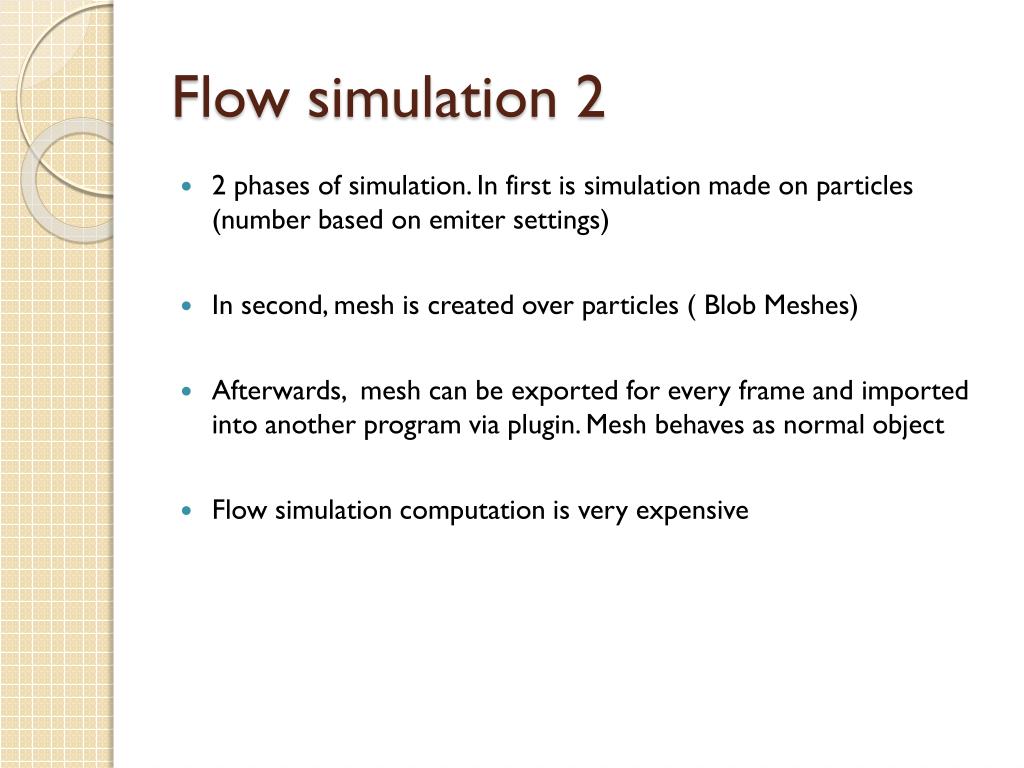

  7. Flow simulation 2 • 2 phases of simulation. In first is simulation made on particles (number based on emiter settings) • In second, mesh is created over particles ( BlobMeshes) • Afterwards, mesh can be exported for every frame and imported into another program via plugin. Mesh behaves as normal object • Flow simulation computation is very expensive

  8. Import via next limit plugin

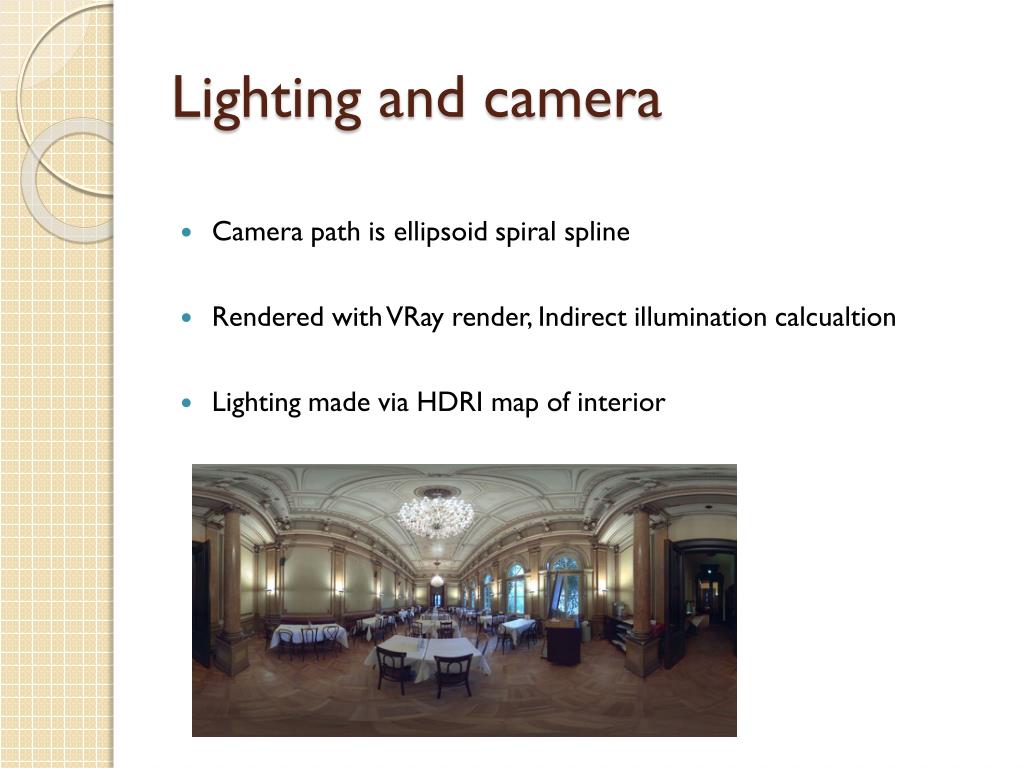

  9. Lighting and camera • Camera path is ellipsoid spiral spline • Renderedwith VRay render, Indirect illumination calcualtion • Lighting made via HDRI map of interior

  10. Rendering and postprocessing • Fountain model was surrouned by cylinder panoramatic photo of chocolate shop. Panoramatic photo was blured for better look • Frames joined in open source software Virtual dub and exportedinto avi, coded withH.264 divxcodec

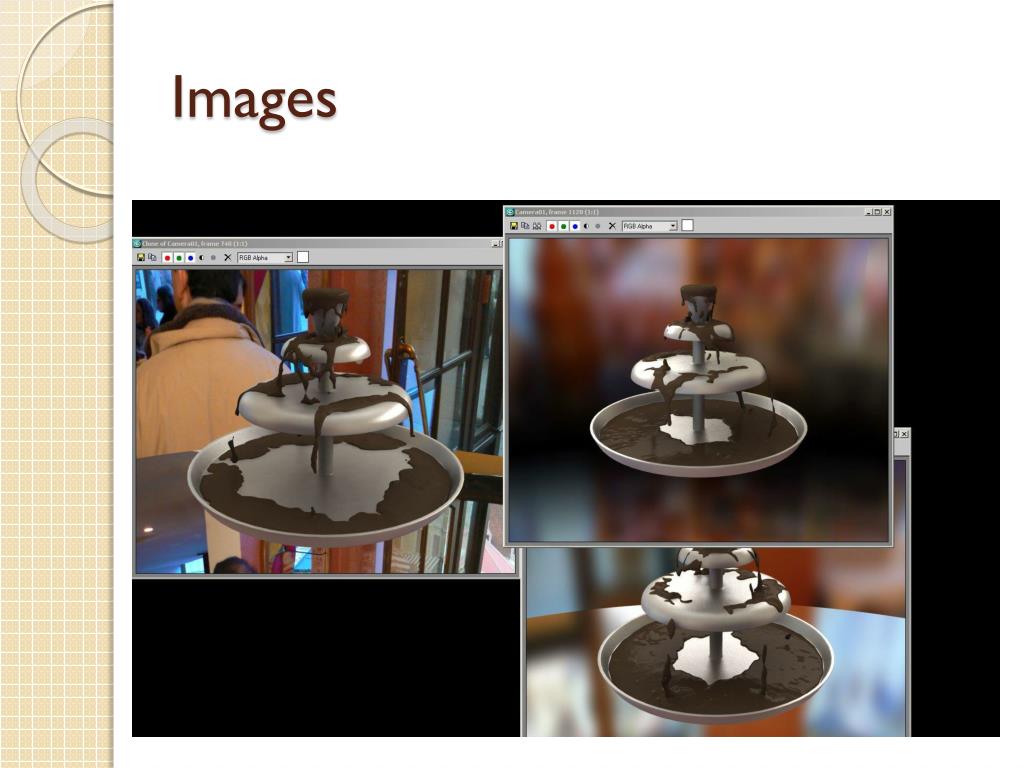

  11. Images
