First Diverging Diamond Interchange in the Nation: Enhancing Traffic Flow in Springfield, MO

donny avatar
donny
19 diapositives · 327 Views · Aug 06, 2014

The Diverging Diamond Interchange (DDI) at I-44 and MO 13 in Springfield, MO, marks a significant innovation in traffic management, aimed at reducing congestion and improving safety. Completed in July 2009 at a cost of $3.2 million, this project effectively addressed common interchange problems, including high left turn percentages and crash rates. The operational effects were notable, with a 24% reduction in accidents and improved public perception, as evidenced by a survey indicating over 95% satisfaction regarding convenience and safety.

#first diverging diamond interchange in the nation: enhancing traffic flow in springfield, mo #first diverging diamond interchange in the nation: enhancing traffic flow in springfield, mo ppt #powerpoint #presentation
First Diverging Diamond Interchange in the Nation: Enhancing Traffic Flow in Springfield, MO - slide 1
01 / 19First Diverging Diamond Interchange in the Nation: Enhancing Traffic Flow in Springfield, MO
1 / 17

Télécharger la présentation

First Diverging Diamond Interchange in the Nation: Enhancing Traffic Flow in Springfield, MO
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. “First In the Nation” Diverging Diamond Interchange IS 44 and MO 13 - Springfield, MO Joseph C Rickman, PE, ACTAR District Traffic Engineer MoDOT – Springfield Region

  2. Kansas & I-44, 2008

  3. Kansas & I-44, 2008 Norton Rd. 681 ft’ Evergreen 296 ft’

  4. Basic Interchange Problems • Congestion • 15-30% left turns • 10-15% HGV • Closely spaced signals • Crashes • Pedestrian Accommodations

  5. Congestion

  6. Concept Design of the DDI

  7. VISSIM Model

  8. inVISION Studios Simulation

  9. Opening Day – June 21st, 2009

  10. Opening Day Signal Timing • Interchange still under construction • Norton Rd Autoscope System failed • No Evergreen Rd signals due to construction • Time Travels run each plan throughout the day

  11. Finishing the DDI • Islands installed • Pedestrian buttons added • Temporary signals moved from gores • Permanent advanced signals added in islands

  12. July 7th, 2009

  13. Pedestrian Access

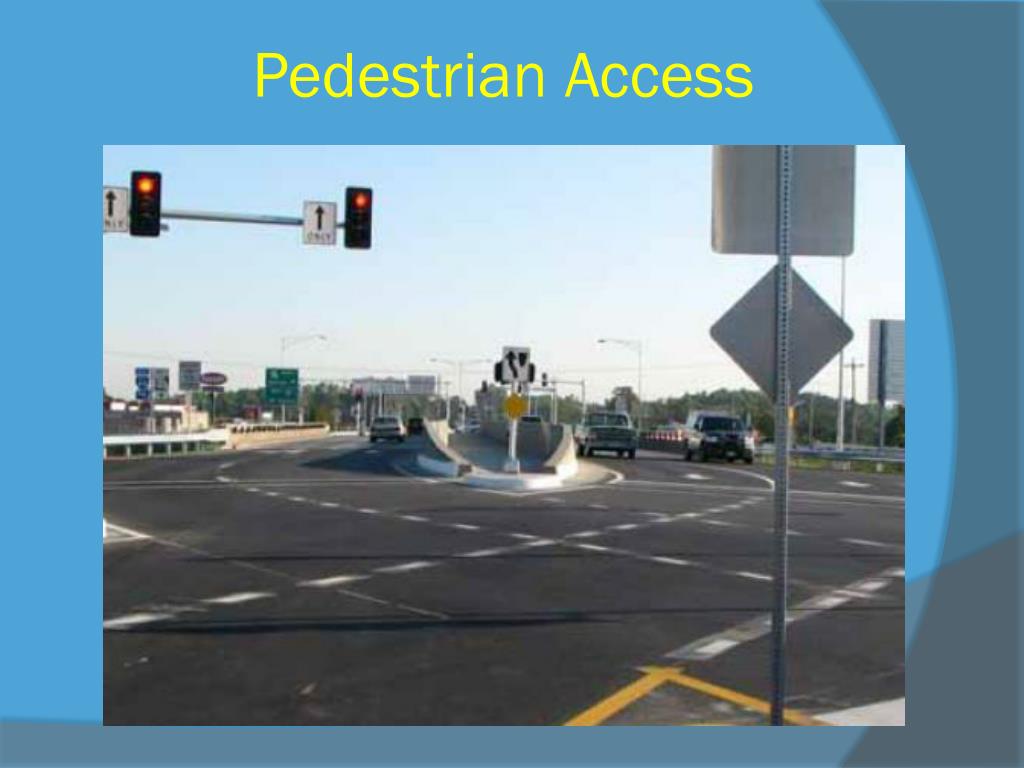

  14. Pedestrian Access

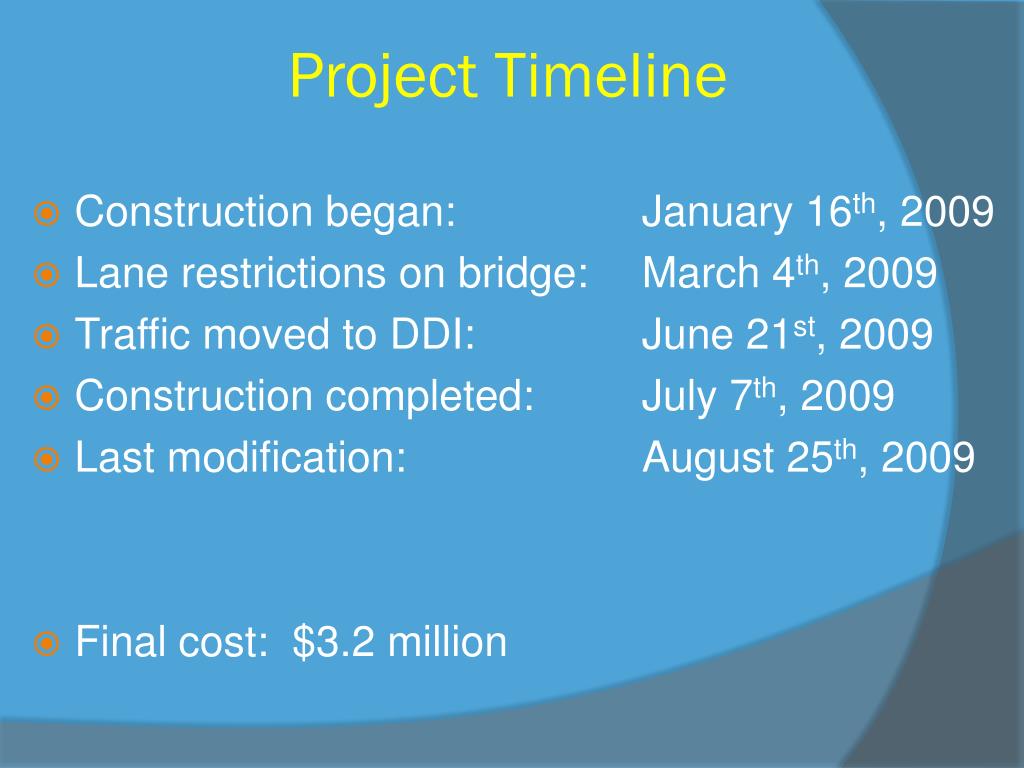

  15. Project Timeline • Construction began: January 16th, 2009 • Lane restrictions on bridge: March 4th, 2009 • Traffic moved to DDI: June 21st, 2009 • Construction completed: July 7th, 2009 • Last modification: August 25th, 2009 • Final cost: $3.2 million

  16. Operational Effects Superload on March 3, 2010

  17. Operational Effects • Accidents • Total Reduction 24% (50% between ramps) • Injury Reduction 50% • Congestion removed on the bridge • Consultant Performance Evaluation (HDR)

  18. Public Perception • MoDOT survey of 8 zip codes • 400 sent, 75 returned • The Right Solution – 89.4% • More Convenient – 95.1% • Less Congested – 95.2% • Safer – 96.7%

  19. Questions? Joseph C Rickman, PE, ACTAR District Traffic Engineer 417-895-7635 Joseph.Rickman@modot.mo.gov
