  1. Chapter 7 7-2 Similarity and transformations

  2. objectives • Draw and describe similarity transformations in the coordinate plane. • Use properties of similarity transformations to determine whether polygons are similar and to prove circles similar.

  3. What is a similarity transformation? • A transformation that produces similar figures is a similarity transformation. A similarity transformationis a dilation or a composite of one or more dilations and one or more congruence transformations. Two figures are similar if and only if there is a similarity transformation that maps one figure to the other figure.

  4. Remember! Translations, reflections, and rotations are congruence transformations.

  5. Example 1: Drawing and Describing Dilations • A. Apply the dilation D to the polygon with the given vertices. Describe the dilation. • D: (x, y) → (3x, 3y) • A(1, 1), B(3, 1), C(3, 2) • Solution: dilation with center (0, 0) and scale factor 3

  6. Check It Out! Example 1 Apply the dilation D : (x, y)→ to the polygon with vertices D(-8, 0), E(-8, -4), and F(-4, -8). Name the coordinates of the image points. Describe the dilation. Solution: x, D'(-2, 0), E'(-2, -1), F'(-1, -2); dilation with center (0, 0) and scale factor 1 1 y 4 4

  7. Example 1 • B. Apply the dilation D to the polygon with the given vertices. Describe the dilation. • Solution: x, D: (x, y) → 3 3 y 4 4 P(–8, 4), Q(–4, 8), R(4, 4) dilation with center (0, 0) and scale factor 3/4

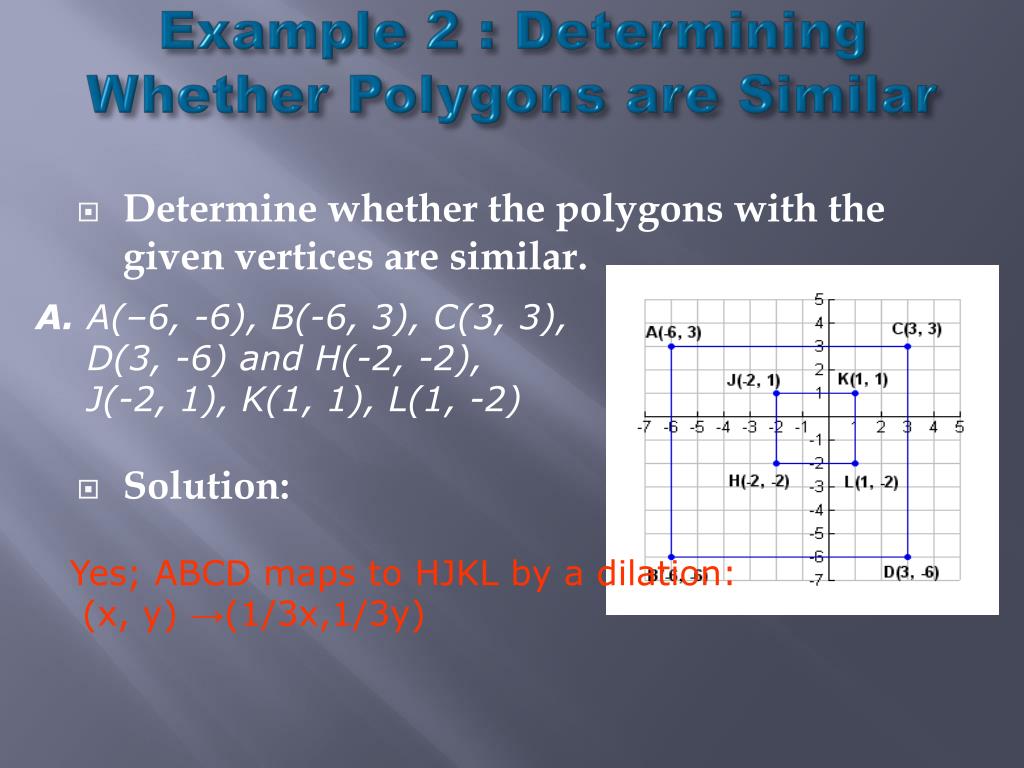

  8. Example 2 : Determining Whether Polygons are Similar • Determine whether the polygons with the given vertices are similar. • Solution: A. A(–6, -6), B(-6, 3), C(3, 3), D(3, -6) and H(-2, -2), J(-2, 1), K(1, 1), L(1, -2) Yes; ABCD maps to HJKL by a dilation: (x, y) →(1/3x,1/3y)

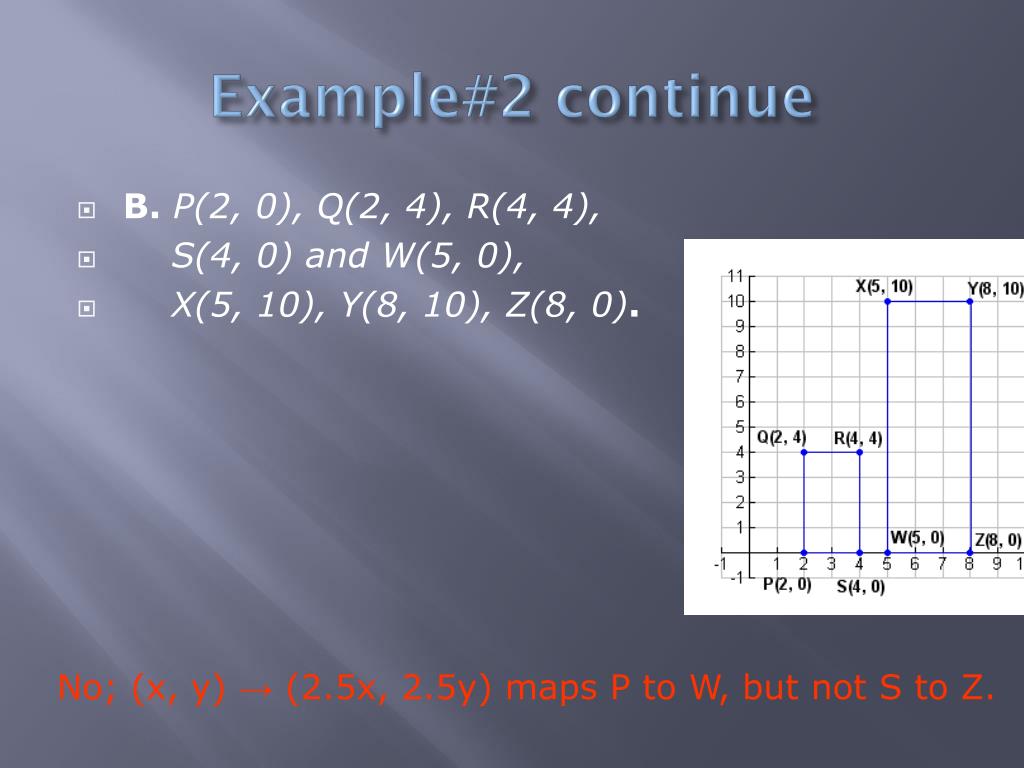

  9. Example#2 continue • B. P(2, 0), Q(2, 4), R(4, 4), • S(4, 0) and W(5, 0), • X(5, 10), Y(8, 10), Z(8, 0). No; (x, y) → (2.5x, 2.5y) mapsP to W, but not S to Z.

  10. Example#2 continue • C. A(1, 2), B(2, 2), C(1, 4) and • D(4, -6), E(6, -6), F(4, -2) Yes; ABC maps to A’B’C’ by a translation: (x, y) → (x + 1, y - 5). Then A’B’C’ maps to DEF by a dilation: (x, y) → (2x, 2y).

  11. Check it out!! • Determine whether the polygons with the given vertices are similar : A(2, -1), B(3, -1), C(3, -4) and P(3, 6), Q(3, 9), R(12, 9). • Solution: The triangles are similar because ABC can be mapped to A'B'C' by a rotation: (x, y) → (-y, x), and then A'B'C' can be mapped to PQR by a dilation: (x, y) → (3x, 3y).

  12. Example 3: Proving Circles Similar • A. Circle A with center (0, 0) and radius 1 is similar to circle B with center (0, 6) and radius 3.

  13. Solution • Circle A can be mapped to circle A’ by a translation: (x, y) → (x, y + 6). Circle A’ and circle B both have center (0, 6). Then circle A’ can be mapped to circle B by a dilation with center (0, 6) and scale factor 3. So circle A and circle B are similar.

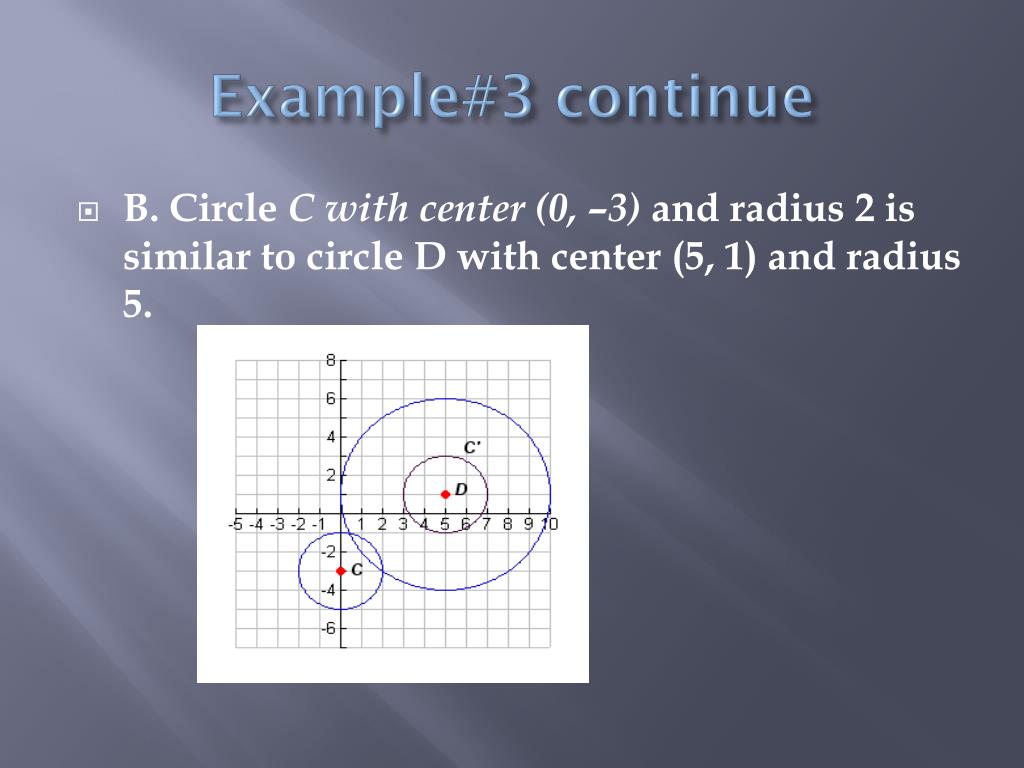

  14. Example#3 continue • B. Circle C with center (0, –3) and radius 2 is similar to circle D with center (5, 1) and radius 5.

  15. Solution • Circle C can be mapped to circle C’ by a translation: (x, y) → (x + 5, y + 4). Circle C’ and circle D both have center (5, 1).Then circle C’ can be mapped to circle D by a dilation with center (5, 1) and scale factor 2.5. So circle C and circle D are similar.

  16. Student guided practice • Do problems 3-10 in your book page 476

  17. Homework • Do problems 14-17 in your book page 477

  18. Closure • Today we learned about similarity • Next class we are going to learned about triangle similarity
