  1. Phased Array Radars Naval Weapons Systems

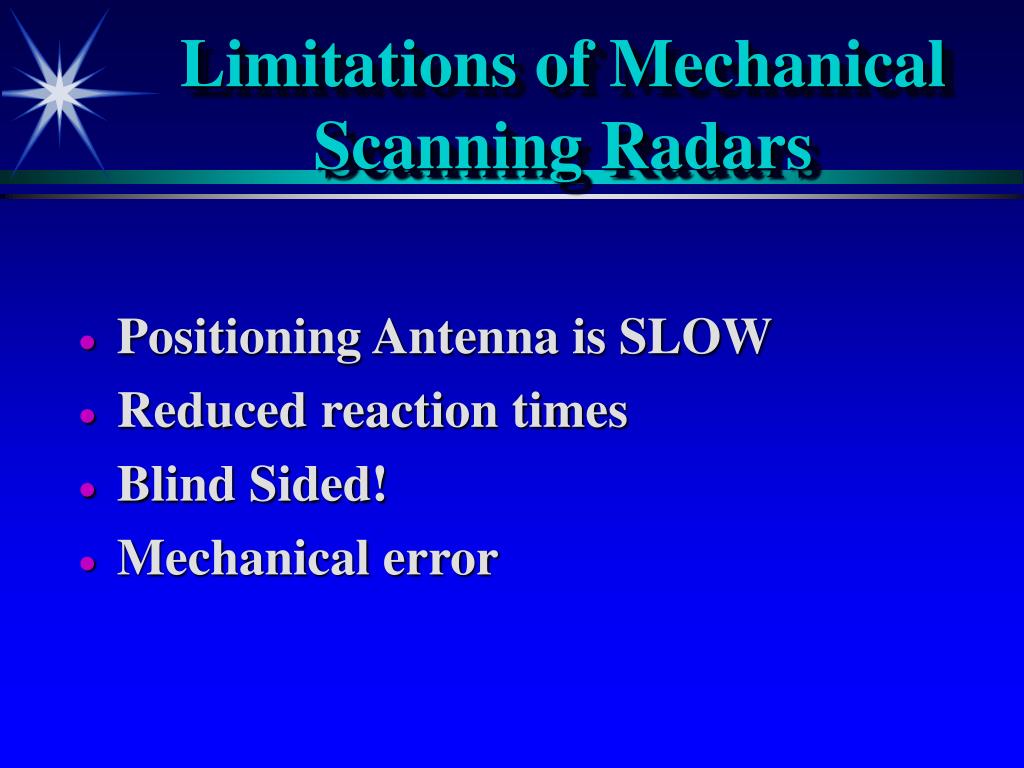

  2. Limitations of Mechanical Scanning Radars • Positioning Antenna is SLOW • Reduced reaction times • Blind Sided! • Mechanical error

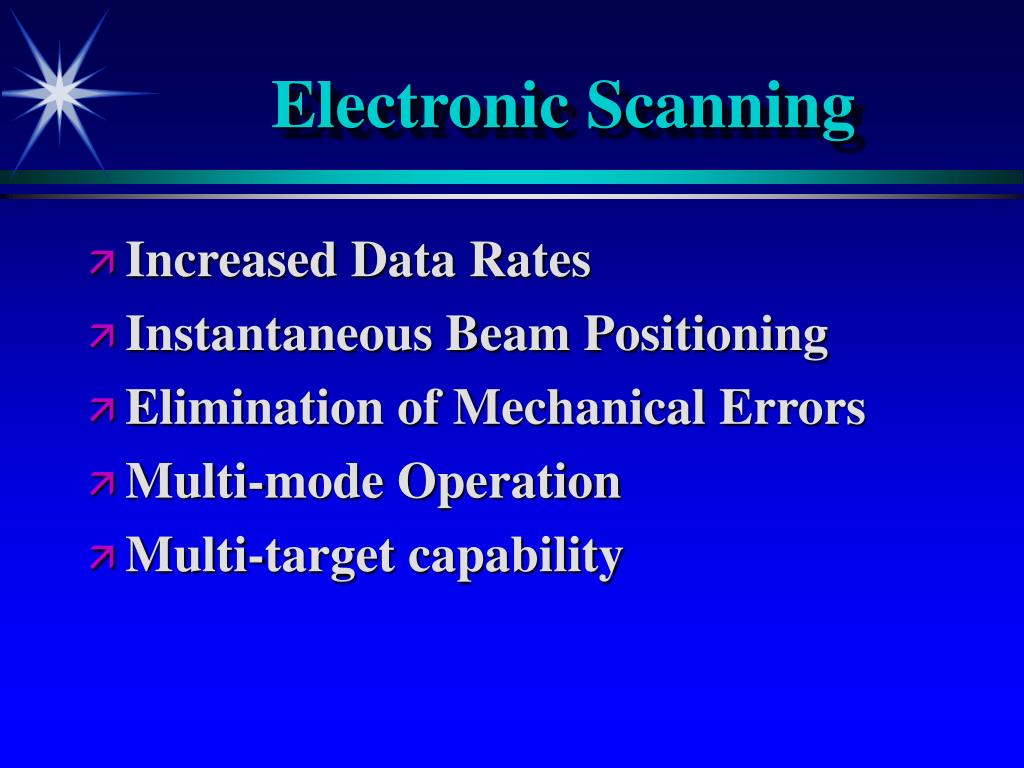

  3. Electronic Scanning • Increased Data Rates • Instantaneous Beam Positioning • Elimination of Mechanical Errors • Multi-mode Operation • Multi-target capability

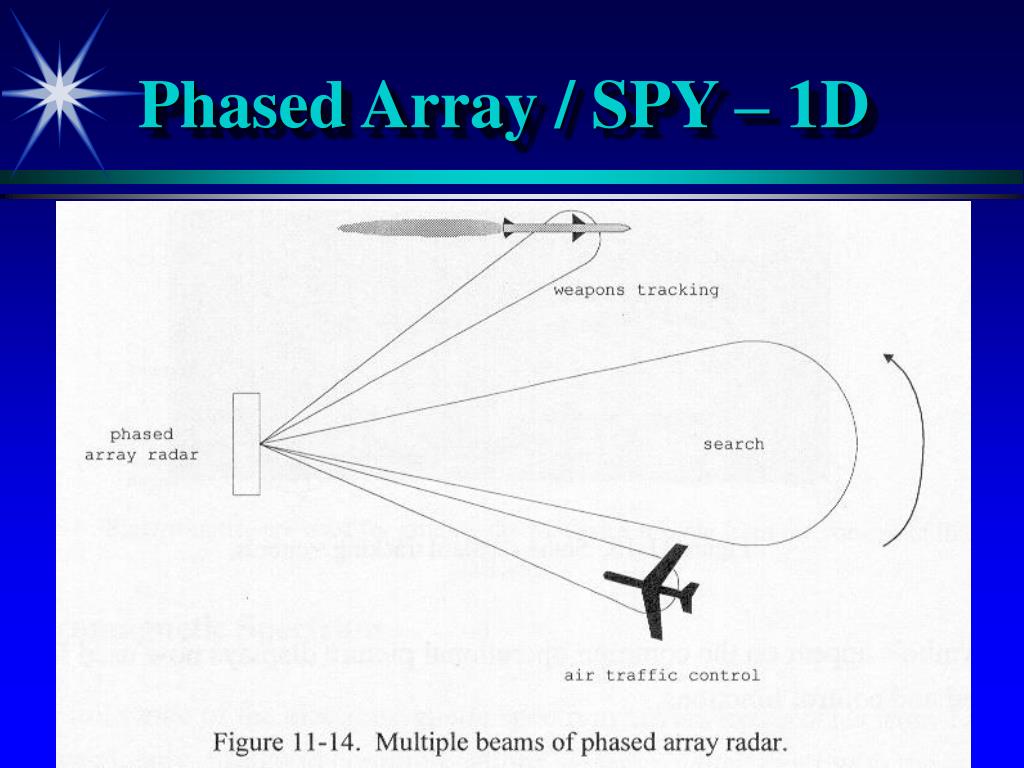

  4. Phased Array / SPY – 1D

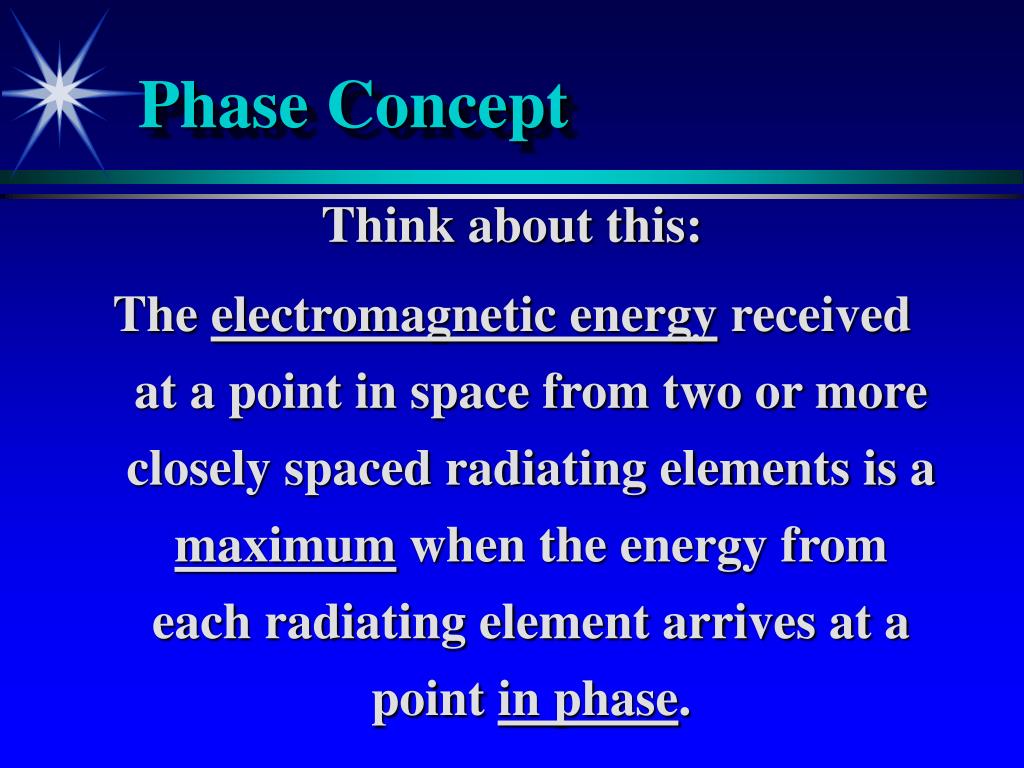

  5. Phase Concept Think about this: The electromagnetic energy received at a point in space from two or more closely spaced radiating elements is a maximum when the energy from each radiating element arrives at a point in phase.

  6. Phase Relationships • Constructive Interference • Destructive Interference

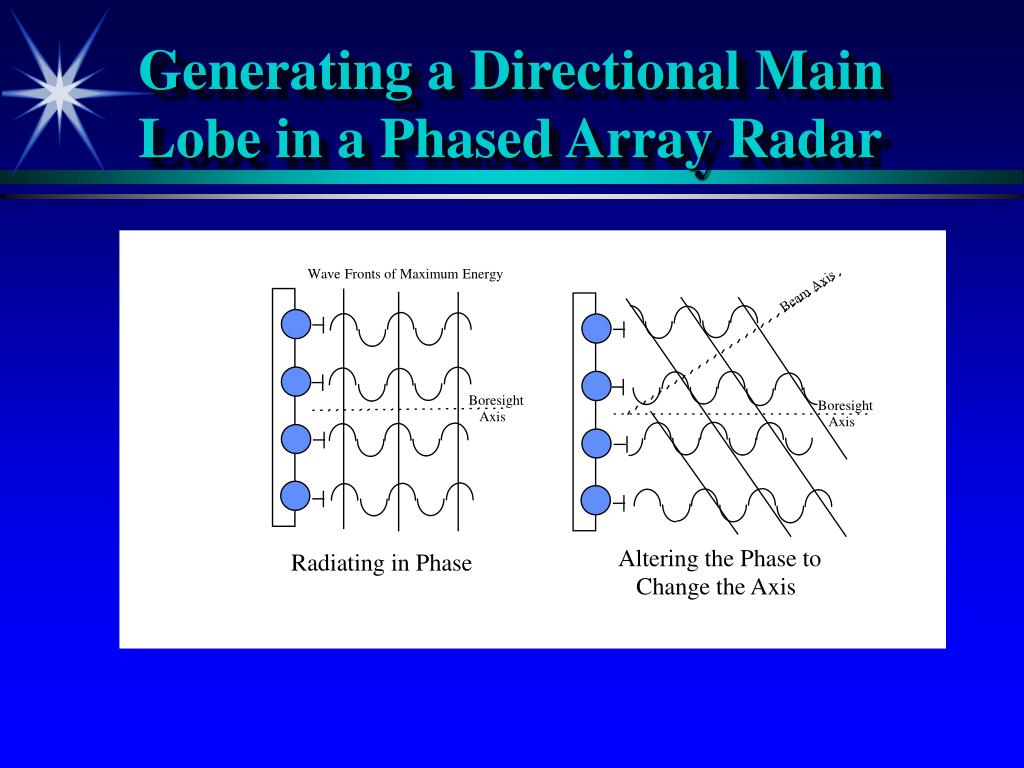

  7. Wave Fronts of Maximum Energy Beam Axis Boresight Boresight Axis Axis Altering the Phase to Radiating in Phase Change the Axis Generating a Directional Main Lobe in a Phased Array Radar

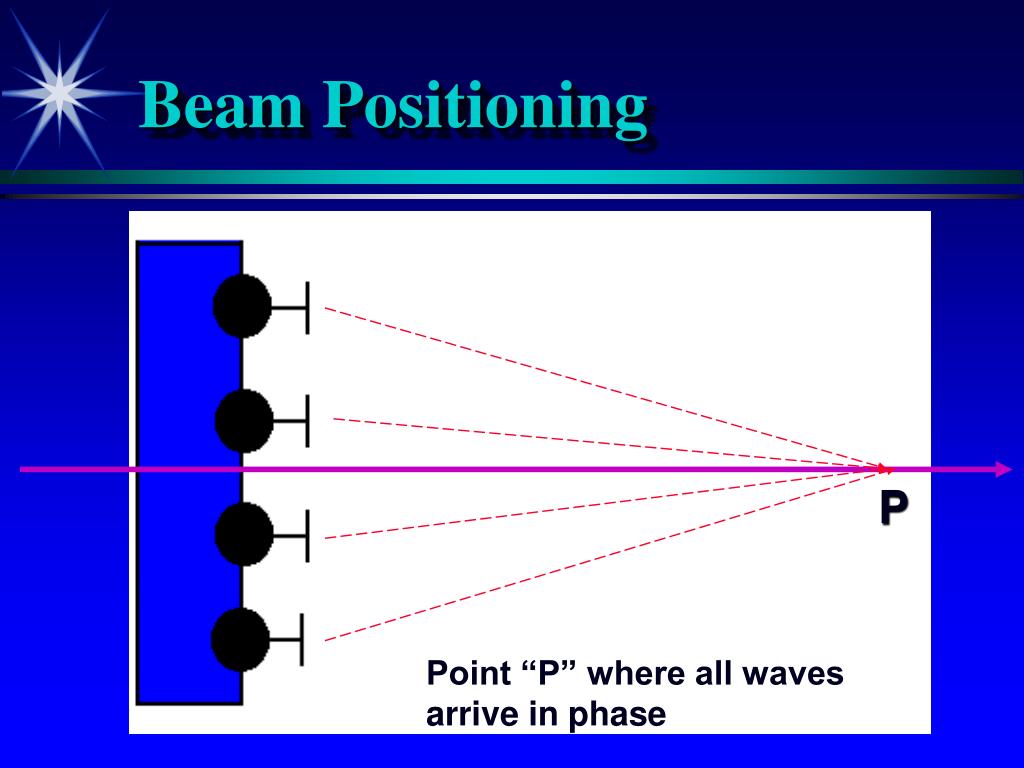

  8. Beam Positioning P Point “P” where all waves arrive in phase

  9. Methods of Beam Steering • 3 Kinds • Time Delay Scanning • Frequency Scanning • Phase Scanning

  10. Methods of Beam Steering • Time Delay Scanning • Use of time delay to achieve the desired phase relationship • Time delay networks installed in front of each radiating element • Expensive, Complex & Heavy

  11. Time Delay Scanning d

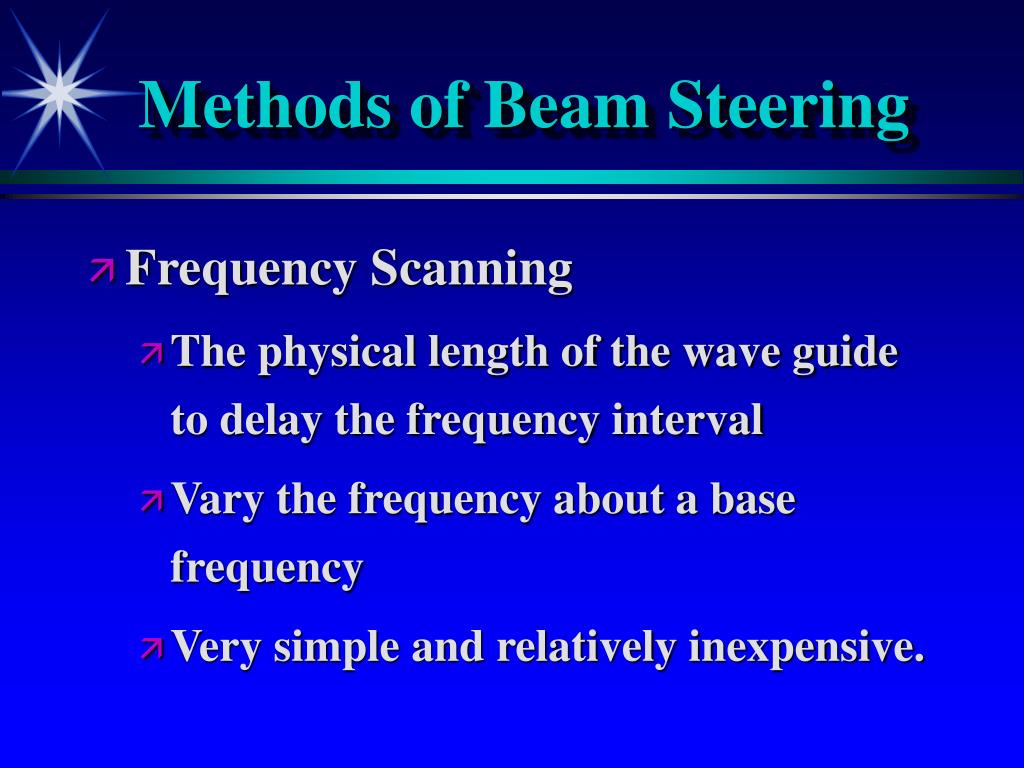

  12. Methods of Beam Steering • Frequency Scanning • The physical length of the wave guide to delay the frequency interval • Vary the frequency about a base frequency • Very simple and relatively inexpensive.

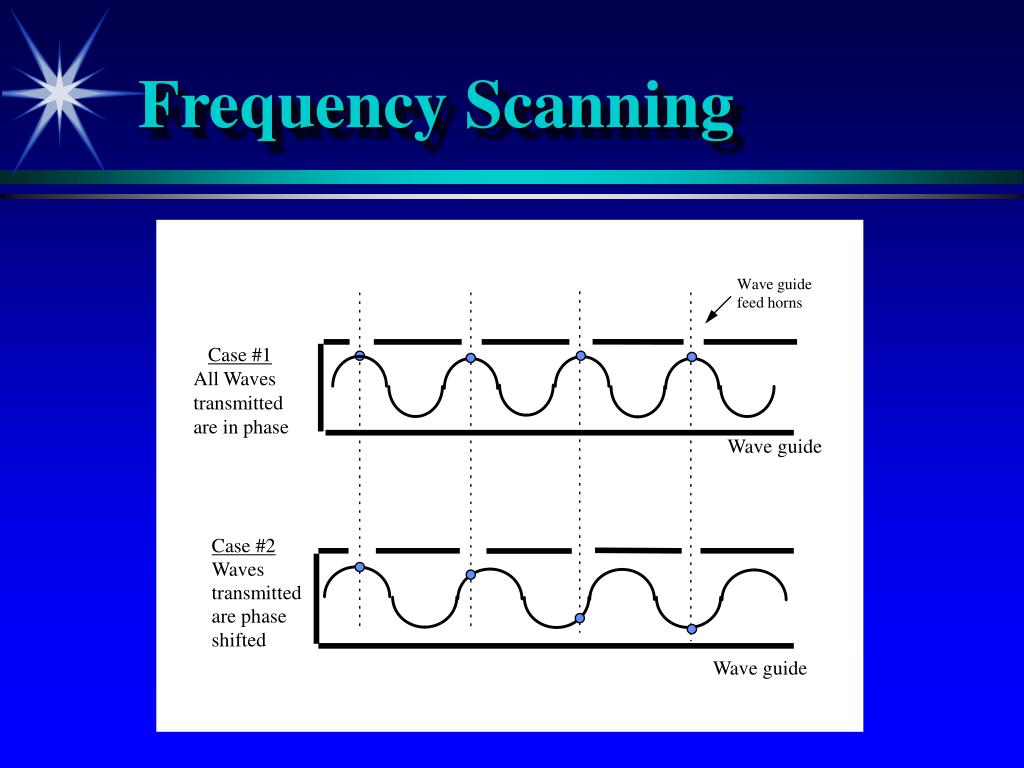

  13. Wave guide feed horns Case #1 All Waves transmitted Wave guide are in phase Case #2 Waves transmitted are phase Wave guide shifted Frequency Scanning

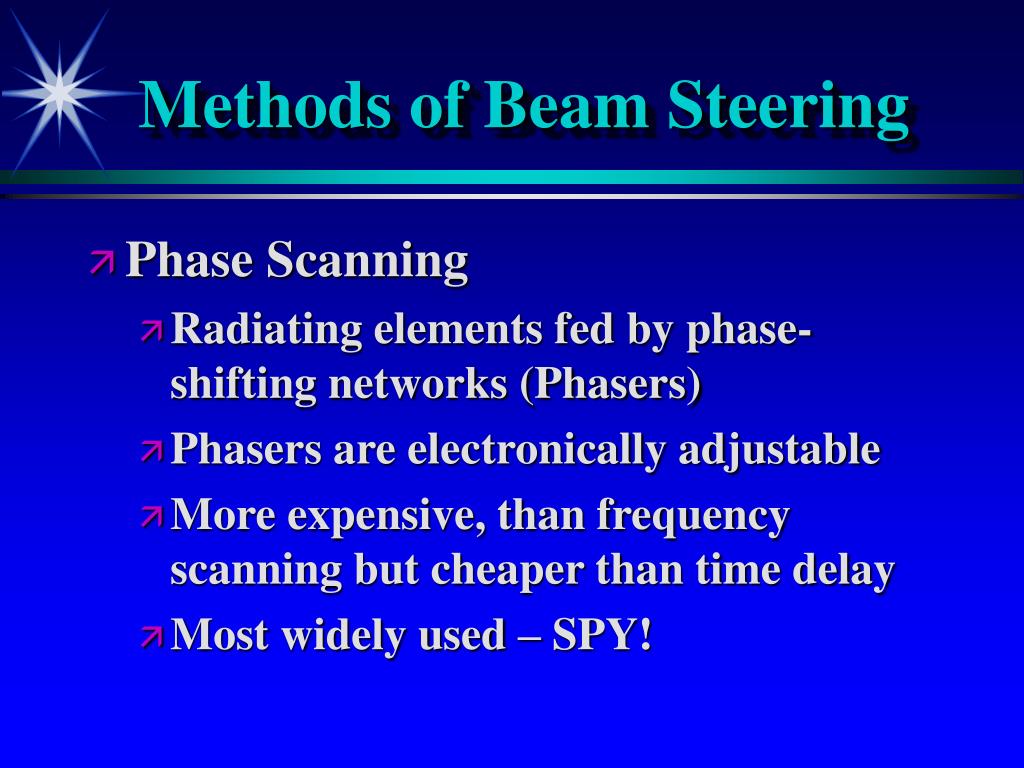

  14. Methods of Beam Steering • Phase Scanning • Radiating elements fed by phase-shifting networks (Phasers) • Phasers are electronically adjustable • More expensive, than frequency scanning but cheaper than time delay • Most widely used – SPY!

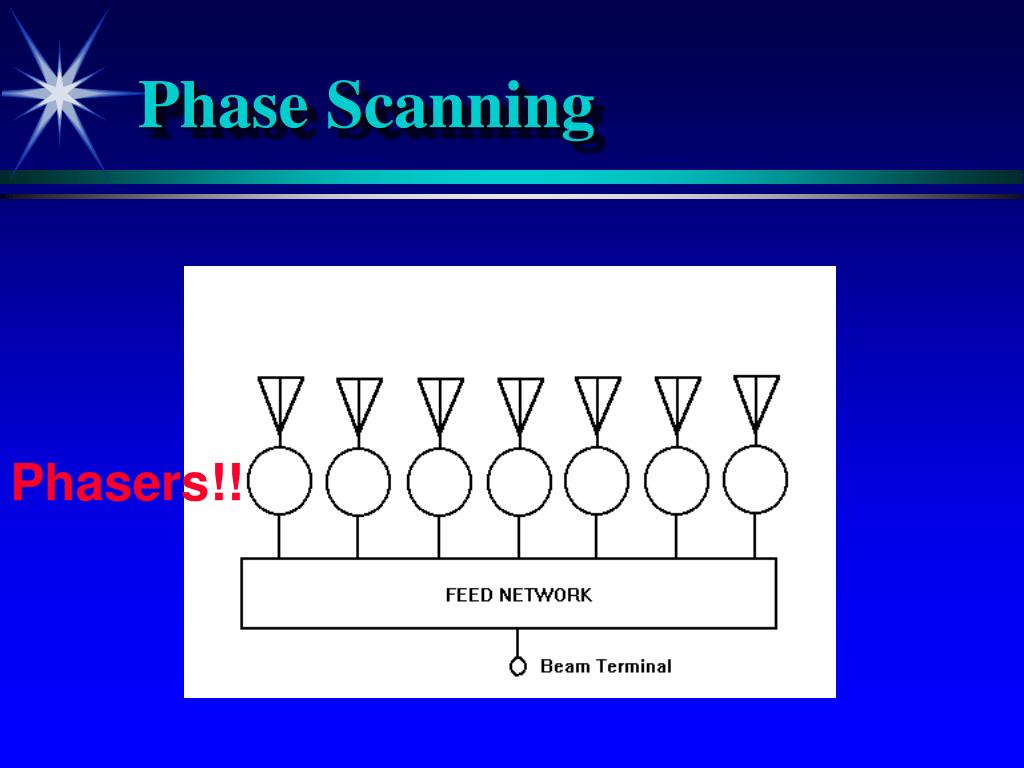

  15. Phase Scanning Phasers!!

  16. Fleet Uses of Electronic Scanning • Ticonderoga • Arleigh Burke • SPS-48 Air Search

  17. AN/SPS – 48

  18. Synthetic Aperture Array Radar * Uses the same theory of electronic scanning. * Motion of the target used as the antenna aperture * Sequential instead of simultaneous * High resolution imaging from aircraft

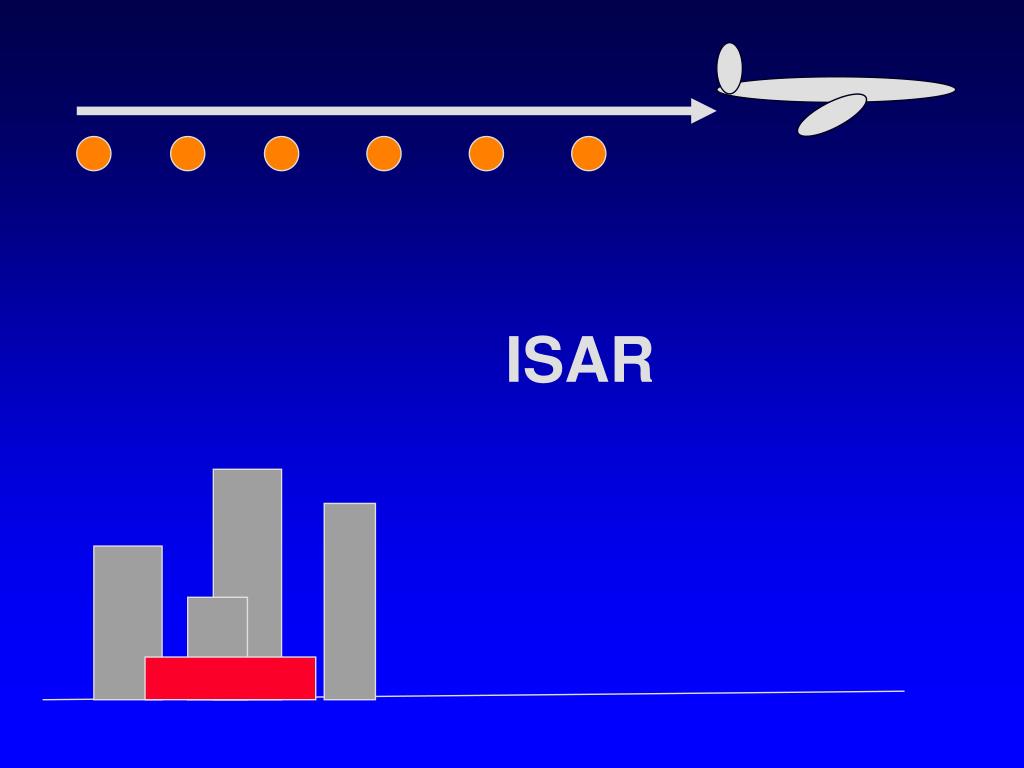

  19. ISAR

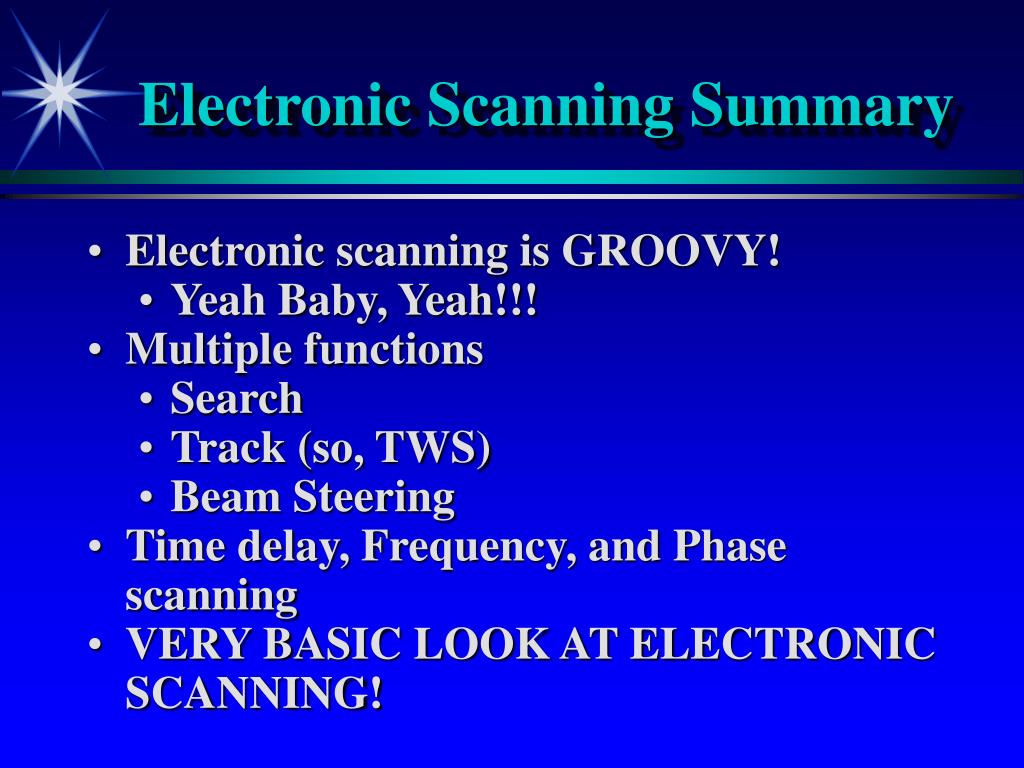

  20. Electronic Scanning Summary • Electronic scanning is GROOVY! • Yeah Baby, Yeah!!! • Multiple functions • Search • Track (so, TWS) • Beam Steering • Time delay, Frequency, and Phase scanning • VERY BASIC LOOK AT ELECTRONIC SCANNING!

  21. QUESTIONS?
