  1. Approximating Gradients for Meshes and Point Clouds via Diffusion Metric Chuanjiang Luo, Issam Safa and Yusu Wang Department of Computer Science and Engineering The Ohio State University

  2. Motivation • Gradient is one of the most differential objects. • Input: • Points P sampling a Riemannian manifold M • Function F: M -> R given as values at points in P • Goal: • Approximating gradient field, critical points of F SGP 2009

  3. Related Work • Given a mesh K approximating M • Compute a piecewise linear approximation of F on K • Point cloud data • Local optimization [CGAL] • Statistical setting [Mukherjee et al 08] • Issue: • Sensitive to noise : • Smooth gradient field ? • How to generate gradient field at multi-scales ? SGP 2009

  4. Our Contribution • Initiate the study of gradients under a different metric on the underlying manifold M • Method of computing gradients from the eigenspace • Provide a natural way of smoothing gradient • New discrete Laplace operator for point clouds data SGP 2009

  5. It is a fundamental geometric object • Two manifolds M and N isometric • ∆Mand∆N share same eigenvalues & eigenfunctions Laplace-Beltrami Operator • Given a manifold M, Laplace-Beltrami operator ∆ • Operates on functions ∆ f = g, withf , g: M -> R • ∆ f = div (grad f) • If M = R2, • then ∆ f = ∂ 2f / ∂x2 + ∂ 2f / ∂y2 Contain all intrinsic geometry info. ! SGP 2009

  6. Laplace-Beltrami Operator • Applications: • Smoothing • Matching • Clustering • In summary: • Intrinsic, isometry invariant • Eigenfunctions form a basis • Low eigenvalue corresponds to low-frequency mode SGP 2009

  7. Laplace-Beltrami Operator • In summary: • Intrinsic, isometry invariant • Eigenfunctions form a basis • Low eigenvalue corresponds to low-frequency mode SGP 2009

  8. Cotangent Scheme • For mesh only • Discrete PCD Laplace Operator [Belkin et al 09] • The only one for point clouds setting with convergence guarantee • New Discrete Laplace Operator for Point Cloud • Real eigenvalue and eigenvectors • Eigenvectors form an orthonormal basis with respect to area weight. SGP 2009

  9. Eigen-mapping • Map M to Eigen-space • f1, f2, …. : Eigenfunctions of ∆M • l1, l2, …. : Eigenvalues of ∆M • Euclidean distance in Eigen-space: Diffusion distance [Lafon] SGP 2009

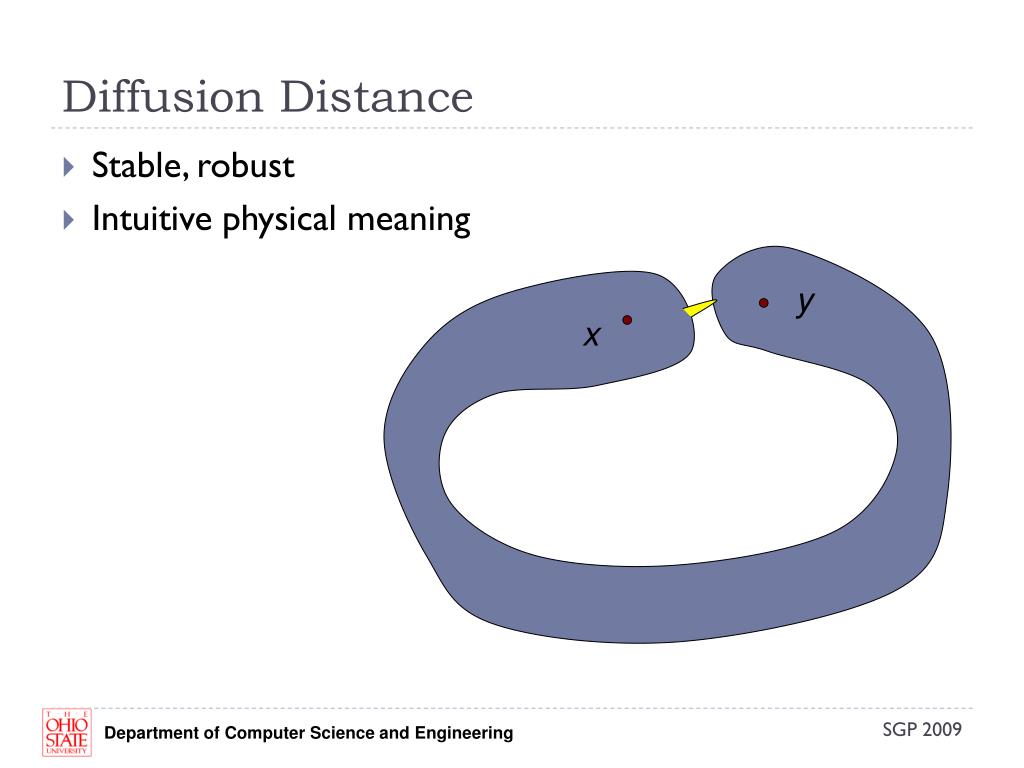

  10. y x Diffusion Distance • Stable, robust • Intuitive physical meaning SGP 2009

  11. Gradient in Eigenspace • Given a square-integrable function F: M -> R • Corresponds to G: Ft(M) -> R in Eigenspace as G(Ft(x)) = F(x) • and • Set • Given point cloud P • Construct Laplace operator, compute fi’s and li’s • Given a function F: P -> R • Compute ai = < F, fi> and set up V • For each x, approximate TF(x) in Eigen-space • Project V onto TF(x) SGP 2009

  12. When using Gaussian kernel to approximate heat kernel For fixed t, Summary • Coarser gradient by taking only top k Eigenfunctions • Eigenfunctions with higher eigenvalues  noise • Smooth noises in functions and in manifold simultaneously! • Time complexity remains same ! • Compute gradient using a different metric SGP 2009

  13. Experimental Results (1) 150 50 20 10 5 SGP 2009

  14. Experimental Results (2) ground truth our method quadratic fitting SGP 2009

  15. Experimental Results (3) • Gradient field for a molecular surface • Input function: Connolly function 1000 Eigenfunctions 100 Eigenfunctions SGP 2009

  16. Experimental Results (4) • Jacobi sets of two functions • Compute correlation of two functions • Jacobi sets between two coordinates functions • Produce silhouette of input object • Previously, • no algorithm to compute / simplify jacobi sets from point clouds data SGP 2009

  17. Jacobi Sets combinatorial 1000 eigenfunctions 50 eigenfunctions SGP 2009

  18. Jacobi Sets Laplace Eigen-mapping computed Only from one model ! SGP 2009

  19. Critical Points SGP 2009

  20. From mesh 200 eigenfunctions Critical Points cont. SGP 2009

  21. Timing Download: http://www.cse.ohio-state.edu/~luoc/eigen-gradient.htm SGP 2009

  22. Conclusion and Future Work • New discrete point-cloud Laplace operator • Novel way to compute gradient in eigenspace • Accurate, robust to noise, easy to simplify Future Work • Spectral point clouds processing framework • Efficient way for constructing Laplace and eigen-decomposition Thank you! SGP 2009
