Detailed Technical Feature Presentation

edda avatar
edda
5 diapositives · 155 Views · Oct 15, 2014

Detailed Technical Feature Presentation. Code Composer Studio TM Configure Hardware Manage Projects Visually Edit within the IDE Configure Run-time Objects Compile Efficiently Efficient VLIW Build Tools Debug within the IDE Inject/Extract Data Signals Customize & Automate Testing

#detailed technical feature presentation #detailed technical feature presentation ppt #powerpoint #presentation
Detailed Technical Feature Presentation - slide 1
01 / 5Detailed Technical Feature Presentation
1 / 17

Télécharger la présentation

Detailed Technical Feature Presentation
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Detailed Technical Feature Presentation • Code Composer StudioTM • Configure Hardware • Manage Projects Visually • Edit within the IDE • Configure Run-time Objects • Compile Efficiently • Efficient VLIW Build Tools • Debug within the IDE • Inject/Extract Data Signals • Customize & Automate Testing • Profile Interactively • Visualize Data • See the Problem, then Fix it! • Real-time Analysis (2 slides) • Third Party Plug-ins • Summary • Background Information • The Importance of Software • Software Roadblocks • Development Environment • DSP Development Cycle

  2. Scalable, real-time kernel Powerful, integrated development tools DSP/BIOS has more than 1500 design-ins (greater than 50% penetration) Shipped 20,000 seats in year 2000 Standards for application interoperability Reusable, modular software and support TI has more than 400 third parties today Over 300 eXpressDSPTM compliant algorithms and more than 20 compliant plug-ins from third parties are already available Code Composer StudioTM is a Key Component of eXpressDSPTM Real-Time Software Technology

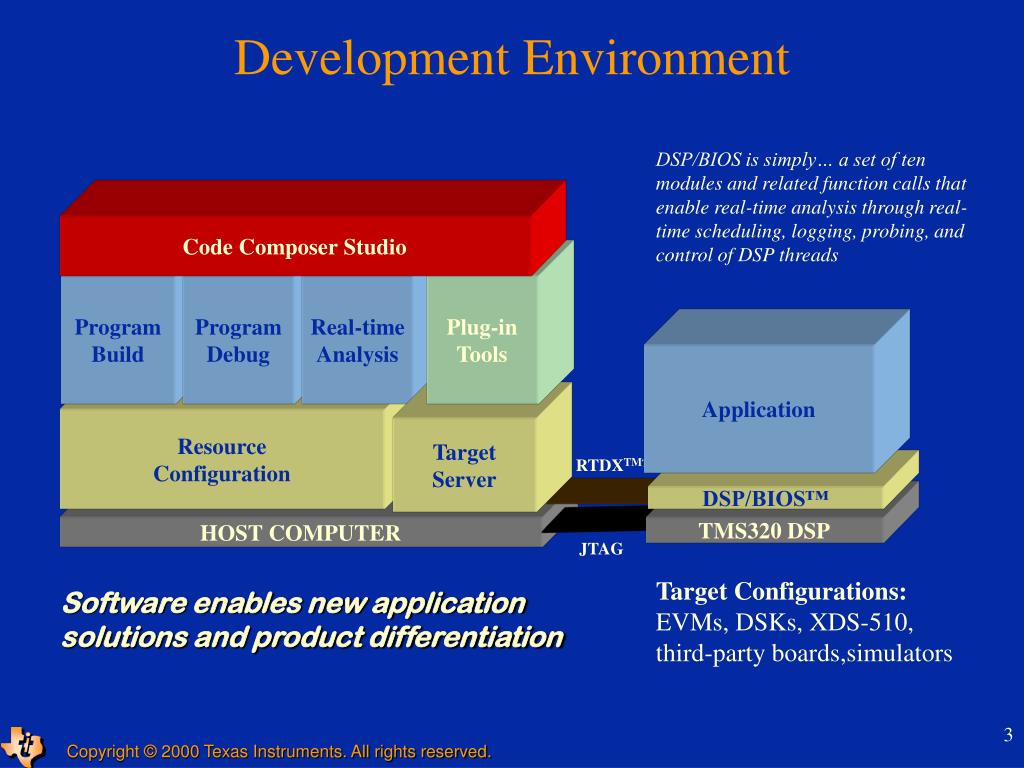

  3. Development Environment DSP/BIOS is simply… a set of ten modules and related function calls that enable real-time analysis through real-time scheduling, logging, probing, and control of DSP threads Code Composer Studio Program Build Program Debug Real-time Analysis Plug-in Tools Application Resource Configuration Target Server RTDXTM™ DSP/BIOS™ HOST COMPUTER TMS320 DSP JTAG Target Configurations: EVMs, DSKs, XDS-510, third-party boards,simulators Software enables new application solutions and product differentiation

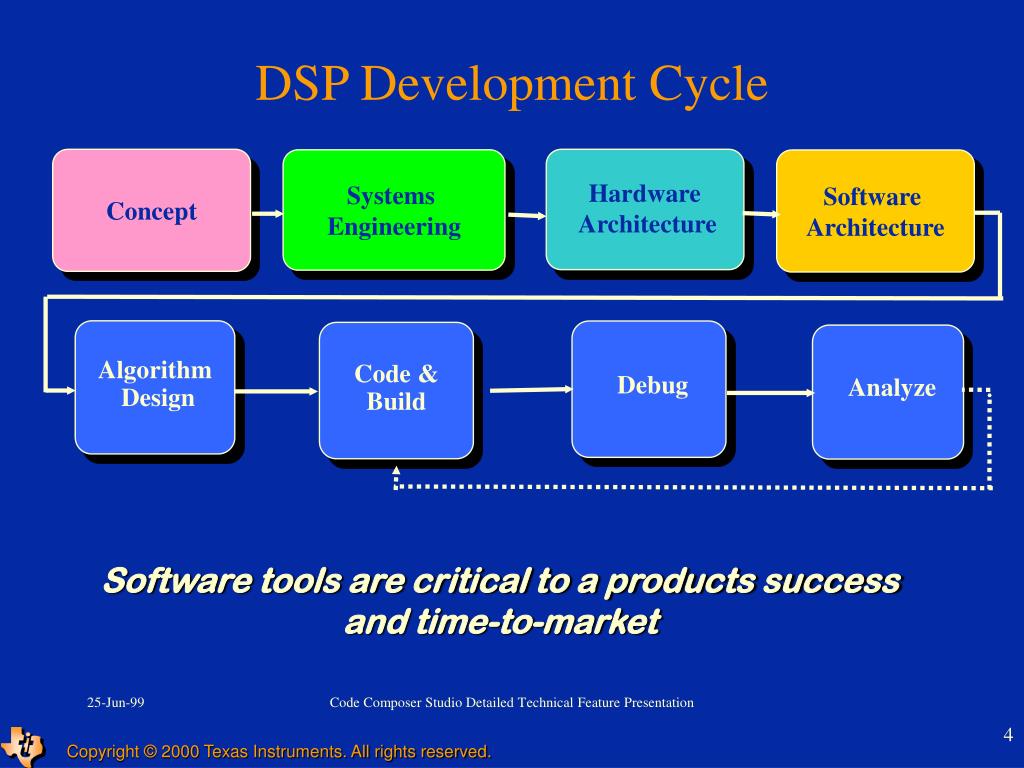

  4. DSP Development Cycle Concept Systems Engineering Software Architecture Hardware Architecture Algorithm Design Code & Build Debug Analyze Software tools are critical to a products success and time-to-market 25-Jun-99 Code Composer Studio Detailed Technical Feature Presentation

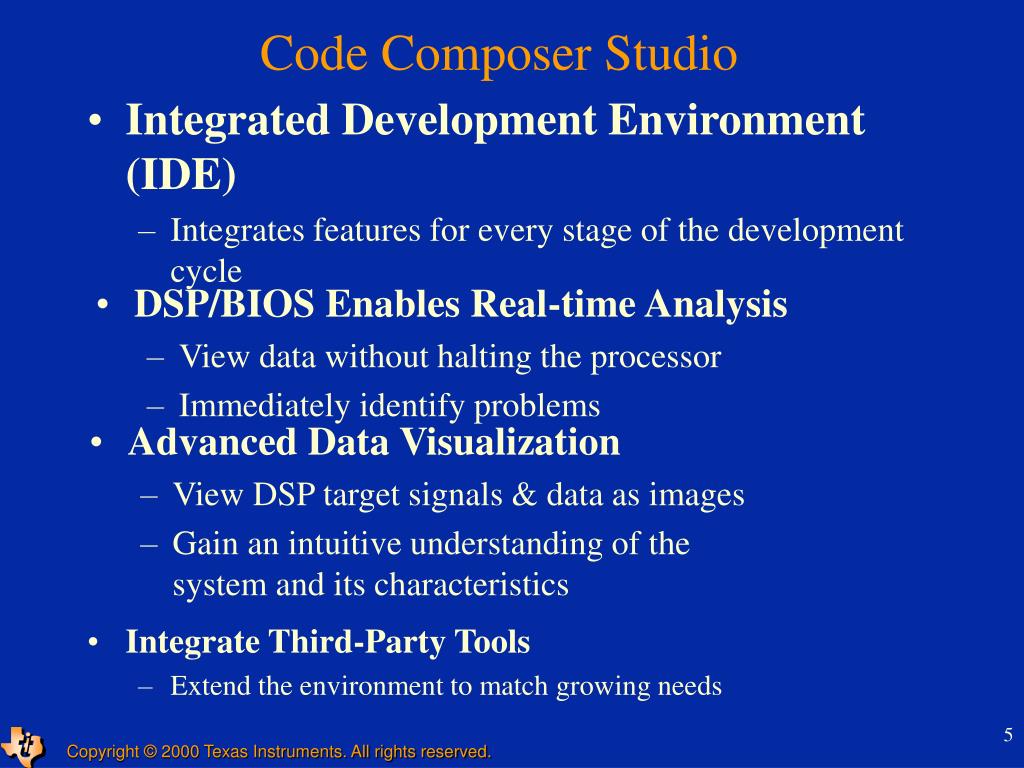

  5. Code Composer Studio • Integrated Development Environment (IDE) • Integrates features for every stage of the development cycle • DSP/BIOS Enables Real-time Analysis • View data without halting the processor • Immediately identify problems • Advanced Data Visualization • View DSP target signals & data as images • Gain an intuitive understanding of thesystem and its characteristics • Integrate Third-Party Tools • Extend the environment to match growing needs
