Lecture 2 Design Abstraction

Lecture 2Design Abstraction Prepare Reading 1:(for lecture 3)An Introduction to Asynchronous Circuit Design

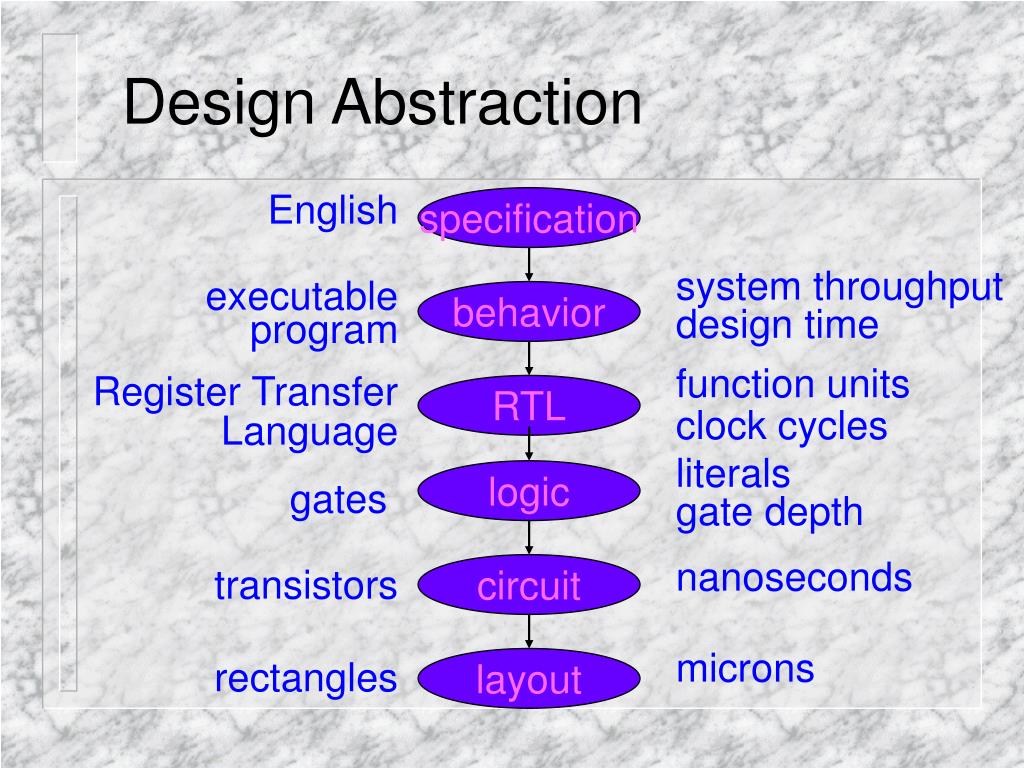

Design Abstraction English executable program Register Transfer Language gates transistors rectangles specification system throughput design time function units clock cycles literals gate depth nanoseconds microns behavior RTL logic circuit layout

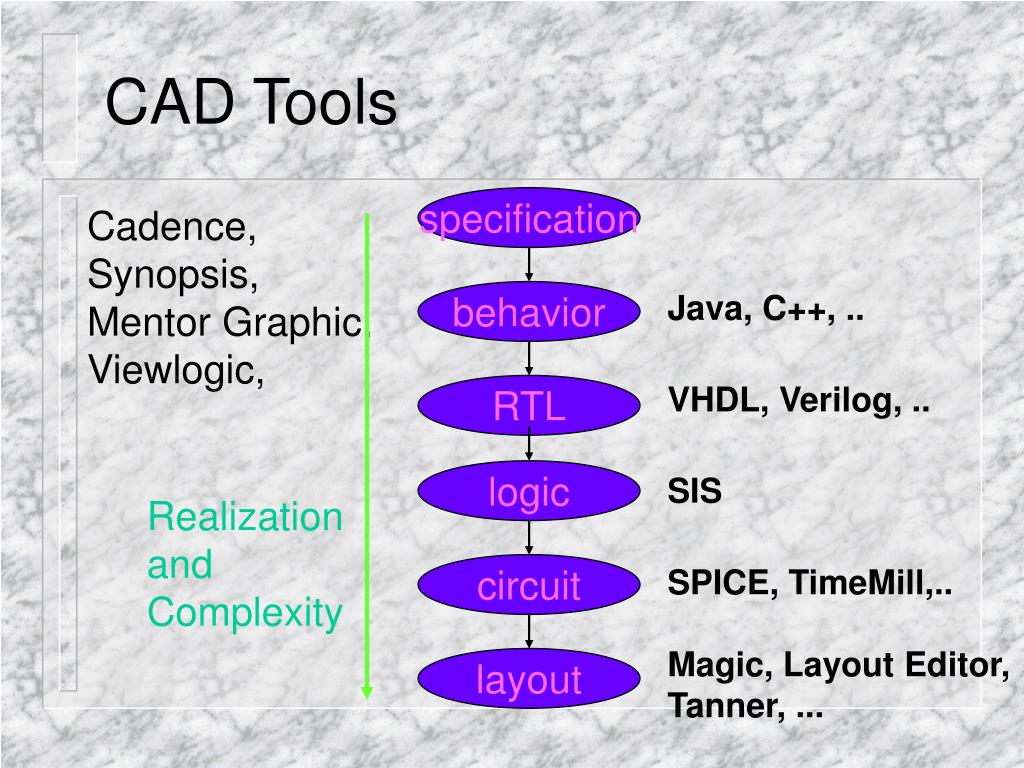

CAD Tools specification Cadence, Synopsis, Mentor Graphic, Viewlogic, Java, C++, .. VHDL, Verilog, .. SIS SPICE, TimeMill,.. Magic, Layout Editor, Tanner, ... behavior RTL logic Realization and Complexity circuit layout

RTL : VHDL Architecture RTL of NAND2 is begin process (A,B) begin if (A=‘1’) and (B=‘1’) then Z<=‘0’; else Z<=‘1’; endif; end process; end RTL A B Z

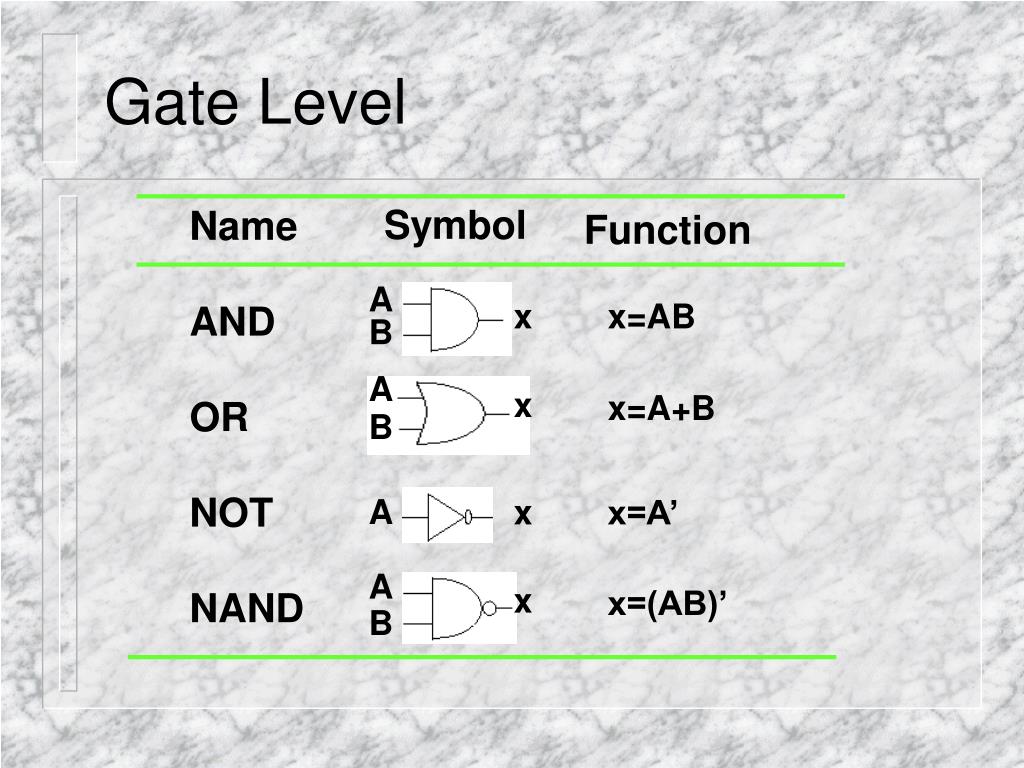

Gate Level Symbol Name AND OR NOT NAND Function A B A B A A B x x x x x=AB x=A+B x=A’ x=(AB)’

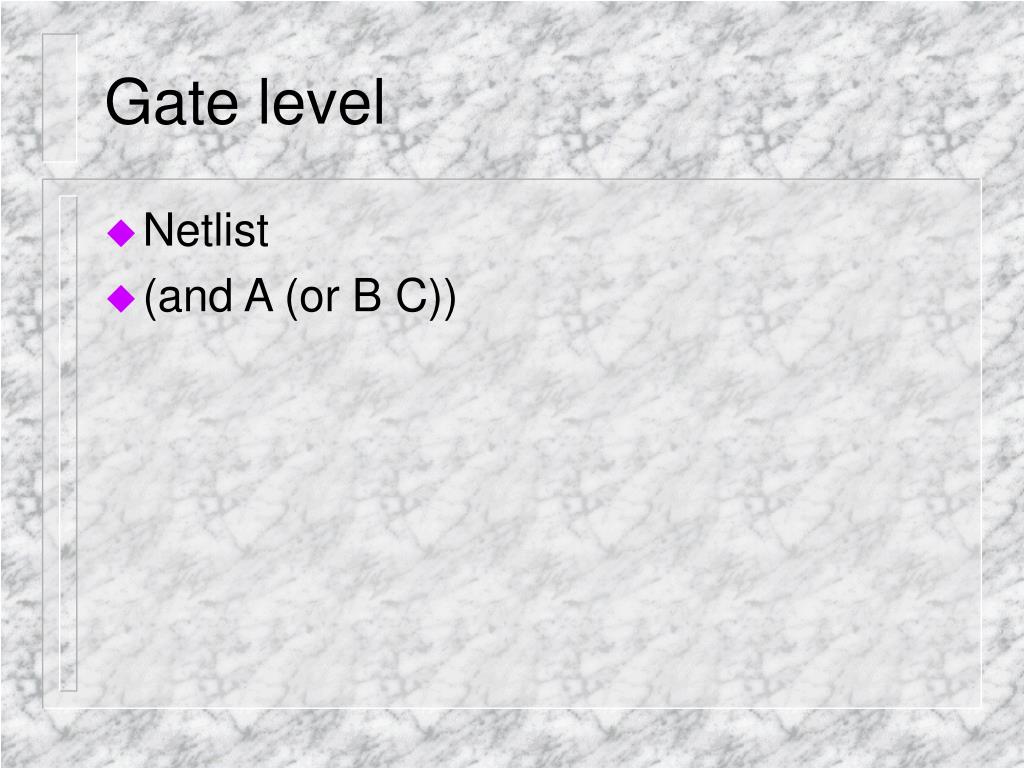

Gate level • Netlist • (and A (or B C))

Transistor Level • PMOS • NMOS S D = S D = S G=0 G=1 G D D G S

CMOS : Inverter • Inverter B A B A 1 A= 0 B=1 A=1 B=0 0

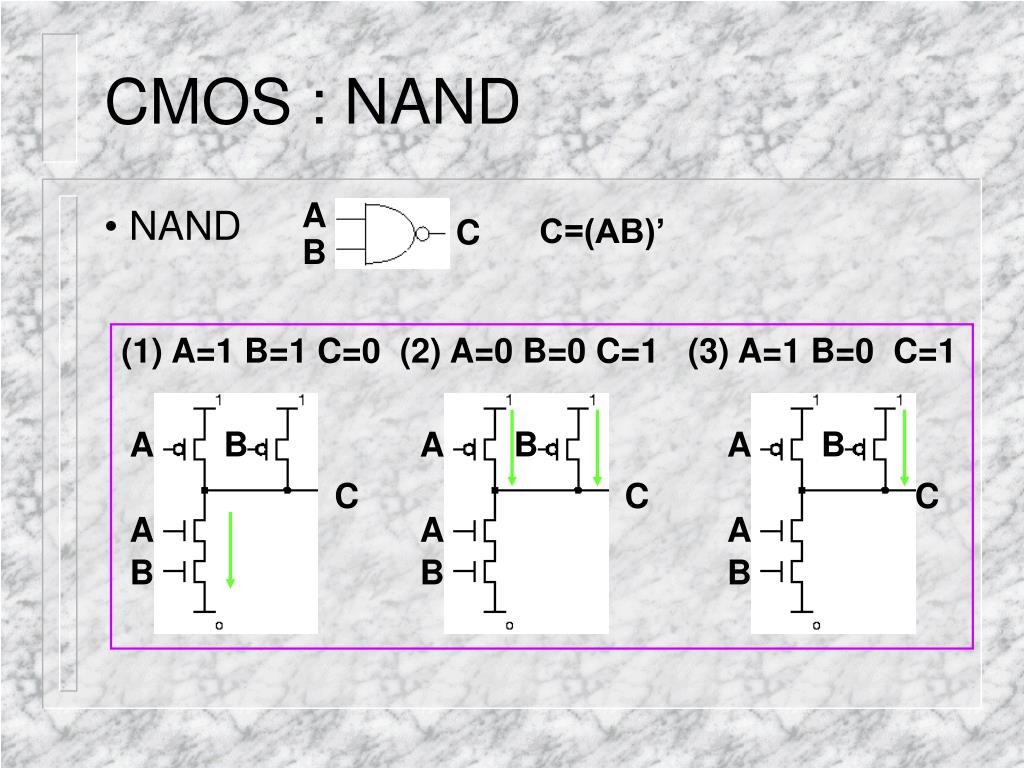

CMOS : NAND A B • NAND C=(AB)’ C (1) A=1 B=1 C=0 (2) A=0 B=0 C=1 (3) A=1 B=0 C=1 B B B A A A C C C A A A B B B

CMOS: OR A B • OR C=A+B C A=0 B=0 C=0 A=1 B=1 C=1 A B A A B A B B • NOR: OR without inverter

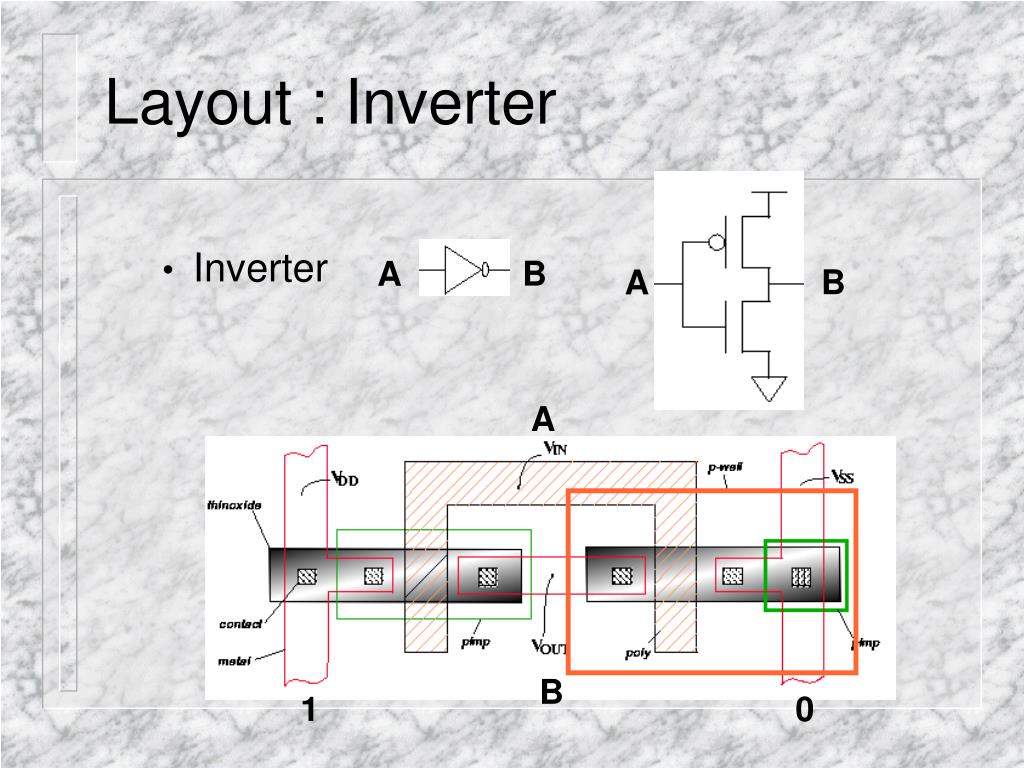

Layout : Inverter • Inverter B A B A A B 1 0

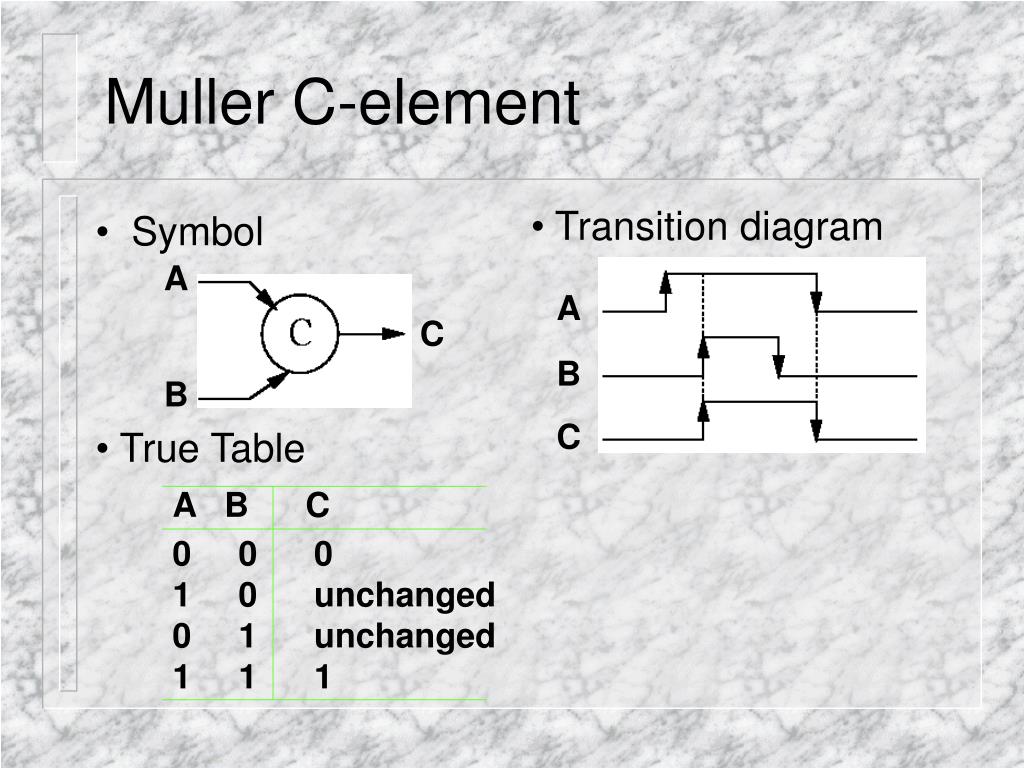

Muller C-element • Transition diagram • Symbol A B A B C C • True Table A B C 0 0 0 1 0 unchanged 0 1 unchanged 1 1 1

Muller C-element • C-element CMOS implementation A=0 B=0 C=0 A=1 B=1 C=1 A B A B C C A B A B

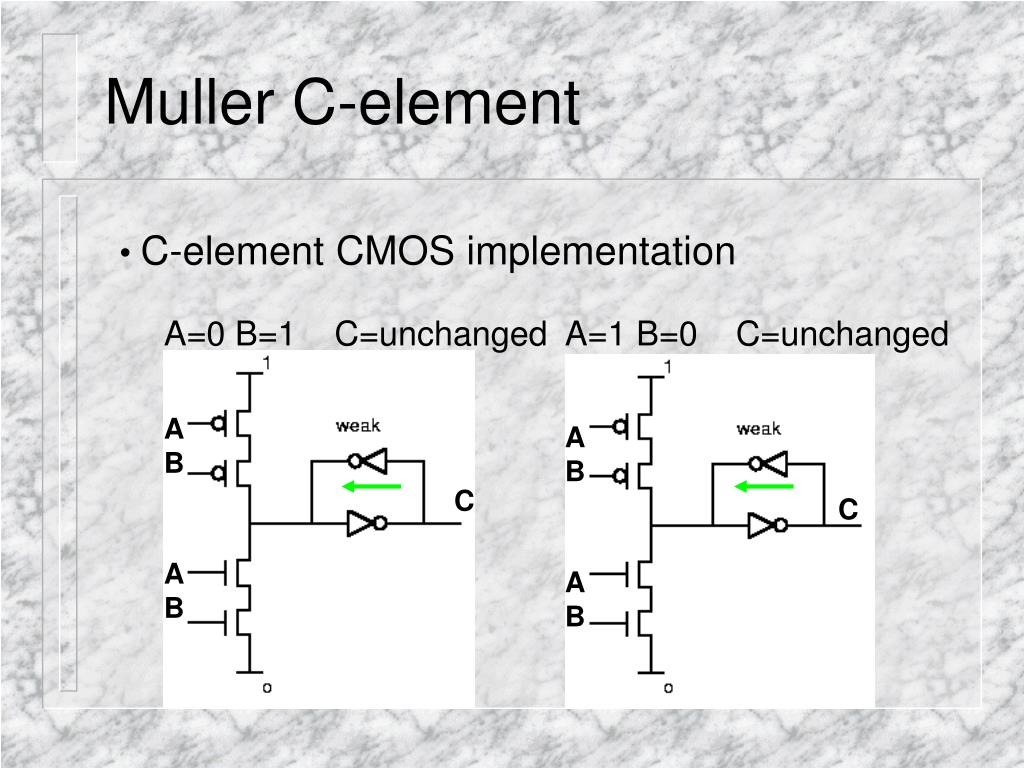

Muller C-element • C-element CMOS implementation A=0 B=1 C=unchanged A=1 B=0 C=unchanged A B A B C C A B A B

Lecture 2 Design Abstraction
