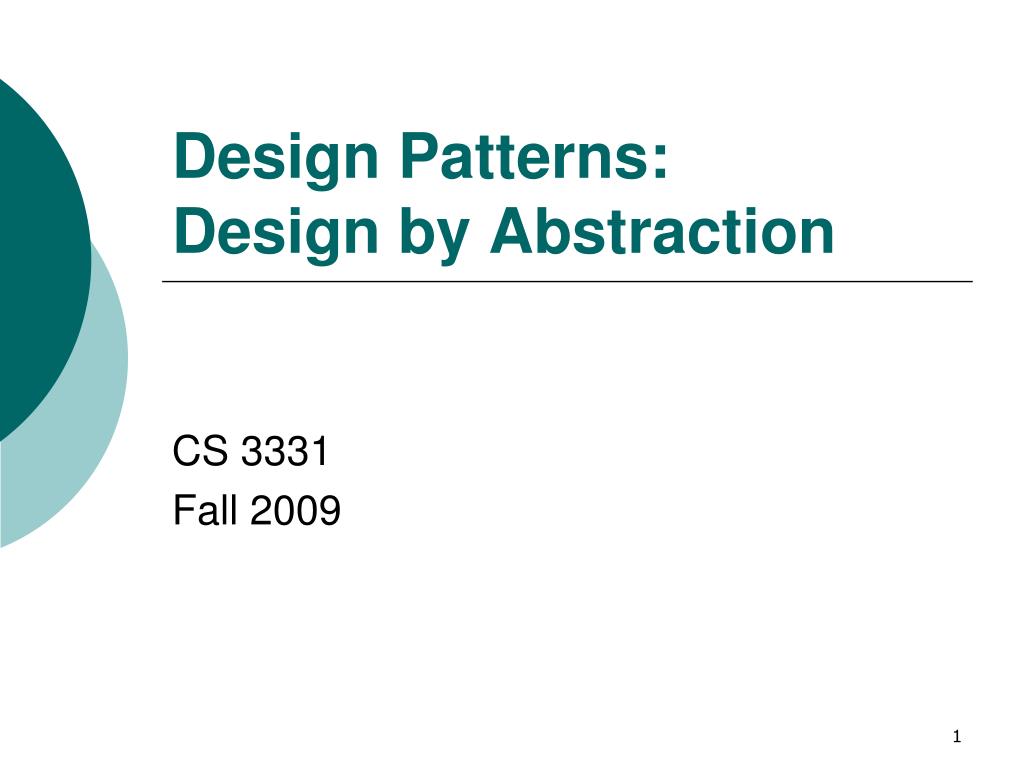

  1. Design Patterns: Design by Abstraction CS 3331 Fall 2009

  2. Outline • Design pattern • Reusable component • Template method • Strategy pattern • Factory pattern

  3. Planet Moon Sun Motivation Modeling the solar system 1..* 0..* Q: How to make sure that there exists only one Sun object in the system?

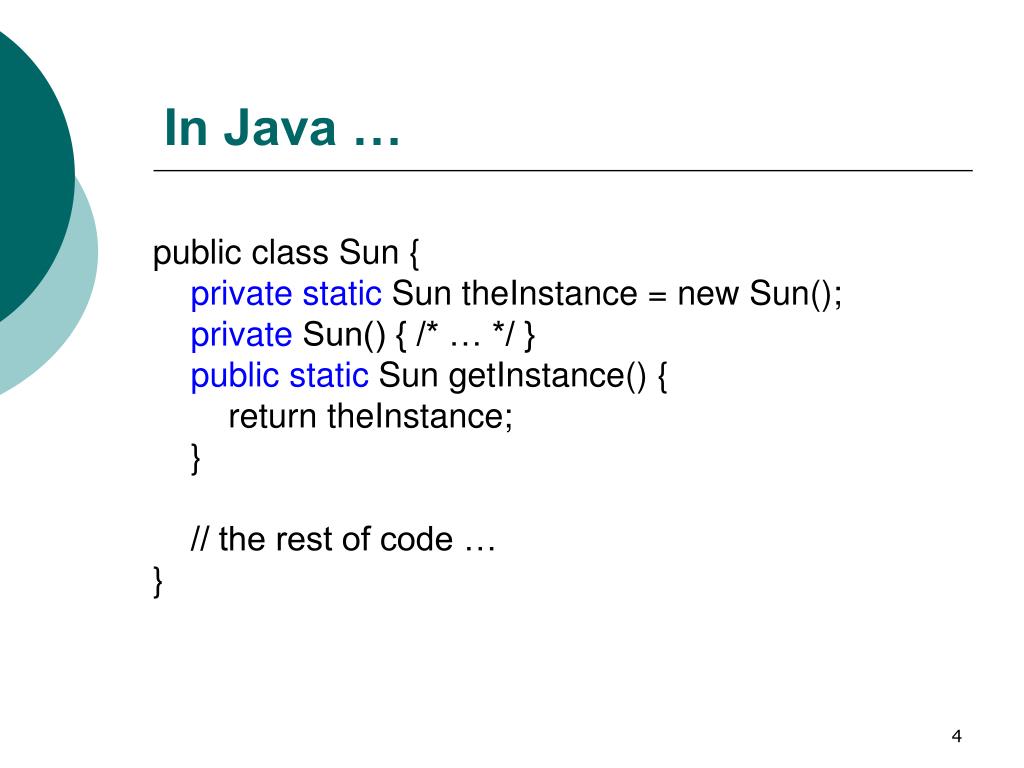

  4. In Java … public class Sun { private static Sun theInstance = new Sun(); private Sun() { /* … */ } public static Sun getInstance() { return theInstance; } // the rest of code … }

  5. return theInstance; In General … • T • - theInstance: T { static } • T() • + getInstance(): T { static }

  6. Singleton Design Pattern • Intent • To ensure that a class has only one instance and provides a global access point to it • Applicability • Use the Singleton pattern when there must be exactly one instance of a class and it must be accessible to clients from a well-known access point • Benefits • Controlled access to the sole instance • Permits a variable number of instances

  7. Example • Define a Calendar class using the Singleton pattern. public class Calendar { // the rest of code … }

  8. What Are Design Patterns? • Design patterns are: • Schematic descriptions of design solutions to recurring problems in software design, and • Reusable (i.e., generic), but don’t have to be implemented in the same way. • That is, describe: • Design problems that occur repeatedly, and • Core solutions to those problems.

  9. Why Design Patterns? • To capture and document software design knowledge. => helps designers acquire design expertise. • To support reuse in design and boost confidence in software systems. • To provide a common vocabulary for software designers to communicate their designs.

  10. GoF Patterns Creational Structural Behavioral Abstract FactoryAdapter Chain of Responsibility Builder Bridge Command Factory Method Composite Interpreter Prototype DecoratorIterator Singleton Façade Mediator Flyweight Memento Proxy Observer State Strategy Template Method Visitor E. Gamma, R. Helm, R. Johnson, and J. Vlissides. Design Patterns, Elements of Reusable Object-Oriented Software, Addison-Wesley, 1995.

  11. Outline • Design pattern • Reusable component • Template method • Strategy pattern • Factory pattern

  12. Generic Components • Generic components • Program components (e.g., classes and packages) that can be extended, adapted, and reused in many different contexts without having to modify the source code • Also known as reusable components • Techniques of designing generic components • Refactoring • Generalizing

  13. Refactoring • Definition • Refactoring means restructuring a program to improve its structure (e.g., to eliminate duplicate code segments) without changing its functionality • Approach • Identify code segment that implements the same logic (e.g., duplicate code) • Capture the logic in a generic component • Restructure by replacing every occurrence of the code segment with a reference to the generic component

  14. Refactoring Duplication • Why? • Hazardous for maintenance • Changes must be repeated everywhere • Some may be overlooked or forgotten • Thus, code segments can easily drift apart • Approach • Refactoring by inheritance • Refactoring by delegation

  15. Refactoring by Inheritance Sample code: any duplicate? class A { void m1() { // … step1(); step2(); step3(); // … } // … } class B { void m2() { // … step1(); step2(); step3(); // … } // … }

  16. Refactored Code class A extends C { void m1() { // … computeAll(); // … } // … } class B extends C { void m2() { // … computeAll(); // … } // … } class C { void computeAll() { step1(); step2(); step3(); } }

  17. Refactoring by Delegation class A { void m1() { // … h.computeAll(); // … } Helper h; } class B { void m2() { // … h.computeAll(); // … } Helper h; } class Helper { void computeAll() { step1(); step2(); step3(); } } Q. Compare two approaches of refactoring.

  18. public class ColoredPoint extends Point { public ColoredPoint(int x, int y, Color c) { this.x = x; this.y = y; this.c = c; } protected Color c; // other code } public class Point { public Point(int x, int y) { this.x = x; this.y = y; } protected int x, y; // other code; } Exercise Identify and remove duplicate code.

  19. Applet Timer Generic Animation Applet • Reusable class that supports the animation idiom timer AnimationApplet {abstract} # delay: int # dim: Dimension + init() + start() + stop()

  20. Animation Applet (Cont.) public abstract class AnimationApplet extends java.applet.Applet { protected Timer timer; protected int delay = 100; protected Dimension dim; public void init() { dim = getSize(); String att = getParameter(“delay”); if (att != null ) { delay = Integer.parseInt(att); } timer = new Timer(delay, new ActionListener() { public void actionPerformed(ActionEvent event) { repaint(); } }); } <<continue to the next page>>

  21. Animation Applet (Cont.) public void start() { timer.start(); } public void stop() { timer.stop(); } }

  22. DigitalClock init() start() stop() paint() AnimationApplet DigitalClock paint() Using Animation Applet • Reimplement the DigitalClock applet to use the animation applet class.

  23. Graphics Applet Image DBAnimationApplet {abstract} init() initAnimation() update() paint() paintFrame() {abstract} AnimationApplet {abstract} Generic Double-Buffered AnimationApplet • Reusable class that supports double-buffered animation image offScreen

  24. DB Animation Applet (Cont.) public abstract class DBAnimationApplet extends AnimationApplet { <<constructors>> <<initialization>> <<updating and painting>> protected Image image; protected Graphics offscreen; protected boolean doubleBuffered; }

  25. Constructors protected DBAnimationApplet(boolean doubleBuffered) { this.doubleBuffered = doubleBuffered; } protected DBAnimationApplet() { this(true); } • Question • Why protected constructors?

  26. Initialization final public void init() { super.init(); image = createImage(dim.width, dim.height); offscreen = image.getGraphics(); initAnimator(); } protected void initAnimator() {} • Questions • Why “final” init? • Why “protected” and separate initAnimator? • What’s the difference between constructors and init methods?

  27. Updating and Painting final public void update(Graphics g) { if (doubleBuffered) { paintFrame(offscreen); g.drawImage(image, 0, 0, this); } else { super.update(g); } } final public void paint(Graphics g) { update(g); } protected abstract void paintFrame(Graphics g); • Questions • Why “final” update and paint, and why “abstract” paintFrame? • How does this cater for both double-buffered and non-DB animation?

  28. DBAnimationApplet init() initAnimator() update() paint() paintFrame() BouncingBall initAnimator() paintFrame() Example • Rewrite the bouncing ball applet to use the DBAnimationApplet class. • Note that: • init() calls initAnimation() which is • overridden in the subclass, and • Both update() and paint() call • paintFrame() which is overridden • in the subclass.

  29. … hookMethod1() … hookMethod2() … AbstractClass templateMethod() hookMethod1() hookMethod2() ConcreteClass hookMethod1() hookMethod2() Template Methods • Intent • To define a skeleton algorithm by deferring some steps to subclasses • To allow the subclasses to redefine certain steps

  30. Template Methods (Cont.) • Terminology • Hook methods: placeholders for the behaviour to be implemented by subclasses • Template methods: methods containing hook methods • Hot spots: changeable behaviours of generic classes represented by hook methods • Frozen spots: fixed behaviours of generic classes represented by template methods

  31. Exercise • Identify hook methods and template methods in the DBAnimationApplet class.

  32. PlotSine func() PlotCosine func() More Example • Generic function plotter • To plot arbitrary single-variable functions on a two-dimensional space Plotter func() paint() plotFunction() drawCoordinates() Applet … func() …

  33. Rectangular imaginary (x, y) y x real Exercise Complex numbers, x + y*i Polar (r, a) r a

  34. Complex add() mul() realPart() imaginaryPart() magnitude() angle() RectangularComplex realPart() imaginaryPart() magnitude() angle() PolarComplex realPart() imaginaryPart() magnitude() angle() Exercise (Cont.)

  35. Exercise (Cont.) Write the template methods add and mul. // Assume constructors RectangularComplex(int real, int imag) and // PolarComplex(int magnitude, int angle). public Complex add(Complex c) { } public Complex mul(Complex c) { }

  36. Outline • Design pattern • Reusable component • Template method • Strategy pattern • Factory pattern

  37. Generalization • Definition • Process that takes a solution to a specific problem and restructures it to solve a category of problems similar to the original problem • Example • Generalize the plotter class to support multiple functions

  38. PlotSine func() PlotCosine func() Review • Generic function plotter • To plot arbitrary single-variable functions on a two-dimensional space Plotter func() paint() plotFunction() drawCoordinates() Applet … func() …

  39. Plotter func() paint() plotFunction() drawCoordinates() Sine apply() Cosine apply() PlotSineCosine initMultiPlotter() Generic Multiple Function Plotter Applet 1..* Function apply() MultiPlotter initMultiPlotter() init() addFunction() plotFunction() func() <<create>> <<create>>

  40. Multiple Function Plotter (Cont.) Method Description initMultiPlotter() Hook method for subclasses to set up functions to be plotted init() Template method for initialization which calls initMultiPlotter() addFunction() Method to add a function to be plotted plotFunction() Auxiliary function called by paint() to plot the functions func() Method inherited from class Plotter that is no longer useful in this class

  41. Strategy alogorithm() Context contextMethod() ConcreteStrategyA algorithm() ConcreteStrategyB algorithm() strategy strategy.algorithm() Strategy Design Pattern • Intent • To define a family of algorithms, encapsulate each one, and make them interchangeable

  42. Question • Have we used the Strategy Pattern before?

  43. Abstract Coupling • Definition • Abstract coupling means a client access a service through an interface or an abstract class without knowing the actual concrete class that provide the service • Example • Strategy pattern • Iterator pattern • Question • Why abstract coupling?

  44. Design Guideline • Program to an interface, not to an implementation!

  45. Iterating over Collection • Accessing all elements of collection objects such as sets, bags, lists, etc. Collection c; … c = new ArrayList(); … for (Iterator i = c.iterator(); i.hasNext(); ) { Object elem = i.next(); … }

  46. Iterator hasNext() next() ConcreteIterator hasNext() next() Collection iterator() ConcreteCollection iterator() Iterator Pattern • Intent • To provide a way to access the elements of a collection sequentially <<create>> return new ConcreteIterator()

  47. Exercise • Fill out the missing part to implement the Iterator interface public class Library { private Book[] books; /** Returns an iterator enumerating all books of this library. */ public Iterator books() { return new LibraryIterator(books); } private static class LibraryIterator implements java.util.Iterator { public void remove() { throw new UnsupportedOperationException(); } // YOUR CODE HERE … } }

  48. AbstractFactory makeProduct() ConcreteFactory makeProduct() Client Factory Design Pattern • Intent • To decouple object creation from its use and to support different way of creating objects • To define an interface for creating objects but let subclasses decide which class to instantiate and how Product create ConcreteProuct

  49. ComplexFactory makeComplext() PolarFactory makeComplex() RectangularFactory makeComplex() Example • Complex numbers Complex <<create>> PolarComplex <<create>> RectangularComplex
