Pumping efficiency simulation codes

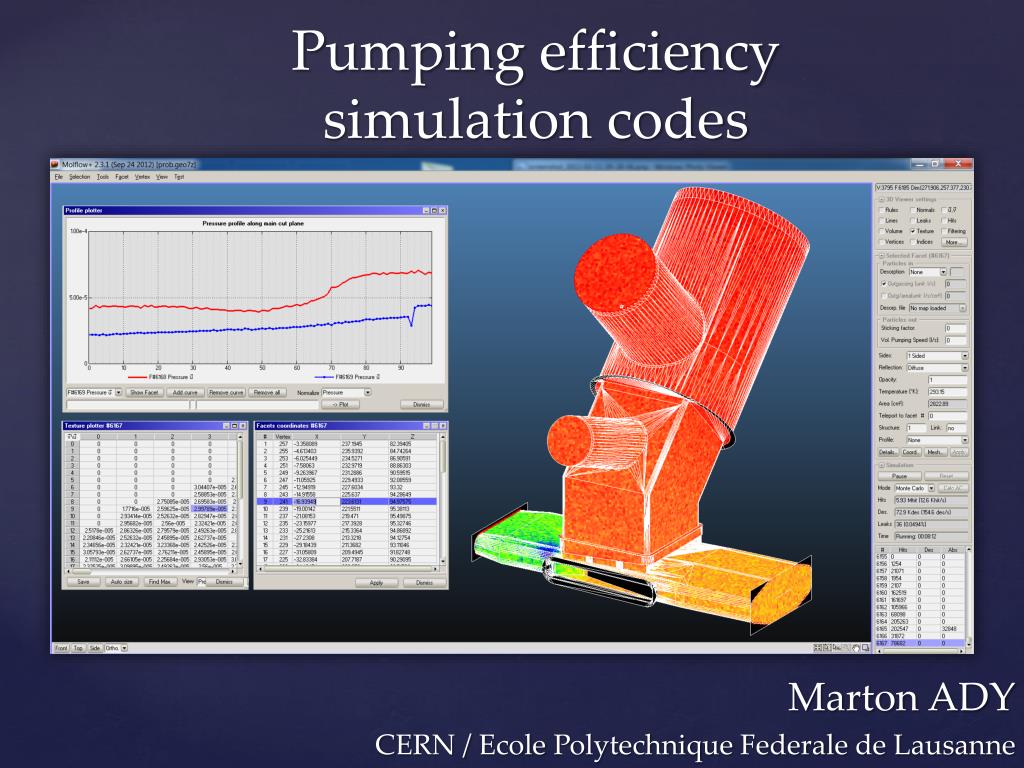

Pumping efficiency simulation codes. Marton ADY CERN / Ecole Polytechnique Federale de Lausanne. Synrad +. Molflow+. Ultra High Vacuum. Synchroton Radiation. Developed since 1991 (R. Kersevan ) Turbo Pascal, 13.000 lines of code Used by: Diamond Light Source BNL Elettra Alba
