Build your own Digital Clock

This do it yourself LED Clock is a great way to learn and practice electronics. Once assembled, you will have a great looking functional LED clock that can show the time, temperature and date.

ellabladen05
Télécharger la présentation

Build your own Digital Clock

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

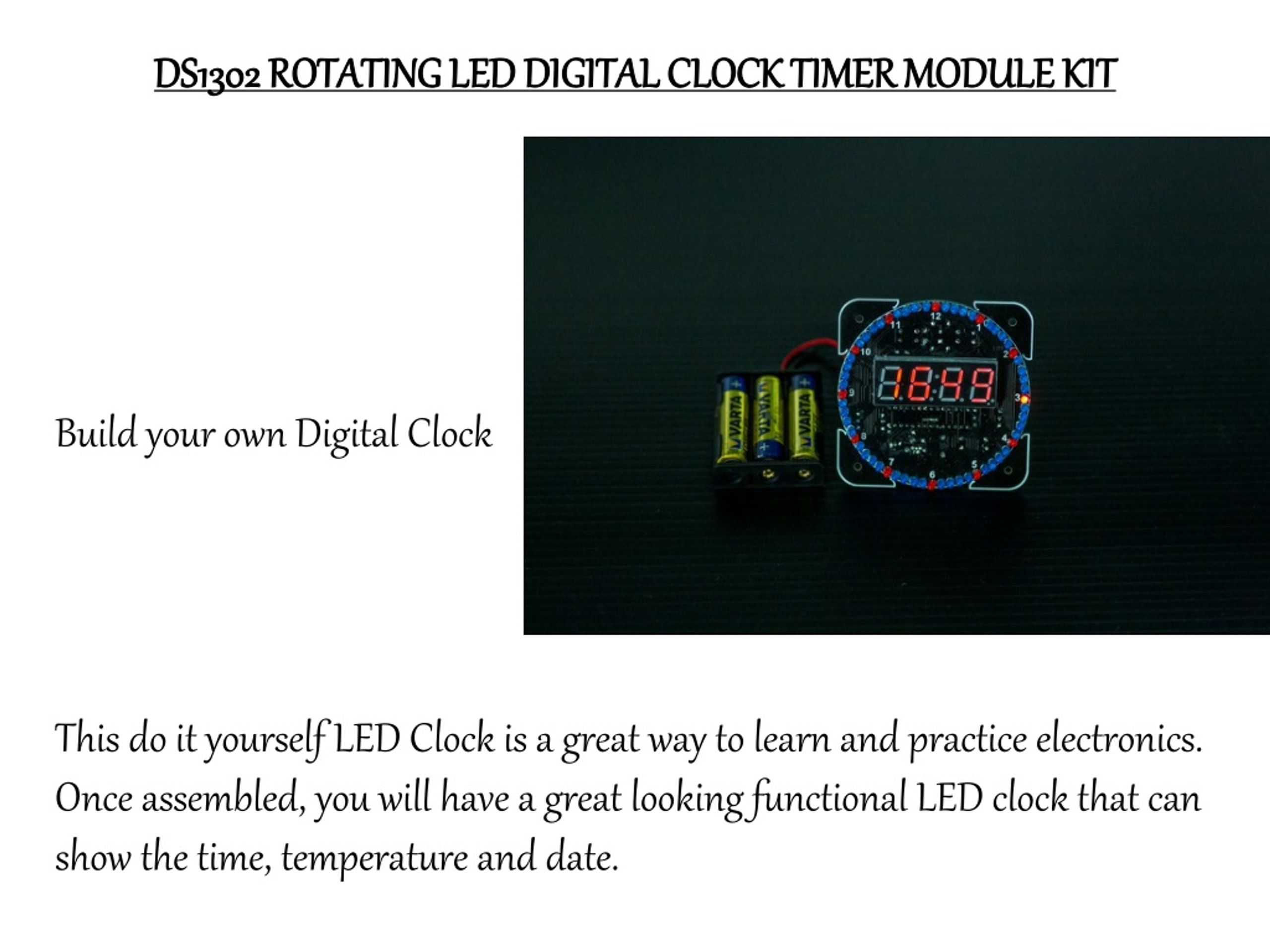

  1. DS1302 ROTATING LED DIGITAL CLOCK TIMER MODULE KIT Build your own Digital Clock This do it yourself LED Clock is a great way to learn and practice electronics. Once assembled, you will have a great looking functional LED clock that can show the time, temperature and date.

  2. Features: PLUS key, for years, months, days, hours, minutes, seconds add operation According to the numerical sum 1 at a time MODE key, can be in display clock, switch to the year, month, day, hours, minutes, alarm clock, the adjustment of outer ring LED display state To use add key to the year, month, day, hours, minutes, seconds, and display mode to adjust RST key, press the reset button, then the MCU reset

  3. Specification: Size: 81mm x 81mm x 1.6mm PCB thickness: 1.6 mm Material: FR4 military level PCB color: Blue Digital Tube display: Red Power supply voltage: mini USB, external connection 5V ,3V button battery for clock chip on the board of the standby power suppy https://www.auselectronicsdirect.com.au/ds1302-rotating-led-digital-clock-timer-module-kit
