  1. Digital Sound ProjectionECE 477 Group 6 Packaging Specifications and Design Steve Anderson Mike Goldfarb Shao-Fu Shih Josh Smith

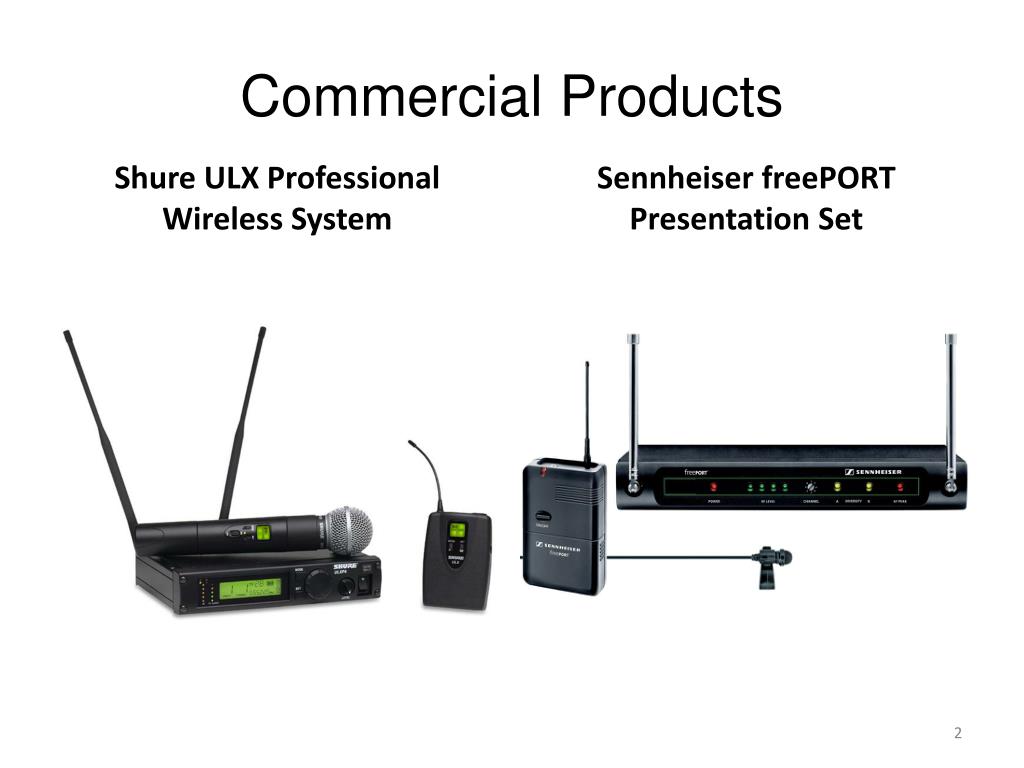

  2. Commercial Products Shure ULX Professional Wireless System Sennheiser freePORT Presentation Set

  3. Transmitter Package

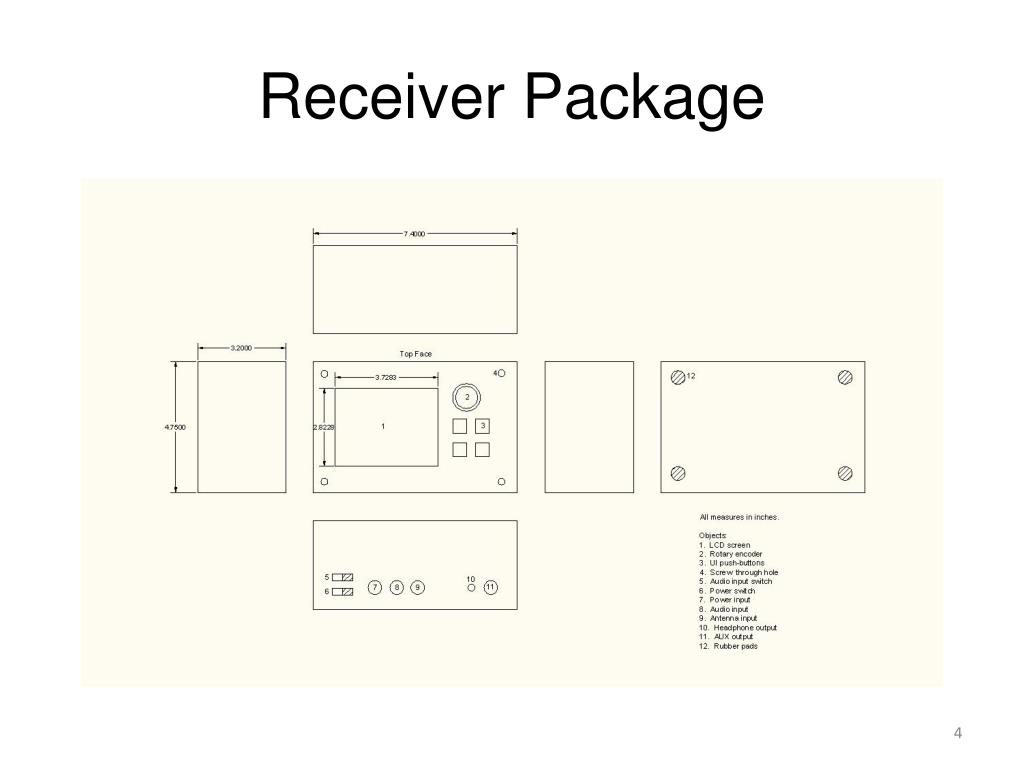

  4. Receiver Package

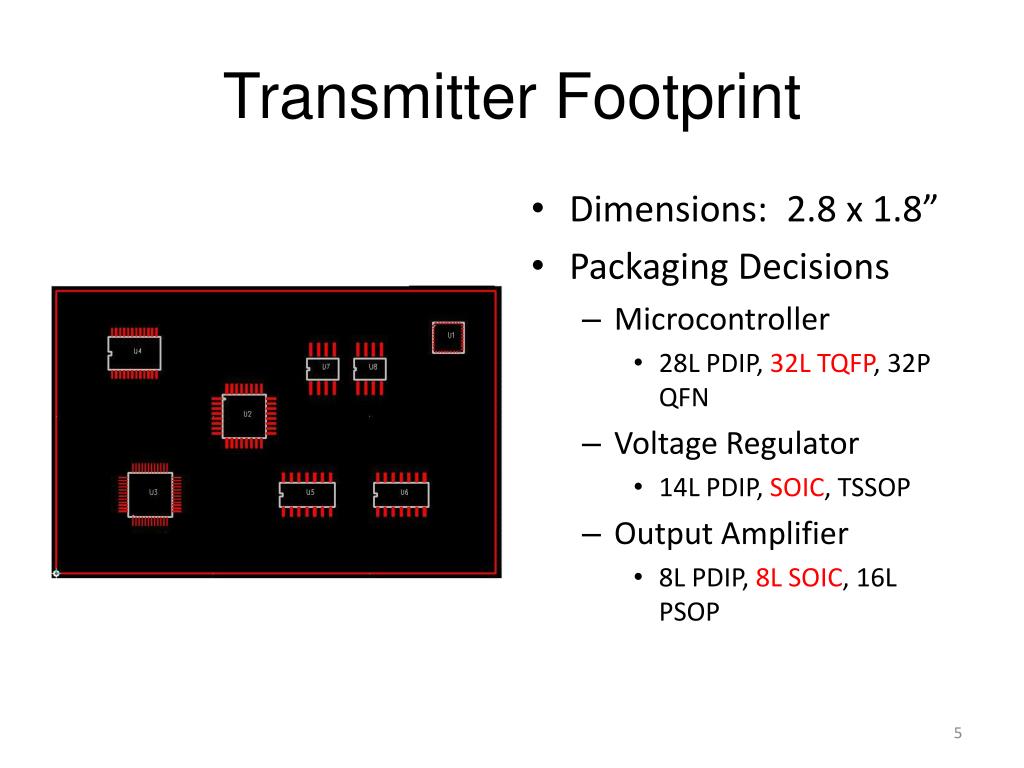

  5. Transmitter Footprint • Dimensions: 2.8 x 1.8” • Packaging Decisions • Microcontroller • 28L PDIP, 32L TQFP, 32P QFN • Voltage Regulator • 14L PDIP, SOIC, TSSOP • Output Amplifier • 8L PDIP, 8L SOIC, 16L PSOP

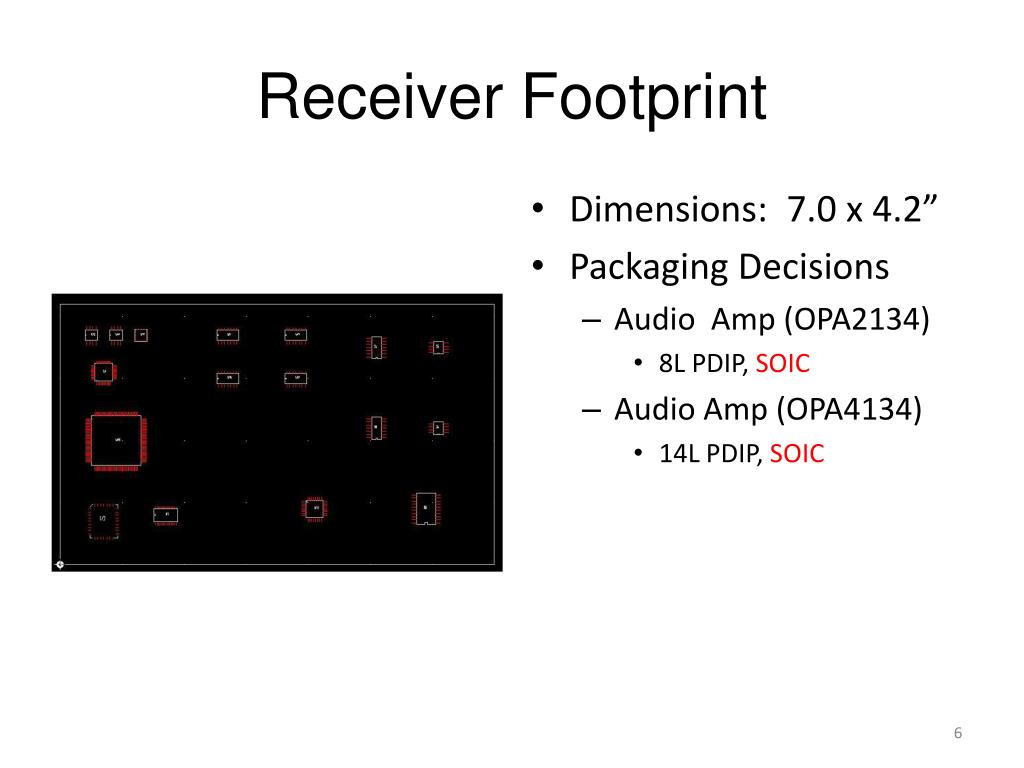

  6. Receiver Footprint • Dimensions: 7.0 x 4.2” • Packaging Decisions • Audio Amp (OPA2134) • 8L PDIP, SOIC • Audio Amp (OPA4134) • 14L PDIP, SOIC
