Design and Simulation of a MEMS High G Inertial Impact Sensor

ellis avatar
ellis
21 diapositives · 438 Views · Oct 12, 2014

Design and Simulation of a MEMS High G Inertial Impact Sensor. Y.P. Wang1, R.Q. Hsu1, C.W. Wu2 1Department of Mechanical Engineering, National Chiao Tung University, 1001 Ta-Hsueh Road, 300 Hsinchu, Taiwan Phone: +886-3-5712121 Ext.31934, Email: anitawu.wlh@msa.hinet.net

Design and Simulation of a MEMS High G Inertial Impact Sensor - slide 1
01 / 21Design and Simulation of a MEMS High G Inertial Impact Sensor
1 / 17

Télécharger la présentation

Design and Simulation of a MEMS High G Inertial Impact Sensor
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Design and Simulation of a MEMSHigh G Inertial Impact Sensor Y.P. Wang1, R.Q. Hsu1, C.W. Wu2 1Department of Mechanical Engineering, National Chiao Tung University, 1001 Ta-Hsueh Road, 300 Hsinchu, Taiwan Phone: +886-3-5712121 Ext.31934, Email: anitawu.wlh@msa.hinet.net 2Department of Mechanical and Mechatronic Engineering, National Taiwan Ocean University 2, Pei-Ning Road, Keelung, Taiwan. Speaker: Jing-Wen Shih

  2. Outline • Introduction • The major goal of Inertial impact sensor • The micro impact sensor proposed in this study • Simulation • Conclusion • Reference

  3. Introduction • Inertial sensors have been extensively utilized in science like inertial navigation systems and airbag triggers . • For high G(>300G) applications. Reaction times for conventional mechanical type impact sensors are not fast enough.

  4. The major goal of inertial impact sensor • Designing an impact sensor that has a faster reaction time than conventional sensors and a mechanism that is sufficiently robust to survive the impact when a vehicle collides with a hard target is the major goal of this study.

  5. Conventional inertial impact sensor • (a)cantilever beam type • (b)axial spring type

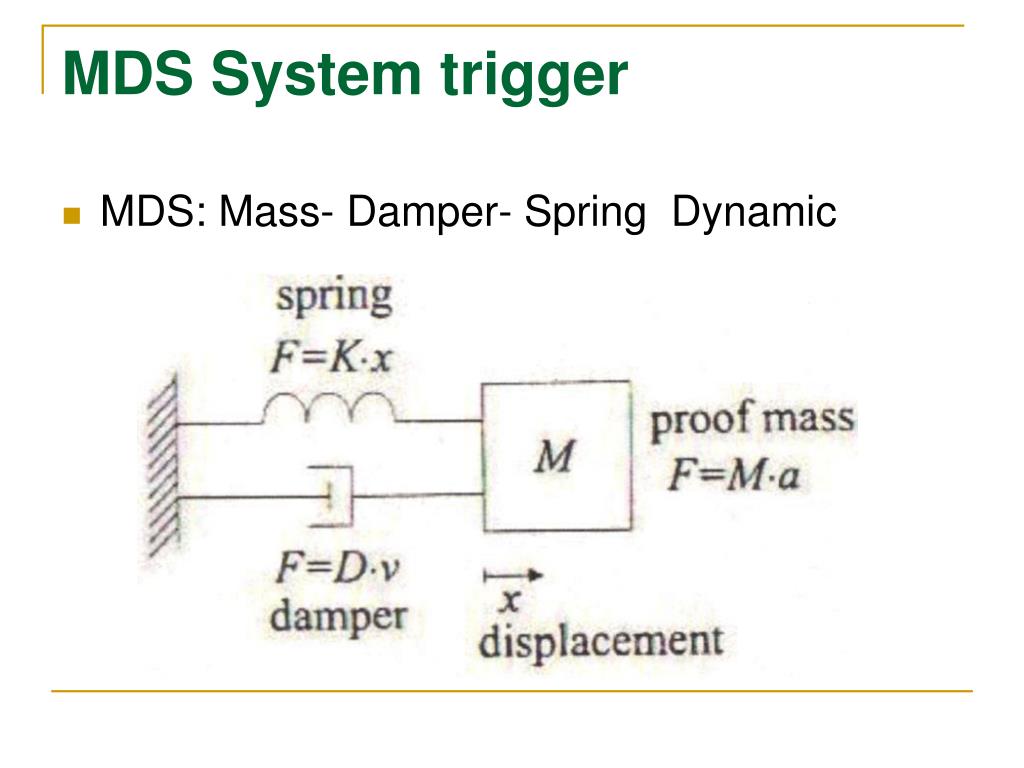

  6. MDS System trigger • MDS: Mass- Damper- Spring Dynamic

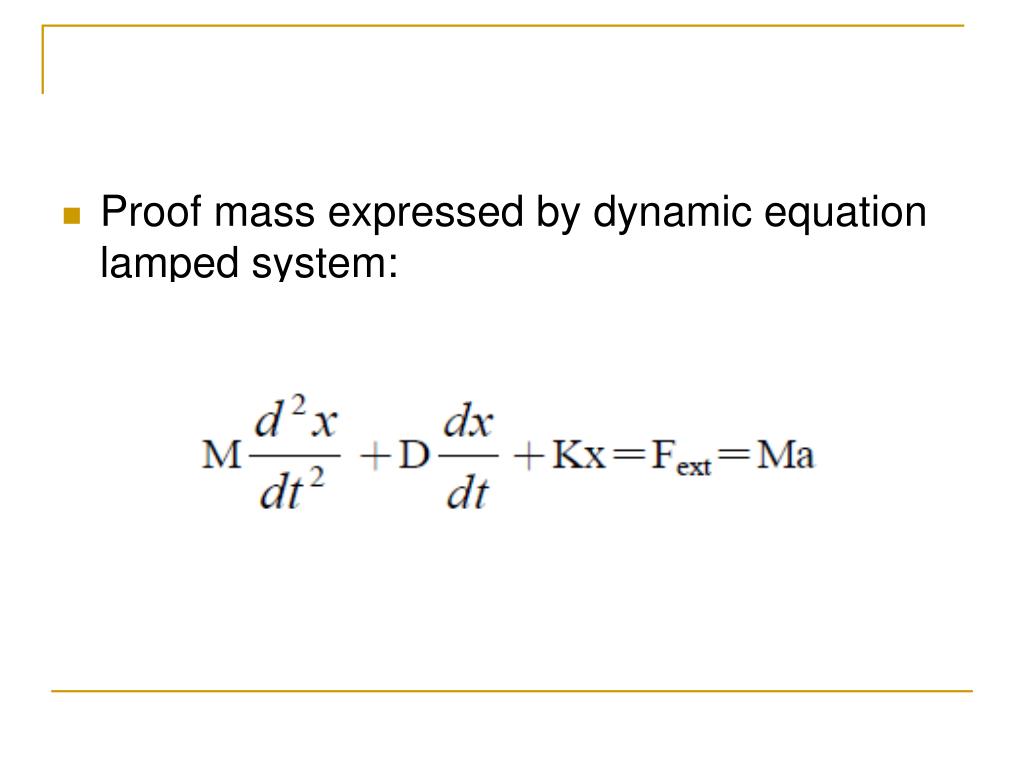

  7. Proof mass expressed by dynamic equation lamped system:

  8. Use Laplace transformation to the second –order function for acceleration mass:

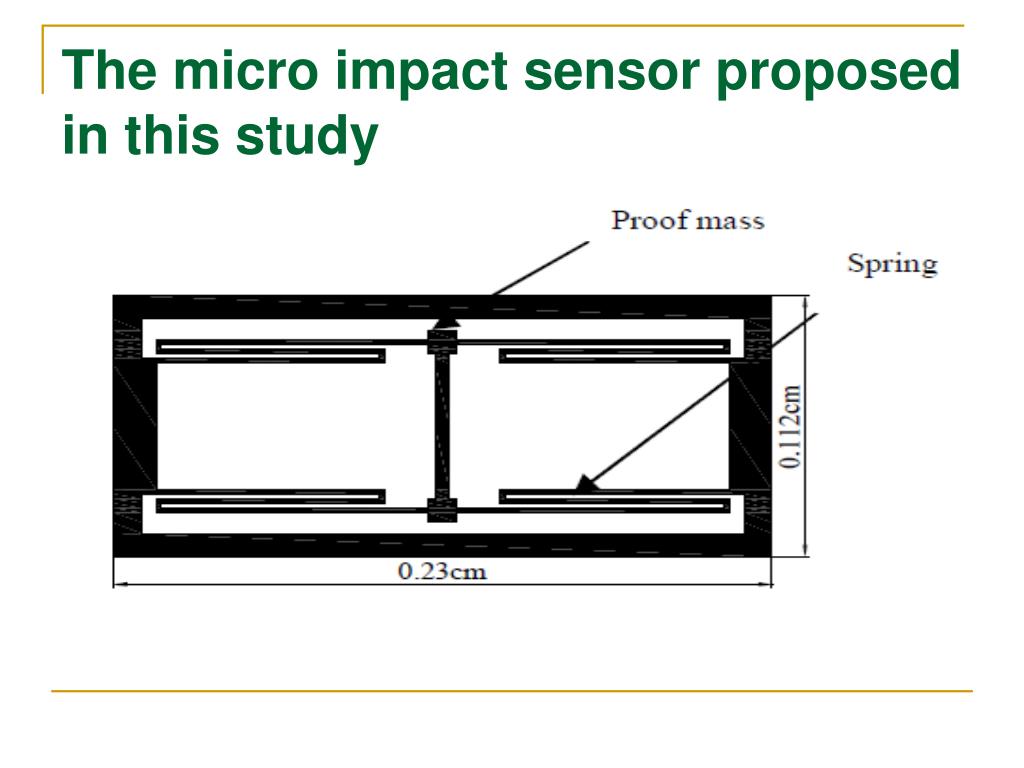

  9. The micro impact sensor proposed in this study

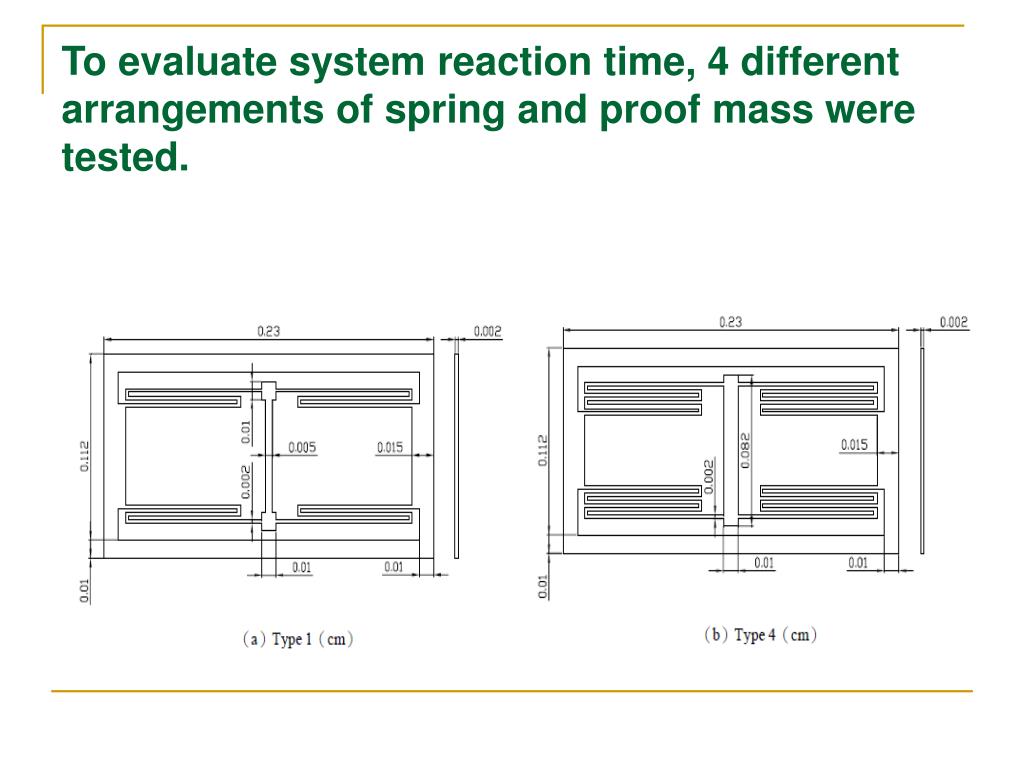

  10. To evaluate system reaction time, 4 different arrangements of spring and proof mass were tested.

  11. The proof mass scale and coil number of the sensor

  12. Simulation • Displacement versus applied forces for each sensor

  13. The response time of the micro-sensor

  14. Proof mass increases from 0.62 to 1.0, and thespring constant remains unchanged, the reaction time isdecreased.

  15. Minimum G values for the sensors to be triggered

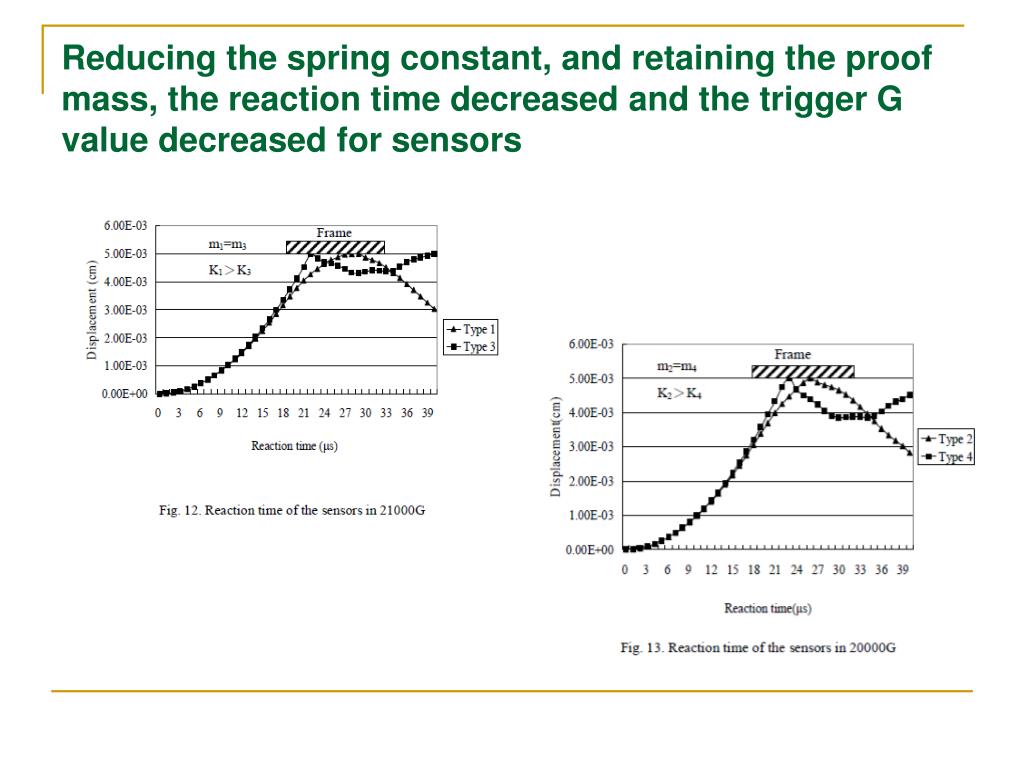

  16. Reducing the spring constant, and retaining the proof mass, the reaction time decreased and the trigger G value decreased for sensors

  17. Minimum G values for the sensors to be triggered

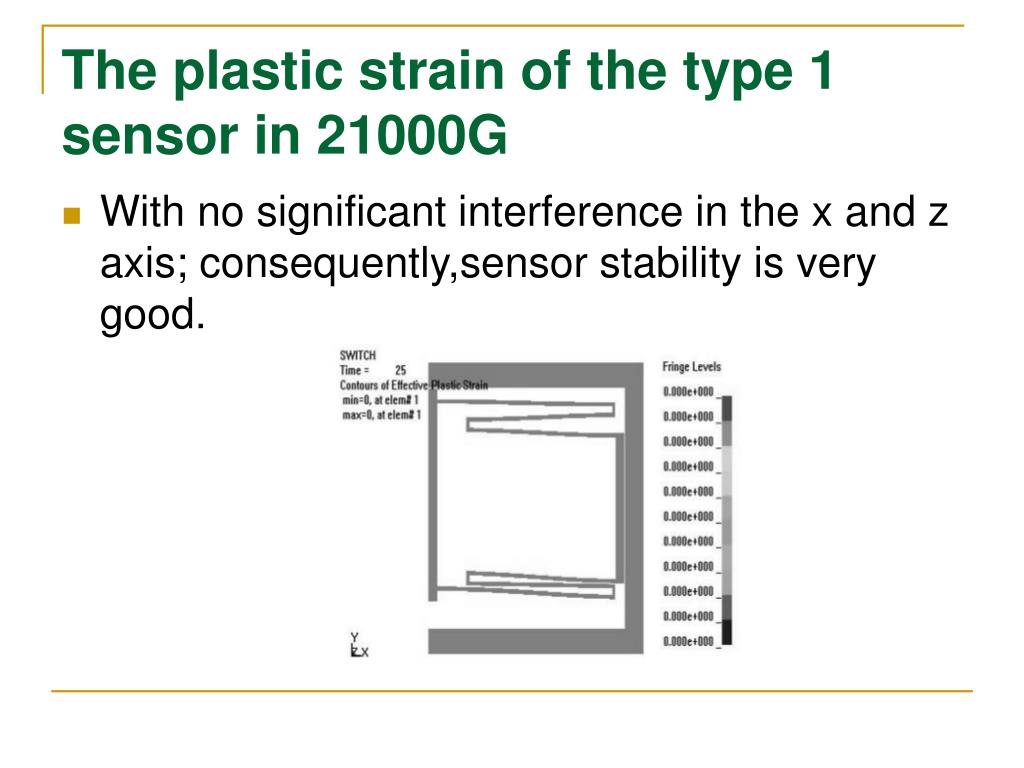

  18. The plastic strain of the type 1 sensor in 21000G • With no significant interference in the x and z axis; consequently,sensor stability is very good.

  19. Conclusion • This proposed impact sensor is intended for use at 8,000–21,000G. Four different designs were analyzed. • The impact sensors were sufficiently robust to survive the impact of at least 21,000G, four times higher than that of conventional inertial impact sensors.

  20. References • F. Goodeough, Airbag boom when IC accelerometer sees 50 G,Electronics Design, pp.45-56, August. 8, 1991. • Tadao Matsunaga, Masayoshi Esashi, Acceleration switch with extended holding time using squeeze film effect for side airbag systems, Sensors and Actuators A：physical, vol. 100, Issue 1, pp.10-17 , August. 2002. • Military Standard, Mechanical Shock Test, MIL-STD-883E Method 2002.4, US Dept. of Defense, 2004. • Donald R. Ask eland, The science and engineering of materials, 1st edn,Taipei, Kai Fa, 1985, ch. 6, pp. 126-127. • Trimmer, W.S.N, Microrobots and Micromechanical Systems, Sensors and Actuators vol.19 no.3, pp. 267-287, 1989. • M. Elwenspoek, R. Wiegerink, Mechanical Microsensors, Germany,Springer, 2001. • Tai-Ran Hsu, MEMS & Microsystems Design and Manufacture,international edition 2002, Singapore, McGraw-Hill, pp. 157-159.

  21. Thanks for your attention
