  1. The Final Present Lee Jeng-Shiou Computer Network of E.E

  2. Outline • Throughput Analysis Review for Single-hop Networks • Throughout Analysis for Multi-hop Networks • Mathematical Analysis of the String Topology • Analytical and Simulation Results • An Alternative Mathematical Analysis of the String Topology • Conclusion

  3. Throughput Analysis Review for Single-hop Networks • (s(t), b(t)) • s(t): the backoff stage • b(t): the backoff time counter • p: the conditional collision probability • τ: the probability that a station transmits in a generic slot time

  4. Throughput Review for Single-hop Networks (cont~) • The transmission probability τ in a randomly chosen ”generic” slot is • The collision probability is expressed by • Throughput S is obtained by

  5. Throughout Analysis for Multi-hop Networks • We concentrate on the impact of the hidden node problem. • We analyze the throughput based on a single station’s point of view. • The analysis method is similar to the single-hop case. • Obtaining the stationary probability τ using a Markov model. • Expressing the throughput as function of τ by studying the events that can occur within a generic slot time.

  6. Throughout Analysis for Multi-hop Networks • Assumption: • All packets are destined for neighbor nodes. • There is no capture effect. • Each station always has packets to transmit.

  7. A1 R=r A B A Simplified Condition • The carrier sense range is equal to the transmission range.

  8. A Simplified Condition (cont~)

  9. A Simplified Condition (cont~) • The simulations have been done by the network simulator - ns2. • Simulation area 1500x1500 m2. • We consider five topology scenarios and each scenario includes four traffic patterns. • Each node generates packets based on CBR model with packet sizes 256, 512, 1024 and 2048 bytes. • They correspond to packet arrival interval of 0.0013, 0.0026, 0.0052 and 0.01 sec.

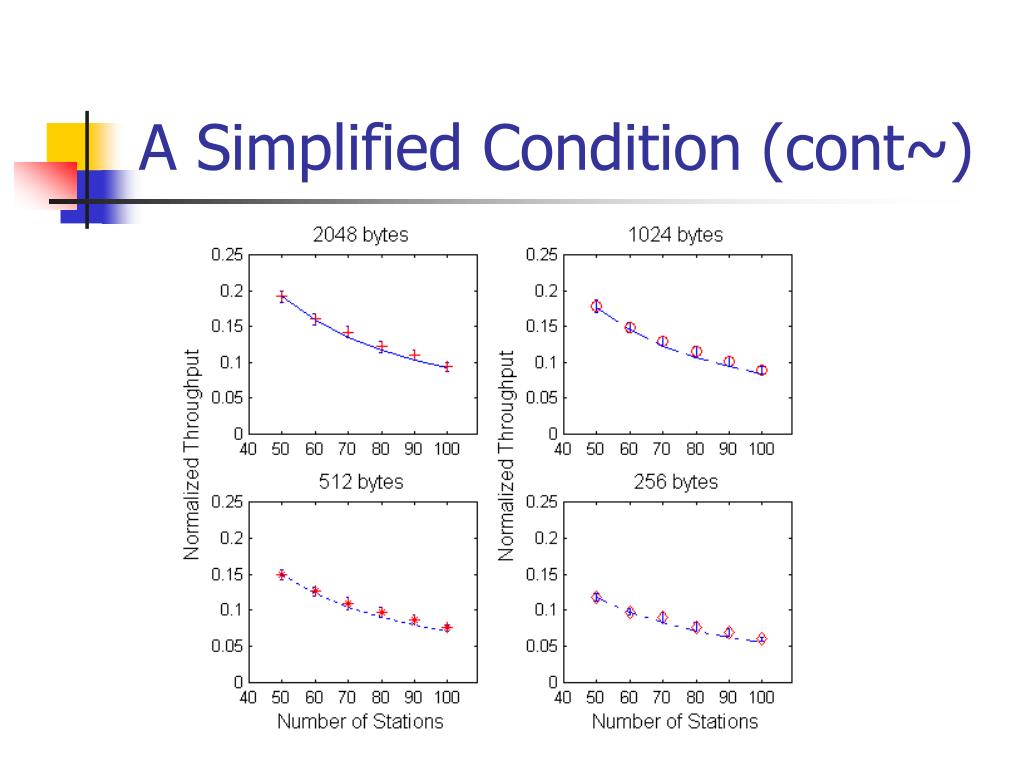

  10. A Simplified Condition (cont~)

  11. A Simplified Condition (cont~)

  12. A Simplified Condition (cont~)

  13. A1 R r A B A Realistic Carrier Sense Range • The carrier sense range is 550 meters and the transmission range is 250 meters.

  14. A Realistic Carrier Sense Range (cont~)

  15. A Realistic Carrier Sense Range (cont~)

  16. A Realistic Carrier Sense Range (cont~)

  17. Throughout Analysis for Single-hop Networks (cont~)

  18. Throughout Analysis for Single-hop Networks (cont~)

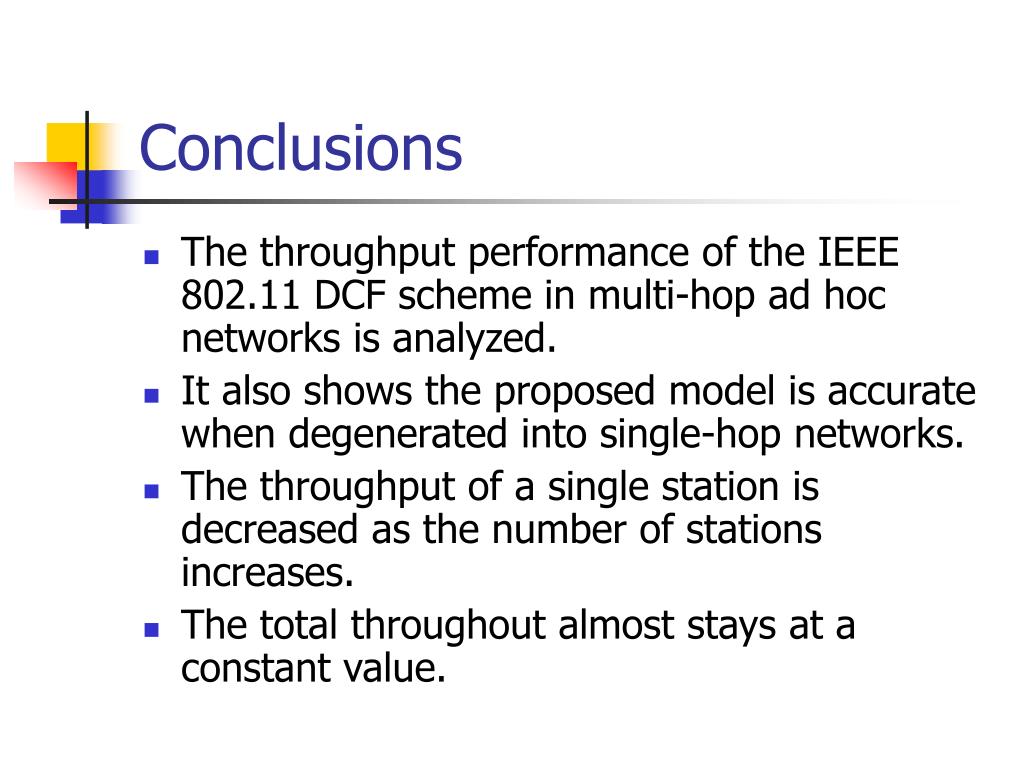

  19. Conclusions • The throughput performance of the IEEE 802.11 DCF scheme in multi-hop ad hoc networks is analyzed. • It also shows the proposed model is accurate when degenerated into single-hop networks. • The throughput of a single station is decreased as the number of stations increases. • The total throughout almost stays at a constant value.

  20. Conclusions (cont~) • The total network throughput is decreased as much as by 55% when the carrier sense range is equal to 550 meters. • The larger packet size results in the higher network throughput. • For spatial reuse factor, the results shows that there no clear relationship with the number of stations and packet size.

  21. Mathematical Analysis of the String Topology

  22. Mathematical Analysis of the String Topology (cont.) • Six possible situations observed by station 0 at the beginning of a slot.

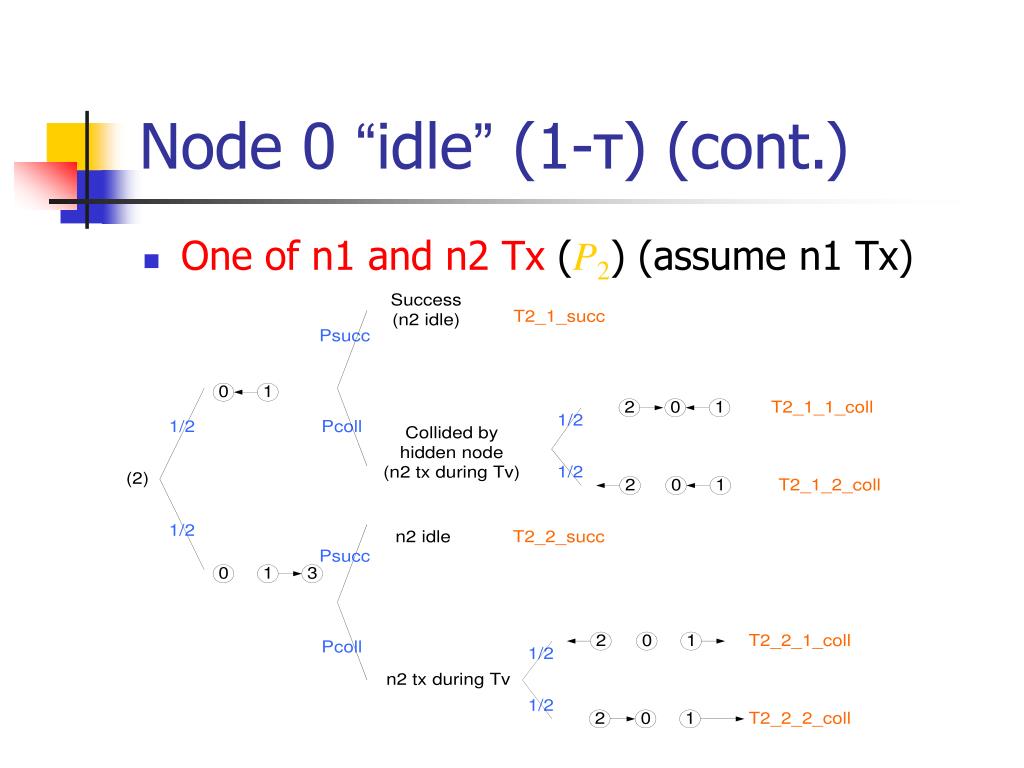

  23. Node 0 “idle” (1-τ) (cont.) • One of n1 and n2 Tx (P2) (assume n1 Tx)

  24. success: n2 idle during • collision: n2 Tx during Tv

  25. Mathematical Analysis of the String Topology (cont.)

  26. Analytical and Simulation Results (cont.) • The simulation throughput (13 stations) and the analytical throughput.

  27. An Alternative Mathematical Analysis of the String Topology • One directional traffic between two stations • No collisions ->

  28. An Alternative Mathematical Analysis of the String Topology (cont.) • The normalized throughput of the basic access scheme when there is one traffic.

  29. An Alternative Mathematical Analysis of the String Topology (cont.) • The normalized throughput of the RTS/CTS access scheme when there is one traffic.

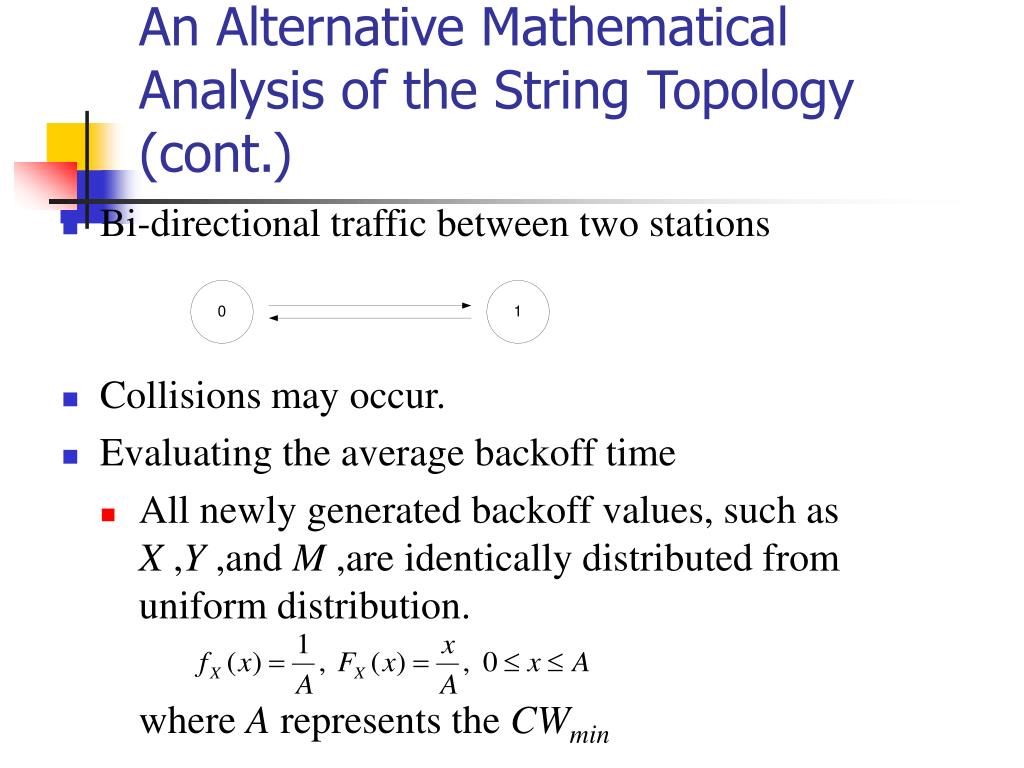

  30. An Alternative Mathematical Analysis of the String Topology (cont.) • Bi-directional traffic between two stations • Collisions may occur. • Evaluating the average backoff time • All newly generated backoff values, such as X ,Y ,and M ,are identically distributed from uniform distribution. where A represents the CWmin

  31. An Alternative Mathematical Analysis of the String Topology (cont.) • Let Z=|X-Y|. We have • A newly generated backoff value is M with the probability distribution as X, and Y. Let W=|M-Z|. We have • -> Z and W are identical distribution. • The expected backoff interval is

  32. An Alternative Mathematical Analysis of the String Topology (cont.) • Evaluating the collision probability

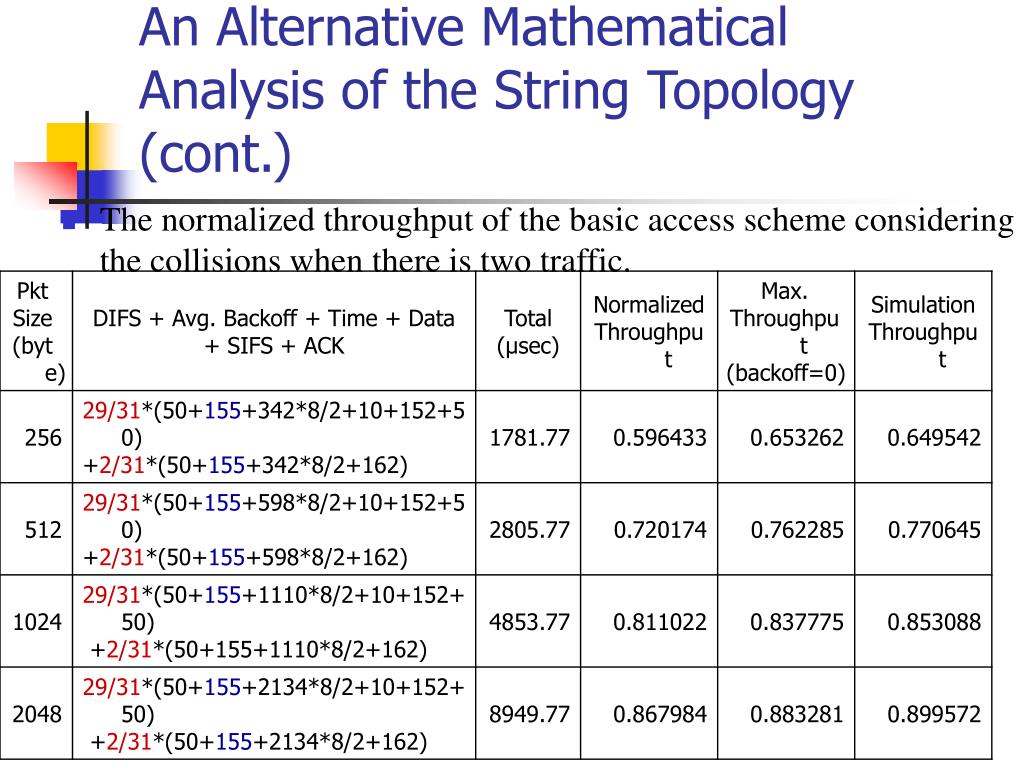

  33. An Alternative Mathematical Analysis of the String Topology (cont.) • The normalized throughput of the basic access scheme considering the collisions when there is two traffic.

  34. An Alternative Mathematical Analysis of the String Topology (cont.) • The normalized throughput of the RTS/CTS access scheme considering the collisions when there is two traffic.

  35. Appendix (simulation results)

  36. Appendix (simulation results)

  37. Appendix (simulation results)

  38. Appendix (simulation results)

  39. Conclusions • We first analyze the transmission behavior of stations in a string topology in the multi-hop environment. • In the presence of the hidden and exposed terminal problems, the mathematical analysis is more complicated compared to the single-hop wireless network. • From the analytical and simulation results, we find that a larger packet size can increase the normalized throughput.

  40. Conclusions (cont.) • For future research, we will proceed with the alternative mathematical analysis. • We may discuss the behavior under the assumption that the carrier sensing range is much larger than the transmission range, and the capture effect may be included. • Besides, we may extend our one-dimension topology to different types of topology.

  41. Conclusion • What we have done • We propose a new method to improve IEEE 802.11 performance and establish a model for analysis. • Simulation and comparison • What we are going to do • A general equation (even solution) for our model • More simulation
