Posture: Static vs. Dynamic Control & Equilibrium

emuhammad avatar
17 diapositives · 377 Views · Jan 02, 2020

Posture can be static or dynamic, affecting body alignment and movement. Explore how external forces like inertia, gravity, and ground reaction forces impact postural control. Learn about the body's systems involved in maintaining stability and equilibrium.

Posture: Static vs. Dynamic Control & Equilibrium - slide 1
01 / 17Posture: Static vs. Dynamic Control & Equilibrium
1 / 17

Télécharger la présentation

Posture: Static vs. Dynamic Control & Equilibrium
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

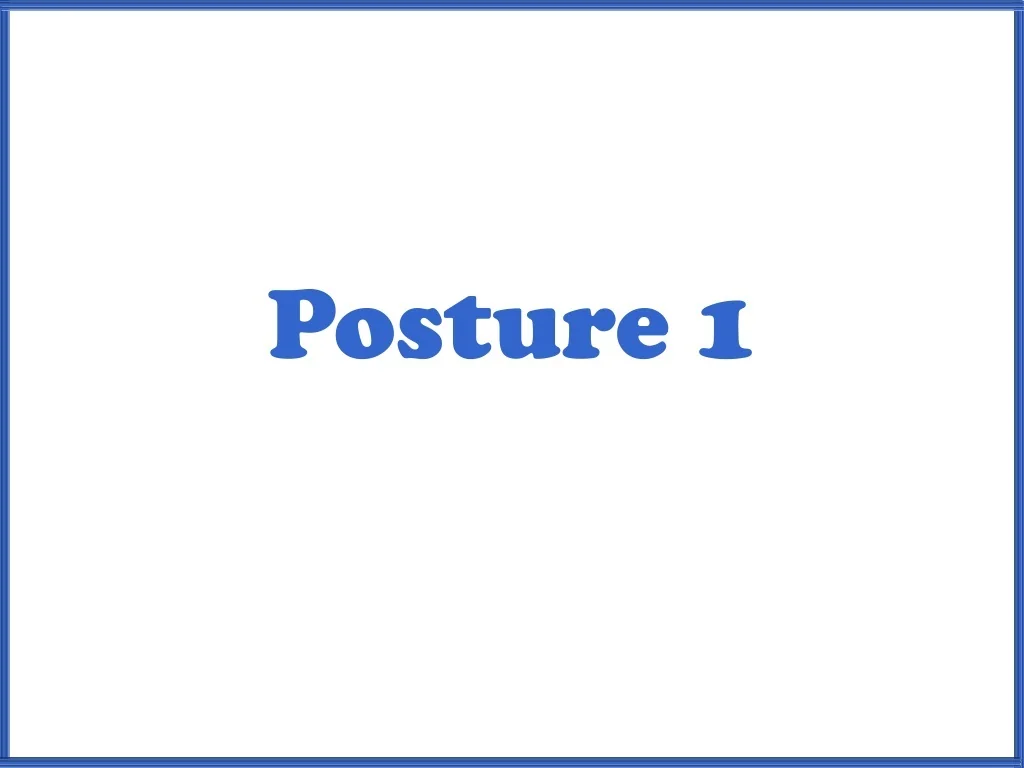

  1. Posture 1

  2. Posture can be either: Static or Dynamic

  3. In static posture the body and its segments are aligned and maintained in certain positions Such as in Standing Lying Sitting

  4. In dynamic posture the body and its segments are moving Such as in Running Jumping Walking

  5. The base of support is an area bounded posteriorly by the tips of the heels and anteriorly by a line joining the tips of thee toes When there is a smaller base of support, there is less stability

  6. The human’s center of gravity (COG), is located within the body approximately at the level of the second sacral segment When the center of gravity is higher, there is less stability

  7. Postural control is a person’s ability to maintain stability of the body segments in response to forces that threaten to disturb the body’s structural equilibrium

  8. Maintenance and control of posture depends on the integrity of: 1- Central nervous system 2- Visual system 3- Vestibular system 4- Musculoskeletal system 5- The input from receptors in and around joints, ligaments and tendons

  9. The external forces on the body and body segments are 1- Inertia 2- Gravity 3- Ground reaction forces

  10. The internal forces on the body and body segments are produced by muscle activity and passive tension in ligaments, tendons, joint capsules, and other soft-tissue structures

  11. For the body to be in equilibrium, the sum of all forces acting on the body and its segments bust be equal to 0

  12. Inertial Forces Inertial forces are ignored in static posture because there is a little or no acceleration occurring

  13. Inertial Forces Inertial forces must be considered in all postural analysis of all dynamic postures such as walking or running

  14. Gravitational Forces Gravitational forces act downward from the body's center of gravity

  15. Gravitational Forces In the static erect posture the body’s COG falls within the base of support

  16. Gravitational Forces In the dynamic posture such as walking the body’s COG falls outside of the borders of the feet during a large portion of the activity

  17. Ground Reaction Forces Ground reaction forces are the forces that act on the body as a result of interaction with the ground
