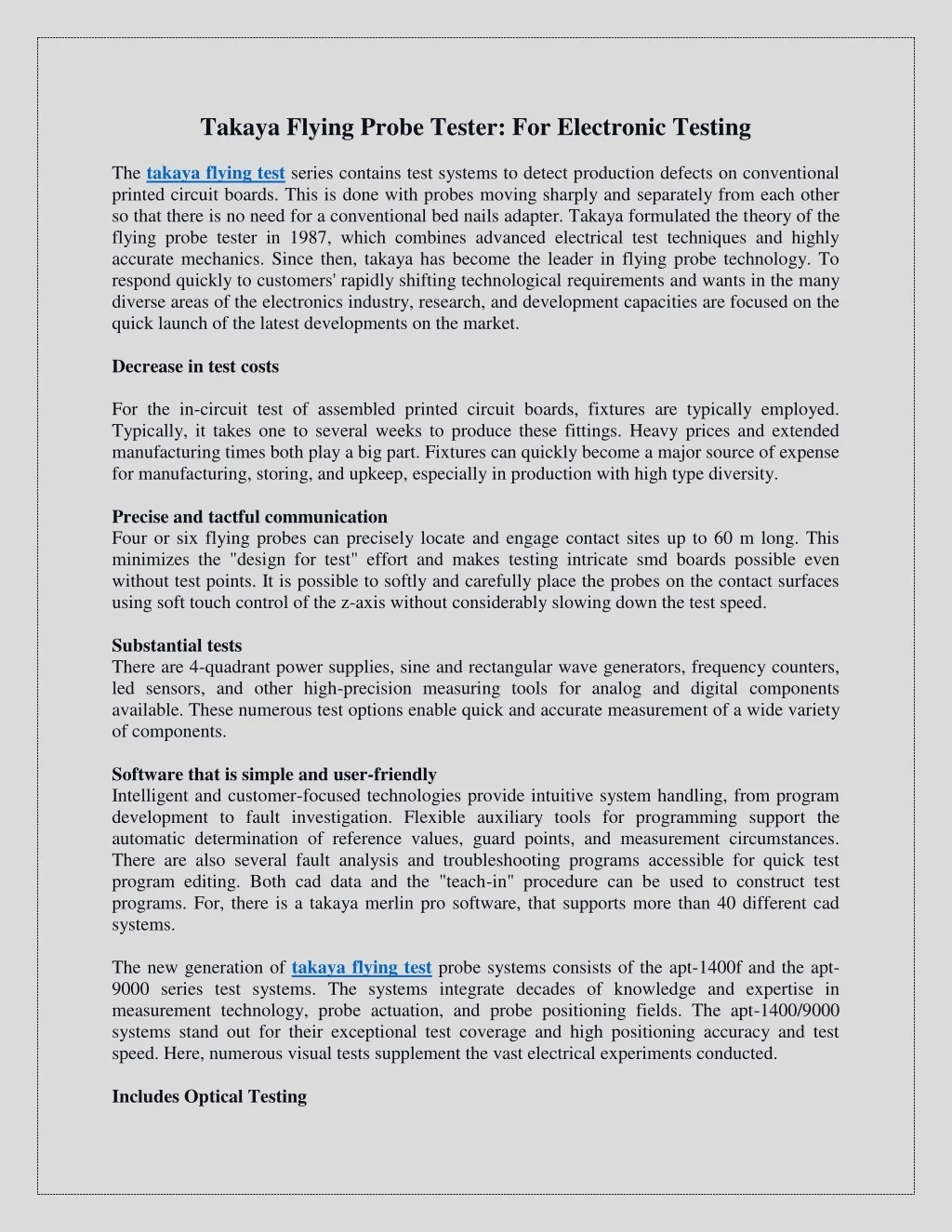

1. Takaya Flying Probe Tester: For Electronic Testing The takaya flying test series contains test systems to detect production defects on conventional printed circuit boards. This is done with probes moving sharply and separately from each other so that there is no need for a conventional bed nails adapter. Takaya formulated the theory of the flying probe tester in 1987, which combines advanced electrical test techniques and highly accurate mechanics. Since then, takaya has become the leader in flying probe technology. To respond quickly to customers' rapidly shifting technological requirements and wants in the many diverse areas of the electronics industry, research, and development capacities are focused on the quick launch of the latest developments on the market. Decrease in test costs For the in-circuit test of assembled printed circuit boards, fixtures are typically employed. Typically, it takes one to several weeks to produce these fittings. Heavy prices and extended manufacturing times both play a big part. Fixtures can quickly become a major source of expense for manufacturing, storing, and upkeep, especially in production with high type diversity. Precise and tactful communication Four or six flying probes can precisely locate and engage contact sites up to 60 m long. This minimizes the "design for test" effort and makes testing intricate smd boards possible even without test points. It is possible to softly and carefully place the probes on the contact surfaces using soft touch control of the z-axis without considerably slowing down the test speed. Substantial tests There are 4-quadrant power supplies, sine and rectangular wave generators, frequency counters, led sensors, and other high-precision measuring tools for analog and digital components available. These numerous test options enable quick and accurate measurement of a wide variety of components. Software that is simple and user-friendly Intelligent and customer-focused technologies provide intuitive system handling, from program development to fault investigation. Flexible auxiliary tools for programming support the automatic determination of reference values, guard points, and measurement circumstances. There are also several fault analysis and troubleshooting programs accessible for quick test program editing. Both cad data and the "teach-in" procedure can be used to construct test programs. For, there is a takaya merlin pro software, that supports more than 40 different cad systems. The new generation of takaya flying test probe systems consists of the apt-1400f and the apt- 9000 series test systems. The systems integrate decades of knowledge and expertise in measurement technology, probe actuation, and probe positioning fields. The apt-1400/9000 systems stand out for their exceptional test coverage and high positioning accuracy and test speed. Here, numerous visual tests supplement the vast electrical experiments conducted. Includes Optical Testing

2. The sophisticated recognition technology in apt systems enables accurate and dependable automatic optical testing. The optical system expands test coverage for components that cannot be evaluated using an electrical test. This is done by identifying missing, offset, or polarity- reversed components. Additionally, the camera captures 1d and 2d barcodes, which are included in the test reports. Accurate measurement and assignment of results are always ensured. External communication The apt test systems series are equipped with interfaces for external measuring and testing systems. All external testing systems such as boundary scans, system programming, frequency measurements, and function tests are now easy to conduct because of the open platform. Quality, reliability, and convenience Measuring equipment is the most crucial component of the takaya flying tester. However, the system's mechanical design is very rigid. Make sure not to compromise here. To conclude An organization with preparation can walk farther by reducing lead time and getting accurate tests. Your designs are given to takaya flying test for testing. Sometimes you may have to provide us with updated files if the old ones do not work correctly. Moreover, it is impossible to know until you hand over your data. So, respond sooner. Make sure to provide your contact manufacturer of electrical schematics whenever possible. Or else it would not be easy to compare boards and tell what your parts are supposed to do. In several cases, we remove any mysterious element from the program instead of starting from the beginning. Contact Us Address H - 2220 Vecsés Vágóhíd u. 19. Hungary / Europe Phone +36 15333165 https://www.facebook.com/EquipTest?ref=hl https://www.youtube.com/channel/UCIg2_KEceqqm6FdZT5CCMGw https://www.instagram.com/equiptest/ https://twitter.com/equiptestgroup
