Mission data

Mission data. Launch vehicle data. Mission payloads. Delta 4 Heavy US. 2 x [3 SSME + 2 x 4-Segment SRB, Inline]. 2 x [3 SSME + 2 x 4-Segment SRB, Side-Mount]. 2 x [4 SSME + 2 x 5-Segment SRB, Inline]. 1 x [4 SSME + 2 x 5-Segment SRB, In-line]. NEO Mission (2 Crew). GEO Mission (4 Crew).

ernst
Télécharger la présentation

Mission data

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

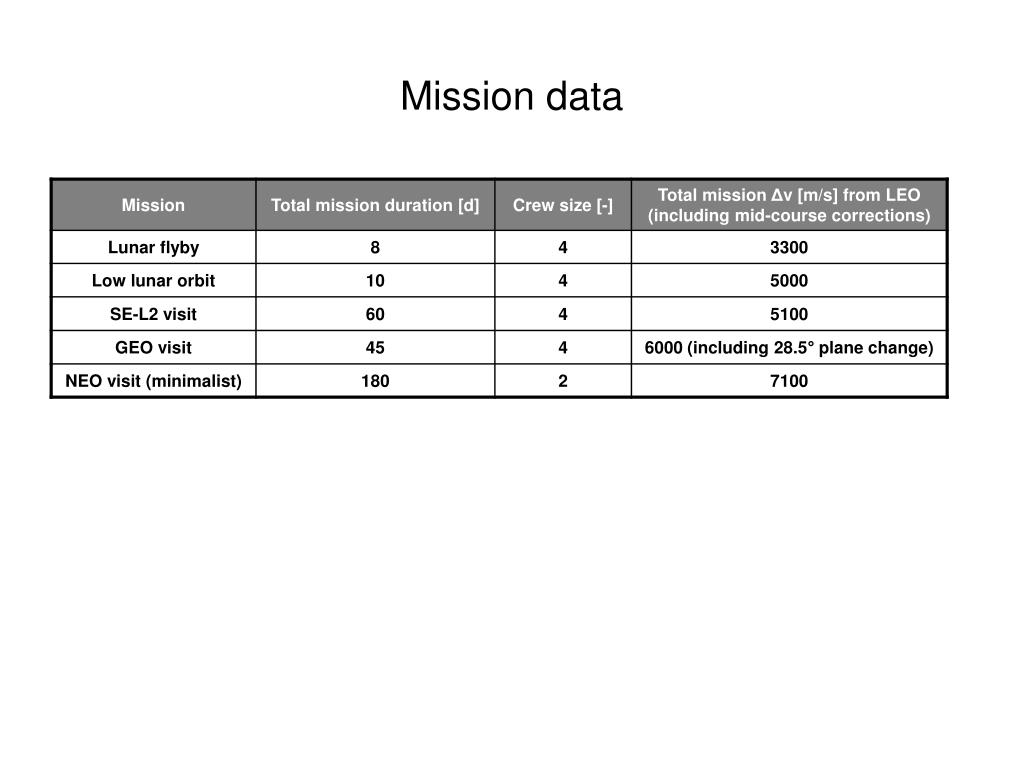

  1. Mission data

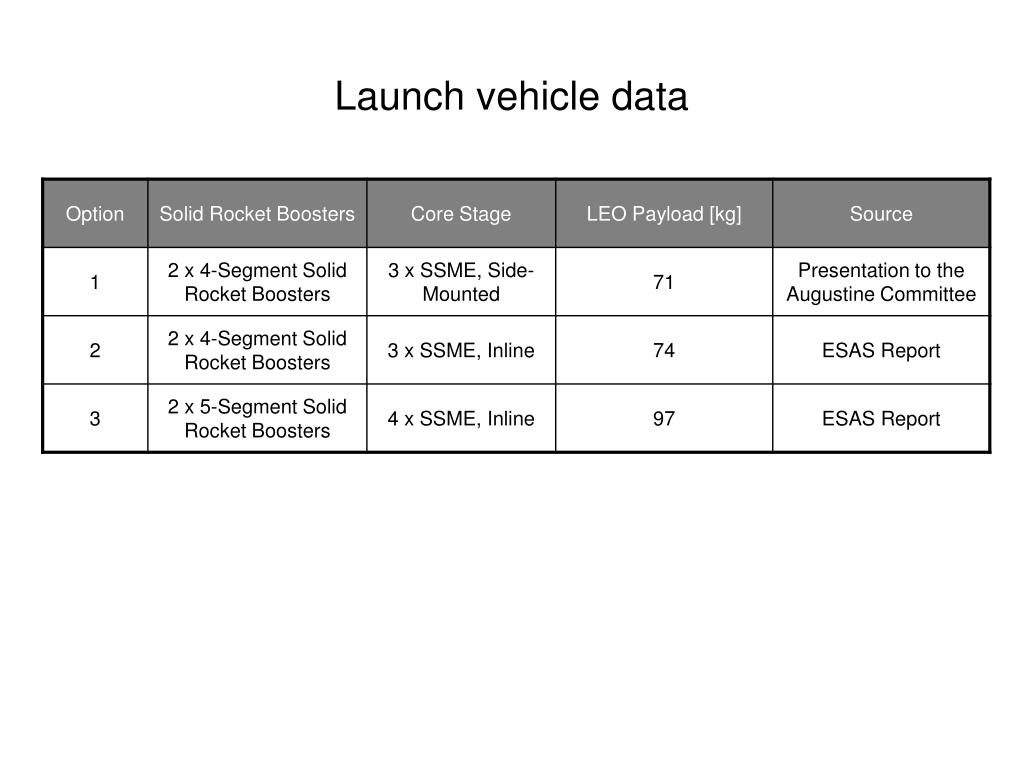

  2. Launch vehicle data

  3. Mission payloads

  4. Delta 4 Heavy US 2 x [3 SSME +2 x 4-Segment SRB,Inline] 2 x [3 SSME +2 x 4-Segment SRB,Side-Mount] 2 x [4 SSME +2 x 5-Segment SRB,Inline] 1 x [4 SSME +2 x 5-Segment SRB,In-line] NEO Mission (2 Crew) GEO Mission(4 Crew) CEV SM + 5 Delta 4 Heavy Upper Stage SE-L2 Mission (4 Crew) CEV SM + 4 Delta 4 Heavy Upper Stage CEV SM + 3 Delta 4 Heavy Upper Stage Low Lunar Orbit Mission (4 Crew) CEV SM + 2 Delta 4 Heavy Upper Stage CEV SM + 1 Delta 4 Heavy Upper Stage Lunar Flyby Mission (4 Crew) 1 x [3 SSME +2 x 4-Segment SRB,Inline] 1 x [4 SSME +2 x 5-Segment SRB,In-line] 1 x [3 SSME +2 x 4-Segment SRB, Side-Mount]

  5. Centaur V1 2 x [3 SSME +2 x 4-Segment SRB,Side-Mount] 2 x [3 SSME +2 x 4-Segment SRB,Inline] 1 x [4 SSME +2 x 5-Segment SRB,In-line] 2 x [4 SSME +2 x 5-Segment SRB,Inline] NEO Mission (2 Crew) GEO Mission(4 Crew) CEV SM + 5 Centaur V1 CEV SM + 4 Centaur V1 CEV SM + 3 Centaur V1 SE-L2 Mission (4 Crew) CEV SM + 2 Centaur V1 Low Lunar Orbit Mission (4 Crew) Lunar Flyby Mission (4 Crew) CEV SM + 1 Centaur V1 1 x [3 SSME +2 x 4-Segment SRB,Inline] 1 x [4 SSME +2 x 5-Segment SRB,In-line] 1 x [3 SSME +2 x 4-Segment SRB, Side-Mount]

  6. ITV Designs ~ 25 m Crew compartment+ Science Payload Centaur V1 Centaur V1 ~ 30 m Centaur V1 CEV Centaur V1 ~ 25 m Delta IV HeavyUpper Stage Delta IV HeavyUpper Stage ~ 25 m Crew compartment+ Science Payload CEV Delta IV HeavyUpper Stage
