  1. Three Way Switches • Duplex grounding receptacle • Two three way switches • Light Revised May 2007

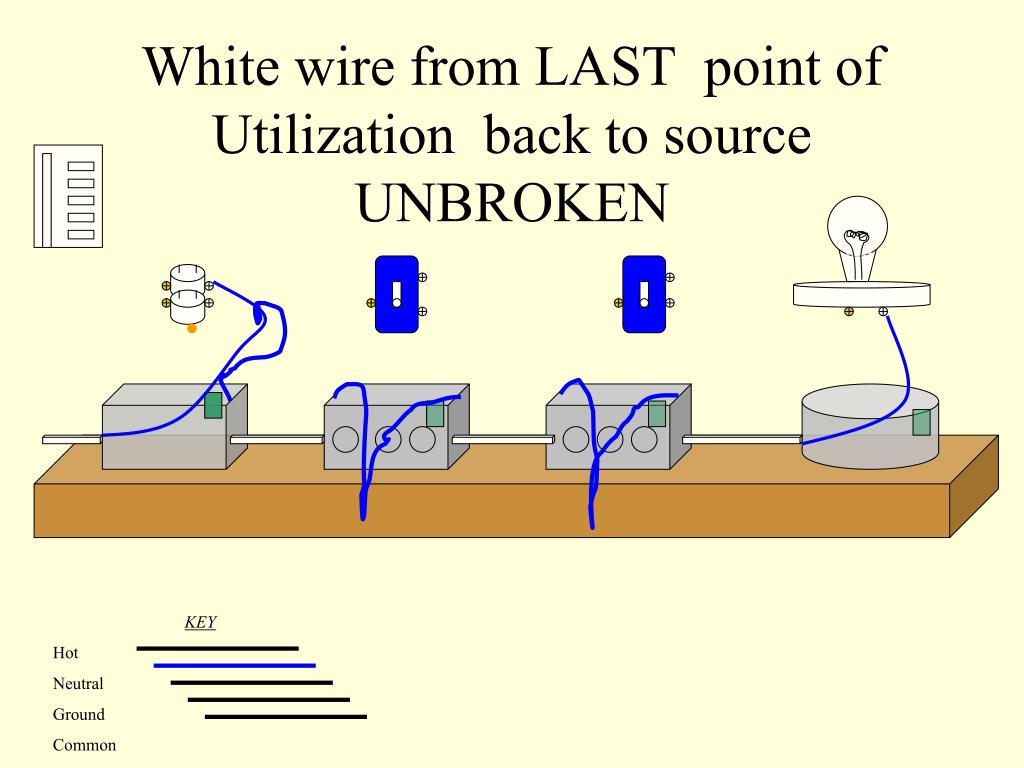

  2. White wire from LAST point of Utilization back to source UNBROKEN KEY Hot Neutral Ground Common

  3. Black wire from source to brass terminals KEY Hot Neutral Ground Common

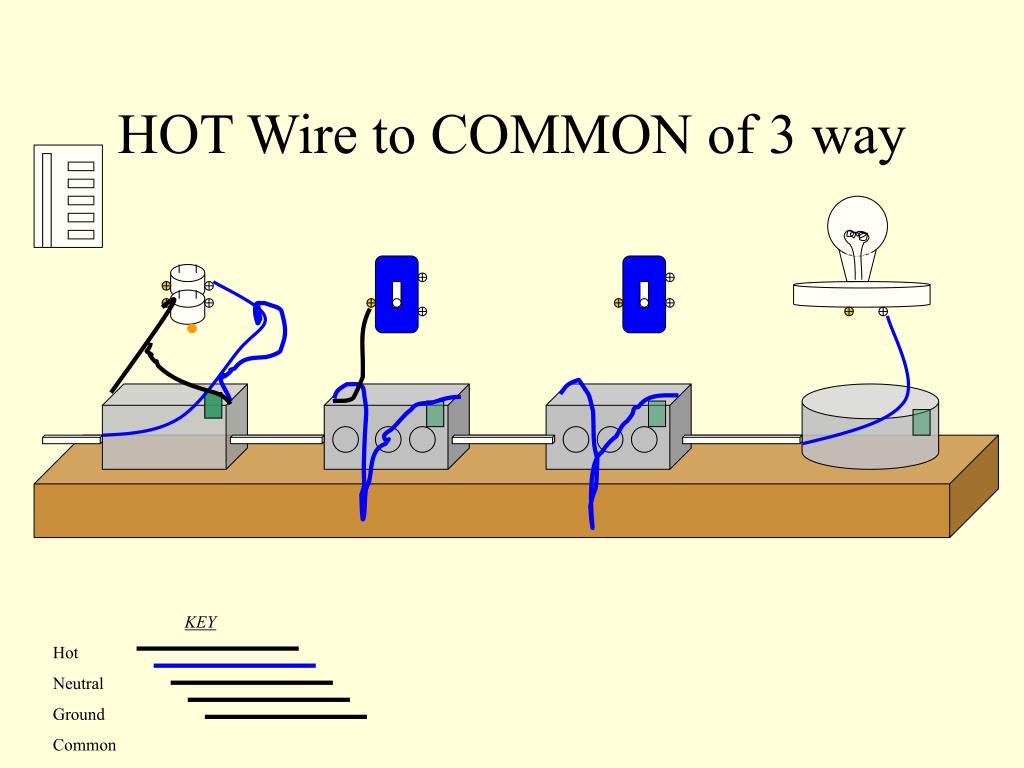

  4. HOT Wire to COMMON of 3 way KEY Hot Neutral Ground Common

  5. Black Wire from 3 way to Brass of Light

  6. Connect “Traveler wires” KEY Hot Neutral Ground Common

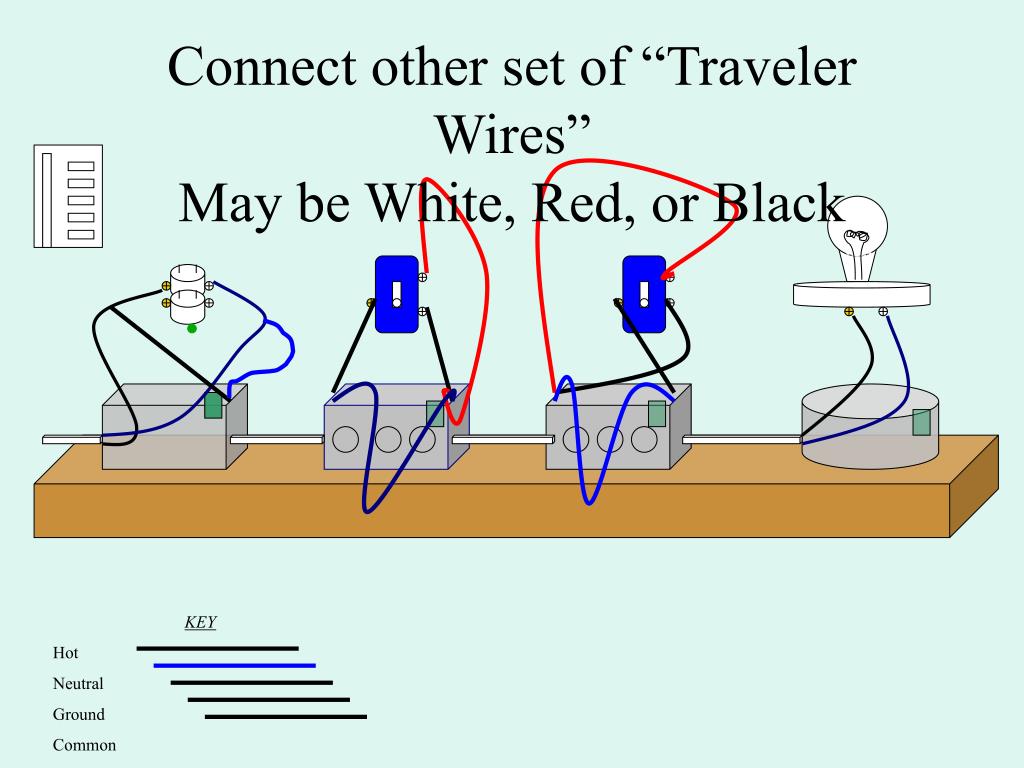

  7. Connect other set of “Traveler Wires”May be White, Red, or Black KEY Hot Neutral Ground Common

  8. Ground circuitGround to Box EVERYTIME
