Classification of Bacteria

Classification of Bacteria. Differentiation of Bacteria by Cell Wall Composition. Bacteria Cell Walls. The cell wall is the outer most layer of the cell. In many cases the cell wall comes in direct contact with the environment. Function Protection of the cell

evaline
Télécharger la présentation

Classification of Bacteria

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

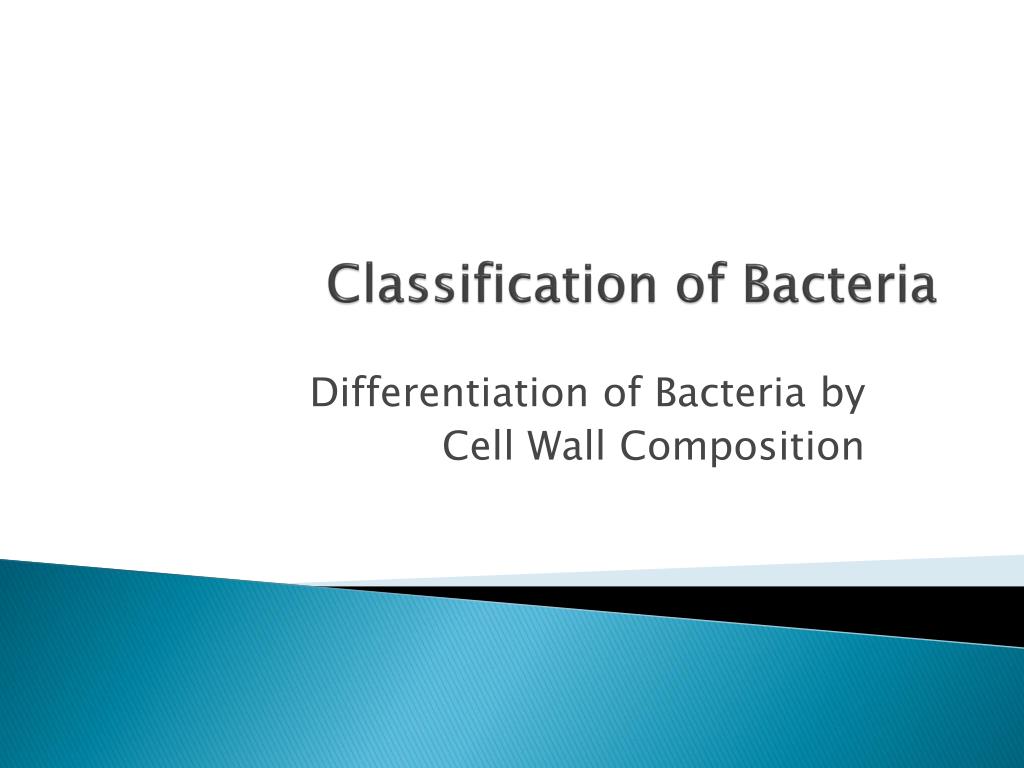

  1. Classification of Bacteria Differentiation of Bacteria by Cell Wall Composition

  2. Bacteria Cell Walls The cell wall is the outer most layer of the cell. In many cases the cell wall comes in direct contact with the environment. Function • Protection of the cell • Maintains the shapes of the cell • Maintains the osmotic integrity of the cell

  3. Bacterial Cell Walls • Provide structure and shape and protect cell from osmotic forces • Assist some cells in attaching to other cells or in eluding antimicrobial drugs • Not present in animal cells, so can target cell wall of bacteria with antibiotics • Bacteria and archaea have different cell wall chemistry

  4. Bacterial Morphology

  5. Morphology Relation to Cell Wall Composition Consider the three morphological distinctions of bacteria. Which of these shapes would need to be flexible in order to exhibit the shape of the bacterium?

  6. Bacteria Cell Walls Bacteria are classified into two groups based on the composition of their cell walls. The two groups are known as gram positive and gram negative.

  7. Bacterial Cell Walls • Most have cell wall composed of peptidoglycan • Peptidoglycan is composed of sugars, NAG, and NAM • Chains of NAG and NAM attached to other chains by tetrapeptide crossbridges • Bridges may be covalently bonded to one another • Bridges may be held together by short connecting chains of amino acids

  8. Gram Positive Cell Wall Gram-positive cell walls • Relatively thick layer of peptidoglycan • Contain unique polyalcohols called teichoic acids • Some covalently linked to lipids, forming lipoteichoic acids that anchor peptidoglycan to cell membrane • Retain crystal violet dye in Gram staining procedure; so appear purple

  9. Gram Positive Cell Wall The gram positive cell wall is referred to as a peptidoglycan layer and is composed of alternating subunits of two carbohydrates: n-acetyl muramic acid and n-acetyl glucosamine.

  10. Gram Positive Cell Wall The gram positive cell wall is referred to as a peptidoglycan layer and is composed of alternating subunits of two carbohydrates: n-acetyl muramic acid (NAM) and n-acetyl glucosamine (NAG).

  11. Gram Negative Cell Wall • Gram-negative cell walls • Have only a thin layer of peptidoglycan • Bilayer membrane outside the peptidoglycan contains phospholipids, proteins, and lipopolysaccharide (LPS) • May be impediment to the treatment of disease • Appear pink following Gram staining procedure

  12. Gram Negative Cell Wall The gram negative cell wall consists of two distinct layers. The outer most layer is referred as the outer membrane and is composed of lipopolysaccarhides (LPS). The second layer a peptidoglycan layer that is homologous to a gram positive cell wall.

  13. Comparison of Gram Negative and Gram Positive Cell Walls

  14. Application of Cell Wall Difference Why does the gram stain work? How is the differences of cell wall types used to distinguish the different bacterial types?

  15. Application of Cell Wall Difference Scenario You have been give a slide with a mixture of gram positive (coccus) and gram negative bacteria (spirochete). Think about the gram stain procedure as it relates to the cell wall differences. What would the end result of each step of the gram stain be for each of the bacteria types?

  16. Application of Cell Wall Difference Gram Staining Procedure Reagent Function Results Crystal Violet Primary Stain Iodine Mordant Acetone-Alcohol Decolorizer Safranin Counter Stain

  17. Results of the Gram Stain

  18. Conclusion Why does the gram stain work? Because of the differences of cell wall composition.

  19. Conclusion The gram positive cell wall is referred to as a peptidoglycan layer and is composed of alternating subunits of two carbohydrates: n-acetyl muramic acid and n-acetyl glucosamine. The gram negative cell wall consists of two distinct layers. The outer most layer is referred as the outer membrane and is composed of lipopolysaccarhides (LPS). The second layer a peptidoglycan layer that is homologous to a gram positive cell wall.

  20. Comparison of Gram Negative and Gram Positive Cell Walls

  21. Prokaryotic Cell Walls • Archaeal Cell Walls • Do not have peptidoglycan • Contains variety of specialized polysaccharides and proteins • Gram-positive archaea stain purple • Gram-negative archaea stain pink
