  1. BIS Application @Linac4 and outlookfor post LS1 Maxime Audrain TE-MPE TM, 2014-04-03 On behalf of the TE-MPE-MS Software Team: D. Anderson, M. Dragu, K. Fuchsberger, J.-C. Garnier, A. Gorzawski, M. Koza, K.H. Krol, A. Moscatelli, K.Stamos, P.C. Turcu M.A - TE-MPE TM - 3rd of April 2014

  2. Content

  3. Architecture overview M.A - TE-MPE TM - 3rd of April 2014

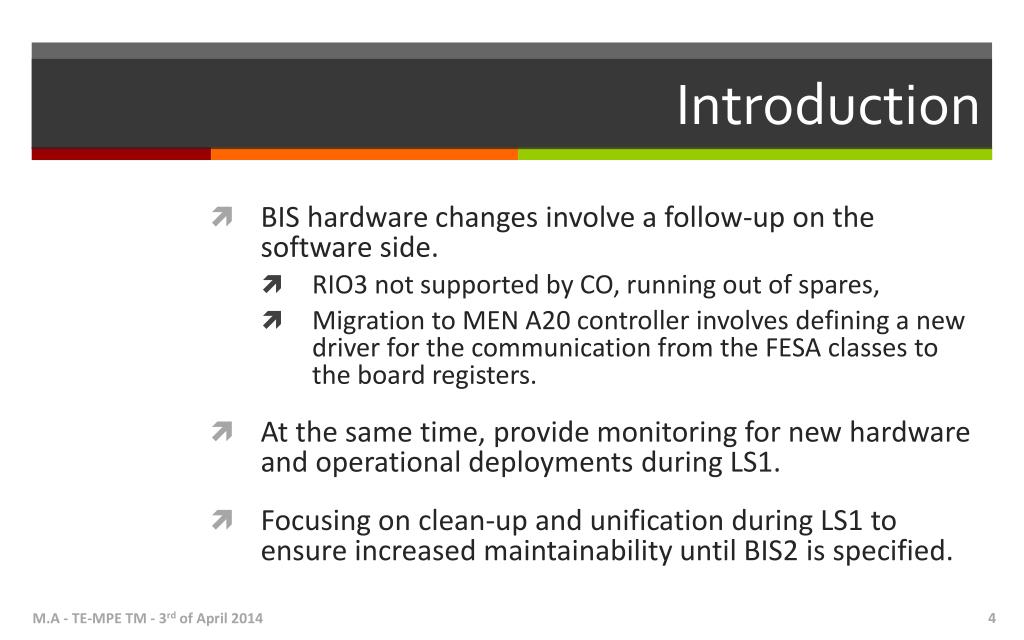

  4. Introduction • BIS hardware changes involve a follow-up on the software side. • RIO3 not supported by CO, running out of spares, • Migration to MEN A20 controller involves defining a new driver for the communication from the FESA classes to the board registers. • At the same time, provide monitoring for new hardware and operational deployments during LS1. • Focusing on clean-up and unification during LS1 to ensure increased maintainability until BIS2 is specified. M.A - TE-MPE TM - 3rd of April 2014

  5. Status of BIS in operation during LS1

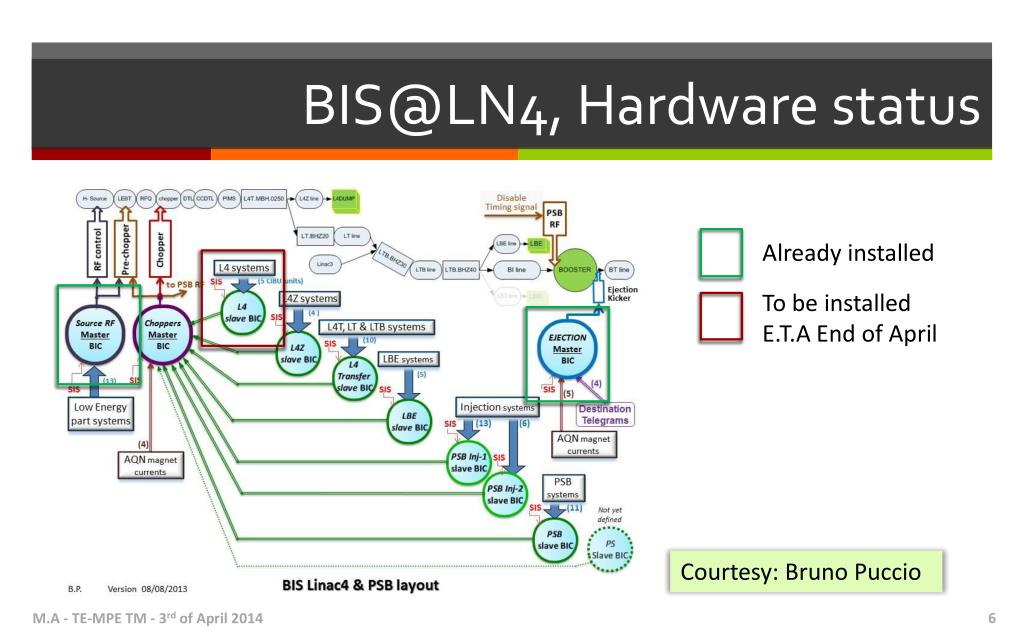

  6. BIS@LN4, Hardware status Already installed To be installed E.T.A End of April Courtesy: Bruno Puccio M.A - TE-MPE TM - 3rd of April 2014

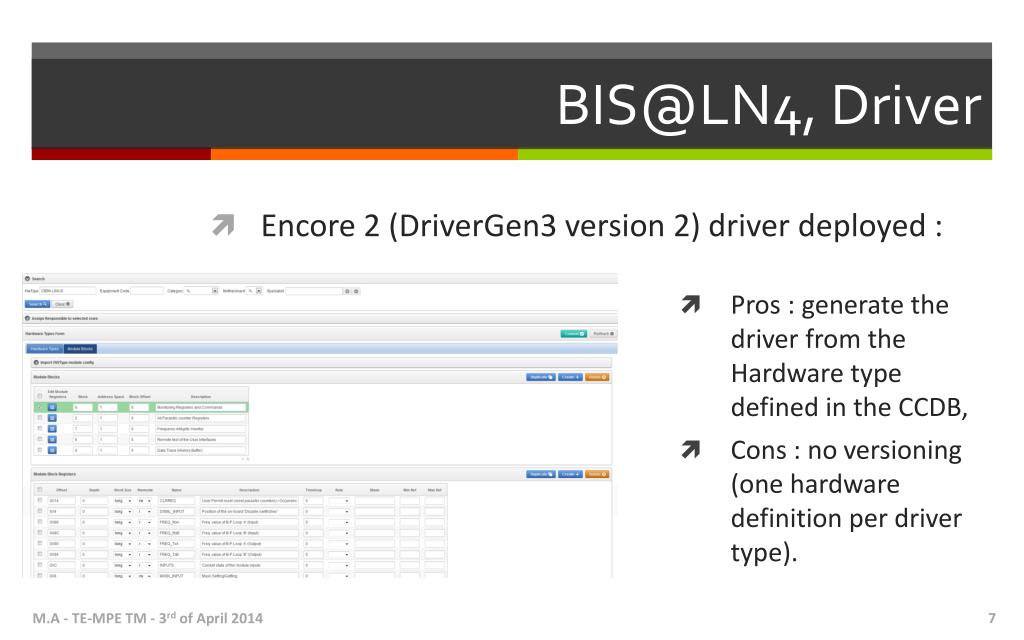

  7. BIS@LN4, Driver • Pros : generate the driver from the Hardware type defined in the CCDB, • Cons : no versioning (one hardware definition per driver type). • Encore 2 (DriverGen3 version 2) driver deployed : M.A - TE-MPE TM - 3rd of April 2014

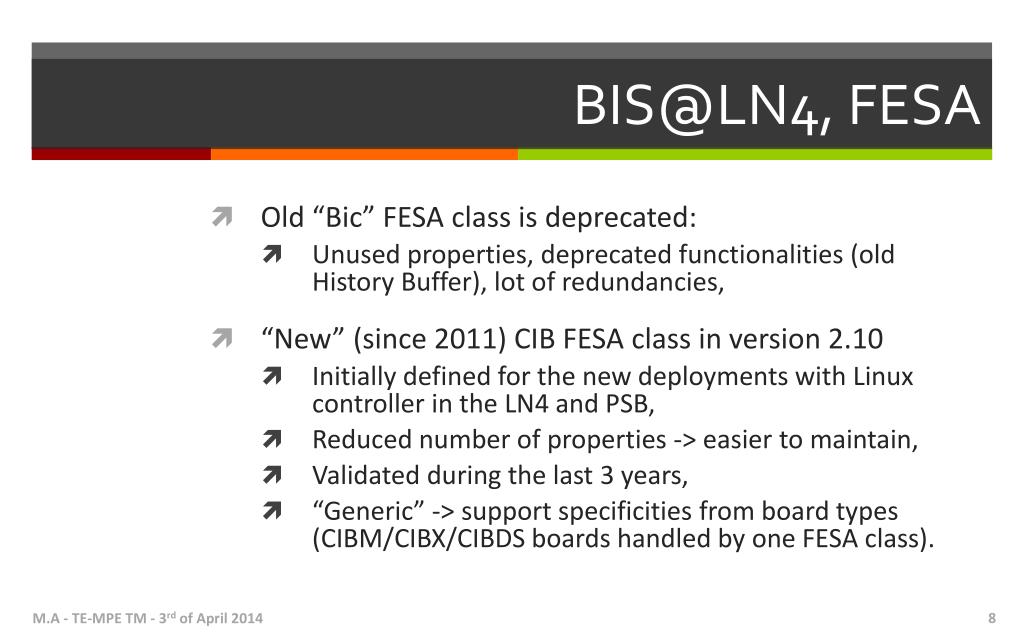

  8. BIS@LN4, FESA • Old “Bic” FESA class is deprecated: • Unused properties, deprecated functionalities (old History Buffer), lot of redundancies, • “New” (since 2011) CIB FESA class in version 2.10 • Initially defined for the new deployments with Linux controller in the LN4 and PSB, • Reduced number of properties -> easier to maintain, • Validated during the last 3 years, • “Generic” -> support specificities from board types (CIBM/CIBX/CIBDS boards handled by one FESA class). M.A - TE-MPE TM - 3rd of April 2014

  9. BIS@LN4, GUIs – BIS supervisor • Refactored version of the old LHC/SPS/TL BIS supervisor, • Cleaned, no deprecated functionalities, expert oriented, • But not adapted for cyclic machines (LN4, PSB, TL, SPS). M.A - TE-MPE TM - 3rd of April 2014

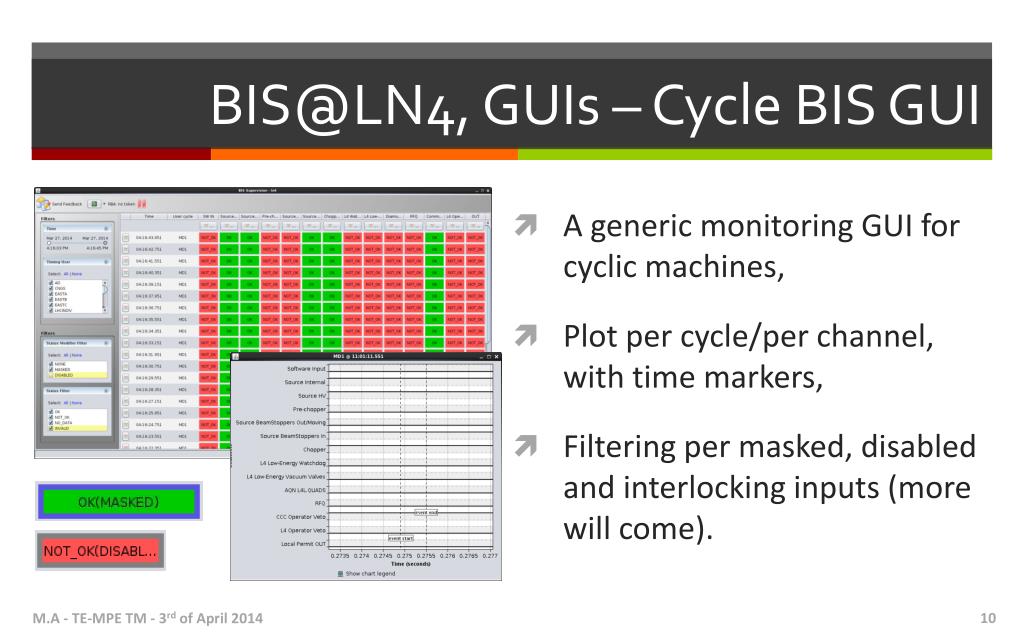

  10. BIS@LN4, GUIs – Cycle BIS GUI • A generic monitoring GUI for cyclic machines, • Plot per cycle/per channel, with time markers, • Filtering per masked, disabled and interlocking inputs (more will come). M.A - TE-MPE TM - 3rd of April 2014

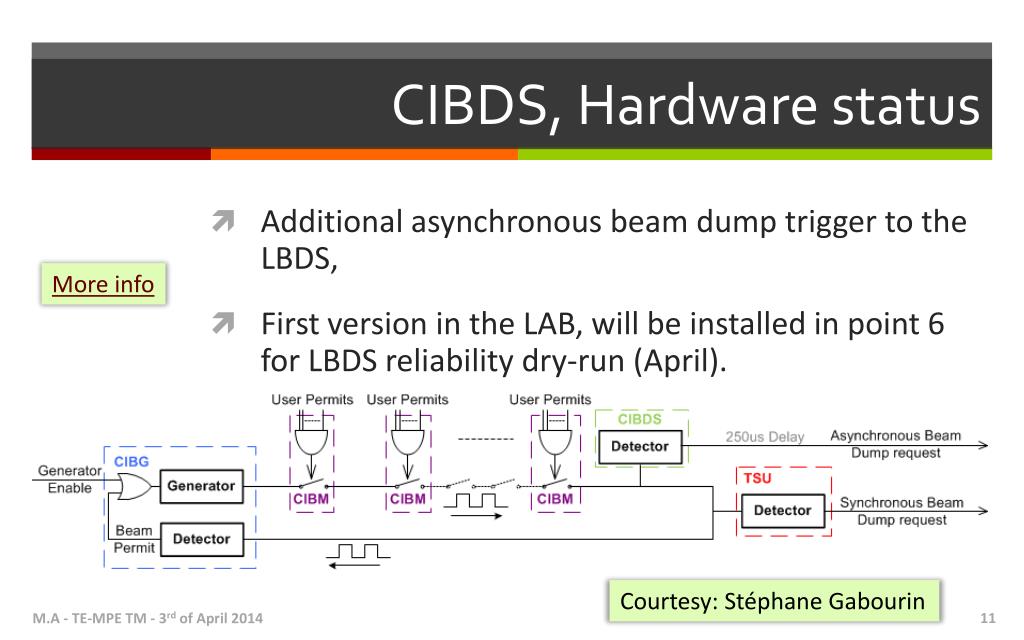

  11. CIBDS, Hardware status • Additional asynchronous beam dump trigger to the LBDS, • First version in the LAB, will be installed in point 6 for LBDS reliability dry-run (April). More info Courtesy: Stéphane Gabourin M.A - TE-MPE TM - 3rd of April 2014

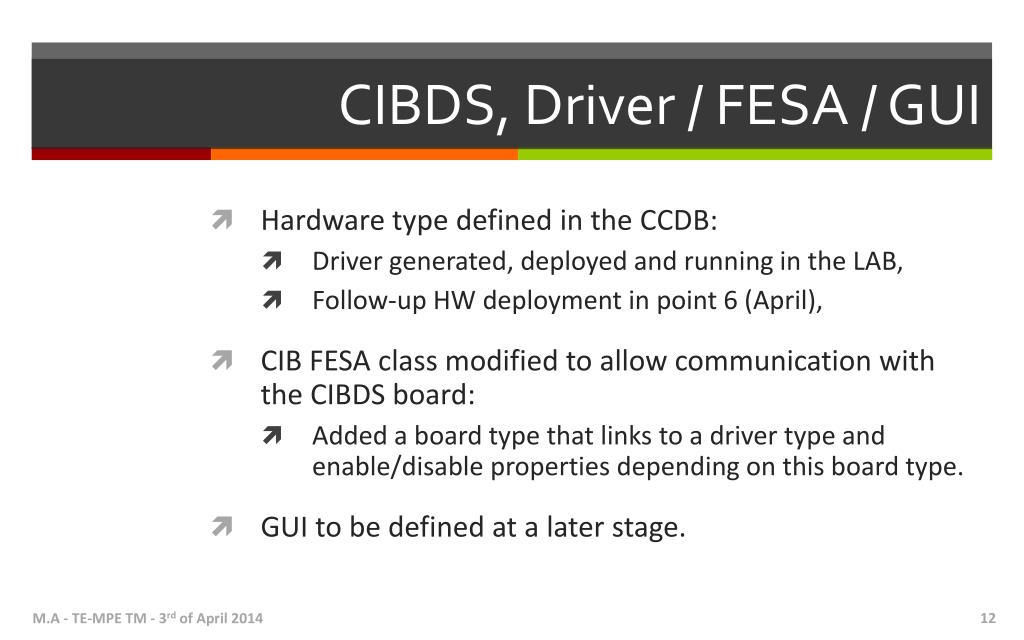

  12. CIBDS, Driver / FESA / GUI • Hardware type defined in the CCDB: • Driver generated, deployed and running in the LAB, • Follow-up HW deployment in point 6 (April), • CIB FESA class modified to allow communication with the CIBDS board: • Added a board type that links to a driver type and enable/disable properties depending on this board type. • GUI to be defined at a later stage. M.A - TE-MPE TM - 3rd of April 2014

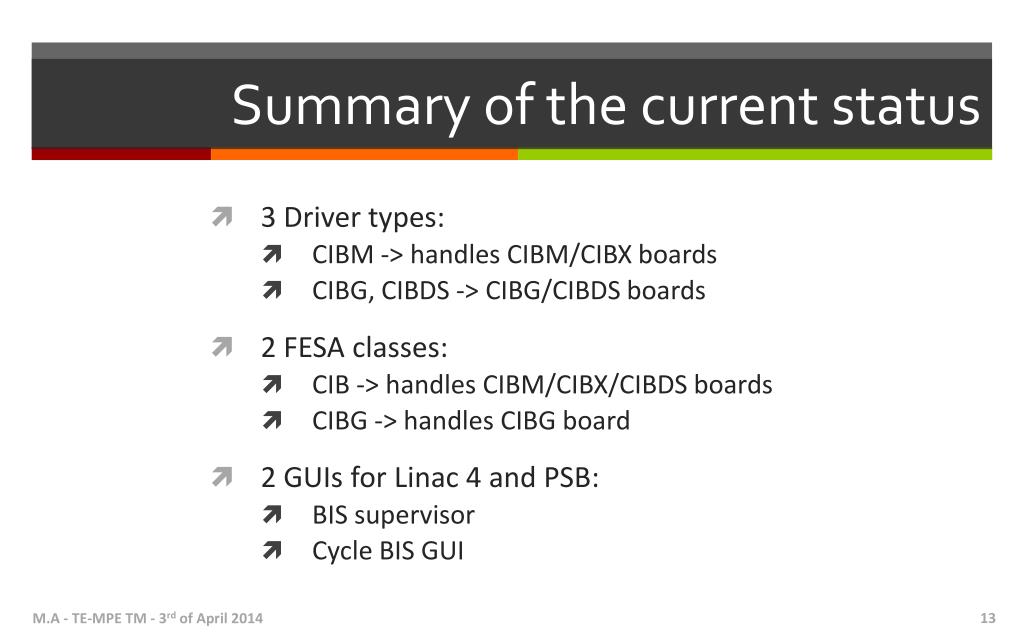

  13. Summary of the current status • 3 Driver types: • CIBM -> handles CIBM/CIBX boards • CIBG, CIBDS -> CIBG/CIBDS boards • 2 FESA classes: • CIB -> handles CIBM/CIBX/CIBDS boards • CIBG -> handles CIBG board • 2 GUIs for Linac 4 and PSB: • BIS supervisor • Cycle BIS GUI M.A - TE-MPE TM - 3rd of April 2014

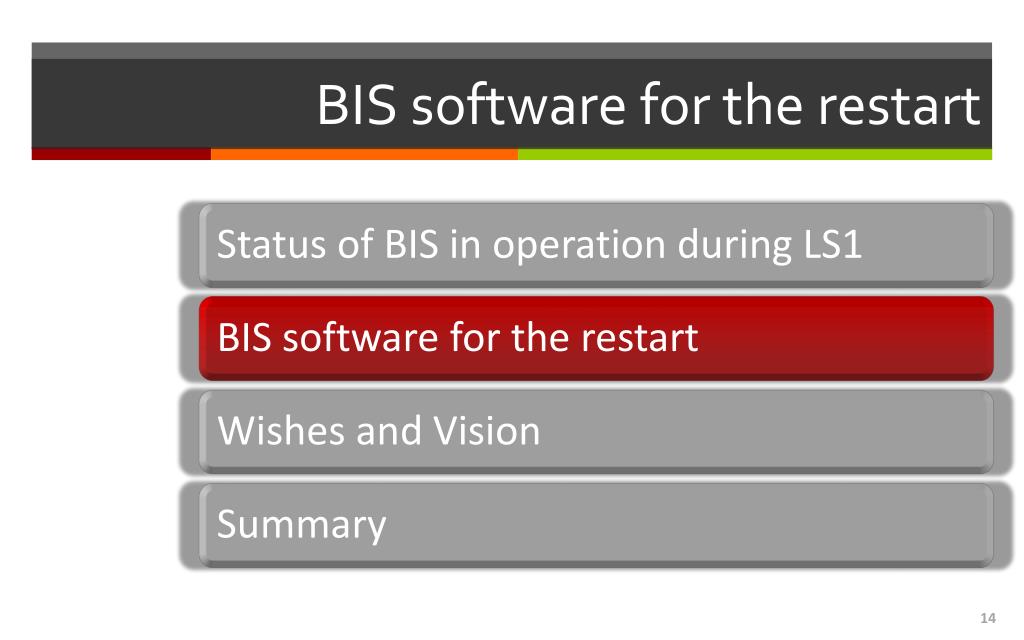

  14. BIS software for the restart

  15. Priorities qualification • mandatory for BIS operation after LS1, • highly recommended for BIS operation after LS1, • Can reuse/recycle functionality from previous/other GUIs! • Functionality already provided! M.A - TE-MPE TM - 3rd of April 2014

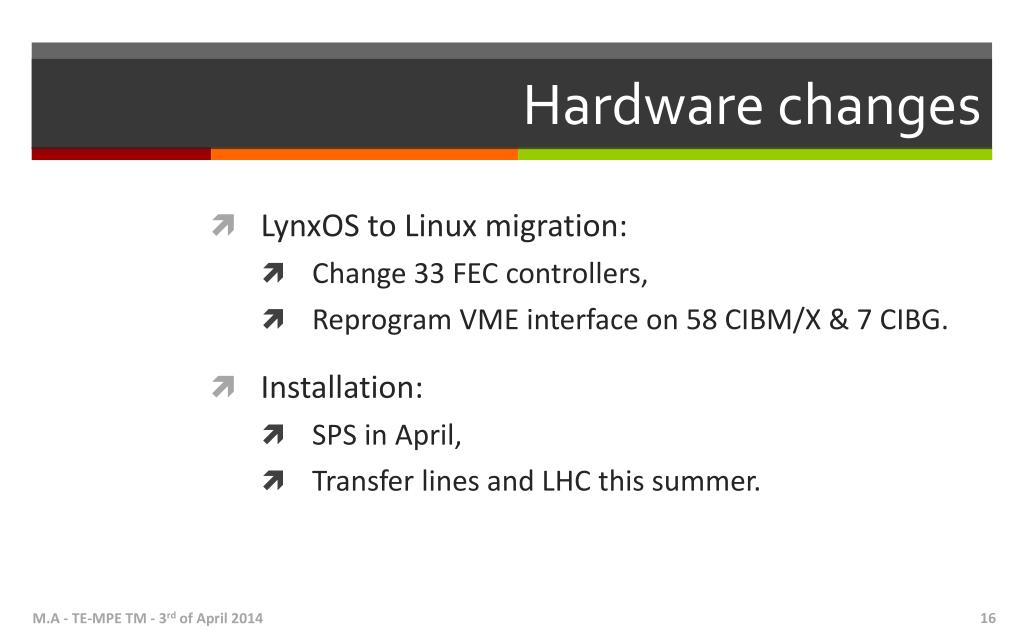

  16. Hardware changes • LynxOS to Linux migration: • Change 33 FEC controllers, • Reprogram VME interface on 58 CIBM/X & 7 CIBG. • Installation: • SPS in April, • Transfer lines and LHC this summer. M.A - TE-MPE TM - 3rd of April 2014

  17. Drivers • Regenerate CIBG driver using new driver version (Encore 2), • Deploy the 3 driver types on all related FECs. M.A - TE-MPE TM - 3rd of April 2014

  18. FESA • CIB FESA class will stay with version 2.10. • Reuse PM property to allow PM data push in case of PM trigger, • Inform users of class change (LHC Sequence, SIS). • CIBG FESA class (2.10) to adapt to a Linux controller: • Plug the class to the Encore driver, • Failing rearm issue (delay between A and B loops) to be followed with Verena, • Will be done in the following weeks to be ready for the LBDS reliability run. • Deploy the 2 classes types on all related FECs. M.A - TE-MPE TM - 3rd of April 2014

  19. BIS GUI - harmonization • Merge functionalities from our current BIS applications into one central application: • The minimum: harmonized and cleaned application, • BIS monitor functionalities to be merged (follow-up with Jorg), • Other non BIS related functionalities to be moved to Fabio Follin application. M.A - TE-MPE TM - 3rd of April 2014

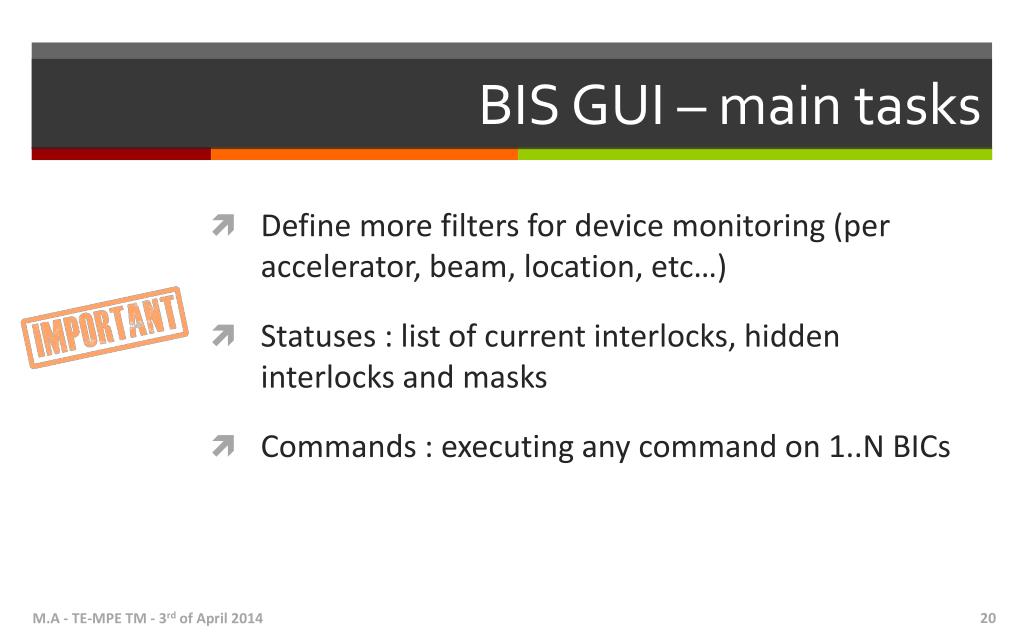

  20. BIS GUI – main tasks • Define more filters for device monitoring (per accelerator, beam, location, etc…) • Statuses : list of current interlocks, hidden interlocks and masks • Commands : executing any command on 1..N BICs M.A - TE-MPE TM - 3rd of April 2014

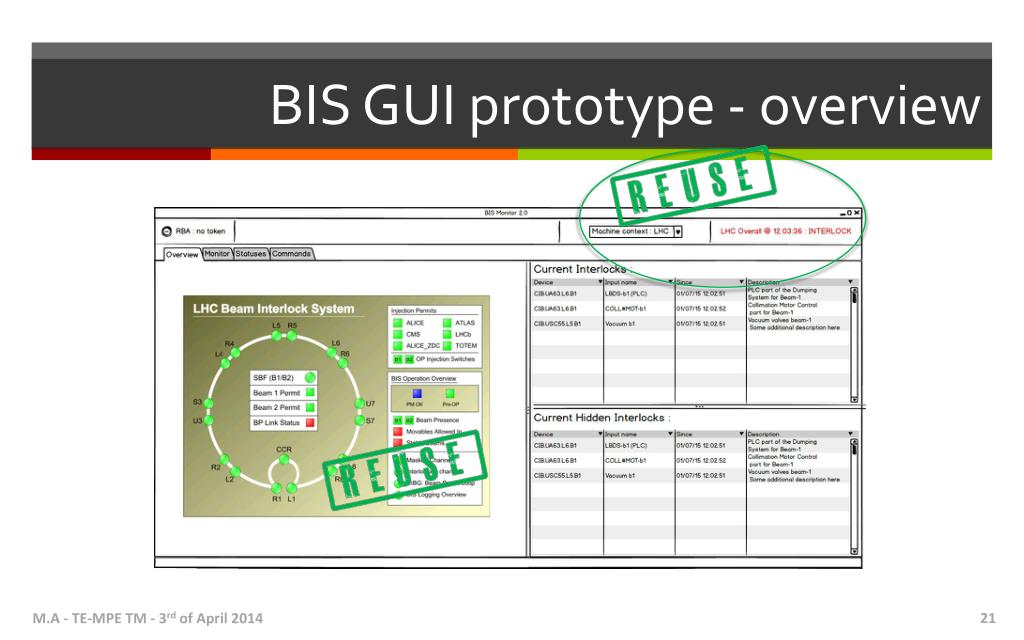

  21. BIS GUI prototype - overview M.A - TE-MPE TM - 3rd of April 2014

  22. BIS GUI prototype – cyclic monitor M.A - TE-MPE TM - 3rd of April 2014

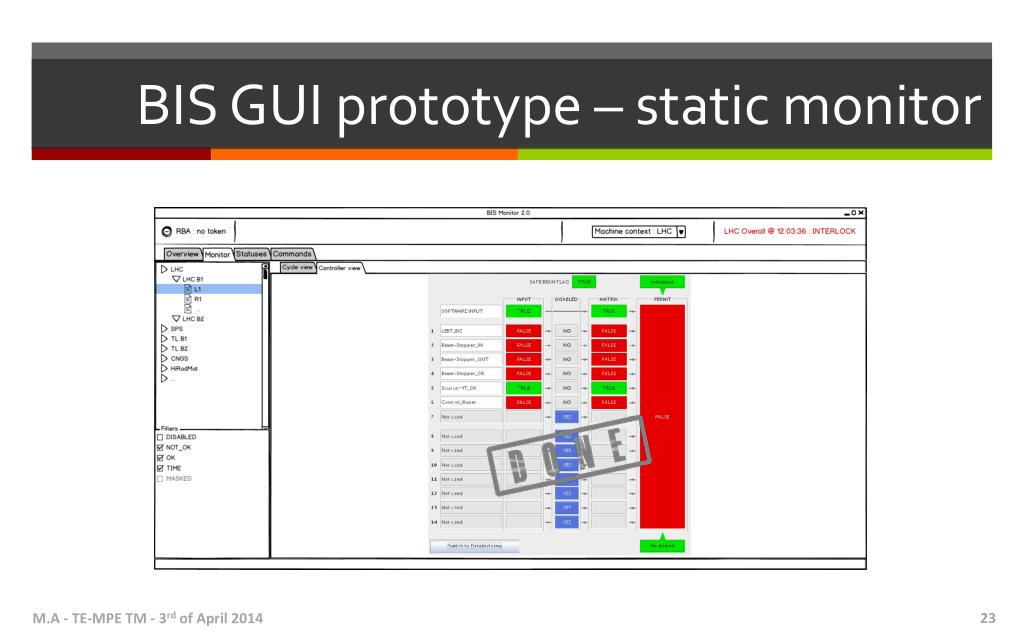

  23. BIS GUI prototype – static monitor M.A - TE-MPE TM - 3rd of April 2014

  24. BIS GUI prototype – statuses M.A - TE-MPE TM - 3rd of April 2014

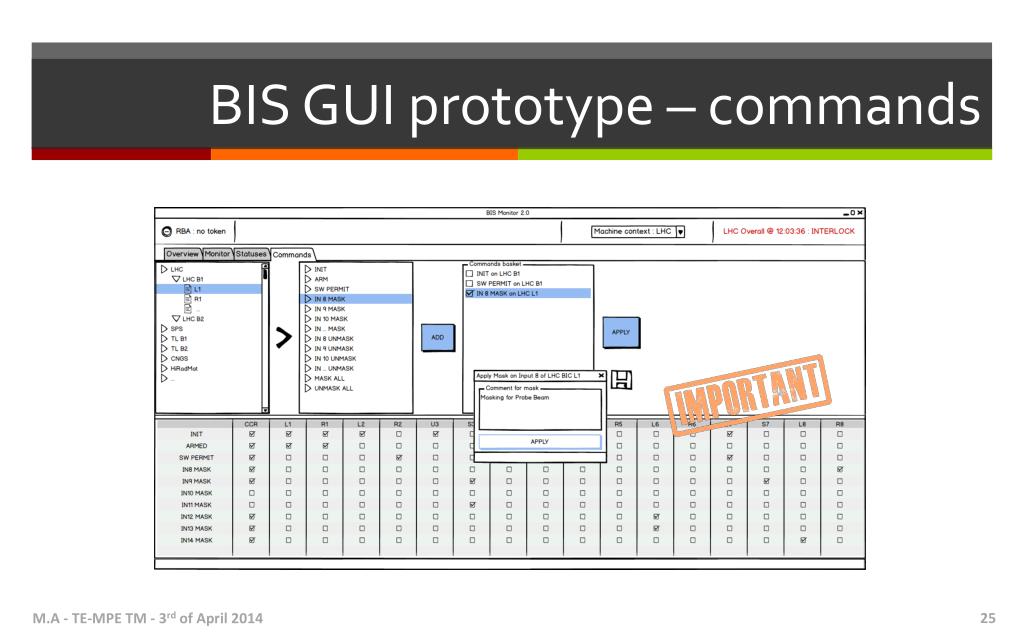

  25. BIS GUI prototype – commands M.A - TE-MPE TM - 3rd of April 2014

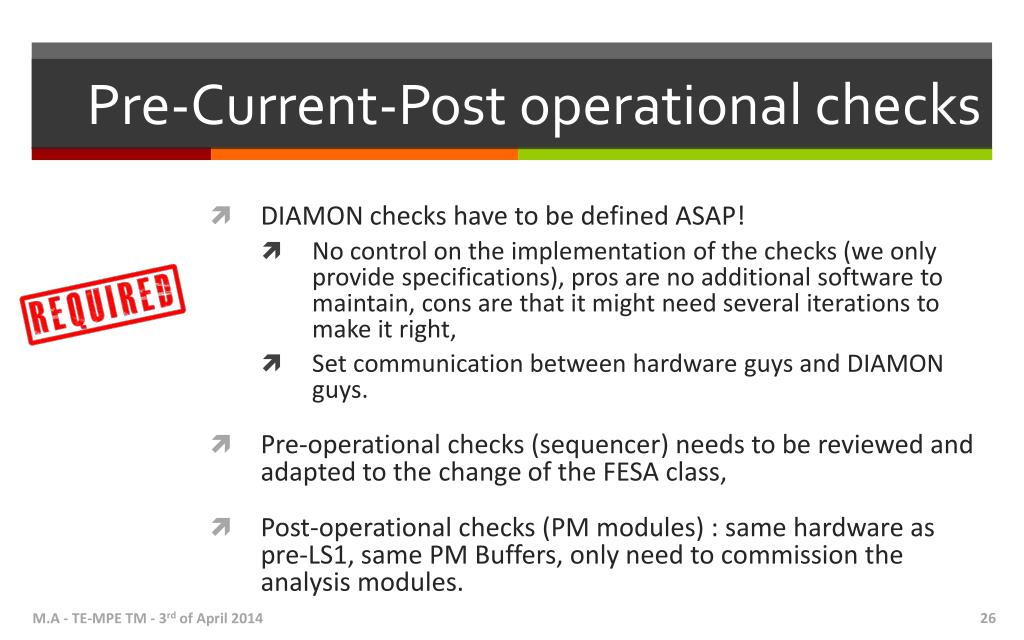

  26. Pre-Current-Post operational checks • DIAMON checks have to be defined ASAP! • No control on the implementation of the checks (we only provide specifications), pros are no additional software to maintain, cons are that it might need several iterations to make it right, • Set communication between hardware guys and DIAMON guys. • Pre-operational checks (sequencer) needs to be reviewed and adapted to the change of the FESA class, • Post-operational checks (PM modules) : same hardware as pre-LS1, same PM Buffers, only need to commission the analysis modules. M.A - TE-MPE TM - 3rd of April 2014

  27. Wishes and Vision

  28. Wishes ! • Operators wishes : • Input masked by who, when and why! • Information on how to resolve in case of an interlock (application link, procedure, etc…), • Use the analysis language to perform pre-operational checks, • A common server for SMP and BIS • Providing information for all applications at CERN (Beam permit flag, decoding information, etc…). M.A - TE-MPE TM - 3rd of April 2014

  29. Vision – Board specifications • A single source for board specifications: • Providing information on board and registers, how to decode them and which commands can be performed. Register decoding module (JAVA) M.A - TE-MPE TM - 3rd of April 2014

  30. Vision - FESA • Abstract our FESA classes to avoid code duplication: • Might be provided by FESA3 after the LS1 M.A - TE-MPE TM - 3rd of April 2014

  31. Summary

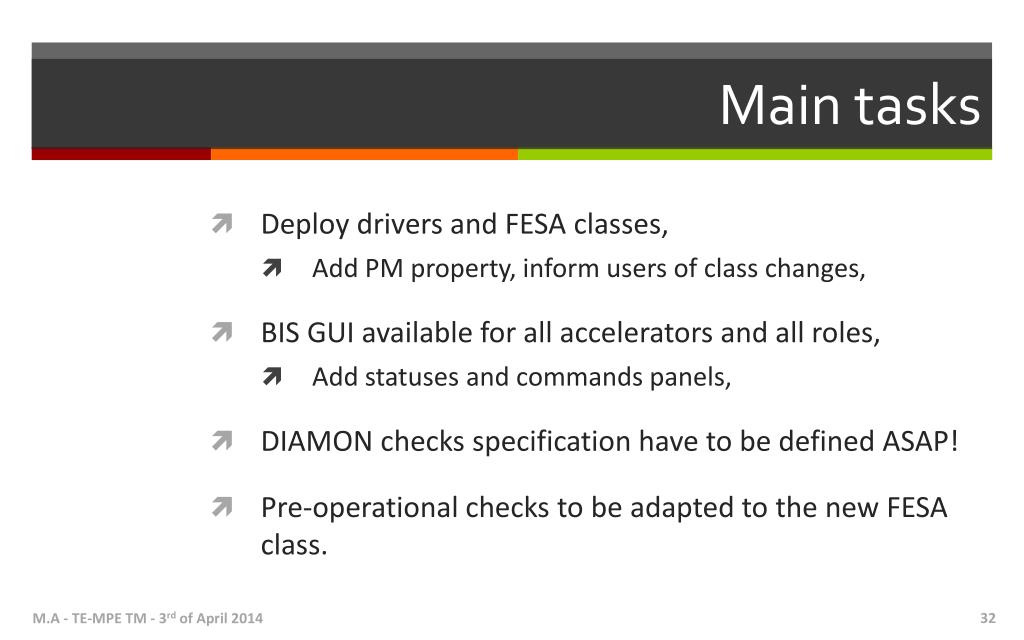

  32. Main tasks • Deploy drivers and FESA classes, • Add PM property, inform users of class changes, • BIS GUI available for all accelerators and all roles, • Add statuses and commands panels, • DIAMON checks specification have to be defined ASAP! • Pre-operational checks to be adapted to the new FESA class. M.A - TE-MPE TM - 3rd of April 2014

  33. Planning • 3 sprints starting from the 23rd of April until the 19th of June -> BIS software layers ready for SPS ring commissioning, • A few sprints depending on priorities for Transfer lines and LHC integration in the application, • Probably not many more dedicated sprints before the restart : time has to be shared with other projects. M.A - TE-MPE TM - 3rd of April 2014

  34. Thank you for your attention • Do you have any questions? M.A - TE-MPE TM - 3rd of April 2014
