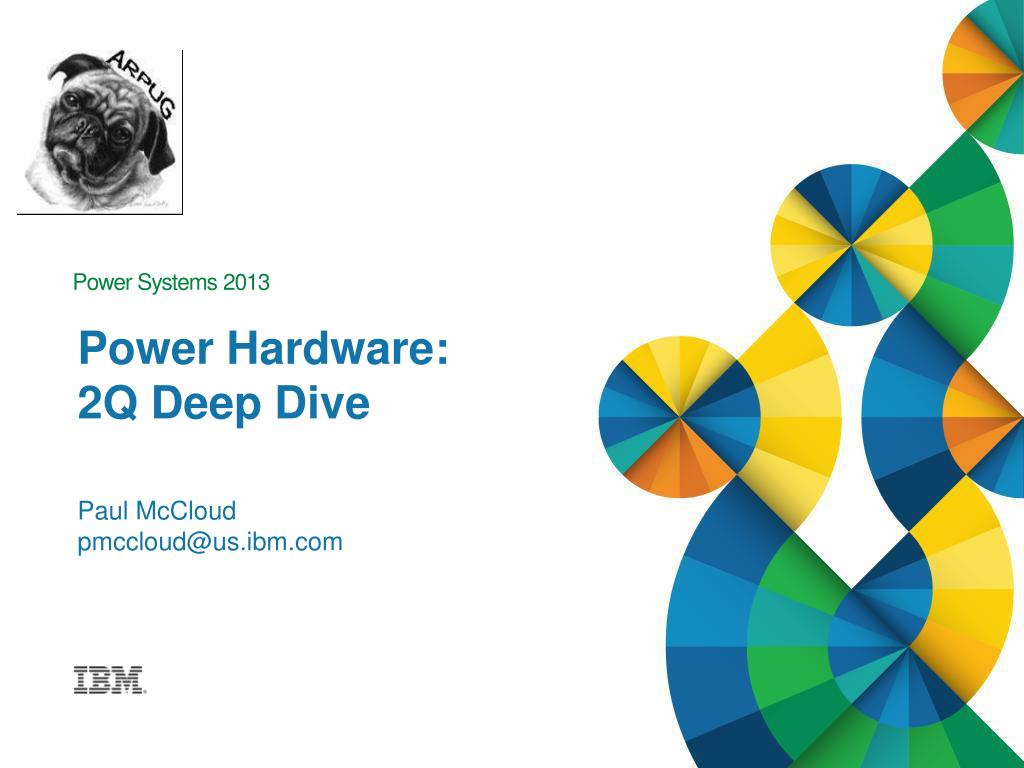

  1. Power Hardware:2Q Deep Dive Paul McCloud pmccloud@us.ibm.com

  2. Agenda Power 795 enhanced New memory features & I/O enhancements Power 795/780/770 CoD ease-of-ordering features Power 770/780 additional I/O options 16Gb Fibre Channel 10Gb Ethernet – 2-port NIC & FCoE #EDR1 EXP30 Ultra SSD I/O Drawer COMING SOON - High Performance Option with DS8800 PowerLinux low-latency, “accelerated” 10Gb Ethernet adapter Solarflare’sOpenOnload Low Latency New Power 710 with 1-year warranty option IBM i I/O SAN configuration enhancements Power 750/760 IMFC enhanced Statement of Direction for DAT160 tape Flex System #EC24 CN4058 8-port 10Gb Mez card update Bonus topics PureSystems Update

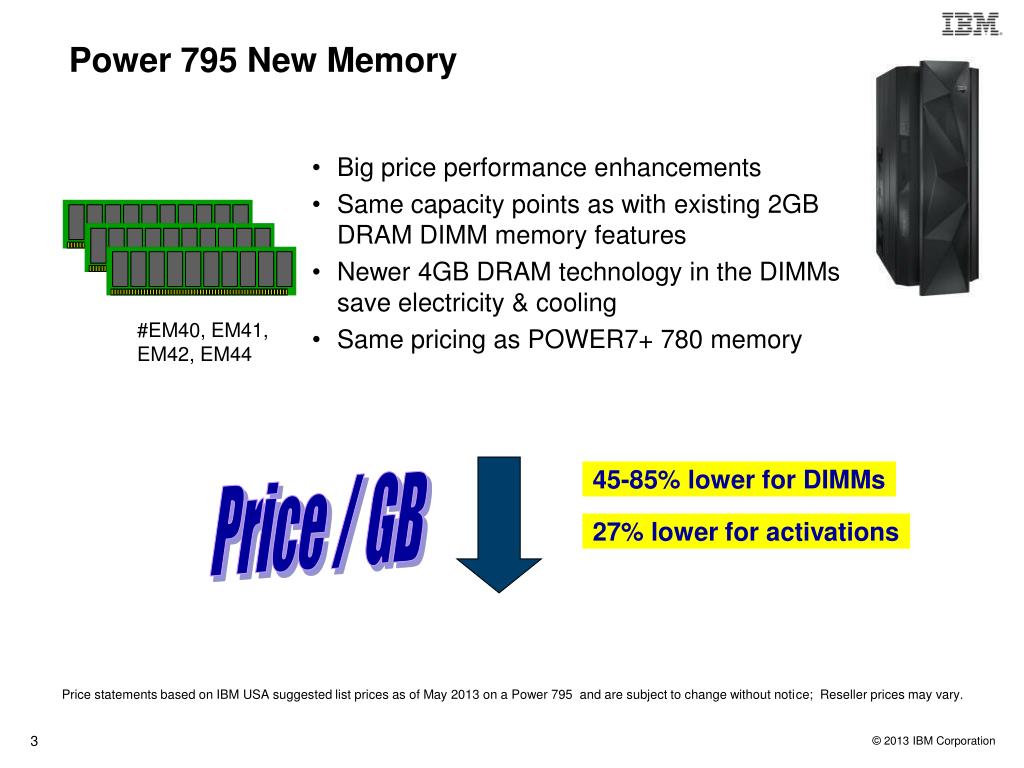

  3. Power 795 New Memory Big price performance enhancements Same capacity points as with existing 2GB DRAM DIMM memory features Newer 4GB DRAM technology in the DIMMs save electricity & cooling Same pricing as POWER7+ 780 memory #EM40, EM41, EM42, EM44 Price / GB 45-85% lower for DIMMs 27% lower for activations Price statements based on IBM USA suggested list prices as of May 2013 on a Power 795 and are subject to change without notice; Reseller prices may vary.

  4. Power 795: New Memory Price/Performance New DIMMs provide significant memory price reduction and activation price reduction (new features built with 4Gb DRAM vs 2Gb DRAM technology) 72% less 85% less 85% less 45% less 27% less + New memory uses much less electricity/cooling than current memory Memory features and pricing now consistent with POWER7+ 770/780 7.6 Firmware is required Prices shown are IBM USA suggested list prices as of May 2013 on a Power 795 and are subject to change without notice; Reseller prices may vary.

  5. Power 795: New Memory Price/Performance Easier to buy “standby” memory and Elastic (On/Off) memory For example … using the 0/128 GB memory features as a comparison: Was $31,824 to buy 128GB memory + 64GB activations ---- 64GB inactive Now $14,040 to buy 128GB memory + 64GB activations ---- 64GB inactive Around a 50% reduction !!! Pie charts below show price of 0/128 GB memory 100% activated April 2013 $48,208 for 128GB Fully activated June 2013 $25,880 for 128GB Fully activated 795 memory features and pricing now consistent with POWER7+ 770/780 Note: 7.6 Firmware is required Prices shown are IBM USA suggested list prices as of May 2013 on a Power 795 and are subject to change without notice; Reseller prices may vary.

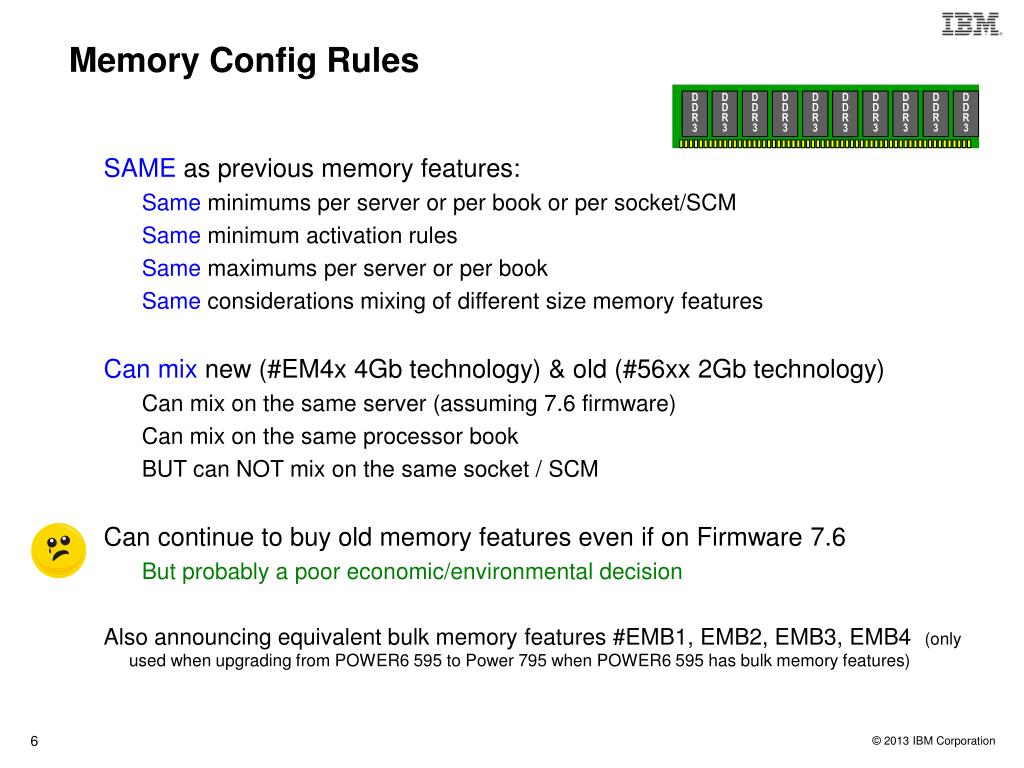

  6. Memory Config Rules SAME as previous memory features: Same minimums per server or per book or per socket/SCM Same minimum activation rules Same maximums per server or per book Same considerations mixing of different size memory features Can mix new (#EM4x 4Gb technology) & old (#56xx 2Gb technology) Can mix on the same server (assuming 7.6 firmware) Can mix on the same processor book BUT can NOT mix on the same socket / SCM Can continue to buy old memory features even if on Firmware 7.6 But probably a poor economic/environmental decision Also announcing equivalent bulk memory features #EMB1, EMB2, EMB3, EMB4 (only used when upgrading from POWER6 595 to Power 795 when POWER6 595 has bulk memory features) D D R 3 D D R 3 D D R 3 D D R 3 D D R 3 D D R 3 D D R 3 D D R 3 D D R 3 D D R 3

  7. Power 795 Memory Details 32 DDR3 DIMM slots per processor book (8 memory feat codes) DIMMS: 8GB, 16GB, 32GB, and 64GB Plugged in “octants” of DIMMs. 1 feature code = 4 identical DIMMs. So always plug two feat codes of memory at a time CAN mix pairs of different size DIMM features on same processor book Per processor book: minimum 2 quad DIMMs (two of the same memory features) Per system: minimum of 50% of memory capacity activated or minimum of 32GB memory activated (which ever is larger)

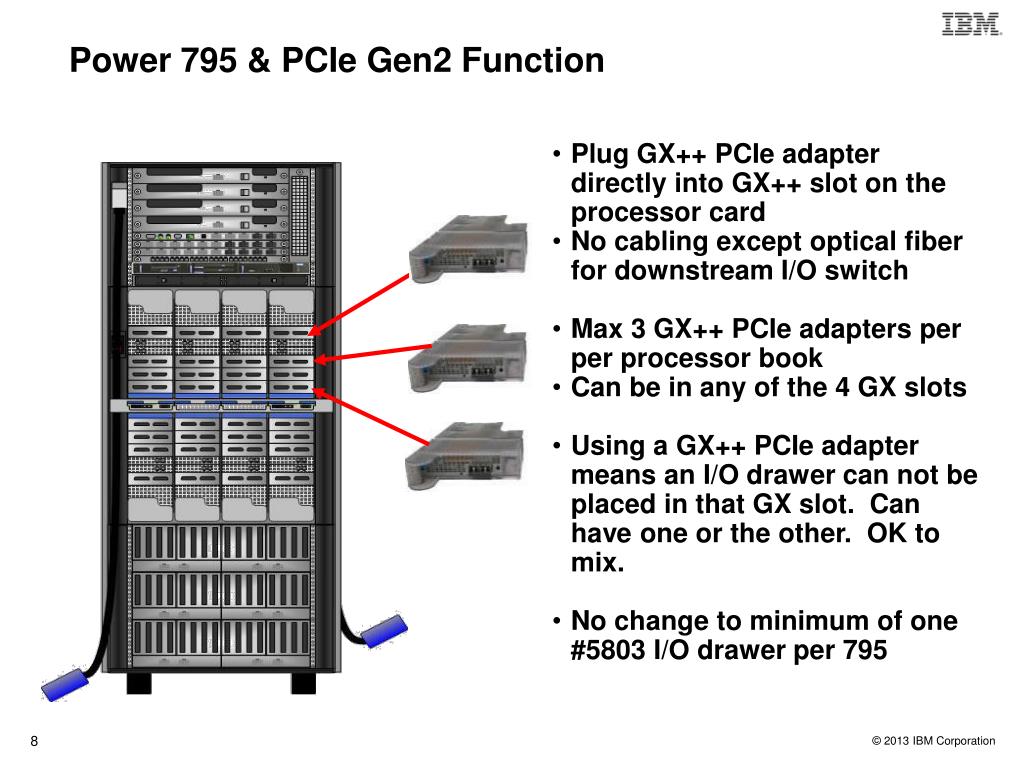

  8. Power 795 & PCIe Gen2 Function • Plug GX++ PCIe adapter directly into GX++ slot on the processor card • No cabling except optical fiber for downstream I/O switch • Max 3 GX++ PCIe adapters per per processor book • Can be in any of the 4 GX slots • Using a GX++ PCIe adapter means an I/O drawer can not be placed in that GX slot. Can have one or the other. OK to mix. • No change to minimum of one #5803 I/O drawer per 795

  9. Power 795 PCIe Gen2 Enhancements PCIe Gen2 GX++ I/O enhancements Expanding support for adapters introduced Oct 2012 IBM i support of the FCoE adapter (#EN22) starting 26 July 2013 (#EN23 already supported by IBM i) RHEL 6.4 support of the FCoE and FC adapters (#EN22 and #EN23) now available #EN22 #EN23

  10. PCIe Gen2 for Power 795 Two PCIe Gen2 GX++ adapters 16 Gb Fibre Channel #EN23 10 Gb FCoE/CNA #EN22 2-ports of high performance capability Access to full bandwidth of GX++ bus (up to 20 GB/s peak) Slightly lower latency than adapter in #5803/5873 I/O Drawer, but probably not noticeable for most client applications Innovative, highly compact packaging Combines GX adapter + GX cables + PCIe I/O drawer + PCIe adapter into just one new 2-port GX adapter Can save money, space, energy/cooling, maintenance Nov GA 2012:

  11. GX++ 2-port 10Gb FCoE (CNA) SR Adapter (#EN22) Two ports - each 10 Gb Each port runs Ethernet NIC (Network Interface Card) and/or Fibre Channel traffic N_Port ID Virtualization (NPIV) capability through VIOS Attachment to switch is supported, no direct device attachment support OS levels required AIX Version 7.1 with TL 7100-02 AIX Version 6.1 with TL 6100-08 IBM i – 6.1 or later with VIOS. NIC initially supported, FCoE supported 26 July 2013. Linux - not supported as of 2012 VIOS 2.2.2.0 Firmware 7.6 required Standard SR fiber optic cables with LC type connectors up to 300m OM4 - multimode 50/125 micron fibre, 4700 MHz*km bandwidth OM3 - multimode 50/125 micron fibre, 2000 MHz*km bandwidth OM2 - multimode 50/125 micron fibre, 500 MHz*km bandwidth OM1 - multimode 62.5/125 micron fibre, 200 MHz*km bandwidth • FCoE (Fibre Channel over Ethernet • CNA (Converged Network Adapter) CCIN = 2B74

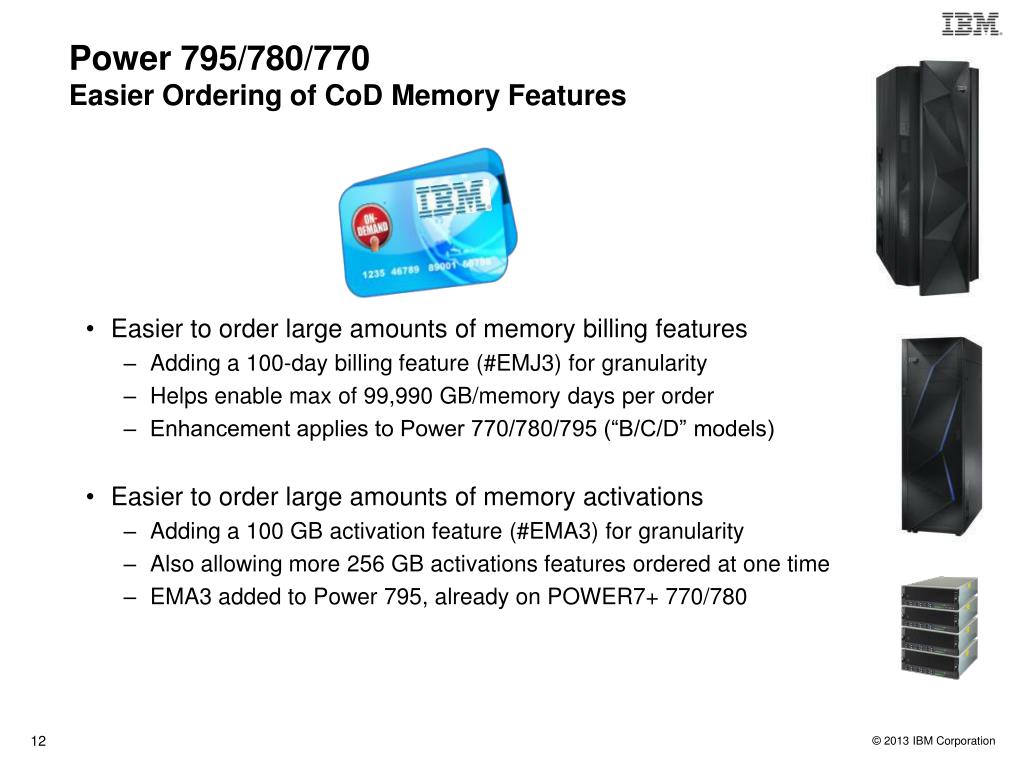

  12. Power 795/780/770 Easier Ordering of CoD Memory Features Easier to order large amounts of memory billing features Adding a 100-day billing feature (#EMJ3) for granularity Helps enable max of 99,990 GB/memory days per order Enhancement applies to Power 770/780/795 (“B/C/D” models) Easier to order large amounts of memory activations Adding a 100 GB activation feature (#EMA3) for granularity Also allowing more 256 GB activations features ordered at one time EMA3 added to Power 795, already on POWER7+ 770/780

  13. Agenda Power 795 enhanced New memory features & I/O enhancements Power 795/780/770 CoD ease-of-ordering features Power 770/780 additional I/O options 16Gb Fibre Channel 10Gb Ethernet – 2-port NIC & FCoE #EDR1 EXP30 Ultra SSD I/O Drawer COMING SOON - High Performance Option with DS8800 PowerLinux low-latency, “accelerated” 10Gb Ethernet adapter Solarflare’sOpenOnload Low Latency New Power 710 with 1-year warranty option IBM i I/O SAN configuration enhancements Power 750/760 IMFC enhanced Statement of Direction for DAT160 tape Flex System #EC24 CN4058 8-port 10Gb Mez card update Bonus topics PureSystems Update

  14. Power 770/780 Additional I/O Support Extending support of I/O announced earlier onto the Power 770/780

  15. 2-port 16 Gb Fibre Channel (HBA)Support for Power 770/780 “C” & “D” models May 2013 announcements #EN0A – full high #EN0B – low profile • Runs at 16Gb, 8Gb or 4Gb • Adding Power 770/780 support • Already on POWER7+ 710/720/730/740/750/760 • Compared to the #5735 2-port 8Gb FC • Price* #5735 = $3499 #EN0A = $4500 • Only 30% more price = 100% more bandwidth** • Even if not using 16Gb switches / devices today, for just a little more, buy and use an adapter which can adapt to your future configurations * Prices shown are IBM USA suggested list prices as of May 2013 on a Power 720 and are subject to change without notice; Reseller prices may vary. ** Running at 8Gb provides half the potential bandwidth compared to running at 16 Gb. Running at 4Gb provides ¼ the potential bandwidth.

  16. 2-port 16 Gb Fibre Channel Adapter #EN0A – full high #EN0B – low profile • 16 Gb per port bandwidth • 2X the bandwidth of the 2-port 8Gb Fibre Channel adapter • Same bandwidth of 4-port 8Gb Fibre Channel adapter • Each port runs at 16Gb, 8Gb or 4Gb (fastest available connection) • For PCIe Gen2 slots in POWER7+ 710/720/730/740/750/760 • Adding 770/780 (‘C’ and ‘D’ models) fulfilling SOD • For Power 795 see #EN23 2-port 16Gb FC GX++ Adapter • NPIV support through VIOS • AIX, IBM i, Linux, VIOS support • AIX Version 7.1 with TL 7100-02 and Service Pack 2, or later • AIX Version 7.1 with TL 7100-01 and Service Pack 7, or later (added since announcement, was SOD) • AIX Version 6.1 with TL 6100-08 and Service Pack 2, or later • AIX Version 6.1 with TL 6100-07 and Service Pack 7, or later • Note NOT PLANNED: AIX 6.1 with TL 6 and AIX 7.1 with TL 0 and AIX 5.3 • IBM i 6.1 -- VIOS required. Both VSCSI and NPIV protocols supported. • IBM i 7.1 -- VIOS required. Both VSCSI and NPIV protocols supported. • SUSE Linux Enterprise 11 Service Pack 2, or later • Red Hat Enterprise Linux – see SOD • VIOS requires VIOS 2.2.2.2, or later • CCIN 577F May 2013 announcements

  17. 2-port 16 Gb FC Adapter - Cabling #EN0A – full high #EN0B – low profile FC Switch Adapter includes two SPF+ transceivers • Use same cabling as with 8Gb FC or 10Gb optical Ethernet • Standard SR fiber optic cables with LC type connectors : • OM4 - multimode 50/125 micron fibre, 4700 MHz*km bandwidth • OM3 - multimode 50/125 micron fibre, 2000 MHz*km bandwidth • OM2 - multimode 50/125 micron fibre, 500 MHz*km bandwidth • OM1 - multimode 62.5/125 micron fibre, 200 MHz*km bandwidth • Cables are client responsibility Cable / Speed / Distance Cable | 4 Gbps | 8 Gbps | 16 Gbps ----------------------------------------------------------- OM4 | .5m - 400m | .5m - 190m | .5m – 125m OM3 | .5m - 380m | .5m - 150m | .5m – 100m OM2 | .5m - 150m | .5m - 50m | .5m – 35m OM1 | .5m - 70m | .5m - 21m | .5m – 15m

  18. CNA = Converged Network Adapter Fibre Channel over Ethernet (FCoE) and NIC traffic simultaneously NIC = Network Interface Card “Like 3 cards in one” … A 2-port 10Gb Ethernet NIC card #5708 ~ $4150 A 2-port 8Gb Fibre Channel Card #5735 ~ $3500 ~ $8,150 A 2-port 1Gb Ethernet NIC card #5767 ~ $500 #EN0H/EN0J only $3500 Save up to $4650 …. 57% reduction !!! Save up 2 PCIe slots … 66% reduction !!! 4-port 10GbE CNA/FCoE & 1GbE AdapterSupport for Power 770/780 “C” & “D” models May 2013 announcements #EN0H – full high #EN0J – low profile Adding Power 770/780 Already for POWER7+ 710, 720, 730, 740, 750, 760 2 ports 10GbE CNA 2 ports 1GbE NIC only * Prices shown are IBM USA suggested list prices as of May 2013 on a Power 720 and are subject to change without notice; Reseller prices may vary.

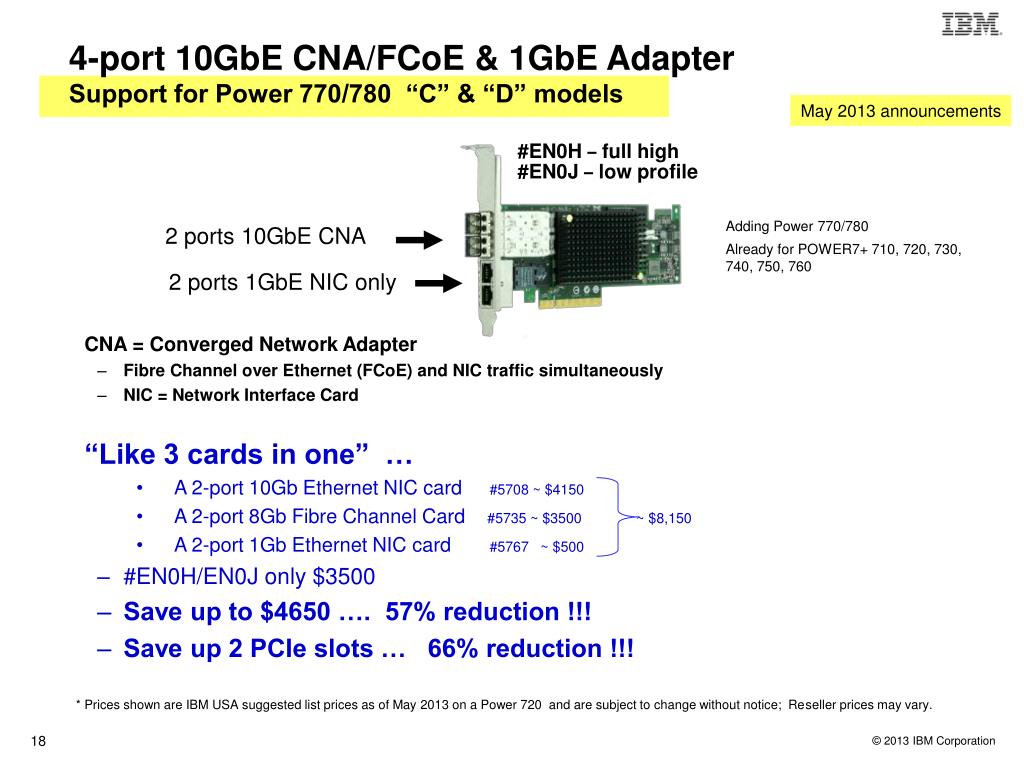

  19. 4-port 10GbE CNA & 1GbE Adapter May 2013 announcements #EN0H – full high #EN0J – low profile • Two ports: 10 Gb per port • CNA (Converged Network Adapter) – FCoE & NIC • Two ports: 1 Gb (1000Mb) or 100Mb per port • NIC (Network Interface Card) • For PCIe Gen2 slots in POWER7+ 710/720/730/740/750/760 • Adding 770/780 (‘C’ and ‘D’ models) fulfilling SOD • For Power 795 see #EN23 2-port 10Gb CNA GX++ Adapter • NPIV support through VIOS for FCoE • AIX, IBM i, Linux, VIOS support • AIX Version 7.1 with TL 7100-02 and Service Pack 2, or later • AIX Version 7.1 with TL 7100-01 and Service Pack 7, or later (added since announcement, was SOD) • AIX Version 6.1 with TL 6100-08 and Service Pack 2, or later • AIX Version 6.1 with TL 6100-07 and Service Pack 7, or later • Note NOT PLANNED: AIX 6.1 with TL 6 and AIX 7.1 with TL 0 and AIX 5.3 • IBM i 6.1 -- VIOS required. NIC supported, FCoE starting 26 July 2013 • IBM i 7.1 -- VIOS required. NIC supported, FCoE starting 26 July 2013 • SUSE Linux Enterprise 11 Service Pack 2, or later • Red Hat Enterprise Linux – see SOD • VIOS requires VIOS 2.2.2.2, or later • CCIN 2B93

  20. Cables are the responsibility of the client Standard SR fiber optic cables with LC type connectors : OM4 / OM3 - multimode 50/125 micron fibre, up to 300 meters length OM2 - multimode 50/125 micron fibre, up to 82 meters length OM1 - multimode 62.5/125 micron fibre, up to 33 meters length RJ45 ports use 4-pair CAT-5 Unshielded Twisted Pair (UTP) or higher Up to 100 meter length 4-port 10GbE CNA & 1GbE Adapter Cabling #EN0H – full high #EN0J – low profile 2 ports 10GbE CNA SR Optical 2 ports 1GbE NIC RJ45 Adapter includes two SPF+ transceivers for 10Gb ports * Prices shown are IBM USA suggested list prices as of Jan 2013 on a Power 720 and are subject to change without notice; Reseller prices may vary.

  21. Agenda Power 795 enhanced New memory features & I/O enhancements Power 795/780/770 CoD ease-of-ordering features Power 770/780 additional I/O options 16Gb Fibre Channel 10Gb Ethernet – 2-port NIC & FCoE #EDR1 EXP30 Ultra SSD I/O Drawer COMING SOON - High Performance Option with DS8800 PowerLinux low-latency, “accelerated” 10Gb Ethernet adapter Solarflare’sOpenOnload Low Latency New Power 710 with 1-year warranty option IBM i I/O SAN configuration enhancements Power 750/760 IMFC enhanced Statement of Direction for DAT160 tape Flex System #EC24 CN4058 8-port 10Gb Mez card update Bonus topics PureSystems Update

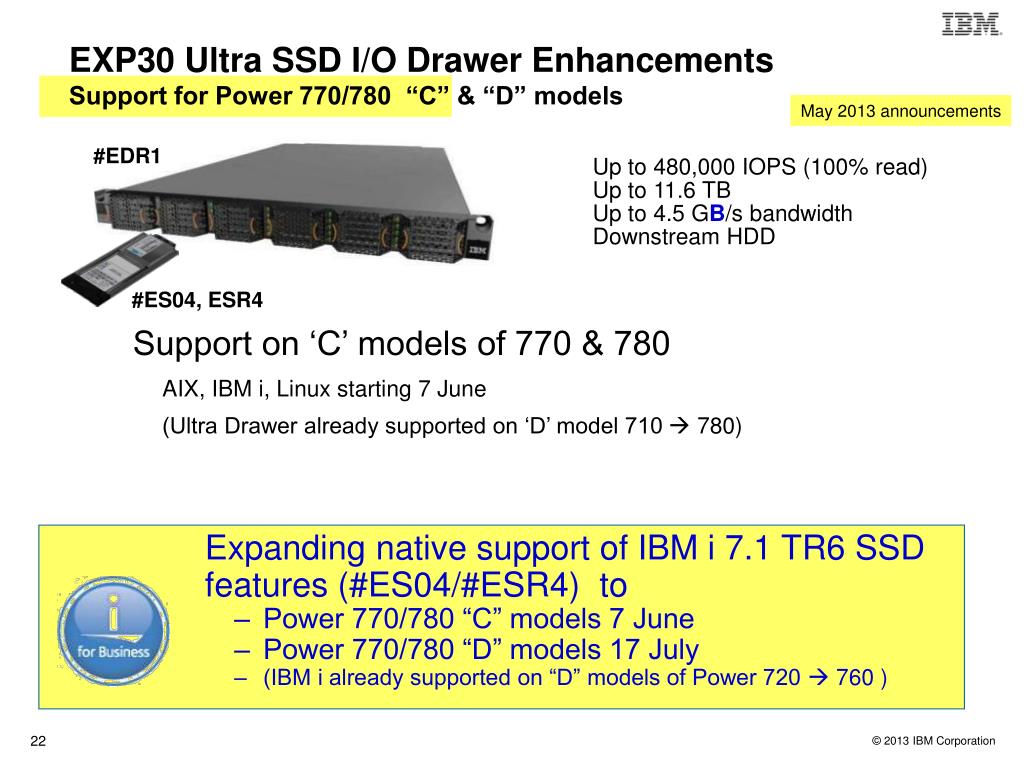

  22. EXP30 Ultra SSD I/O Drawer EnhancementsSupport for Power 770/780 “C” & “D” models Support on ‘C’ models of 770 & 780 AIX, IBM i, Linux starting 7 June (Ultra Drawer already supported on ‘D’ model 710  780) May 2013 announcements #EDR1 Up to 480,000 IOPS (100% read) Up to 11.6 TB Up to 4.5 GB/s bandwidth Downstream HDD #ES04, ESR4 Expanding native support of IBM i 7.1 TR6 SSD features (#ES04/#ESR4) to • Power 770/780 “C” models 7 June • Power 770/780 “D” models 17 July • (IBM i already supported on “D” models of Power 720  760 )

  23. #EDR1 EXP30 Ultra SSD I/O Drawer Supported on “D” model Power 770/780 “D” model Power 710/720/730/740/750/760 Adding “C” model Power 770/780 Supported by AIX 6.1 or later Linux IBM i 7.1 TR6 native support (Not supported via VIOS) VIOS Minimum of 6 SSD per Ultra Drawer All drives RAID formatted (no JBOD) Active/Active recommended for top performance A/A requires at least two arrays – ideally even number arrays, evenly balanced Attaches to one or two GX++ slots Two integrated RAID SAS controllers 3.1GB write cache – protected through redundancy of this pair May 2013 announcements #EDR1

  24. 387GB 1.8” SASSSD with eMLC May 2013 announcements • 1.8” eMLC • Performance + Endurance + Small size • Excellent Performance • Similar to 387GB SFF eMLC • Big improvements over 177GB 1.8” SSD • Used only in EXP30 Ultra Drawer • RAID format (528 byte sectors – no JBOD) • Two feature codes #ES02 • #ES02 for AIX/Linux/VIOS • #ES04 for IBM i added to 770/780 C & D models • Same hardware, 2 features for IBM config tools • CCIN = 58BB • Server model & OS pre-reqs • See #EDR1 or #5888 EXP30 Ultra Drawer • Six pack #ESR2 = 6x #ES02 • Six pack #ESR4 = 6x #ES04 added to 770/780 #ES02 #ES04 387GB 1.8” SSD Physically like a fat, really-long credit card Fits in EXP30 Ultra SSD I/O Drawer

  25. EXP30 Ultra SSD I/O Drawer SOD Shared April 2012 Status IBM's statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM's sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and timing of any future features or functionality described for our products remains at our sole discretion.

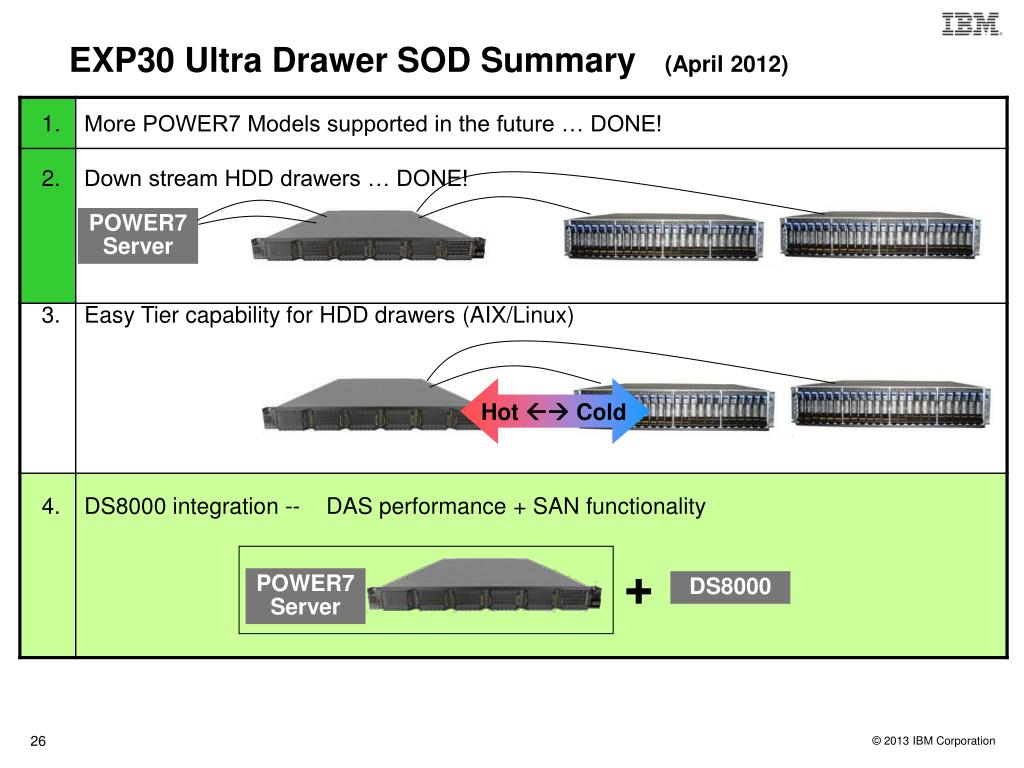

  26. EXP30 Ultra Drawer SOD Summary (April 2012) More POWER7 Models supported in the future … DONE! Down stream HDD drawers … DONE! Easy Tier capability for HDD drawers (AIX/Linux) DS8000 integration -- DAS performance + SAN functionality POWER7 Server Hot  Cold + POWER7 Server DS8000

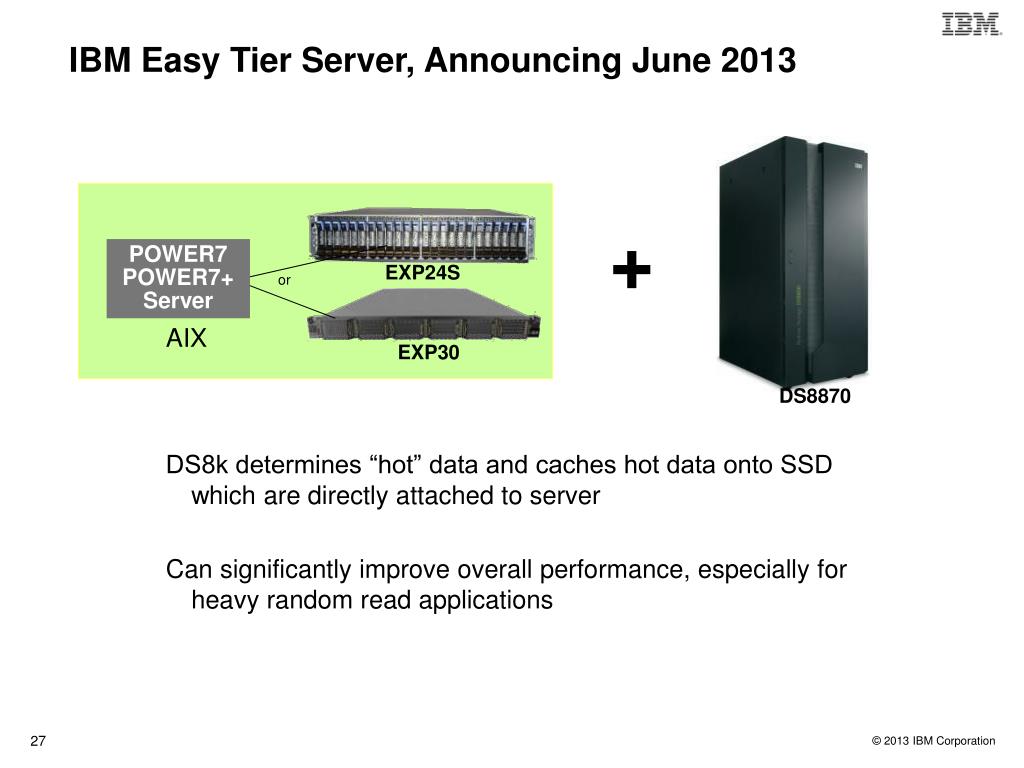

  27. IBM Easy Tier Server, Announcing June 2013 DS8k determines “hot” data and caches hot data onto SSD which are directly attached to server Can significantly improve overall performance, especially for heavy random read applications + POWER7 POWER7+ Server EXP24S or AIX EXP30 DS8870

  28. Agenda Power 795 enhanced New memory features & I/O enhancements Power 795/780/770 CoD ease-of-ordering features Power 770/780 additional I/O options 16Gb Fibre Channel 10Gb Ethernet – 2-port NIC & FCoE #EDR1 EXP30 Ultra SSD I/O Drawer COMING SOON - High Performance Option with DS8800 PowerLinux low-latency, “accelerated” 10Gb Ethernet adapter Solarflare’sOpenOnload Low Latency New Power 710 with 1-year warranty option IBM i I/O SAN configuration enhancements Power 750/760 IMFC enhanced Statement of Direction for DAT160 tape Flex System #EC24 CN4058 8-port 10Gb Mez card update Bonus topics PureSystems Update

  29. PowerLinux I/O Enhancement Enabling hardware for communication-optimized applications, especially in the finance industry like trading Support for two specialized 10Gb Ethernet adapters with low-latency network communication hardware accelerator for higher performance Adds support for user-provided applications using POSIX sockets APIs and the OpenOnload(R) interfaces from Solarflare RHEL 6.4 or later 7R1 & 7R2 “D/T” models #EL39 PCIe2 LP 2-port 10GbE SFN6122F Adapter This adapter supports OpenOnload #EL3A PCIe2 LP 2-port 10GbE SFN512FAdapter

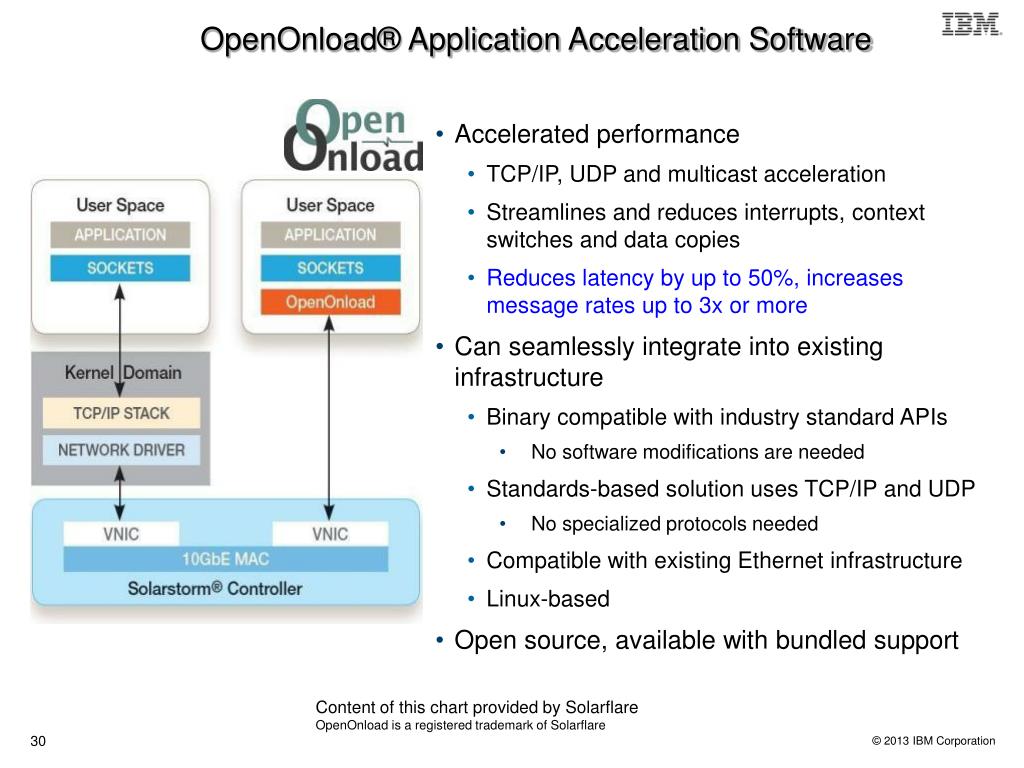

  30. OpenOnload® Application Acceleration Software • Accelerated performance • TCP/IP, UDP and multicast acceleration • Streamlines and reduces interrupts, context switches and data copies • Reduces latency by up to 50%, increases message rates up to 3x or more • Can seamlessly integrate into existing infrastructure • Binary compatible with industry standard APIs • No software modifications are needed • Standards-based solution uses TCP/IP and UDP • No specialized protocols needed • Compatible with existing Ethernet infrastructure • Linux-based • Open source, available with bundled support Content of this chart provided by Solarflare OpenOnload is a registered trademark of Solarflare

  31. #EL39 & #EL3A PowerLinux Adapters • 2-port, PCIe Gen2 10Gb Ethernet Adapters • Two adapters (look alike but are different) • #EL39, PCIe2 LP 2-port 10GbE SFN6122F Adapter • Supports OpenOnload • #EL3A, PCIe2 LP 2-port 10GbE SFN5162F Adapter • Lower cost, does not support OpenOnload, but still can provide lower latency options • Supported in Gen2 slots of PowerLinux 7R1/7R2 • 8246-L1D, L2D, T1D, T2D • Not supported on other models as of May 2013 • RHEL 6.4 or later as of May 2013 • SFP+ active copper twinax ports • Use #EN01, #EN02, or #EN03 cables (includes transceivers in cable features) #EL39 PCIe2 LP 2-port 10GbE SFN6122F Adapter. This adapter supports OpenOnload #EL3A PCIe2 LP 2-port 10GbE SFN5162FAdapter

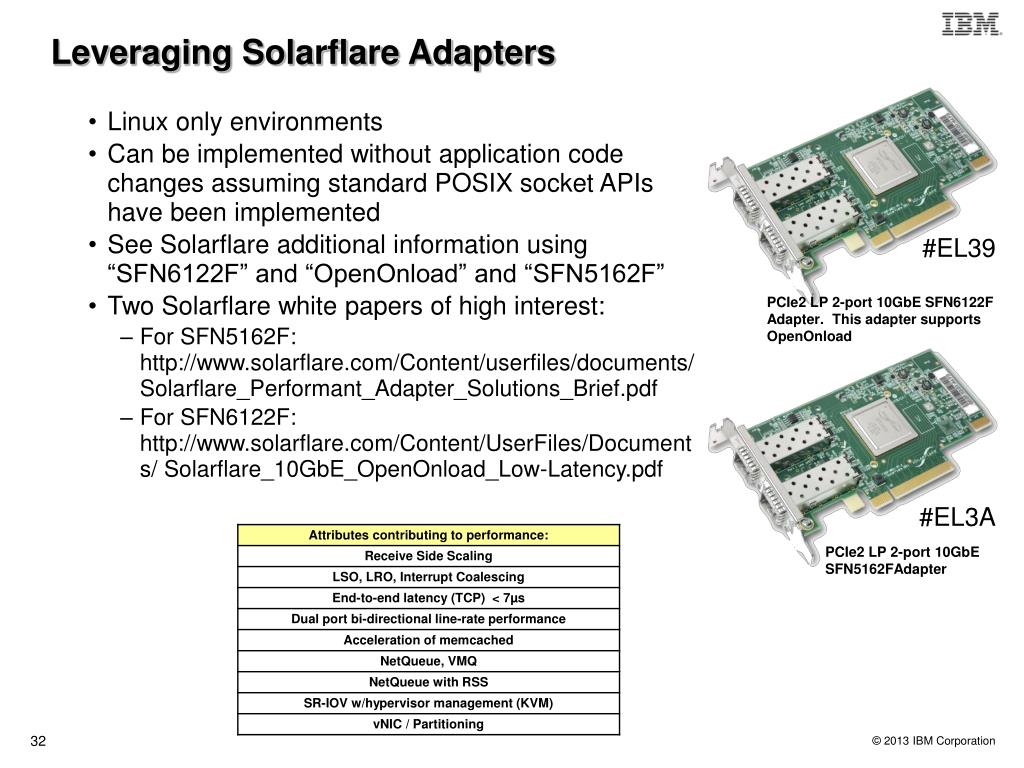

  32. Leveraging Solarflare Adapters • Linux only environments • Can be implemented without application code changes assuming standard POSIX socket APIs have been implemented • See Solarflare additional information using “SFN6122F” and “OpenOnload” and “SFN5162F” • Two Solarflare white papers of high interest: • For SFN5162F: http://www.solarflare.com/Content/userfiles/documents/ Solarflare_Performant_Adapter_Solutions_Brief.pdf • For SFN6122F: http://www.solarflare.com/Content/UserFiles/Documents/ Solarflare_10GbE_OpenOnload_Low-Latency.pdf #EL39 PCIe2 LP 2-port 10GbE SFN6122F Adapter. This adapter supports OpenOnload #EL3A PCIe2 LP 2-port 10GbE SFN5162FAdapter

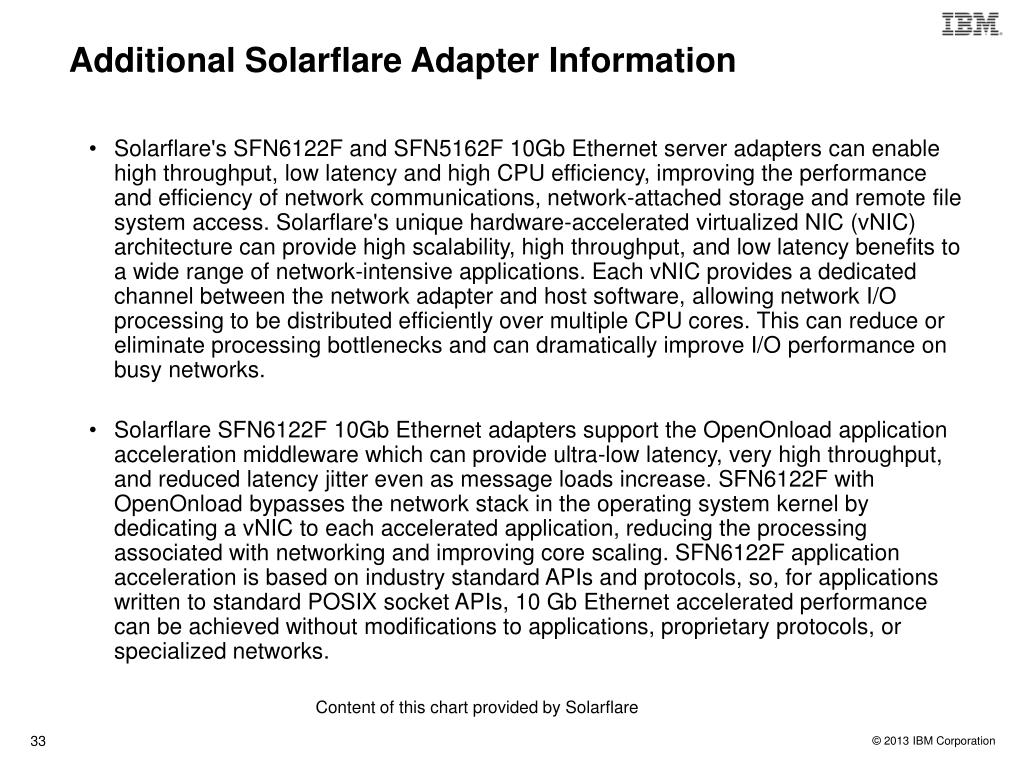

  33. Additional Solarflare Adapter Information Solarflare's SFN6122F and SFN5162F 10Gb Ethernet server adapters can enable high throughput, low latency and high CPU efficiency, improving the performance and efficiency of network communications, network-attached storage and remote file system access. Solarflare's unique hardware-accelerated virtualized NIC (vNIC) architecture can provide high scalability, high throughput, and low latency benefits to a wide range of network-intensive applications. Each vNIC provides a dedicated channel between the network adapter and host software, allowing network I/O processing to be distributed efficiently over multiple CPU cores. This can reduce or eliminate processing bottlenecks and can dramatically improve I/O performance on busy networks. Solarflare SFN6122F 10Gb Ethernet adapters support the OpenOnload application acceleration middleware which can provide ultra-low latency, very high throughput, and reduced latency jitter even as message loads increase. SFN6122F with OpenOnload bypasses the network stack in the operating system kernel by dedicating a vNIC to each accelerated application, reducing the processing associated with networking and improving core scaling. SFN6122F application acceleration is based on industry standard APIs and protocols, so, for applications written to standard POSIX socket APIs, 10 Gb Ethernet accelerated performance can be achieved without modifications to applications, proprietary protocols, or specialized networks. Content of this chart provided by Solarflare

  34. Agenda Power 795 enhanced New memory features & I/O enhancements Power 795/780/770 CoD ease-of-ordering features Power 770/780 additional I/O options 16Gb Fibre Channel 10Gb Ethernet – 2-port NIC & FCoE #EDR1 EXP30 Ultra SSD I/O Drawer COMING SOON - High Performance Option with DS8800 PowerLinux low-latency, “accelerated” 10Gb Ethernet adapter Solarflare’sOpenOnload Low Latency New Power 710 with 1-year warranty option IBM i I/O SAN configuration enhancements Power 750/760 IMFC enhanced Statement of Direction for DAT160 tape Flex System #EC24 CN4058 8-port 10Gb Mez card update Bonus topics PureSystems Update

  35. New Power 710 8268-E1D with 1-year Warranty An alternative offering for a lower acquisition price New!

  36. Agenda Power 795 enhanced New memory features & I/O enhancements Power 795/780/770 CoD ease-of-ordering features Power 770/780 additional I/O options 16Gb Fibre Channel 10Gb Ethernet – 2-port NIC & FCoE #EDR1 EXP30 Ultra SSD I/O Drawer COMING SOON - High Performance Option with DS8800 PowerLinux low-latency, “accelerated” 10Gb Ethernet adapter Solarflare’sOpenOnload Low Latency New Power 710 with 1-year warranty option IBM i I/O SAN configuration enhancements Power 750/760 IMFC enhanced Statement of Direction for DAT160 tape Flex System #EC24 CN4058 8-port 10Gb Mez card update Bonus topics PureSystems Update

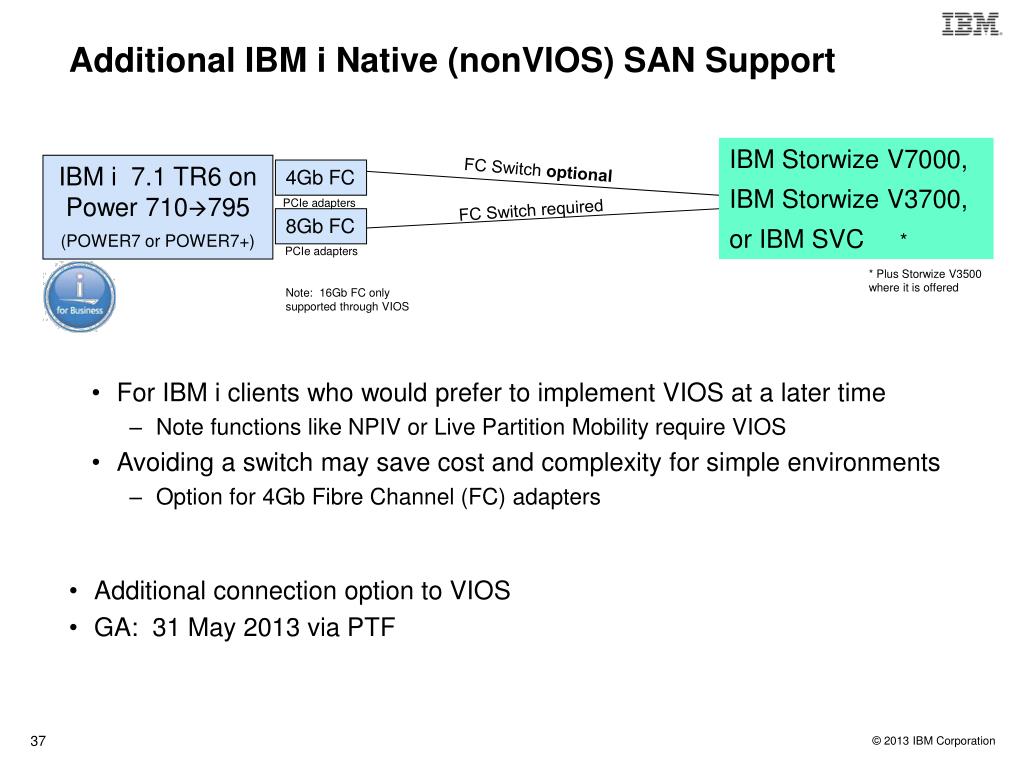

  37. Additional IBM i Native (nonVIOS) SAN Support Additional connection option to VIOS GA: 31 May 2013 via PTF IBM Storwize V7000, IBM Storwize V3700, or IBM SVC * FC Switch optional IBM i 7.1 TR6 on Power 710795 (POWER7 or POWER7+) 4Gb FC PCIe adapters FC Switch required 8Gb FC PCIe adapters * Plus Storwize V3500 where it is offered Note: 16Gb FC only supported through VIOS • For IBM i clients who would prefer to implement VIOS at a later time • Note functions like NPIV or Live Partition Mobility require VIOS • Avoiding a switch may save cost and complexity for simple environments • Option for 4Gb Fibre Channel (FC) adapters

  38. Power 750/760 Integrated Multifunction Card May 2013 announcements Compared to #1768 / #1769 Multifunction Card, #EN10/EN11 have a large subset of OS support #EN10/EN11 AIX, IBM i, Linux, VIOS support • AIX Version 7.1 with TL 7100-02 and Service Pack 2, or later • AIX Version 7.1 with TL 7100-01 and Service Pack 7, or later (added since announcement, was SOD) • AIX Version 6.1 with TL 6100-08 and Service Pack 2, or later • AIX Version 6.1 with TL 6100-07 and Service Pack 7, or later • Note NOT PLANNED: AIX 6.1 with TL 6 and AIX 7.1 with TL 0 and AIX 5.3 • IBM i 6.1 -- VIOS required. NIC supported, FCoE starting 26 July 2013 • IBM i 7.1 -- VIOS required. NIC supported, FCoE starting 26 July 2013 • SUSE Linux Enterprise 11 Service Pack 2, or later • Red Hat Enterprise Linux – see SOD • VIOS requires VIOS 2.2.2.2, or later (SOD for 2.2.1) #1768/1769 AIX, IBM i, Linux, VIOS support • AIX V7.1 TL02: Service Pack 2, or later • AIX Version 7.1 with TL 7100-01 and Service Pack 7, or later (added since announcement, was SOD) • AIX V6.1 TL08: Service Pack 2, or later • AIX V6.1 TL07: Service Pack 7, or later • AIX V6.1 TL06: Service Pack 11, or later • AIX V5.3 TL12: Statement of Direction • IBM i 7.1 TR6, or later VIOS required for Ethernet ports • IBM i 6.1.1 with machine code 6.1.1, or later VIOS required for Ethernet ports • SUSE Linux Enterprise Server 11 Service Pack 2, or later • Red Hat Enterprise Linux – see SOD • VIOS requires VIOS 2.2.2.2, or later (SOD for 2.2.1)

  39. Planning Statement for DAT160 Tape IBM plans to withdraw from marketing the DAT 80/160 tape drives in mid 2014 due to projected supply constraints This does not impact support of existing drives This does not impact supply of new DAT cartridges for existing drives There is NO DAT technology follow on Suggested entry alternatives: • RDX for entry system requirements • LTO for somewhat larger systems RDX IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and timing of any future features or functionality described for our products remains at our sole discretion.

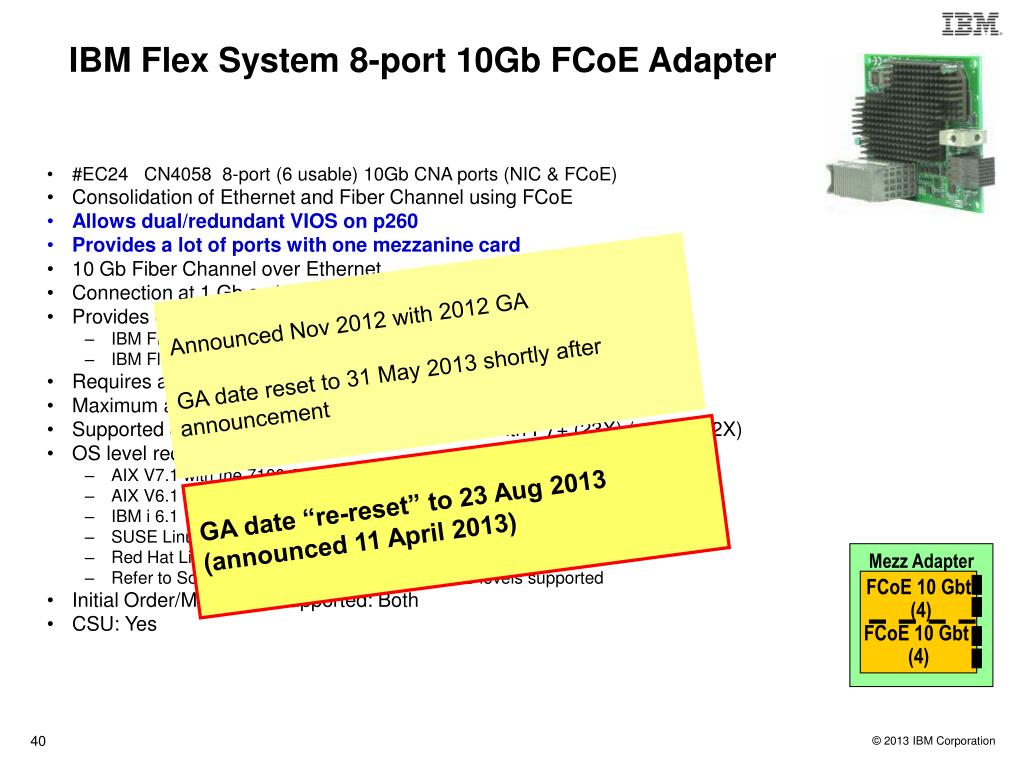

  40. IBM Flex System 8-port 10Gb FCoE Adapter #EC24 CN4058 8-port (6 usable) 10Gb CNA ports (NIC & FCoE) Consolidation of Ethernet and Fiber Channel using FCoE Allows dual/redundant VIOS on p260 Provides a lot of ports with one mezzanine card 10 Gb Fiber Channel over Ethernet Connection at 1 Gb or 10 Gb bandwidth Provides 8 ports / Support up to six 10 Gb ports IBM Flex System Fabric CN4093 10 Gb Converged Scalable Switch IBM Flex System EN4093 10 Gb Converged Switch Requires available Mezzanine slot Maximum allowed: 2 (Initial order maximum: 2) Supported Systems: p260 with P7 (22X) / p260 with P7+ (23X) / p460 (42X) OS level required: AIX V7.1 with the 7100-02 Technology Level, or later AIX V6.1 with the 6100-08 Technology Level, or later IBM i 6.1 & 7.1 supported through VIOS SUSE Linux supported Red Hat Linux supported Refer to Software Requirements for specific O/S levels supported Initial Order/MES/Both/Supported: Both CSU: Yes Mezz Adapter FCoE 10 Gbt (4) FCoE 10 Gbt (4) Announced Nov 2012 with 2012 GA GA date reset to 31 May 2013 shortly after announcement GA date “re-reset” to 23 Aug 2013 (announced 11 April 2013)

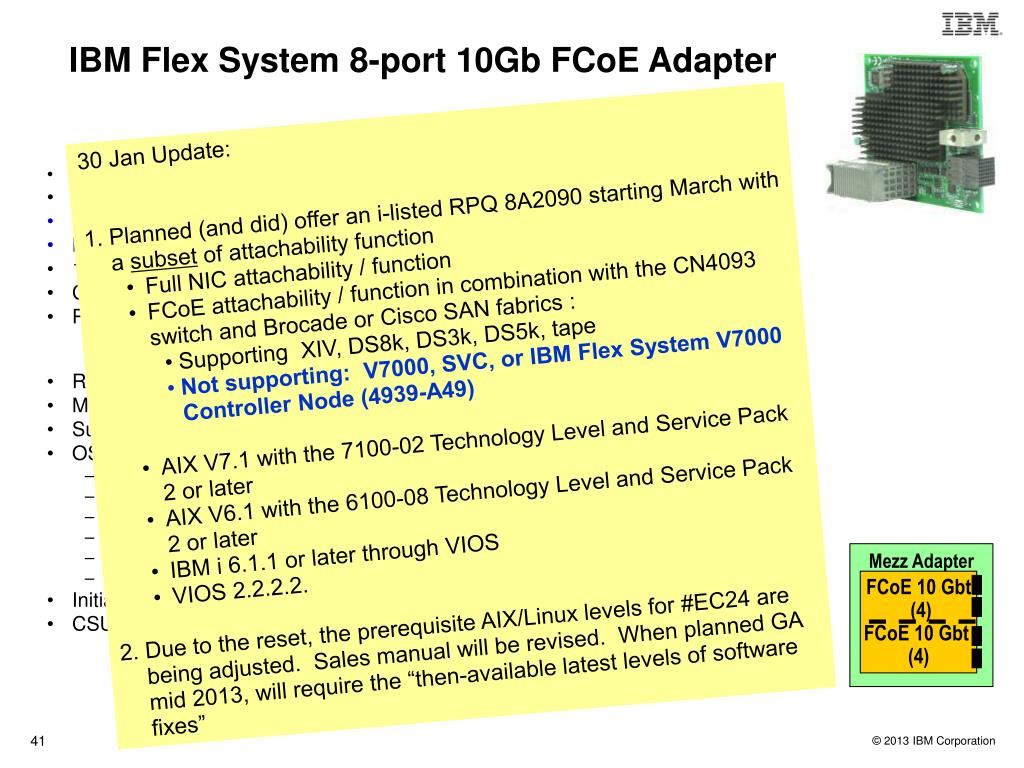

  41. IBM Flex System 8-port 10Gb FCoE Adapter #EC24 CN4058 8-port (6 usable) 10Gb CNA ports (NIC & FCoE) Consolidation of Ethernet and Fiber Channel using FCoE Makes dual VIOS practical on p260 Provides a lot of ports with one mezzanine card 10 Gb Fiber Channel over Ethernet Connection at 1 Gb or 10 Gb bandwidth Provides 8 ports / Support up to six 10 Gb ports IBM Flex System Fabric CN4093 10 Gb Converged Scalable Switch IBM Flex System EN4093 10 Gb Converged Switch Requires available Mezzanine slot Maximum allowed: 2 (Initial order maximum: 2) Supported Systems: p260 with P7 (22X) / p260 with P7+ (23X) / p460 (42X) OS level required: AIX V7.1 with the 7100-02 Technology Level, or later AIX V6.1 with the 6100-08 Technology Level, or later IBM i 6.1 & 7.1 supported through VIOS SUSE Linux supported Red Hat Linux supported Refer to Software Requirements for specific O/S levels supported Initial Order/MES/Both/Supported: Both CSU: Yes Mezz Adapter FCoE 10 Gbt (4) FCoE 10 Gbt (4) • 30 Jan Update: • Planned (and did) offer an i-listed RPQ 8A2090 starting March with a subset of attachability function • Full NIC attachability / function • FCoE attachability / function in combination with the CN4093 switch and Brocade or Cisco SAN fabrics : • Supporting XIV, DS8k, DS3k, DS5k, tape • Not supporting: V7000, SVC, or IBM Flex System V7000 Controller Node (4939-A49) • AIX V7.1 with the 7100-02 Technology Level and Service Pack 2 or later • AIX V6.1 with the 6100-08 Technology Level and Service Pack 2 or later • IBM i 6.1.1 or later through VIOS • VIOS 2.2.2.2. • Due to the reset, the prerequisite AIX/Linux levels for #EC24 are being adjusted. Sales manual will be revised. When planned GA mid 2013, will require the “then-available latest levels of software fixes”

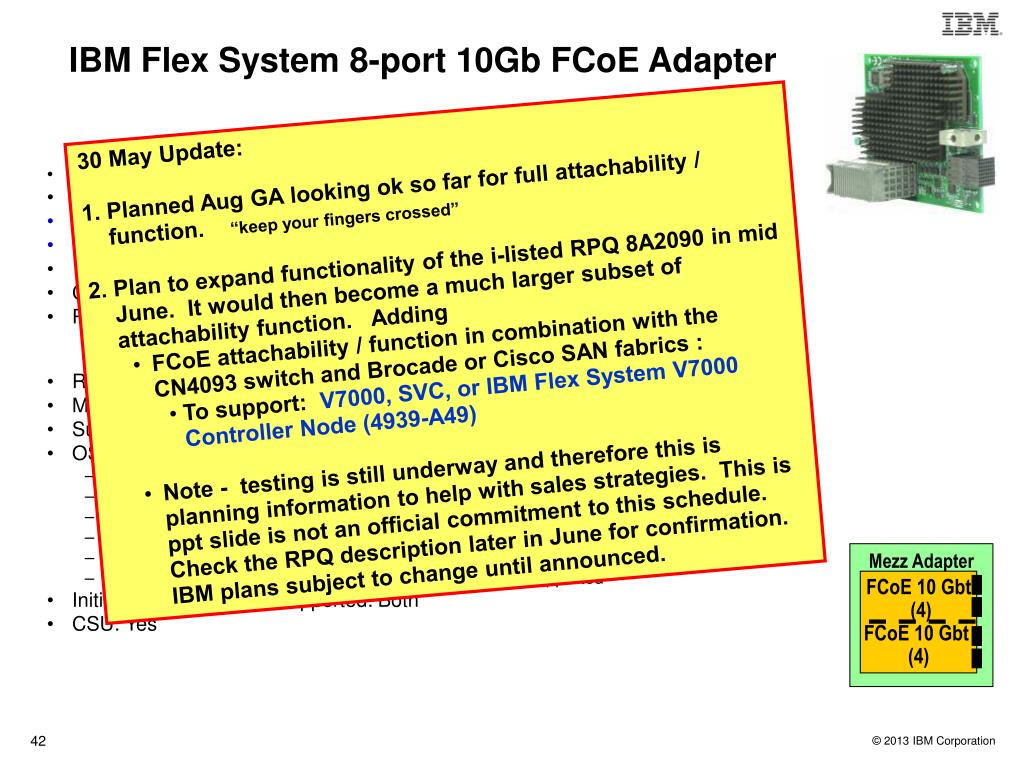

  42. IBM Flex System 8-port 10Gb FCoE Adapter #EC24 CN4058 8-port (6 usable) 10Gb CNA ports (NIC & FCoE) Consolidation of Ethernet and Fiber Channel using FCoE Makes dual VIOS practical on p260 Provides a lot of ports with one mezzanine card 10 Gb Fiber Channel over Ethernet Connection at 1 Gb or 10 Gb bandwidth Provides 8 ports / Support up to six 10 Gb ports IBM Flex System Fabric CN4093 10 Gb Converged Scalable Switch IBM Flex System EN4093 10 Gb Converged Switch Requires available Mezzanine slot Maximum allowed: 2 (Initial order maximum: 2) Supported Systems: p260 with P7 (22X) / p260 with P7+ (23X) / p460 (42X) OS level required: AIX V7.1 with the 7100-02 Technology Level, or later AIX V6.1 with the 6100-08 Technology Level, or later IBM i 6.1 & 7.1 supported through VIOS SUSE Linux supported Red Hat Linux supported Refer to Software Requirements for specific O/S levels supported Initial Order/MES/Both/Supported: Both CSU: Yes Mezz Adapter FCoE 10 Gbt (4) FCoE 10 Gbt (4) • 30 May Update: • Planned Aug GA looking ok so far for full attachability / function. “keep your fingers crossed” • Plan to expand functionality of the i-listed RPQ 8A2090 in mid June. It would then become a much larger subset of attachability function. Adding • FCoE attachability / function in combination with the CN4093 switch and Brocade or Cisco SAN fabrics : • To support: V7000, SVC, or IBM Flex System V7000 Controller Node (4939-A49) • Note - testing is still underway and therefore this is planning information to help with sales strategies. This is ppt slide is not an official commitment to this schedule. Check the RPQ description later in June for confirmation. IBM plans subject to change until announced.

  43. Agenda Power 795 enhanced New memory features & I/O enhancements Power 795/780/770 CoD ease-of-ordering features Power 770/780 additional I/O options 16Gb Fibre Channel 10Gb Ethernet – 2-port NIC & FCoE #EDR1 EXP30 Ultra SSD I/O Drawer COMING SOON - High Performance Option with DS8800 PowerLinux low-latency, “accelerated” 10Gb Ethernet adapter Solarflare’sOpenOnload Low Latency New Power 710 with 1-year warranty option IBM i I/O SAN configuration enhancements Power 750/760 IMFC enhanced Statement of Direction for DAT160 tape Flex System #EC24 CN4058 8-port 10Gb Mez card update Bonus topics PureSystems Update

  44. PCIe Gen2 2-Port 10Gb Ethernet RoCE Adapter Function/performance from application perspective identical between the copper and optical adapters NOTE – NIM function not supported New Optical fiber adapter Max distance = 300m List price on Power 770 = $ 2,292 Existing Copper cable adapter Max distance = 5m List price on Power 770 = $ 1,310 Supported with AIX and Linux RoCE LAN Adapters - May 2013 News Add support to use in PCIe Gen1 slots of #5802/5877 Note concurrent use of both ports at fully rated performance requires a Gen2 slot, but this enhancement provides additional connectivity and configuration flexibility (already supported in #5803/5873) #EC27/#EC28 + #EC29/#EC30 Key difference Prices are USA suggested list prices for a model 795 and are subject to change. Reseller prices may vary.

  45. PCIe Adapter Spread Sheet Quick Reference Tool Quickly see first-level information on adapters, adapter slots, OS pre-req Gen1/Gen2?, LP/FH?, equivalent feat code?, what type slot?, what drawer? performance bandwidth needs?, detailed Ethernet attributes, etc (Pre-req Tool and other existing documentation still the source for real detailed information) Download your own copy of this spreadsheet IBMers: http://w3.ibm.com/support/techdocs/atsmastr.nsf/WebIndex/TD105846 Partners: http://partners.boulder.ibm.com/src/atsmastr.nsf/WebIndex/TD105846 Updating with May 2013 content (estimate update posted by 6 June) Download your copy from Techdoc Tool created by Tenley Jackson, Sue Baker, Dick Bresenham, Mark Olson and others

  46. New contract required – New order process IBM and BP sales: READ 19 February 2013 Announcement Letter entitled “Revised Terms and Order Process: IBM Machine Code License Acceptance Agreement” New contract required for many customers Avoids confusion / misunderstanding between IBM and customers relating to machine code license terms Simple one-time signature “Library card agreement”, signed once per customer per country, Once signed, applies on going-forward basis to ALL IBM machines newly acquired by customer or installed machines newly upgraded. Action schedule 19 Februarythrough 31 July 2013 : Client Reps proactively lead effort to have major accounts sign agreement Starting 1 August 2013: orders for machines requiring signed agreement will not be fulfilled until agreement is signed !!!! Firm order requirement for all high end systems including all System Z, high end Storage, high end Power Systems Power 795, 780, 770, 760 (Machine types 9119, 9179, 9117, 9109) Optional at this time for other Power servers For questions – see announcement letter and contact BPSO/CSO Reminder !! Action required

  47. Reminder – April SSD Price Action 23 April 2013 Power 387 GB SSD dropped their list prices SFF (2.5-inch) & 1.8-inch drives 387 GB SSD prices now match 177 GB SSD SSD SFF to SFF & 1.8-inch to 1.8 inch CHANGE 177 GB PROPOSALS TO 387 GB WHERE EVER POSSIBLE (Plan to withdraw some of 177GB option from marketing soon – not announced as of 28 May, but coming soon.) 1.8-inch 387GB Was $6100 Now $4400 27% less SFF 387GB Was $6200 Now $3588 42% less Plus 387 GB 6-pack can give another 10% savings if applicable Plus 387 GB 4-pack can give another 10% savings if applicable 387 387 177 387 387 177 * Prices shown are IBM USA suggested list prices as of May 2013 on a Power 720 and are subject to change without notice; Reseller prices may vary.

  48. Schedules and Availability - Hardware Announce: 28 May 2013 eConfig support: 28 May 2013 Planned Availability (GA): By 7 June: Everything except below 19 July IBM i SSD features for EXP30 SSD drawer on POWER7+ 770/780 Addition of #EN0A (PCIe 16 Gb FC adapter) & #EN0H (PCIe Ethernet adapter) on POWER7+ 770/780 26 July IBM i support of FCoE capability on #EN10/EN11, #EN0J/EN0H, #EN22 Plus Early Preview of upcoming 6 June announcement Of DS8800 and Power SSD
