  1. welcome TO A CompanySellingTechnologyand not just a Product

  2. VLSI A CompanySellingTechnologyand not just a Product

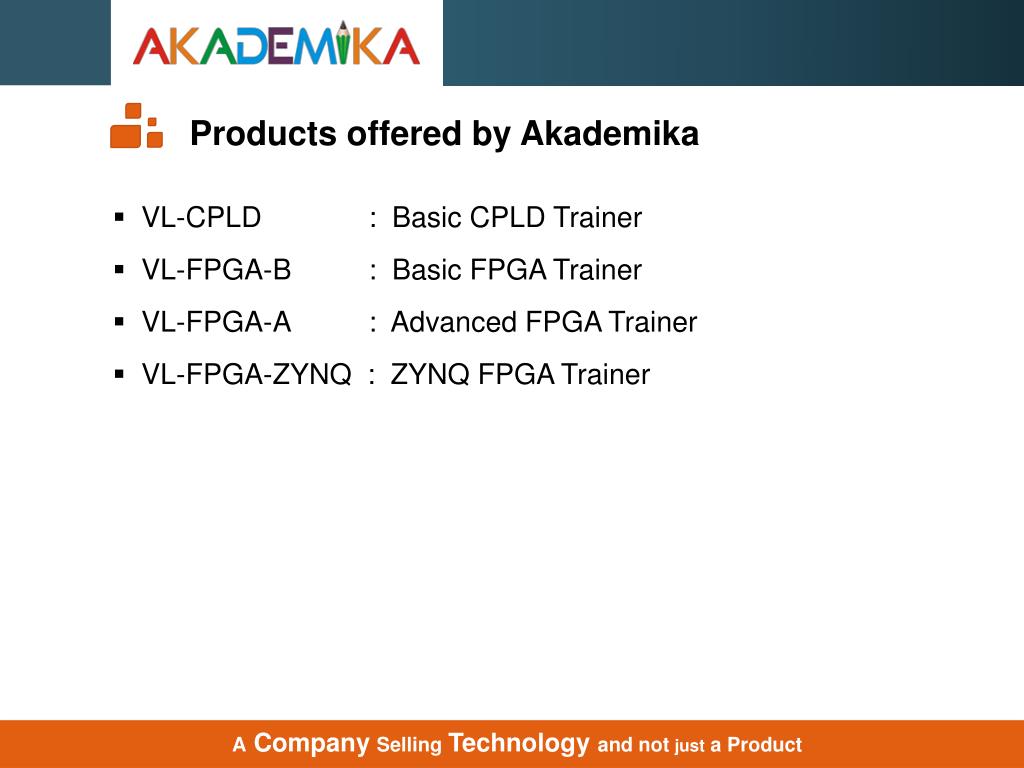

  3. Products offered by Akademika • VL-CPLD : Basic CPLD Trainer • VL-FPGA-B : Basic FPGA Trainer • VL-FPGA-A : Advanced FPGA Trainer • VL-FPGA-ZYNQ : ZYNQ FPGA Trainer A CompanySellingTechnologyand not just a Product

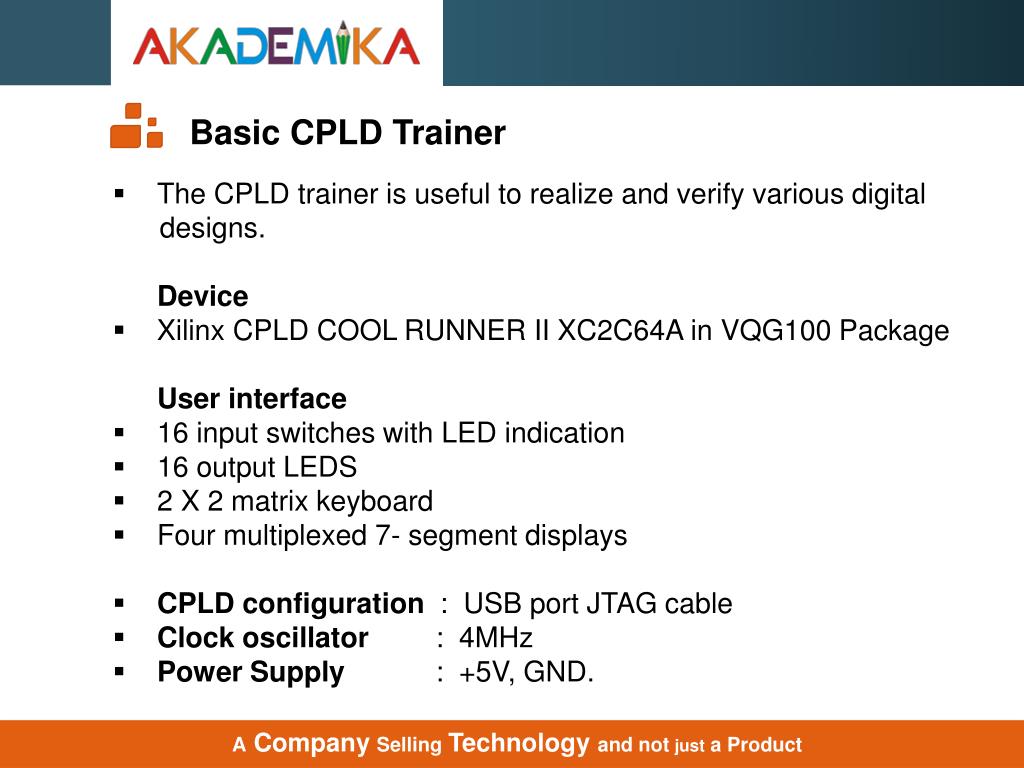

  4. Basic CPLD Trainer • The CPLD trainer is useful to realize and verify various digital • designs. • Device • Xilinx CPLD COOL RUNNER II XC2C64A in VQG100 Package • User interface • 16 input switches with LED indication • 16 output LEDS • 2 X 2 matrix keyboard • Four multiplexed 7- segment displays • CPLD configuration : USB port JTAG cable • Clock oscillator : 4MHz • Power Supply : +5V, GND. A CompanySellingTechnologyand not just a Product

  5. VL-CPLD : Basic CPLD trainer A CompanySellingTechnologyand not just a Product

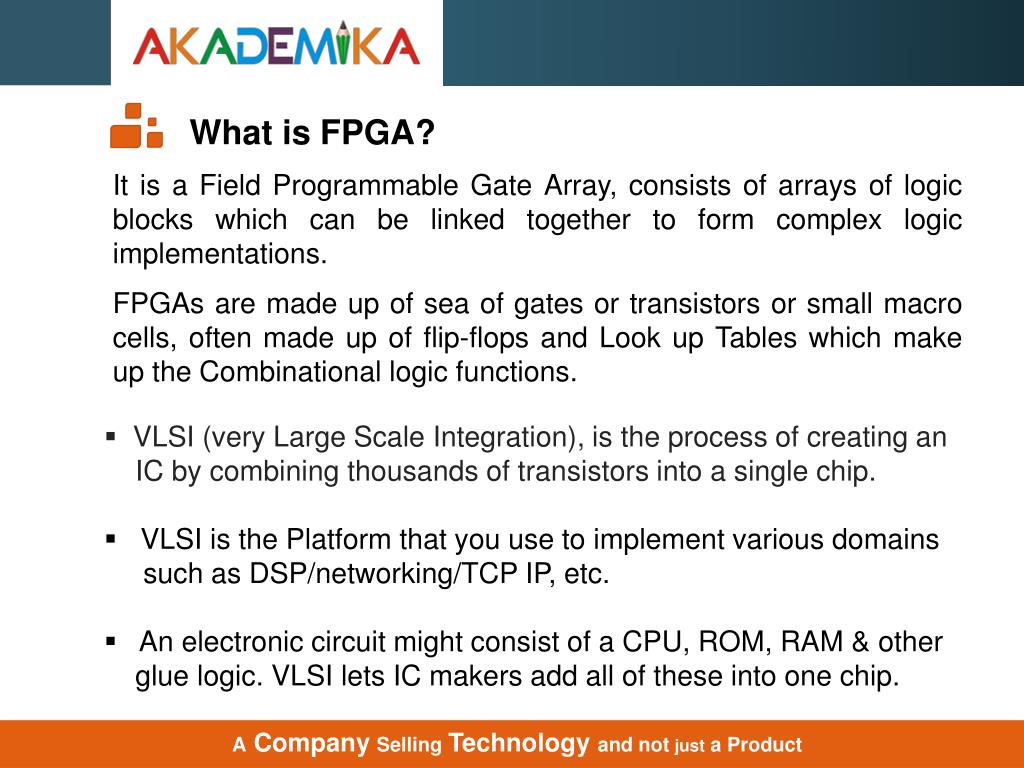

  6. What is FPGA? It is a Field Programmable Gate Array, consists of arrays of logic blocks which can be linked together to form complex logic implementations. FPGAs are made up of sea of gates or transistors or small macro cells, often made up of flip-flops and Look up Tables which make up the Combinational logic functions. • VLSI (very Large Scale Integration), is the process of creating an • IC by combining thousands of transistors into a single chip. • VLSI is the Platform that you use to implement various domains • such as DSP/networking/TCP IP, etc. • An electronic circuit might consist of a CPU, ROM, RAM & other • glue logic. VLSI lets IC makers add all of these into one chip. A CompanySellingTechnologyand not just a Product

  7. VL-FPGA-A : Advanced FPGA trainer A CompanySellingTechnologyand not just a Product

  8. Why Akademika trainer? • Uses SPARTAN-3 FPGA series device. • Exclusively designed for education in a user friendly format with onboard function generator block , RTC block, LCD display, ADC-DAC block, Stepper motor interface, etc. • Embedded JTAG supported via USB. • Not just selling a product but a technology. A CompanySellingTechnologyand not just a Product

  9. Provision for Square and Triangular wave generation with variable frequency and amplitude from 40 to 100 KHz & 0 to 2Vpp. • Provision for interfacing the 4-channels • ADC with FPGA device, having a facility of • thermistor interfaces to 4th channel. • Provision for converting the digital signal • into analog form using DAC. A CompanySellingTechnologyand not just a Product

  10. 4x4 matrix Keypad for applying a signal • using row and column technique. • 4x4 matrix LED for visualizing a • different patterns. • Provision for generating Real Time • Clock, in mm:hh:ss and date: month:year • format using I2C bus protocol. A CompanySellingTechnologyand not just a Product

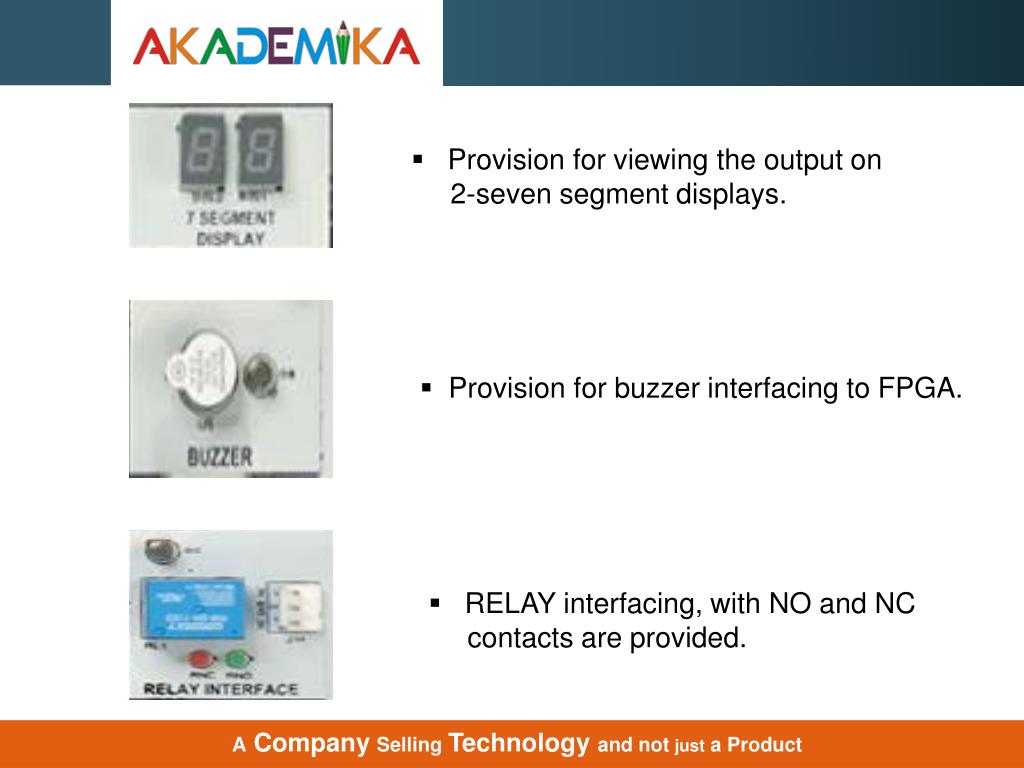

  11. Provision for viewing the output on • 2-seven segment displays. • Provision for buzzer interfacing to FPGA. • RELAY interfacing, with NO and NC • contacts are provided. A CompanySellingTechnologyand not just a Product

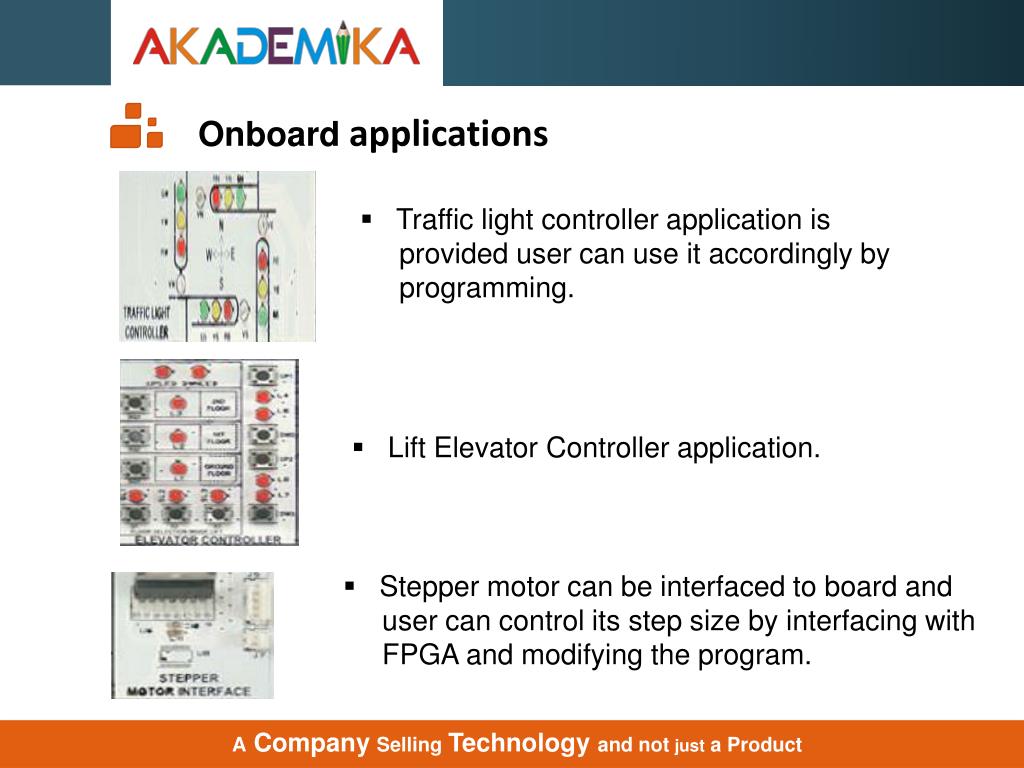

  12. Onboard applications • Traffic light controller application is • provided user can use it accordingly by • programming. • Lift Elevator Controller application. • Stepper motor can be interfaced to board and • user can control its step size by interfacing with • FPGA and modifying the program. A CompanySellingTechnologyand not just a Product

  13. VL-FPGA-B : Basic FPGA Trainer A CompanySellingTechnologyand not just a Product

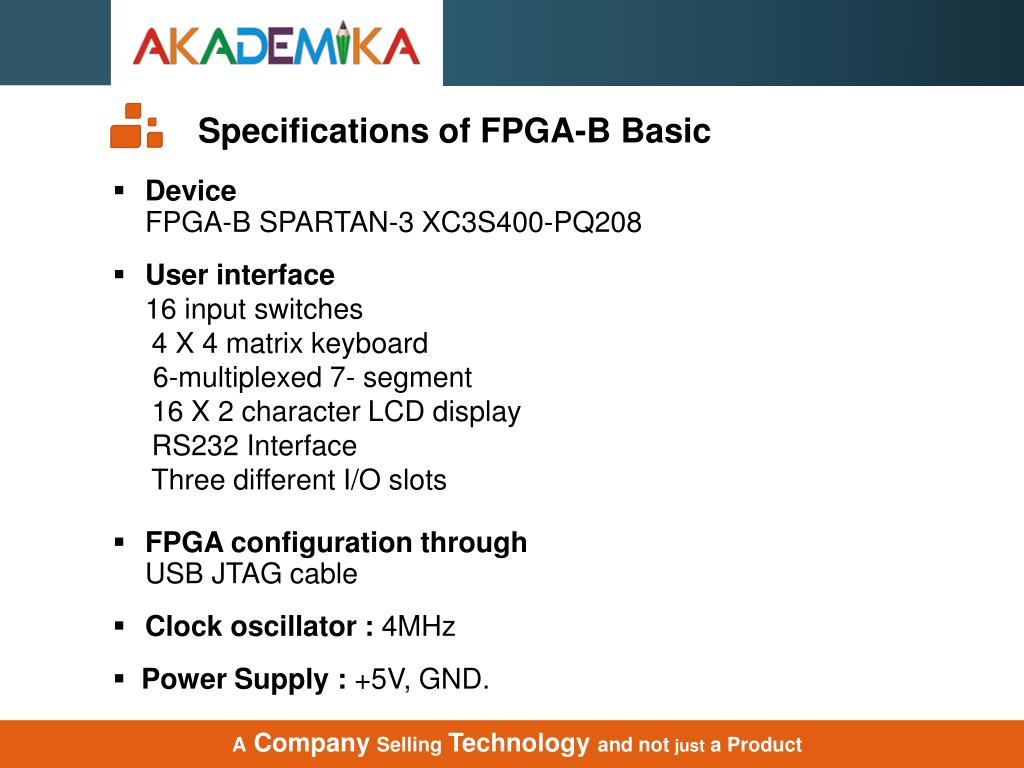

  14. Specifications of FPGA-B Basic • Device • FPGA-B SPARTAN-3 XC3S400-PQ208 • User interface • 16 input switches • 4 X 4 matrix keyboard • 6-multiplexed 7- segment • 16 X 2 character LCD display • RS232 Interface • Three different I/O slots • FPGA configuration through USB JTAG cable • Clock oscillator : 4MHz • Power Supply : +5V, GND. A CompanySellingTechnologyand not just a Product

  15. Documentation • We provides a Xilinx ISE suite for writing VHDL codes and downloading in FPGA chip. • Individual sample VHDL codes along with experimental manual. • We provide online technical support regarding the product queries. A CompanySellingTechnologyand not just a Product

  16. ZYNQ FPGA Trainer Board The ZYNQ FPGA Board is based on the Xilinx All Programmable System-on-Chip (AP SoC) architecture, which tightly integrates a dual-core ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic. When coupled with the rich set of multimedia and connectivity peripherals available on the ZYNQ Board, the ZYNQ FPGA can host a whole system design. The on-board memories, video and audio I/O, dual-role USB, Ethernet and SD slot will have your design up-and-ready with no additional hardware needed. Additionally, six Pmod connectors are available to put any design on an easy growth path. The ZYNQ Board is compatible with Xilinx’s new high-performance Vivado Design Suite as well as the ISE/ EDK tool set. These tool sets meld FPGA logic design with embedded ARM software development into an easy to use, intuitive design flow. A CompanySellingTechnologyand not just a Product

  17. Specification for ZYNQ FPGA Trainer Board • ZYNQ XC7Z2010-1CLG400C • 512MB x32 DDR3 w/ 1050Mbps bandwidth • 650MHz dual-core Cortex-A9 processor • DDR3 memory controller with 8 DMA channels • High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO • Low-bandwidth peripheral controller: SPI, UART, I2C • Re programmable logic equivalent to Artix-7 FPGA • 28K logic cells • 240KB Block RAM • 80 DSP slices • On-chip dual channel,12-bit,1MSPS analog-to-digital converter • (XADC) A CompanySellingTechnologyand not just a Product

  18. VL-FPGA-ZYNQ : ZYNQ FPGA Trainer Kit A CompanySellingTechnologyand not just a Product

  19. AKADEMIKA LAB SOLUTIONS • EL-107, MIDC,T.T.C. Electronic Zone, Mahape, Navi Mumbai - 400710. • Tel. : +91 22 27670581/82/83 Fax : +91 22 27670583 • E-mail : lab@akademika.in, Website : www.akademika.in A CompanySellingTechnologyand not just a Product
