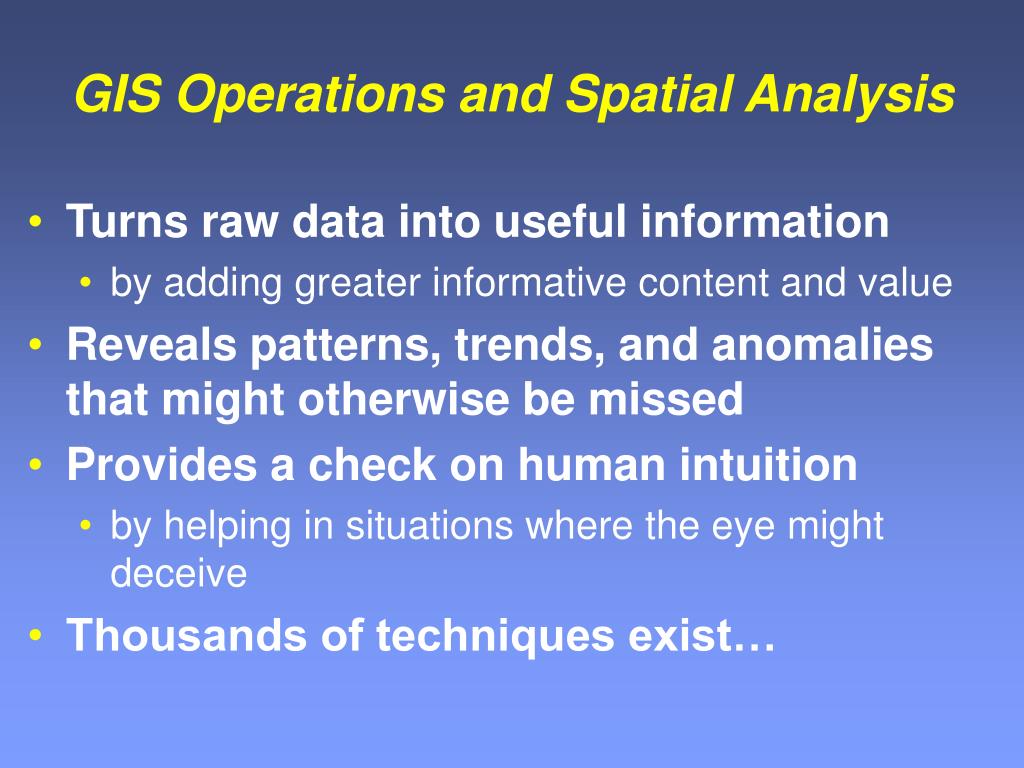

  1. GIS Operations and Spatial Analysis • Turns raw data into useful information • by adding greater informative content and value • Reveals patterns, trends, and anomalies that might otherwise be missed • Provides a check on human intuition • by helping in situations where the eye might deceive • Thousands of techniques exist…

  2. Map of Cholera Deaths by John Snow • Provides a classic example of the use of location to draw inferences • But the same pattern could arise from contagion • if the original carrier lived in the center of the outbreak • contagion was the hypothesis Snow was trying to refute • today, a GIS could be used to show a sequence of maps as the outbreak developed • contagion would produce a concentric sequence, drinking water a random sequence

  3. Map Algebra • C. Dana Tomlin (1983…) • implemented in many grid analysis packages, including ArcGrid, Idrisi, MapII, ArcView Spatial Analyst • Four classes of operations: • local • focal • zonal • incremental DEMO

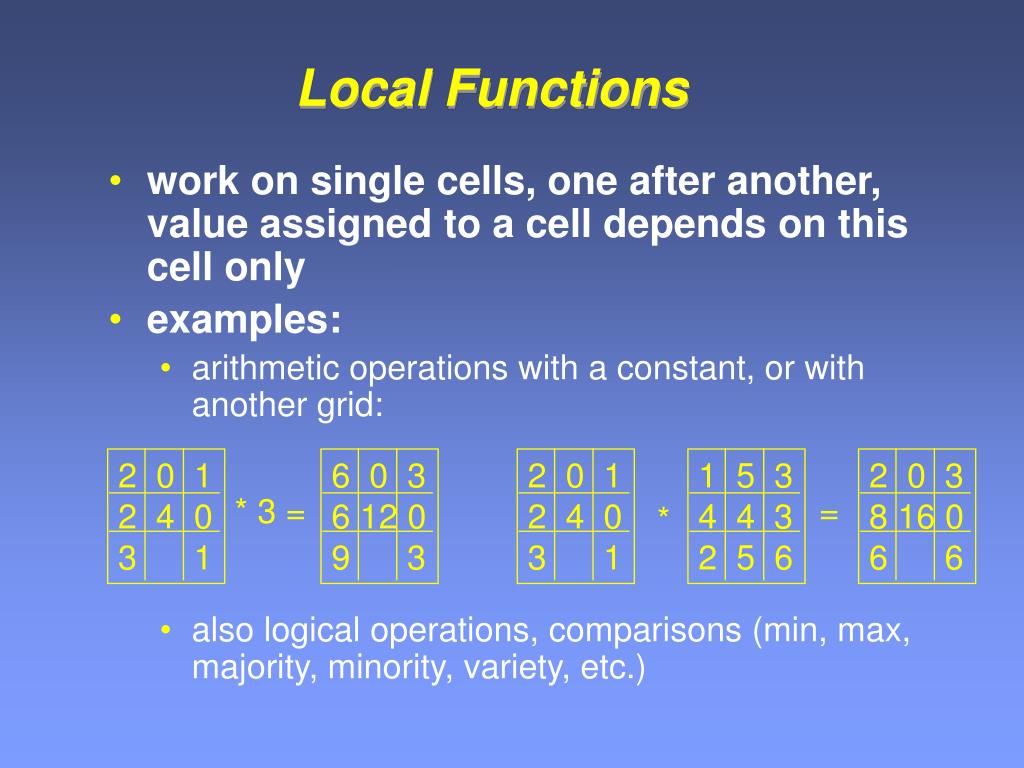

  4. Local Functions • work on single cells, one after another, value assigned to a cell depends on this cell only • examples: • arithmetic operations with a constant, or with another grid: • also logical operations, comparisons (min, max, majority, minority, variety, etc.) 2 0 1 2 4 0 3 1 6 0 3 6 12 0 9 3 2 0 1 2 4 0 3 1 1 5 3 4 4 3 2 5 6 2 0 3 8 16 0 6 6 * 3 = = *

  5. Polygon Overlay, Discrete Object Case B A In this example, two polygons are intersected to form 9 new polygons. One is formed from both input polygons; four are formed by Polygon A and not Polygon B; and four are formed by Polygon B and not Polygon A.

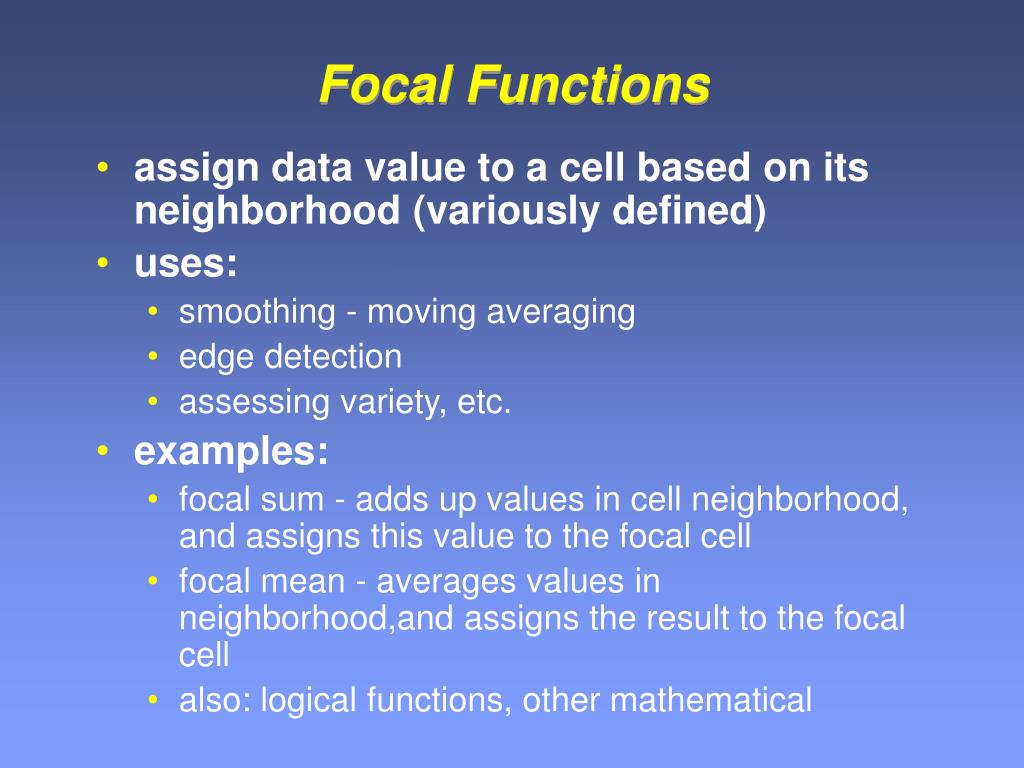

  6. Focal Functions • assign data value to a cell based on its neighborhood (variously defined) • uses: • smoothing - moving averaging • edge detection • assessing variety, etc. • examples: • focal sum - adds up values in cell neighborhood, and assigns this value to the focal cell • focal mean - averages values in neighborhood,and assigns the result to the focal cell • also: logical functions, other mathematical

  7. Shapes of Neighborhoods 1 1 3 4 6 3 6 4 4 5 1 2 5 1 2 3 4 6 3 4 6 3 4 4 3 4 4

  8. Kinds of Neighborhoods • Neighborhood: a set of locations each of which bears a specified distance and/or directional relationship to a particular location called the neighborhood focus (D. Tomlin) • distance and directional neighbors • immediate and extended neighbors • metric and topological neighbors • neighbors of points, lines, areas...

  9. Neighborhood Operations some function 1 3 4 6 X 4 Functions: Total: X = 18 Variety: X = 4 Average: X = 4 Median: X = 4 Minimum: X = 1 Deviation: X = 0 Maximum: X = 6 Std. dev.: X = 2 Minority: X = 1 (or 3, or 6) Proportion: X = 40 Majority: X = 4 . . .

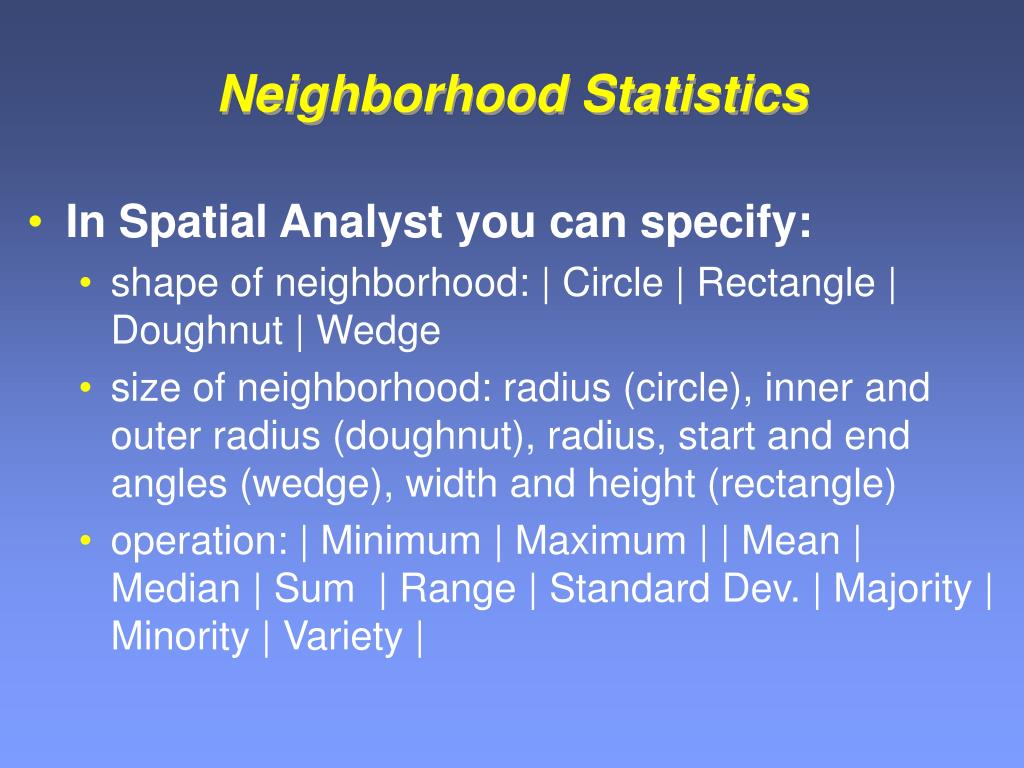

  10. Neighborhood Statistics • In Spatial Analyst you can specify: • shape of neighborhood: | Circle | Rectangle | Doughnut | Wedge • size of neighborhood: radius (circle), inner and outer radius (doughnut), radius, start and end angles (wedge), width and height (rectangle) • operation: | Minimum | Maximum | | Mean | Median | Sum | Range | Standard Dev. | Majority | Minority | Variety |

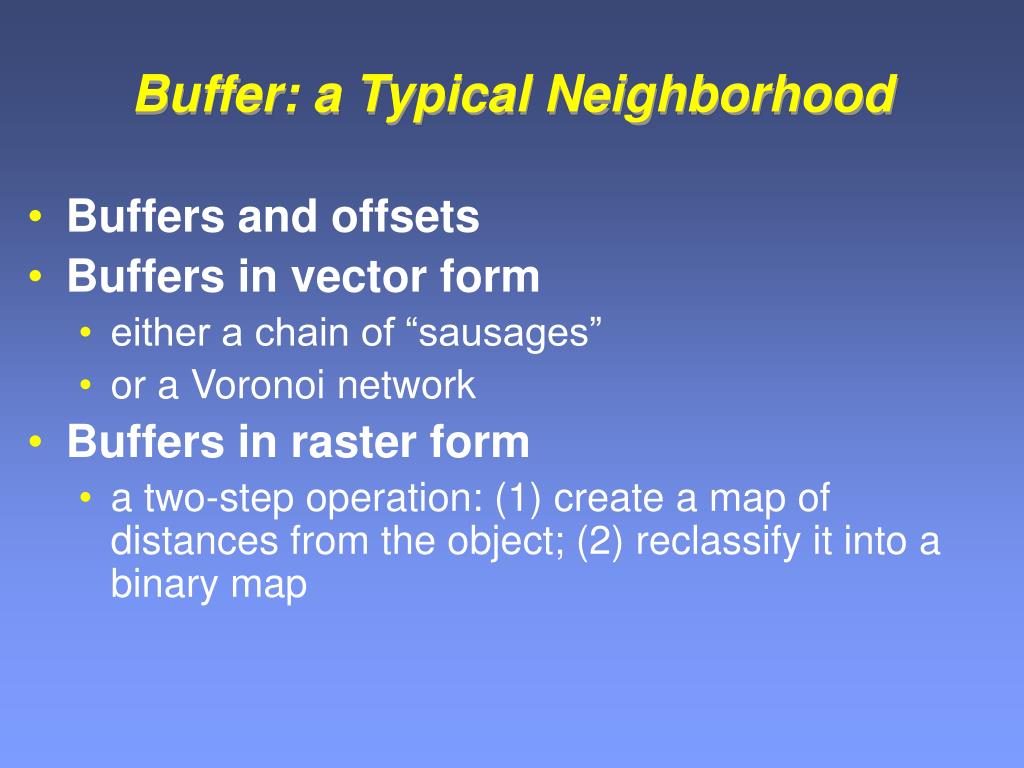

  11. Buffer: a Typical Neighborhood • Buffers and offsets • Buffers in vector form • either a chain of “sausages” • or a Voronoi network • Buffers in raster form • a two-step operation: (1) create a map of distances from the object; (2) reclassify it into a binary map

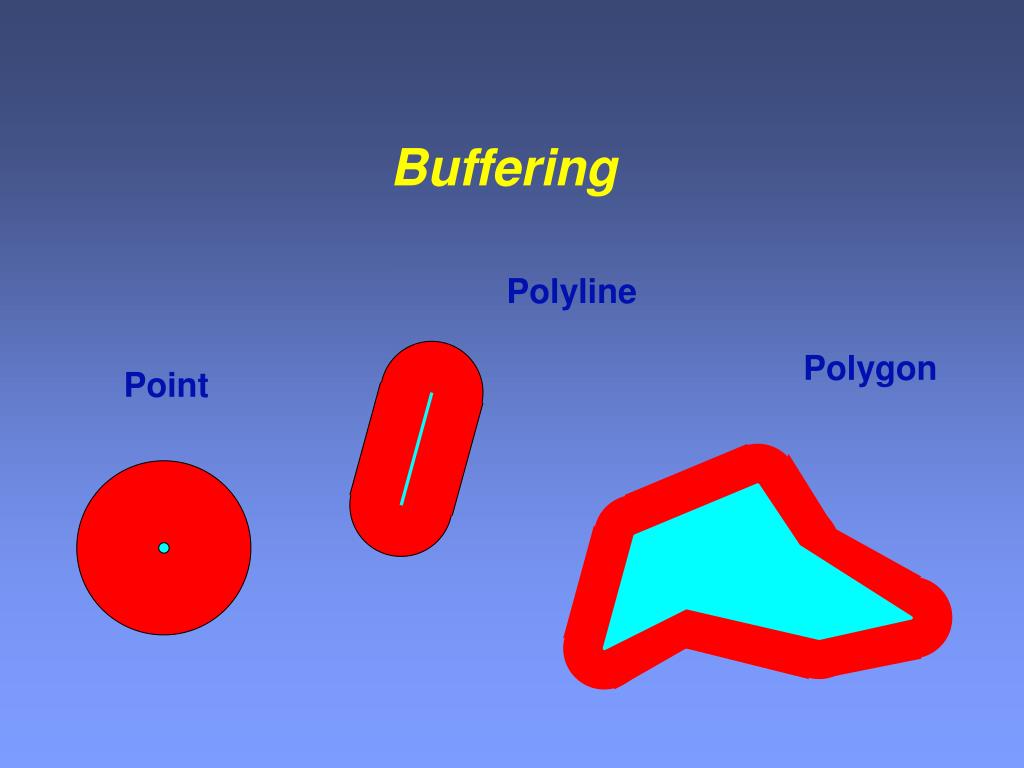

  12. Buffering Polyline Polygon Point

  13. Applications of Buffers • Exclusionary screening / ranking - in site selection studies • Environmental regulations Main question: how wide?? -depends on a variety of political / social / economic / cultural circumstances, often difficult to formalize... differs by states and counties

  14. Zonal Functions • assign values to all cells in a zone, based on values from another map zonal grid + values grid => output grid 2 0 0 2 4 0 3 4 1 2 3 4 5 6 7 8 9 4 6 6 4 9 6 7 9 max again, many types of functions are available

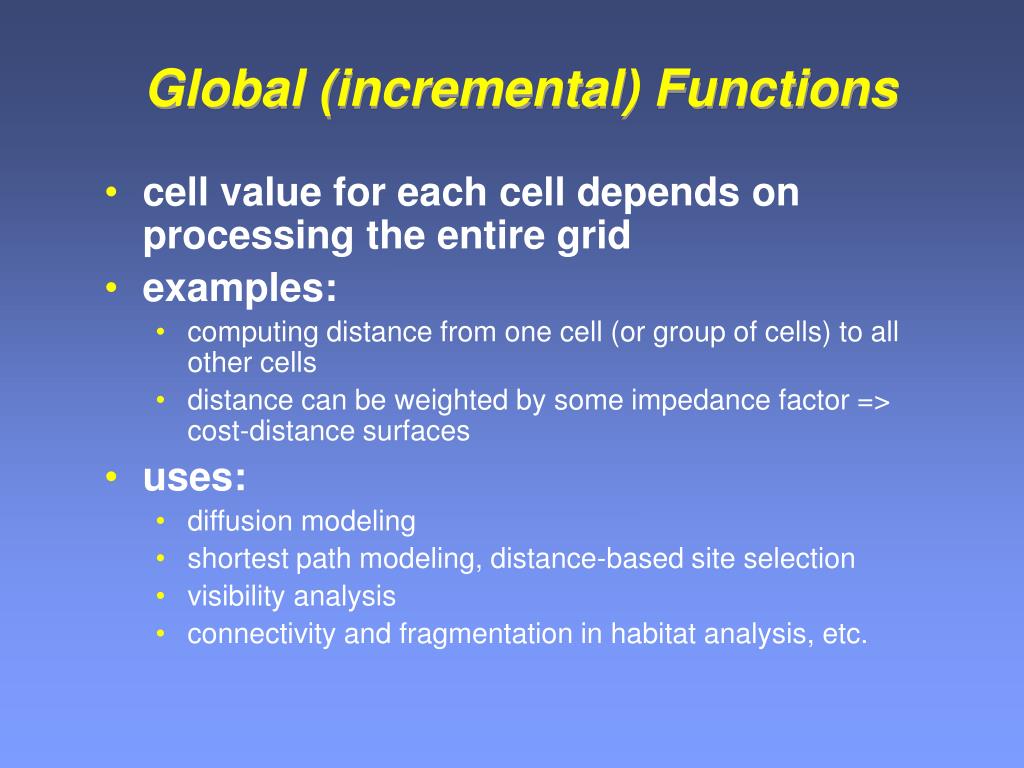

  15. Global (incremental) Functions • cell value for each cell depends on processing the entire grid • examples: • computing distance from one cell (or group of cells) to all other cells • distance can be weighted by some impedance factor => cost-distance surfaces • uses: • diffusion modeling • shortest path modeling, distance-based site selection • visibility analysis • connectivity and fragmentation in habitat analysis, etc.

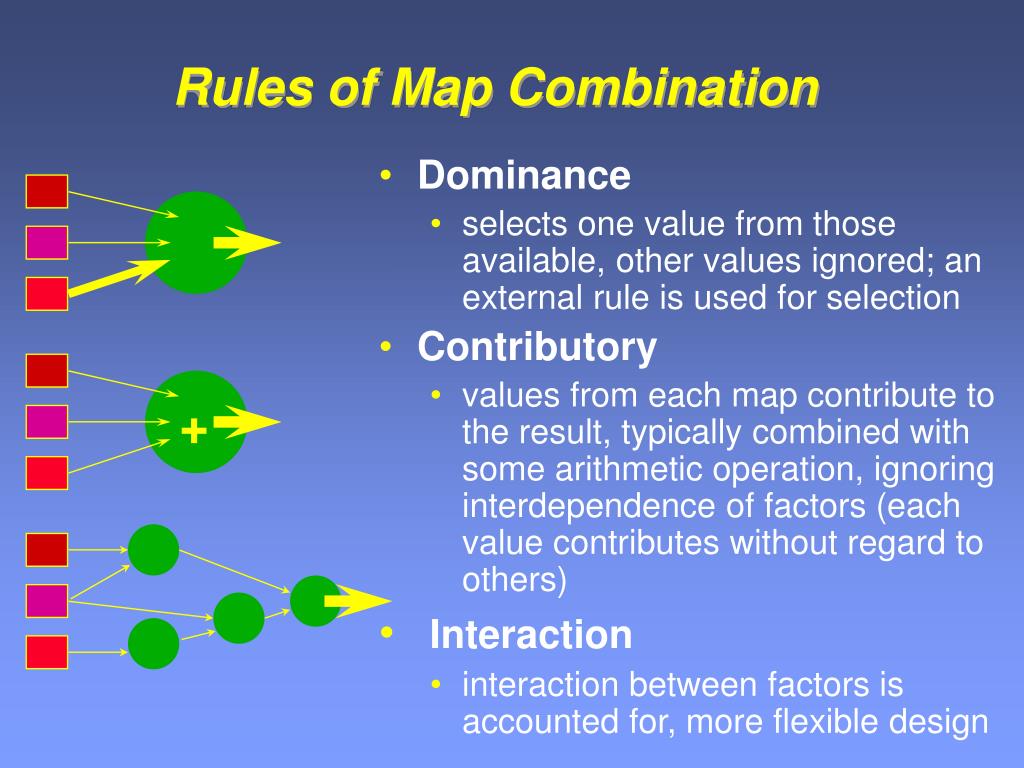

  16. Rules of Map Combination • Dominance • selects one value from those available, other values ignored; an external rule is used for selection • Contributory • values from each map contribute to the result, typically combined with some arithmetic operation, ignoring interdependence of factors (each value contributes without regard to others) • Interaction • interaction between factors is accounted for, more flexible design +

  17. 1 1 0 0 0 0 1 0 0 1 1 1 1 1 1 0 0 1 0 0 0 1 0 1 0 1 0 1 0 0 1 0 0 1 0 0 0 0 0 0 0 1 0 1 0 0 1 0 Dominance Rules: Excl. Screening • Exclusionary screening • selects one value from the available set, ignoring others, usually by an externally specified rule • exclusionary screening(“one strike and you’re out”) • binary (yes/no) • typically an iterative process (two risks: either too much area left, or too much excluded) and ==> in map calculator, with 0/1 themes, can simply multiply them

  18. 1 2 1 2 3 3 1 3 1 3 1 2 1 1 1 2 3 1 1 1 2 1 3 3 1 1 2 1 1 1 1 3 3 2 1 2 3 3 3 3 1 3 2 2 1 1 1 3 Dominance Rules: Excl. Ranking • for ordinal data => take min, or max • common for land resource assessment • for example: encode areas with most severe limitation by any of the factors (max) and ==>

  19. 6.1 7.5 6.7 8.1 3.1 2.4 7.6 6.6 6.5 7.5 8.2 9.1 3.3 6.5 7.7 6.2 5.3 6.2 6.7 8.1 1.1 1.4 5.6 6.6 6.5 7.4 8.2 9.1 3.3 5.5 7.7 6.2 6.1 7.5 6.2 7.1 3.1 2.4 7.6 5.6 6.3 7.5 8.0 5.1 2.3 6.5 5.7 5.2 2 2 1 1 2 2 2 1 1 2 1 1 1 2 1 1 Dominance: Highest Bid/Bidder • apply to ratio data • examples: • max profit for a site => highest bid • activity/developer providing the maximum profit => highest bidder highest bid and highest bidder Factor 1 Factor 2

  20. 1 1 0 0 0 0 1 0 0 1 1 1 1 1 1 0 0 1 0 0 0 1 0 1 0 1 0 1 0 0 1 0 1 2 0 0 0 1 1 1 0 2 1 2 1 1 2 0 Contributory: Voting Tabulation • how many positive (or negative) factors occur at a location (number of votes cast) • applies to nominal categories + ==> also, can produce the most frequent/least frequent value, etc. … is an area excluded on two criteria twice as excluded as area excluded on one factor?...

  21. 1 1 0 0 0 0 1 0 0 1 1 1 1 1 1 0 0 1 0 0 0 1 0 1 0 1 0 1 0 0 1 0 3 8 0 0 0 5 3 5 0 8 3 8 3 3 8 0 Contributory: Weighted Voting • weights express relative importance of each factor, factors are still 0 and 1 3 x 5 x + ==> weights of factors

  22. 1 2 1 2 3 3 1 3 1 3 1 2 1 1 1 2 3 1 1 1 2 1 3 3 1 1 2 1 1 1 1 3 4 3 2 3 5 4 4 6 2 4 3 3 2 2 2 5 Contributory: Linear Combination • each factor map is expressed as a set of site rankings • these rankings are added up for each cell + ==> consider this: 2 = 1 + 1 3 = 1 + 2 = 2 + 1 4 = 1 + 3 = 2 + 2 = 3 + 1 5 = 2 + 3 = 3 + 2 6 = 3 + 3 this is what happens when you add up ordinal data. Perhaps, convert them to ratio (dollars)?

  23. 1 2 1 2 3 3 1 3 1 3 1 2 1 1 1 2 3 1 1 1 2 1 3 3 1 1 2 1 1 1 1 3 Contributory: Weighting and Rating • factor maps composed of rankings, weights externally assigned • a rather problematic, though very popular method 18 11 8 11 19 14 18 24 8 14 13 11 8 8 8 21 3 x 5 x + ==> weights of factors Also, there is Non-linear combination (like USLE) - particularly sensitive to errors, zero values...

  24. How to Assign Weights • Delphi techniques • to aid decision-makers in making value judgments; elicit and refine group judgments where exact knowledge is unavailable • rounds of “blind’ individual ratings by professionals • rounds of open discussion of differences • re-evaluations • often: categories and their sets are redefined • task: to obtain a reliable consensus • Binary comparisons

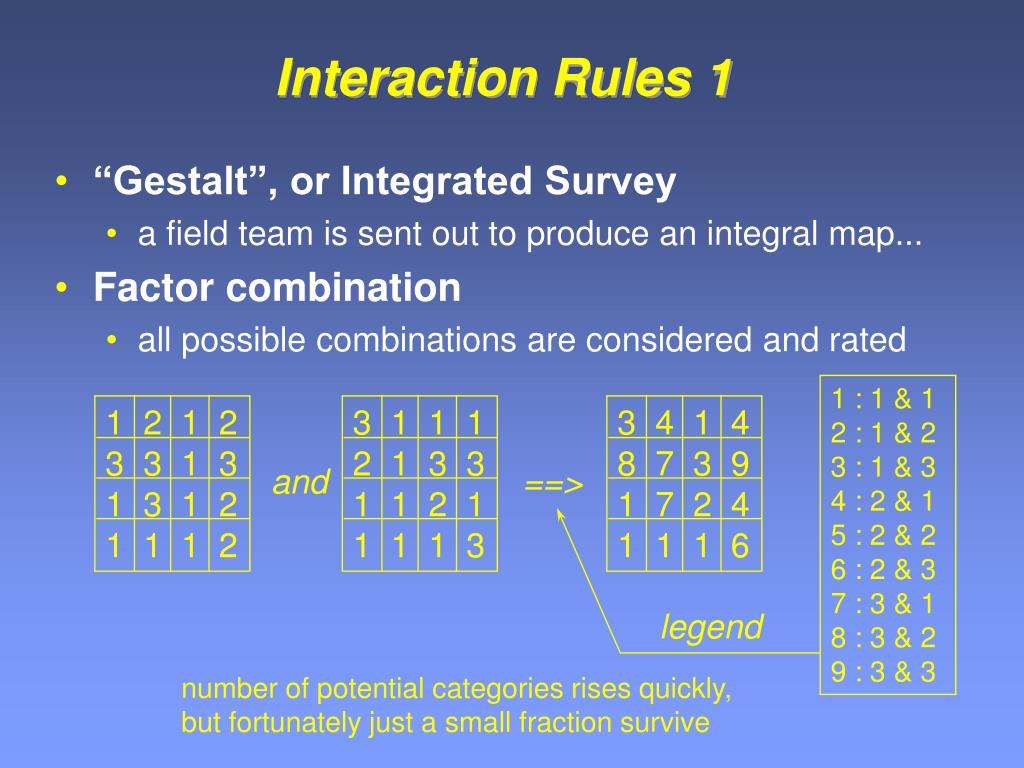

  25. 1 2 1 2 3 3 1 3 1 3 1 2 1 1 1 2 3 1 1 1 2 1 3 3 1 1 2 1 1 1 1 3 3 4 1 4 8 7 3 9 1 7 2 4 1 1 1 6 Interaction Rules 1 • “Gestalt”, or Integrated Survey • a field team is sent out to produce an integral map... • Factor combination • all possible combinations are considered and rated 1 : 1 & 1 2 : 1 & 2 3 : 1 & 3 4 : 2 & 1 5 : 2 & 2 6 : 2 & 3 7 : 3 & 1 8 : 3 & 2 9 : 3 & 3 and ==> legend number of potential categories rises quickly, but fortunately just a small fraction survive

  26. Interaction Rules 2 • Interaction tables • values of one factor determine weights of other factors, then weighting/rating scheme is applied • Hierarchical rules of combination • Binary comparisons NOTE THAT ALL THESE METHODS - Dominance, Contributory, Interaction - APPLY TO OVERLAY, NEIGHBORHOOD OPERAITONS, ZONAL OPERATIONS, etc. - everywhere where you need to combine values
