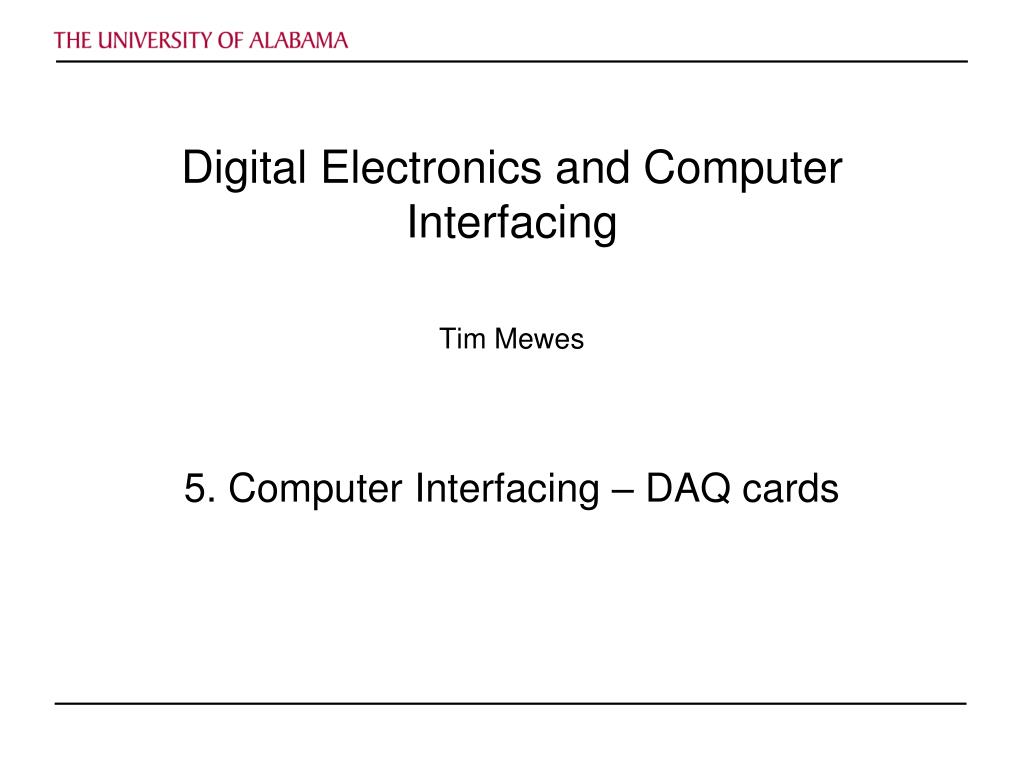

Digital Electronics and Computer Interfacing Tim Mewes 5. Computer Interfacing – DAQ cards
5.1 Basics • Data acquisition is the process of gathering a signal and digitizing it for presentation, analysis and storage on a computer • Signals can be either Analog or Digital Digital Electronics and Computer Interfacing
5.1 Basics • Today a wide variety of different DAQ devices are available: • PCI cards • PCMCIA cards (Notebooks) • USB solutions are becoming popular • Most DAQ devices allow to acquire and create signals (Input/Output) Digital Electronics and Computer Interfacing
5.2 DAQ Setup • DAQ setup can be done using the Measurement and Automation Explorer (MAX) • MAX also allows to test basic hardware functionality • The latest version of DAQ device drivers are called NI-DAQmx • A DAQ setup configuration is calledNI-DAQmx task Digital Electronics and Computer Interfacing
5.2.1 Creating a new NI-DAQmx task • Open MAX • Go to devices &Interfaces • Select NI-DAQmx devices • Choose the card you want to use for the task(NI PCI-6014) • Select “Create Task” Digital Electronics and Computer Interfacing
5.2.1 Creating a new NI-DAQmx task • Select the type of taskyou need (Digital I/O) • Select whether you want to input or output data(example: Line Output) • Select the physical channels you want to use(example: P0.0 – P0.3) • Name the task • Select Finish and thentest the hardware Digital Electronics and Computer Interfacing
5.2.2 Using a NI-DAQmx task in LabVIEW • Go to Measurement I/ONI-DAQmx • Choose Read or Write • Create a constant for the task input • Select the task to be used as the constant Digital Electronics and Computer Interfacing
5.2.2 Using a NI-DAQmx task in LabVIEW • Configure the SubVI toinput/output data as needed The NI-DAQmx VIs are examples for so called polymorphic VIs Digital Electronics and Computer Interfacing
Polymorphic VIs • Polymorphic VIs accept different data types for a single input or output terminal • Polymorphic VIs automatically adapt to accept input data of different data types Digital Electronics and Computer Interfacing
5.3 Counter • A counter is a digital timing device • Can be used to • Count rising and/or falling edges • Measure the frequency/period of a signal • Measure the pulse width of a signal • The count register stores the current count of the counter • Counter gates can be used to externally enable/disable counting Digital Electronics and Computer Interfacing
5.3.1 Creating a NI-DAQmx counter task • Open MAX • Select “Create Task” • Choose “Counter Input” • Example: “Frequency” • The NI PCI-6014 has two counters choose one of them Digital Electronics and Computer Interfacing
5.3.1 Creating a NI-DAQmx counter task • Modify the task properties if necessary • Save the settings • Note the PIN to which the signal has to be connected! • Make the physical connection • Test it Digital Electronics and Computer Interfacing
