M. Bonesini – INFN Milano. TOF design updates. Scintillation counter: basic element (mounting assembly). Scintillation counter construction. BC-404 or BC-420 scintillation slabs from Bicron (DTF finish) Home made plexiglass light guide

fredericka-kelley
Télécharger la présentation

TOF design updates

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

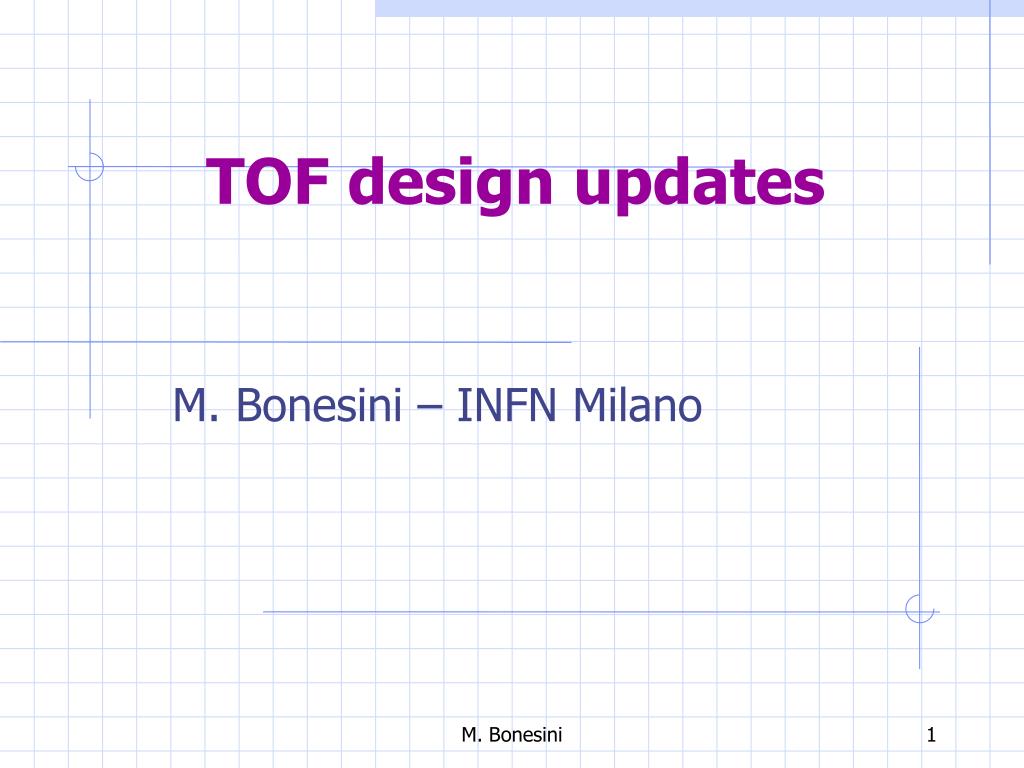

  1. M. Bonesini – INFN Milano TOF design updates

  2. Scintillation counter: basic element (mounting assembly)

  3. Scintillation counter construction • BC-404 or BC-420 scintillation slabs from Bicron (DTF finish) • Home made plexiglass light guide • Home made counter mounting (3 prototypes ready in Milano) • Home made PMT holder

  4. TOF 0 station optimization • Basic element: scintillator slab 24 cm x 4 cm x 1” with plexiglass light guide, read by R4998 mod PMTs • 2 planes X/Y : active area 24 x 24 cm2 • Cross-calibration: impinging muons+laser • Mechanics design (CAD) in progress

  5. CAD design for TOF0 • 2 X/Y planes • Problem: reduced capability of cross-calibration with incoming muons (as respect to staggered solution) • But Advantage: more easy mechanics support structure and more uniform structure /less material on beamline

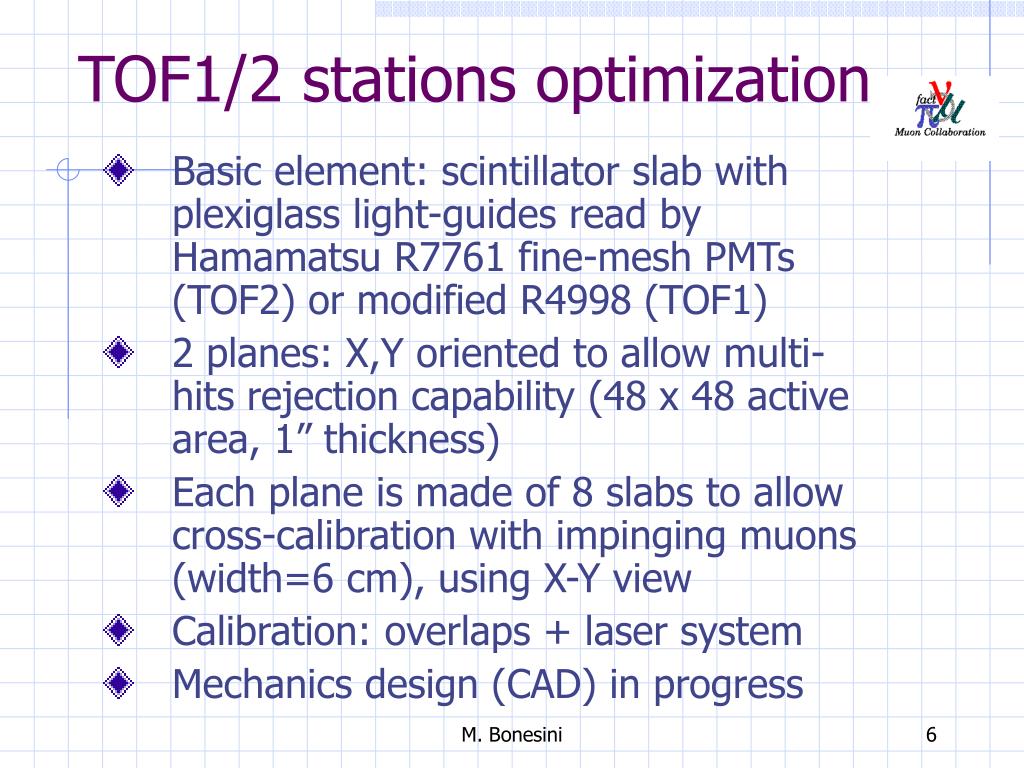

  6. TOF1/2 stations optimization • Basic element: scintillator slab with plexiglass light-guides read by Hamamatsu R7761 fine-mesh PMTs (TOF2) or modified R4998 (TOF1) • 2 planes: X,Y oriented to allow multi-hits rejection capability (48 x 48 active area, 1” thickness) • Each plane is made of 8 slabs to allow cross-calibration with impinging muons (width=6 cm), using X-Y view • Calibration: overlaps + laser system • Mechanics design (CAD) in progress

  7. CAD design for TOF2 • 2 X/Y planes • Problem: reduced capability of cross-calibration with incoming muons (as respect to staggered solution) • But Advantage: more easy mechanics support structure and more uniform structure/less material on beamline • ggg

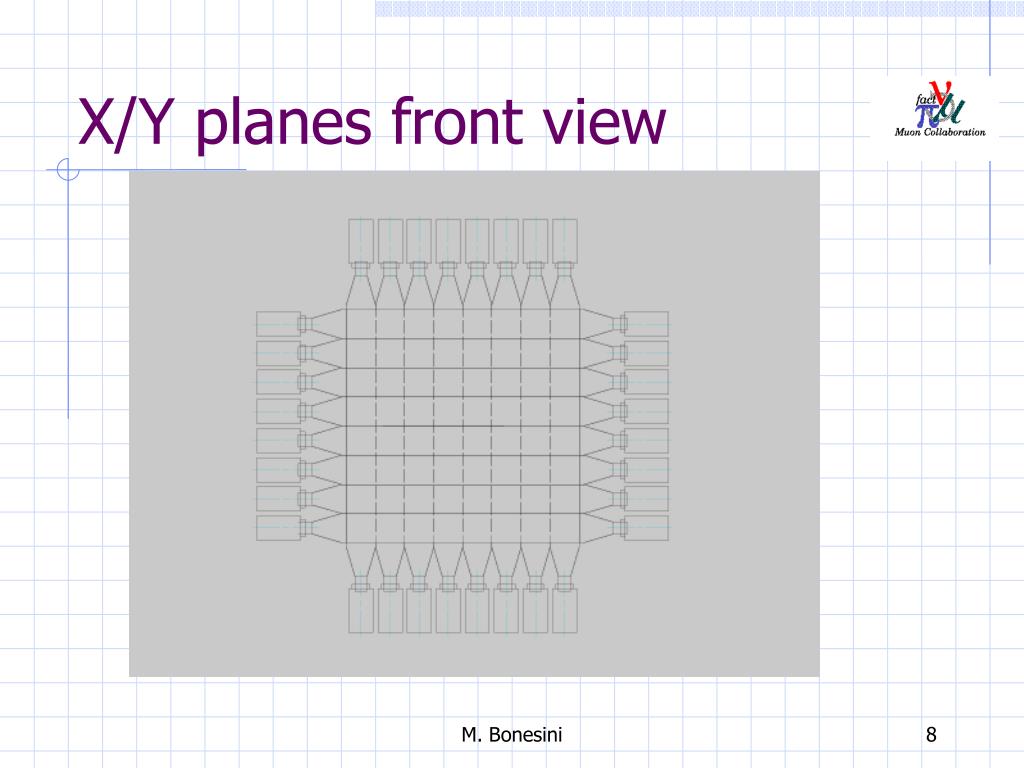

  8. X/Y planes front view 500 mm 890 mm

  9. X/Y planes top view X plane Y Y plane Y

  10. Plexiglass lightguides here we will hang to support structure the scintillation counters via a comb

  11. G4MICE • G4MICE installed in Milano, to optimize TOF performances design (with help from Alessandra and Yangmur) • Hope to have results soon (multiplicity of hits, ...)

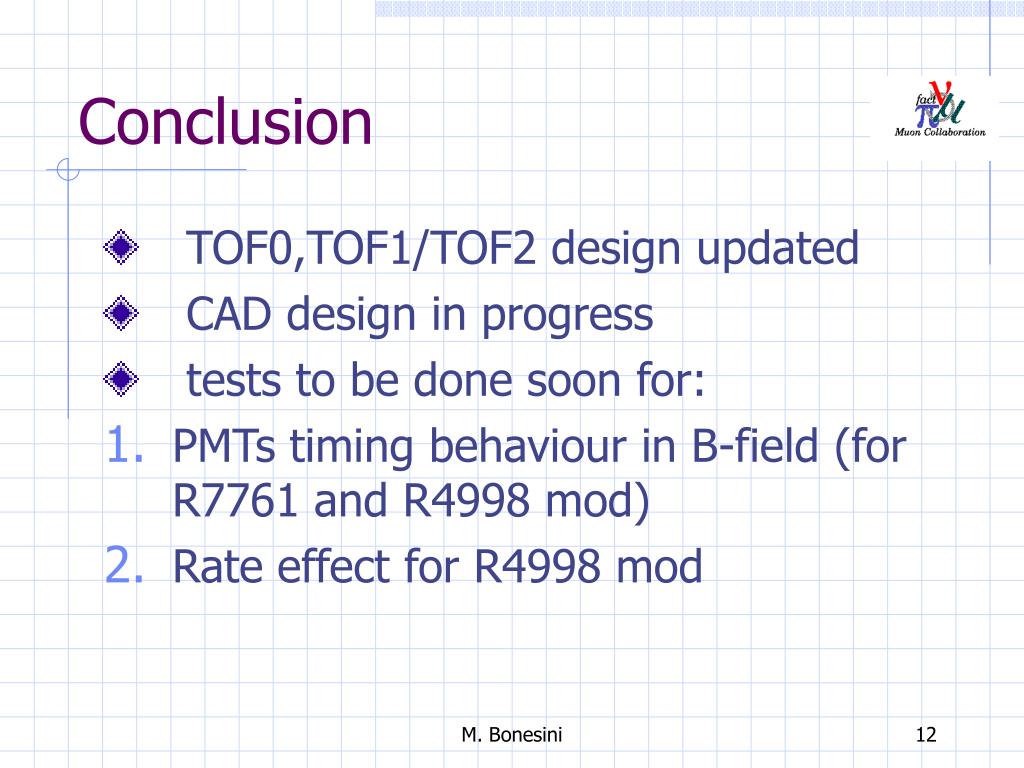

  12. Conclusion • TOF0,TOF1/TOF2 design updated • CAD design in progress • tests to be done soon for: • PMTs timing behaviour in B-field (for R7761 and R4998 mod) • Rate effect for R4998 mod
