  1. Measuring Charm and Bottom using the PHENIX Silicon Vertex Detectors Hubert van Hecke, Los Alamos National Laboratory for the PHENIX collaboration Outline: • Motivation • Detector requirements • Description of the detectors • Some MC results • Construction Timeline Hubert van Hecke - QM08

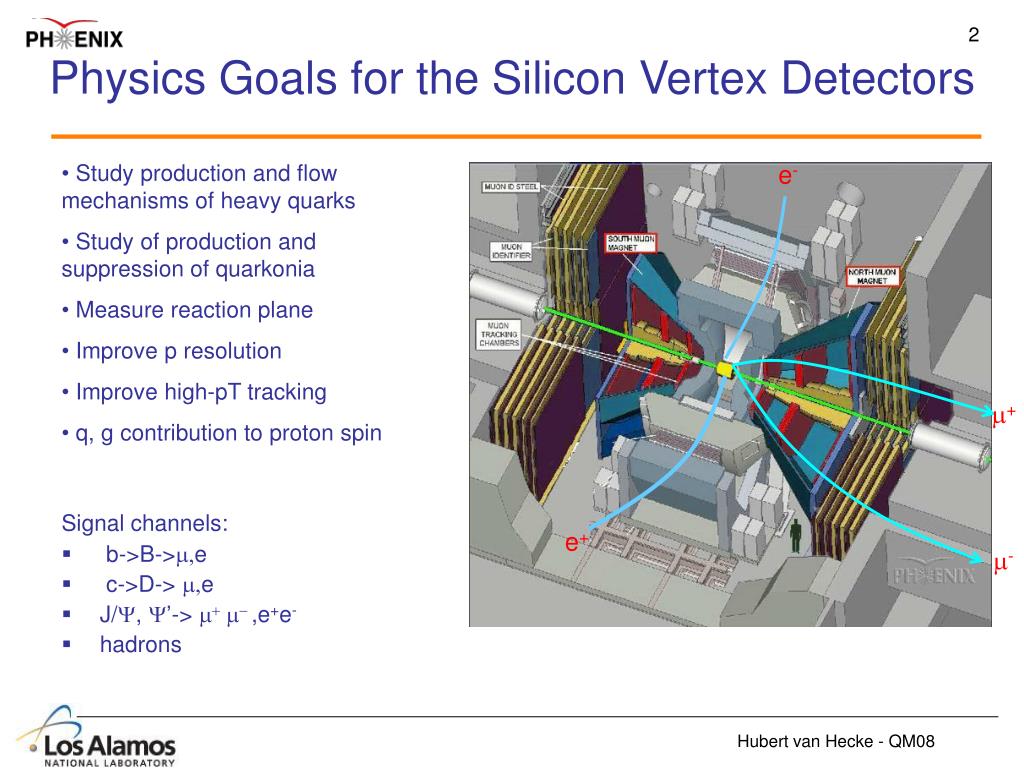

  2. Physics Goals for the Silicon Vertex Detectors • Study production and flow mechanisms of heavy quarks • Study of production and suppression of quarkonia • Measure reaction plane • Improve p resolution • Improve high-pT tracking • q, g contribution to proton spin Signal channels: • b->B->e • c->D-> e • J/, ’->  ,e+e- • hadrons e- m+ e+ m- Hubert van Hecke - QM08

  3. Separate Signal from Backgrounds The problem: backgrounds ( ->me and K-> me) overwhelm the signal Solution: Mean ,K ->me decay distance is large D, B mesons travel some distance before semileptonic decay to muons or electrons Prompt me have 0 DCA By measuring the DCA to the primary vertex, we can separate D, B decays from prompt leptons and from long-lived decays from , K Hubert van Hecke - QM08

  4. Detector Specifications • Need sufficient DCA resolution (~50m central, ~100m forward) • Need occupancy low enough to find tracks in central AuAu events (<few %) • Need enough hits to reconstruct a track (>=3 hits) • Need to match tracks with Central Arm detectors =+-0.35, or with the Muon System:  = 1.2 - 2.4 • Large solid angle coverage Hubert van Hecke - QM08

  5. Detectors 80 cm • . 40 cm 38 cm Forward vertex detectors (FVTX) Barrel vertex detector (VTX) Hubert van Hecke - QM08

  6. Barrel: Inner 2 Pixel Layers • Inner 2 layers: • pixels: 50 x 425 m • 150 m - thick Siilicon • R = 2.5, 5.0 cm • Length = 22 cm • 1.3, 2.6M channels • Readout with ALICE1LHCb chip • Bump-bonded to detector • RL 1.44% total Hubert van Hecke - QM08

  7. Barrel: Inner 2 Pixel Layers (cont’d) Test of half-ladder, extension cable, spiro board successfully completed Carbon support + cooling tube prototype Hubert van Hecke - QM08

  8. Barrel: Outer 2 Layers • Outer 2 layers: stripixels • elements: 80 x 1000 m • 650 m - thick Silicon • R=10,14 cm • Length=32, 38 cm • 140K, 280K channels • Readout with SVX4 chip • RL 2.7% total Single_sided, 2D readout Hubert van Hecke - QM08

  9. ReadOut Card Strip sensor Kapton Support Barrel - strip layers (contd) Strip pixel sensor wafer made by HPK ROC-3 prototype currently under study CFC Hubert van Hecke - QM08

  10. 11.2mm strip Carbon backing Kapton HDI Silicon Readout chips 12.5 cm 1664 strips 13 chips 75-um strips 3.750 2.8mm strip Forward Detectors Basic unit: ‘wedge’ • 4 disks / side • 48 wedges/disk • 75 um strips, • 2.8-11.2 mm long • 1664 strips/column • 1.1M channels total • readout with FPHX chip, • derived from BTeV chip. Hubert van Hecke - QM08

  11. Forward detectors (cont’d) Mechanical design ~80% done Wedges front and back Electronics chain fully prototyped Honeycomb support panel Thermally conducting silicone Hubert van Hecke - QM08

  12. Barrel: Expected DCA resolution Hadron background s ~ 40 mm • Results of simulation of Au+Au collision. • After a chi**2 cut, DCA distributions of light hadrons and D0 decay are clearly separated DCA distribution for single simulated pions in 3<pT<4 GeV/c. Simulation is done with 200 micron pixel layers and 650 micron strip layer. The passive material is 1.0% per pixel layer and 2.75% per strip layer. Hubert van Hecke - QM08

  13. Endcaps: Open charm, bottom signal • In the forward detectors: • Using DCA cuts, plus  and isolation cuts, we can now improve the signal/background for D,B-> D- -> B- -> S/N Hubert van Hecke - QM08

  14. Improved resolution + background reduction  Simulated RHIC-II p+p run - better background . rejection - better mass resolution - separate ’ Without FVTX ’  With FVTX ’ Hubert van Hecke - QM08

  15. Status and outlook - Barrel construction well underway pixel layers completion in 2009 stripixels completion 2010 - Forward detector construction started in FY08, installation in 2011 • Collaborating institutions: • KEK, RIKEN, Rikkyo, Ecole Polytechnique, Columbia U.; SUNY Stony Brook, Los Alamos, Brookhaven, Oak Ridge; U. New Mexico, New Mexico State U.; Iowa State U.; Bhabha Atomic Research Centre, India; Saclay, France; Charles University, Prague; Czech Technical University, Prague; Institute of Physics, Academy of Sciences, Prague; Kyoto University; University of Jyvaskyla, Finland; Yonsei University, Korea Hubert van Hecke - QM08

  16. . backups Hubert van Hecke - QM08

  17. Endcaps: DCA resolutions Since the barrel pixels are // to the beampipe (orthogonal to the FVTX mini-strips), using them greatly improves phi resolution 100 m Hubert van Hecke - QM08

  18. External mount Hubert van Hecke - QM08

  19. Acceptance Since the event vertex spans ~+-10 cm in z, we can use the barrel hits for some events. Hubert van Hecke - QM08

  20. Can we match muon arm tracks with a FVTX track? Use the chi2 of the Kalman track fitter : 3 GeV muon: 75% correct match 9 GeV muons; 93% correct match Hubert van Hecke - QM08
