Progress and Future Plans for the MONSOON Image Acquisition System

fuller avatar
fuller
13 diapositives · 283 Views · Aug 21, 2014

This report details the advancements of the MONSOON Image Acquisition System developed by Peter Moore and Gustavo Rahmer. Highlighting its growing capabilities, the program accommodates large instruments for capturing more photons across various wavelengths (UV to MIR). The document discusses the current performance metrics, future collaborations, and open-source licensing, emphasizing the unification of detector architectures. MONSOON aims to overcome past challenges and enhance observation capabilities, paving the way for groundbreaking astronomical discoveries.

Progress and Future Plans for the MONSOON Image Acquisition System - slide 1
01 / 13Progress and Future Plans for the MONSOON Image Acquisition System
1 / 17

Télécharger la présentation

Progress and Future Plans for the MONSOON Image Acquisition System
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. MONSOONImage Acquisition System “Rain drops keep falling on our heads” Peter Moore(1) and Gustavo Rahmer(2) (1)National Optical Astronomy Observatory (2)Cerro Tololo Inter-American Observatory The MONSOON development program continues and we report on the current status of, and the future plans for this project. The Forecast : Warm deluges of success with some cold showers of reality

  2. Taking a photon shower Not enough time to catch all the photons we need ! Big instruments – Big focal planes More photons !! UV – VIS – NIR – MIR. MONSOON designed to accommodate these requirements So; where is MONSOON ?

  3. Where we’re at: 350 400 1000 1050 1100 2500

  4. Performance VIDEO CHANNEL PERFORMANCE – To Date SYSTEM PERFORMANCE

  5. Common tech. large,/small/VIS/IR VISIBLE DETECTORS ARRAYS OF DETECTORS PHOTONS IN IR DETECTORS SINGLE DETECTORS DETECTORS SOFTWARE FIRMWARE DHE HARDWARE COMMUNICATIONS (MUCH) DATA OUT APPLICATIONS ICD 1.x ICD 8.x ICD 7.x ICD 6.x ICD 4.x ICD 6.x

  6. Soft/hard Status RELEASED RELEASED RELEASED RELEASE C RELEASE C AUGUST 05 RELEASE B MONSOON SUPERVISOR LAYER ICD 7.0 MASTER CONTROL BOARD 8 CHAN CCD ACQ. BOARD CLOCK & BIAS BOARD 36 CHAN IR ACQ. BOARD DATA HANDER INTERFACE CONFIGURE TOOL SUPER PAN CAPTURE RELEASED RELEASED RELEASED IN PROGRESS IN PROGRESS BETA TESTING IRACQ CLK-BIAS CCDACQ DHI TOOLSET MCB PAN PROCESS GENERIC PIXEL SERVER PAN SAVER GPX MONSOON ENGINEERING CONSOLE PPX MEC ICD 6.x ICD 1.0 ICD 8.x ICD 4.0 CCD ACQ. TRANSITION BOARD IR ACQ. TRANSITION BOARDS CLOCK & BIAS TRANSITION BOARDS DETECTOR - SOFTWARE - - HARDWARE - ICS DATA

  7. Cold shower .. Cut and paste Cold shower #1: - CCD Front End - cut and paste: CDS CPLD FPGA BIAS Functionality good, but performance takes time. 8 Video Channels/Board 18 Bit Dynamic Range 800 KPix/Chan/Sec p & n Channel Devices 32 HV Biases (+/- 35 V) 32 Bit DOP

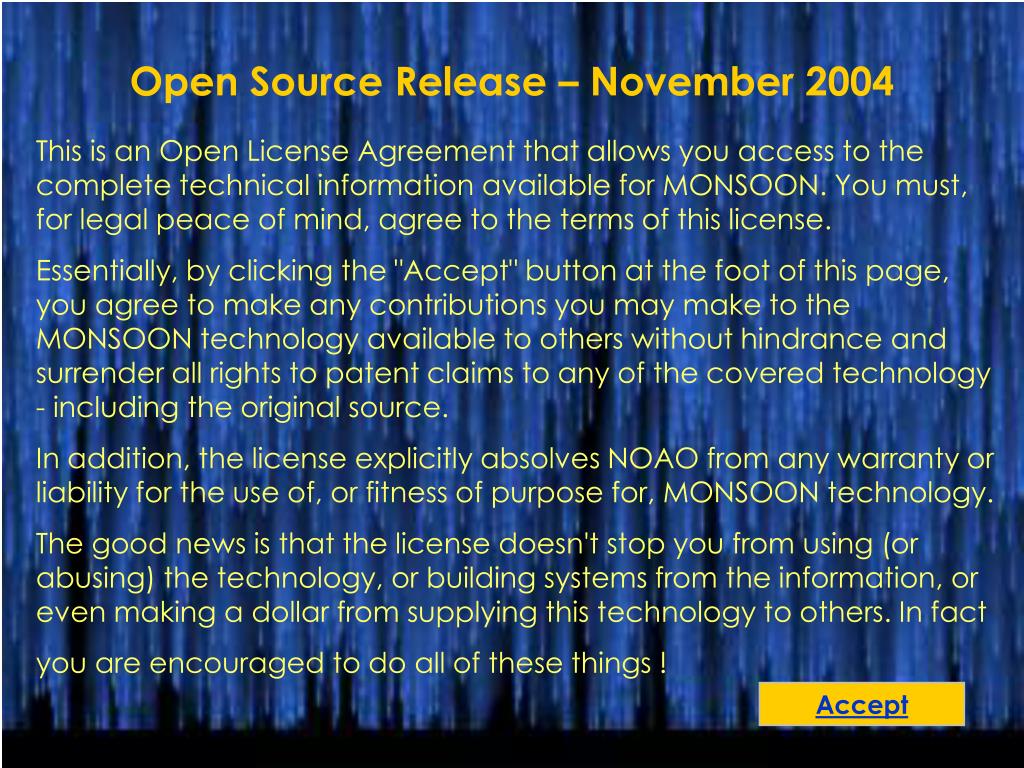

  8. Open Source Release Open Source Release – November 2004 This is an Open License Agreement that allows you access to the complete technical information available for MONSOON. You must, for legal peace of mind, agree to the terms of this license. Essentially, by clicking the "Accept" button at the foot of this page, you agree to make any contributions you may make to the MONSOON technology available to others without hindrance and surrender all rights to patent claims to any of the covered technology - including the original source. In addition, the license explicitly absolves NOAO from any warranty or liability for the use of, or fitness of purpose for, MONSOON technology. The good news is that the license doesn't stop you from using (or abusing) the technology, or building systems from the information, or even making a dollar from supplying this technology to others. In fact you are encouraged to do all of these things ! Accept

  9. What you get !! Technical Documentation Source Documents User Documents Architecture Documents http://www.noao.edu/ets/monsoon/

  10. Cold shower Collaborations !! MONSTEROID LSST NOAO WIYN STSci UIUC / FERMILAB QUOTA /ODI • Hardware Test and Dev. • Firmware Dev. • Guide + Science Software Dev. DES : DeCam • 12 Channel CCD Video Board • Firmware Development WHIRC • Sequencer Code Dev. • Detector (Virgo) Interface MONSOON - Collaboration History - Cold shower #2: - Each ‘collaboration’ effort requires explicit support which in turn, requires resources. However, collaborations that ‘stick’ are very productive !

  11. New Toys – The future MONSOON ‘ORANGE’ OPEN SOURCE & IN SERVICE DECam Requirements established May 2002 NEWFIRM + 11 OTHERS MONSOON ‘GREEN’ … HIGHER DENSITY LESS POWER Requirements established March 2004 ODI Motivation: 1). Replace unreliable, high maintenance, or obsolete CCD controllers. 2). Unify detector controller architectures to reduce maintenance burden. 3). Apply to new instrumentation without risk of ‘single source’ components. REPACKAGED LOWER COST TORRENT Requirements established February 2005

  12. Aren’t we just so happy about MONSOON? So happy we could sing about it !! All together now … Photons keep falling on our heads, And we don’t have a cheap detector to catch them all, Crying just won’t help, The challenge is for Rockwell or Raytheon to show us how to do it in … SDW2008 !

  13. Getting Wet !! The last word: An opportunity to take a MONSOON together ! Courtesy: National Park Service, US Dept. Interior http://www.noao.edu/ets/monsoon/home/contact/
