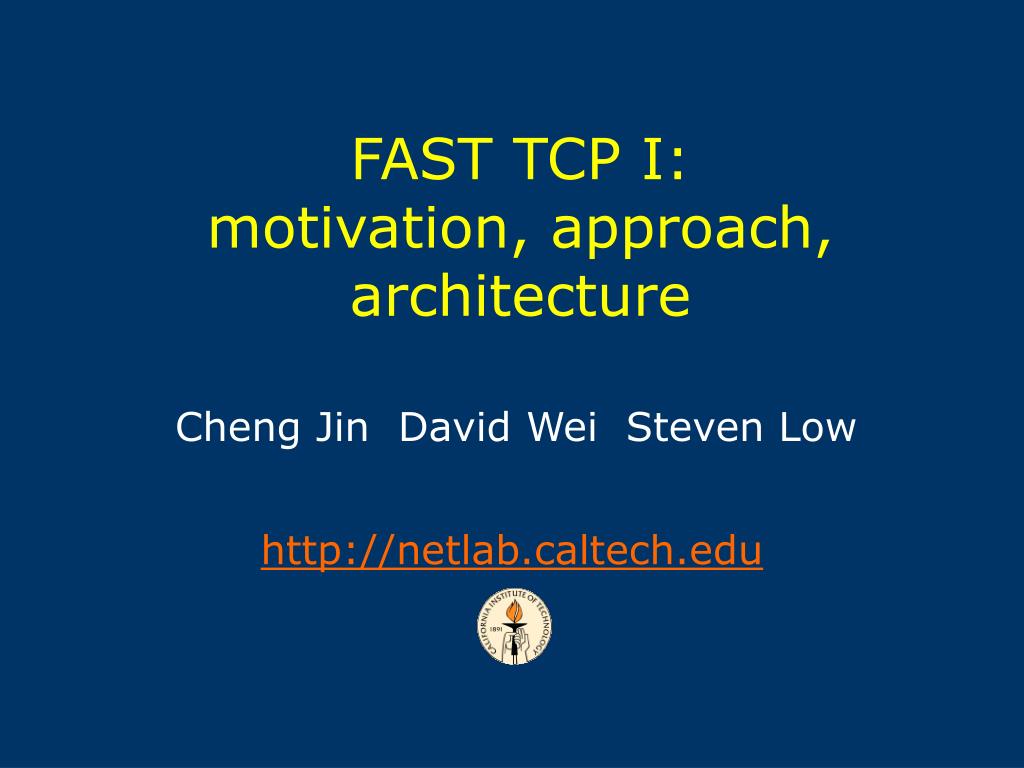

  1. FAST TCP I:motivation, approach, architecture Cheng Jin David Wei Steven Low http://netlab.caltech.edu

  2. Acknowledgments • Caltech • Bunn, Choe, Doyle, Newman, Ravot, Singh, J. Wang • UCLA • Paganini, Z. Wang • CERN • Martin • SLAC • Cottrell • Internet2 • Almes, Shalunov • Cisco • Aiken, Doraiswami, Yip • Level(3) • Fernes • LANL • Wu

  3. Outline • Motivation • Approach • Architecture

  4. ns-2 simulation DataTAG Network: CERN (Geneva) – StarLight (Chicago) – SLAC/Level3 (Sunnyvale) average utilization 95% 1G 27% 19% txq=100 txq=100 txq=10000 Linux TCP Linux TCP FAST capacity = 1Gbps; 180 ms round trip latency; 1 flow C. Jin, D. Wei, S. Ravot, etc (Caltech, Nov 02) Performance at large windows 10Gbps capacity = 155Mbps, 622Mbps, 2.5Gbps, 5Gbps, 10Gbps; 100 ms round trip latency; 100 flows J. Wang (Caltech, June 02)

  5. ACK: W  W + 1/W Loss: W  W – 0.5W • Packet level • Flow level • Equilibrium • Dynamics packets Packet & flow level Reno TCP (Mathis formula)

  6. Difficulties at large window • Equilibrium problem • Packet level: AI too slow, MI too drastic. • Flow level: requires very small loss probability. • Dynamic problem • Packet level: must oscillate on a binary signal. • Flow level: unstable at large window.

  7. AIMD reduces throughput 19% 27% 95% 1G txq=100 Linux TCP Linux TCP (Optimized) FAST capacity = 1Gbps; 180 ms round trip latency; 1 flow C. Jin, D. Wei, S. Ravot, etc (Caltech, Nov 02)

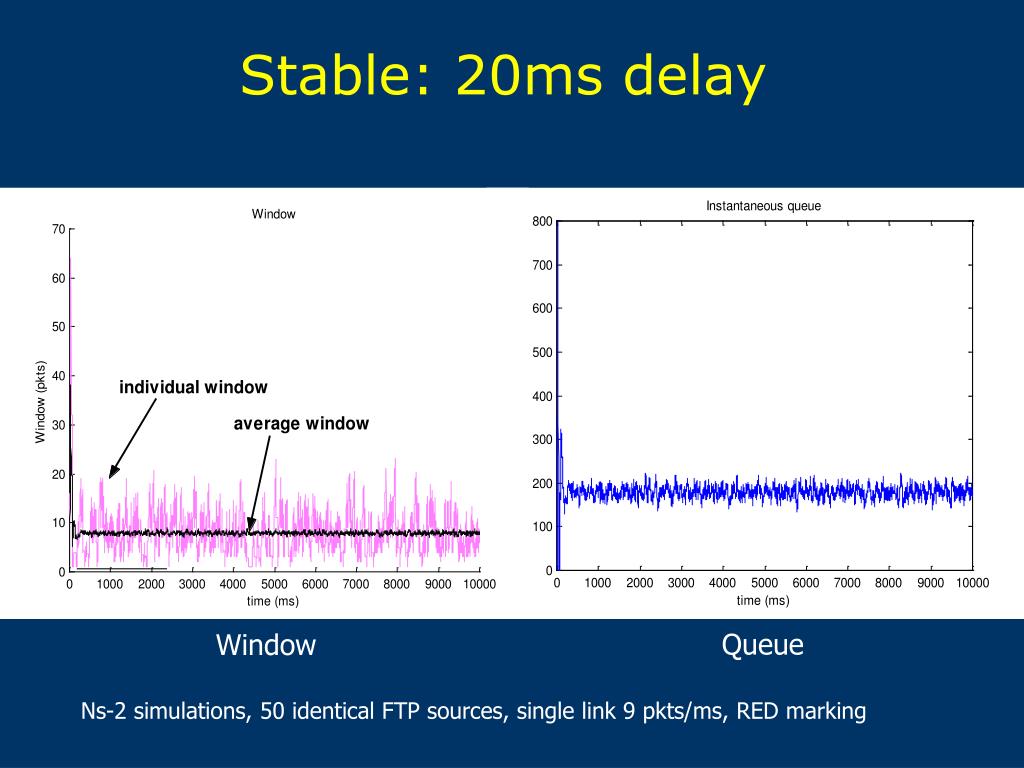

  8. Stable: 20ms delay Window Ns-2 simulations, 50 identical FTP sources, single link 9 pkts/ms, RED marking

  9. Queue Stable: 20ms delay Window Ns-2 simulations, 50 identical FTP sources, single link 9 pkts/ms, RED marking

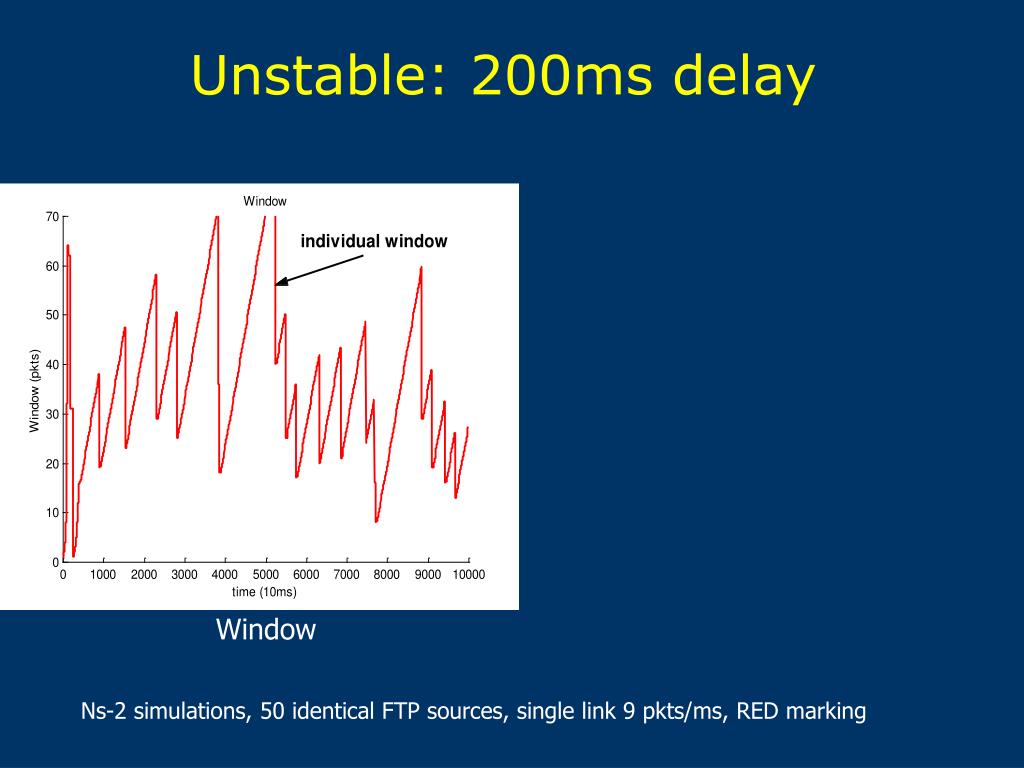

  10. Unstable: 200ms delay Window Ns-2 simulations, 50 identical FTP sources, single link 9 pkts/ms, RED marking

  11. Queue Unstable: 200ms delay Window Ns-2 simulations, 50 identical FTP sources, single link 9 pkts/ms, RED marking

  12. 30% noise avg delay 16ms 20ms 30% noise avg delay 208ms 200ms Flow level (in)stability isrobust

  13. ns-2 simulation Instability reduces utilization capacity = 155Mbps, 622Mbps, 2.5Gbps, 5Gbps, 10Gbps; 100 ms RTT and 100 flows J. Wang (Caltech, June 02)

  14. Outline • Motivation • Approach • Architecture

  15. ACK: W  W + 1/W Loss: W  W – 0.5W • Packet level • Flow level • Equilibrium • Dynamics packets Packet & flow level Reno TCP (Mathis formula)

  16. Difficulties at large window • Equilibrium problem • Packet level: AI too slow, MI too drastic • Flow level: required loss probability too small • Dynamic problem • Packet level: must oscillate on binary signal. • Flow level: unstable at large window.

  17. Problem: binary signal TCP oscillation

  18. Problem: no target • Reno:AIMD (1, 0.5) ACK: W  W + 1/W Loss: W  W – 0.5W • HSTCP:AIMD (a(w), b(w)) ACK: W  W + a(w)/W Loss: W  W – b(w)W • STCP:MIMD (1/100, 1/8) ACK: W  W + 0.01 Loss: W  W – 0.125W

  19. Difficulties at large window • Equilibrium problem • Packet level: AI too slow, MI too drastic • Flow level: required loss probability too small • Dynamic problem • Packet level: Use multi-bit signal. • Flow level: Stablize flow dynamics!

  20. Solution: multibit signal FAST stabilized

  21. Flow level: Reno, HSTCP, STCP, FAST • Commonflow level dynamics! window adjustment control gain flow level goal = • Different gain k and utility Ui • They determine equilibrium and stability • Different congestion measure pi • Loss probability (Reno, HSTCP, STCP) • Queueing delay (Vegas, FAST)

  22. FAST Conv Slow Start Equil Loss Rec Solution: estimate target • FAST Scalable to any w*

  23. Implementation strategy • Commonflow level dynamics window adjustment control gain flow level goal = • Small adjustment when close, large far away • Need to estimate how far current state is wrt tarqet. • Scalable. • Queueing delay easier to estimate compared with extremely small loss probability

  24. ACK: W  W + 1/W Loss: W  W – 0.5W • Reno AIMD(1, 0.5) • FAST Packet level ACK: W  W + a(w)/W Loss: W  W – b(w)W • HSTCP AIMD(a(w), b(w)) ACK: W  W + 0.01 Loss: W  W – 0.125W • STCP MIMD(a, b)

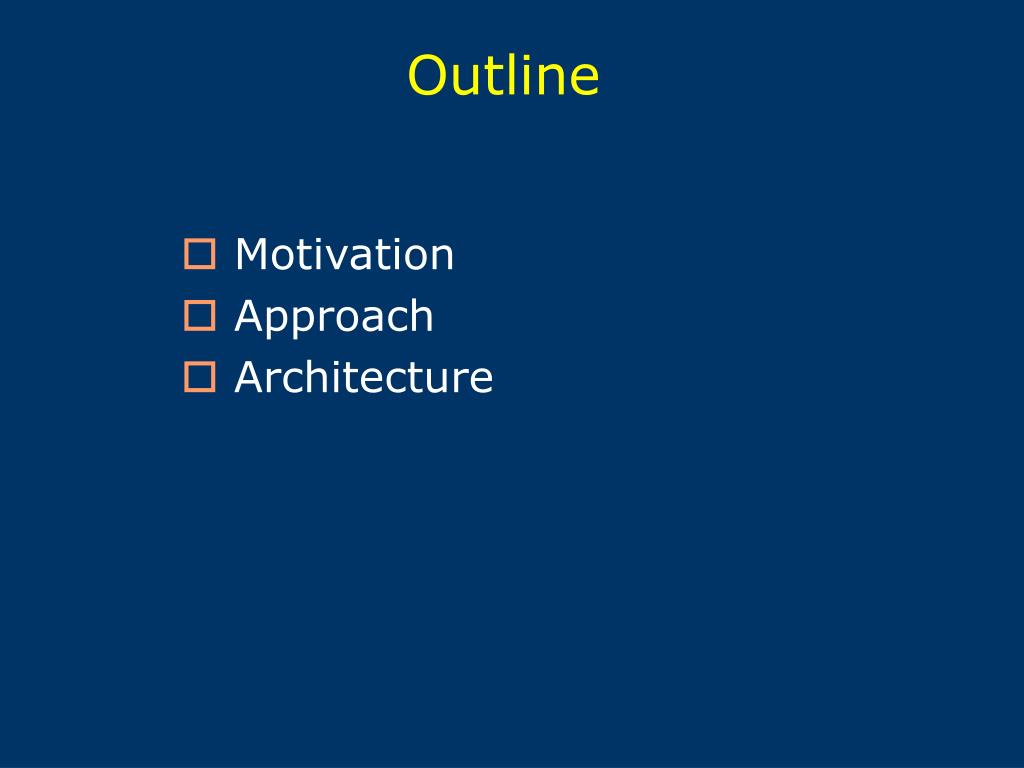

  25. Outline • Motivation • Approach • Architecture

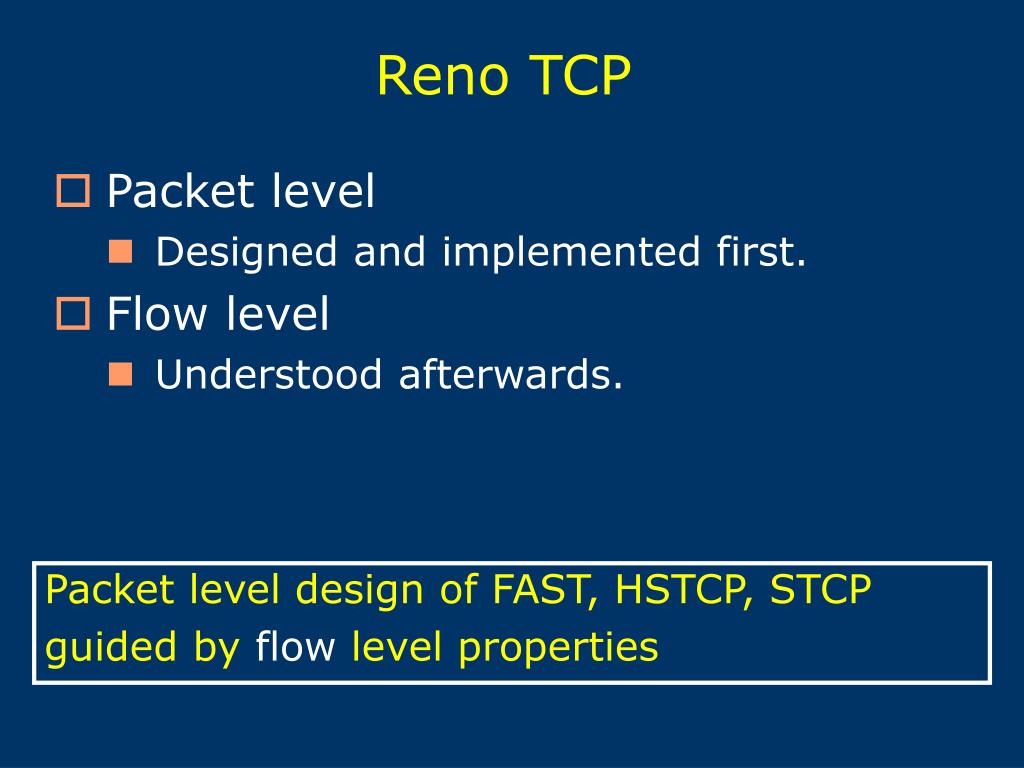

  26. Reno TCP • Packet level • Designed and implemented first. • Flow level • Understood afterwards. Packet level design of FAST, HSTCP, STCP guided by flow level properties

  27. FAST TCP • Flow level • Understood and Synthesized first. • Packet level • Designed and implemented later. • Design flow level equilibrium & stability • Implement flow level goals at packet level

  28. ~ Ack timescale ~ RTT timescale Ack timescale Data Control Window Control Burstiness Control Estimation TCP Protocol Processing Architecture

  29. Architecture Each component • designed independently • upgraded asynchronously Data Control Window Control Burstiness Control Estimation TCP Protocol Processing

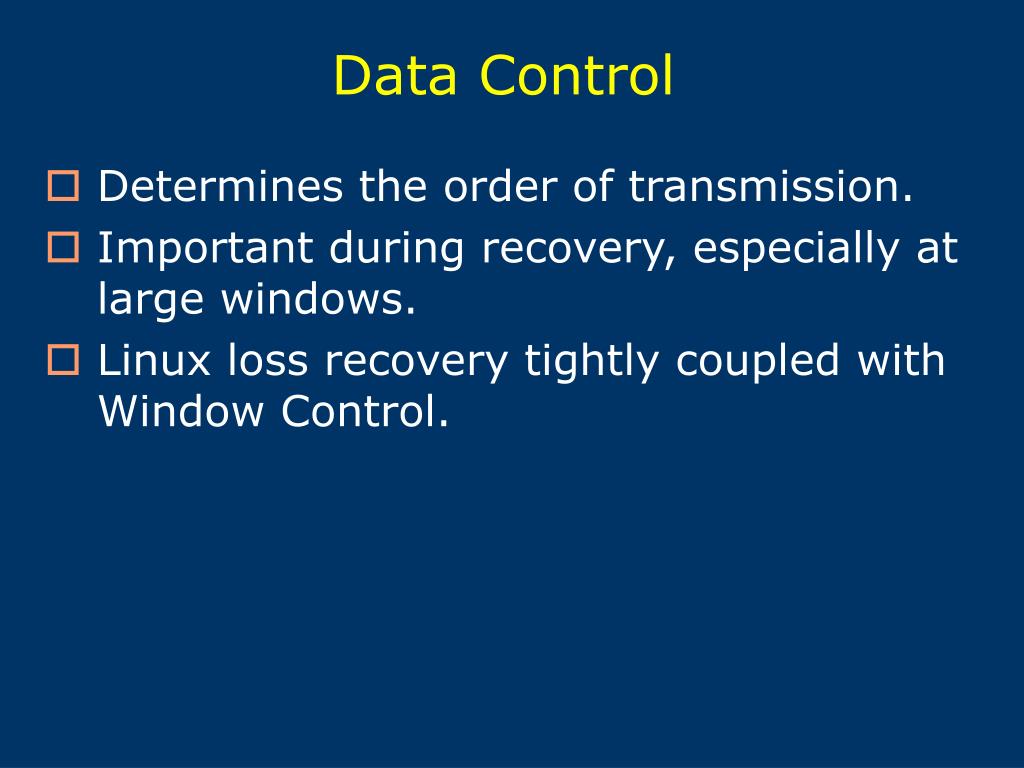

  30. Data Control • Determines the order of transmission. • Important during recovery, especially at large windows. • Linux loss recovery tightly coupled with Window Control.

  31. Window Control • Defines an explicit equilibrium point. • Uses queueing delay for equation-base congestion control. • Uses loss information whenever necessary. • Does not use a separate mechanism during recovery like TCP Reno.

  32. Burstiness Control • Smoothes out transmission rate to be more fluid-like. • Important to avoiding frequent packet loss at bottleneck links. • Essential to accurate queueing delay estimation.

  33. Summary • Reno TCP has poor performance at large windows. • Reno TCP has problems at both the packet-level and the flow-level. • FAST TCP addresses these by: • Using queueing delay. • Defining an explicit equilibrium. • Separating window control from the rest.

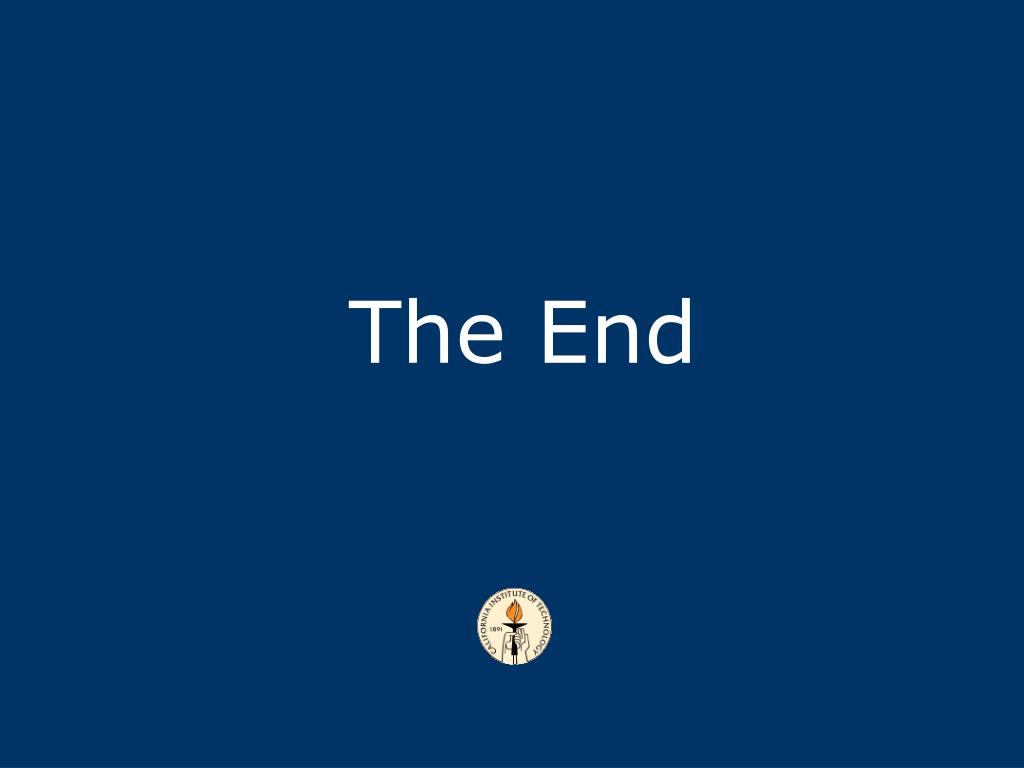

  34. The End

  35. Data Control Window Control Burstiness Control Estimation TCP Protocol Processing Architecture Each component • designed independently • upgraded asynchronously Window Control

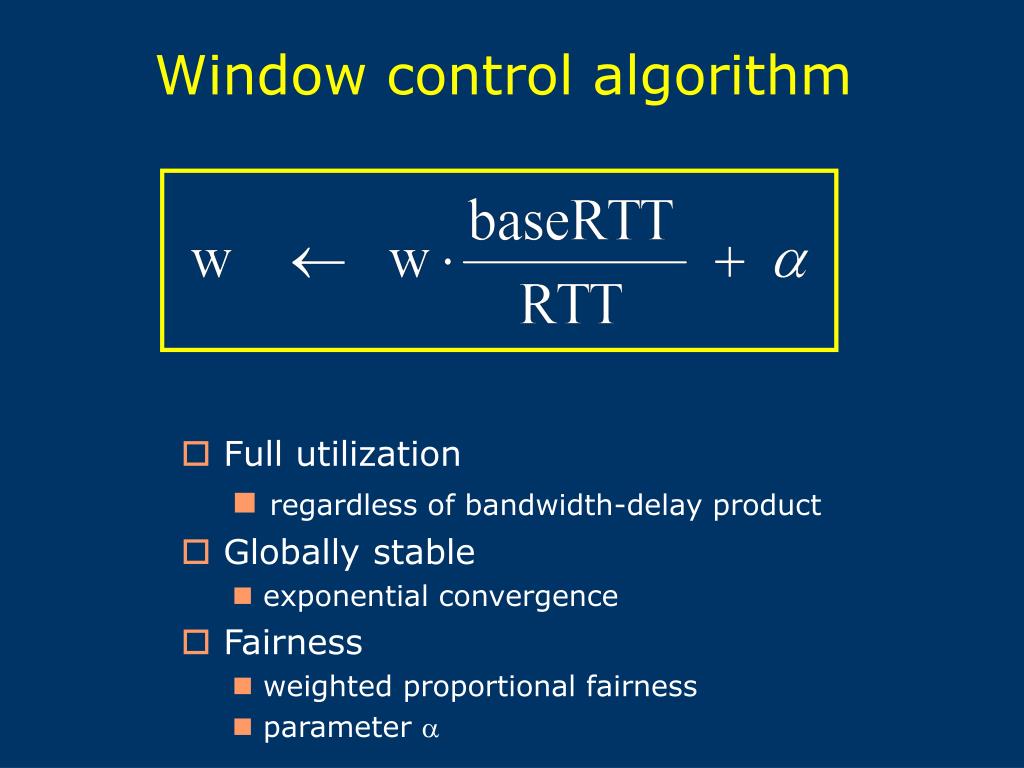

  36. Window control algorithm • Full utilization • regardless of bandwidth-delay product • Globally stable • exponential convergence • Fairness • weighted proportional fairness • parameter a

  37. Window control algorithm Theorem (Jin, Wei, Low ‘03) In absence of delay • Mapping from w(t) to w(t+1) is contraction • Global exponential convergence • Full utilization after finite time • Utility function: ai log xi (proportional fairness)

  38. Dynamic sharing: 3 flows FAST Linux Dynamic sharing on Dummynet • capacity = 800Mbps • delay=120ms • 3 flows • iperf throughput • Linux 2.4.x (HSTCP: UCL)

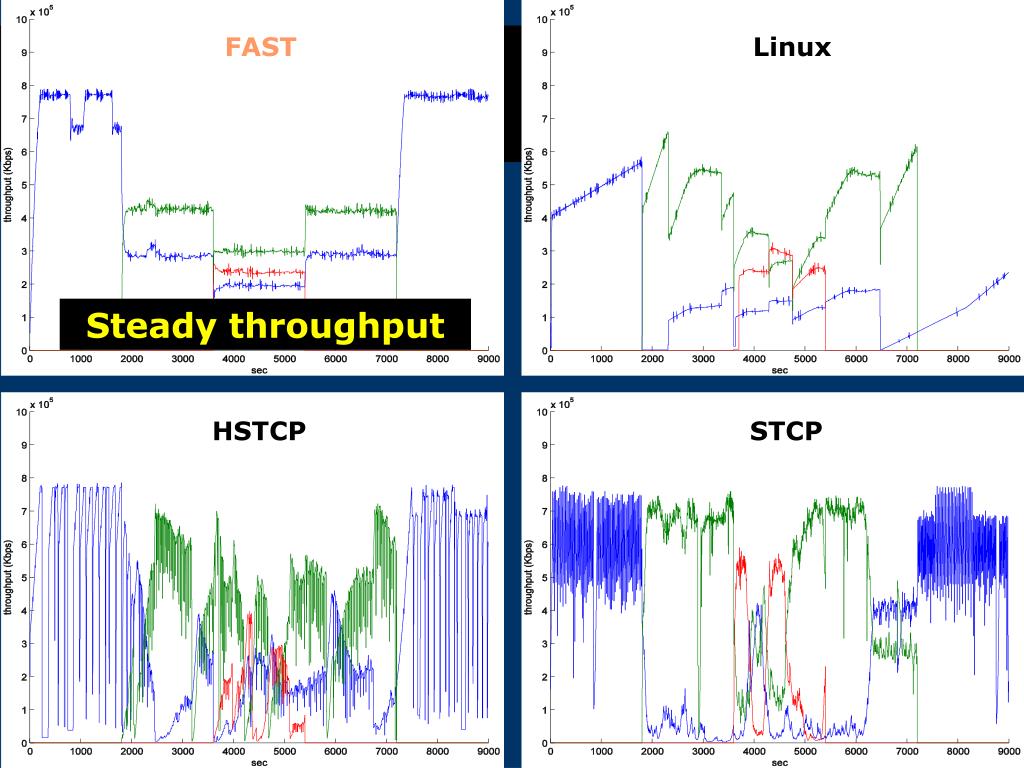

  39. Dynamic sharing: 3 flows FAST Linux Steady throughput HSTCP STCP

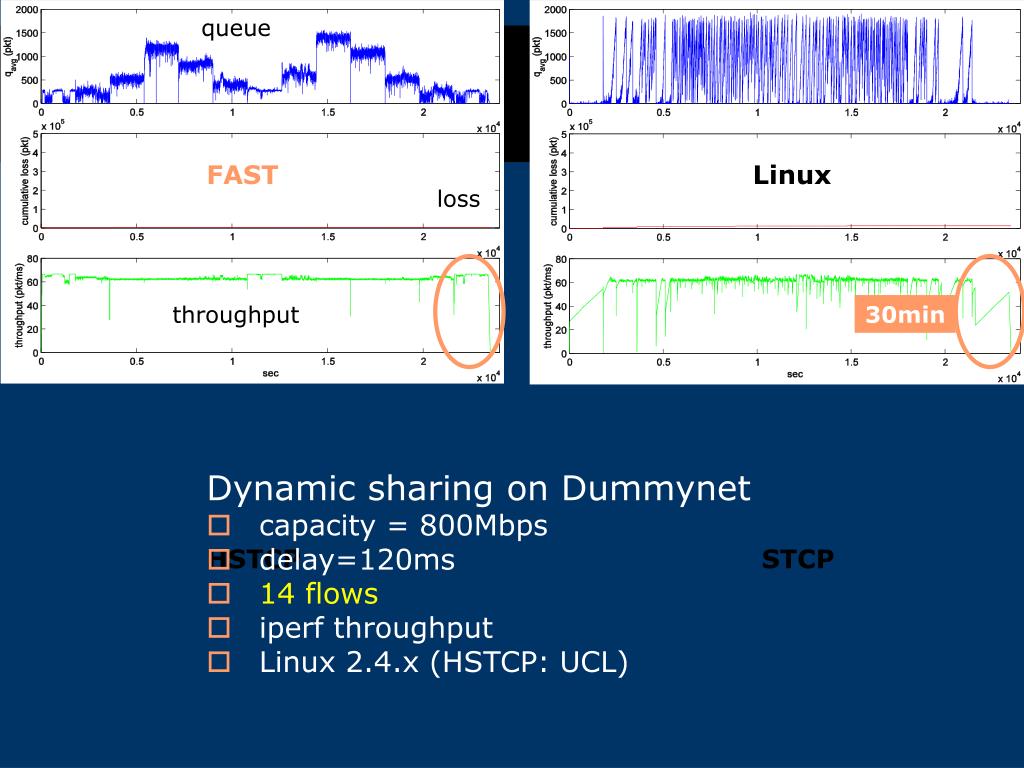

  40. 30min queue FAST Linux loss throughput Dynamic sharing on Dummynet • capacity = 800Mbps • delay=120ms • 14 flows • iperf throughput • Linux 2.4.x (HSTCP: UCL) HSTCP STCP

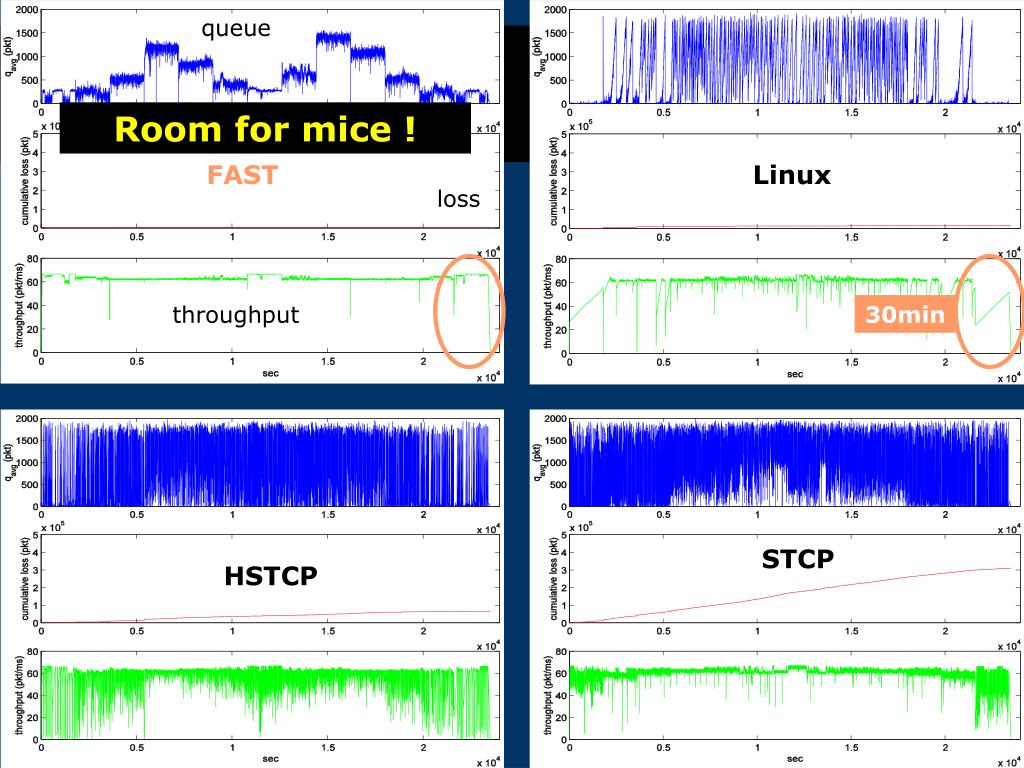

  41. 30min queue Room for mice ! FAST Linux loss throughput HSTCP STCP HSTCP

  42. ideal performance Aggregate throughput Dummynet: cap = 800Mbps; delay = 50-200ms; #flows = 1-14; 29 expts

  43. small window 800pkts large window 8000 Aggregate throughput Dummynet: cap = 800Mbps; delay = 50-200ms; #flows = 1-14; 29 expts

  44. HSTCP ~ Reno Jain’s index Fairness Dummynet: cap = 800Mbps; delay = 50-200ms; #flows = 1-14; 29 expts

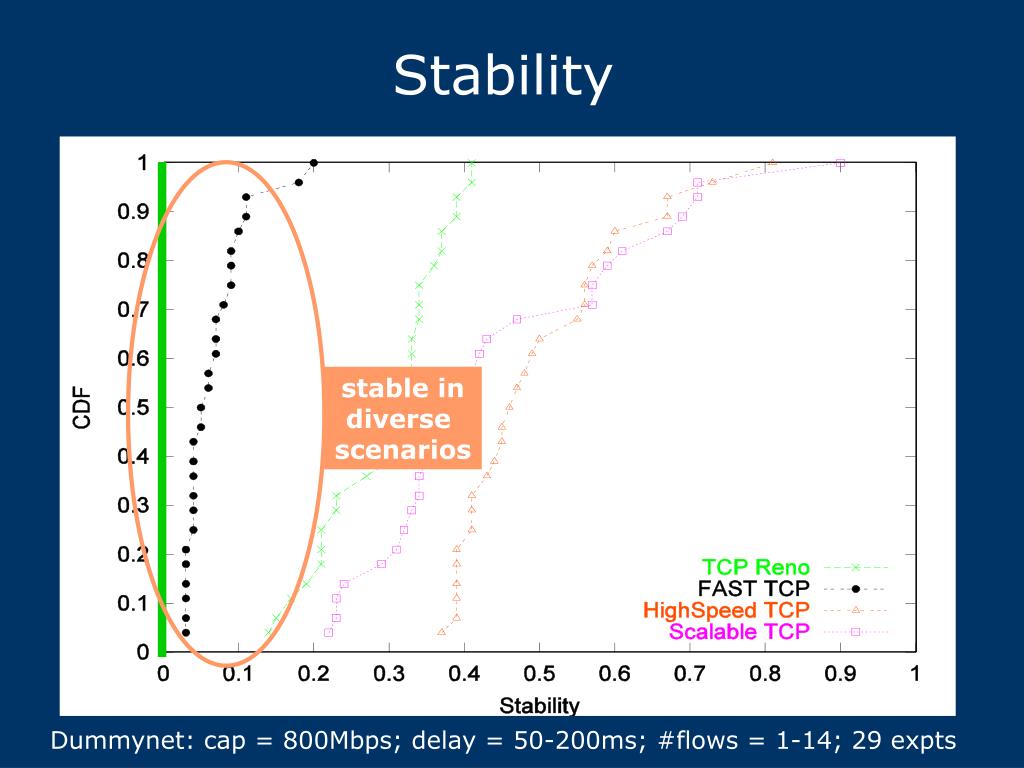

  45. stable in diverse scenarios Stability Dummynet: cap = 800Mbps; delay = 50-200ms; #flows = 1-14; 29 expts

  46. Performance on slow network Linux July 10, 2003 11:00-11:30 pm Caltech  Michigan 5-min runs Competing: separate senders to same receiver FAST & Linux seperately FAST & Linux competing Both get “>1/2” capacity! July 11, 2003 10:45-11:15 am

  47. Open issues • 4.3: baseRTT estimation • route changes, dynamic sharing • does not upset stability • 4.4: small network buffer • at least like TCP • adapt a on slow timescale, but how? • 6.2: TCP-friendliness • friendly at least at small window • tunable, but how to tune? • reverse path congestion • should react? rare for large transfer?

  48. IP Rights • Caltech owns IP rights • applicable more broadly than TCP • leave all options open • Will license free at least for education & research community • Will be flexible to facilitate wide deployment

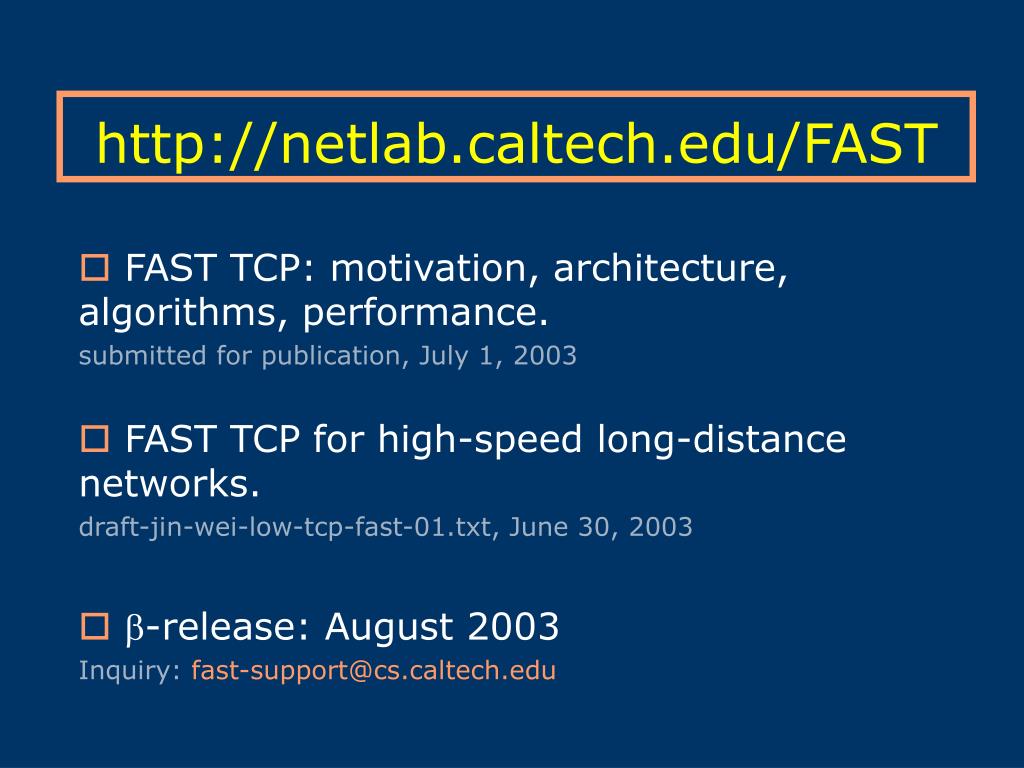

  49. http://netlab.caltech.edu/FAST • FAST TCP: motivation, architecture, algorithms, performance. submitted for publication, July 1, 2003 • FAST TCP for high-speed long-distance networks. draft-jin-wei-low-tcp-fast-01.txt, June 30, 2003 • b-release: August 2003 Inquiry: fast-support@cs.caltech.edu

  50. SC2002 Network OC48 OC192 (Sylvain Ravot, caltech)
