TECHNOLOGY GUIDE 5

garren avatar
garren
13 diapositives · 253 Views · Jul 18, 2014

TECHNOLOGY GUIDE 5. Basics of the Internet and the World Wide Web. The Internet. Began as a government-sponsored network for research and education. Became commercialized in 1993 with the World Wide Web innovation Based on two protocols (TCP/IP) Transmission Control Protocol (TCP)

#technology guide 5 #technology guide 5 ppt #powerpoint #presentation
TECHNOLOGY GUIDE 5 - slide 1
01 / 13TECHNOLOGY GUIDE 5
1 / 17

Télécharger la présentation

TECHNOLOGY GUIDE 5
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. TECHNOLOGY GUIDE 5 Basics of the Internet and the World Wide Web

  2. The Internet • Began as a government-sponsored network for research and education • Became commercialized in 1993 with the World Wide Web innovation • Based on two protocols (TCP/IP) • Transmission Control Protocol (TCP) • Internet Protocol (IP) • Most users connect to it through an Internet Service Provider (ISP)

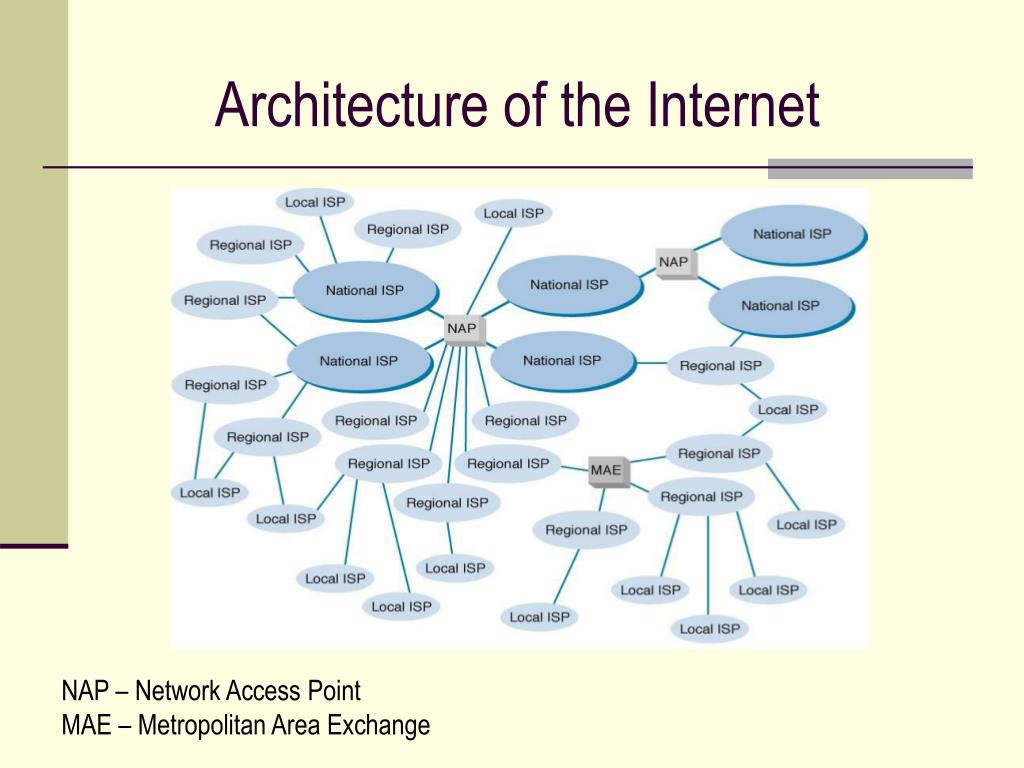

  3. Architecture of the Internet NAP – Network Access Point MAE – Metropolitan Area Exchange

  4. Internet Backbone Circuit Capacity The SONET Hierarchy OC – Optical Carrier SONET– Synchronous Optical Networking See also theMapnetproject

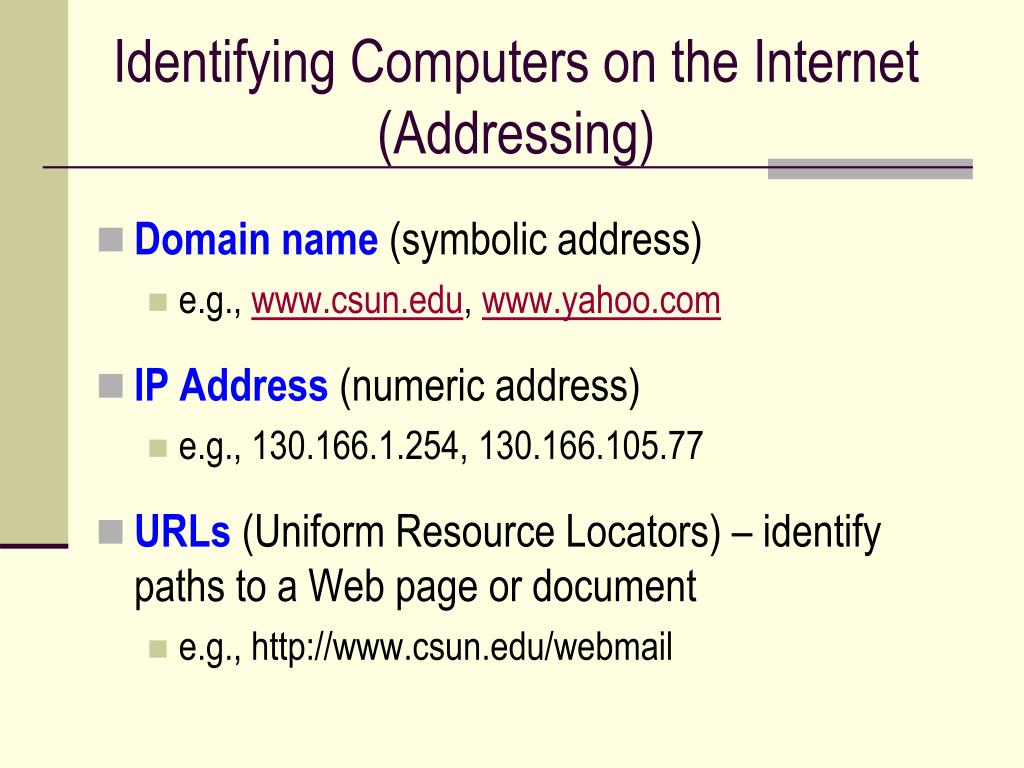

  5. Identifying Computers on the Internet (Addressing) • Domain name(symbolic address) • e.g., www.csun.edu, www.yahoo.com • IP Address (numeric address) • e.g., 130.166.1.254, 130.166.105.77 • URLs (Uniform Resource Locators) – identify paths to a Web page or document • e.g., http://www.csun.edu/webmail

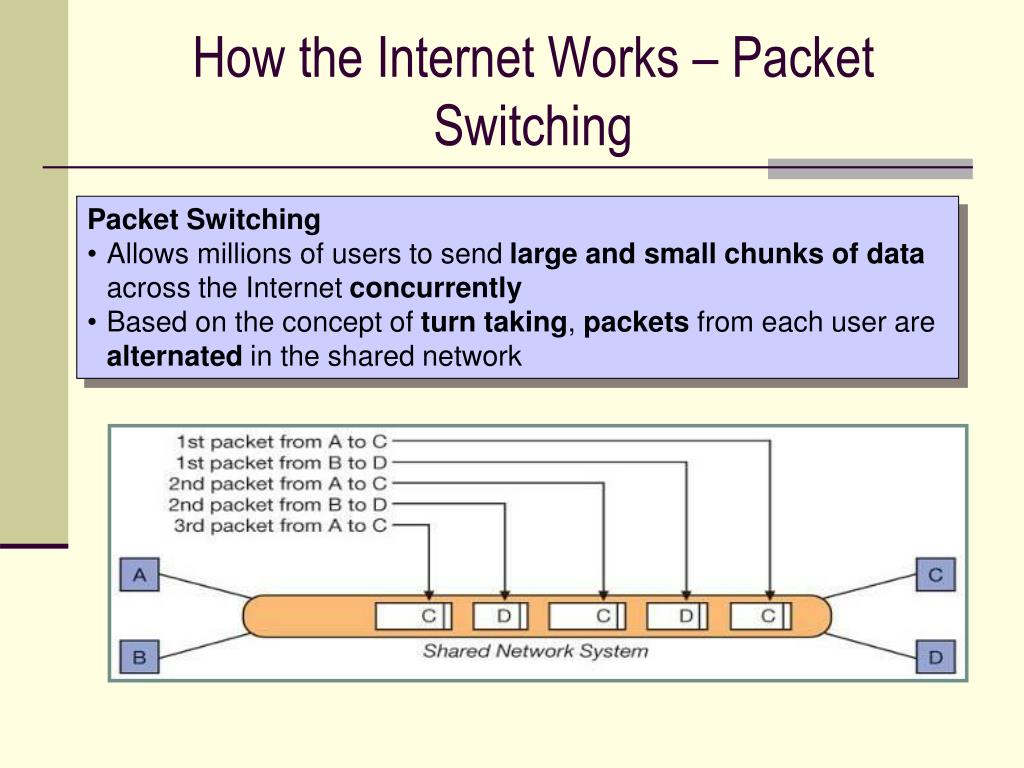

  6. How the Internet Works – Packet Switching • Packet Switching • Allows millions of users to send large and small chunksof data across the Internet concurrently • Based on the concept of turn taking, packets from each user are alternated in the shared network

  7. Another Look at Packet Switching

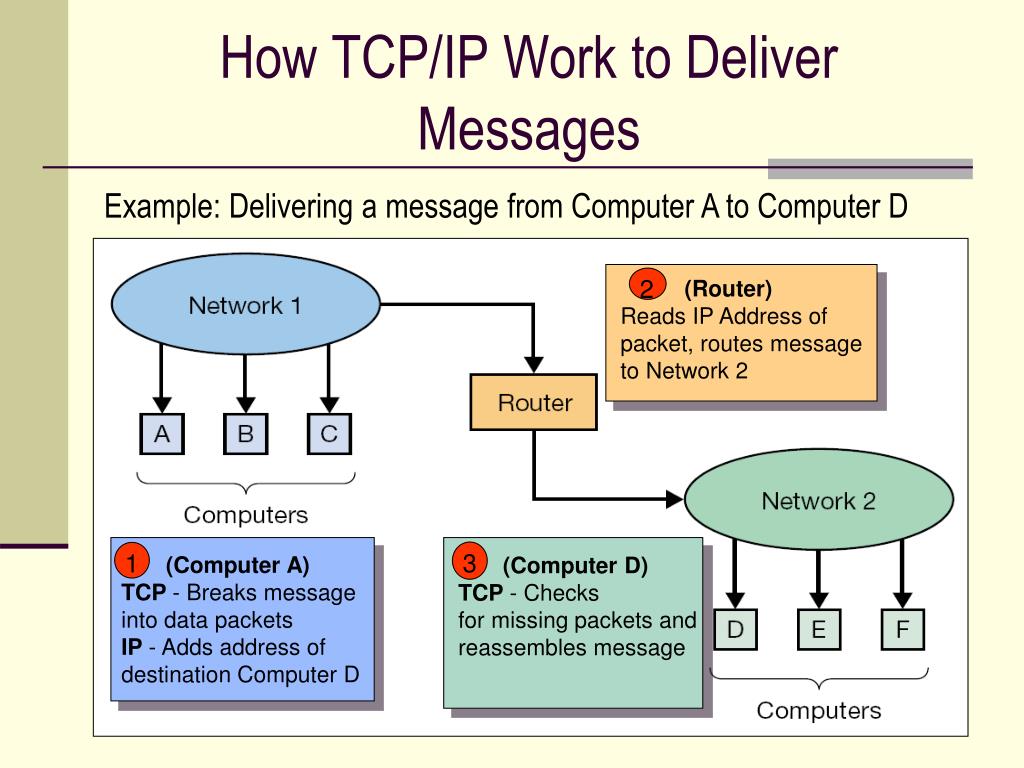

  8. How TCP/IP Work to Deliver Messages Example: Delivering a message from Computer A to Computer D 2 (Router) Reads IP Address of packet, routes message to Network 2 3 1 (Computer A) TCP - Breaks message into data packets IP - Adds address of destination Computer D (Computer D) TCP - Checks for missing packets and reassembles message

  9. Accessing the Internet (the Last Mile) • Amdahl’s Law: A network connection can be no faster than its slowest link • Speed of the Internet often limited by the local access technology (the last mile) • Broadband Internet Access (FCC): 768 kbps minimum • For HD streaming video, need at least 5 Mbps • How fast is your Internet access?

  10. Telephone Network ISP DSL Modem Copper Phone Line Digital Subscriber Line (DSL) • Combine voice and high-speed data on a single phone line • Users do not share access lines • 1.5 – 9 Mbps downstream, 16 – 640 Kbps upstream • Distance-sensitive Voice channel Upstream data channel Downstream data channel

  11. Cable Modem • Allocates a small portion of a cable TV system’s high bandwidth media for data transmission • 1.5 – 30 Mbps downstream, 384Kbps – 1.5 Mbps upstream

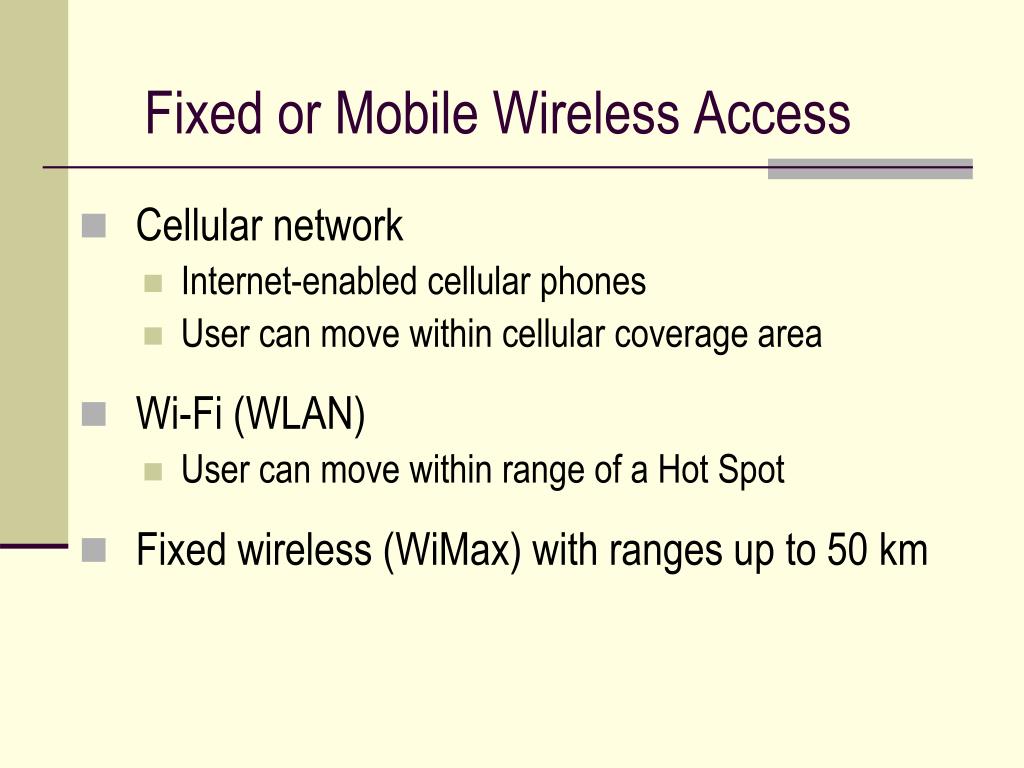

  12. Fixed or Mobile Wireless Access • Cellular network • Internet-enabled cellular phones • User can move within cellular coverage area • Wi-Fi (WLAN) • User can move within range of a Hot Spot • Fixed wireless (WiMax) with ranges up to 50 km

  13. Fiber to the X Service • Fiber to the Node • Fiber to the Curb • Fiber to the Building • Fiber to the Home • Sweden leads the world in FTTH • Average download speed is 86 Mbps Source: Wikipedia
