This paper explores compressed sensing (CS) applications in ultra-wideband (UWB) systems, focusing on channel estimation and signal reconstruction techniques. It provides a quick overview of CS and demonstrates the effectiveness of filter-based CS methods suitable for communication systems. We highlight the architecture for CS-based channel estimation and simulations utilizing real indoor channel data to evaluate performance through various sampling rates. The results showcase the advantages of using CS methods in UWB environments, addressing challenges such as synchronization and processing complexity.

Compressed Sensing Based UWB System - slide 1
01 / 24Compressed Sensing Based UWB System
1 / 17

Télécharger la présentation

Compressed Sensing Based UWB System
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

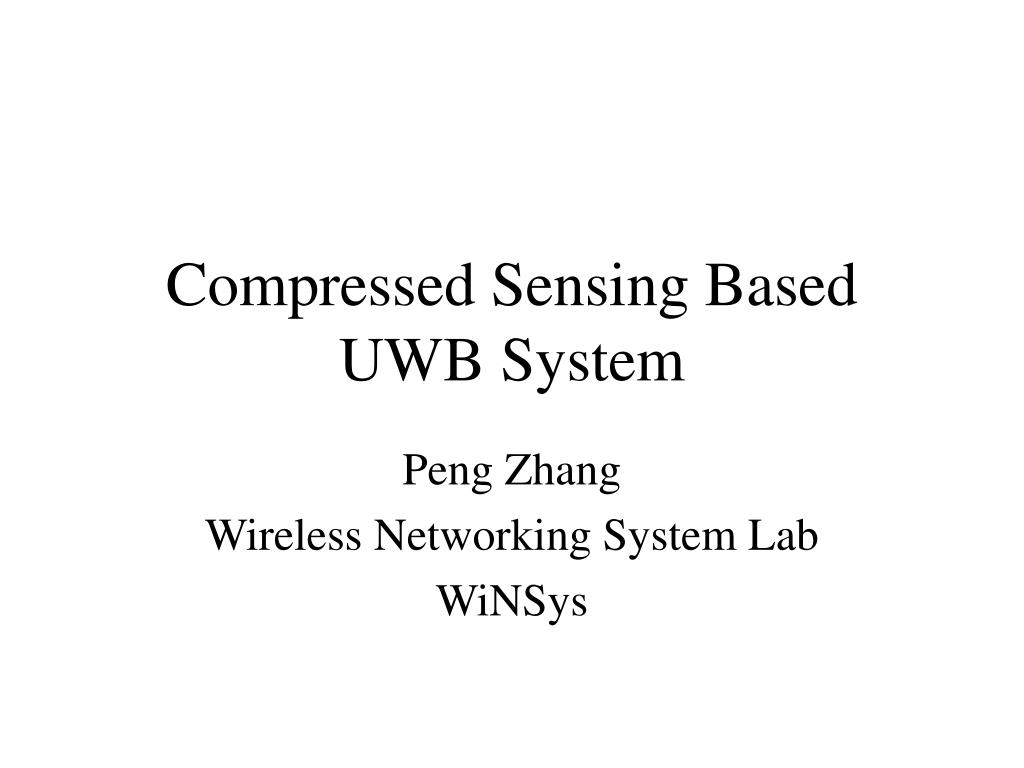

  1. Compressed Sensing Based UWB System Peng Zhang Wireless Networking System Lab WiNSys

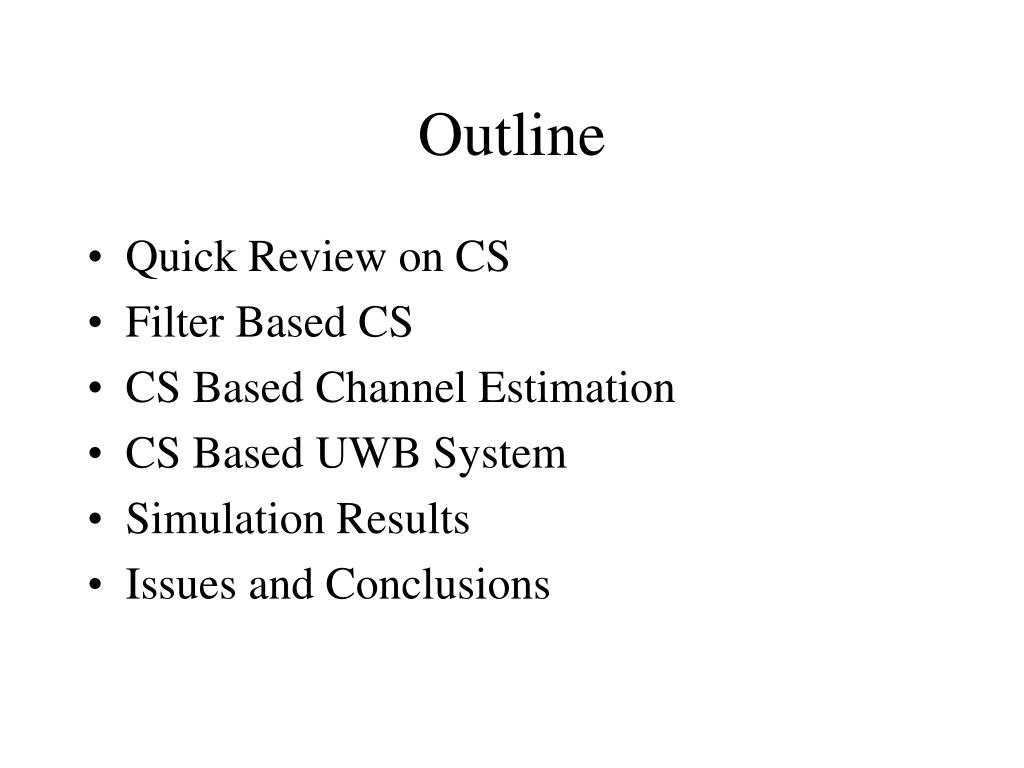

  2. Outline • Quick Review on CS • Filter Based CS • CS Based Channel Estimation • CS Based UWB System • Simulation Results • Issues and Conclusions

  3. RIP Quick Review of CS • Sparse signal can be reconstructed from random measurements • However… • Matrices are non-causal • Causal system is more common in communications

  4. y p a = X Filter Based CS (LTI System) • Filter based structure is more appropriate to model communication system • Causality • Quasi-toeplitz matrix • p is quasi-toeplitz • If… • p satisfied RIP • a is sparse • Then… • CS will work!

  5. CS Based UWB System • Proposed system • Channel estimation • Signal reconstruction

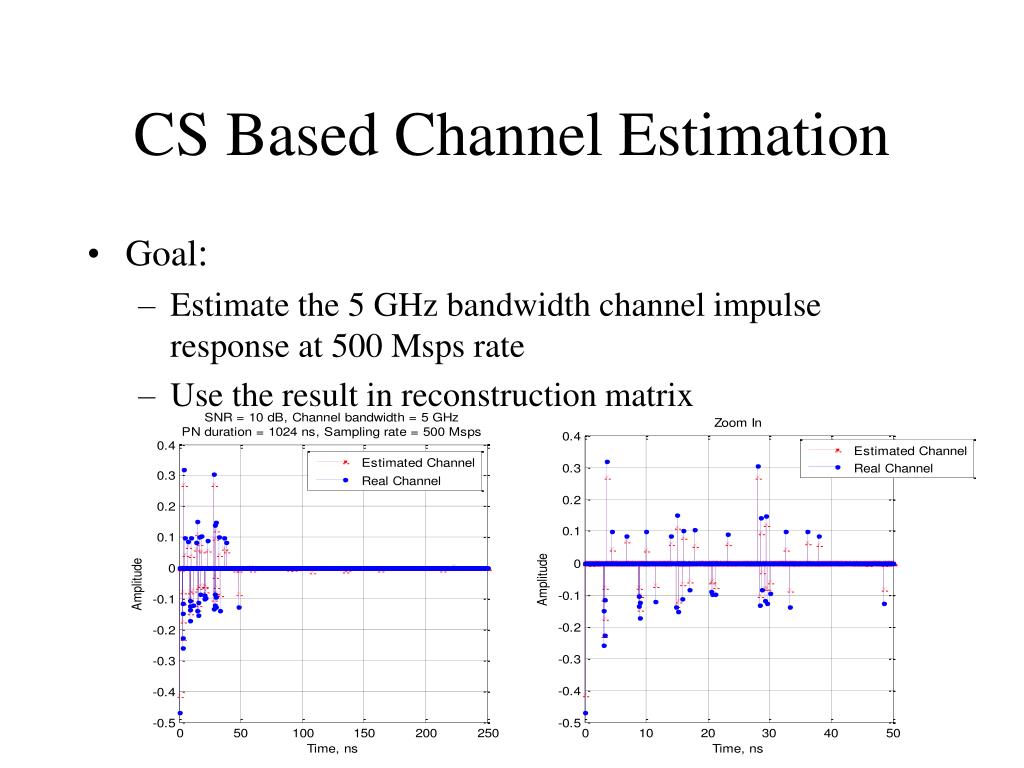

  6. CS Based Channel Estimation • Goal: • Estimate the 5 GHz bandwidth channel impulse response at 500 Msps rate • Use the result in reconstruction matrix

  7. CS Based Channel Estimation • Architecture

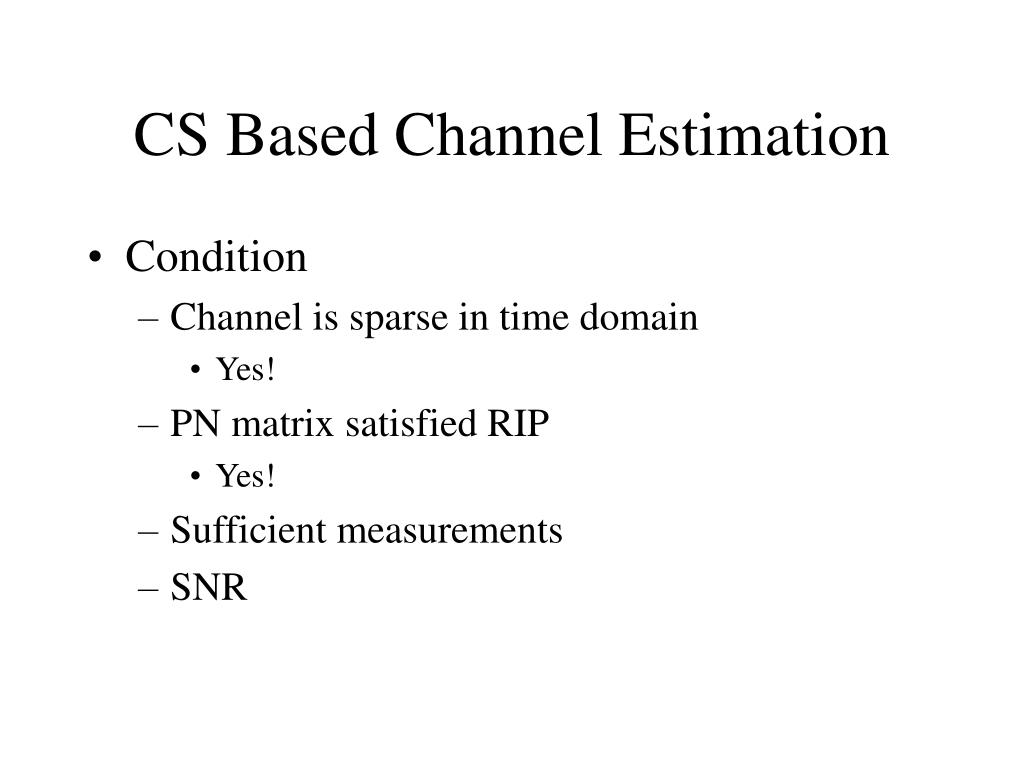

  8. CS Based Channel Estimation • Condition • Channel is sparse in time domain • Yes! • PN matrix satisfied RIP • Yes! • Sufficient measurements • SNR

  9. CS Based Channel Estimation • Sufficient measurements • Not all samples have contribution • To get sufficient measurements • Long signal duration at RX • Higher sampling rate at RX • Sampling rate can be low if • Signal has longer duration • Longer PN sequence or • Longer channel delay spread

  10. Channel Estimation Simulation • Get the original indoor channel under estimation: • 3 GHz~ 8 GHz VNA data • Use matching pursuit with SINC function as basis to get TDL model • Time domain resolution = 50 ps (20 Gsps)

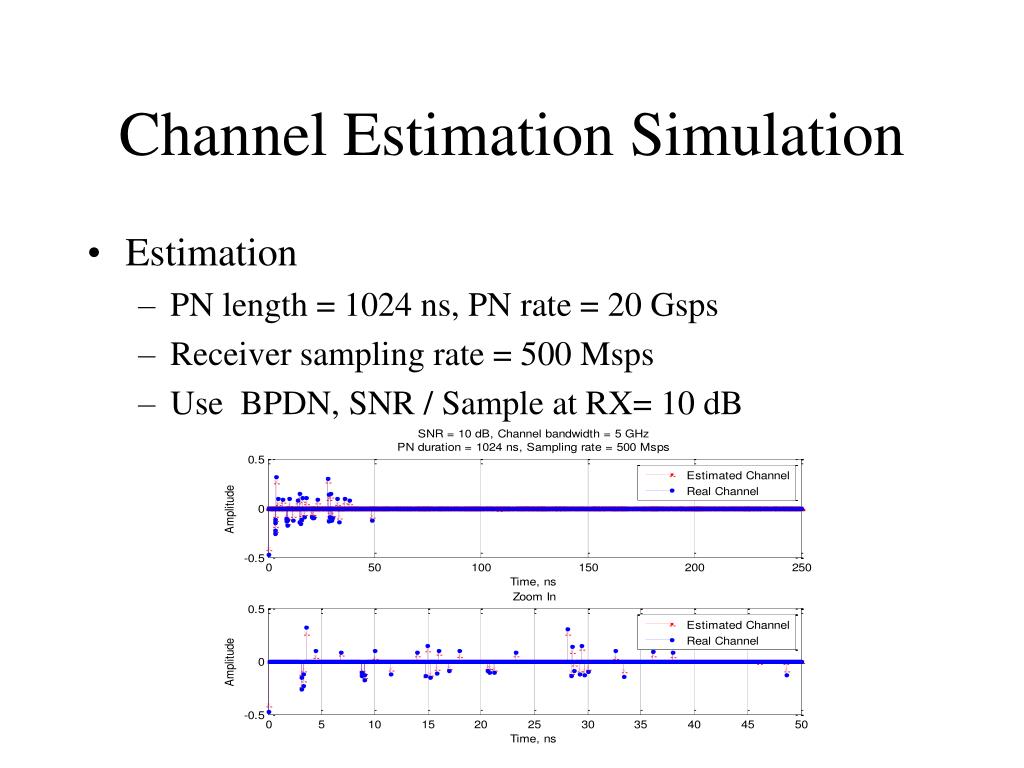

  11. Channel Estimation Simulation • Estimation • PN length = 1024 ns, PN rate = 20 Gsps • Receiver sampling rate = 500 Msps • Use BPDN, SNR / Sample at RX= 10 dB

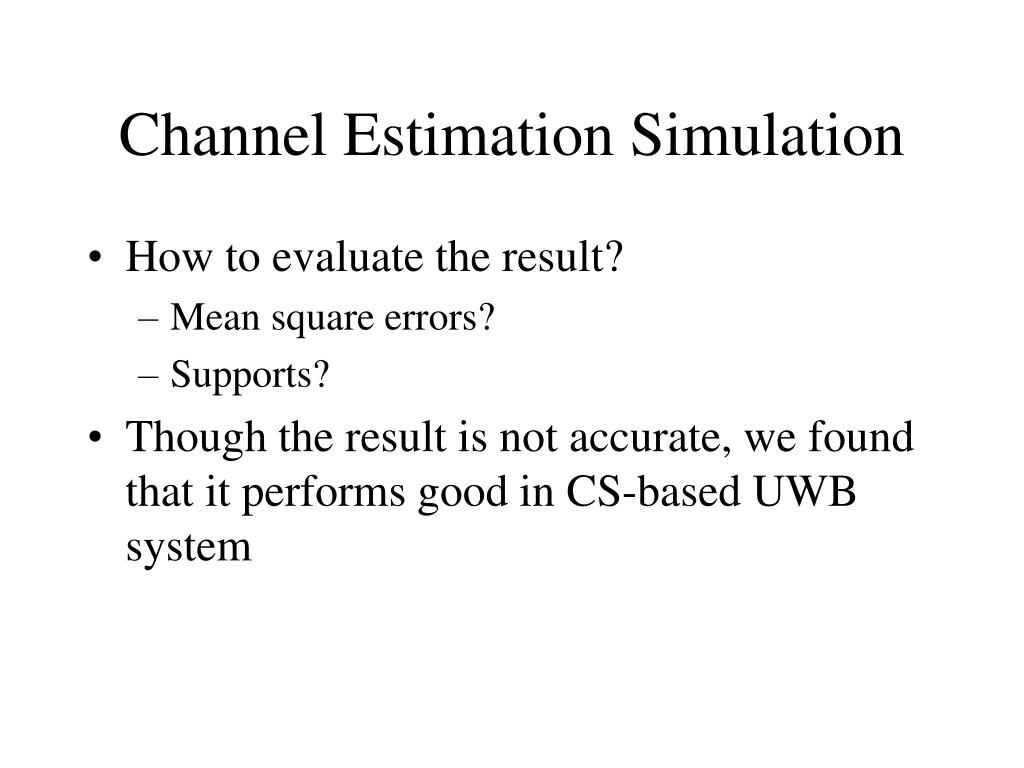

  12. Channel Estimation Simulation • How to evaluate the result? • Mean square errors? • Supports? • Though the result is not accurate, we found that it performs good in CS-based UWB system

  13. CS Based UWB System • Goal: • Reconstruct transmitted sequence with sub-GHz sampling rate

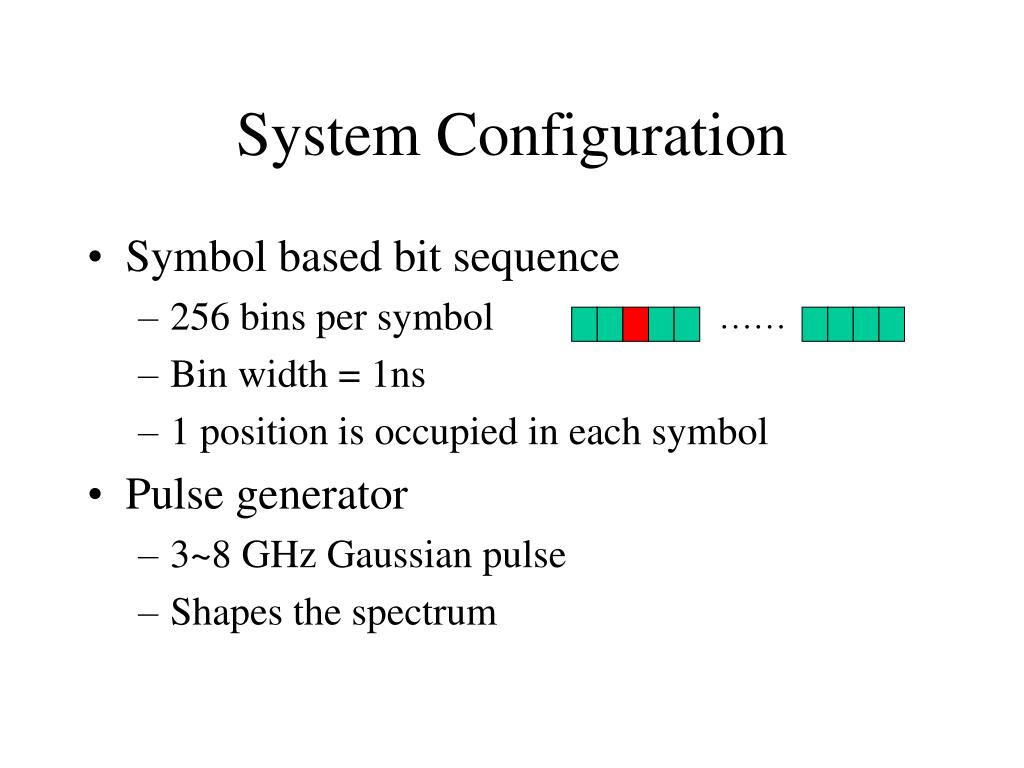

  14. …… System Configuration • Symbol based bit sequence • 256 bins per symbol • Bin width = 1ns • 1 position is occupied in each symbol • Pulse generator • 3~8 GHz Gaussian pulse • Shapes the spectrum

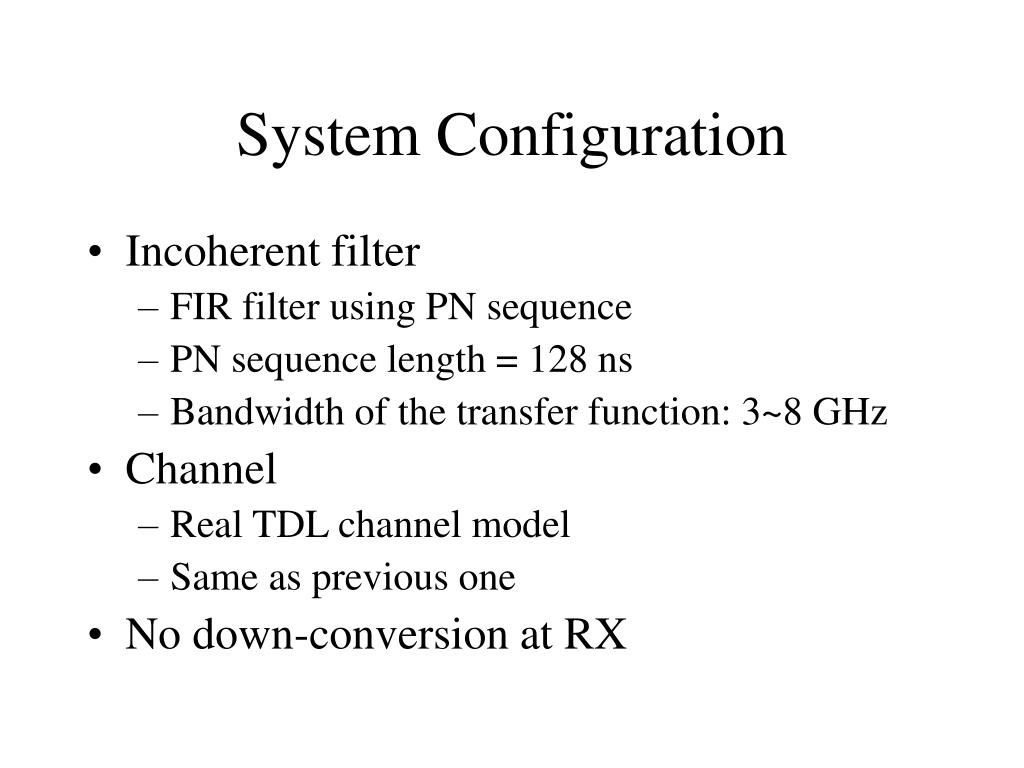

  15. System Configuration • Incoherent filter • FIR filter using PN sequence • PN sequence length = 128 ns • Bandwidth of the transfer function: 3~8 GHz • Channel • Real TDL channel model • Same as previous one • No down-conversion at RX

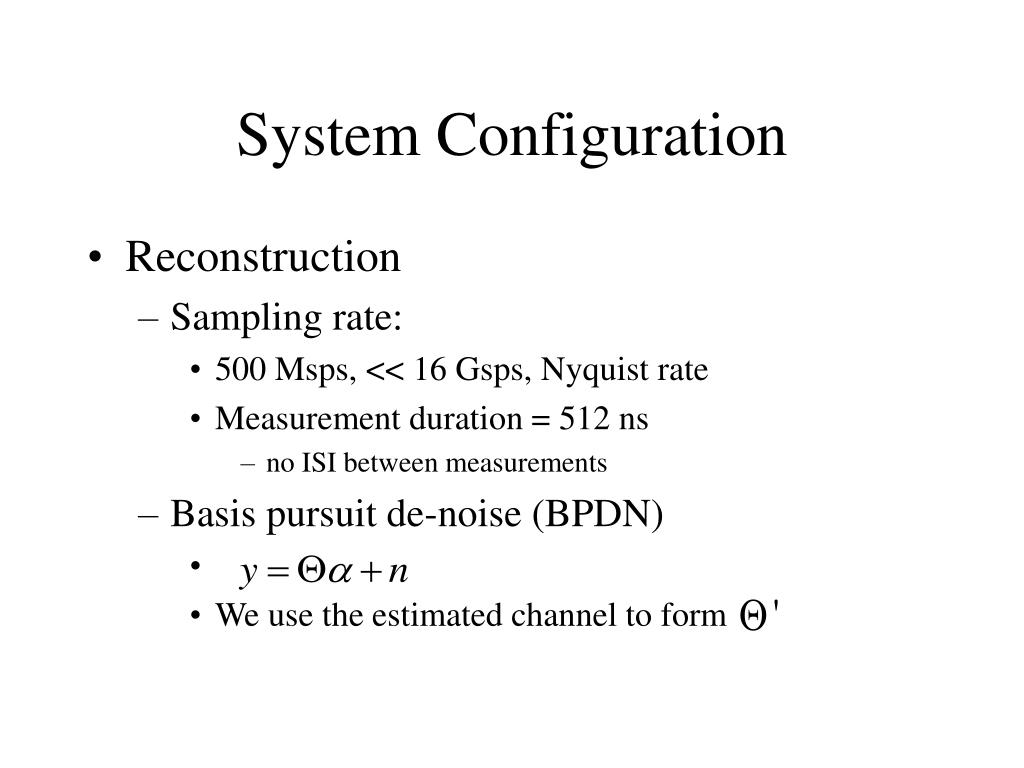

  16. System Configuration • Reconstruction • Sampling rate: • 500 Msps, << 16 Gsps, Nyquist rate • Measurement duration = 512 ns • no ISI between measurements • Basis pursuit de-noise (BPDN) • We use the estimated channel to form

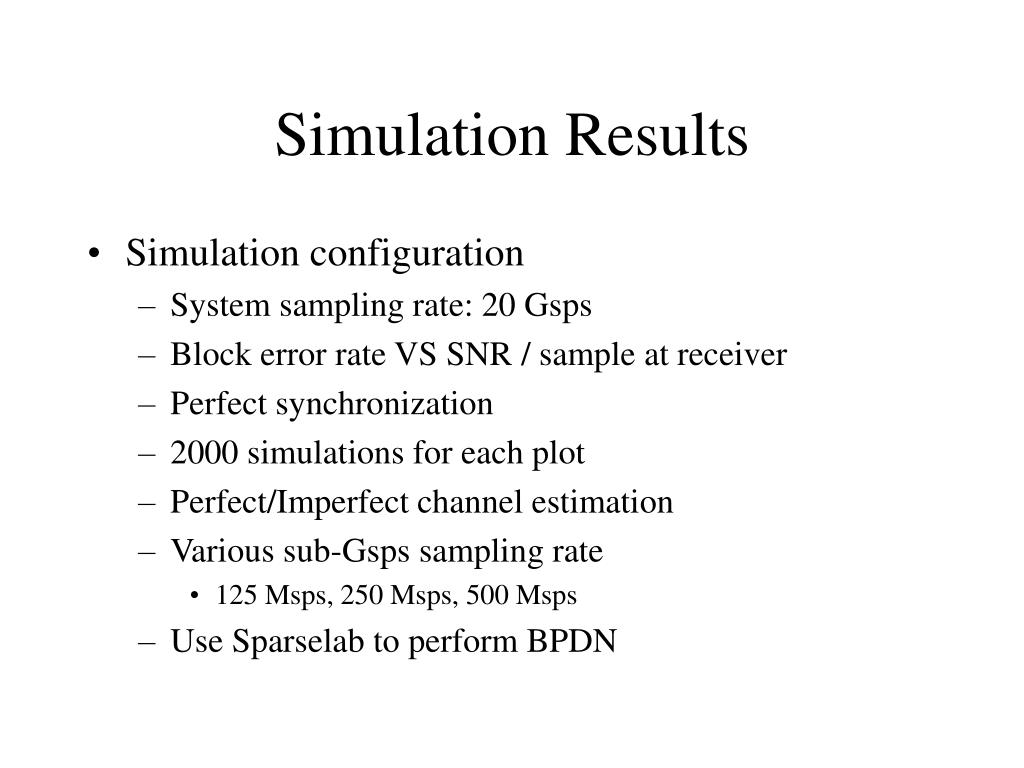

  17. Simulation Results • Simulation configuration • System sampling rate: 20 Gsps • Block error rate VS SNR / sample at receiver • Perfect synchronization • 2000 simulations for each plot • Perfect/Imperfect channel estimation • Various sub-Gsps sampling rate • 125 Msps, 250 Msps, 500 Msps • Use Sparselab to perform BPDN

  18. Simulation Results

  19. Simulation Results • 500 Msps performs good • Error free for 2000 simulations at -5 dB • Estimated channel has similar performance • Higher sampling rate has better performance • More sufficient measurements

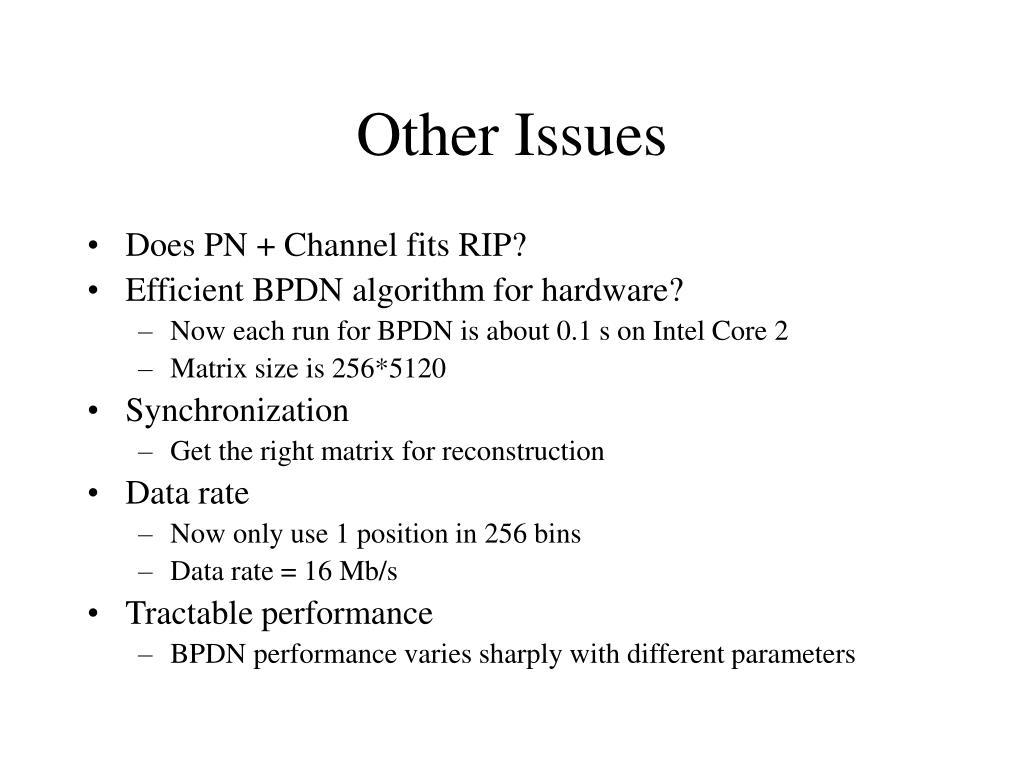

  20. Other Issues • Does PN + Channel fits RIP? • Efficient BPDN algorithm for hardware? • Now each run for BPDN is about 0.1 s on Intel Core 2 • Matrix size is 256*5120 • Synchronization • Get the right matrix for reconstruction • Data rate • Now only use 1 position in 256 bins • Data rate = 16 Mb/s • Tractable performance • BPDN performance varies sharply with different parameters

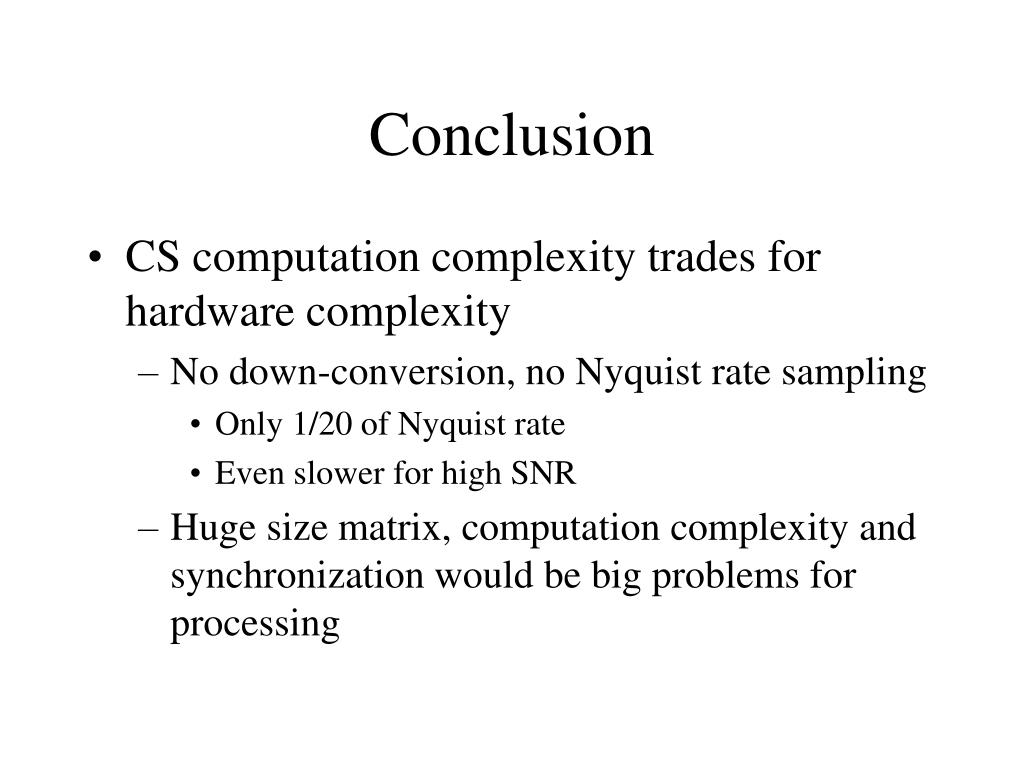

  21. Conclusion • CS computation complexity trades for hardware complexity • No down-conversion, no Nyquist rate sampling • Only 1/20 of Nyquist rate • Even slower for high SNR • Huge size matrix, computation complexity and synchronization would be big problems for processing

  22. References [1] Emmanuel Candès, “Compressive Sampling”, in Int. Congress of Mathematics, 3, pp. 1433-1452, Madrid, Spain, 2006. [2] Joel Tropp, Michael Wakin, Marco Duarte, Dror Baron, and Richard Baraniuk, “Random Filters for Compressive Sampling and Reconstruction”, in IEEE Int. Conf. on Acoustics, Speech, and Signal Processing (ICASSP), Toulouse, France, May 2006. [3] Richard Baraniuk and Philippe Steeghs, “Compressive radar imaging”, in IEEE Radar Conference, Waltham, Massachusetts, April 2007. [4] Scott Shaobing Chen ,David L. Donoho ,Michael A. Saunders, “Atomic Decomposition by Basis Pursuit”, SIAM Journal on Scientific Computing, pp. 33-61, 1998.

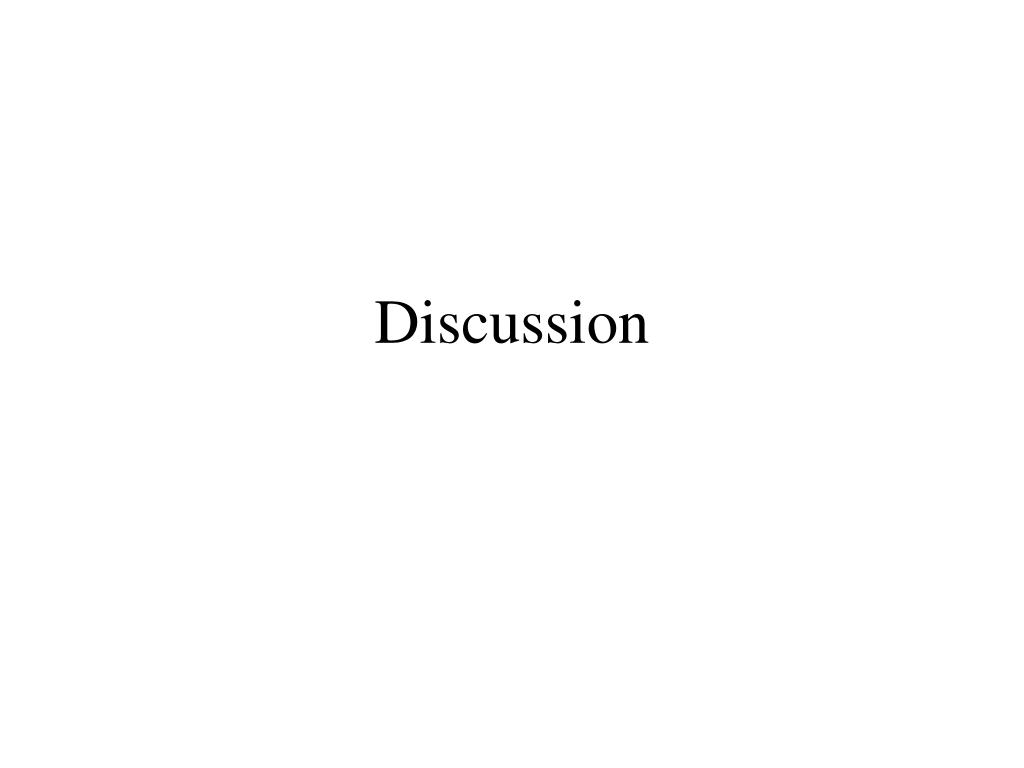

  23. Discussion

  24. Thank you!
