4. Transmission scheme Brick wall to performance N >> K Sample N Compress K Transmit Why so many samples? N K Decompress Receive Natural signals (sparse/compressible)  no significant perceptual loss

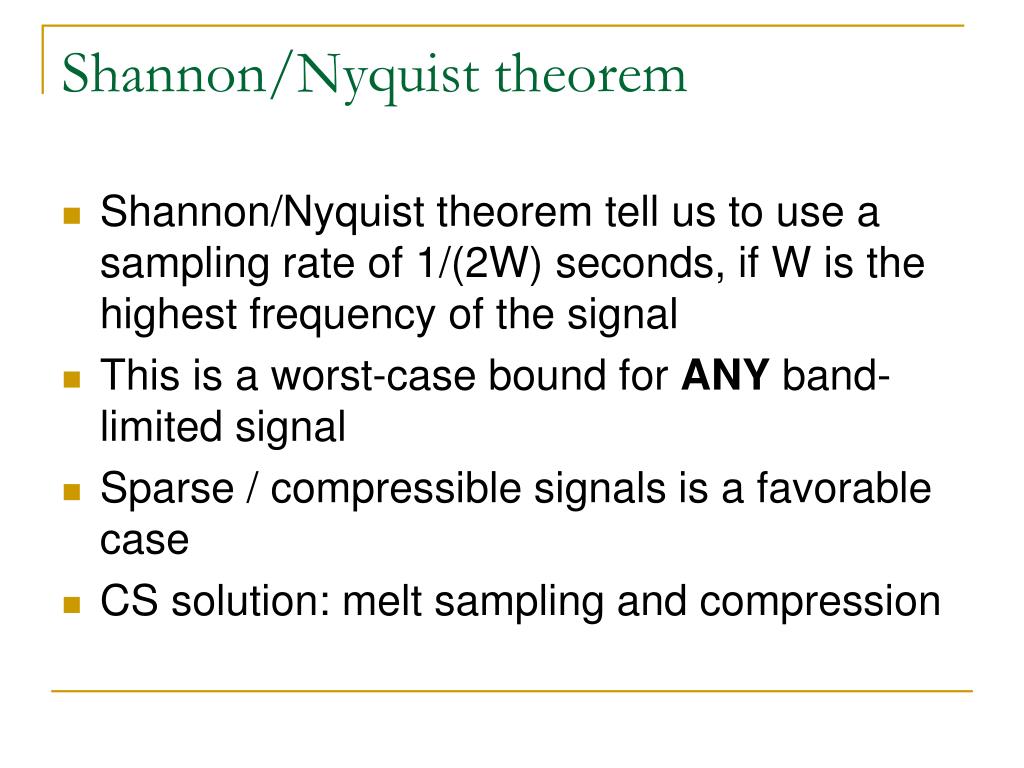

5. Shannon/Nyquist theorem • Shannon/Nyquist theorem tell us to use a sampling rate of 1/(2W) seconds, if W is the highest frequency of the signal • This is a worst-case bound for ANY band-limited signal • Sparse / compressible signals is a favorable case • CS solution: melt sampling and compression

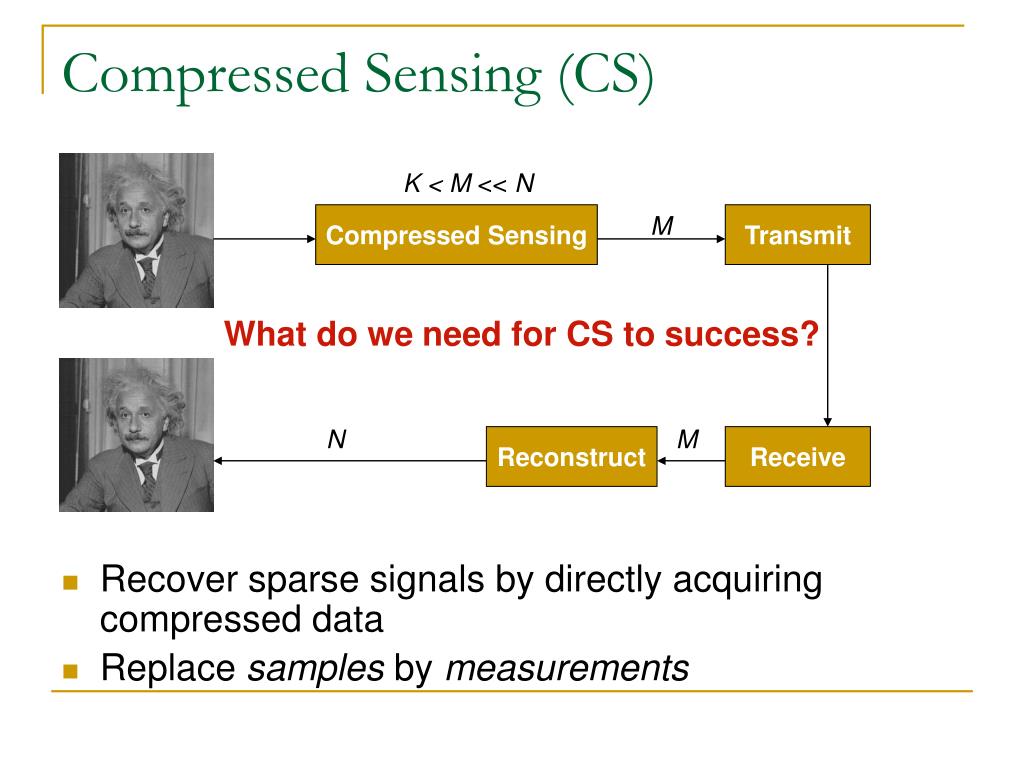

6. K < M << N Compressed Sensing M Transmit N M Reconstruct Receive Compressed Sensing (CS) • Recover sparse signals by directly acquiring compressed data • Replace samples by measurements What do we need for CS to success?

7. We now how to Sense Compressively I’m glad this battle is over. Finally my military period is over. I will now come back to Motril and get married, and then I will grow up pigs as I have always wanted to do Do you mean you’re glad this battle is over because now you’ve finished here and you will go back to Motril, get married, and grow up pigs as you always wanted to? Aye Cool!

8. What does CS need? I know this guy so much that I know what he means • Nice sensing dictionary • Appropriate sensing • A priori knowledge • Recovery process Wie lange wird das nehmen? Saint Roque’s dog has no tail Cool! What? Words Idea

9. CS needs: • Nice sensing dictionary • Appropriate sensing • A priori knowledge • Recovery process INCOHERENCE RANDOMNESS SPARSENESS OPTIMIZATION

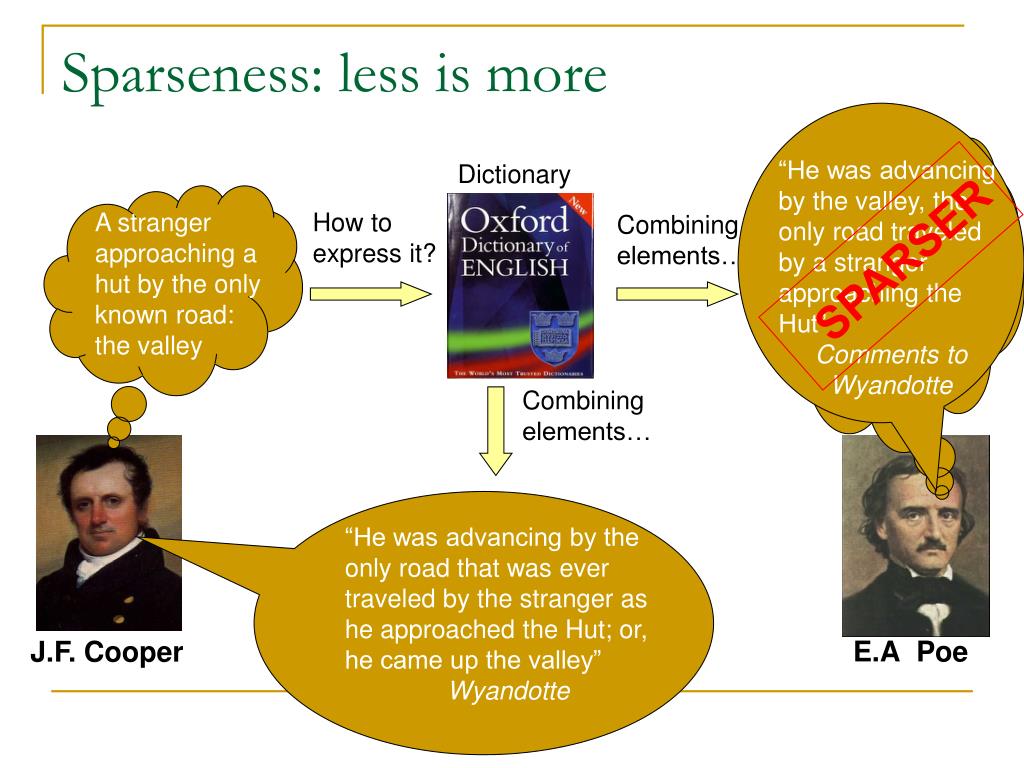

10. Sparseness: less is more “He was advancing by the valley, the only road traveled by a stranger approaching the Hut” Comments to Wyandotte Dictionary: Idea: Hummm, you could say the same using less words… A stranger approaching a hut by the only known road: the valley How to express it? Combining elements… SPARSER Combining elements… “He was advancing by the only road that was ever traveled by the stranger as he approached the Hut; or, he came up the valley” Wyandotte E.A. Poe J.F. Cooper

11. Sparseness: less is more • Sparseness: Property of being small in numbers or amount, often scattered over a large area [Cambridge Advanced Learner’s Dictionary] A CERTAIN DISTRIBUTION A SPARSER DISTRIBUTION

12. Sparseness: less is more • Pixels: not sparse  • A new domain can increase sparseness  Original Einstein 10% Fourier coeffs. 10% Wavelet coeffs. Taking 10% pixels

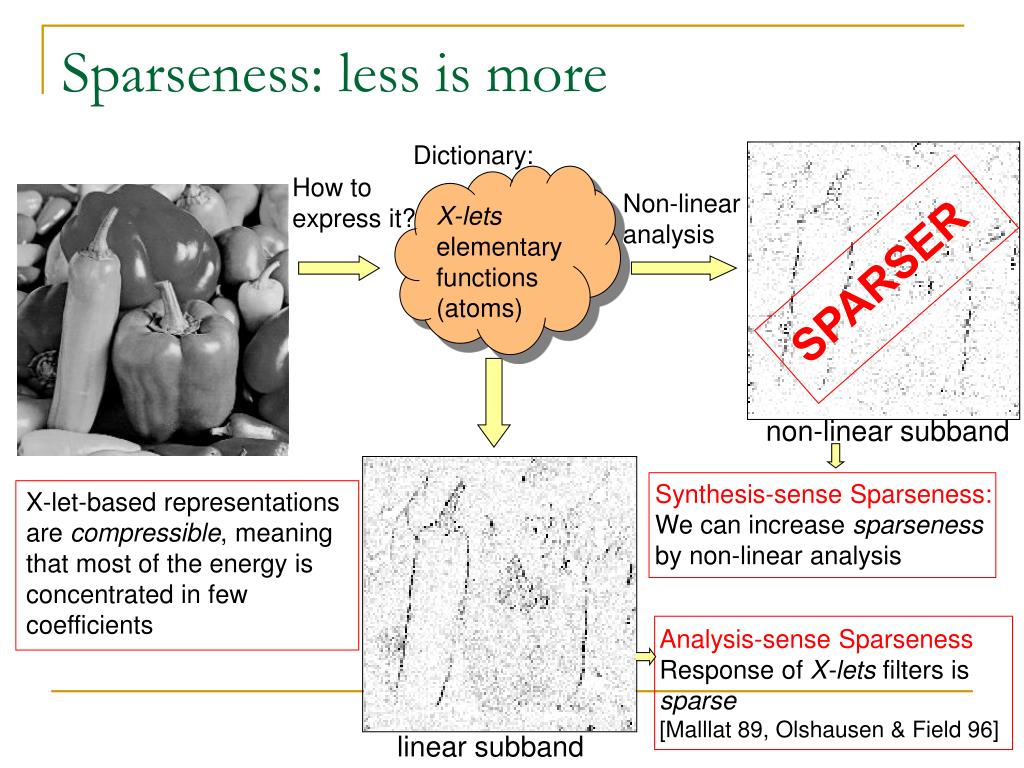

13. Sparseness: less is more Dictionary: How to express it? X-lets elementary functions (atoms) Non-linear analysis SPARSER Linear analysis non-linear subband Synthesis-sense Sparseness: We can increase sparseness by non-linear analysis X-let-based representations are compressible, meaning that most of the energy is concentrated in few coefficients Analysis-sense Sparseness: Response of X-lets filters is sparse [Malllat 89, Olshausen & Field 96] linear subband

14. Sparseness: less is more Idea: Dictionary: How to express it? X-lets elementary functions Combining other way… SPARSER Taking around 3.5% of total coeffs… non-linear subband Taking less coefficients we achieve strict sparseness, at the price of just approximating the image PSNR: 35.67 dB

15. Incoherence • Sparse signals in a given dictionary must be dense in another incoherent one • Sampling dictionary should be incoherent w.r.t. that where the signal is sparse/compressible A time-sparse signal Its frequency-dense representation

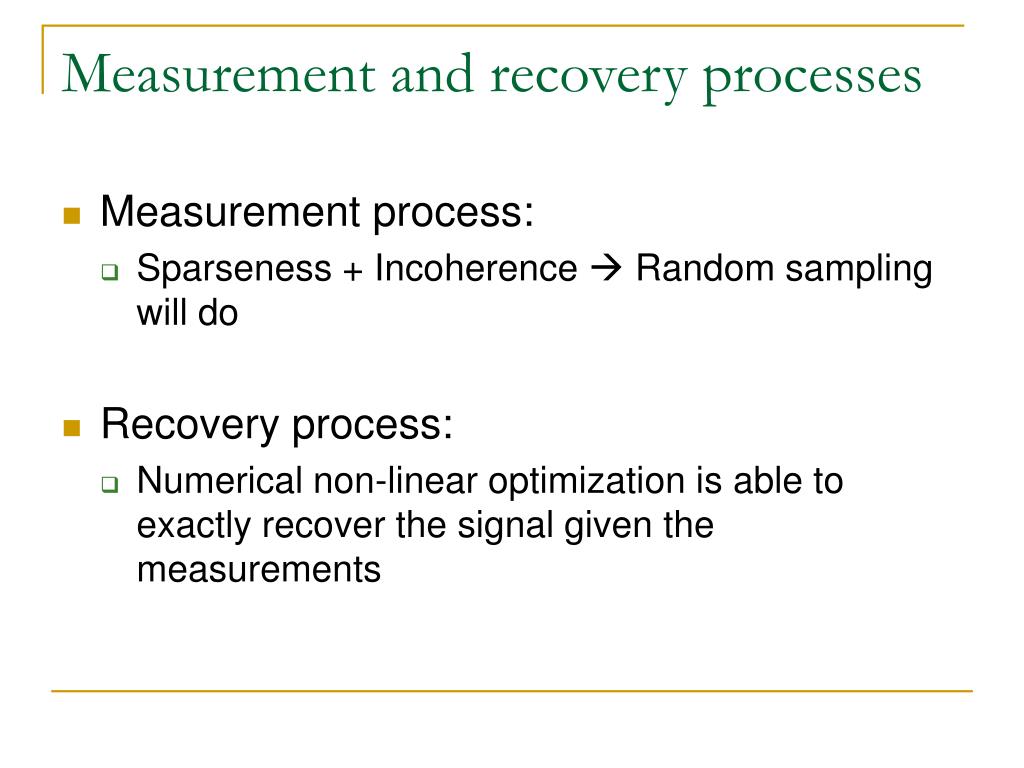

16. Measurement and recovery processes • Measurement process: • Sparseness + Incoherence  Random sampling will do • Recovery process: • Numerical non-linear optimization is able to exactly recover the signal given the measurements

17. CS relies on: • A priori knowledge: Many natural signals are sparse or compressible in a proper basis • Nice sensing dictionary: Signals should be dense when using the sampling waveforms • Appropriate sensing: Random sampling have demonstrated to work well • Recovery process: Bounds for exact recovery depends on the optimization method

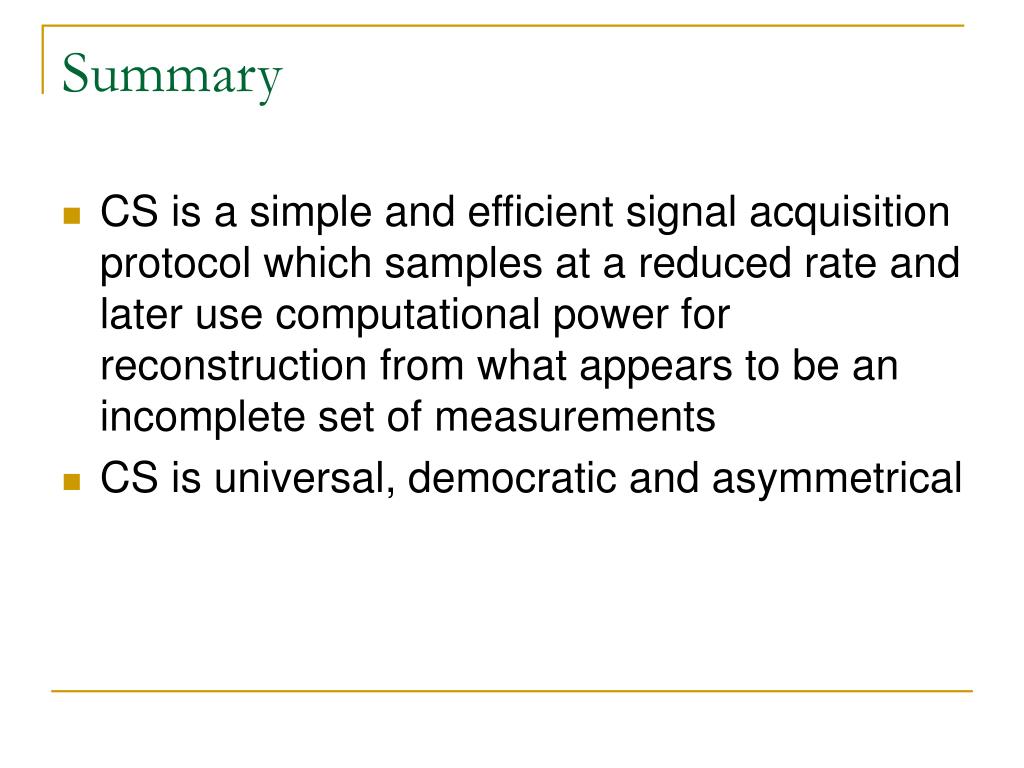

18. Summary • CS is a simple and efficient signal acquisition protocol which samples at a reduced rate and later use computational power for reconstruction from what appears to be an incomplete set of measurements • CS is universal, democratic and asymmetrical

19. CONTENTS • WHAT? • Introduction to Compressed Sensing (CS) • HOW? • Theory behind CS • FOR WHAT PURPOSE? • CS applications • AND THEN? • Active research and future lines

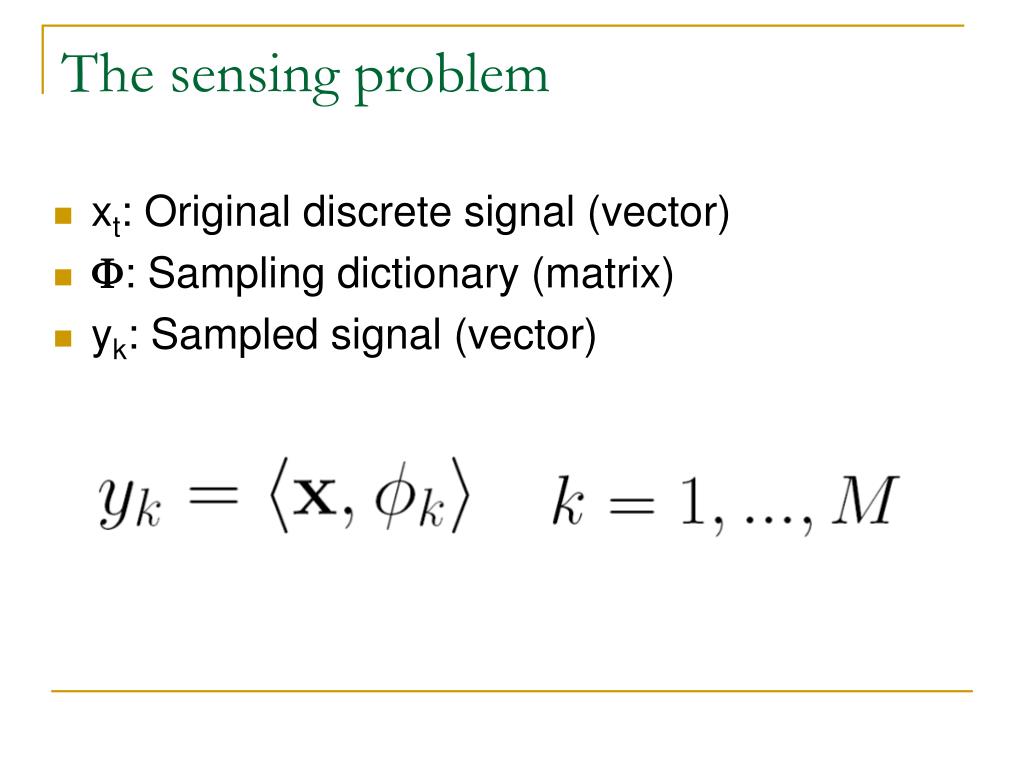

20. The sensing problem • xt: Original discrete signal (vector) • F: Sampling dictionary (matrix) • yk: Sampled signal (vector)

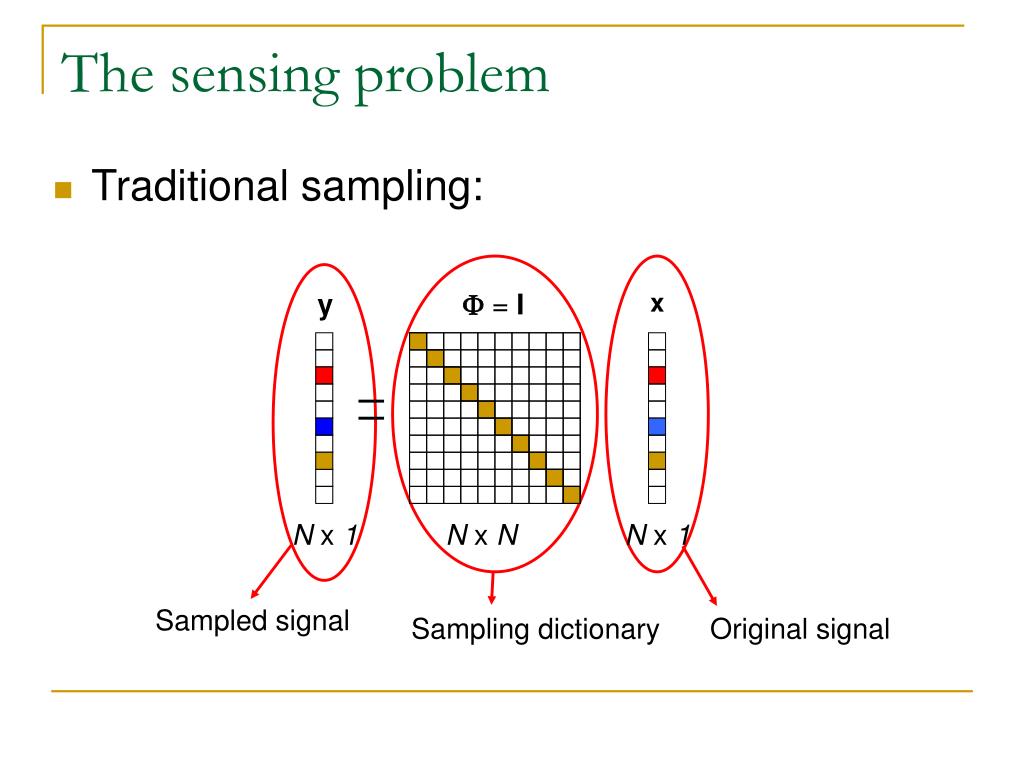

21. y F= I x N x 1 N x N N x 1 The sensing problem • Traditional sampling: Sampled signal Sampling dictionary Original signal

22. The sensing problem • When the signal is sparse/compressible, we can directly acquire a condensed representation with no/little information loss • Random projection will work if M = O(K log(N/K))[Candès et al., Donoho, 2004] y F x K nonzero entries K < M << N M x 1 M x N N x 1

23. Universality • Random measurements can be used if signal is sparse/compressible in any basis y F Y a K nonzero entries K < M << N M x 1 M x N N x N N x 1

24. Good sensing waveforms? • F and Y should be incoherent • Measure the largest correlation between any two elements: • Large correlation  low incoherence • Examples • Spike and Fourier basis (maximal incoherence) • Random and any fixed basis

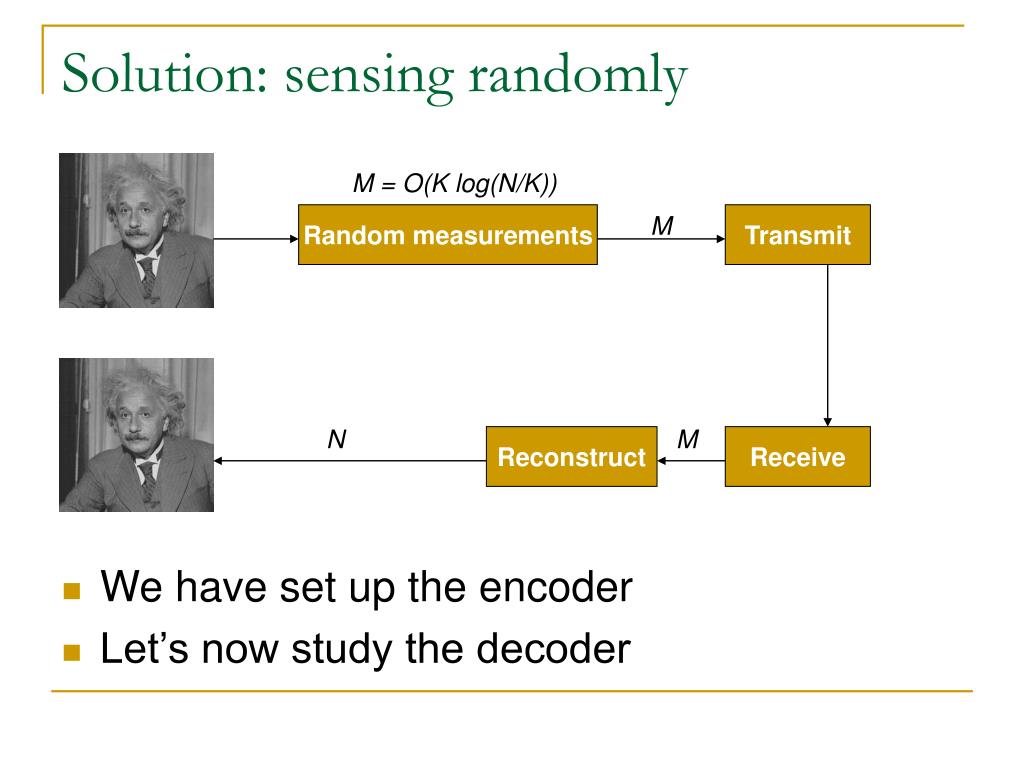

25. Solution: sensing randomly M = O(K log(N/K)) • We have set up the encoder • Let’s now study the decoder Random measurements M Transmit N M Reconstruct Receive

26. CS recovery • Assume a is K-sparse, and y = FYa • We can recover a by solving: • This is a NP-hard problem (combinatorial) • Use some tractable approximation Count number of active coefficients

27. Robust CS recovery • What about a is only compressible and y = F(Ya + n), with n and unknown error term? • Isometry constant of F: The smallest K such that, for all K-sparse vectors x: • F obeys a Restricted Isometry Property (RIP) if dK is not too close to 1 • F obeys a RIP  Any subset of K columns are nearly orthogonal • To recover K-sparse signals we need d2K < 1 (unique solution)

28. Recovery techniques • Minimization of L1-norm • Greedy techniques • Iterative thresholding • Total-variation minimization • …

29. Recovery by minimizing L1-norm • Convexity: tractable problem • Solvable by Linear or Second-order programming • For C > 0, â1 = â if: Sum of absolute values

30. Recovery by minimizing L1-norm • Noisy data: Solve the LASSO problem • Convex problem solvable via 2nd order cone programming (SOCP) • If d2K < 2 – 1, then:

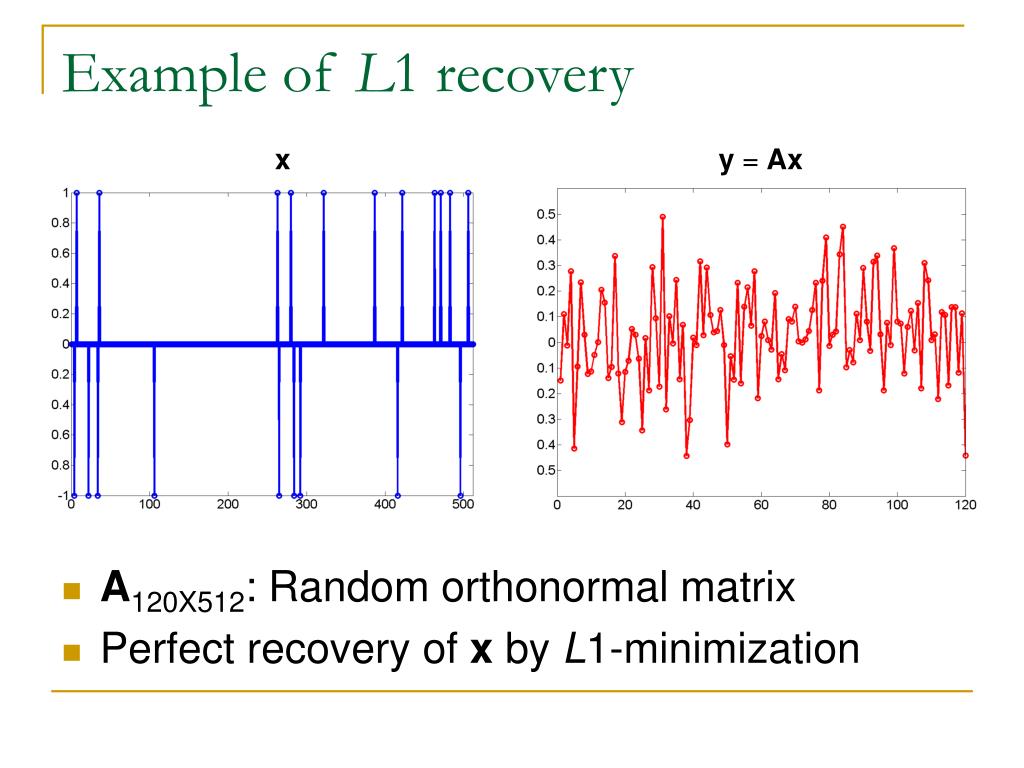

31. Example of L1 recovery x y = Ax • A120X512: Random orthonormal matrix • Perfect recovery of x by L1-minimization

32. Recovery by Greedy Pursuit • Algorithm: • New active component: that whose corresponding fi is most correlated with y • Find best approximation, y’, to y using active components • Substract y’ from y to form residual e • Make y = e and repeat • Very fast for small-scale problems • Not as accurate/robust for large signals in the presence of noise

33. Recovery by Iterative Thresholding • Algorithm: • Iterates between shrinkage/thresholding operation and projection onto perfect reconstruction • If soft-thresholding is used, analogous theory to L1-minimization • If hard-thresholding is used, the error is within a constant factor of the best attainable estimation error [Blumensath08]

34. Recovery by TV minimization • Sparseness: signals have few “jumps” • Convexity: tractable problem • Accurate and robust, but can be slow for large-scale problems

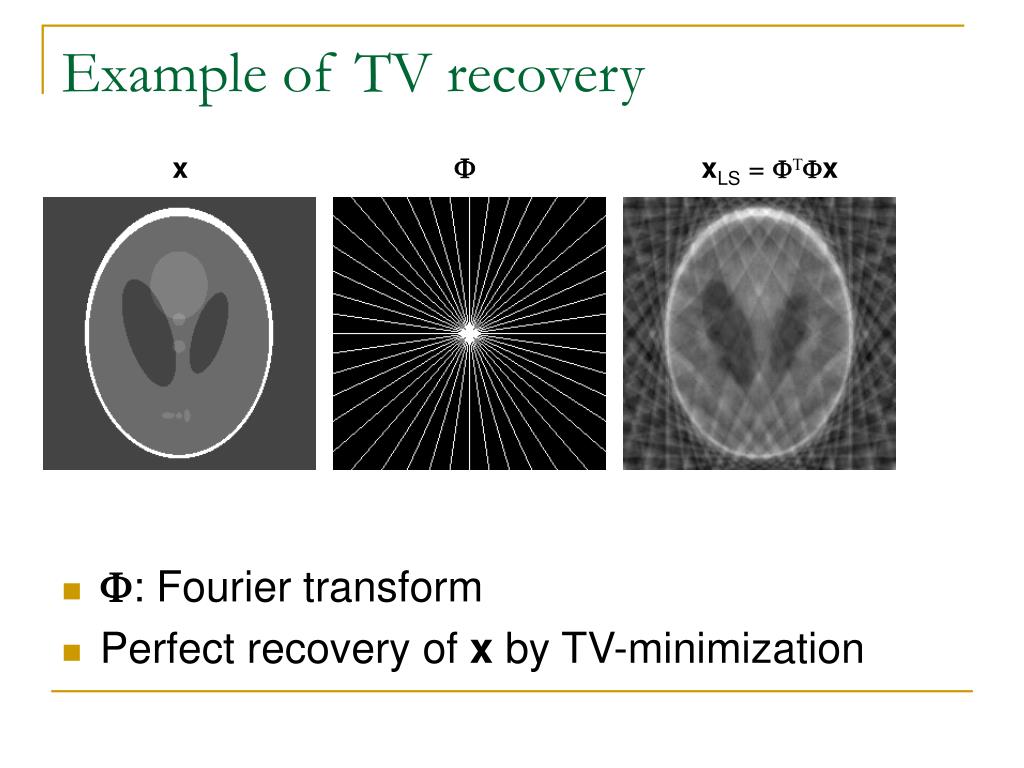

35. Example of TV recovery x F xLS = FTFx • F: Fourier transform • Perfect recovery of x by TV-minimization

36. Summary • Sensing: • Use random sampling in dictionaries with low coherence to that where the signal is sparse. • Choose M wisely • Recovery: • A wide range of techniques are available • L1-minimization seems to work well, but choose that best fitting your needs

37. CONTENTS • WHAT? • Introduction to Compressed Sensing (CS) • HOW? • Theory behind CS • FOR WHAT PURPOSE? • CS applications • AND THEN? • Active research and future lines

38. Some CS applications • Data compression • Compressive imaging • Detection, classification, estimation, learning… • Medical imaging • Analog-to-information conversion • Biosensing • Geophysical data analysis • Hyperspectral imaging • Compressive radar • Astronomy • Comunications • Surface metrology • Spectrum analysis • …

39. Data compression • The sparse basis Y may be unknown or impractical to implement at the encoder • A randomly designed F can be considered a universal encoding strategy • This may be helpful for distributed source coding in multi-signal settings • [Baron et al. 05, Haupt and Nowak 06,…]

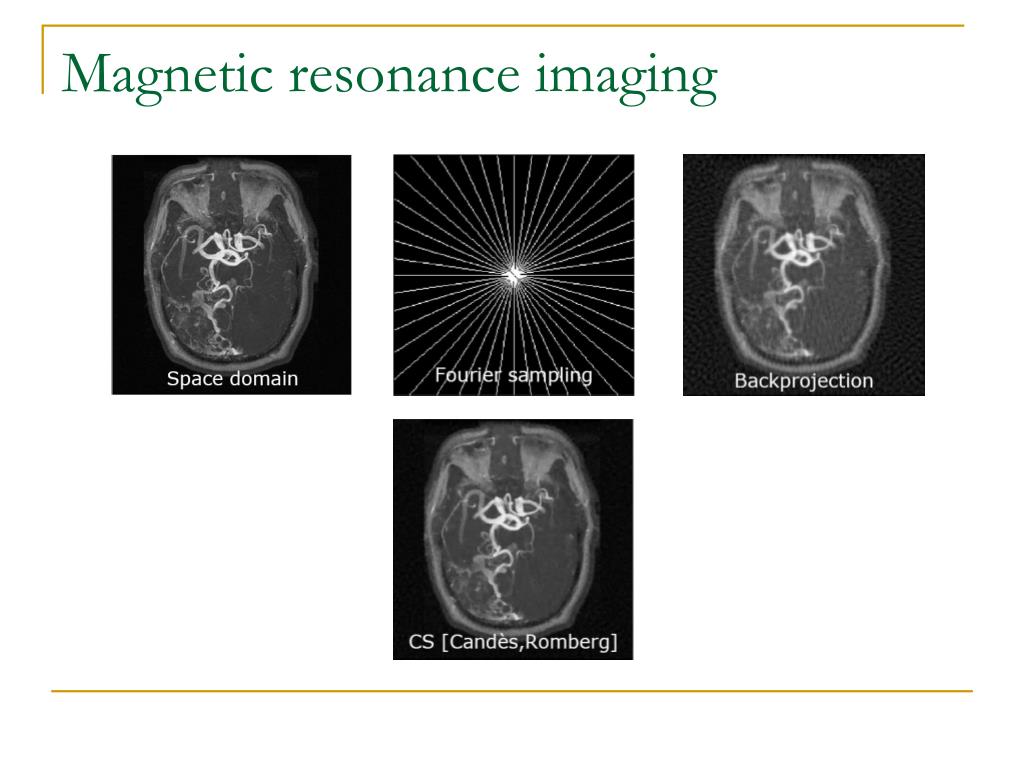

40. Magnetic resonance imaging

41. Rice Single-Pixel CS Camera

42. Rice Analog-to-Information conversion • Analog input signal into discrete digital measurements • Extension of A2D converter that samples at signal’s information rate rather than its Nyquist rate

43. CS in Astronomy [Bobin et al 08] • Desperate need for data compression • Resolution, Sensitivity and photometry are important • Herschel satellite (ESA, 2009): conventional compression cannot be used • CS can help with: • New compressive sensors • A flexible compression/decompression scheme • Computational cost (Fx): O(t) vs. JPEG 2000’s O(t log(t)) • Decoupling of compression and decompression • CS outperforms conventional compression

44. CONTENTS • WHAT? • Introduction to Compressed Sensing (CS) • HOW? • Theory behind CS • FOR WHAT PURPOSE? • CS applications • AND THEN? • Active research and future lines

45. CS is a very active area

46. CS is a very active area • More than seventy 2008 papers in CS repository • Most active areas: • New applications (de-noising, learning, video, • New recovery methods (non-convex, variational, CoSamp,…) • ICIP 08: • COMPRESSED SENSING FOR MULTI-VIEW TRACKING AND 3-D VOXEL RECONSTRUCTION • COMPRESSIVE IMAGE FUSION • IMAGE REPRESENTATION BY COMPRESSED SENSING • KALMAN FILTERED COMPRESSED SENSING • NONCONVEX COMPRESSIVE SENSING AND RECONSTRUCTION OF GRADIENT-SPARSE IMAGES: RANDOM VS. TOMOGRAPHIC FOURIER SAMPLING • …

47. Conclusions • CS is a new technique for acquiring and compressing images simultaneously • Sparseness + Incoherence + random sampling allows perfect reconstruction under some conditions • A wide range of applications are possible • Big research effort now on recovery techniques

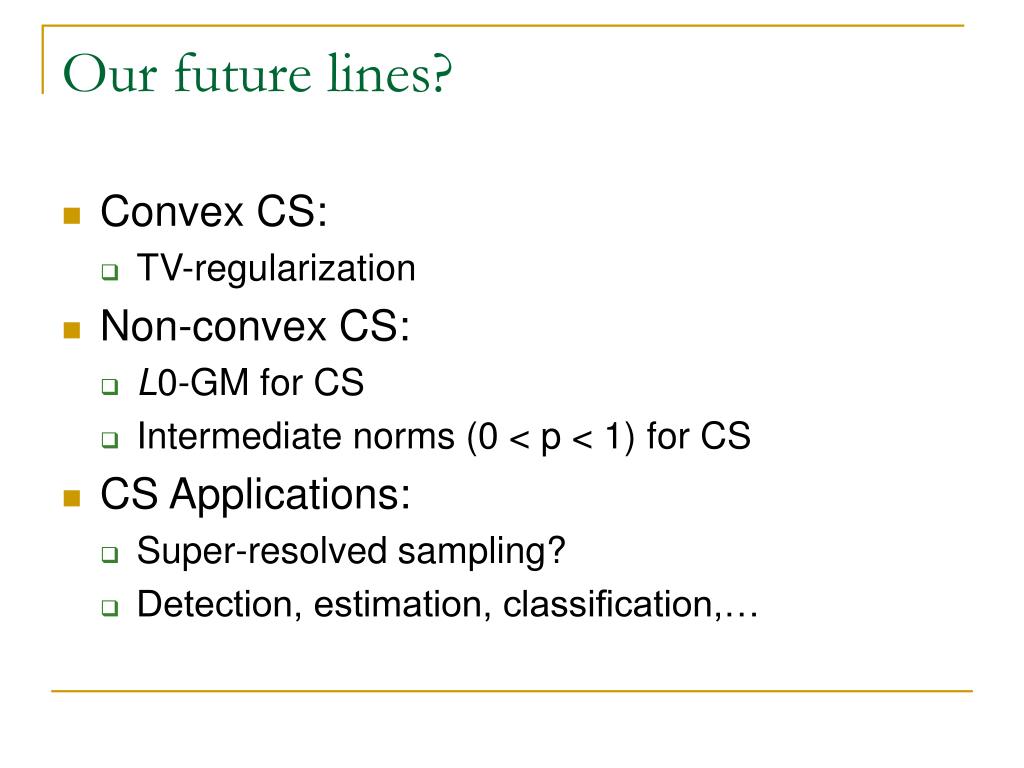

48. Our future lines? • Convex CS: • TV-regularization • Non-convex CS: • L0-GM for CS • Intermediate norms (0 < p < 1) for CS • CS Applications: • Super-resolved sampling? • Detection, estimation, classification,…
