Compressed sensing and Partial Fourier MRI Image Reconstruction

Compressed sensing and Partial Fourier MRI Image Reconstruction. 1-Compressed sensing. 2-Partial Fourier. 3-My thesis . Introduce Compressed sensing. it is possible to fully recover a signal from sampling points much fewer than that defined by Shannon's sampling theorem. Compressed Sensing.

amanda
Télécharger la présentation

Compressed sensing and Partial Fourier MRI Image Reconstruction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Compressed sensing and Partial Fourier MRI Image Reconstruction 1-Compressed sensing. 2-Partial Fourier. 3-My thesis .

  2. Introduce Compressed sensing it is possible to fully recover a signal from sampling points much fewer than that defined by Shannon's sampling theorem

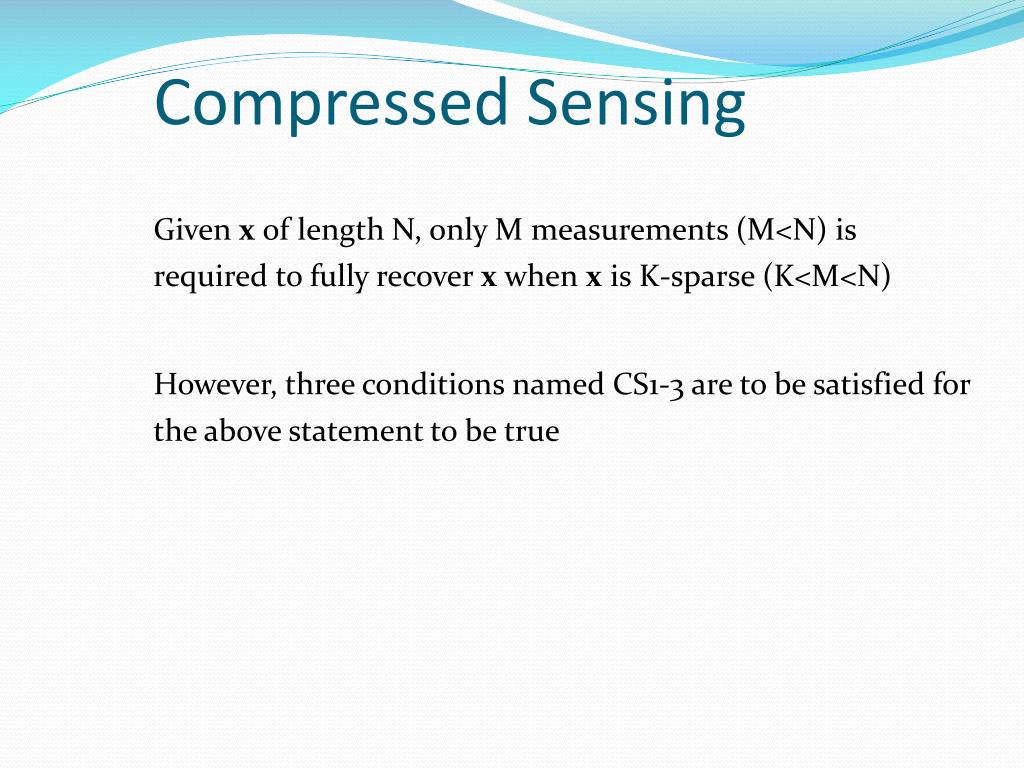

  3. Compressed Sensing Given x of length N, only M measurements (M<N) is required to fully recover x when x is K-sparse (K<M<N) However, three conditions named CS1-3 are to be satisfied for the above statement to be true

  4. Three essential criteria Sparsity: The desired signal has a sparse representation in a known transform domain Incoherence Undersampled sampling space must generate noise-like aliasing in that transform domain Non-linear Reconstruction Requires a non-linear reconstruction to exploit sparsity while maintaining consistency with acquired data

  5. Medical images often demonstrate inherent sparsities

  6. Incoherence Sampling must generate noise-like aliasing in image domain (more strictly, transform domain) Very loosely speaking, patterns of sampling must demonstrate enough randomness

  7. Conjugate Gradient: non-linear recon with iterative optimization • A multi-dimensional optimization method suitable for non-cartesian sampled images M.S. Hansen et.al Magnetic Resonance in Medicine 55:85–91 (2006)

  8. Partial k-space acquisition Partial acquisition in phase encode (PE) axis to reduce scan time Partial acquisition in frequency encode (FE) axis to reduce echo time

  9. What is Half Fourier/Partial Fourier Reconstruction? Constrained reconstruction exploiting symmetry properties of Fourier transform For any real x[n] (Conjugate Symmetry)

  10. What I want to is >>>> *Using Partial Fourier and compressed sensing to reduce number of samples as much as possible

  11. Wavelets are no longer the central topic, despite the previous edition’s original title. It is just an important tool, as the Fourier transform is. Sparse representation and processing are now at the core- S. Mallat, 2009 Thanks for Your Attention!!
